FLEXA Series Cartoning

Machine overview

Space-saving design for whatever product to be packed.

The Flexa series features intermittent and continuous-motion cartoners to satisfy the most diverse demands according to the product to be packed. Flexa, besides being very flexible in terms of carton configurations and dimensions, is also extremely versatile in packing the widest range of products thanks to the intermittent-motion (single pusher) or the continuous-motion (double pusher).
Moreover, Flexa is one of the most compact machines in its class with an ergonomic design that facilitates the loading of packaging materials. Changeover operations are extremely simple, fast and tool-free thanks to servo-motor technology.

Production plant

IMA Safe

Machine highlights

  1. Feeding system versatility

    Different systems available for a wide range of solutions.

  2. Flexibility

    Wide range of carton dimensions.

  3. Compact solution

    Available with either intermittent or continuous motion technology.

  4. Intuitive

    Operator-friendly.

  5. Easy cleaning

    Very easy to clean.

Cost-effective
& flexible feeding systems

We provide cost-effective and flexible feeding systems, ensuring a wide range of solutions for both the pharma and non-pharma sectors.

Track & Trace

The integrated module to the cartoner, to apply camera and ink-jet system, is the ideal solution for cartoning serialization having a shorter line and higher efficiency.

Machine details

Machine Video Trailer

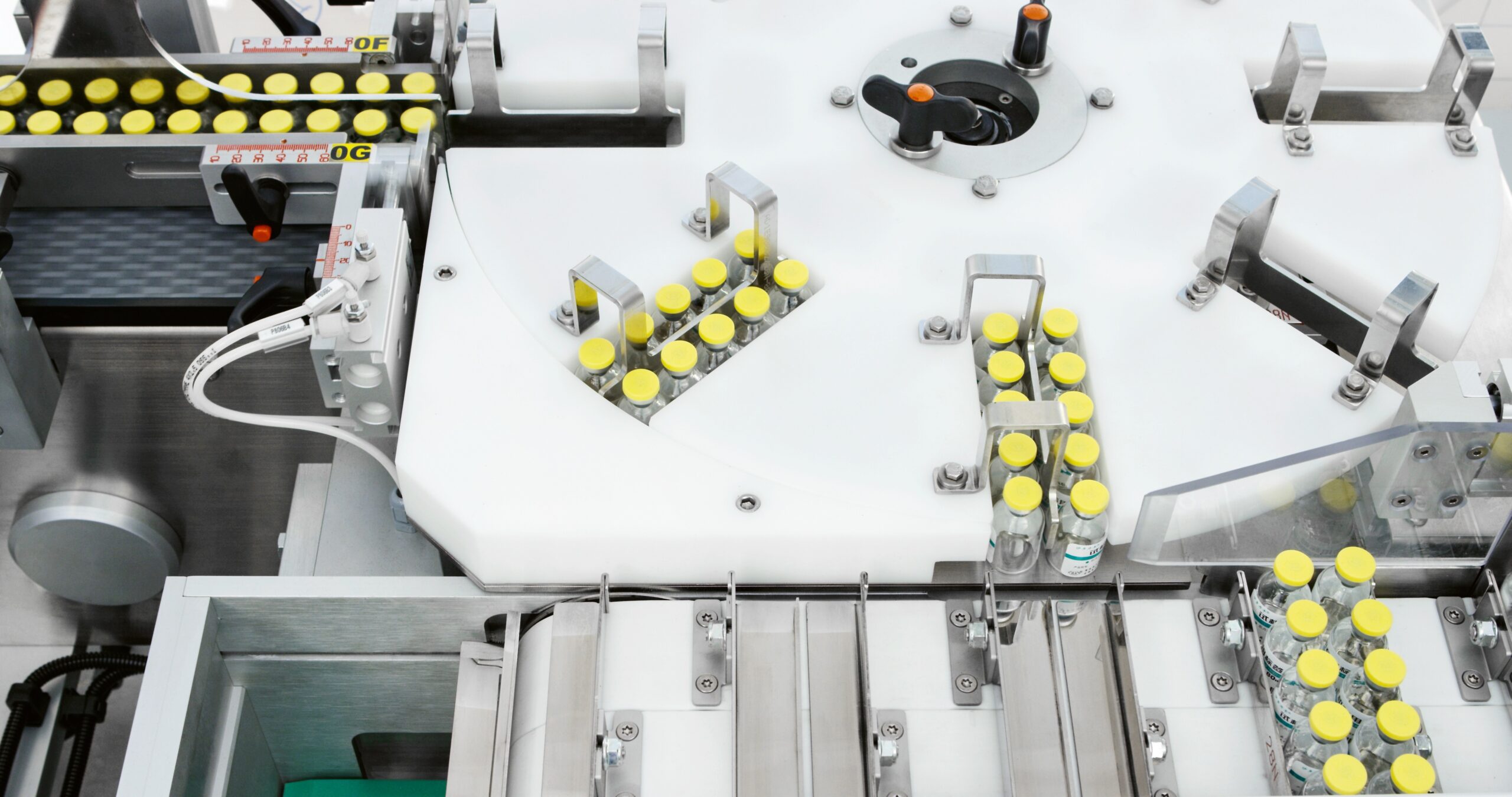

Feeding area

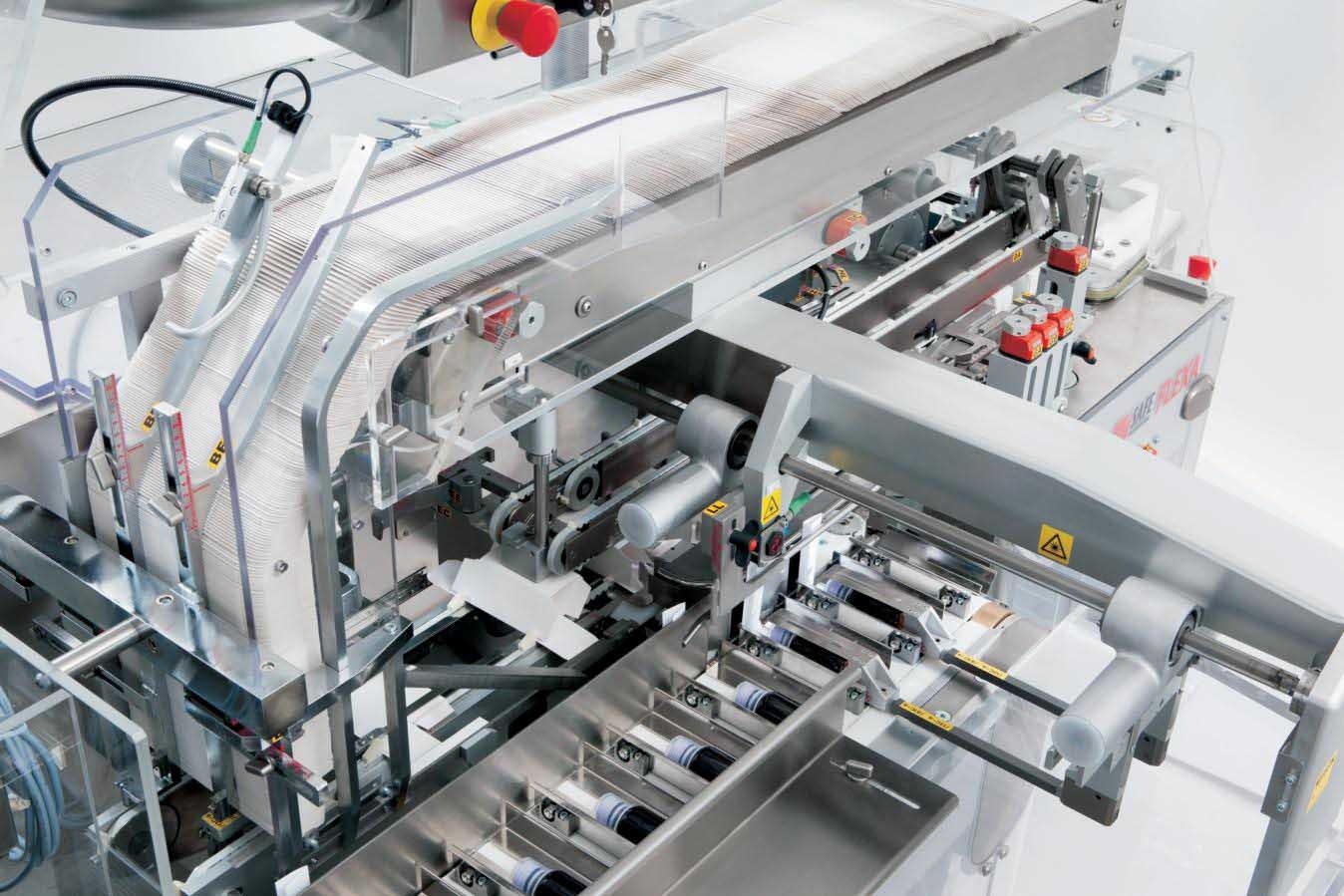

Carton magazine

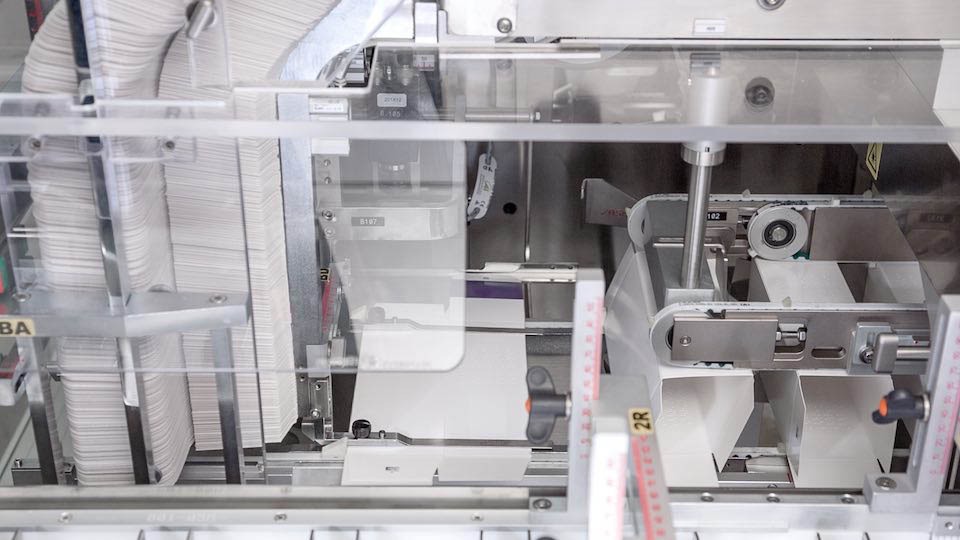

Carton opening

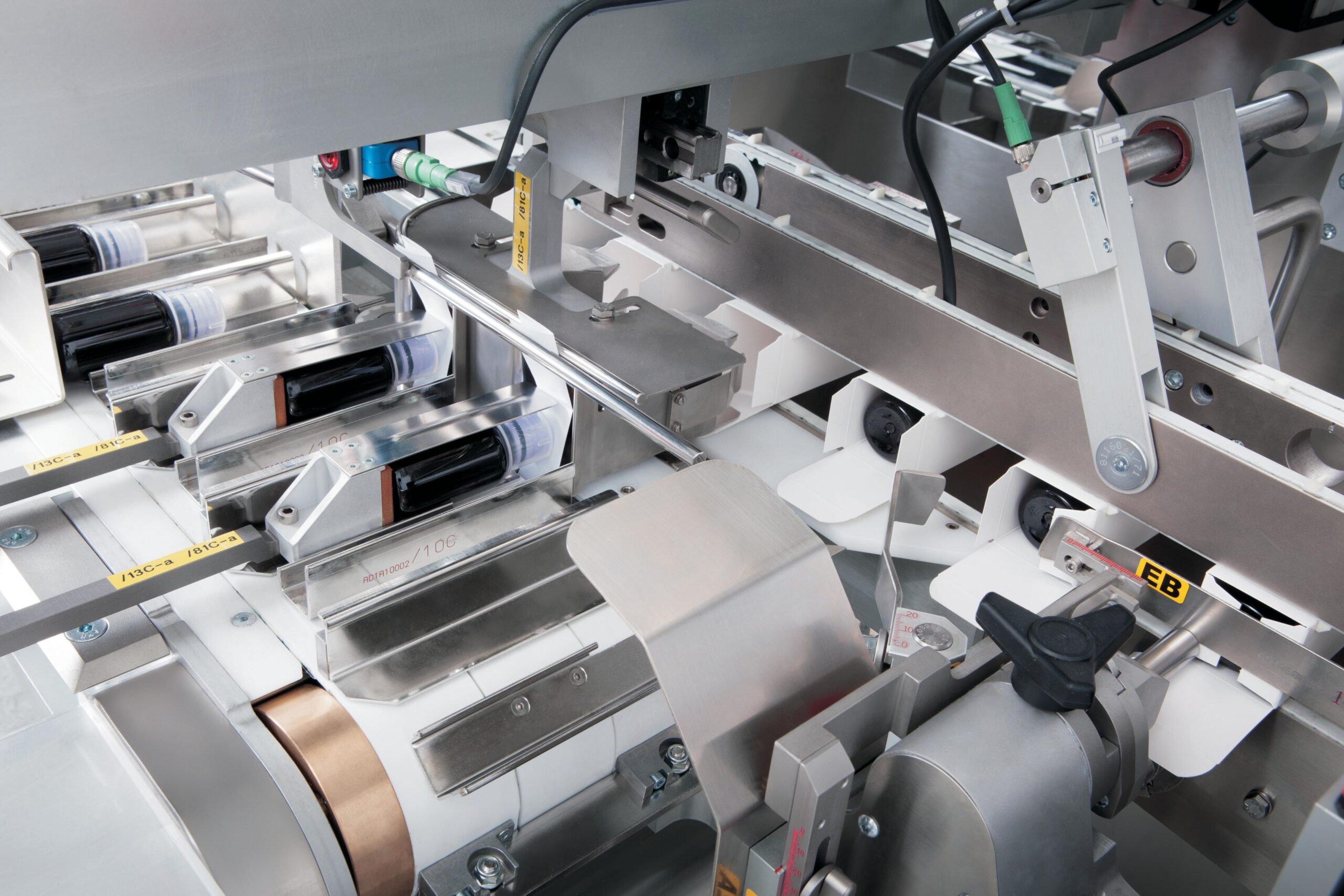

Product insertion into the carton

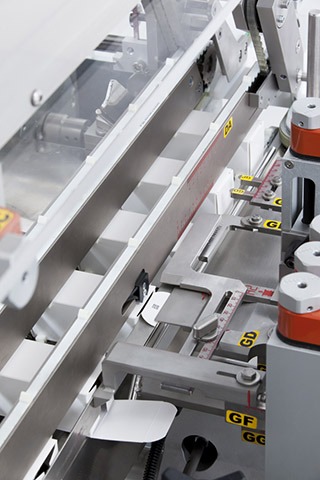

Carton closing

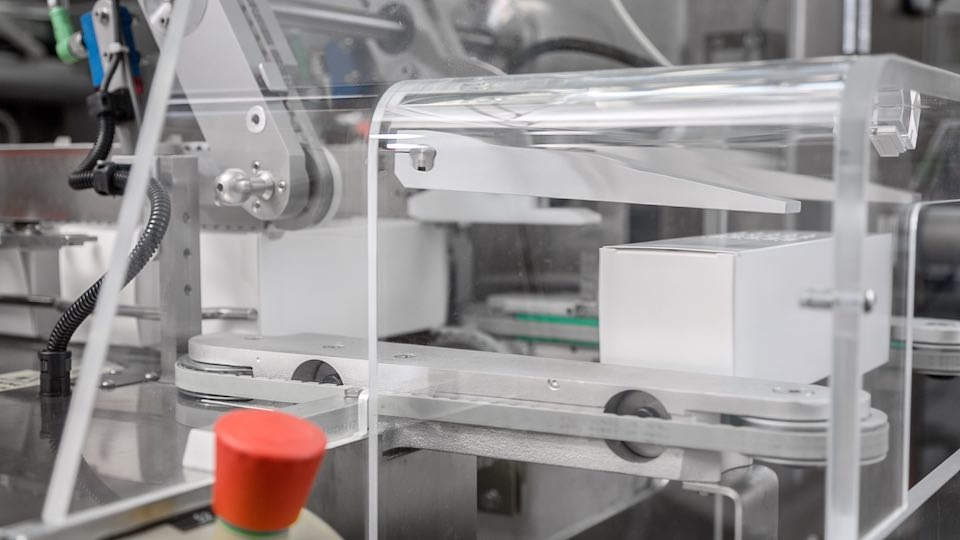

Carton outfeed

Technical information

TECHNICAL DATA FLEXA
 CONTINUOUS MOTIONINTERMITTENT MOTION
MODELFLEXA CLDFLEXA CLDBFLEXA ASBFLEXA ALB
Max Speed180 cycles/min.160 cycles/min.120 cycles/min.120 cycles/min.
Carton dimensions
Width (A)min 15-90 maxmin 15-140 maxmin 15-140 maxmin 15-140 max
Height (B)min 12-90 maxmin 12-90 maxmin 12-65 maxmin 12-90 max
Length (C/H)min 55-220 maxmin 55-220 maxmin 55-190 maxmin 55-220 max
