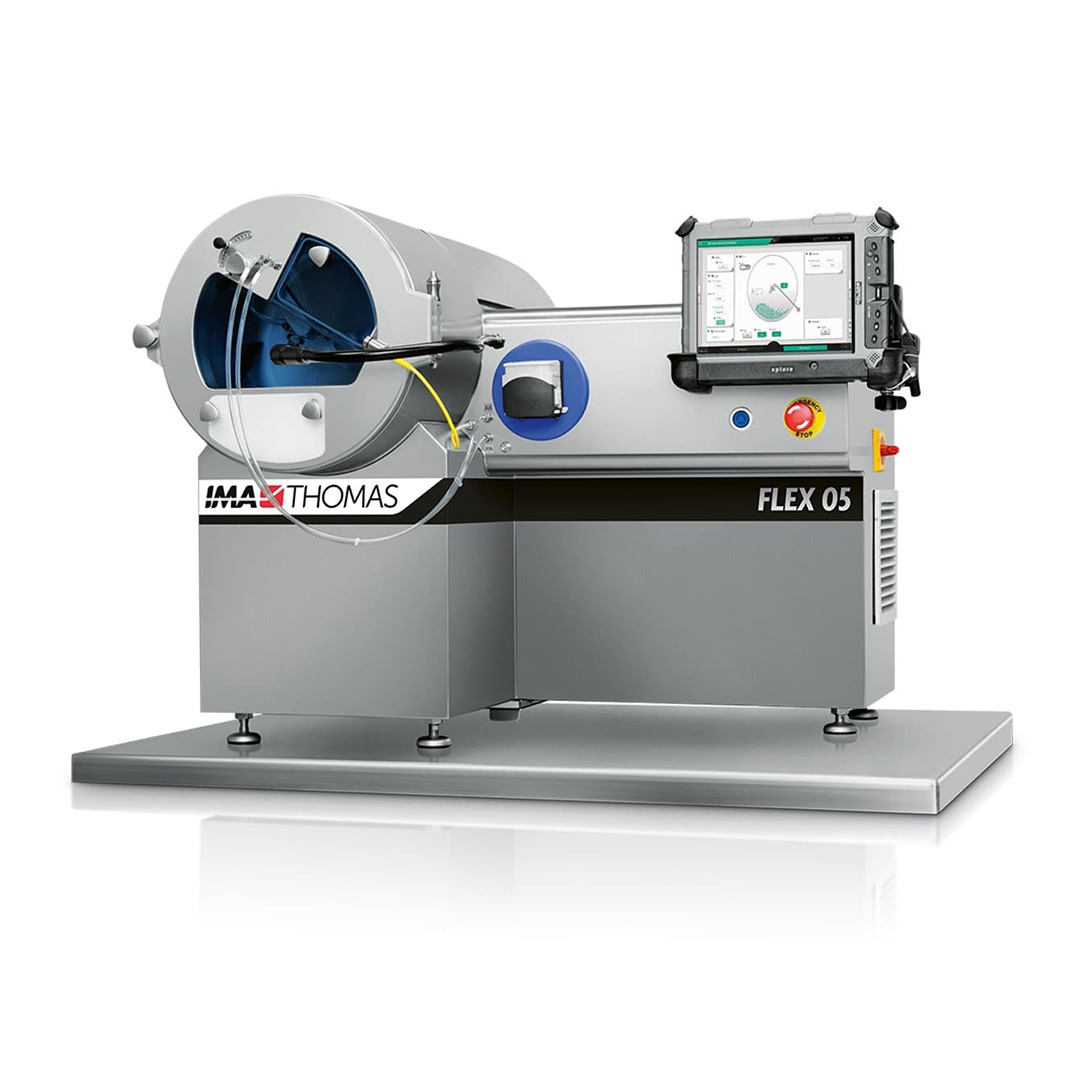

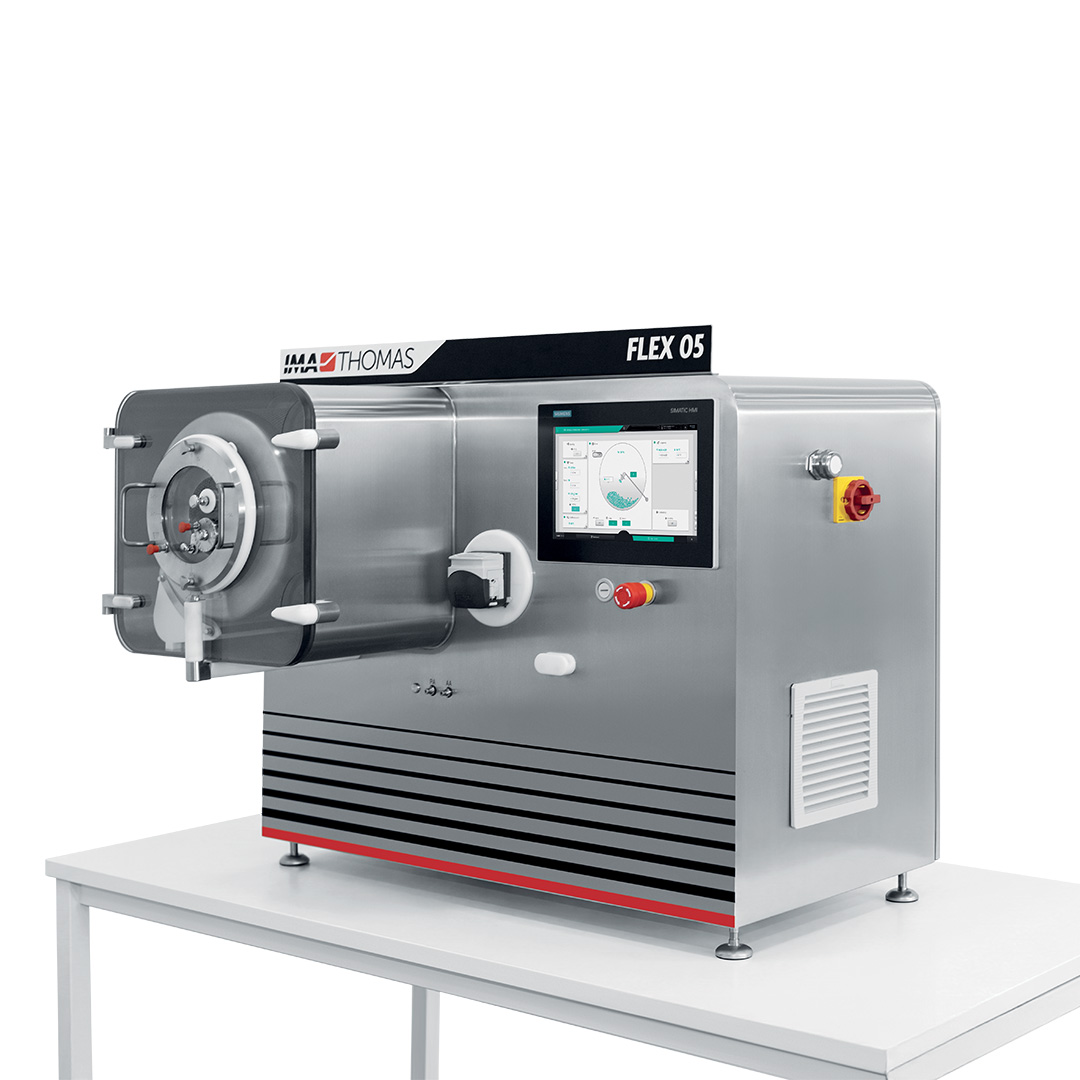

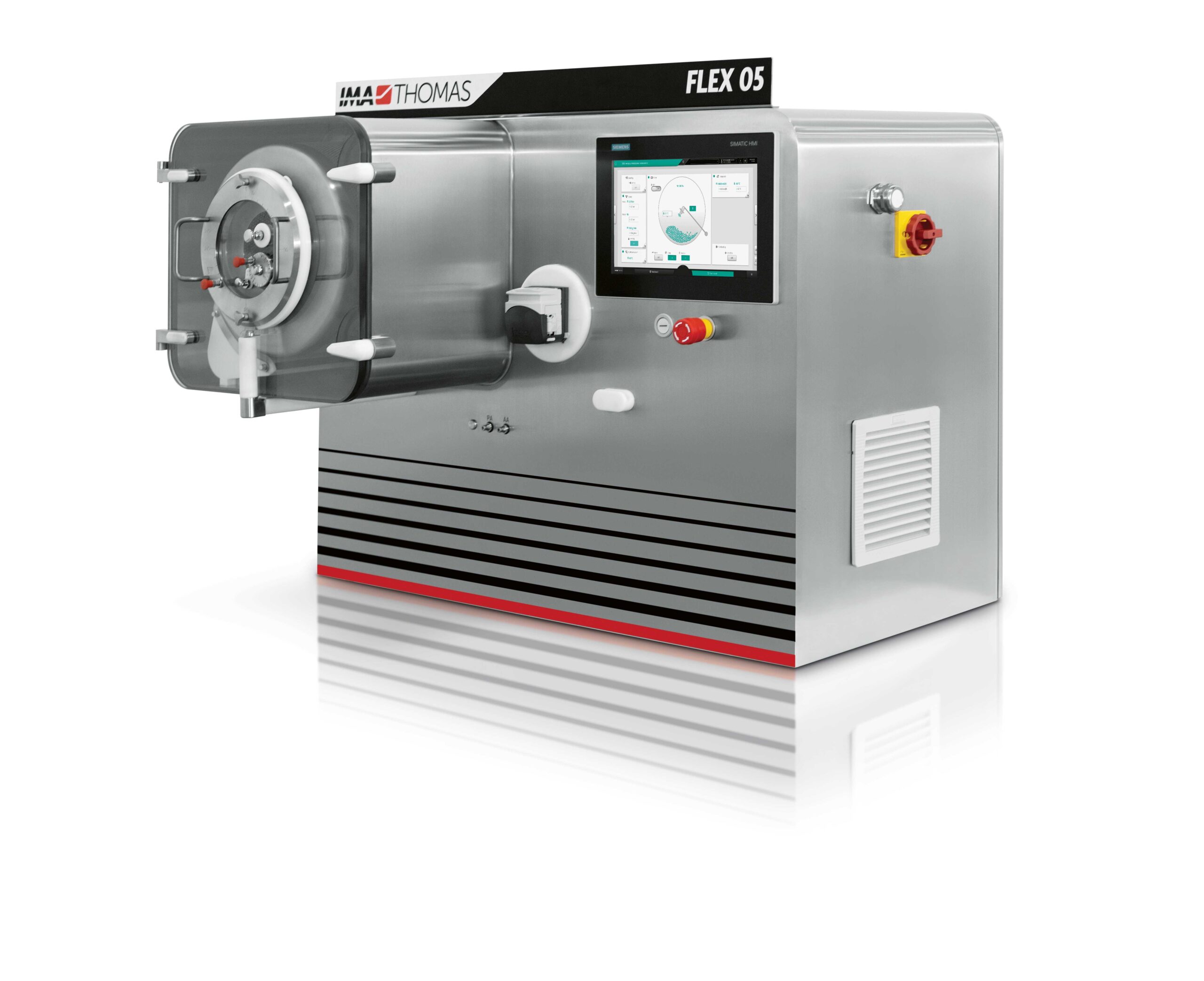

An Innovative R&D Tablet Coater
Thomas Processing’s FLEX 05 is a benchtop, high-performance tablet coating system with many uses. It’s equipped with divider plates for small batch sizes, making it the perfect machine for research and development. With impressive drum capacity capabilities ranging from as little as 100 milliliters to as much as 5 liters of tablets per drum, your batch size is up to you with the FLEX 05.
Built on our tradition of innovation, Thomas’s FLEX 05 is one of the only benchtop coating machines available in the industry with computer-based controls for data acquisition. It also provides a periodic data report to give you a better understanding of your coating machine throughput.
Production plant
IMA Thomas
Handles batches from 100 tablets up to 5 liters, supporting both functional and modified‑release coating processes.

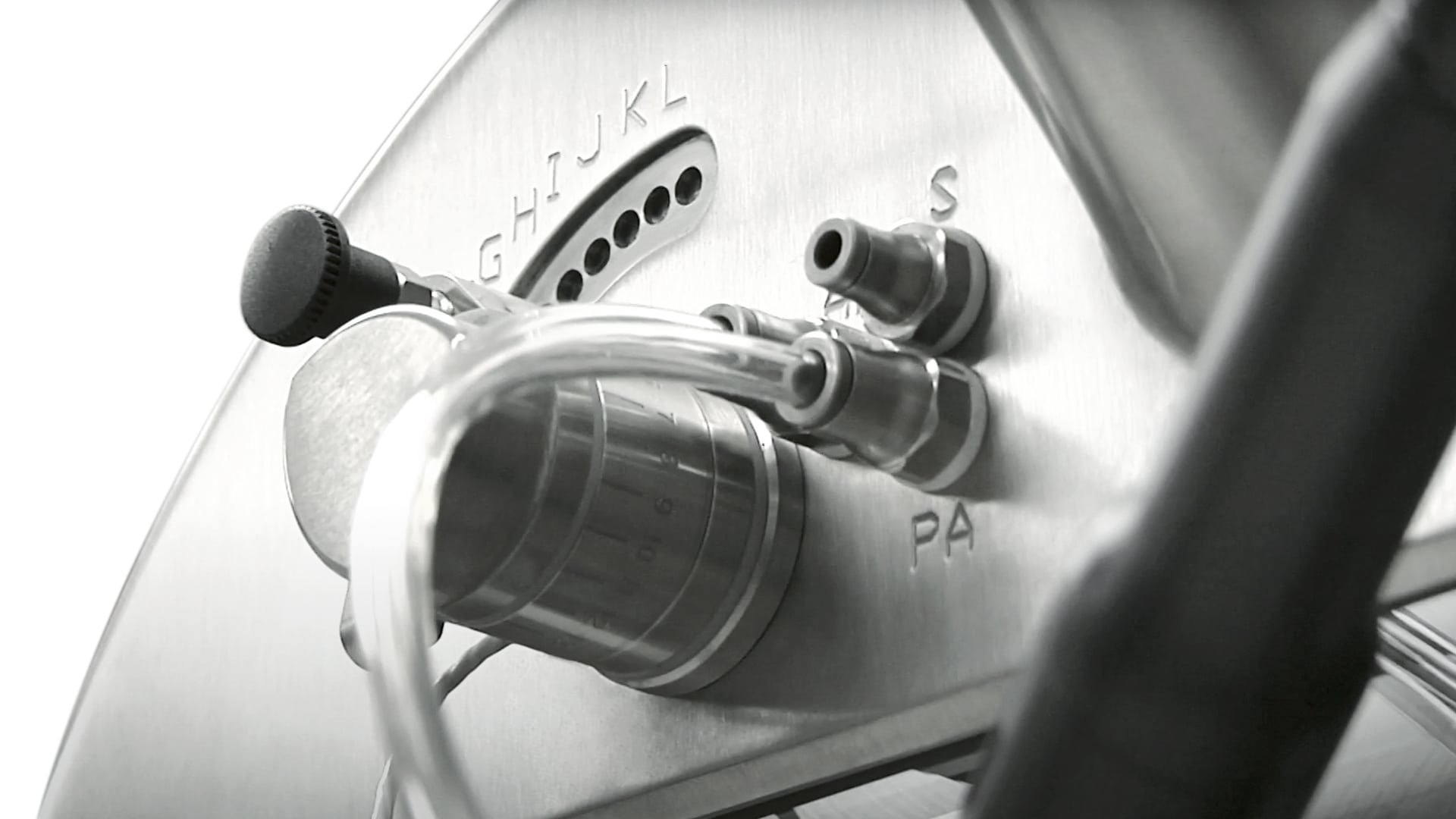

Equipped with a Schlick™ spray nozzle featuring an anti‑bearding cap to ensure consistent and reliable atomization.
Front-access manual sampling and a wide viewing window provide full process visibility and easier in‑process control.
Tool‑less disassembly and complete separation between product and mechanical areas, with an optional setup for potent compound handling.
Thomas’s FLEX 05 is equipped with an optional aqueous and solvent coating tablet bed that gives you a uniform film coating on your tablet surfaces to result in an elegant finish.
| FLEX 05 technical data | |

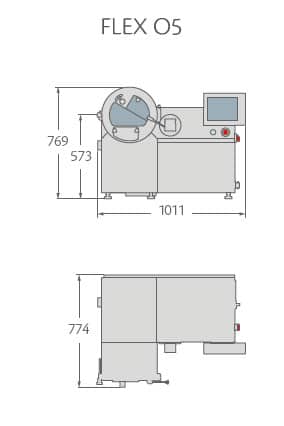

| Overall dimensions | 24” x 36” x 30” high | [610 mm x 815 mm x 760 mm] |
| Drum volume | Up to 5 liters; ½ liter with divider plate |
| Drum diameter | 12 in. | [305 mm] |
| Drum speed | 5 – 40 RPM |
| Air flow and temperature | 20 – 100 CFM (45°C maximum bed temp) | [35 – 170 m3/h] |
| Spray nozzle | Schlick™ 970 ABC |
| Solution delivery | Watson-Marlow peristaltic pump |
| Atomizing/Pattern air | 20 – 45 psi at 12 SCFM | [1.4 – 3.0 bar at 20 m3/h] |
| Controls | PLC and touch panel HMI |
| Electrical | 8 kW @ Full Load |
| Compressed air supply | 50 psi | [3.3 bar] |
| Weight | 280 lbs. | [130 kg] |
