Fixed Loading Systems Aseptic Processing
Machine overview
Tailored solutions for tomorrow’s needs
The aim of advanced aseptic processing is the elimination and absolute control of all sources of human contamination. IMA Life’s fully automated FIXED VIAL LOADING SYSTEMS are the right technologies to advance this initiative further.
IMA Life loading systems, with their compact footprint, are extremely flexible to meet the most demanding integration and interface requirements with freeze dryers, upstream and downstream machines.

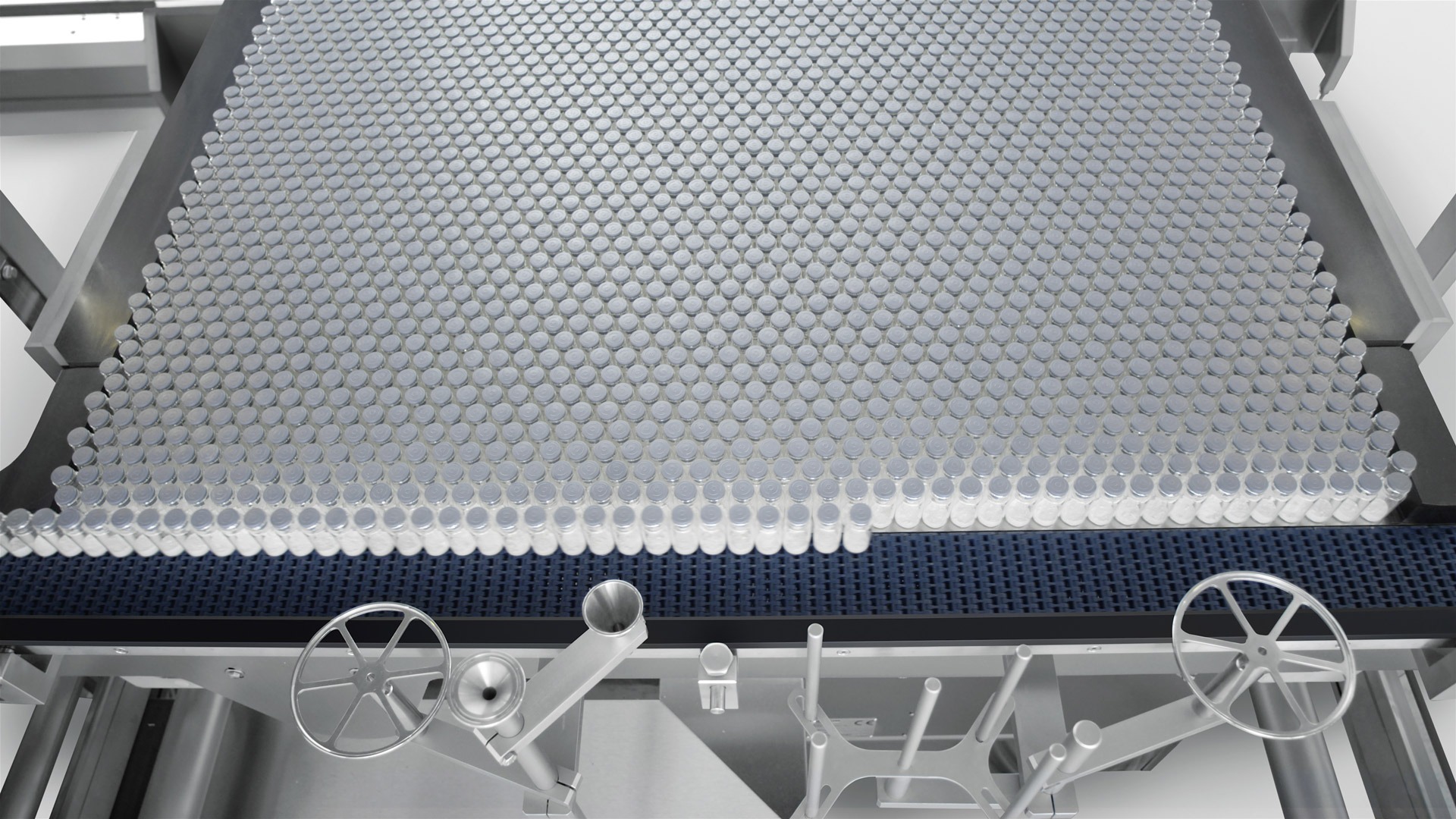

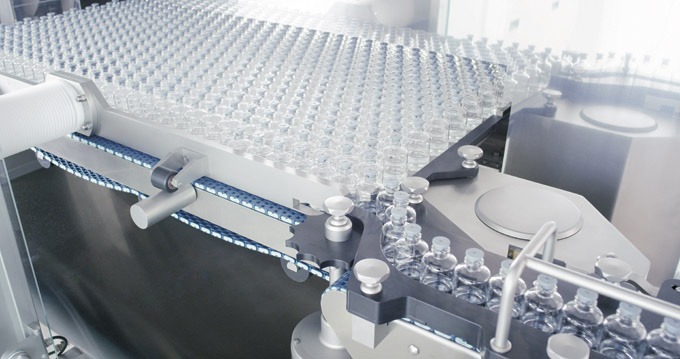

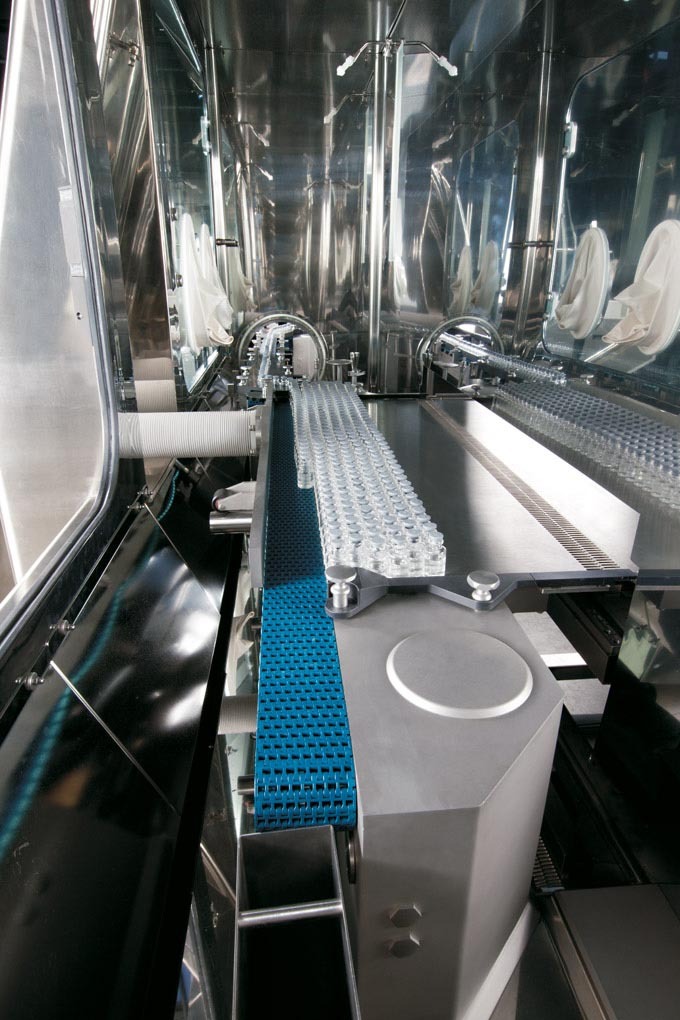

The freeze dryer is loaded or unloaded one shelf, one row or several rows at a time with vials at a constant level. All systems are frameless and are fixed (CLU, MINILOADER, DA VINCI and SEMI-AUTOMATIC SYSTEMS), flexible or mixed (combination of fixed and flexible solutions). The fixed vial loading/unloading systems consist of a conveyor integrated with the outfeed of the filling line, which transports vials to a loading/unloading station installed opposite the freeze dryer.
IMA Life is one of the few suppliers in the world that designs, manufactures and tests a full range of proven systems for the fully automatic loading and unloading of vials into industrial freeze dryers.
Production plant
IMA Life
Machine highlights
-
Loading speed
Up to 600 vials/min.
-
Quality sanitary design
VPHP (Vapour Phase Hydrogen Peroxide)-compliant.
-
Modular design
Full Modular Design Technology (MDT) approach.
-
Containment
Standard solution with oRABS. Pre-arranged for cRABS and isolator applications.
-
Upstream/downstream integrations possibilities
Excellent integration with freeze dryers, upstream and downstream machines.
-
Multiple configurations
Fixed and mixed (combination of fixed and flexible) configurations available.
-
Lower costs
Operational costs and process time considerably reduced.
Compact footprint
IMA Life loading systems, with their compact footprint, are designed to be extremely flexible to meet most demanding integration and interface requirements, even supporting non-IMA Life freeze dryers.
Machine details
Machine versions
Semi-Automatic Loading Systems For Trays/Frames
A real step forward in tray & frame vial loading
Although operator intervention is regulated strictly, it still is the main source of contamination. IMA Life semi-automatic tray and frame loading/unloading system meets the highest industry standards for the aseptic operations, drastically reducing human intervention and minimising contamination risks.
The semi-automatic loading and unloading system is very similar to our fully automatic system. The difference lies in the transport of the vials from the infeed/outfeed (un)loading system to the lyophilizer. As with the fully automatic system, the semi-automatic solution fills the gap between aseptic filling and capping operations. It is suitable for cleanroom environments and pre-arranged for open RABS technologies.
Polaris-LF
Loading and unloading made safe and effective.

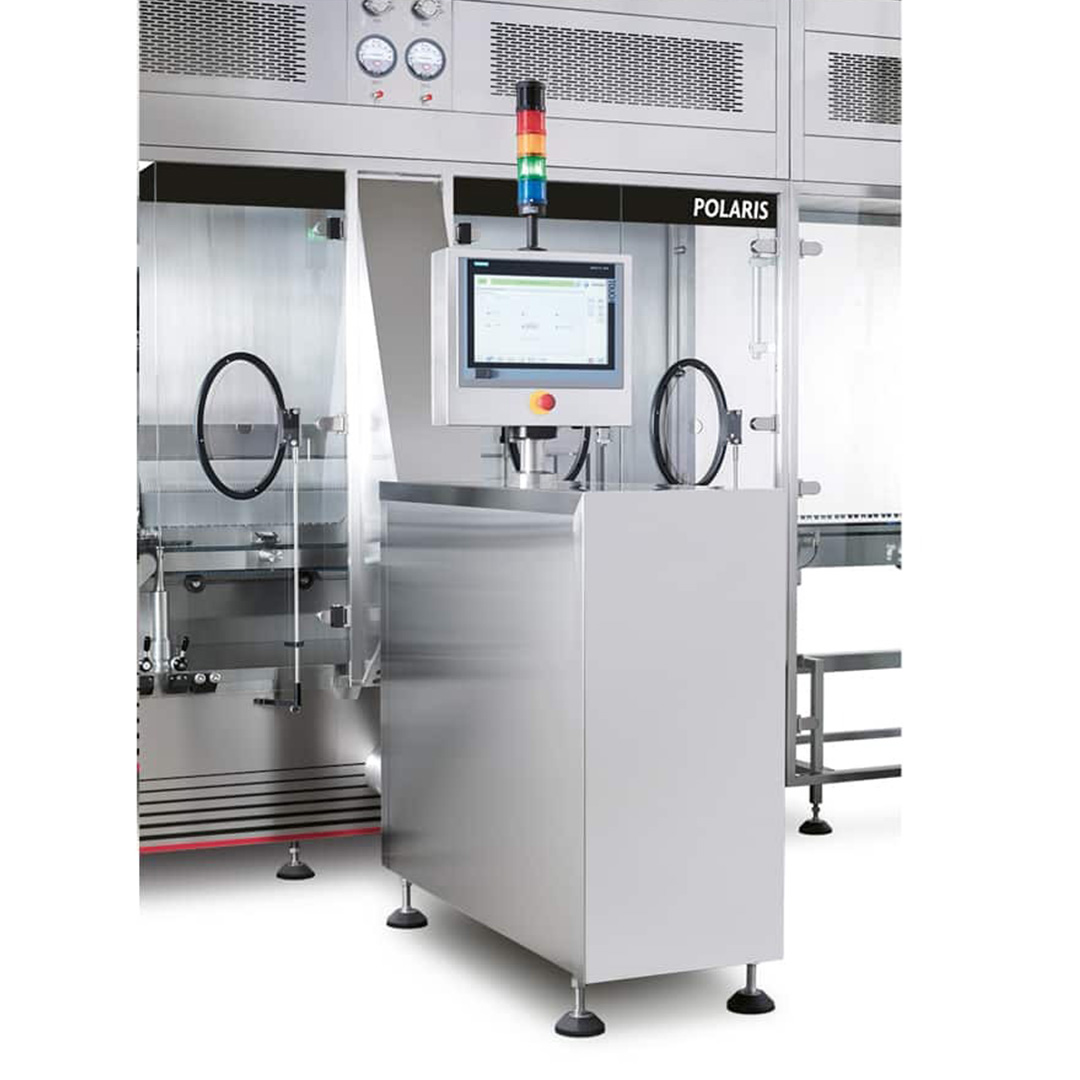

POLARIS is a compact and fixed system for automatic loading and unloading of vials, in and out of freeze dryers, and can be supplied in different sizes according to freeze dryer shelves.
Vial loading operations are performed at a constant shelf level and can be done in three different ways:
– Row by row accumulation, suitable for loading on shelves with an ambient temperature.
– Partial pack at leading edge on the shelf, suitable for loading on shelves with a cold temperature (4 to 8 °C).
– Partial pack directly into final position on the shelf, suitable for loading on shelves with a cold temperature (≤0°C).
POLARIS can be installed in-line with an upstream liquid-filling and stoppering machine and with a downstream capping machine.
Da Vinci
All great inventions are based on simple ideas.
Automated vial loading & unloading systems for industrial freeze dryers reduce the risk of contamination from humans, and cut operative costs while enhancing efficiency. Further benefits derive from the unique design concept behind the DA VINCI loader, which capitalises on our in-depth application experience: simple design for improved automation, enhanced performance and lowered operating costs.
The mechanism used to move vial packs into and out of the freez-dryer is based on a stand-alone, battery driven transfer module. Communication with the machine is fully wireless.
