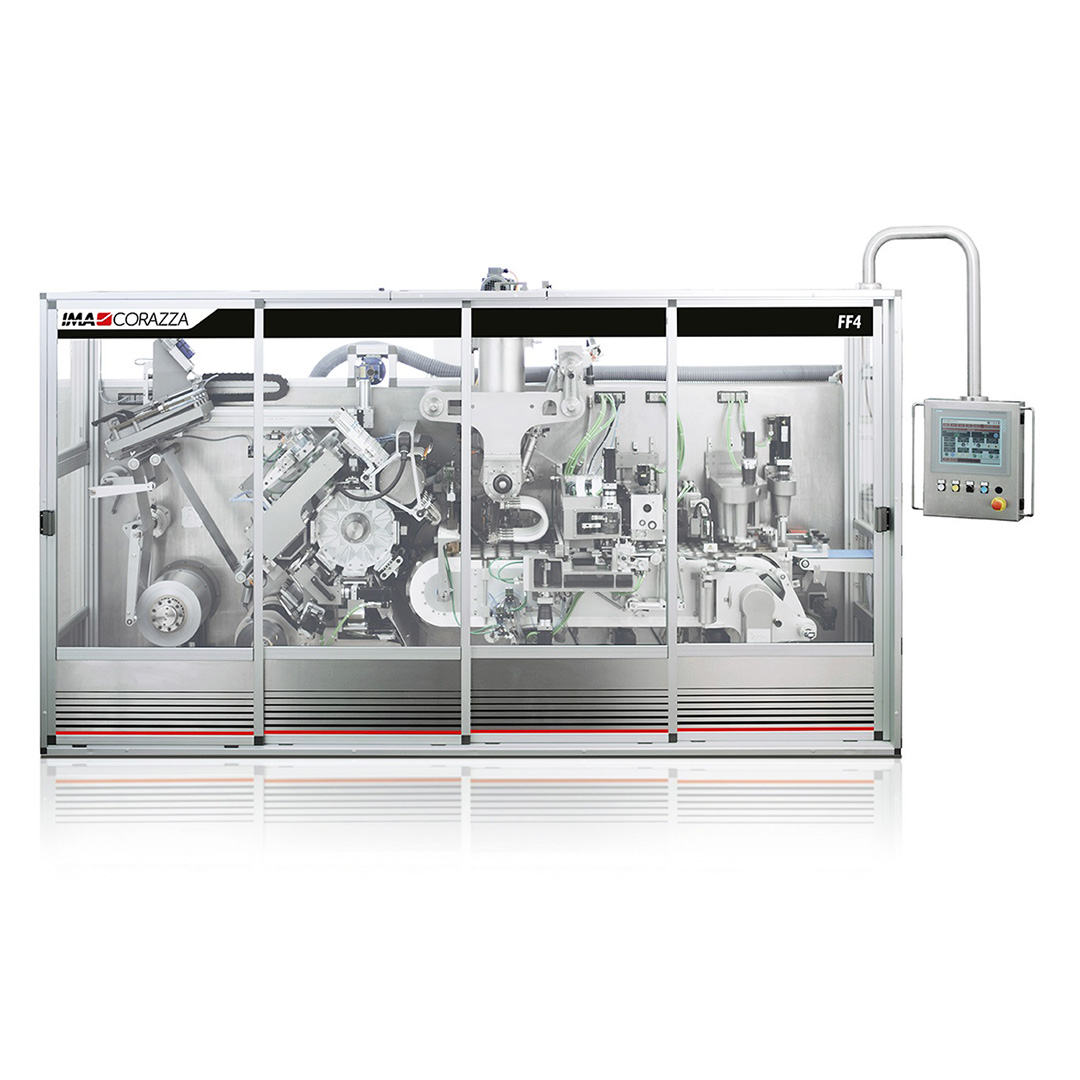

FF4 Series Dosing and wrapping
Machine overview
High-performance dosing and wrapping machine for cheese portions.

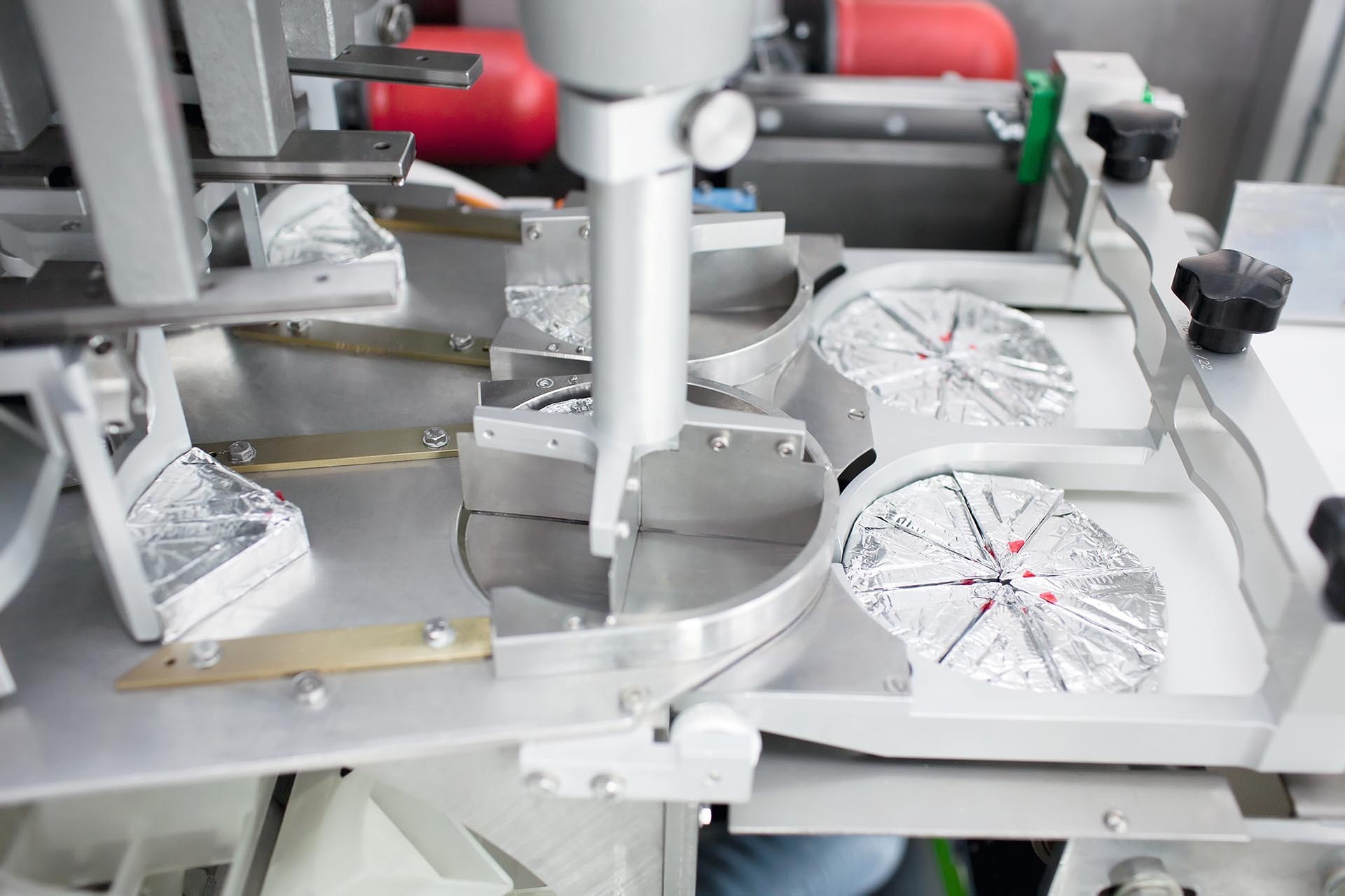

The FF4 implements the latest dedicated technologies for the packing of processed, cream or fresh cheese in triangular, square or rectangular portions.
Space-saving footprint with a modular design for maximum flexibility and efficiency.
Accurate hot and cold filling and flexible format capabilities are the key benefits of this space-efficient equipment ensuring a production capacity of up to 600 ppm. The dosing unit can be cleaned with automatic CIP.
The FF4 can also be executed in a multi-flavour configuration.
Production plant
IMA Corazza
Machine highlights
-
Cantilever inline stainless-steel design

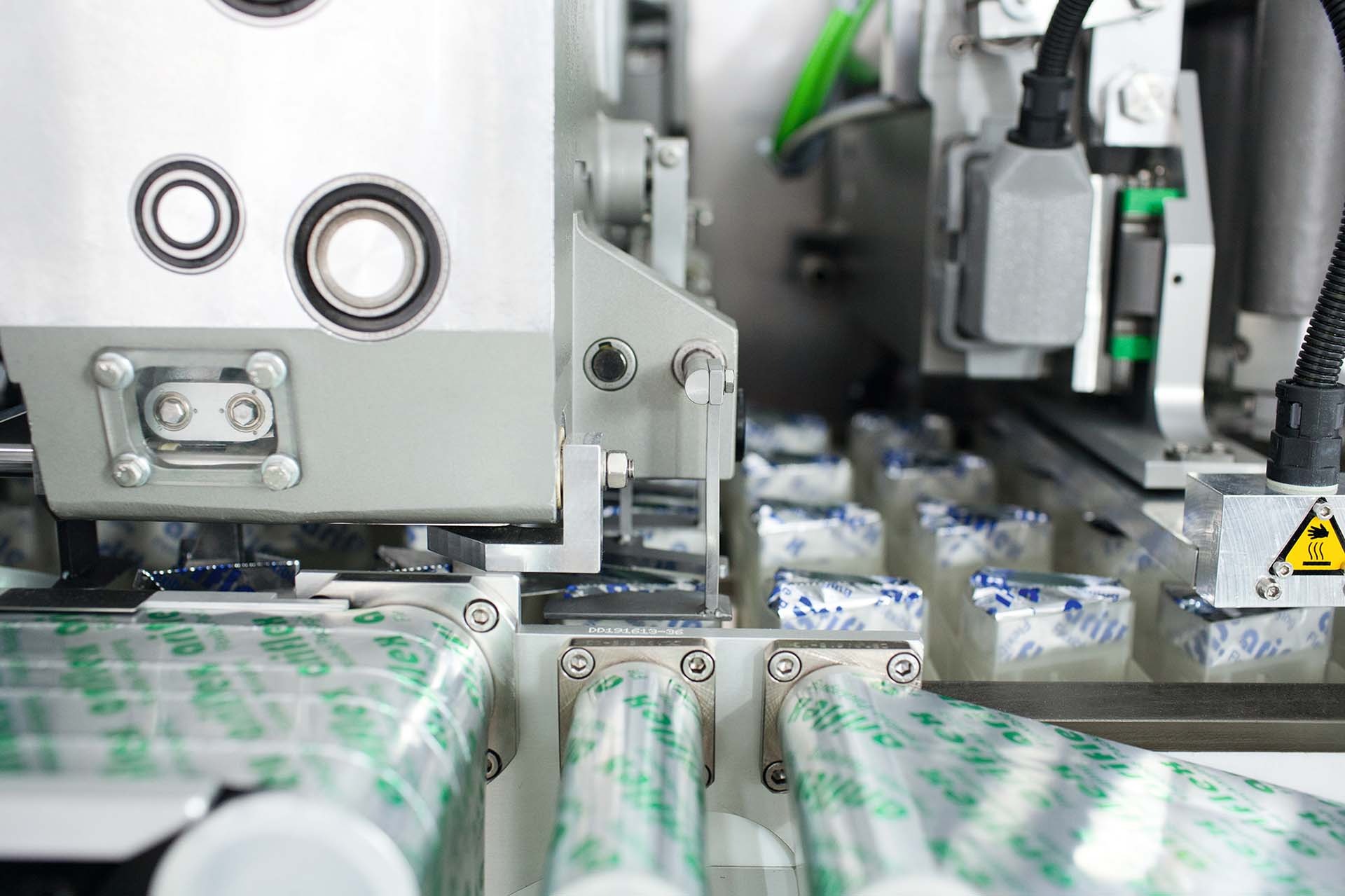

Four-track cantilever inline machine with full stainless-steel construction for hygiene, durability, and easy operation.
-
Hot & cold filling on a single 4‑lane unit

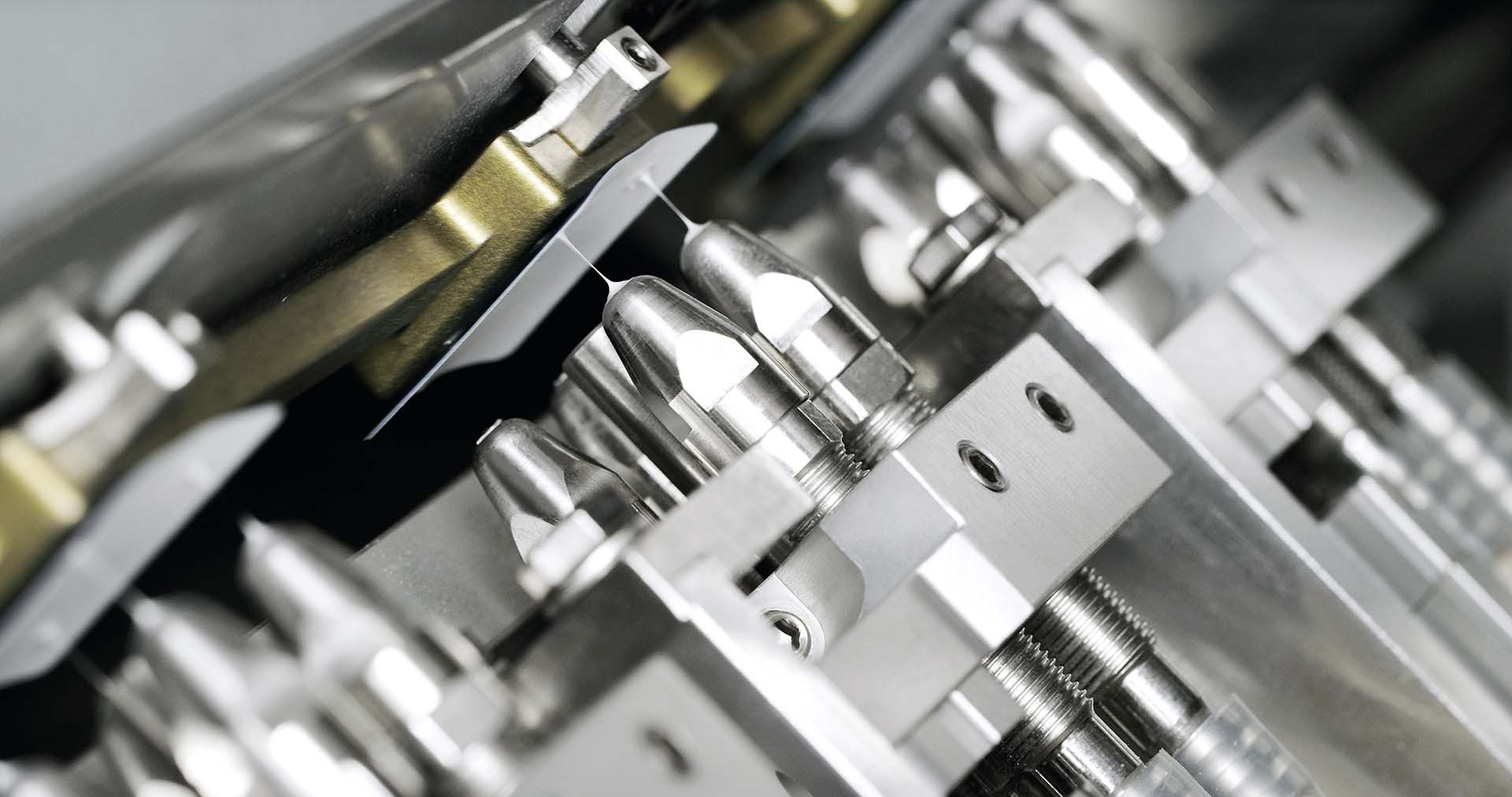

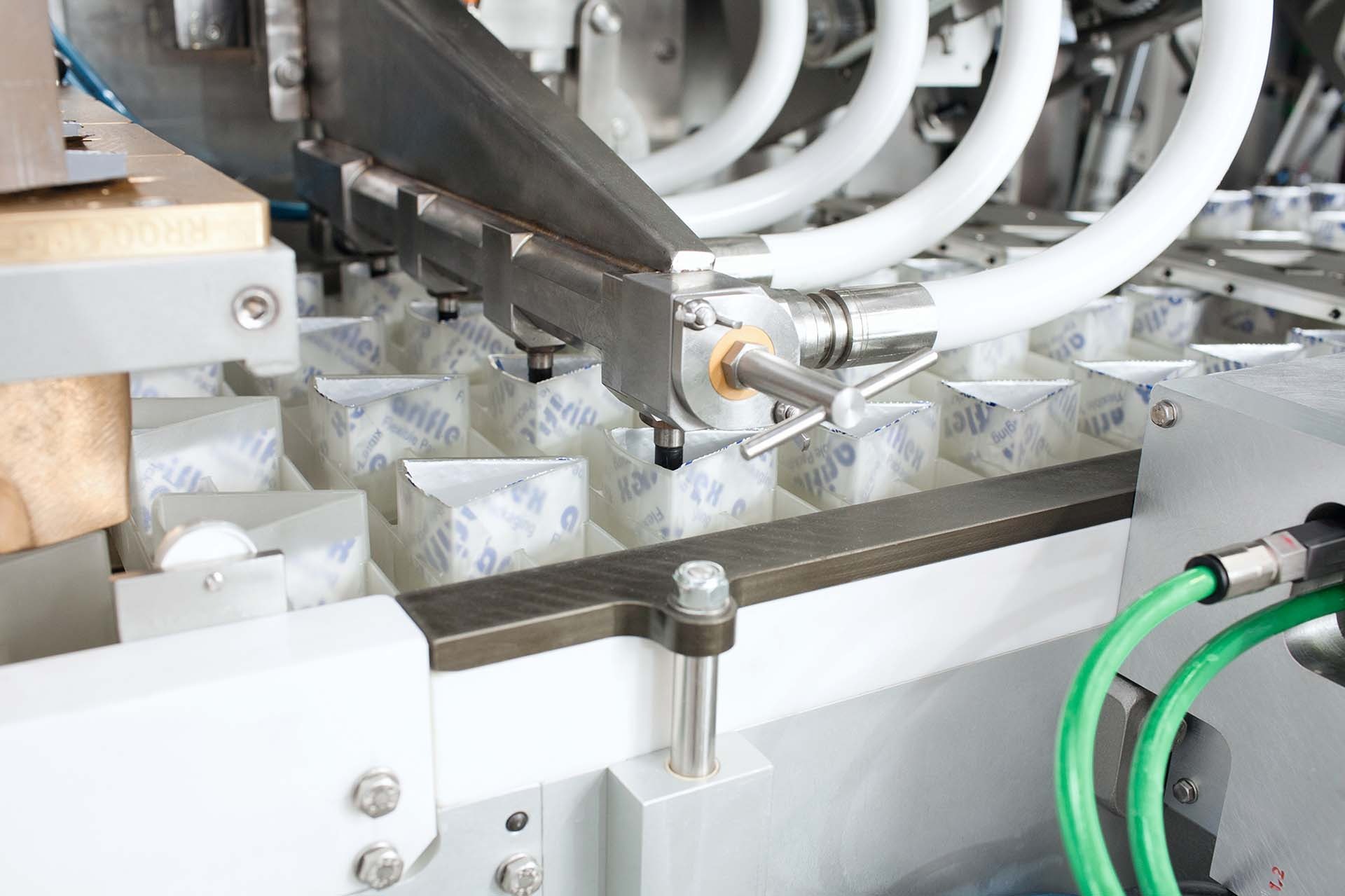

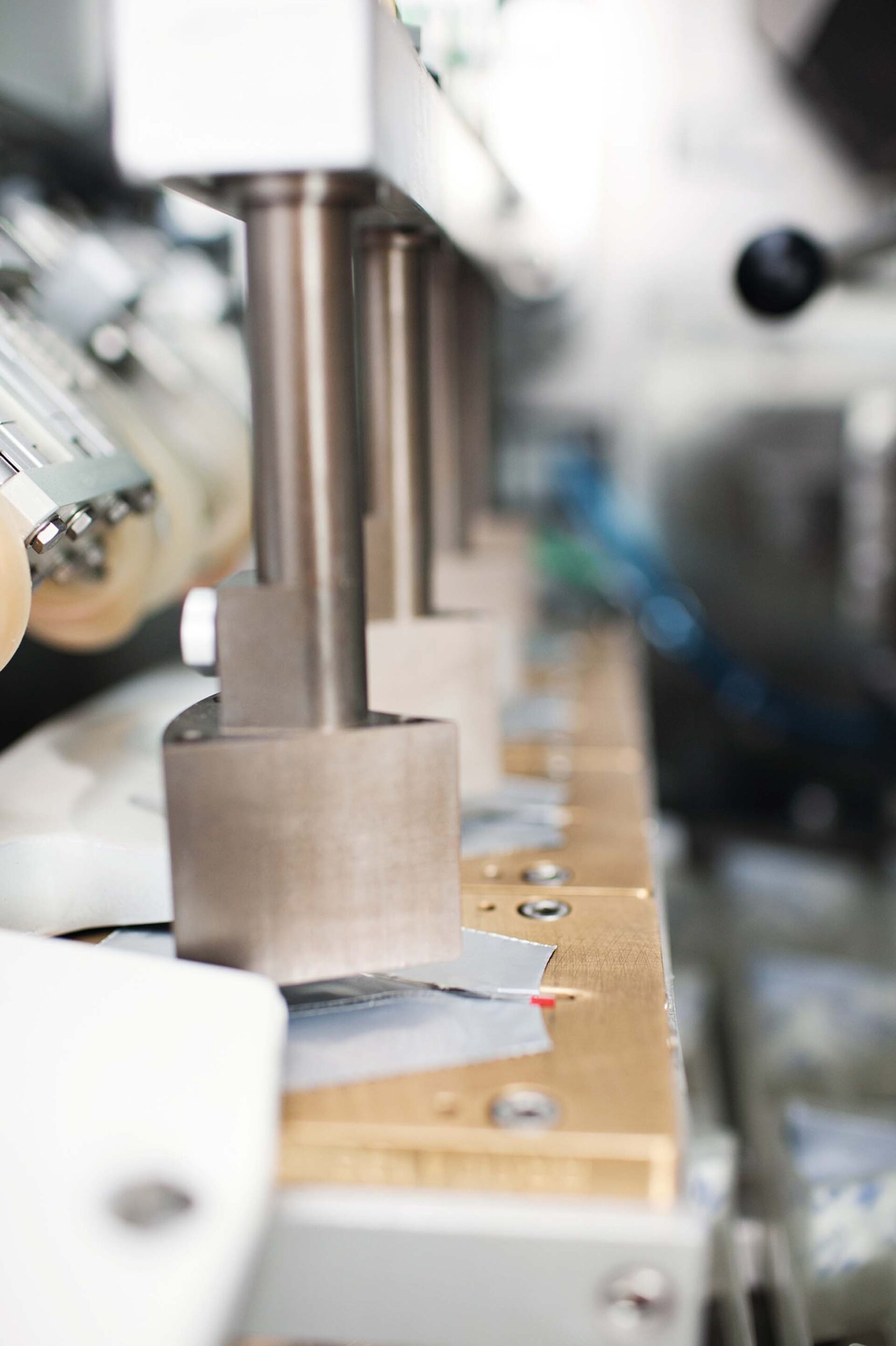

One syringe filling system handles both hot and cold products across all four lanes.
-
High‑precision dosing with weight feedback
Accurate dosing supported by automatic feedback control from an optional weight checker.
-
Easy access for fast maintenance
All components are fully accessible, enabling quick and efficient standard interventions.
Machine details
Technical information
| FF4 TECHNICAL DATA | |||||
| Machine model | FF4 | FF4R | |||
| Production capacity | Up to 600 portions/min. | ||||
| Full load current | 3P x 400 Volt – 50 Hz – 12 Amp | ||||
| Compressed air consumption | 180 Nl/min. (min. op. pressure 6 bar) | ||||
| Vacuum | 25 m³/h (op. vacuum 600 ± 50 mm Hg) | ||||
| Weight | 5,600 Kg approx. | ||||
| Shape | Triangular 6/6 | Triangular 8/8 | Triangular 12/12 | Square | Rectangular |

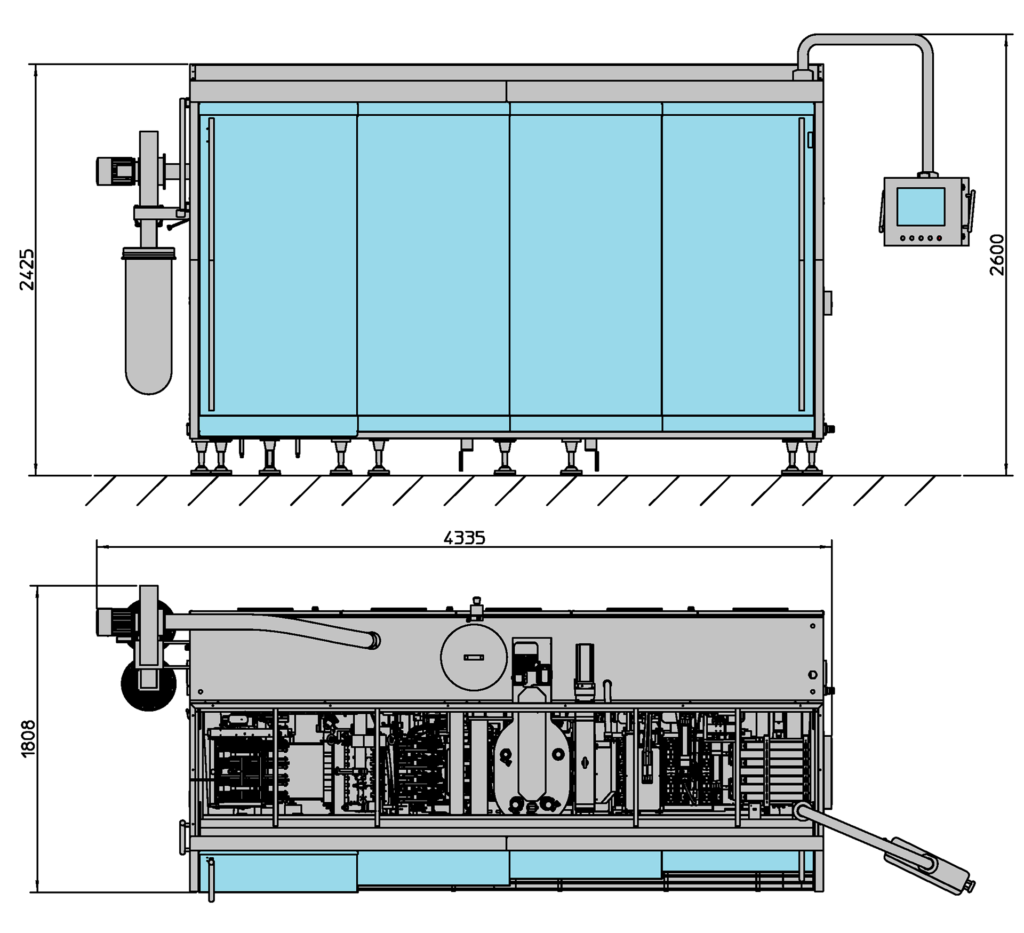

Box dimensions
| A (min – max) | ||||
| 54.5 max. | 54.5 max. | 54.5 max. | 25 – 45 | 25 – 60 | |
| B (min – max) | |||||
| – | – | – | – | 25 – 55 | |
| C (min – max) | |||||
| 26 max. | 26 max. | 26 max. | 8 – 26 | 8 – 26 | |
| Weight (min – max) | |||||
| 10g – 34g | 10g – 32g | 10g – 23g | 10g – 40g | 10g – 40g | |
