FF220 Series Dosing and wrapping
Machine overview

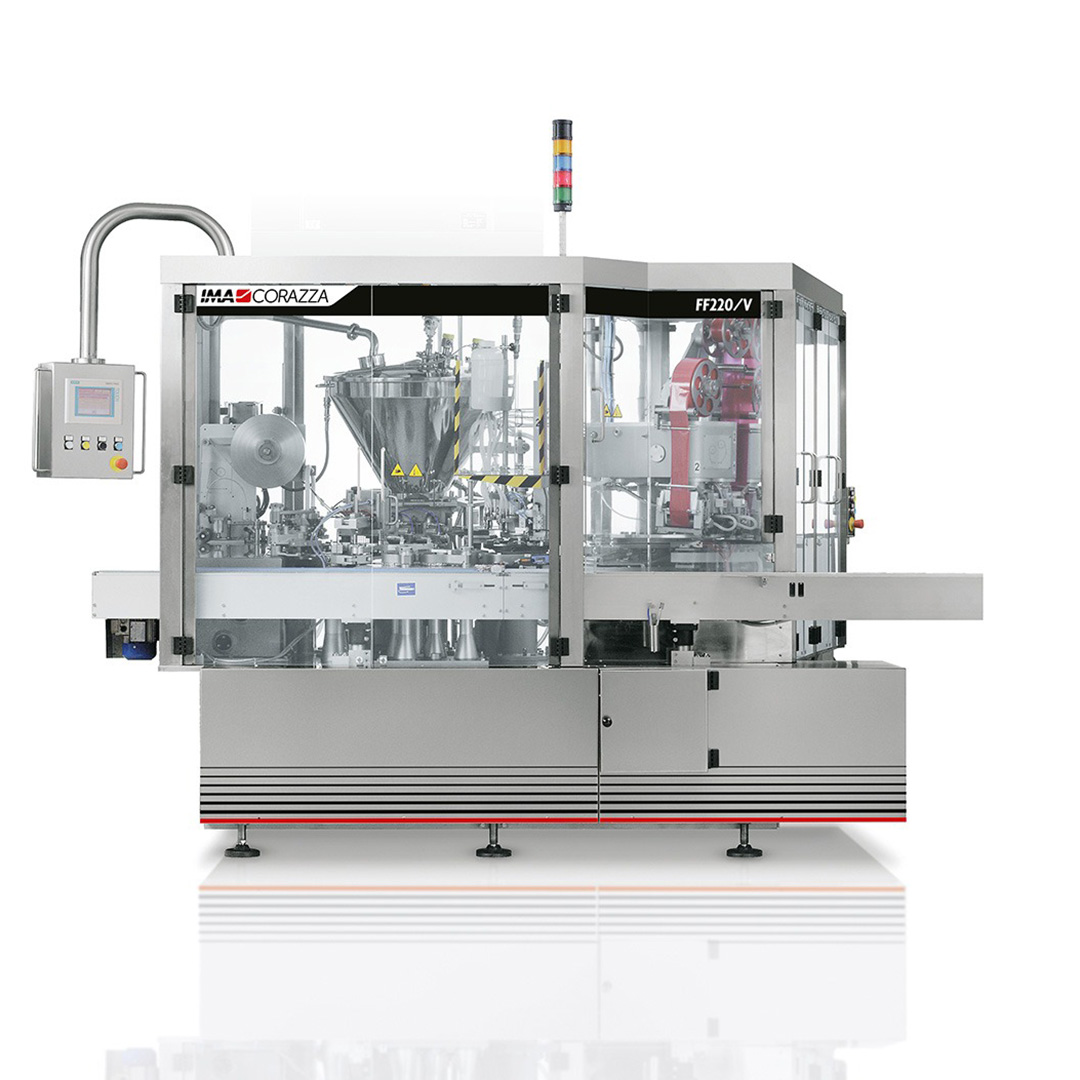

High-performance dosing and wrapping machine for cheese portions.

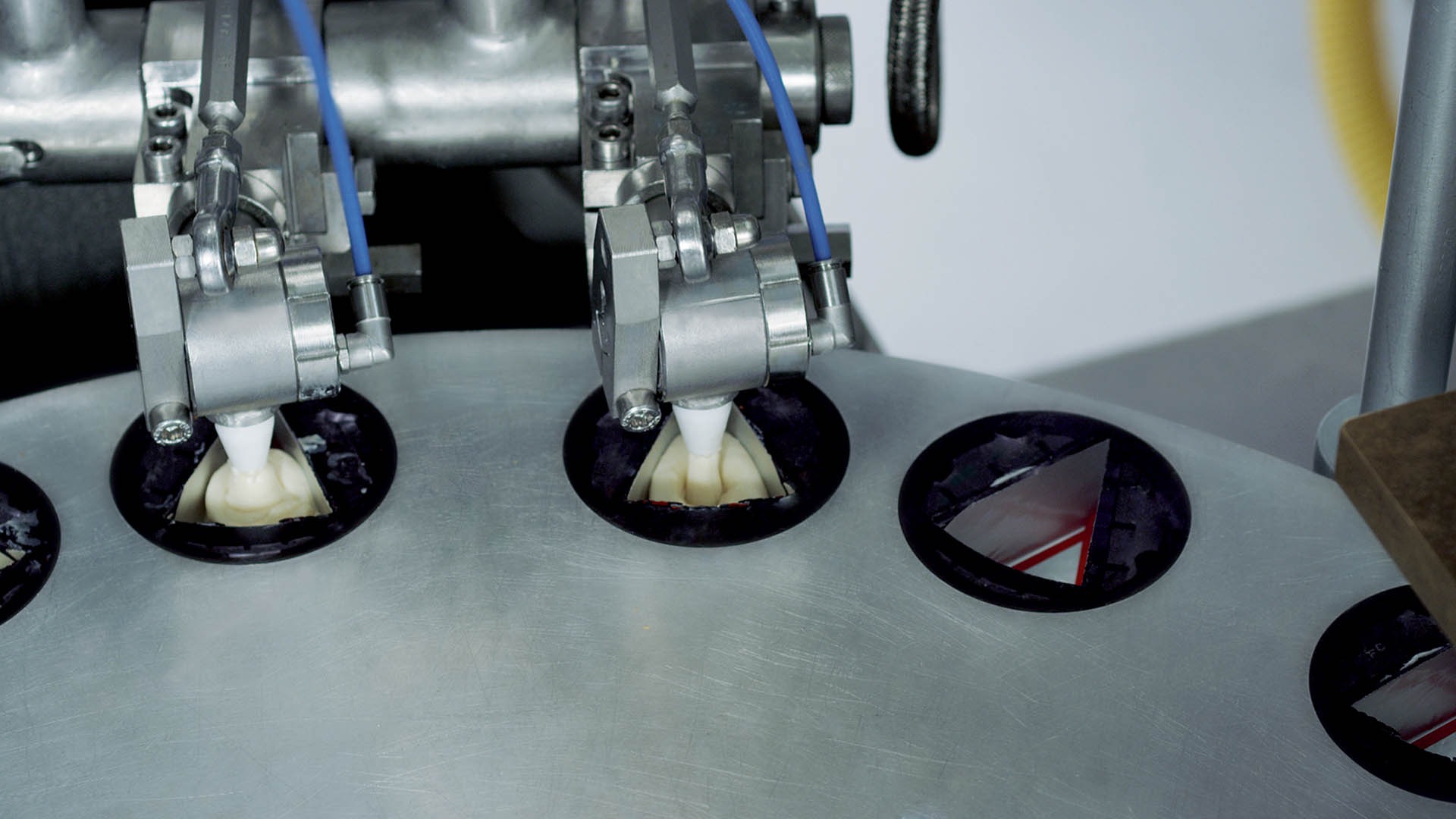

The FF220 Series of double-head dosing and wrapping machines are designed to handle portions of fresh, cream and processed cheese. Thanks to extremely smooth operating movements, equipment requires negligible maintenance throughout its long lifecycle.

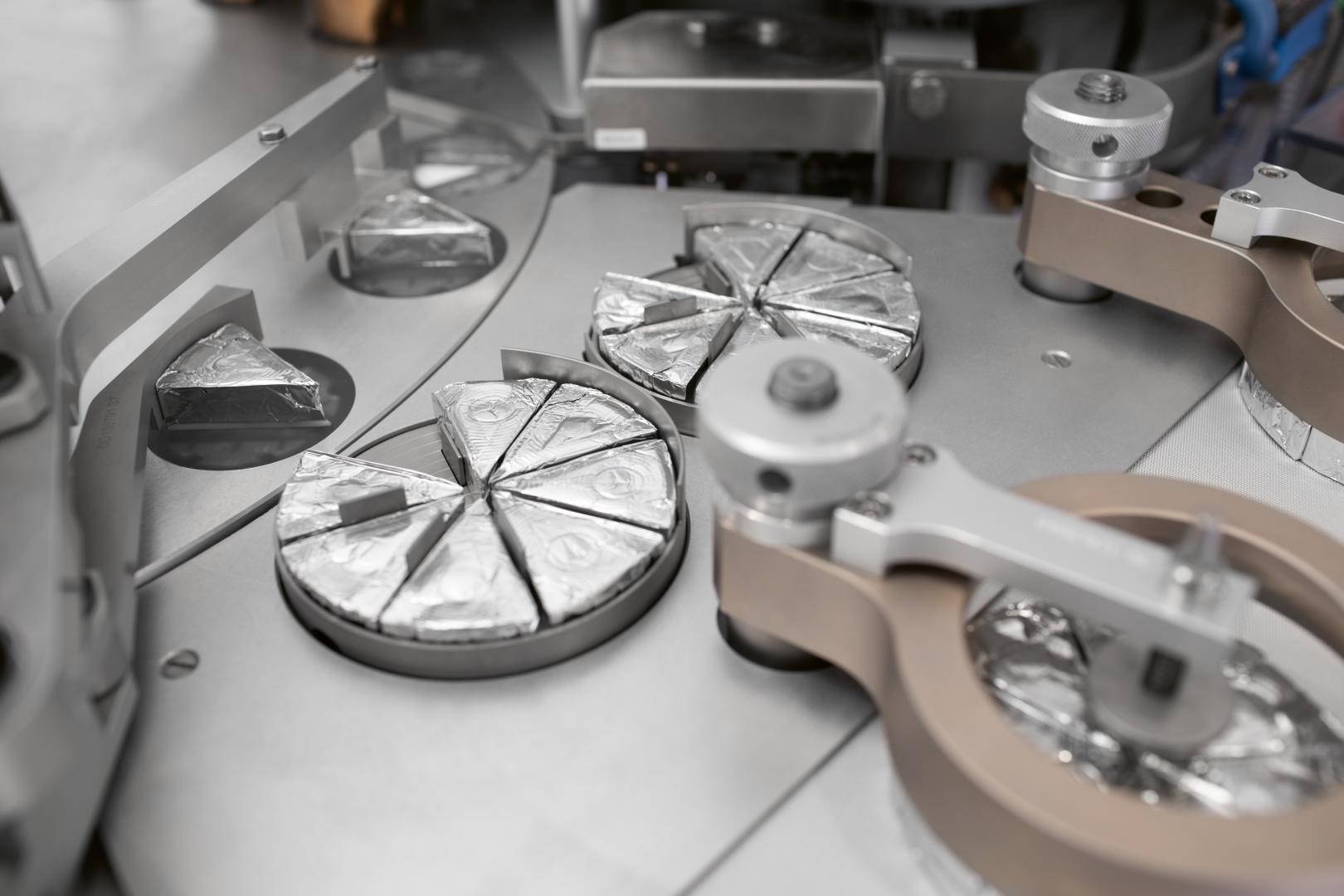

Available in a variety of versions, the FF220 handles rectangular, square and triangular portions.
Streamlined kinetic and mechanical movements are implemented to achieve an impressive production capacity from 200 up to 240 ppm.
The FF220 Series is available in different configurations that will satisfy any customer’s requirements.
Production plant
IMA Corazza
Machine highlights
-
Stable operation without film or lid movement

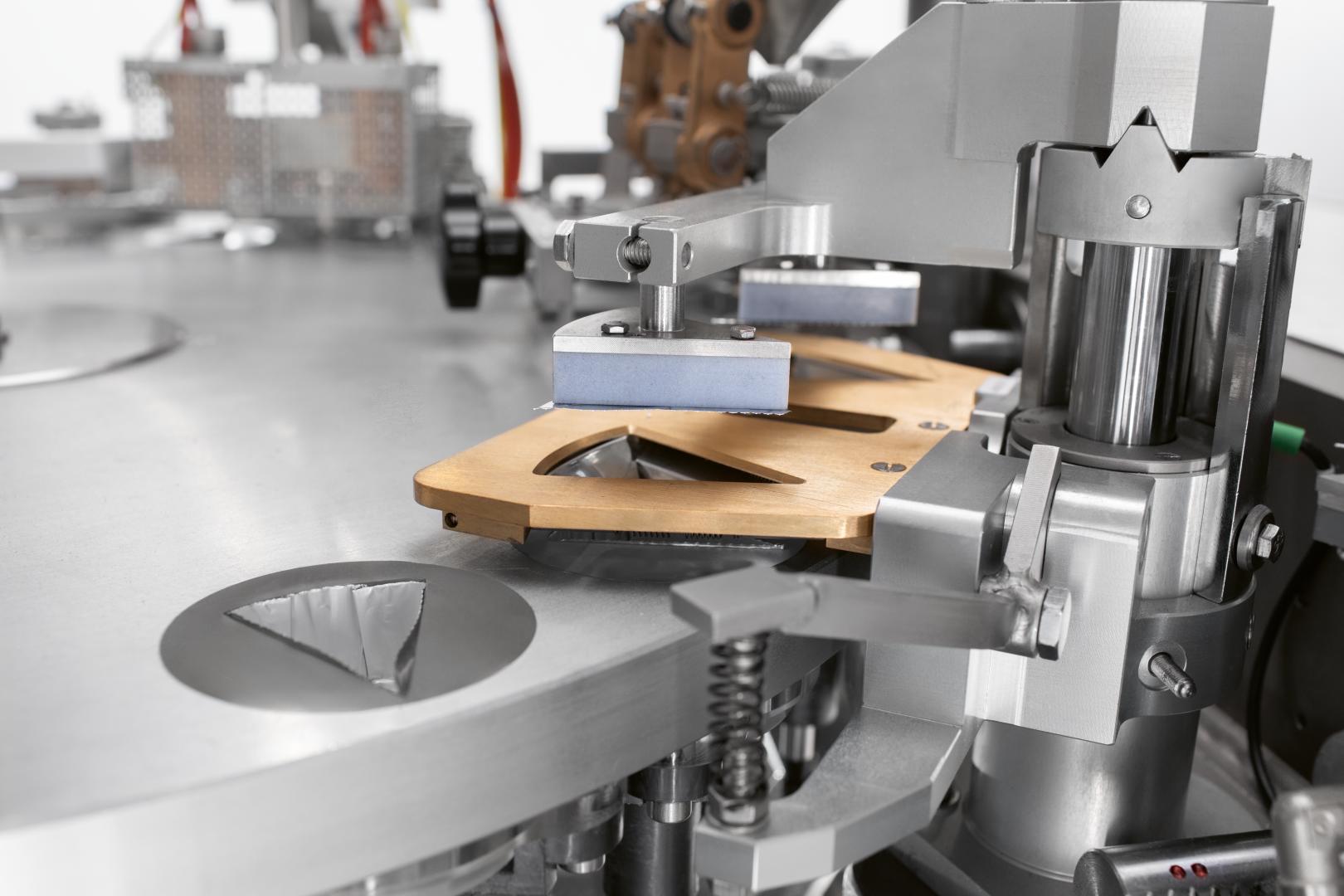

Film and lid unwinding excluded during machine operation.
-
Fast maintenance and changeovers

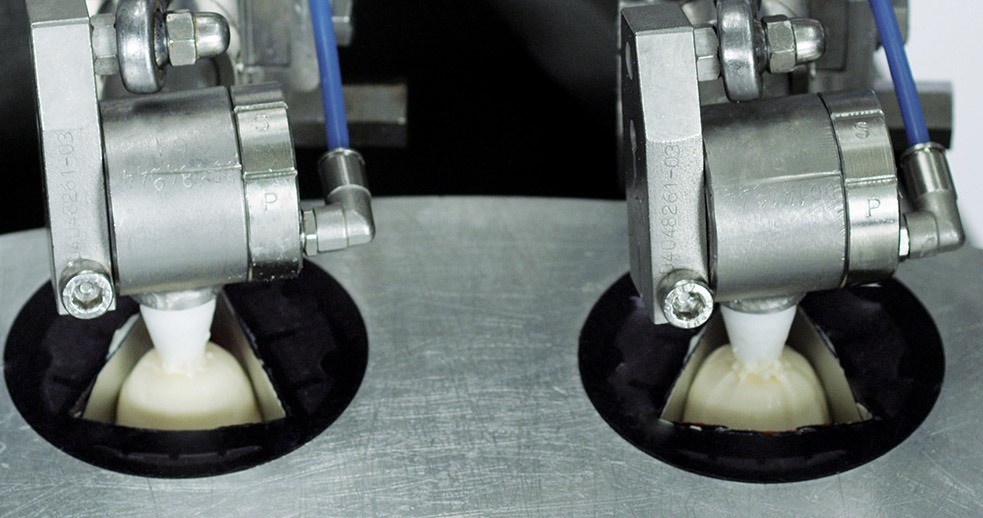

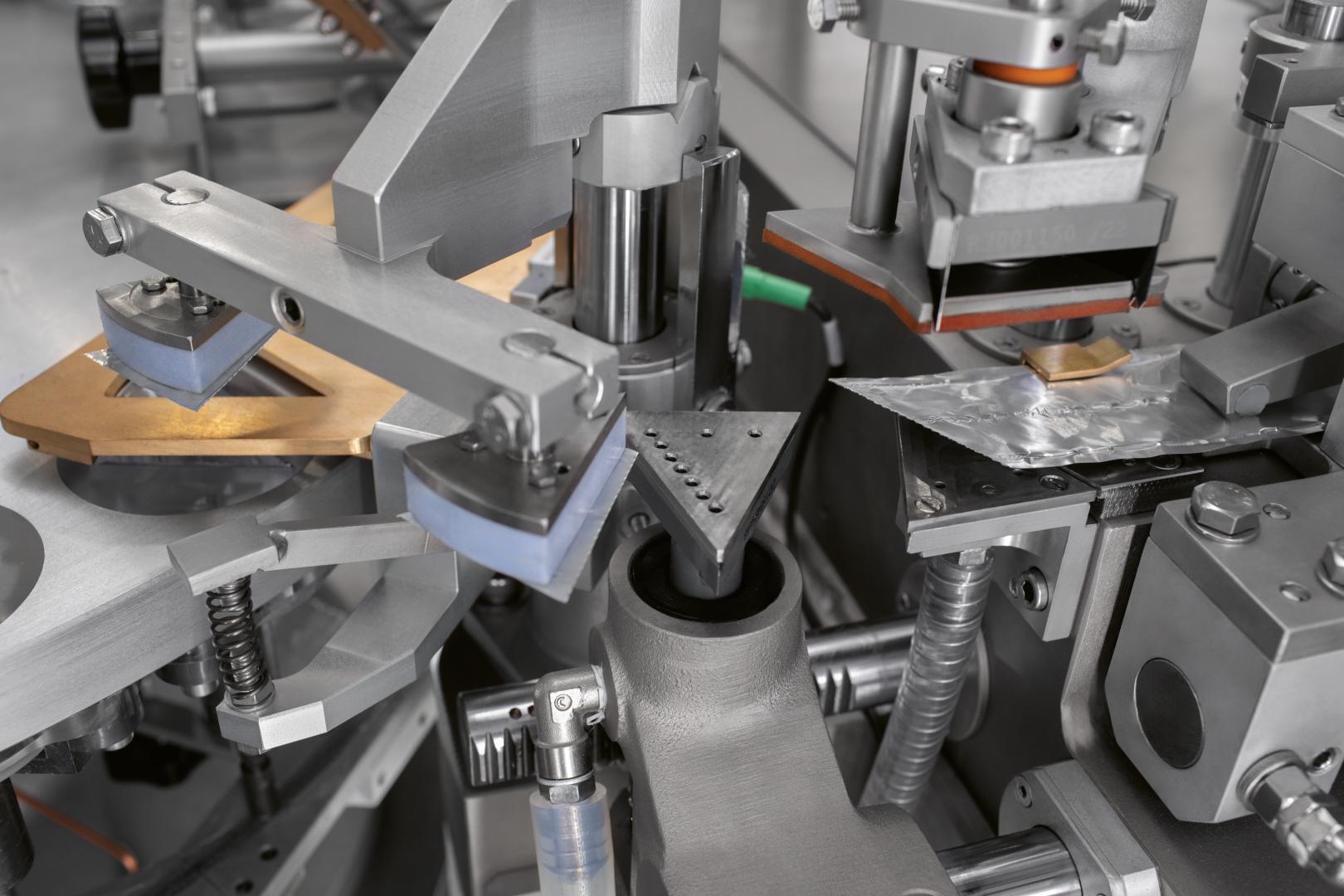

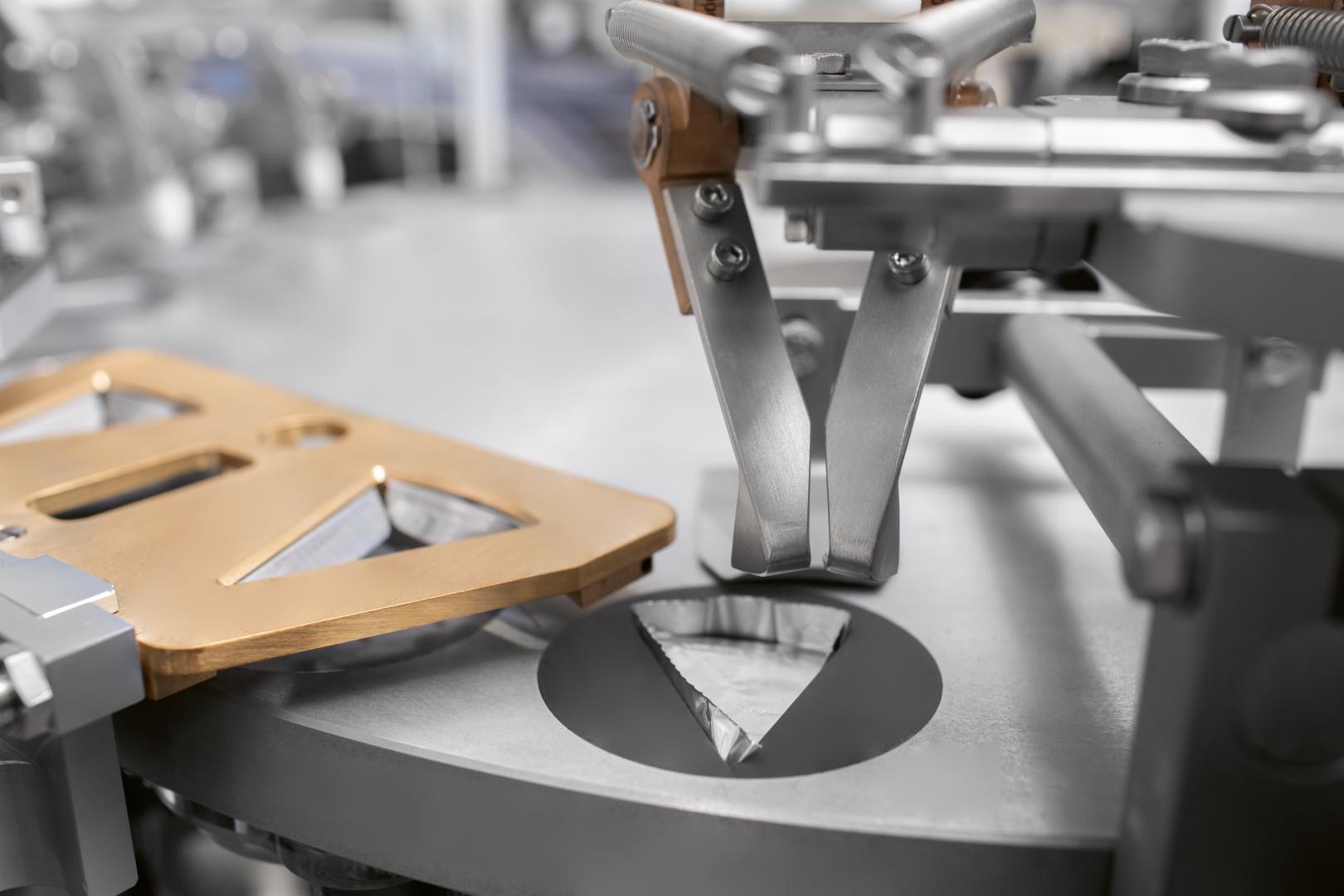

Fully removable dosing assembly; foil cutting unit can be changed quickly for less downtime.
-
Material savings through optimised cutting
Optimised foil cutting design: alufoil savings equivalent to 2 mm per portion.
-
Easy-to-clean stainless-steel frame
Stainless steel coated machine frame to facilitate cleaning.
-
Ergonomic label handling
Fixed label magazine makes filling of the labels much easier.
-
Reel compatibility across the FF220 Series
Reel width as per FF220/DX machine to ensure possibility of using the same reels on FF220/DX and FF220E machines.

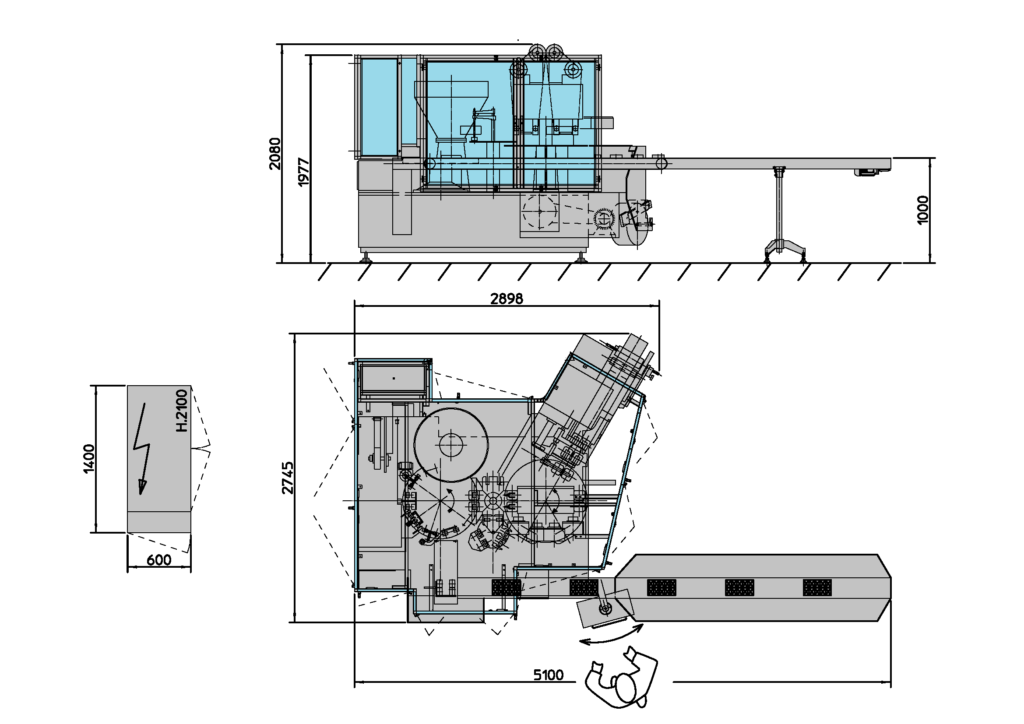

Machine details
Technical information

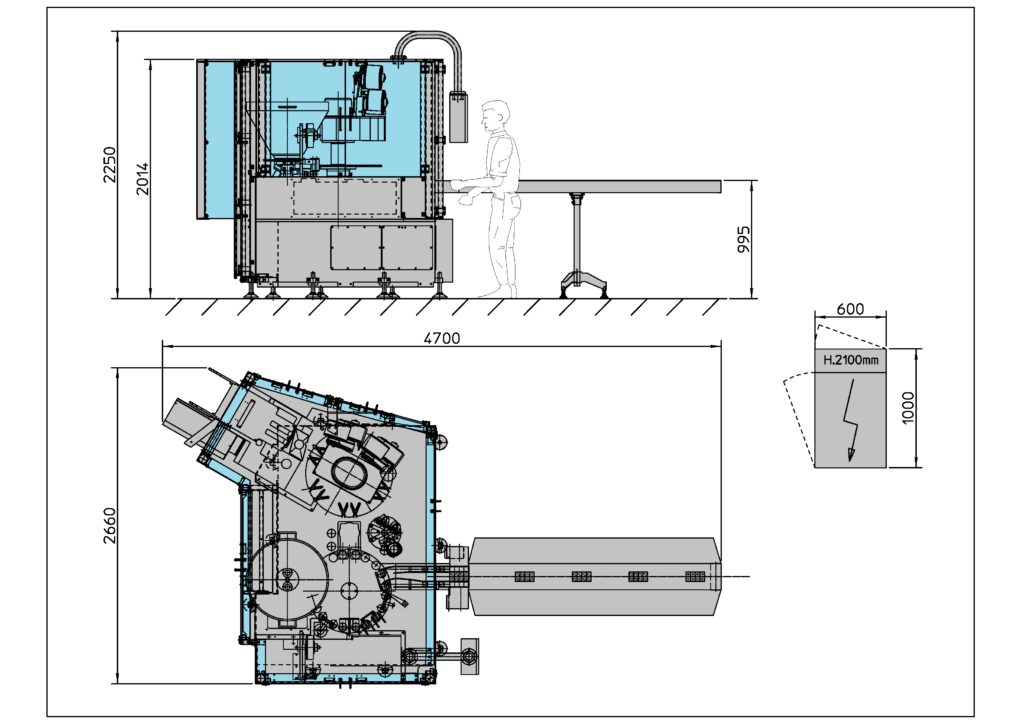

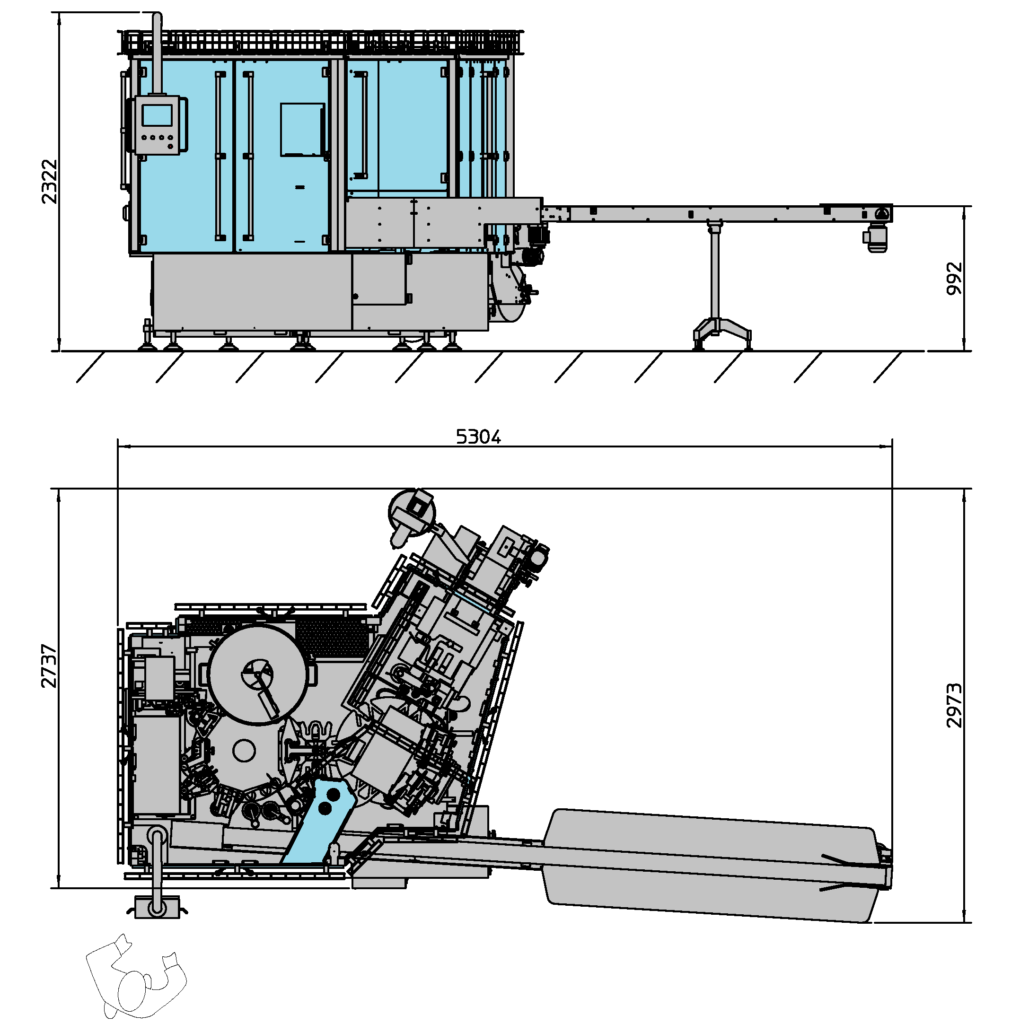

| Machine model | FF220/E – FF220/V | FF220/E-R – FF220/V-R | |||
| Production capacity | Up to 200-240 portions/min | Up to 200-240 portions/min | |||
| Full load current | 3P x 400 Volt – 50 Hz – 11 Amp | 3P x 400 Volt – 50 Hz – 11 Amp | |||
| Compressed air consumption | 80 Nl/min. (min. op. pressure 6 bar) | 80 Nl/min. (min. op. pressure 6 bar) | |||
| Vacuum | 60 m³/h (op. vacuum 600 ± 50 mm Hg) | 60 m³/h (op. vacuum 600 ± 50 mm Hg) | |||
| Weight | 4,500 Kg Approx. | 4,500 Kg Approx. | |||
| Shape | Triangular 6/6 | Triangular 8/8 | Triangular 12/12 | Square | Rectangular |
Box dimensions
| A (min – max) | ||||
| 54.5 max. | 54.5 max. | 54.5 max. | 25 – 45 | 25 – 60 | |
| B (min – max) | |||||
| – | – | – | – | 25 – 55 | |
| C (min – max) | |||||
| 26 max. | 26 max. | 26 max. | 8 – 26 | 8 – 26 | |
| Weight (min – max) | |||||
| 10g – 34g | 10g – 32g | 10g – 23g | 10g – 40g | 10g – 40g | |
