FF100 Series Dosing and wrapping
Machine overview
Adaptable dosing and wrapping machine for processed cheese.
The FF100 machine series ensures hot and cold-fill applications for processed cheese.
Comprising 3 versions, each solution is based on a modular concept to allow for maximum flexibility and simplicity in shape and size changeover procedures.
According to customer requirements, the FF100 Series of dosing and wrapping equipment covers a wide spectrum of cold and hot-fill applications:
• The FF100 (hot-fill) handles various formats (from 50 up to 250 g) at speeds ranging from 70 to 100 ppm.

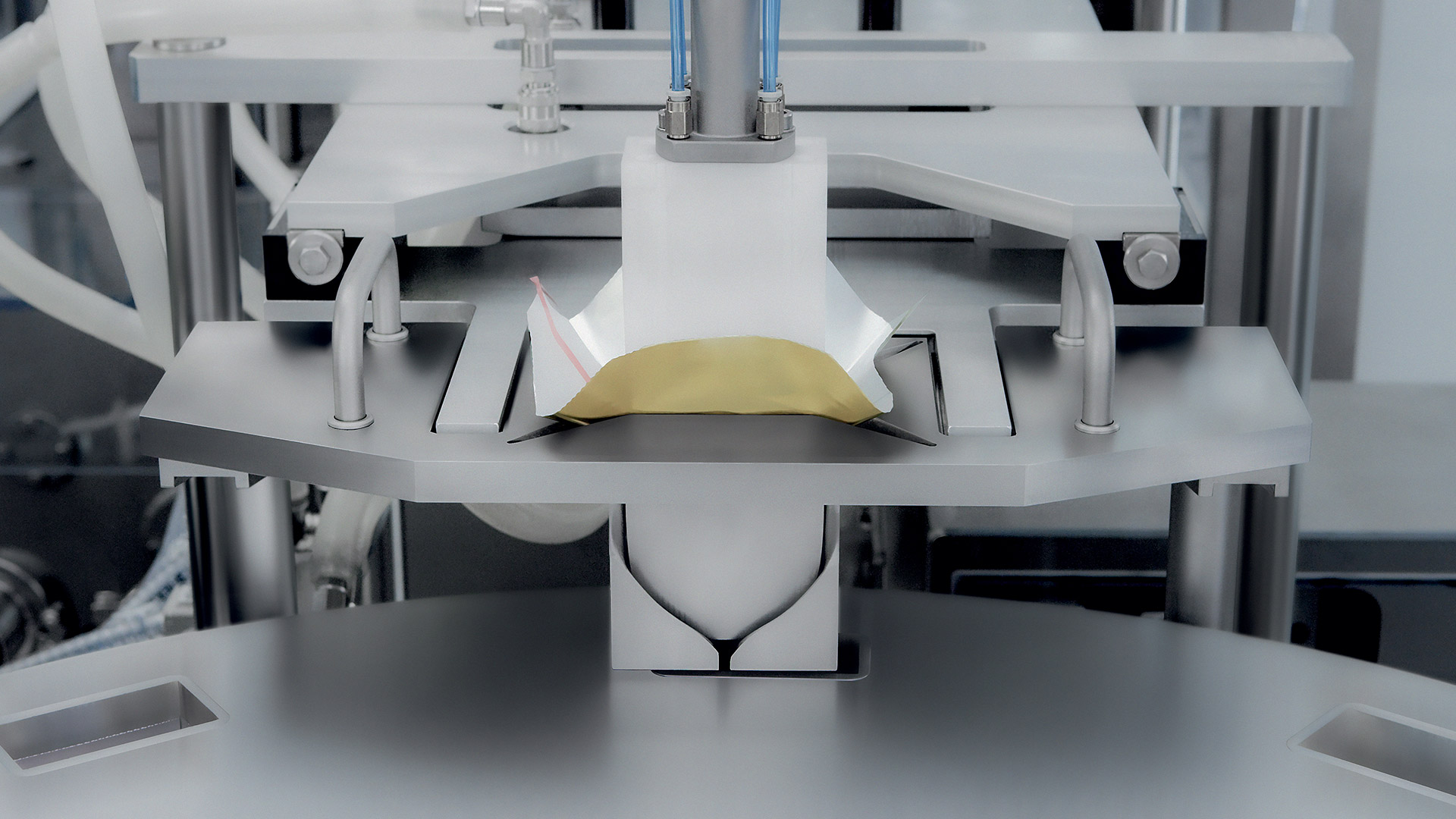

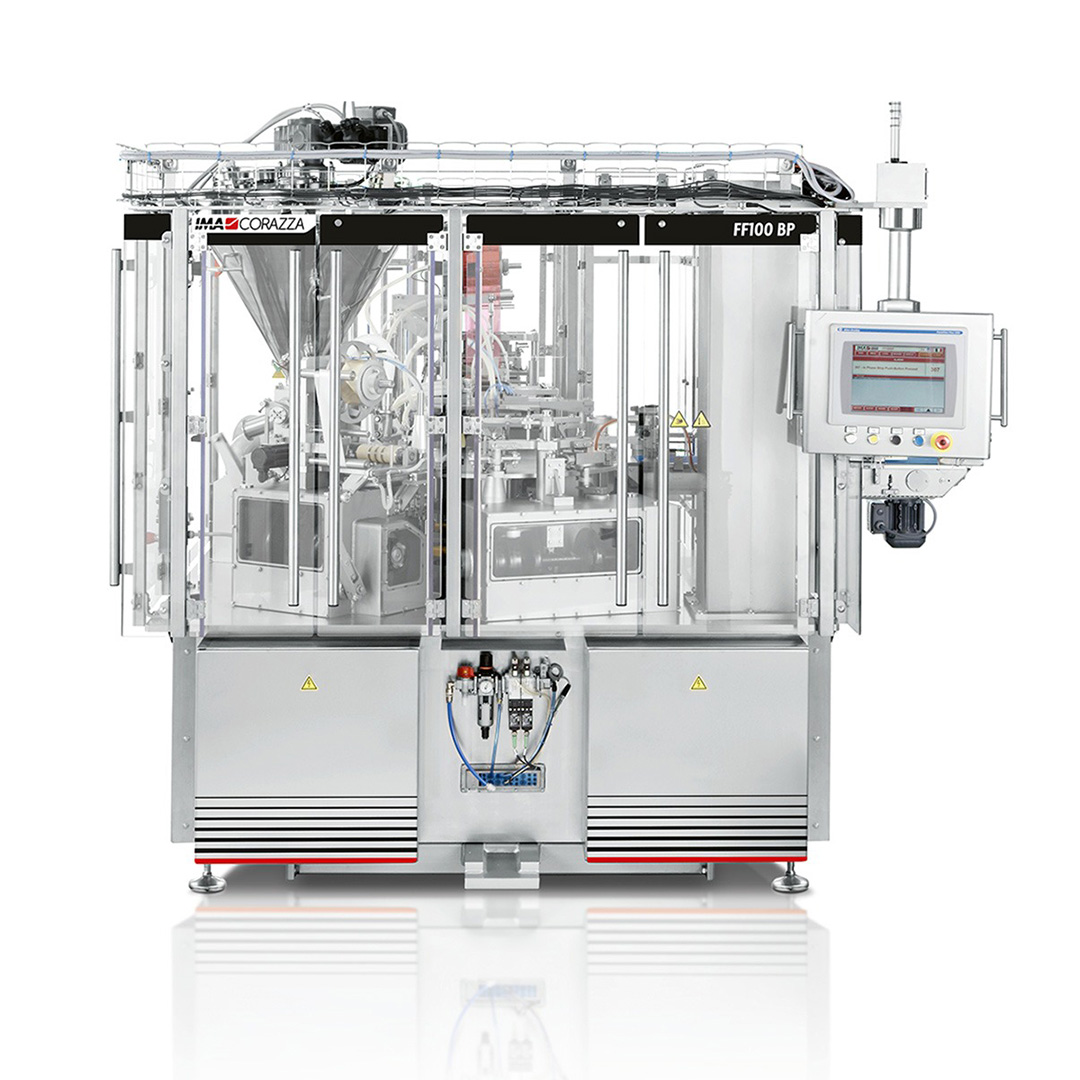

• The FF100BP (hot-fill) handles large portions (from 250 up to 500 g) at speeds between 40 and 70 ppm.

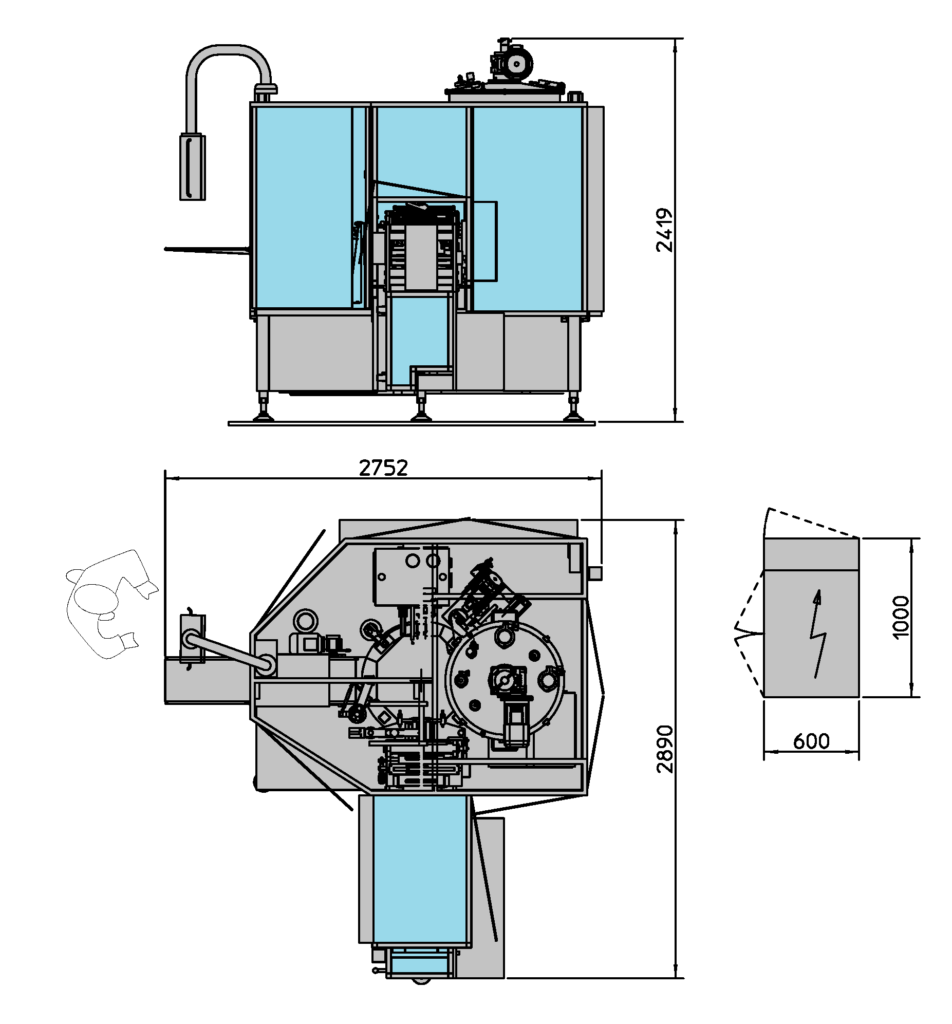

• The FF100K (cold-fill) processes various formats (from 50 up to 250 g) at speeds up to 80 ppm and is designed for portfolio-style wrapping.
The modular concept behind each model allows easy conversion from one shape to the next and can be implemented without excessive downtime for machine set-up.
Production plant
IMA Corazza
Machine highlights
-
Modular design for hot & cold- fill solutions
The FF100 Series offers flexible hot and cold-fill solutions with three modular versions that allow quick format and shape changeovers with minimal downtime.
-
Intuitive HMI with integrated PLC for easy operation
Enjoy a streamlined user experience thanks to a clear, intuitive interface and a fully integrated PLC that simplifies set-up, control and monitoring.
-

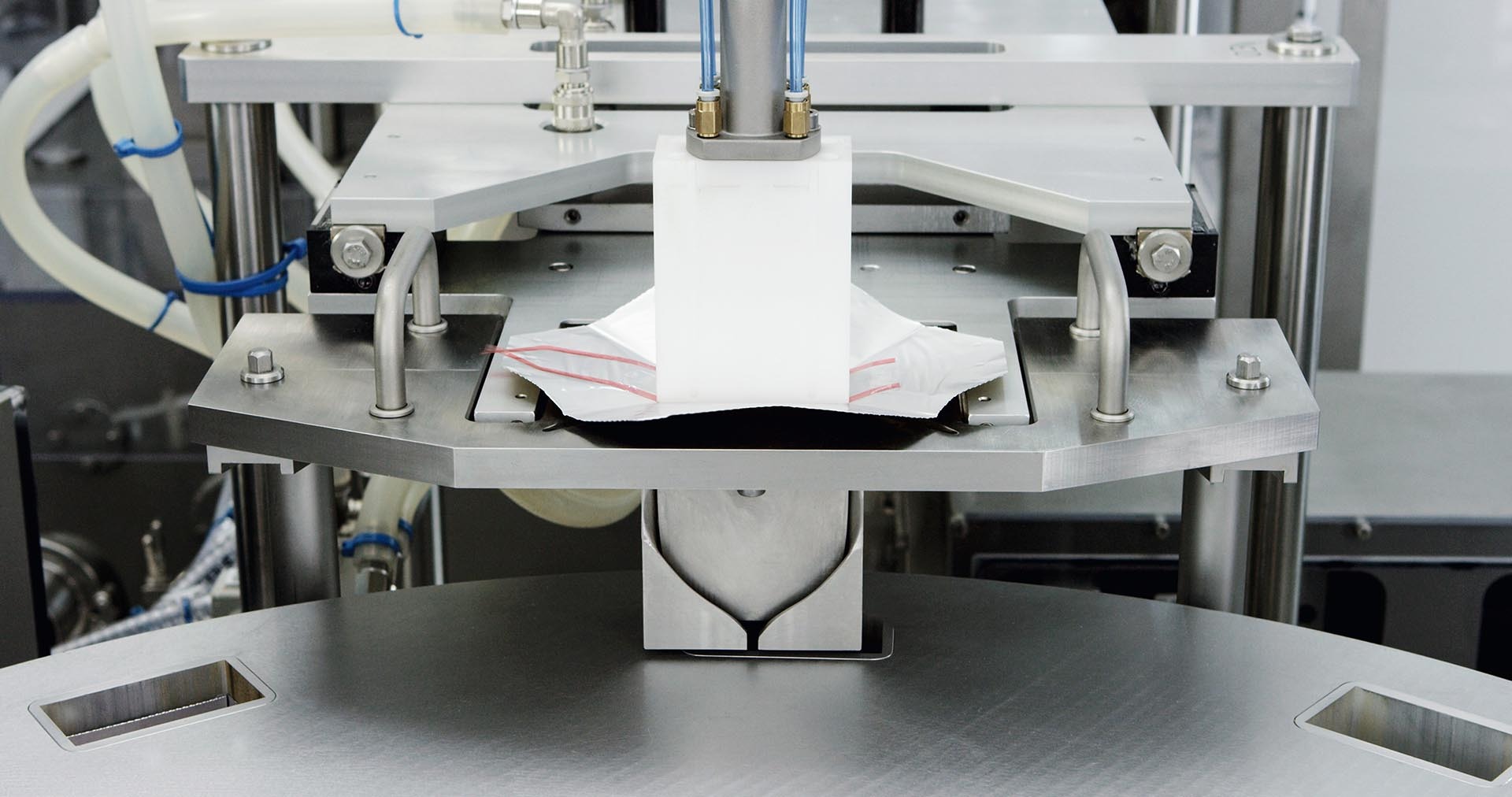

Independent-drive dosing system
Each dosing unit is driven independently to ensure precise, consistent product dosing and optimal process flexibility.
-
Compact, space-saving design
The machine’s optimised layout minimises its footprint, making it ideal for installations where space is limited.
-
Available in stainless steel and washable execution options
Full stainless-steel construction for durability and a washable configuration designed for quick, hygienic cleaning are available options.
-

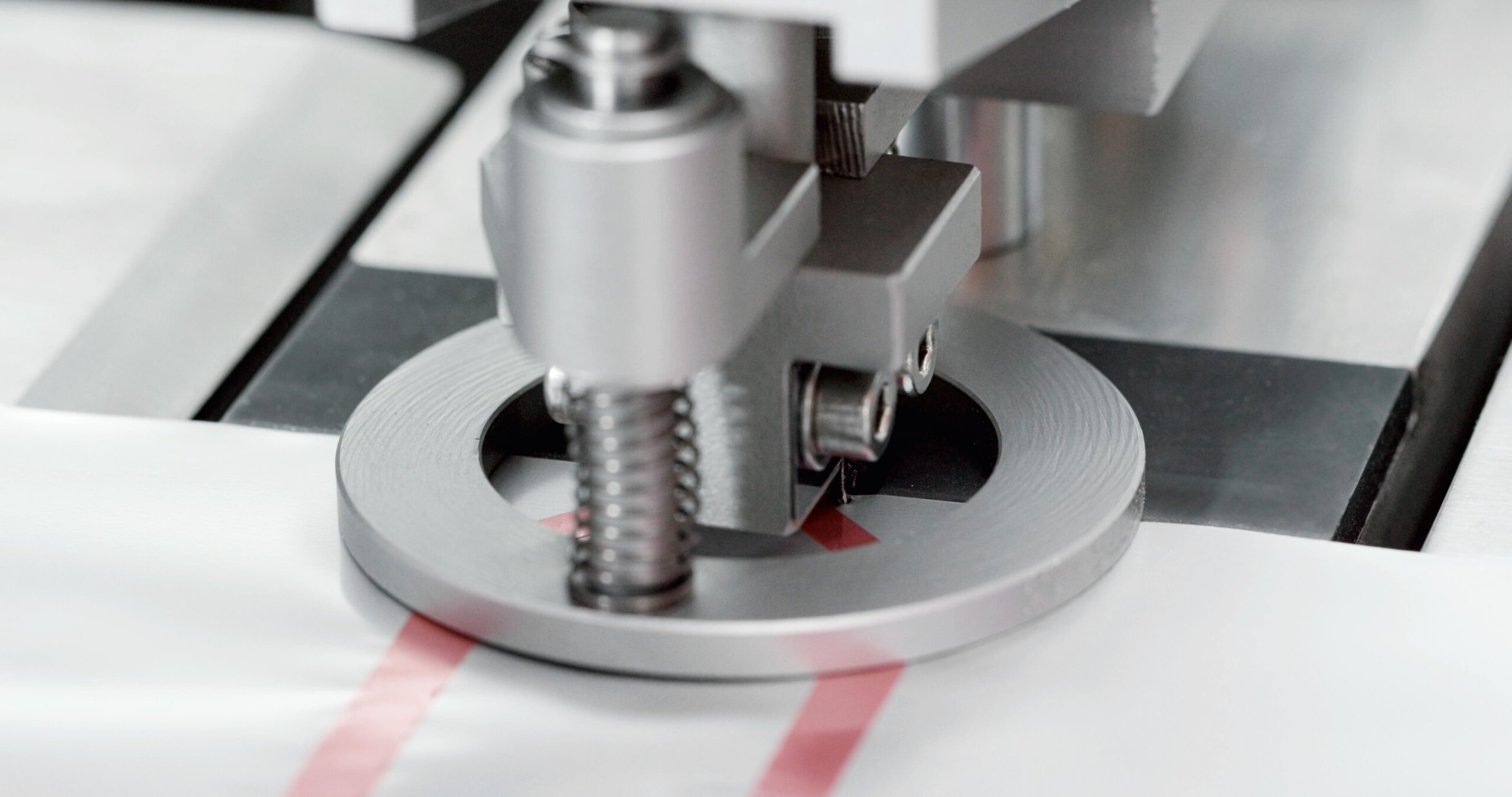

Compatible with CIP/SIP systems and aluminum foil registration
Easily integrated CIP/SIP solutions for automated cleaning and sterilisation and aluminum foil registration for enhanced sealing accuracy.
Machine details
Technical information
| Machine model | FF100 | FF100K | FF100BP | |||
| Production capacity | Up to 70-110 portions/min | Up to 80 portions/min | Up to 40-70 portions/min | |||
| Full load current | 3P x 400 Volt – 50 Hz – 8,5 Amp | 3P x 400 Volt – 50 Hz – 7 Amp | 3P x 400 Volt – 50 Hz – 12 Amp | |||
| Compressed air consumption | 240 Nl/min. (min. op. pressure 6 bar) | 380 Nl/min. (min. op. pressure 6 bar) | 160 Nl/min. (min. op. pressure 6 bar) | |||
| Vacuum | 40 m³/h (op. vacuum 600 ± 50 mm Hg) | 60 m³/h (op. vacuum 600 ± 50 mm Hg) | 60 m³/h (op. vacuum 600 ± 50 mm Hg) | |||
| Weight | 3,800 Kg Approx. | 3,600 Kg Approx. | 3,800 Kg Approx. | |||
| Shape | Square | Rectangular | Round | Square | Rectangular | Rectangular |
Box dimensions
| A (min – max) | |||||
| 78 max. | 110 max. | 80 max. | 80 max. | 50 – 65 | 160 max. | |
| B (min – max) | ||||||
| 78 max. | 58 max. | 50 max. | 80 max. | 50 – 110 | 80 max. | |
| C (min – max) | ||||||
| 39 max. | 36 max. | – | 40 max. | 20 – 35 | 40 max. | |
| Weight (min – max) | ||||||
| 30g – 250g | 30g – 250g | 30g – 250g | 30g – 250g | 30g – 250g | 200g – 500g | |
