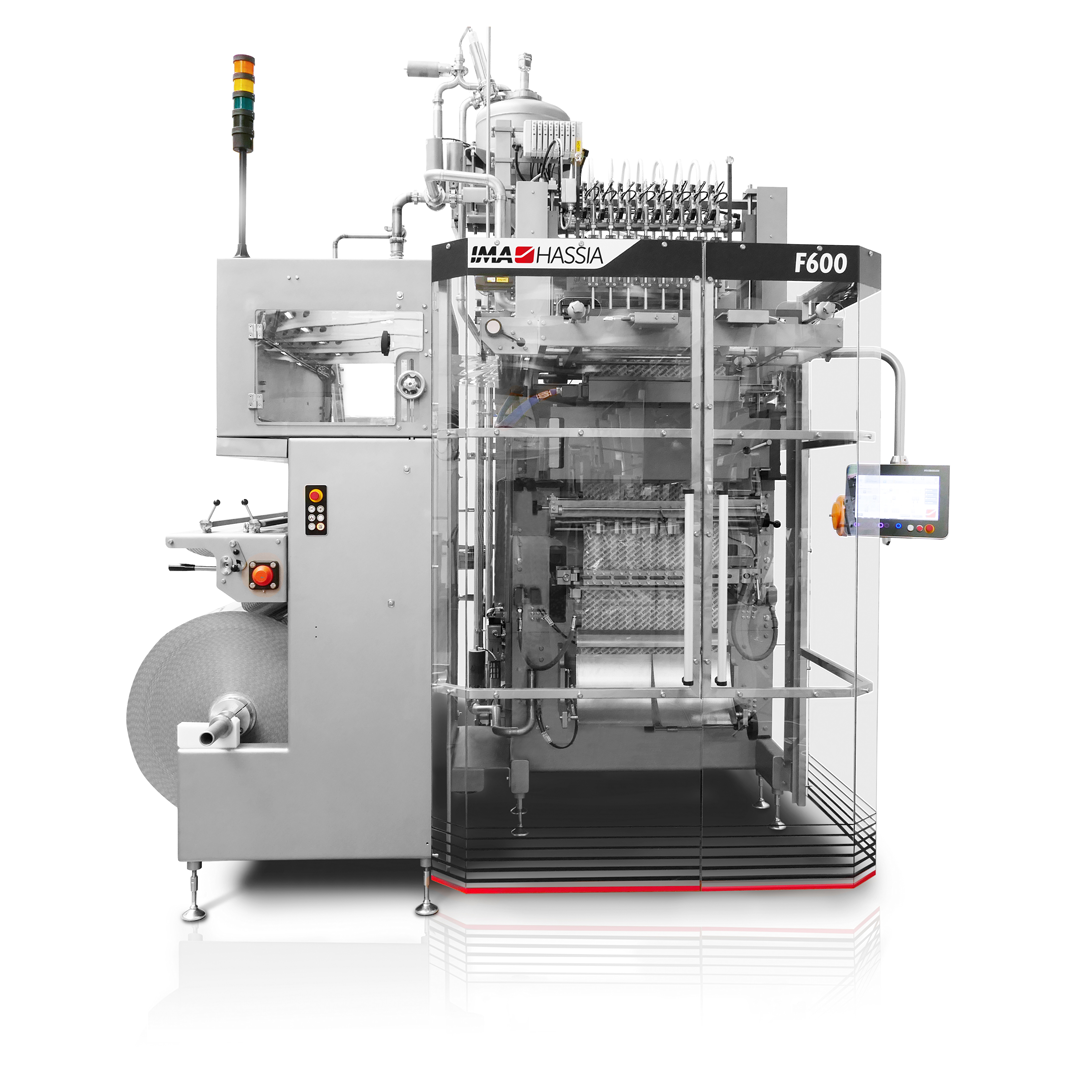

F600 Sachet Form Fill and Seal

Machine overview

Appropriate sachet solutions for easy-to-use pre-portioned products.

Long experience in the production of sachet packaging machines, combined with highly accurate dosing systems, are the hallmark of the IMA Hassia range. These sachet machines are intended for the packaging of liquid-to-viscous products for the food, cosmetics and pharmaceutical industries.
The range of possibilities and choice of output is extensive. Anything is possible with up to 16 tracks. Processing at speeds up to 105,600 sachets/h, the F600 can be designed to comply with customer-specific or product-specific requirements.

Production plant

IMA Hassia

Machine highlights

  1. Careful handling

    Careful product handling with focus on quality assurance.

  2. Filling accuracy

    High filling accuracy.

  3. Specific set-ups

    Adjusted to the product and production requirements.

  4. Sachet design flexibility

    Many different sachet designs are possible.

  5. Size configuration

    Size configuration according to the requested production capacity.

  6. Heat-sealable materials

    All materials suitable for heat-sealing can be processed.

Machine details

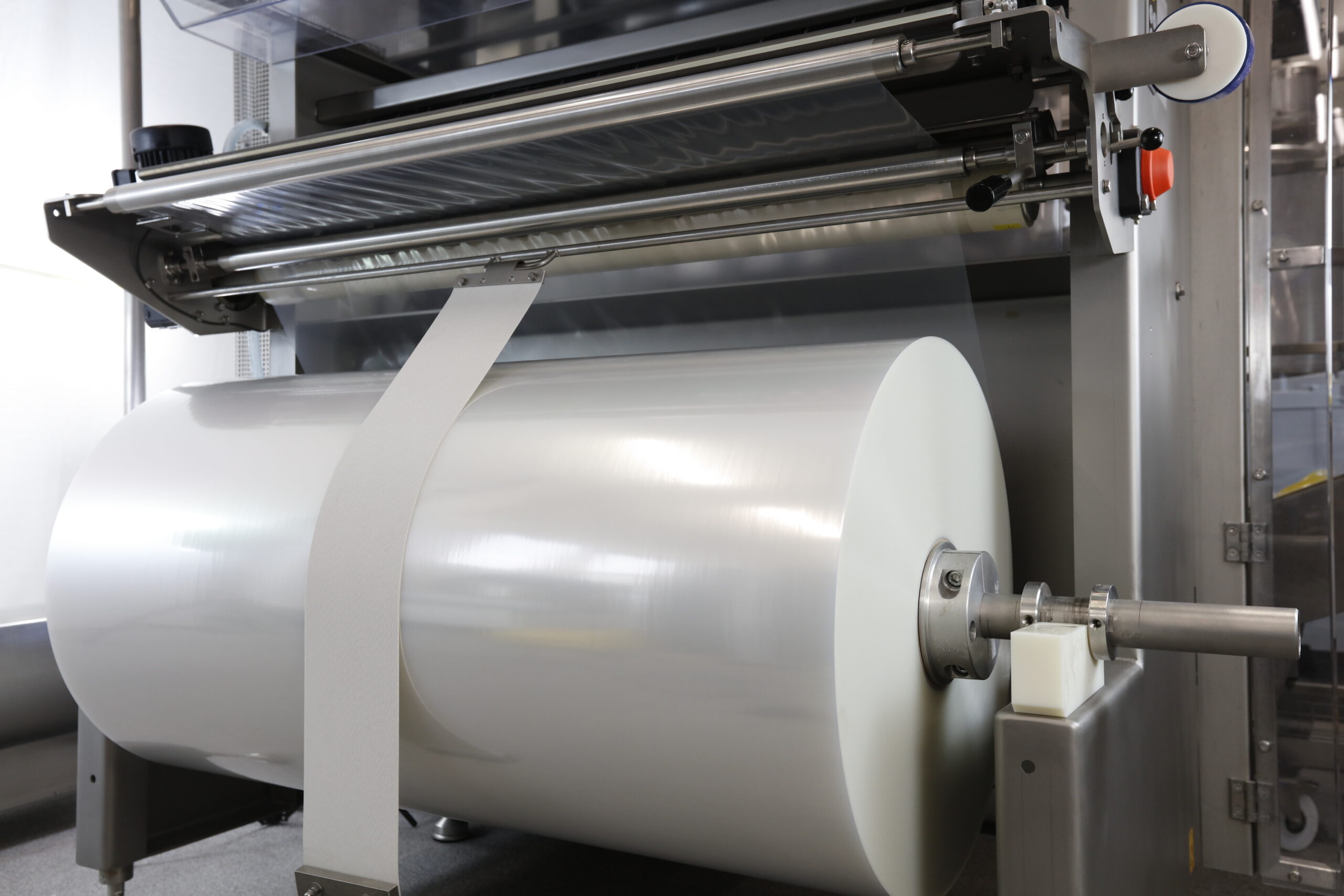

Material supply

Filler

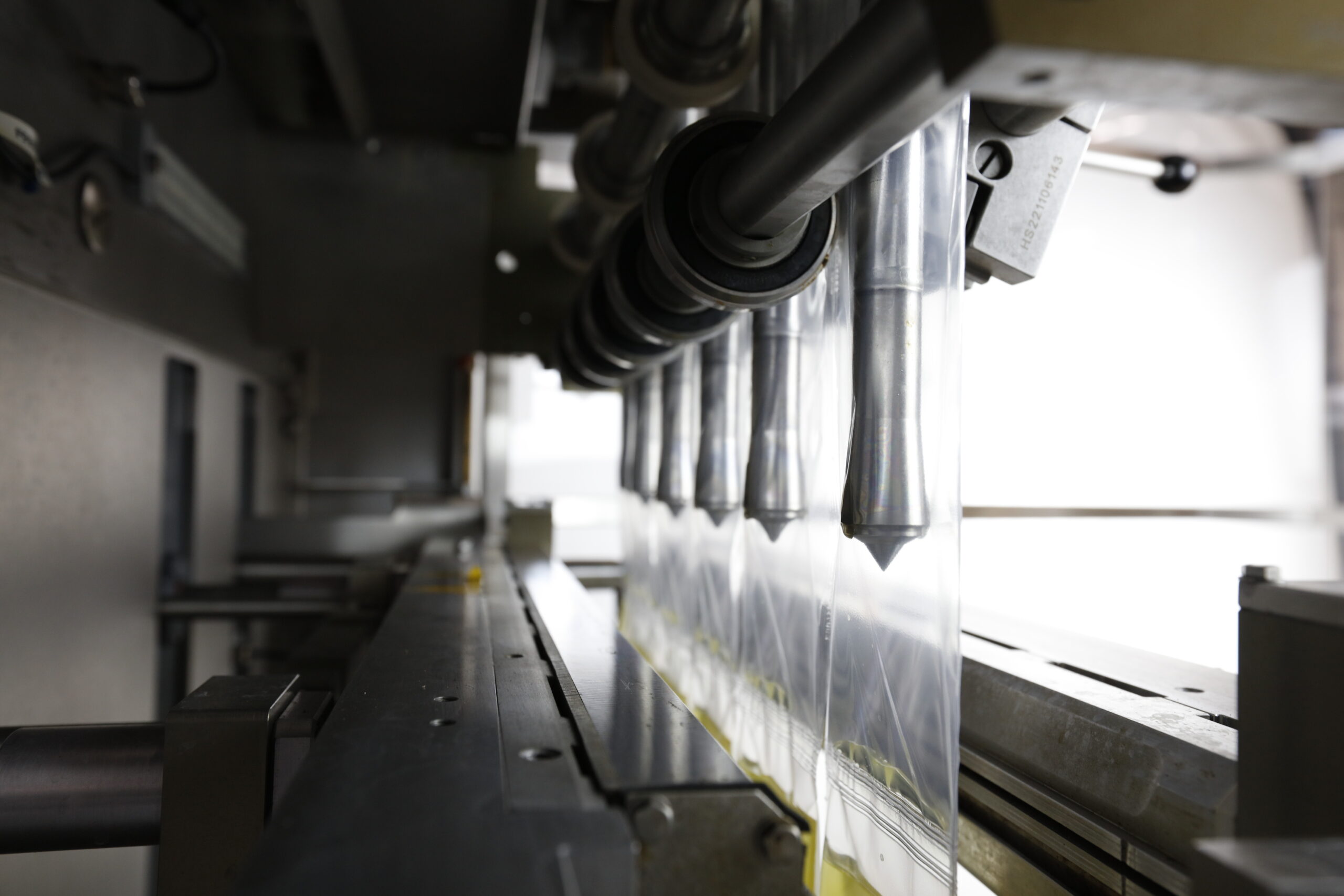

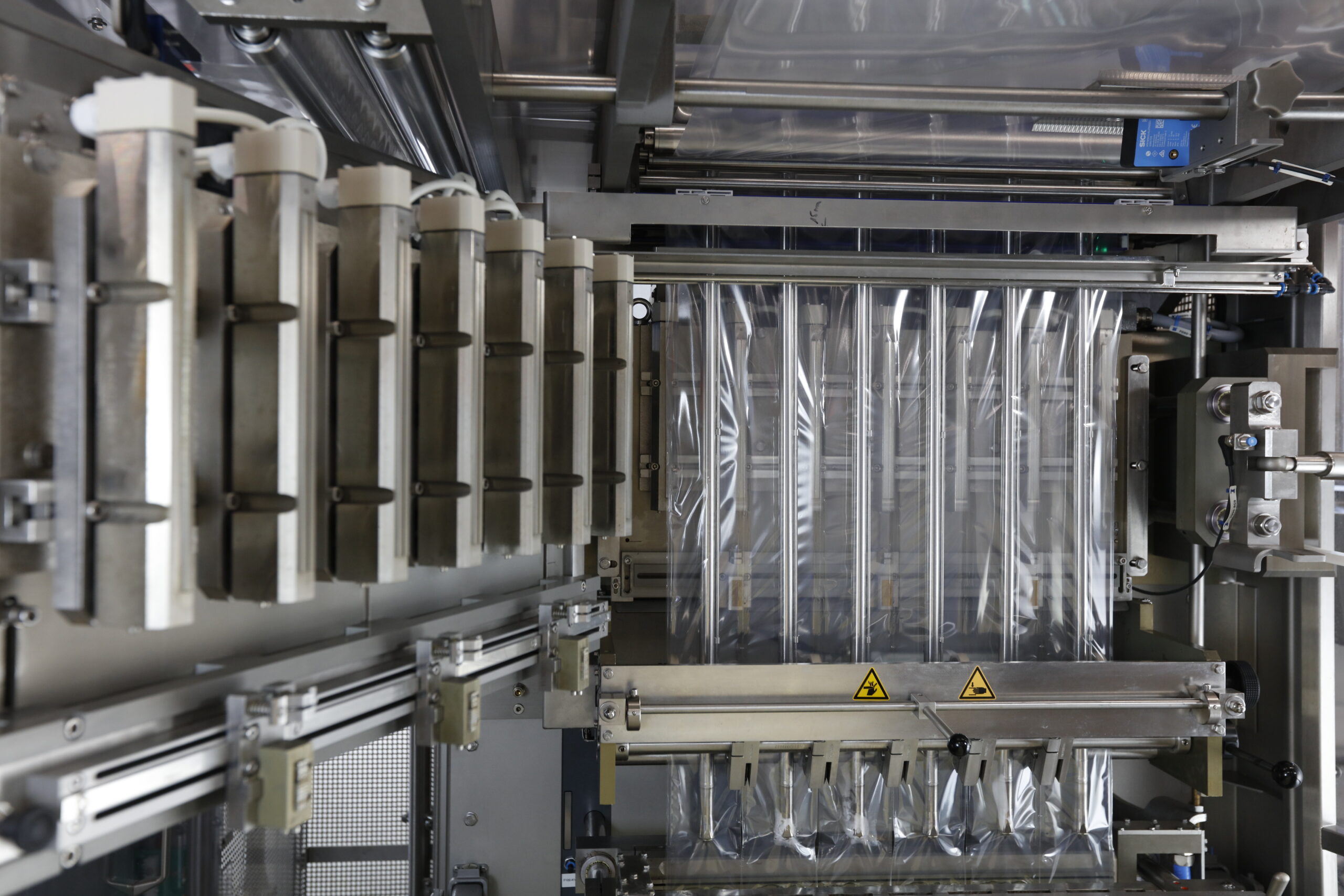

Filling tubes

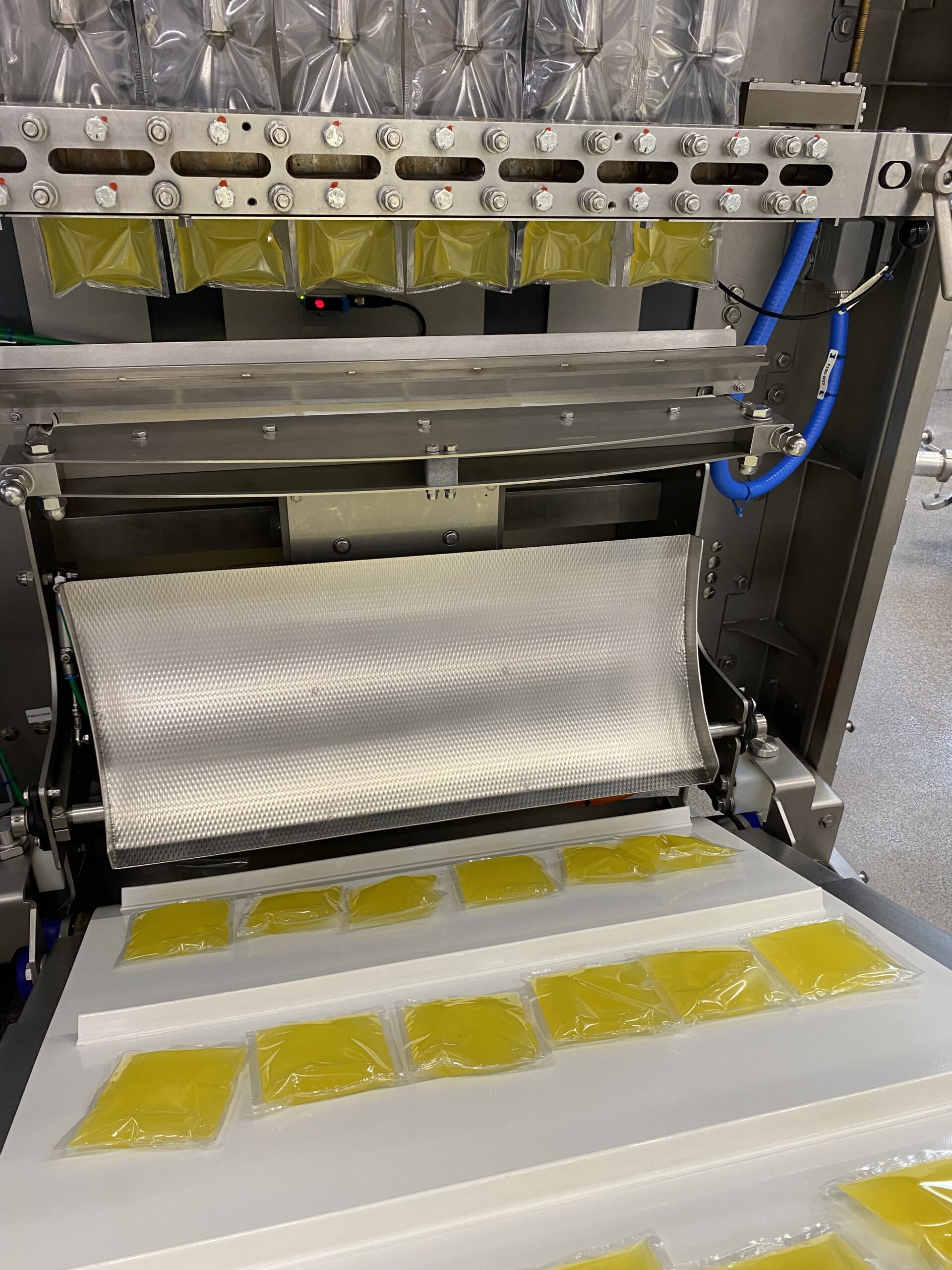

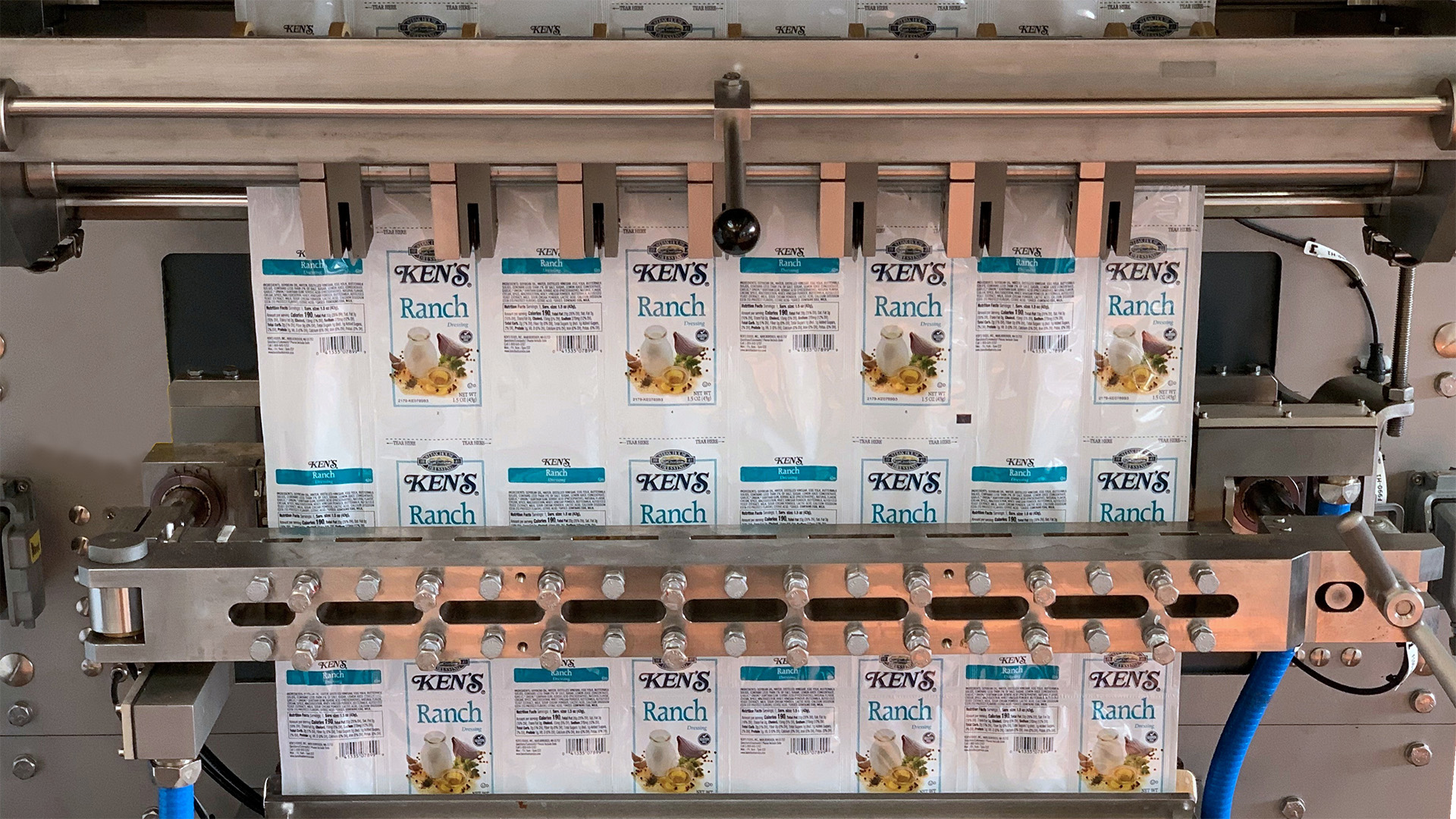

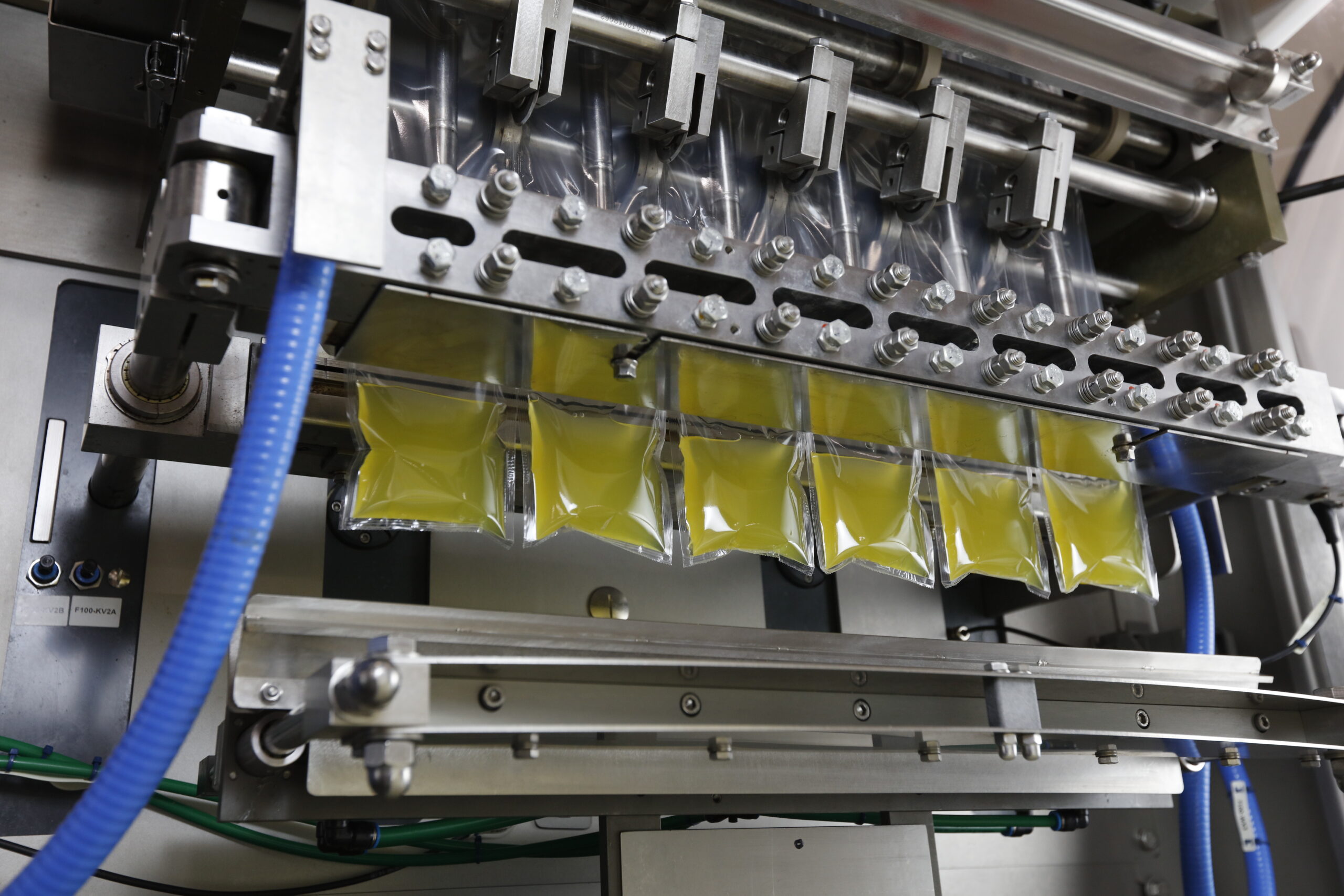

Sealed sachets

Outfeed conveyor

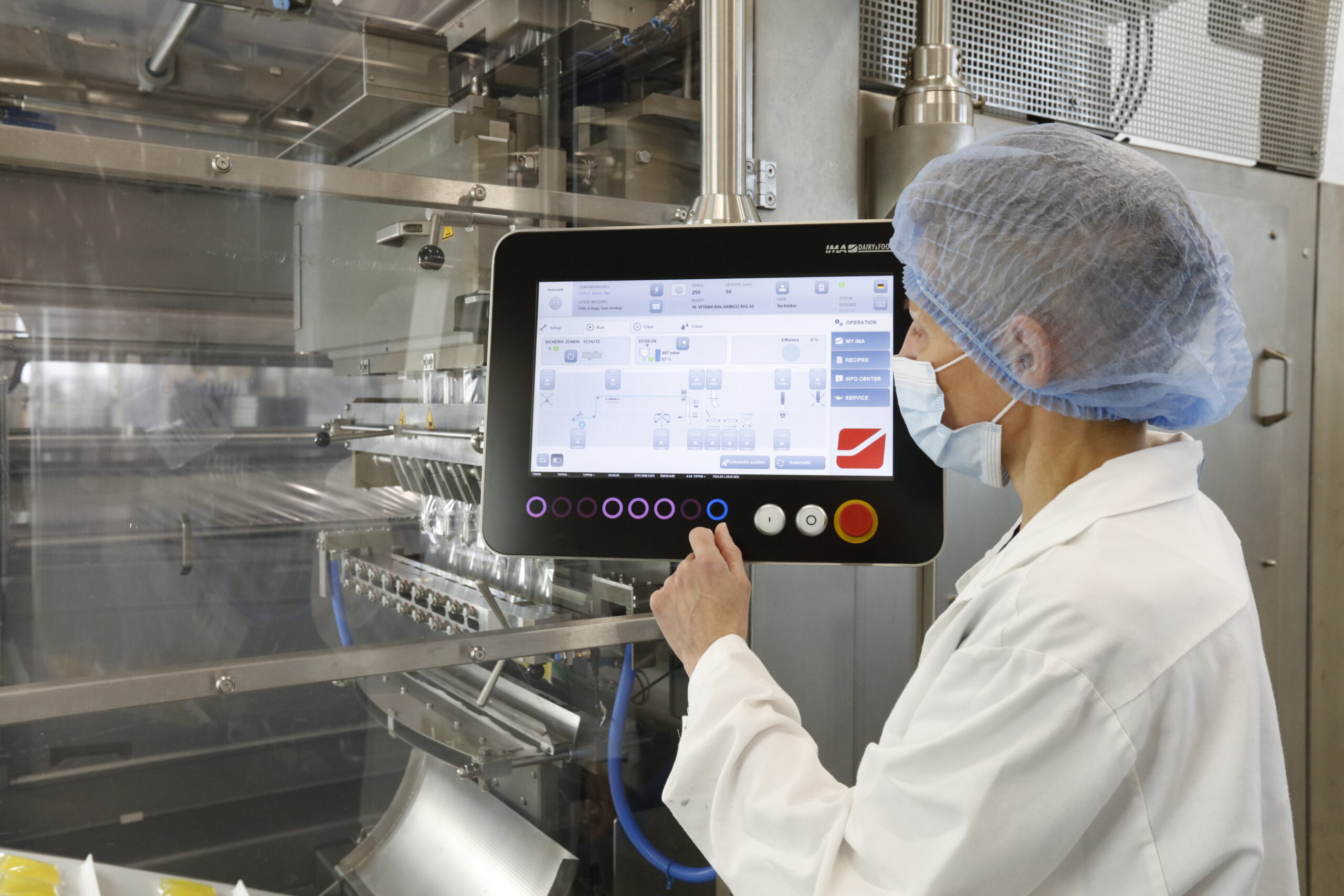

HMI

Technical information

TECHNICAL DATA F600
 F600 SimplexF600 Duplex
Material widthmax. 1.200 mmmax. 2 x 600 mm
Draw-off lengthmin. 80 mm / max. 200 mmmin. 80 mm / max. 200 mm
Reel diametermax. 800 mmmax. 600 mm
MATERIALS
MaterialsPET/PETmet/PE or other heat sealable materials
Outputup to 105,600 sachets/hour
STANDARD EQUIPMENT
Control SystemController and servo motors Schneider Electric or Rockwell Automation
Sealing4-sided sealed sachet
CodingEmbossing
Hygiene classClean (VDMA I+II)
OPTIONS
Sealingvarious contour sealings
DosageTwo (2) products (e. g. vinegar & oil) also possible in one sachet
CodingInkjet, laser
SealingTwin sachets with perforation, sachet chains with perforation
Hygiene classUltra-clean (VDMA III by means of packaging material decontamination and purge air overlay in the product area)
OthersX-ray/metal detector integration; sachet counting, discharge conveyor, end-of-line packaging equipment
