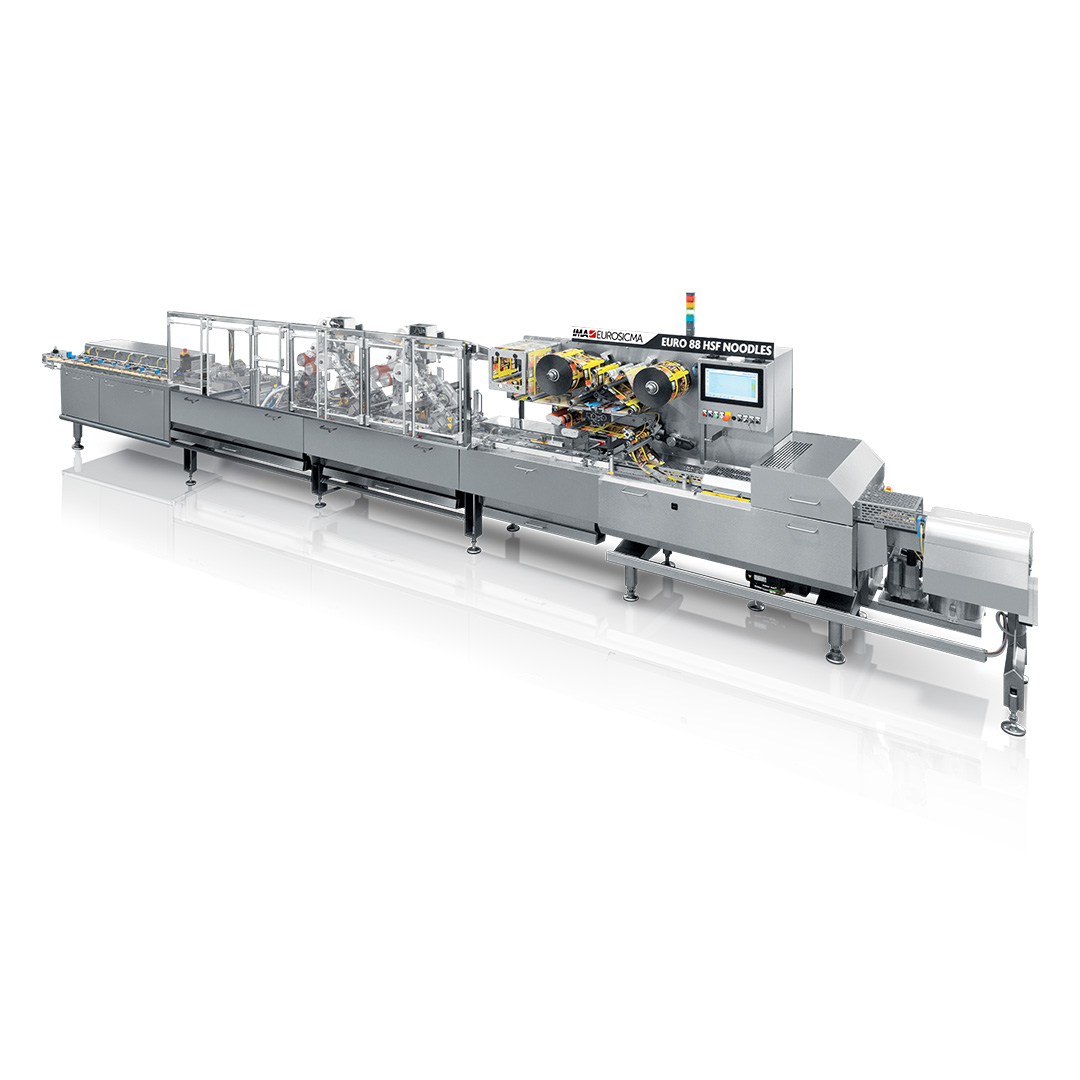

EURO 88 HSF NOODLES Horizontal Form, Fill and Seal
Machine overview
Leading-edge packaging technology for instant noodles.
High-performance packaging system specifically engineered for instant noodle cakes, featuring the HSF8 High-Speed Feeder and timing system, with 8 individually servo-driven belts and an integrated sachet feeder.
The EURO 88 HSF NOODLES is designed to be seamlessy integrated into fully automated packaging lines, satisfying a wide range of flow pack configurations, from single to multipacks.
Production plant
IMA Eurosicma
Machine highlights
-

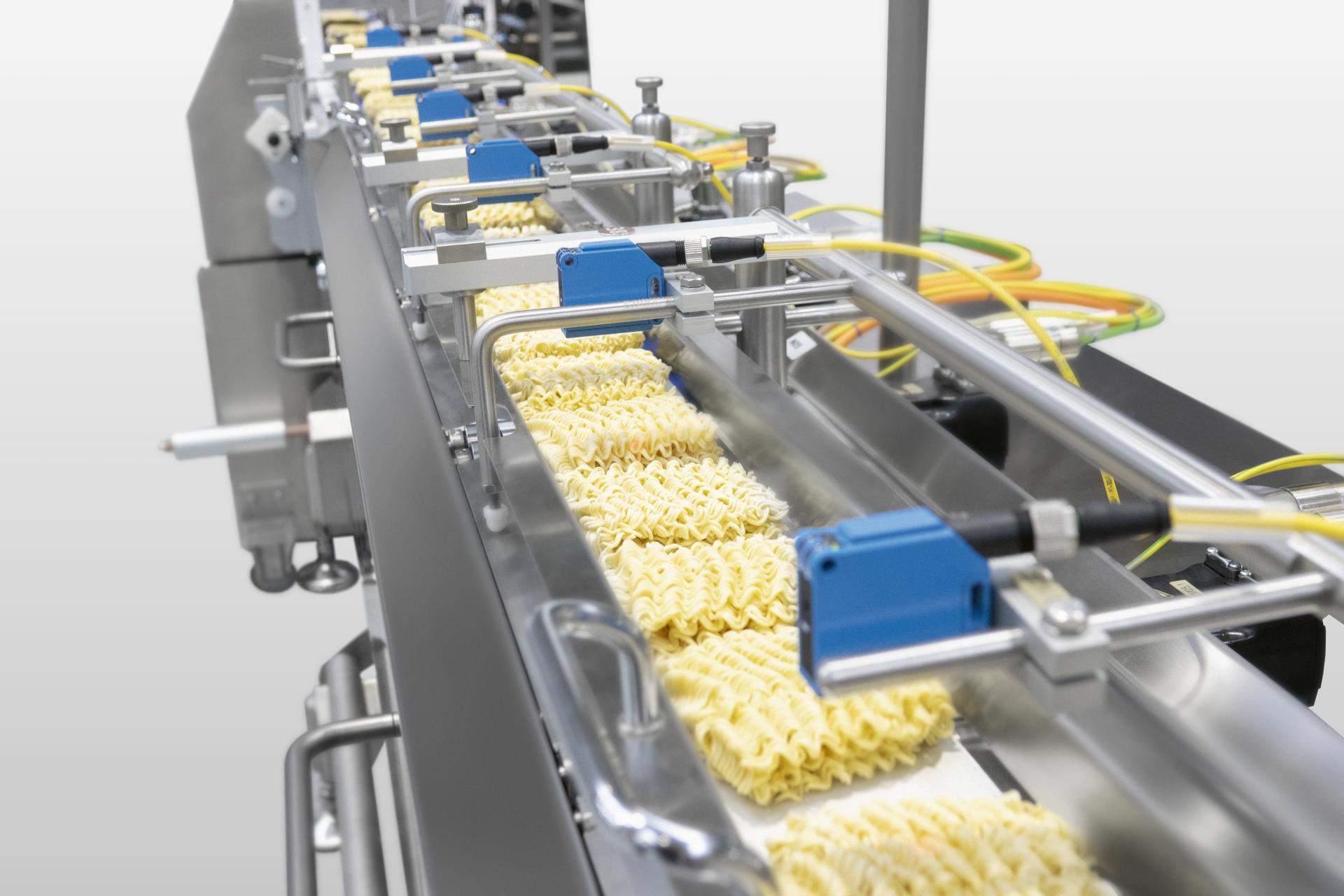

Ultragentle high-speed timing
This advanced technology delivers exceptionally gentle product handling — eliminating pressure and, when required, even avoiding direct product contact — while ensuring precise, responsive speed control for a perfectly optimised product flow.
-
Integrated sachet feeder application
Built-in, completely synchronised sachet feeder, capable of cutting sachets from strips and placing them accurately on each noodle cake. Fully embedded within the wrapping line’s control system, easily customised to handle multiple seasoning bags per pack, ensuring maximum flexibility and efficiency.
-
Customisable packaging flexibility
Easily adapts to any pack configuration — primary with single or piles of noodles and multipacks — offering maximum versatility for diverse market requirements.
-

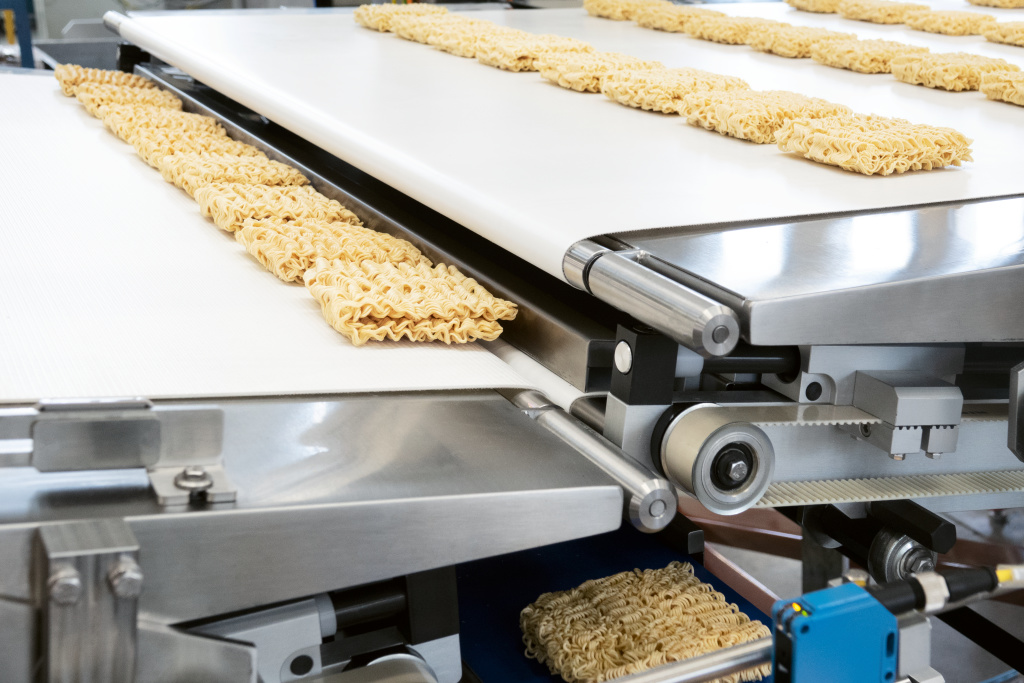

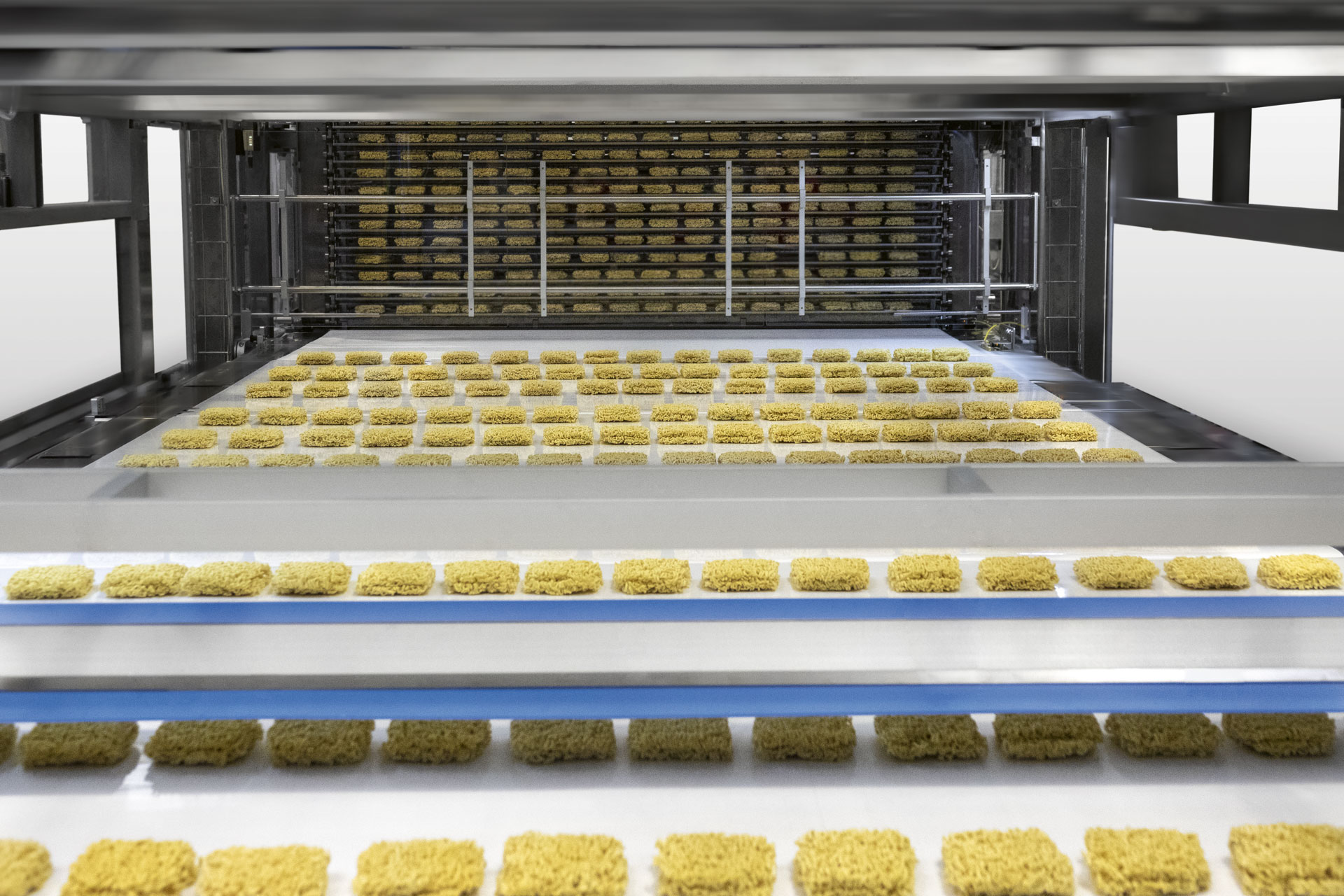

Turnkey feeding and distribution solutions
Fully integrated systems directly connected to upstream processing lines, delivering seamless product flow and ready-to-run efficiency.
Machine details
Technical information
| PRODUCT SIZE RANGE | ||||||
| Length (mm) | Width (mm) | Thickness (mm) | ||||
| Machine model | Min. | Max. | Min. | Max. | Min. | Max. |
| EURO 88 NOODLES (noodles) | 50 | 160 | 50 | 120 | 15 | 60 |
| EURO 88 HSF NOODLES (seasoning bag) | 50 | 200 | 30 | 80 | 1 | 7 |
| FILM REEL DIMENSIONS | ||||
| Length (mm) | ||||
| Min. | Max. | |||
| Inner diameter | 70 | 79 | ||
| External diameter | – | 380 | ||
| Reel width | 350/500 (opt) / 650 (box motion) | |||
| Max weight (kg) | 25 | |||
