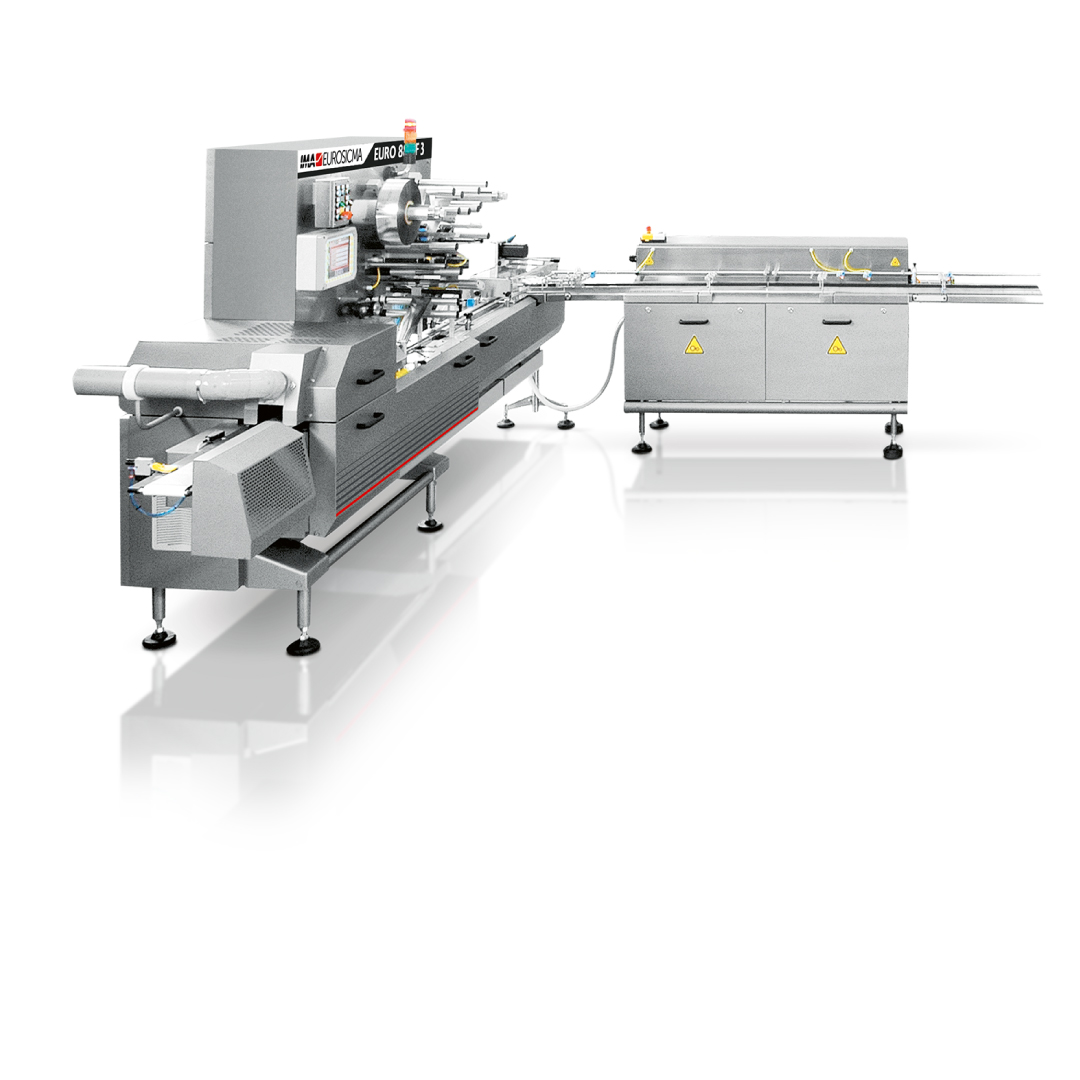

EURO 88 CF Horizontal Form, Fill and Seal
Machine overview
Gentle cross feeding with controlled low pressure.
HFFS flow wrapping line equipped with low-pressure cross-feeding system ensuring smooth handling of products throughout the process.
Perfect for regular-shaped confectionery and bakery items, including chocolate bars, dry biscuits and wafers, the system allows products to run in contact while maintaining their integrity.
Featuring three servo-driven belts positioned at 90° or 110°, it delivers precise synchronisation and consistently gentle product pressure.
Designed for long-side leading products in a single lane, such a flow wrapping line can reach speeds of up to 350 ppm, ensuring high efficiency and reliable performance.
Production plant
IMA Eurosicma
Machine highlights
-
Product flexibility
Designed to effortlessly handle a wide variety of regular-shaped confectionery and bakery products.
-
Gentle product handling
Feeding phase engineered to ensure extremely low, fully monitored pressure for smooth, damage-free product flow.
-
Possible integration in turnkey lines
Easily connects with row distribution and aligning systems to create complete, high-performance turnkey solutions.
Technical information
PRODUCT SIZE RANGE | ||||||
| Length (mm) | Width (mm) | Thickness (mm) | ||||
| Machine model | Min. | Max. | Min. | Max. | Min. | Max. |
| EURO 88 CF | 30 | 160 | 25 | 100 | 5 | 60 |
| FILM REEL DIMENSIONS | ||
| Length (mm) | ||
| Min. | Max. | |
| Inner diameter | 70 | 79 |
| External diameter | – | 380 |
| Reel width | 350/500 (opt) /650 (box motion) | |
| Max weight (kg) | 25 | |
