EURO 77 DS 900 Horizontal Form Fill and Seal

Machine overview

Top performance and high flexibility

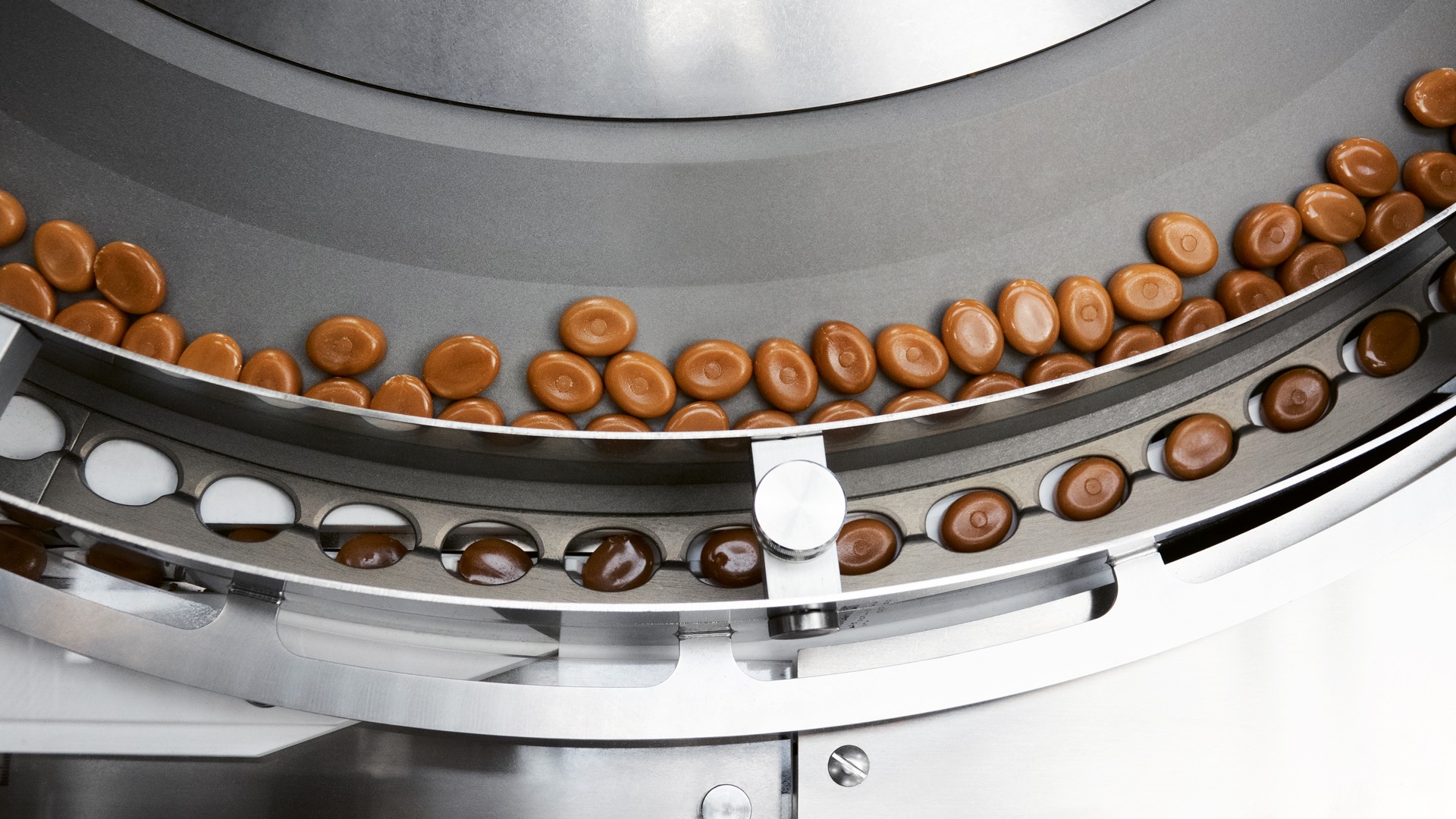

Able to reach a speed of up to 2.000 ppm with round and regular shaped hard candies, the EURO 77 DS 900 is a fully digital horizontal flow wrapper, named by the diameter of the centrifugal disc feeder: 900mm.
It grants high level of flexibility , thanks to dedicated kits of changing parts, the same machine can handle and pack hard and soft candies, jellies, gum pellets, lollipops and similar small confectionery items.

Production plant

IMA Eurosicma

Machine highlights

  1. Compact & Space-Saving Design

    Optimized streamlined footprint of feeding systems and flow wrapper.

  2. Modular Design & Maximum Flexibility

    A modular machine architecture enables high customization while offering top-level flexibility to handle a wide variety of products.

  3. High-Speed Performance

    Achieves speeds of 1.800–2.000 ppm, ensuring ultra-fast processing while maintaining gentle product handling.

Machine details

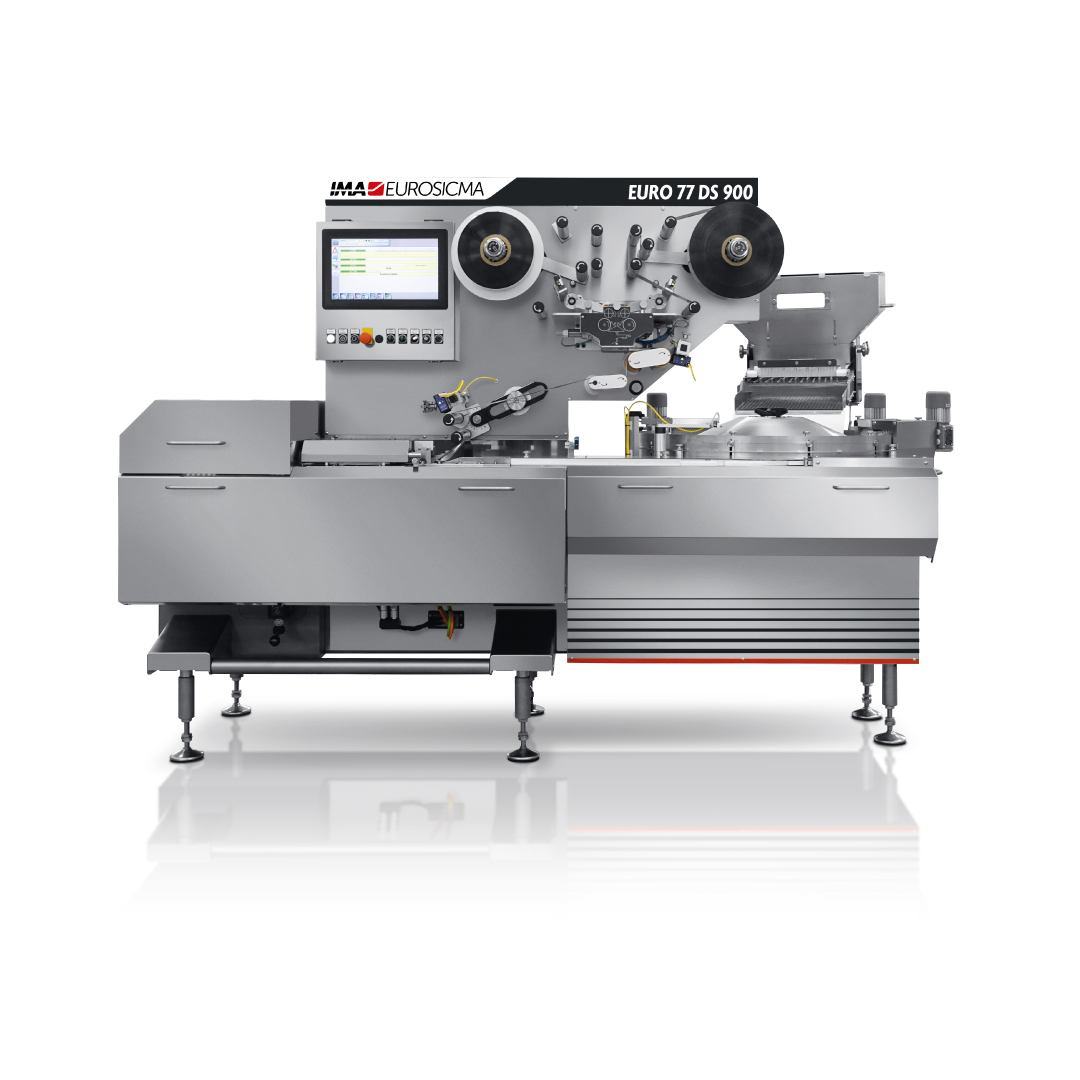

 EURO 77 DS 900 Flow wrapper for hard candies

EURO 77 DS 900 Flow wrapper for lollipops

Complete packaging line for sugar-coated jellies

EURO 77 DS 900 Flow wrapper for chewing-gum pellets

EURO 77 DS 900 Flow wrapper for round bouillons

Technical information

PRODUCT SIZE RANGE WITH CHANGING SIZE PARTS
 Lenght (mm)Width (mm)Thickness (mm)
 Min.Max.Min.Max.Min.Max.
EURO 77 DS 900104210305 (10 sph)30
EURO 77 DS 900 Lollipop7015015301530
FILM REEL DIMENSIONS
 Lenght (mm)
 Min.Max.
Inner diameter7076
External diameter–380
Real width–200
Electrical data7,5 Kw
Air pressure0,6 – 0,9 Mpa
Air consumption10 NI – min.
