ERMETIKA Pouch Filling
Machine overview
How do you fill? Fill Good!
ERMETIKA is a high-speed, continuous-motion rotary machine assembling, filling and sealing spouts and pre-made pouches in a wide variety of shapes and sizes. High efficiency and premium quality are achieved for countless products typical of the food and dairy market.
With 4 different models processing at different speeds, all handling a wide range of pouch sizes, ERMETIKA is a highly flexible solution with a reduced footprint.
Adapts easily in order to handle film, spouts and caps from different suppliers, and uses the filling-through-the-spout technique (spouts are sealed to the pouch before filling) to ensure 100% pouch filling is achieved, thus generating significant savings on materials.

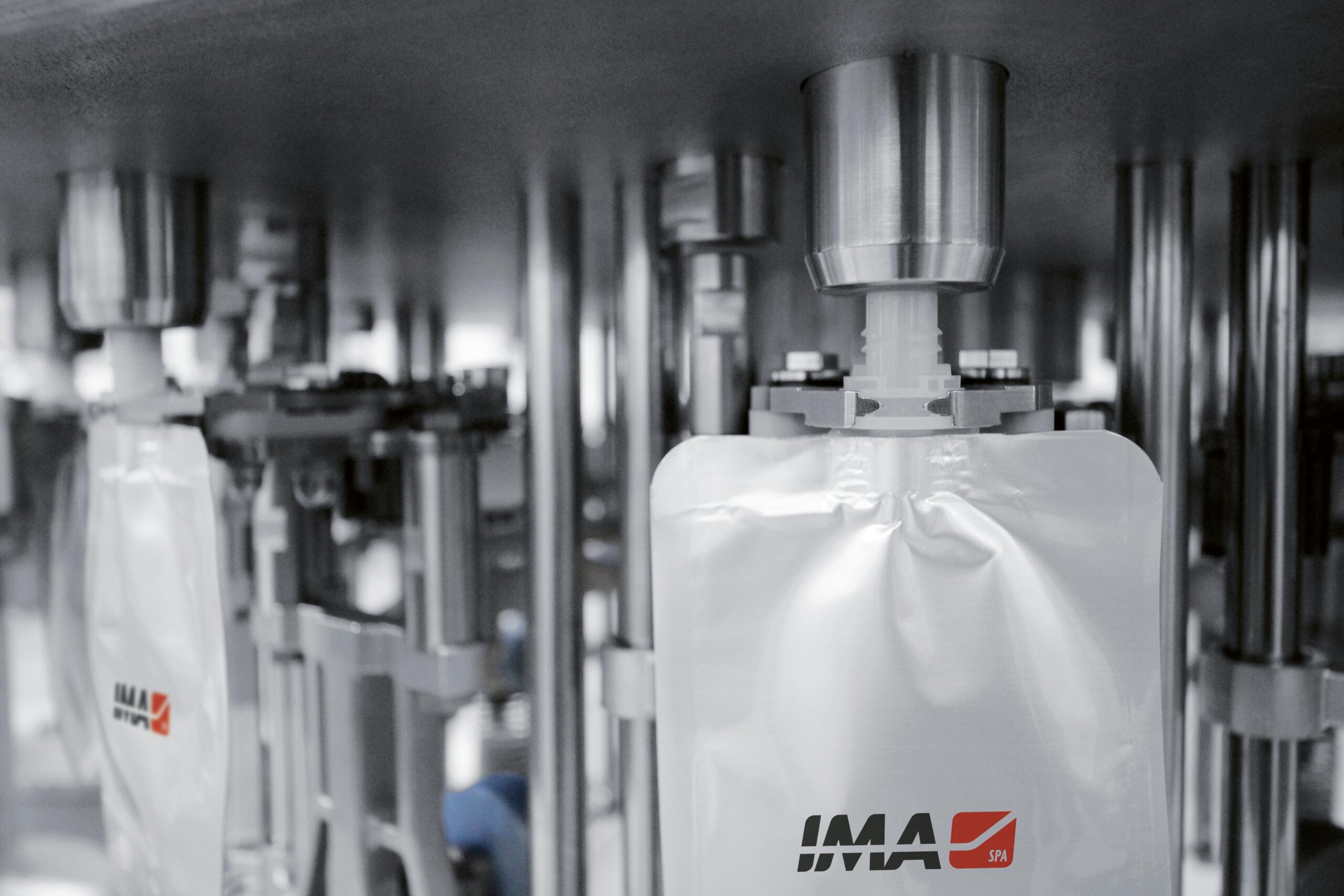

Fitted with the leak testing system (patent pending), ERMETIKA is the only machine on the market able to check the resistance of the pouch seal. Extended shelf life and aseptic versions are available.
Production plant
IMA Fillshape
Machine highlights
-
Full pouch capacity
Filling-through-the-spout technique to exploit maximum pouch capacity and save on materials.
-
Minimal leakage
Features an in-line leak testing device.
-
Top-level hygiene
Benefits from a fully washable design.
-
Product size flexibility
Spouts and pouches are handled in a wide variety of shapes and sizes.
-
Welding times
Extended and continuous welding time.
-
Compact footprint
A reduced layout, especially at medium and high speeds.
Machine details
Technical information
| TECHNICAL DATA ERMETIKA | |||||||
| Machine model | Stations | Pouch width (mm) | Pouch height | Pouches per minute | |||
| Magazine | Sealing | Filling | Capping | ||||
ERMETIKA 120 | 6 | 24 | 12 | 6 | 65 – 120 | 80 – 220 | 120 |
| ERMETIKA 180 | 8 | 24 | 16 | 8/12 | 65 – 120 | 80 – 220 | 180 |
| ERMETIKA 240 | 8 | 32 | 24 | 8/16 | 65 – 120 | 80 – 220 | 240 |
| ERMETIKA 360 | 12 | 40 | 30 | 24 | 65 – 120 | 80 – 220 | 360 |
| ERMETIKA 480 | 16 | 48 | 32 | 24 | 65 – 120 | 80 – 220 | 480 |
