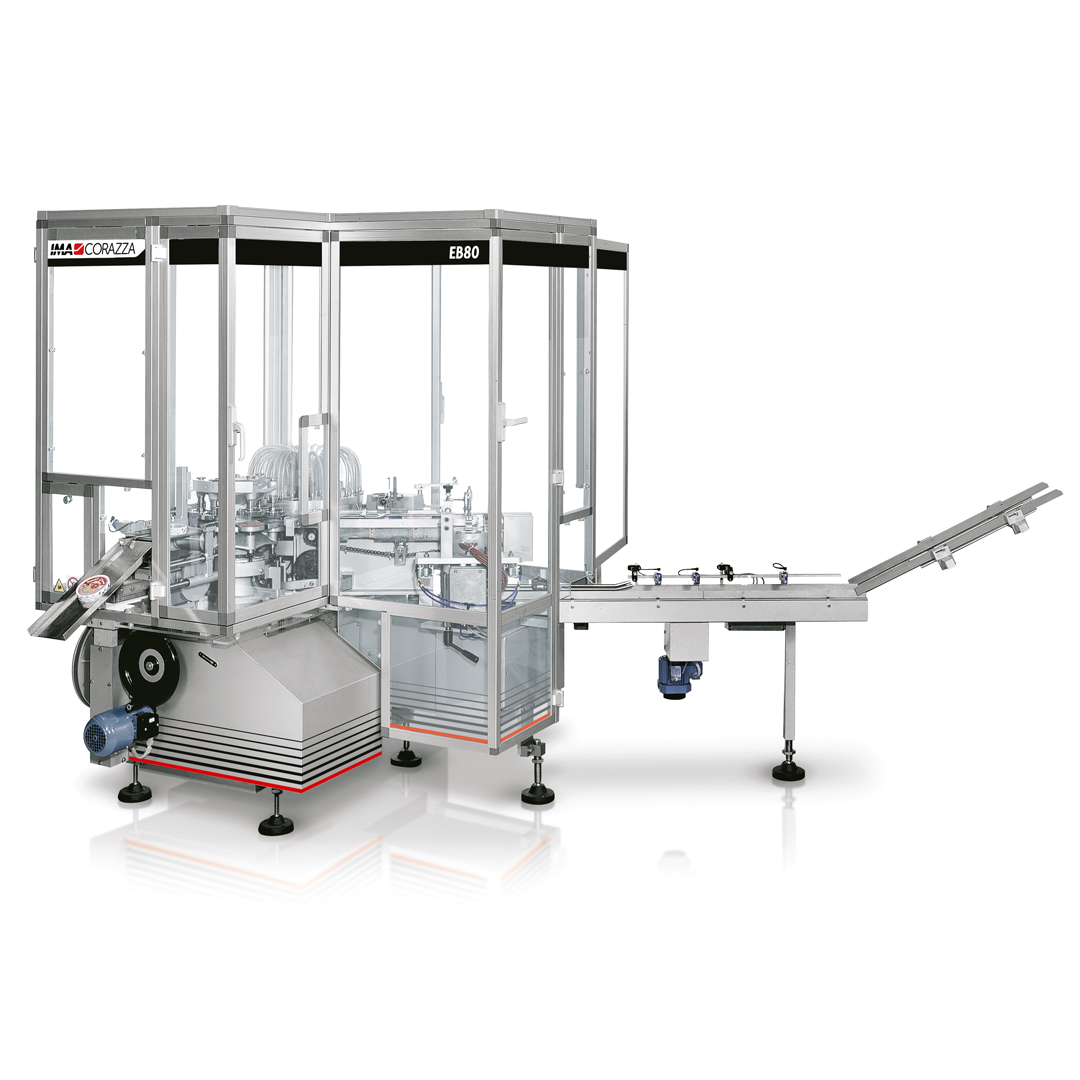

EB Series Banding
Machine overview
The secure banding solution with lid label option for round boxes containing triangular portions of processed cheese.

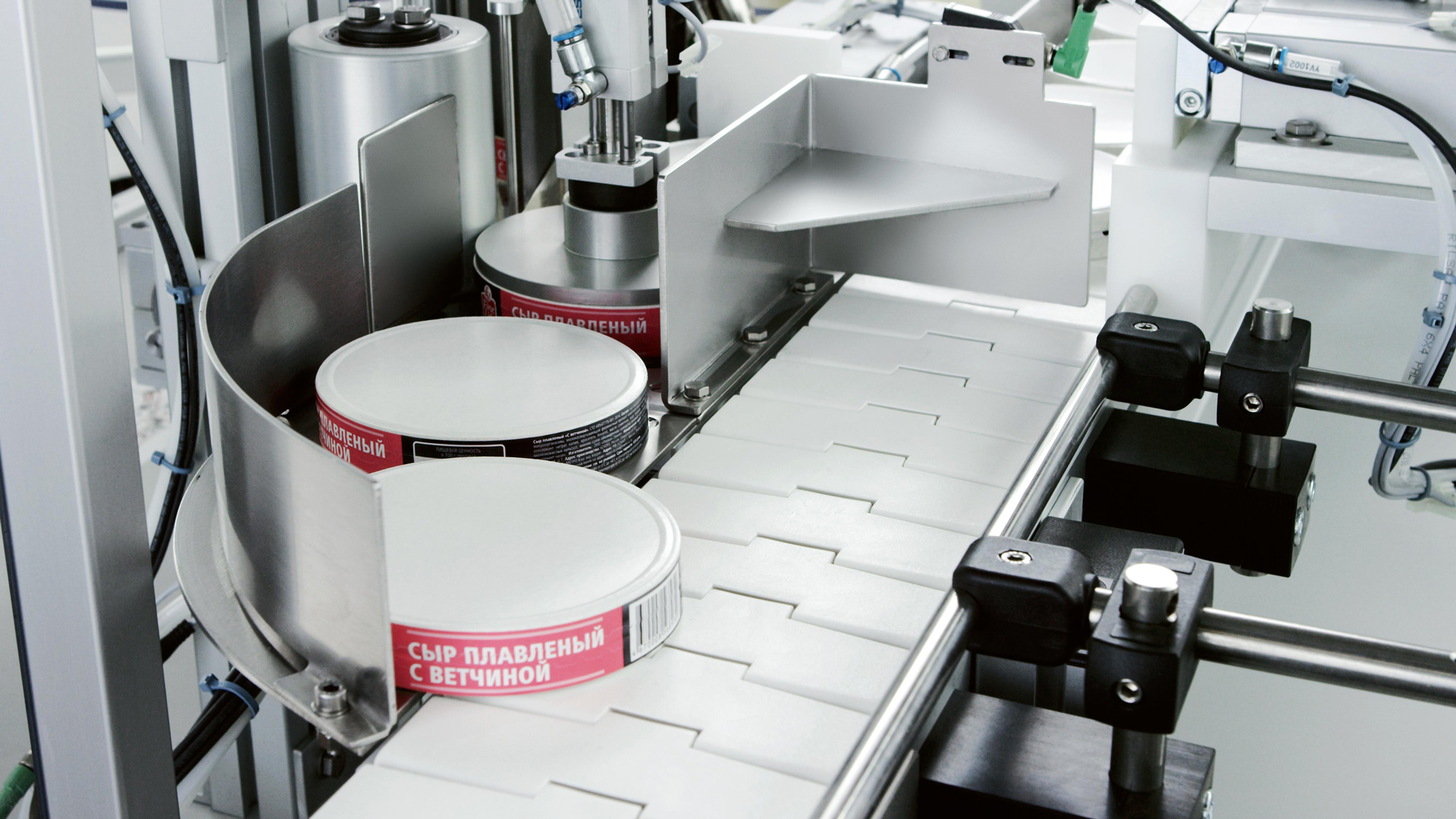

The EB80 applies paper sealing bands with an easy-to-open tear string around round boxes containing triangular portions of processed cheese. As an optional feature, the EB80 will apply round paper labels to box lids.
Suitable for banding 1 to 4-layer boxes with the simple replacement of relevant size-dedicated parts, the EB80 can be equipped with an optional box calibrator to optimise band application on irregularly shaped boxes.
Both bands and labels are cold-glue applications.
With the lid label unit, processing speeds reach 60 finished boxes/min, while the absence of a lid label unit enhances speed to 70/75 finished boxes/min.
Production plant
IMA Corazza
Machine highlights
-
Secure banding for round cheese boxes
Applies paper sealing bands with an easy‑open tear string around round boxes containing triangular cheese portions.
-
Optional lid label application
Can be equipped to apply round paper labels to box lids for enhanced presentation and branding.
-
Flexible multi‑layer box handling
Suitable for 1 to 4‑layer boxes through simple replacement of size‑dedicated parts.
-
Optimised banding on irregular boxes
Optional box calibrator improves band application on boxes with slight shape variations.
-
Cold‑glue band and label application
Both sealing bands and lid labels are applied using clean, efficient cold‑glue technology.
-
High‑speed processing up to 75 boxes/min.
Achieves 60 boxes/min. with lid labelling, and up to 70–75 boxes/min. when operating without the lid label unit.
Machine details
Technical information
| Production capacity with label unit | Up to 60 boxes/min. |
| Production capacity without label unit | Up to 70-75 boxes/min. |
| Full load current | 3P x 400 Volt – 50 Hz – 6 Amp |
| Compressed air consumption | 45 Nl/min. (min. op. pressure 6 bar) |
| Vacuum | 40 m³/h (op. vacuum 600 ± 50 mm Hg) |
| Weight | 1,500 Kg Approx. |
Box dimensions
| Box configuration |
| 6/6 – 8/8 – 12/12 | |
| A (min – max) | |
| 110 – 112 | |
| B (min – max) | |
| 21 – 49 | |
| Layers | 1 – 4 |
