EASYFILL Series Aseptic Processing

Machine overview

Flexible filling made easy

Easyfill is a liquid filling and stoppering machine for vials, both small and large-volume parenterals, available in two models to satisfy medium and high-speed requirements.
The machine features a positive intermittent-motion, linear transport and brushless motors for precise movements. It can be equipped with all types of dosing systems typically used for aseptic products and with a checkweighing system composed of load cells for tare weight detection before filling and load cells for gross weight detection after dosing.

Production plant

IMA Life

Machine highlights

  1. Efficient processing

    No vial – no fill – no stoppering control device.

  2. Stoppering for liquid and lyophilised products

    Insertion of rubber stoppers for both liquid solutions and freeze-dried products.

  3. 100% IPC

    Suitable for integration with 100% In-Process Control.

  4. Easy integration in sterile environments

    Can be installed inside a conventional sterile room, integrated with any type of RABS.

  5. Easy maintenance

    Excellent visibility of the whole process and great accessibility to the working area for immediate maintenance.

  6. Fast size changeover

    Quick size changeover and easy cleaning.

Machine details

Machine video trailer

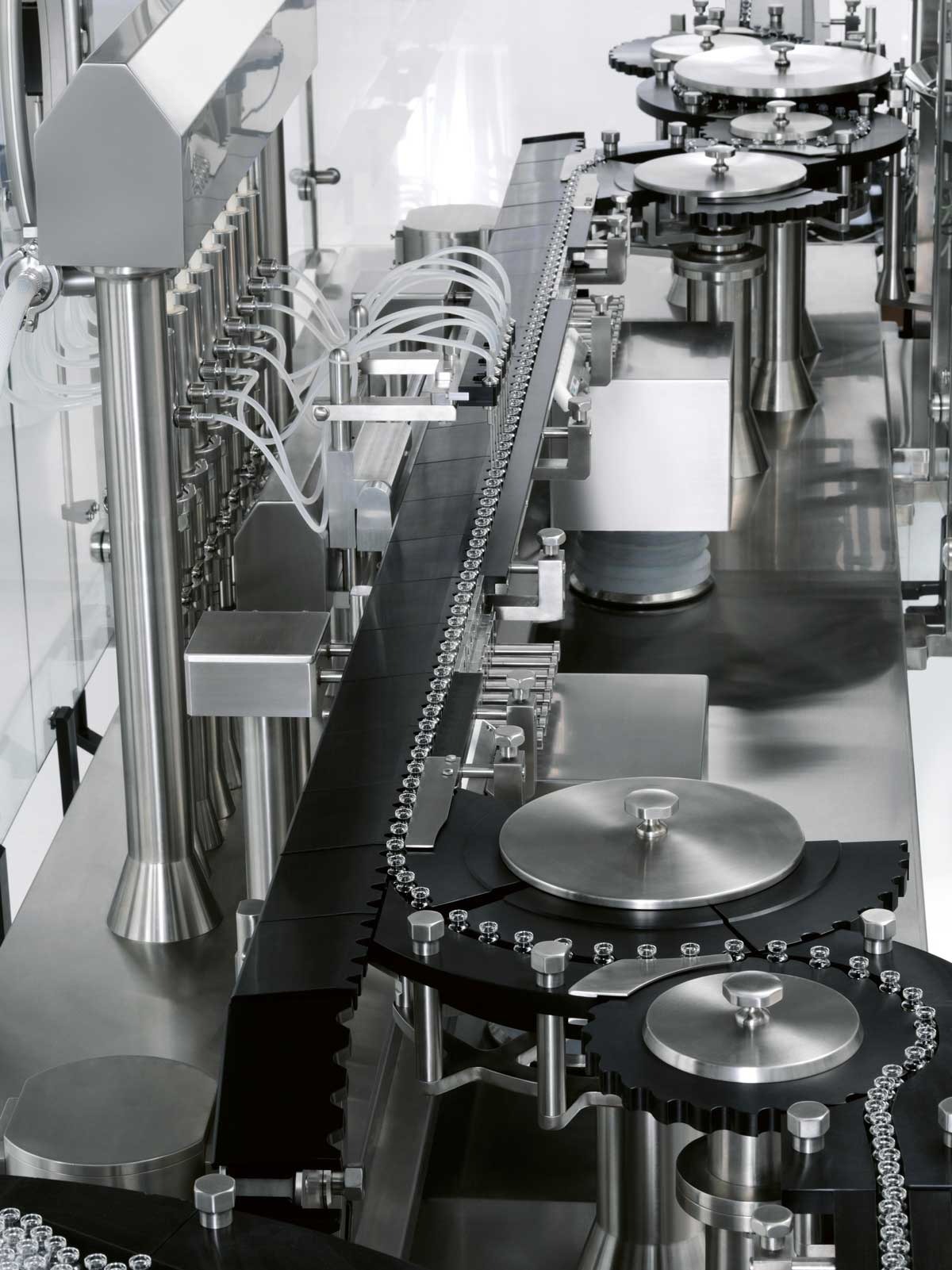

Work area

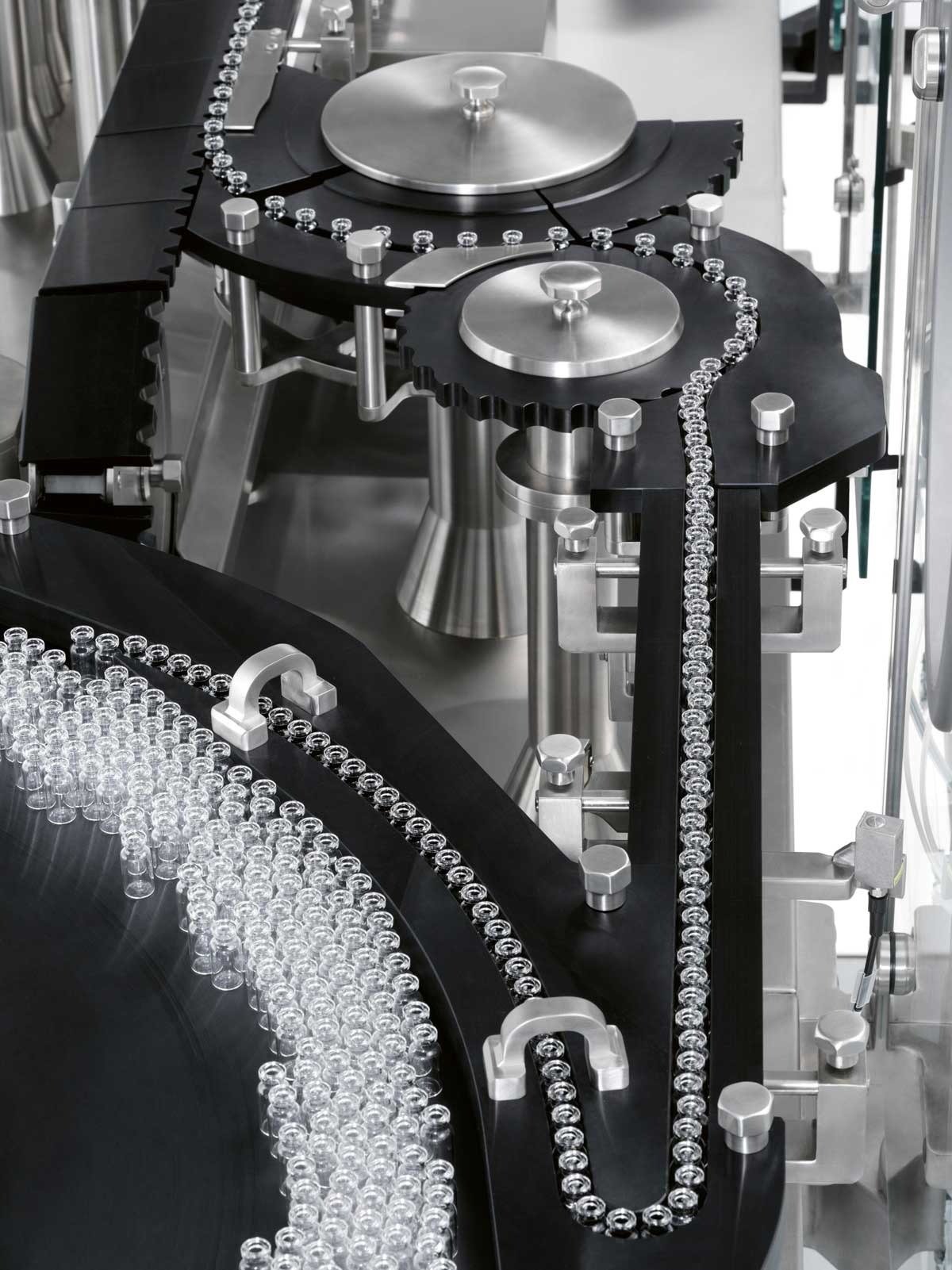

Vial infeed

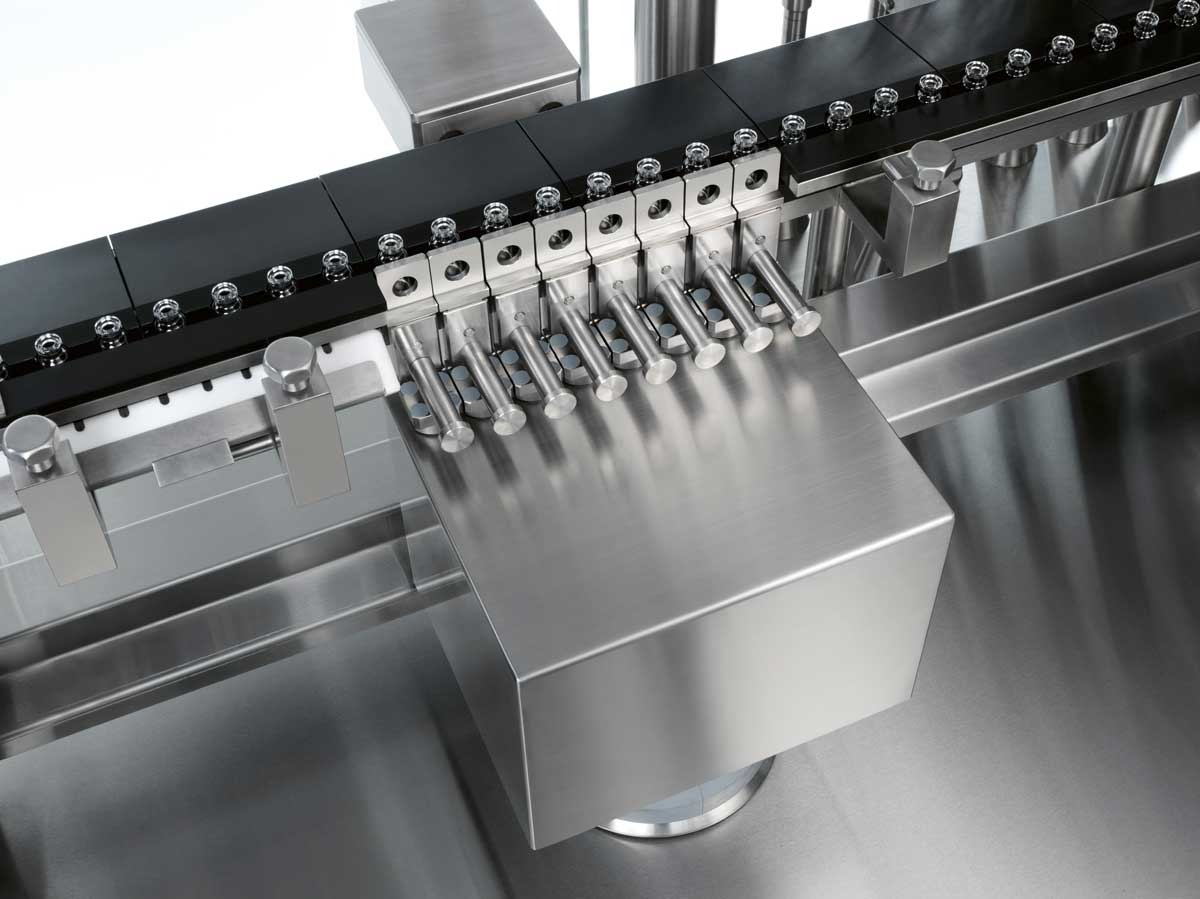

Empty vial weighing

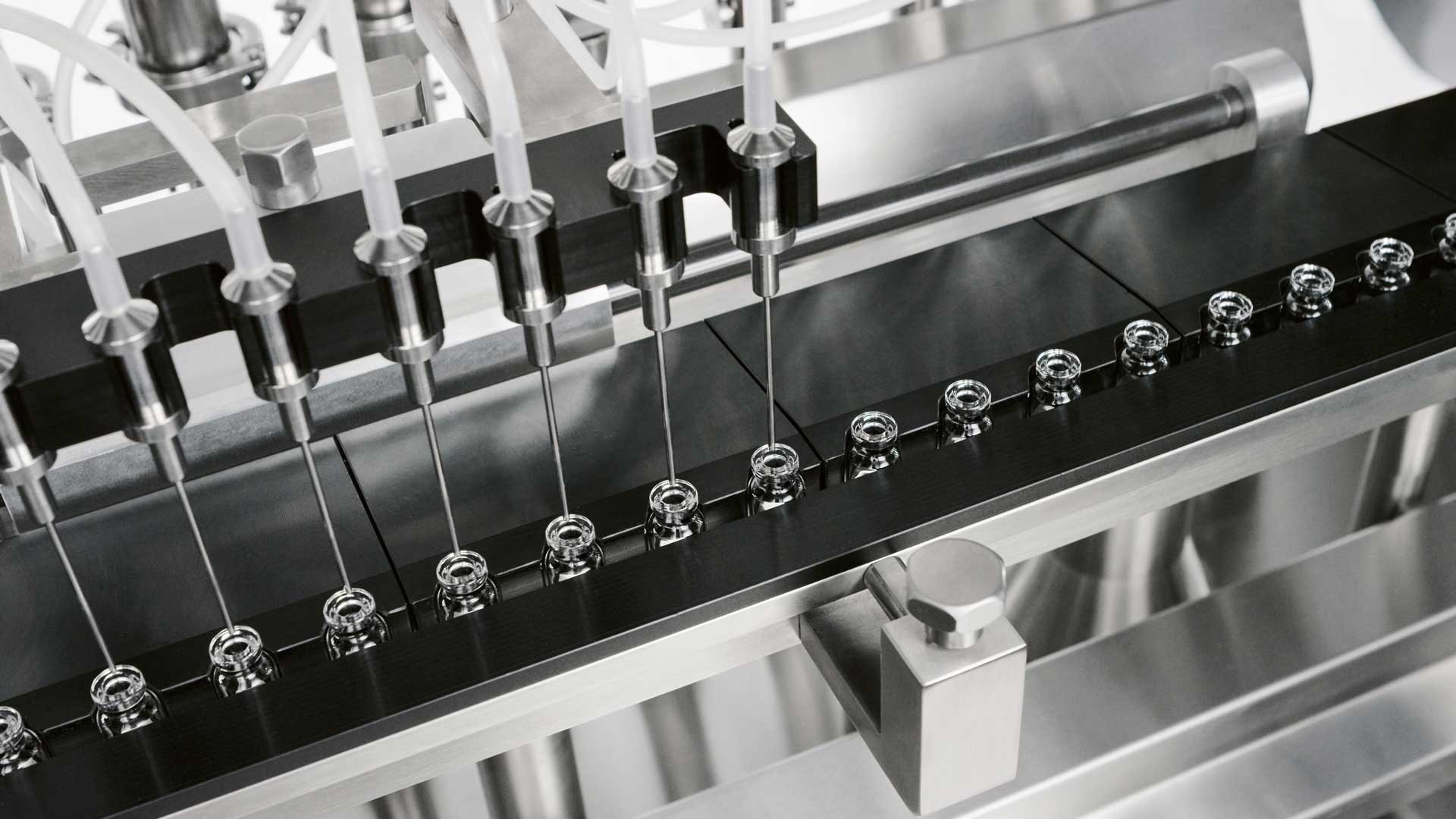

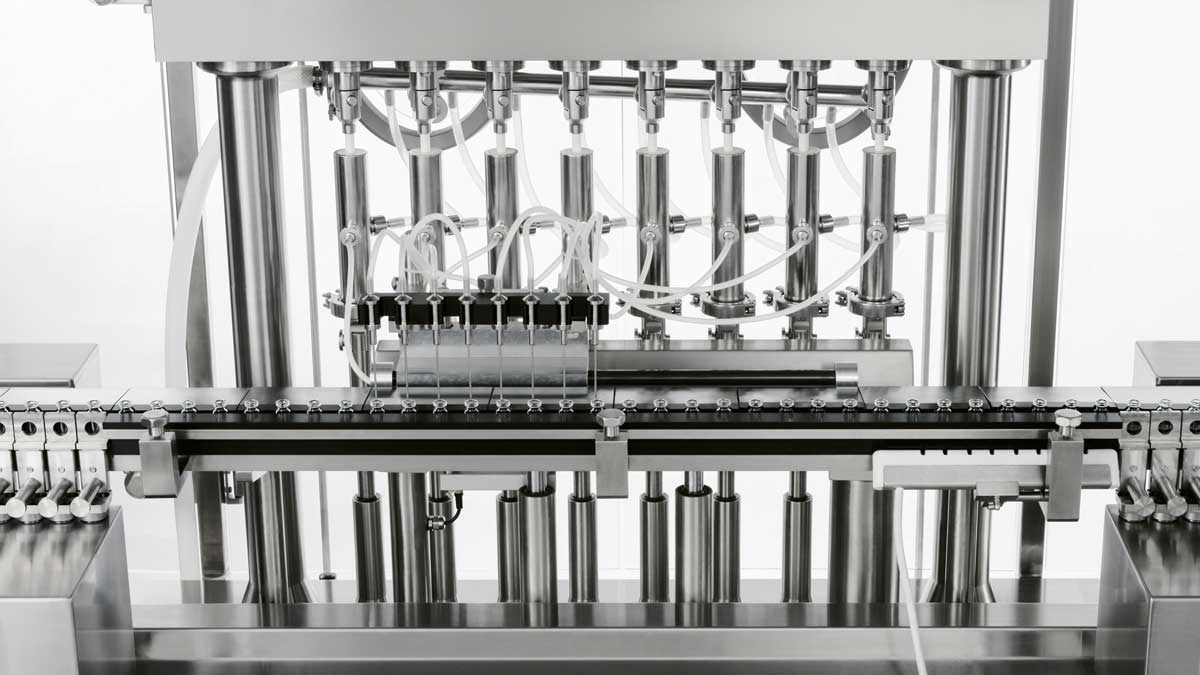

Vial filling

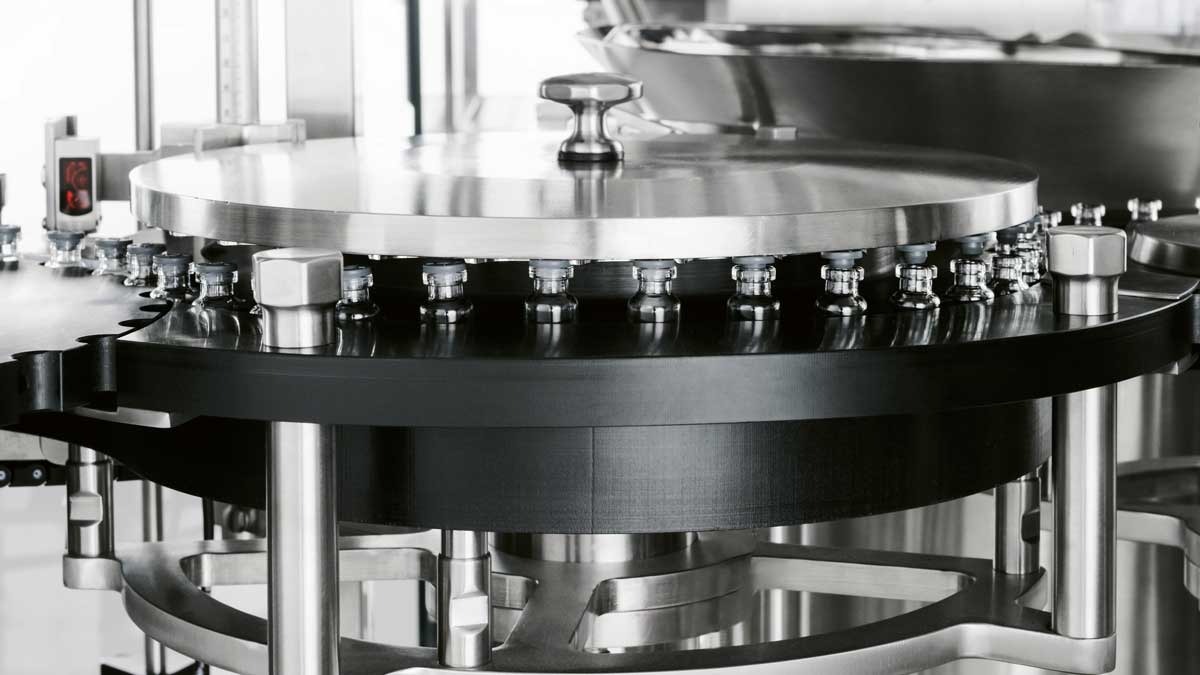

Vial stoppering

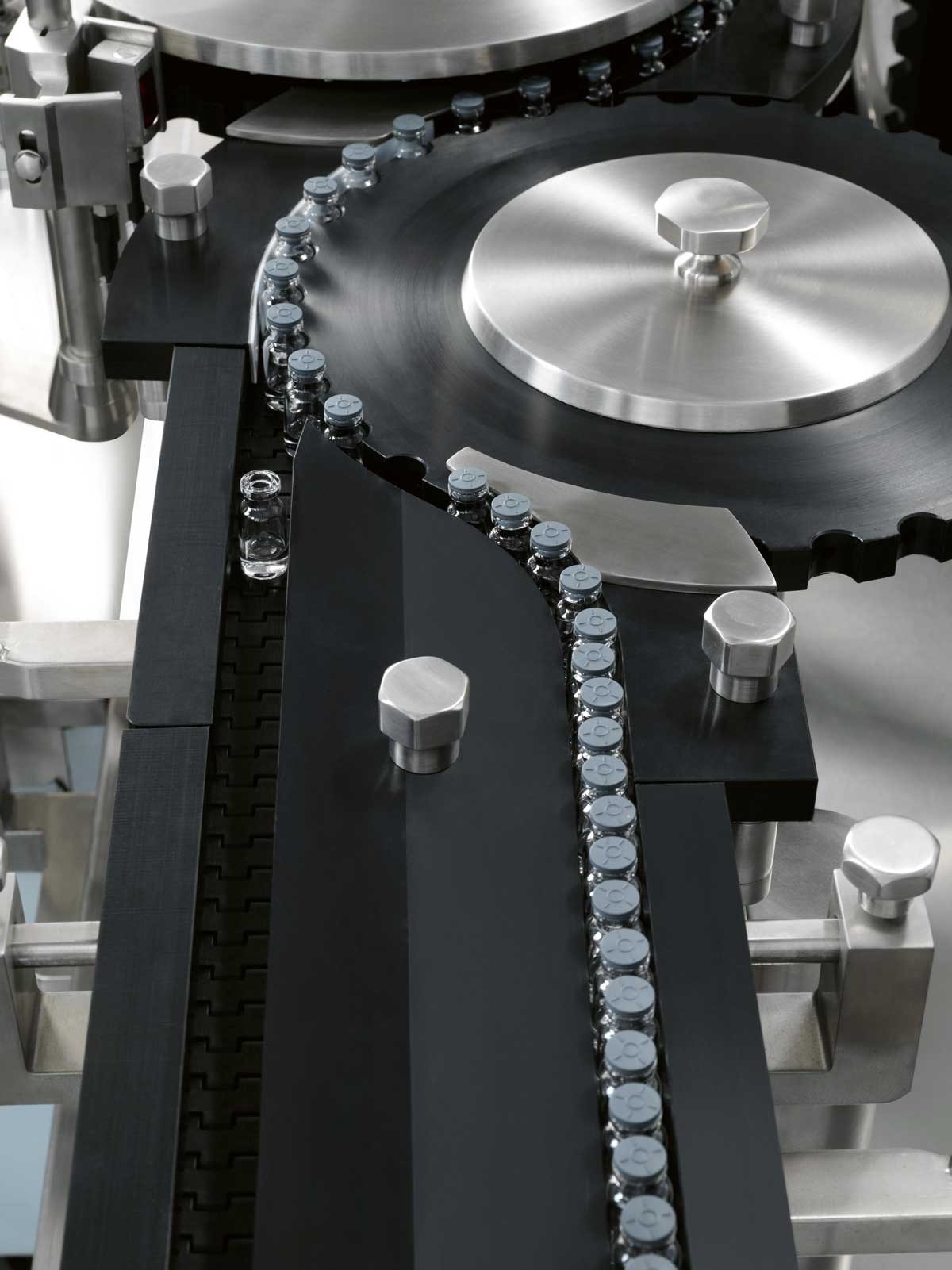

Vial exit and rejection

Technical information

TECHNICAL DATA EASYFILL
ModelEASYFILL 200EASYFILL 400
Output (vials/minute)*Up to 200Up to 400
Filling range (ml)Up to 100 (for Small Volume Parenterals)
Vial diameter (mm)14-54
Vial height (mm)35-110
Standard voltage400 V – 50 Hz
Installed power (kW)1215
Weight (kg)1800

*Depending on vial size and filling system
