EASYCAP Aseptic Processing

Machine overview

Making your capping requirements easy to fulfil

EASYCAP is a continuous-motion rotary capping machine designed to apply and seal aluminium caps, with or without flip-off, onto ready-filled and rubber-stoppered, cylindrical glass or plastic vials.
Able to work with a wide range of containers, EASYCAP can satisfy low-medium speed requirements. Essential design features and the machine’s excellent accessibility make this an affordable solution ensuring smooth, hassle-free production.
Upon request, EASYCAP can be installed in classified areas under UAF and in conventional sterile rooms.

Production plant

IMA Life

Machine highlights

  1. Versatility

    Able to work with a wide range of container and alu-cap sizes.

  2. Minimal product contamination

    No product contamination: the idle roller ensures extremely low particle generation.

  3. Ergonomic design

    Ergonomic structure and excellent visibility of the whole capping process.

  4. Easy maintenance

    Great accessibility to the working area for immediate maintenance.

  5. Space saving

    Small footprint to save space in the production area.

  6. Fast size changeover

    Quick size changeover and easy cleaning.

Machine details

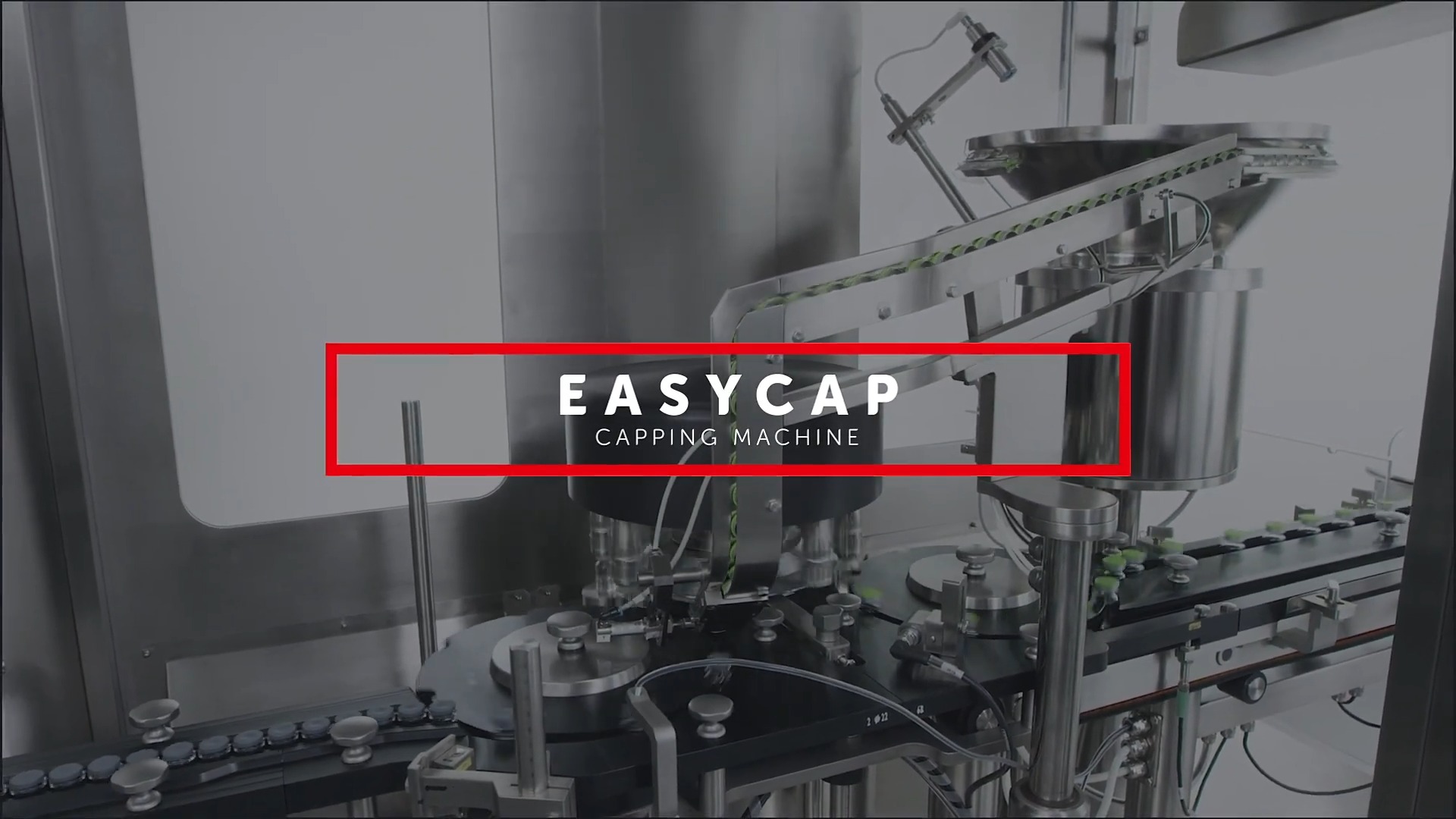

Machine video trailer

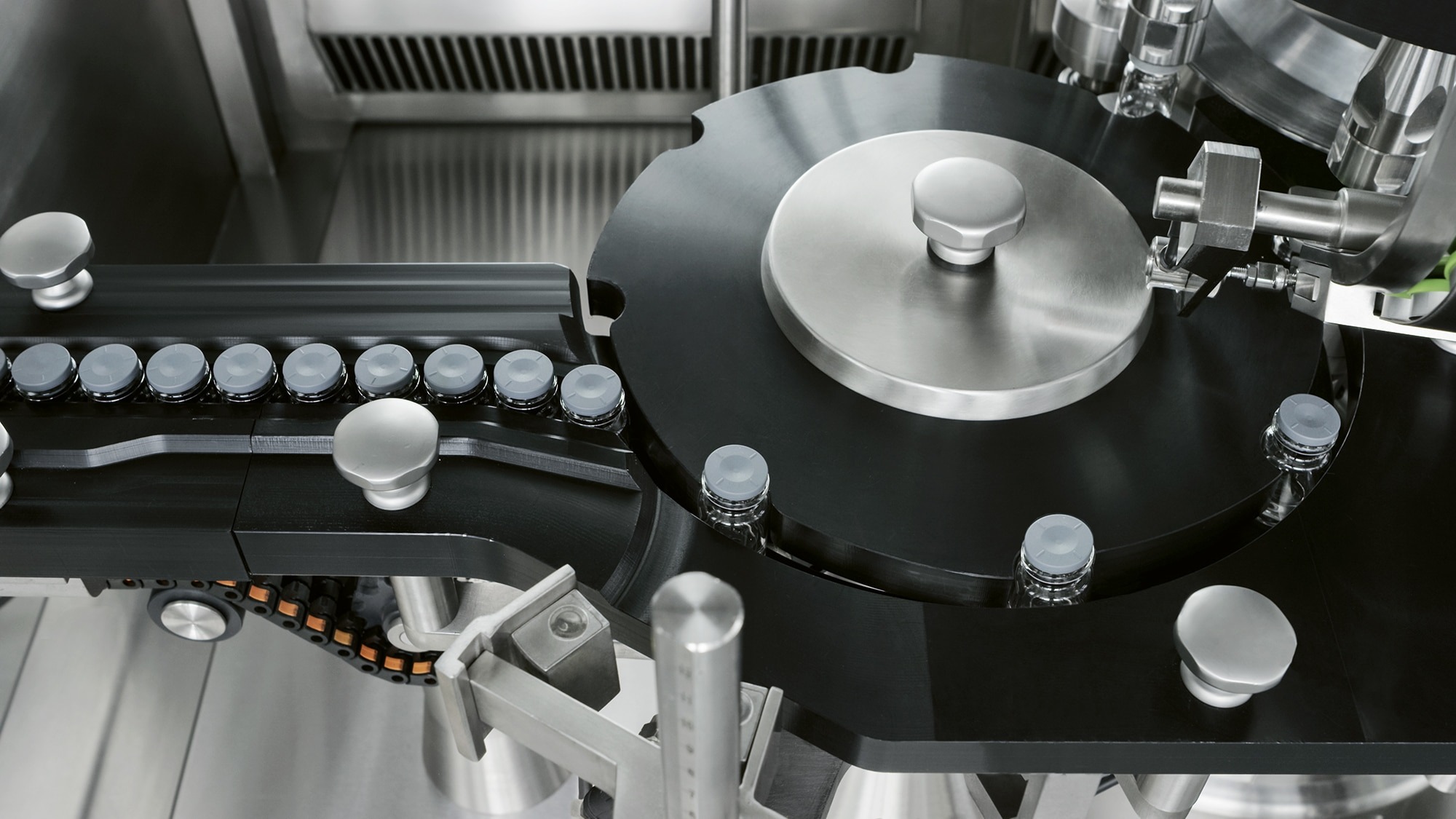

Vial infeed

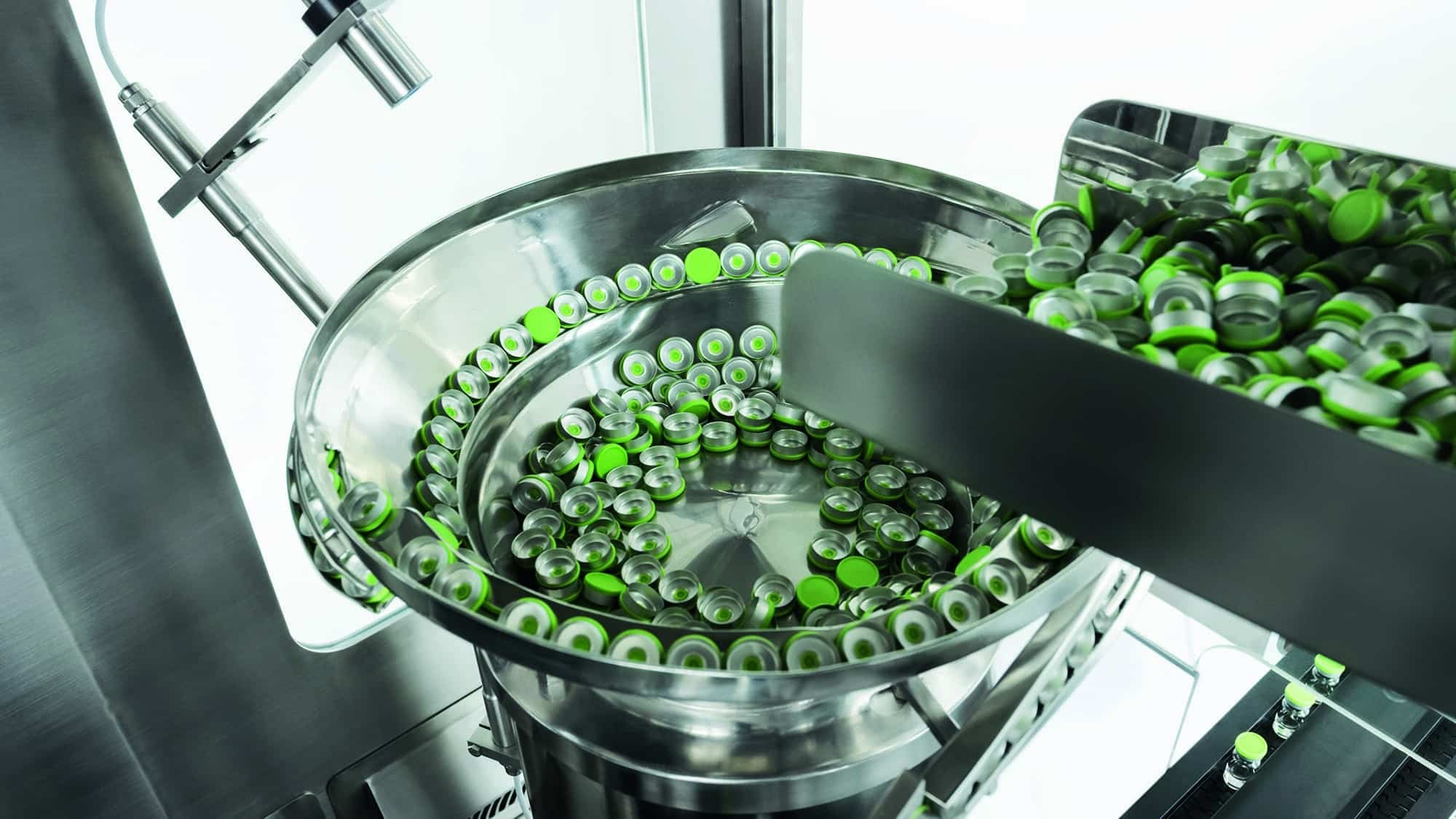

Alu cap feeding

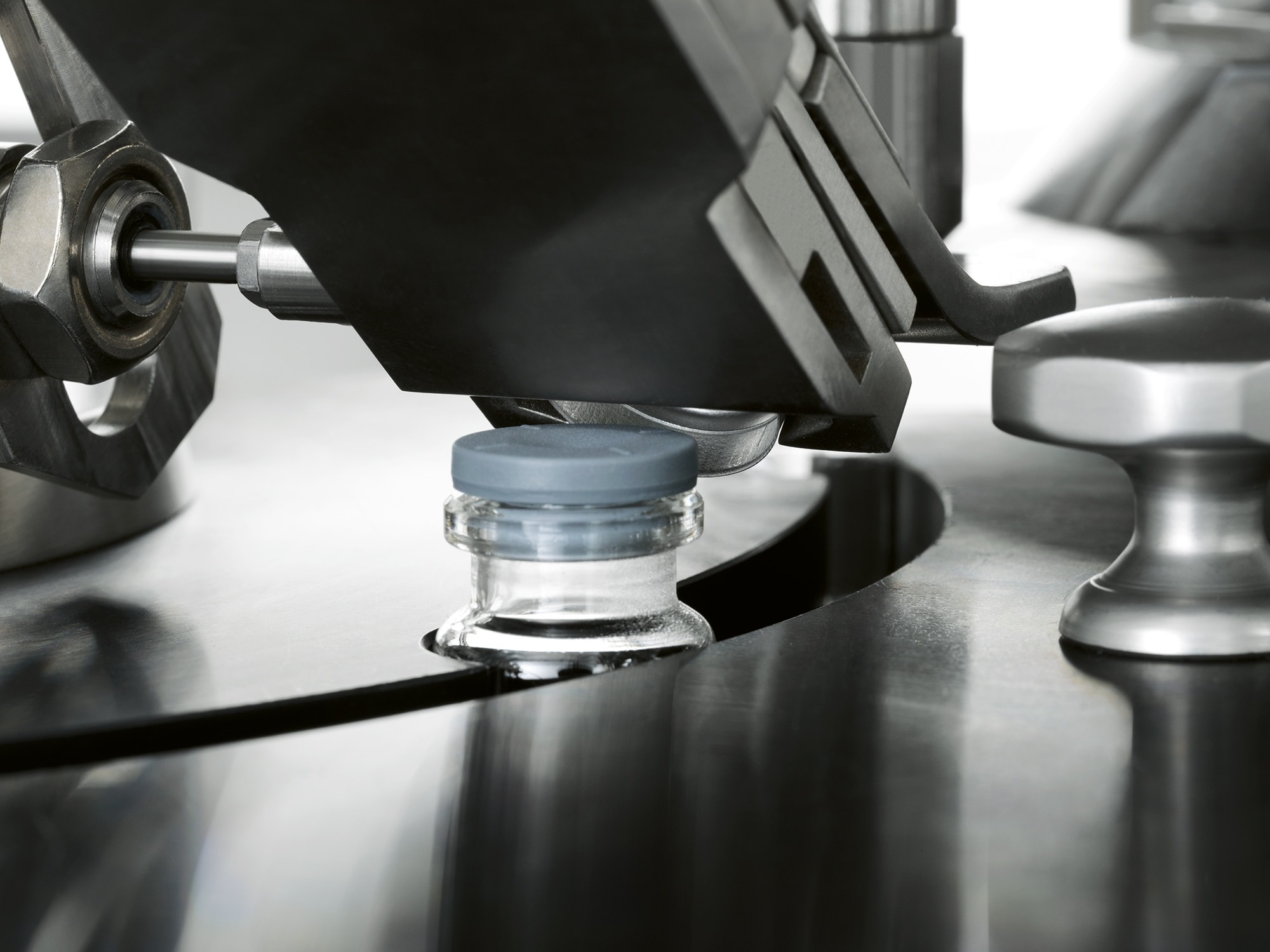

Alu cap release

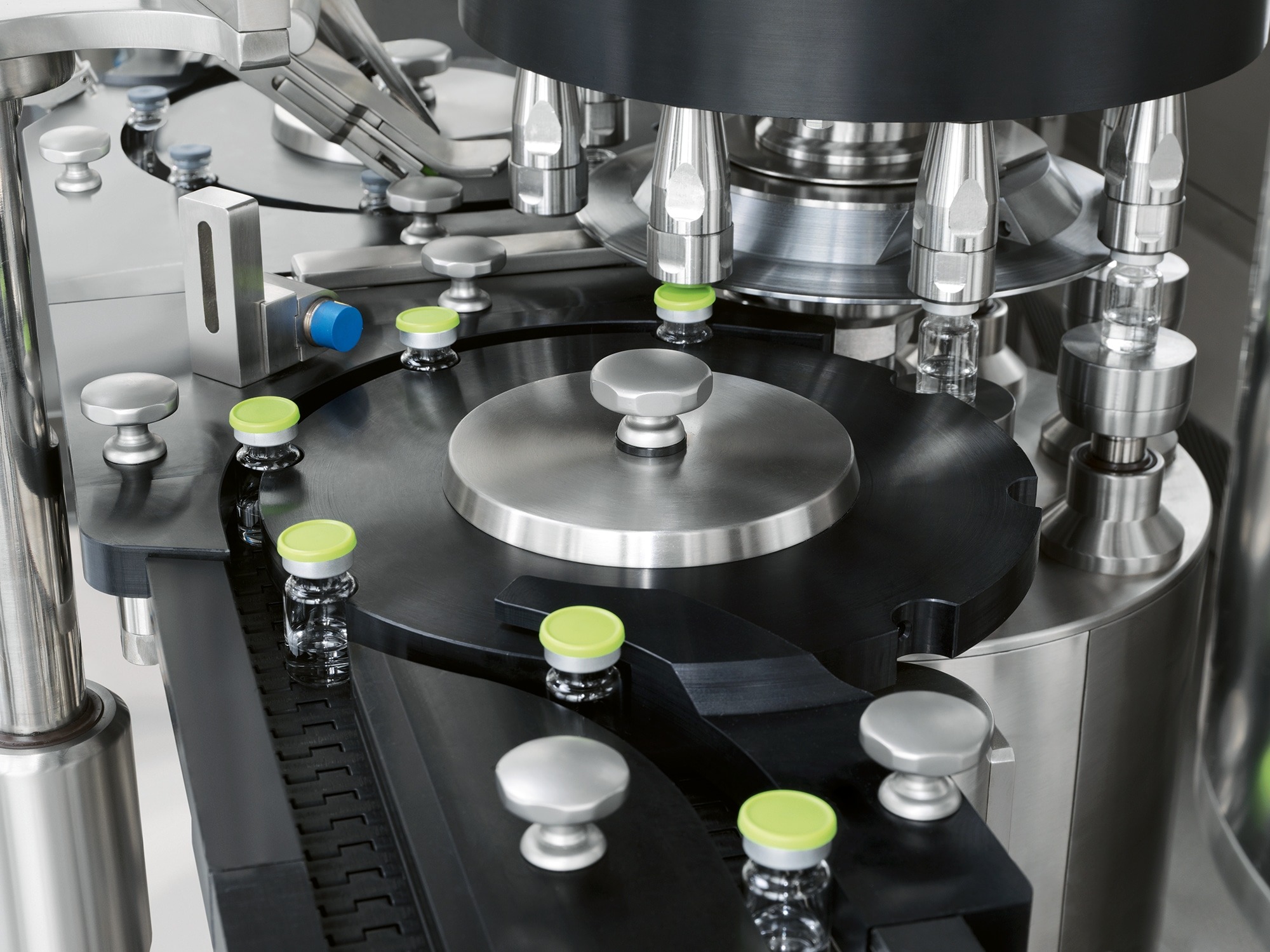

Alu cap presence check

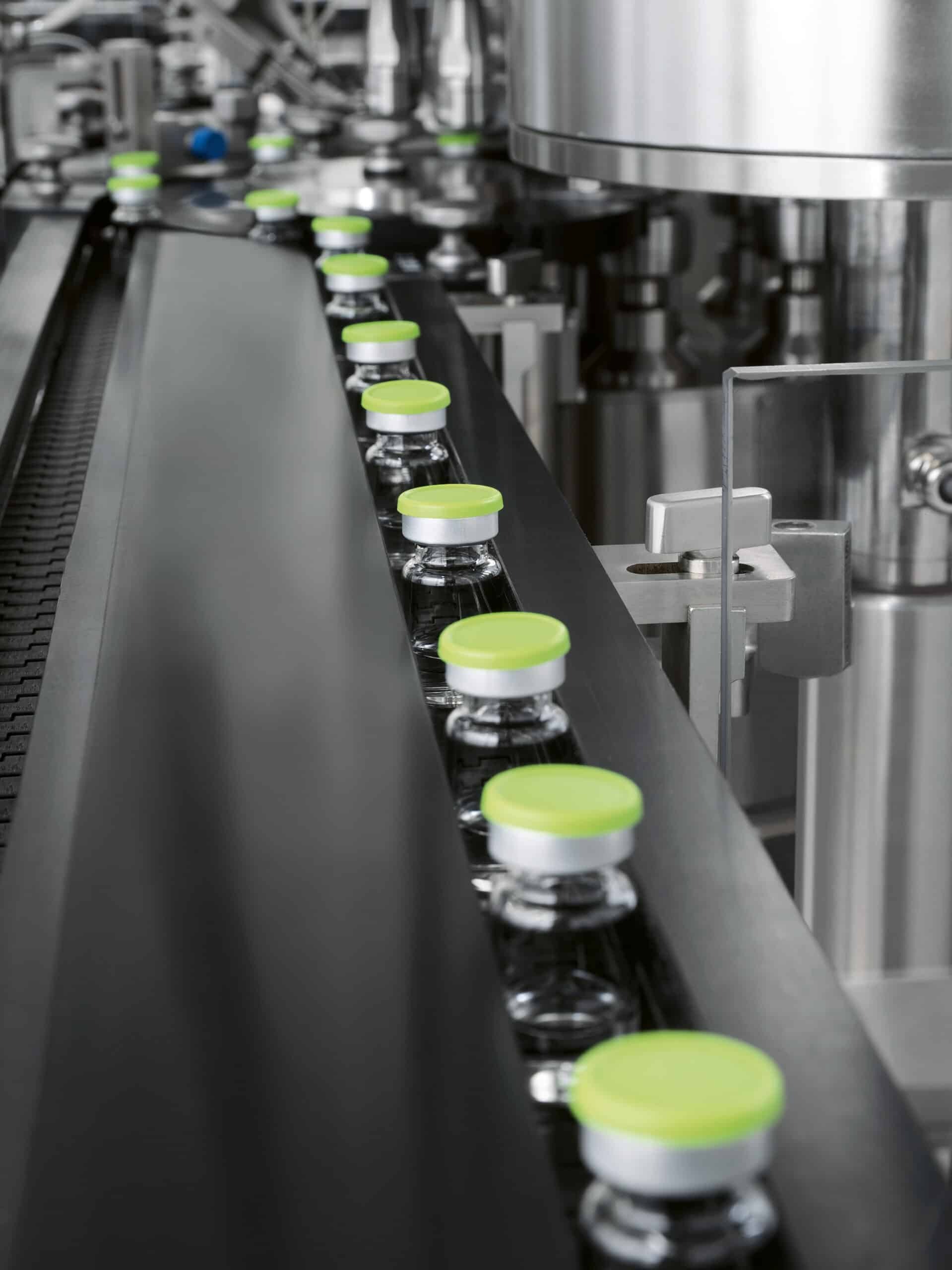

Vial outfeed

Technical information

EASYCAP TECHNICAL DATA
Vial diameter (mm)14-54
Vial height (mm)35-110
Cap diameter (mm)Up to 32
Output (vials/minute)250
Standard voltage400 V – 50 Hz
Installed power (kW)4
Weight (kg)1800
