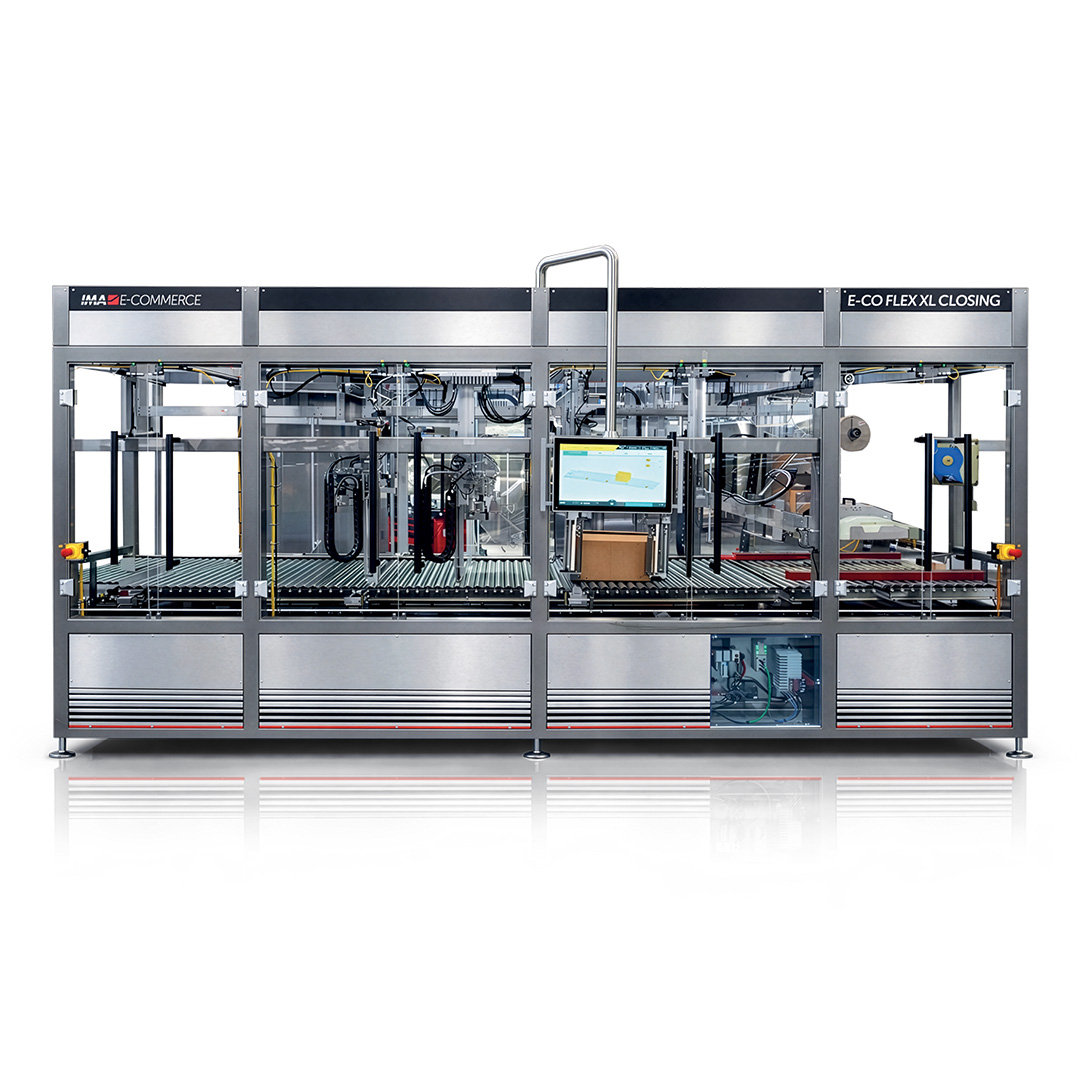

E-CO FLEX XL CLOSING Case Closing
Machine overview
Dedicated to wider box formats
E-CO FLEX XL CLOSING is designed to handle and close large-format boxes and heavier loads in demanding fulfillment and intralogistics operations. The machine automatically closes FEFCO 0201 (RSC) cases and features an advanced height-reduction system that minimizes empty space, reduces filler consumption and optimizes shipping dimensions. It can process loads up to 35 kg and supports both pressure-sensitive tape and sustainable Water-Activated Tape sealing.
Production plant
IMA E-COMMERCE
Machine highlights
-
Large formats
For oversized cases.
-
Height reduction
Up to 270 mm downsizing.
-
Heavy loads
Up to 35 kg.
-
Auto detection
Automatic box format recognition.
-
SIOC bypass
Automatic bypass capability.
-
Flexible sealing
WAT or pressure-sensitive tape.
Technical information
E-CO FLEX XL CLOSING TECHNICAL DATA | |
| Machine dimensions |

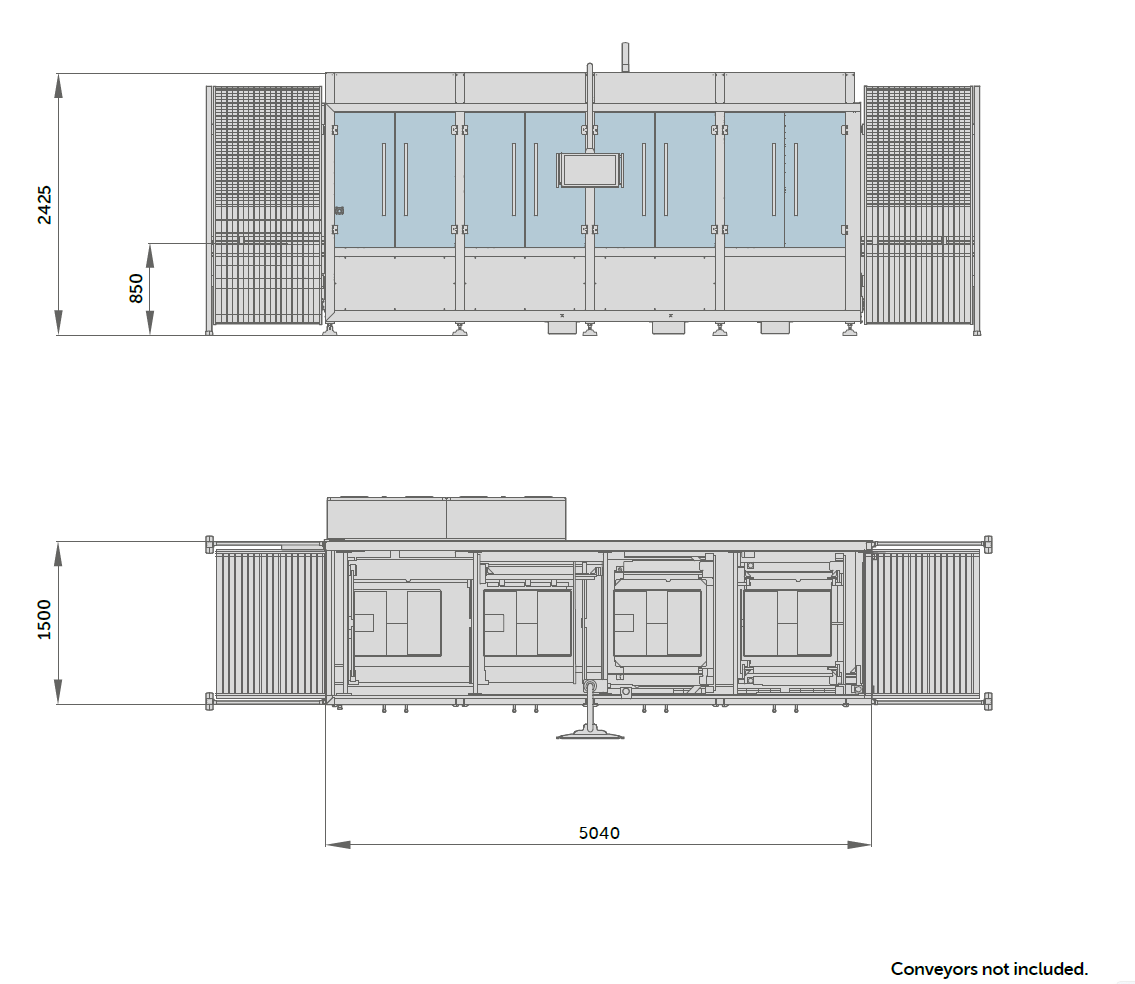

198” x 95” x 59” (5040 mm x 2425 mm x 1500 mm) |
| Throughput (cases/minute) | up to 10 cases/min |
| Min case – internal dimensions (L x W x H) | 7” x 6” x 3” (178 mm x 152 mm x 76 mm) |
| Max case – internal dimensions (L x W x H) | 31.5” x 23.6” x 18.1” (800 mm x 600 mm x 460 mm) |
| Max downsizing | Up to 10.6“ (270 mm) |
| Box type | FEFCO 0201 (RSC) – Auto-lock bottom cases |
| Case weight | Max 35 kg |
| Adhesive technology | Water-activated tape or paper/plastic pressure sensitive tape |
| SIOC bypass |
Yes SIOC size limits match the machine’s case size processing range |
| Installed power | 400V 10A 50 Hz, 3ph+ PE, ICC 5kA |
| Compressed air | 6 bar (87 PSI) Max flow average: 60 NL/min |
