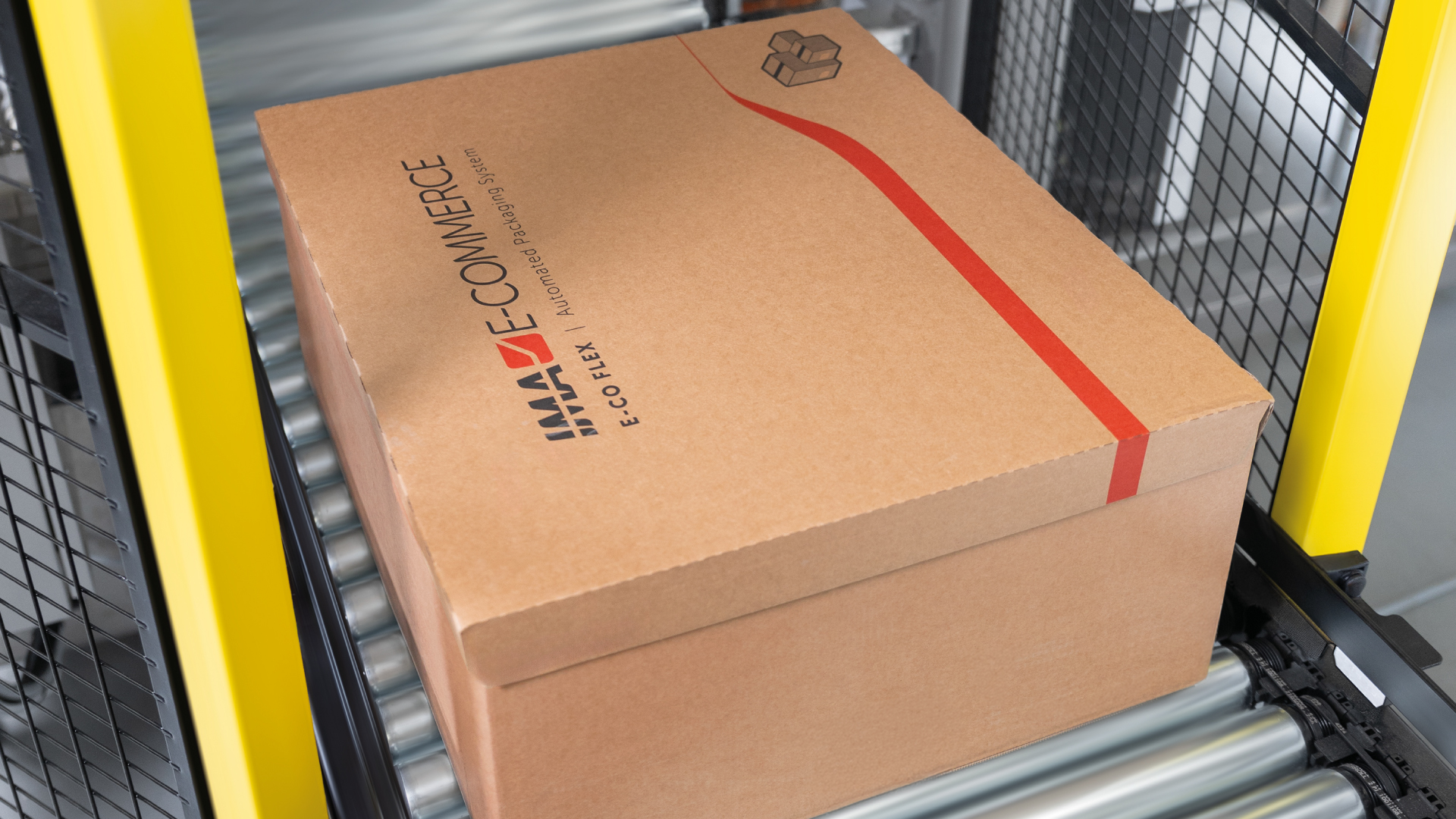

E-CO FLEX LIDDING Case Lidding

Machine overview

A new way to be on top.

E-CO FLEX LIDDING features a multi-footprint architecture capable of managing up to 10 different box and lid formats in full random mode. It automatically detects the product height inside each case and reduces the box accordingly, with a height reduction of up to 400 mm, without the need for pre-scored packaging.
Designed for the variability of E-Commerce environments, the machine processes FEFCO 200 (HSC) cases, trays, and auto-lock bottom cases, and can automatically bypass Ships-In-Own-Container (SIOC) cases.

Production plant

IMA E-Commerce

Machine highlights

  1. Lid footprints

    Up to 10 different box and lid footprints

  2. Package height

    Minimum package height of 40 mm

  3. Multiple box formats

    FEFCO 200/HSC, trays (e.g. FEFCO 452/453), crash lock boxes, SIOCs

Machine details

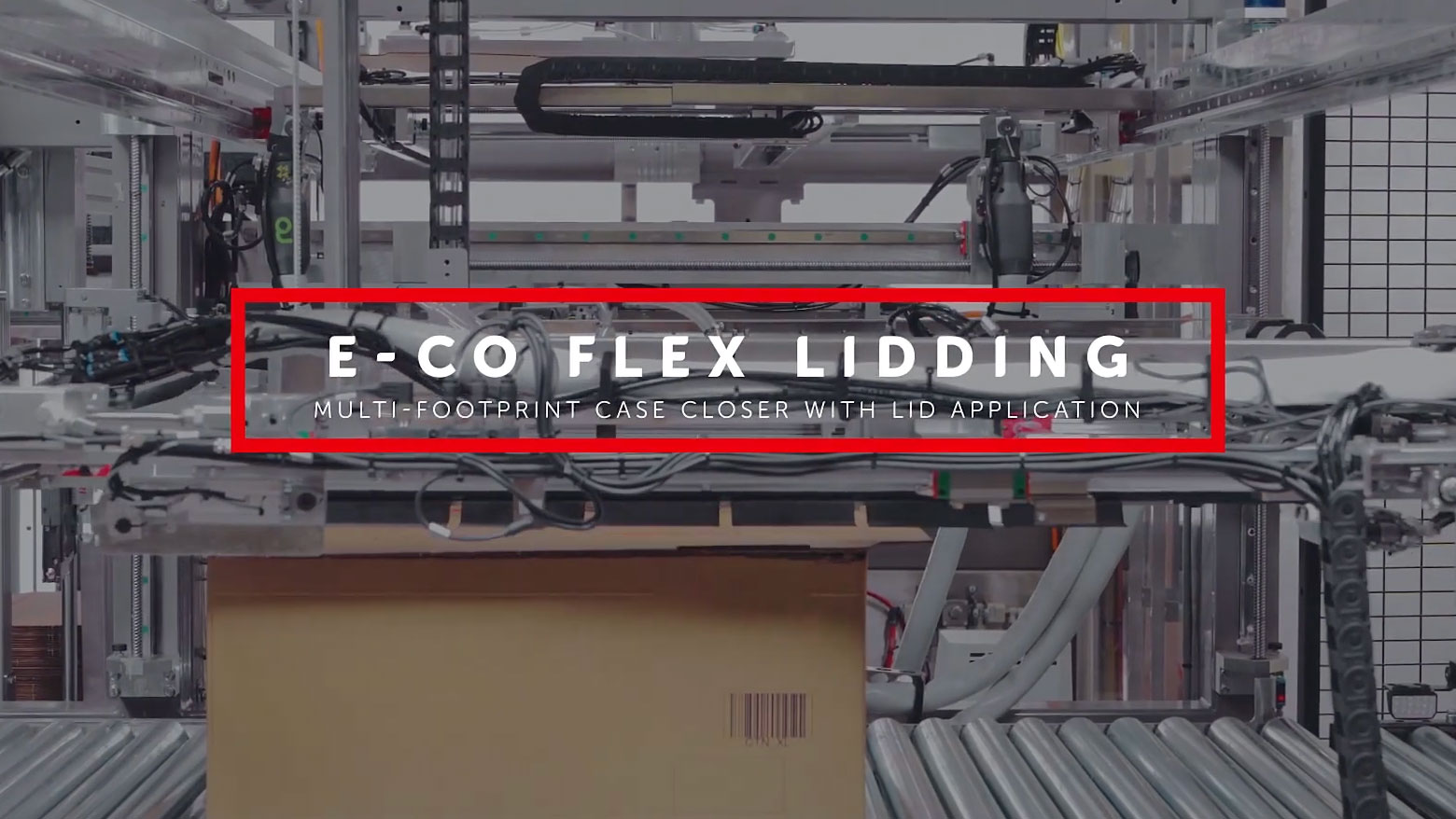

Machine video trailer

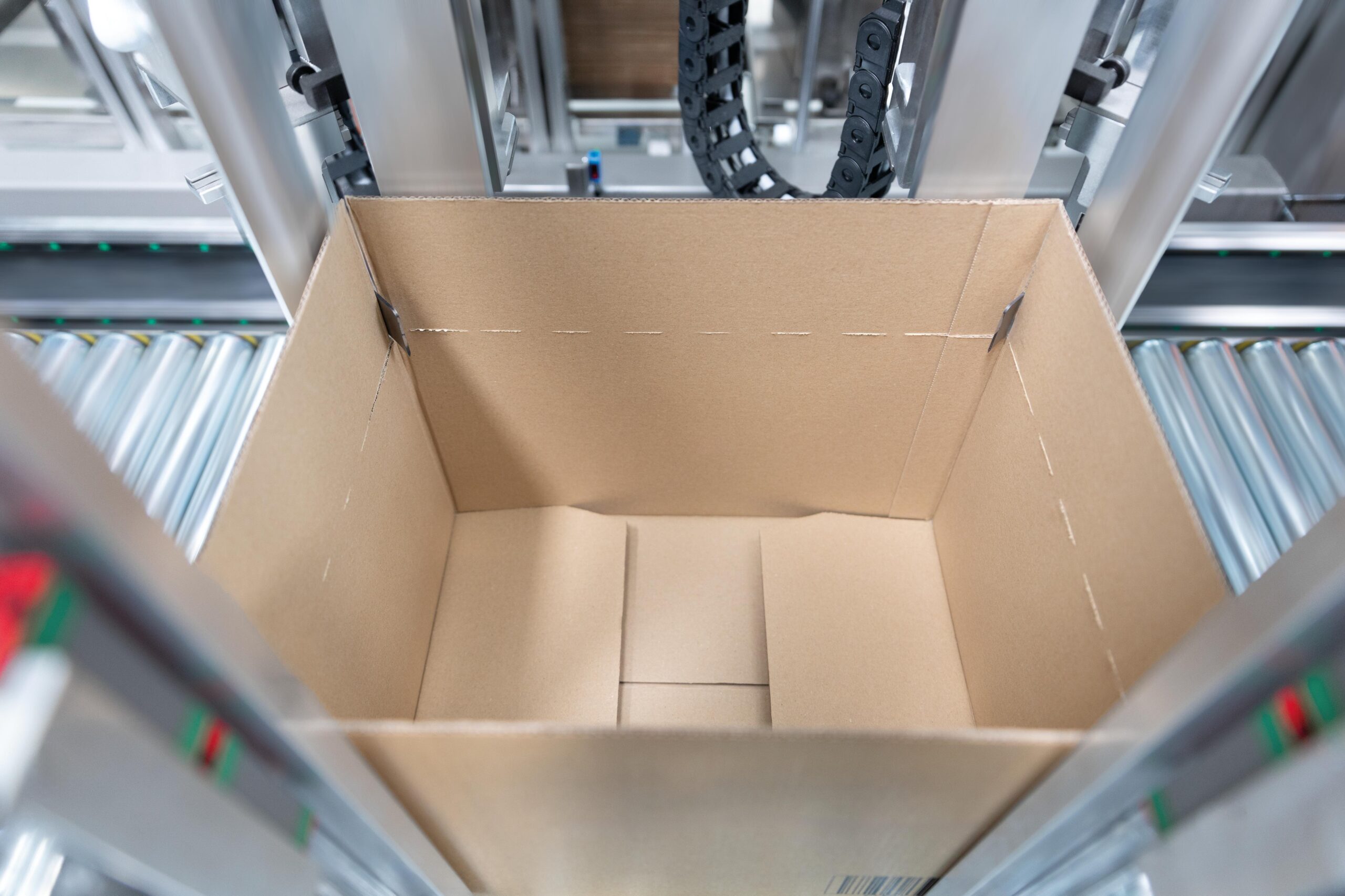

Case pre-scoring

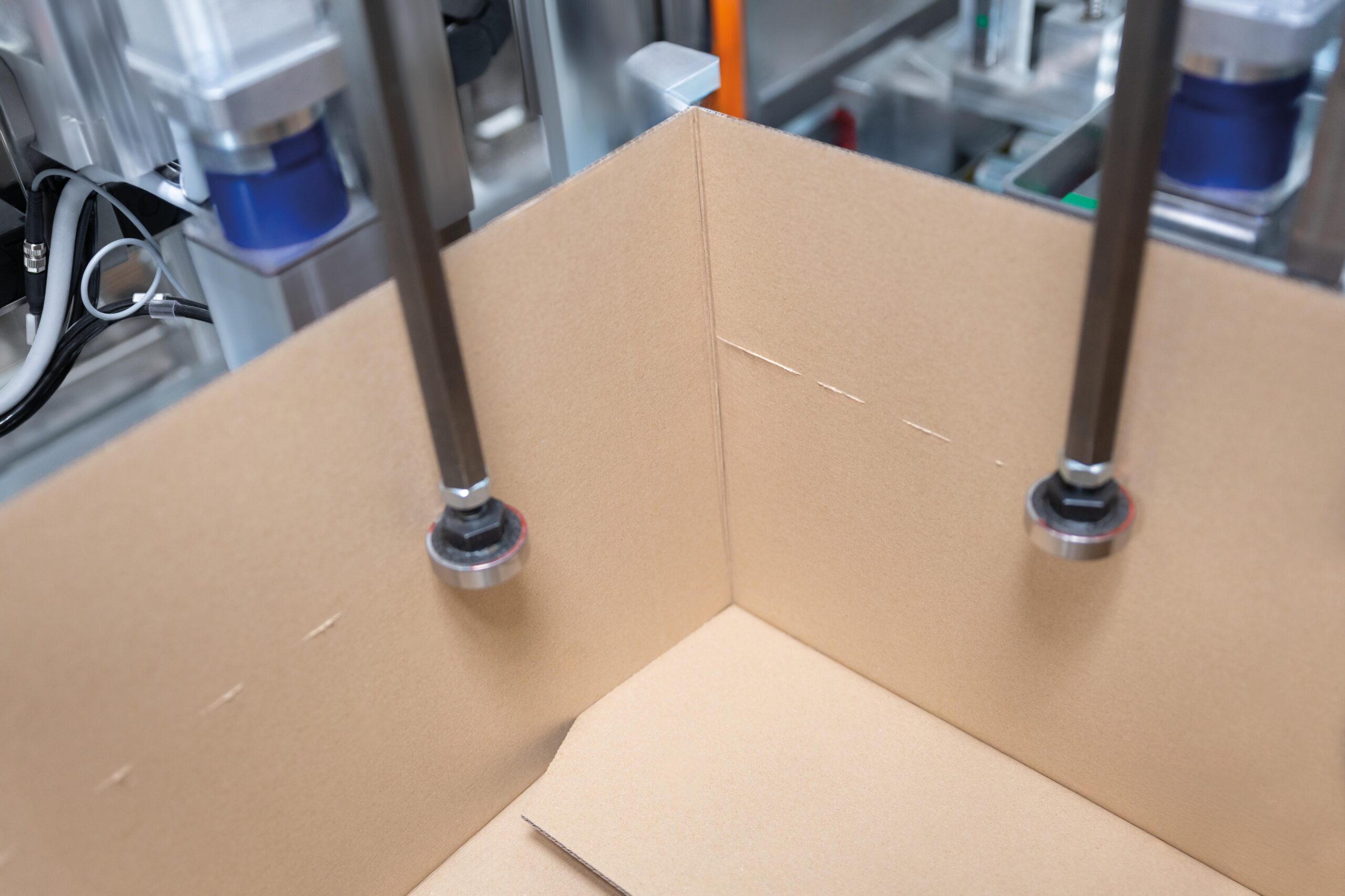

Case height reduction

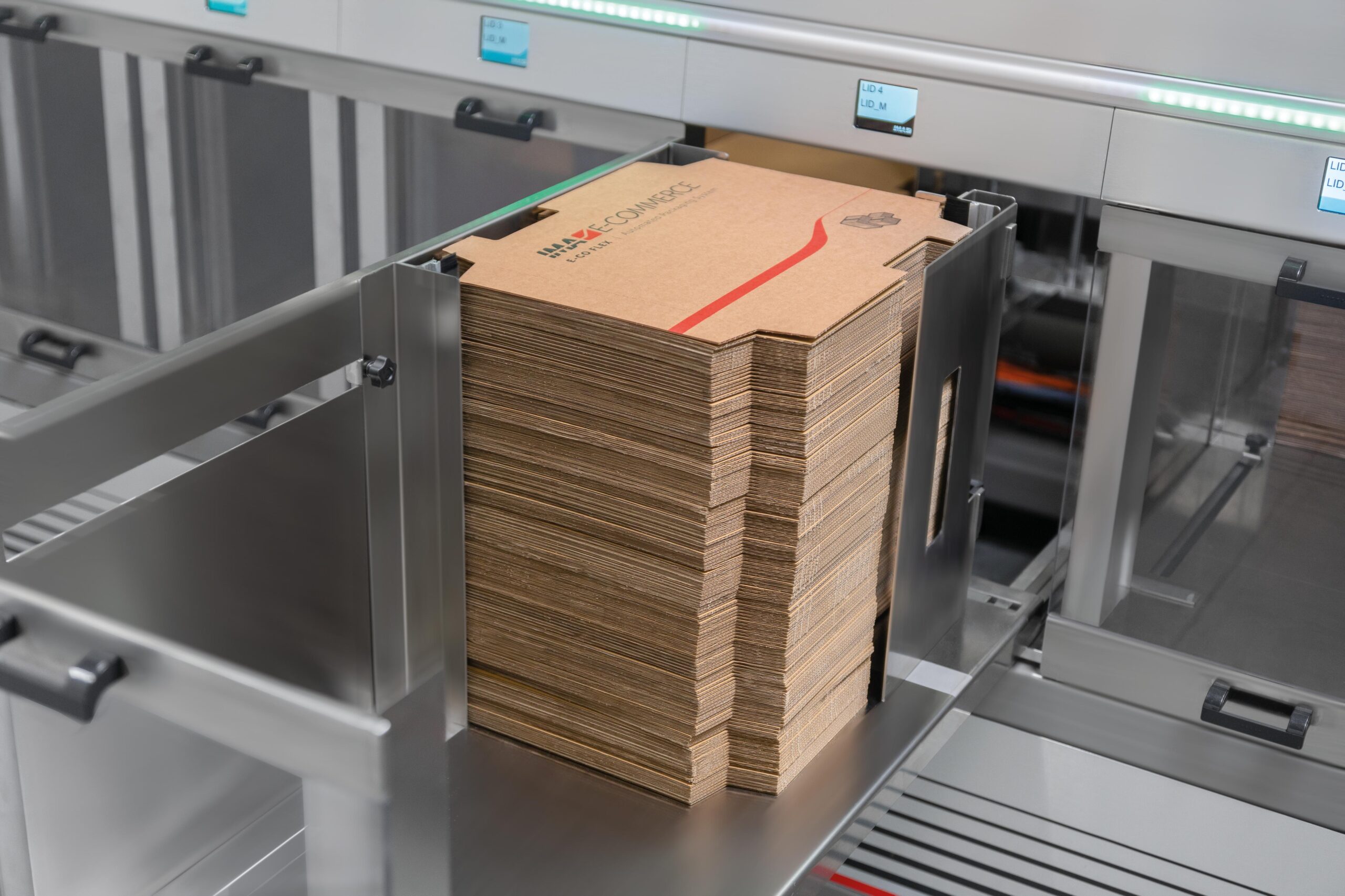

High-capacity lid magazine

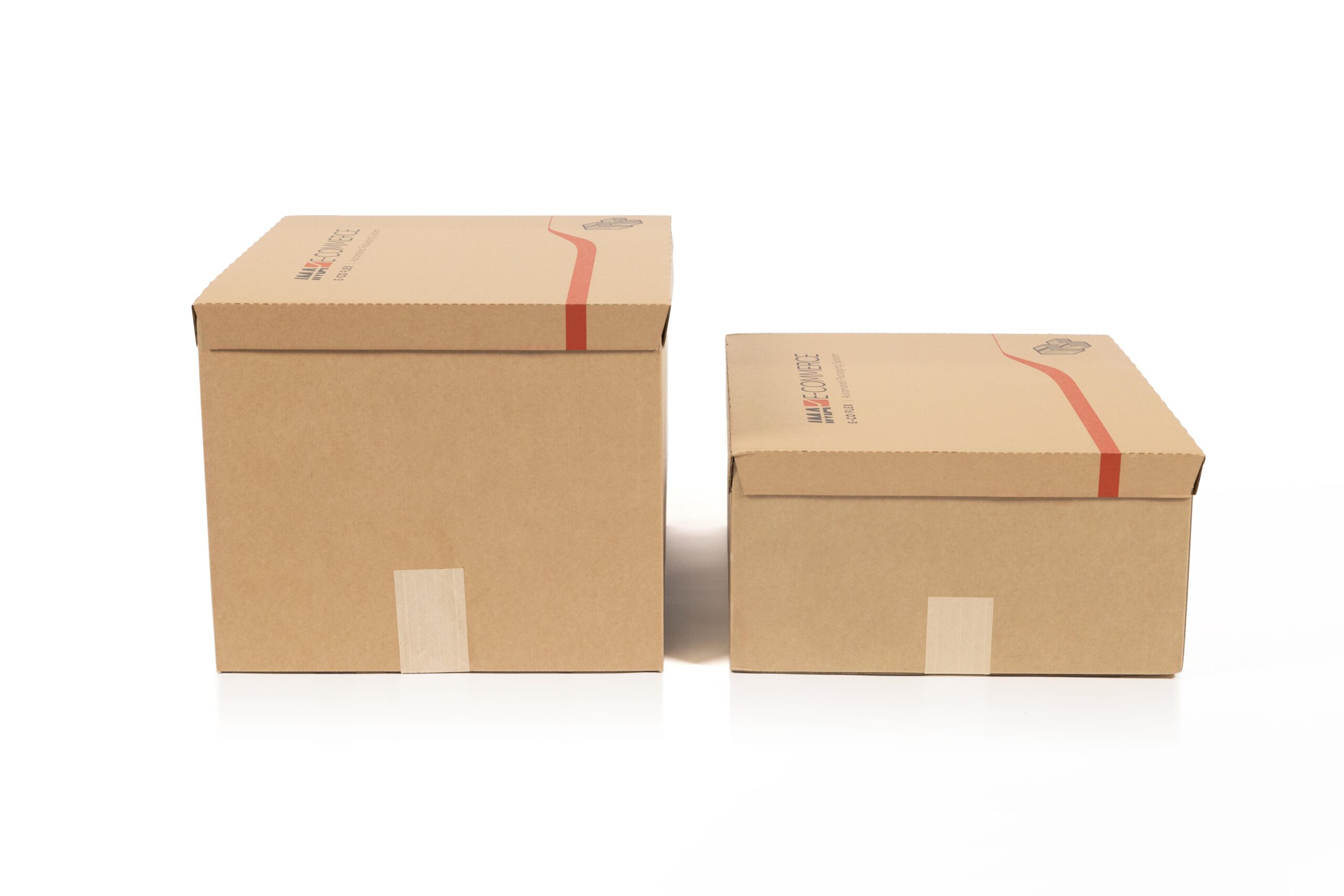

Case reduction

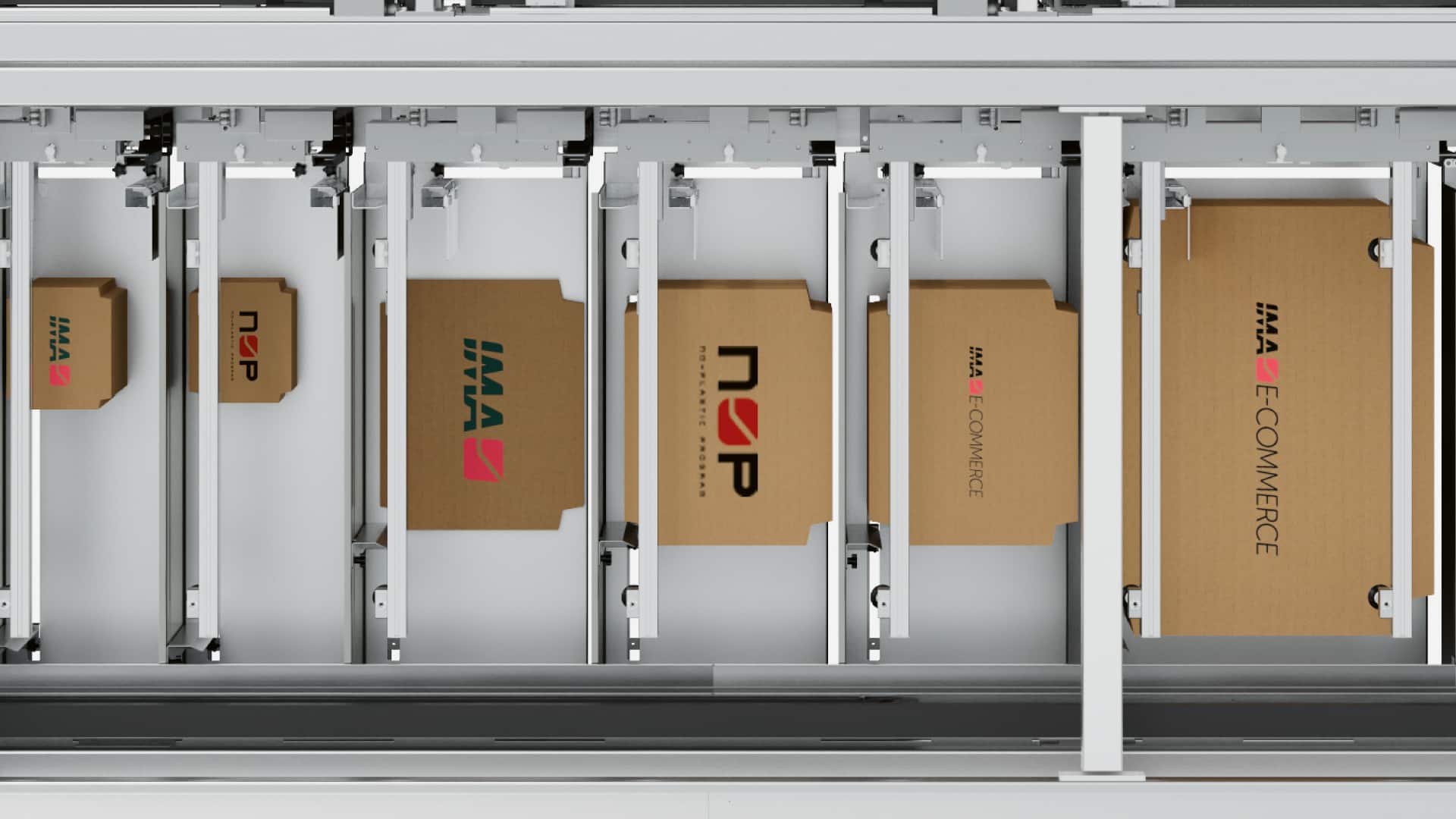

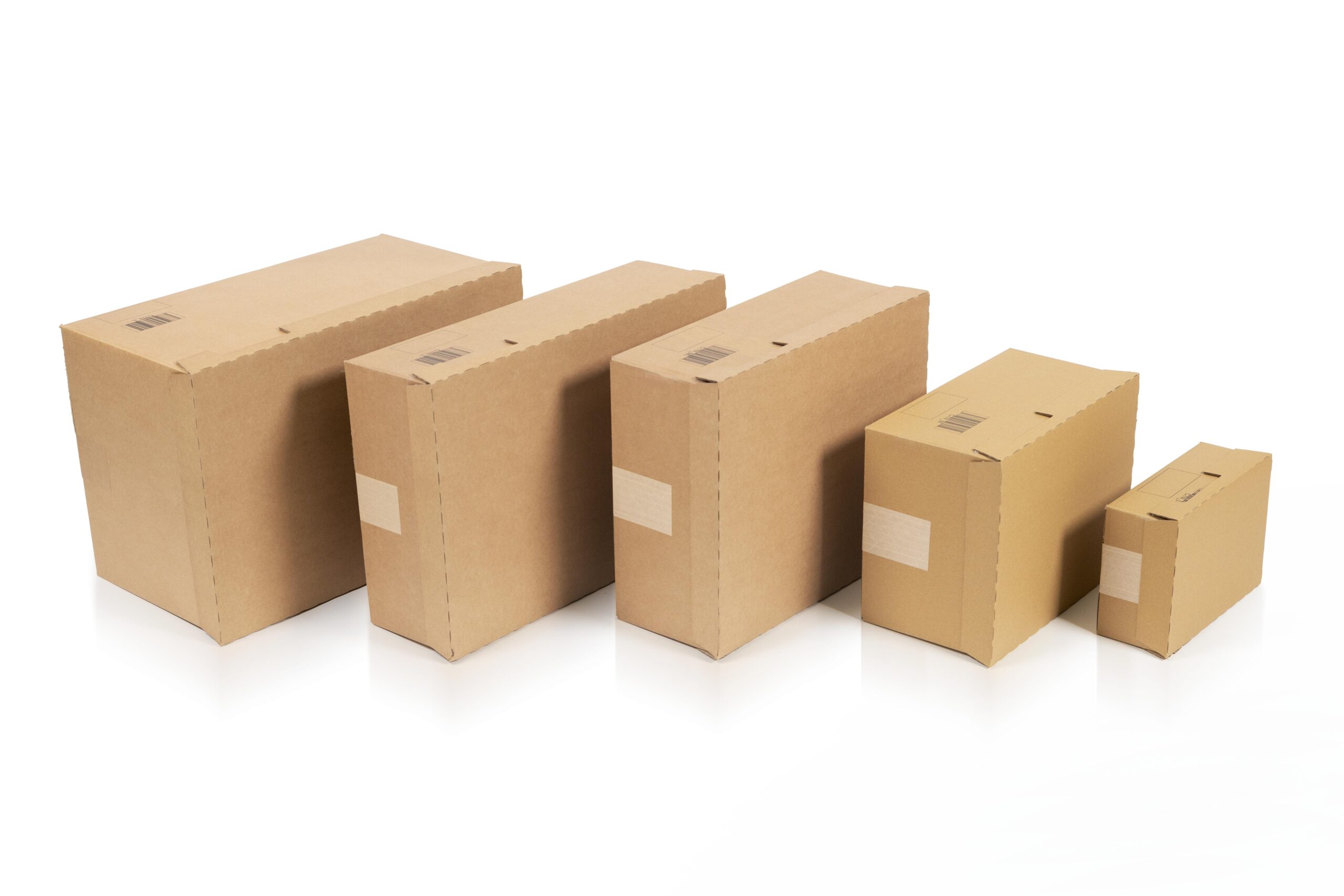

Multi-footprint cases

Technical information

E-CO Flex Lidding technical data

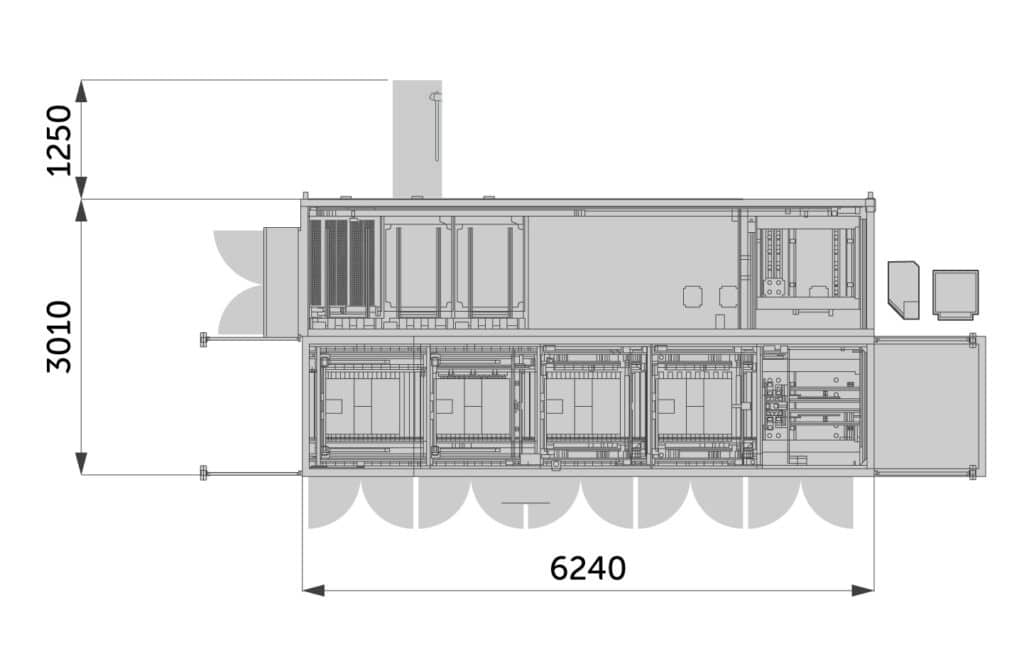

Machine dimensions (L x W x H)245” x 95” x 118” (6240 mm x 2425 mm x 3010 mm)
Case throughputUp to 10 boxes/minute
Lid magazineUp to 10 lid formats
Installed power400V, 3PH + GND, 50Hz | 480V, 3PH + GND, 60 Hz | 20 A
Mix case size7” x 2” x 1,5” (178 mm x 152 mm x 40 mm)
Max case size32” x 24” x 18” (800 mm x 600 mm x 460 mm)
Adhesive technologyHotmelt glue
SIOCs bypassYes
Box typeFEFCO 200/HSC | Trays (e.g. FEFCO 452/453) | Crash lock boxes | SIOCs
