DUE Primary wrapping

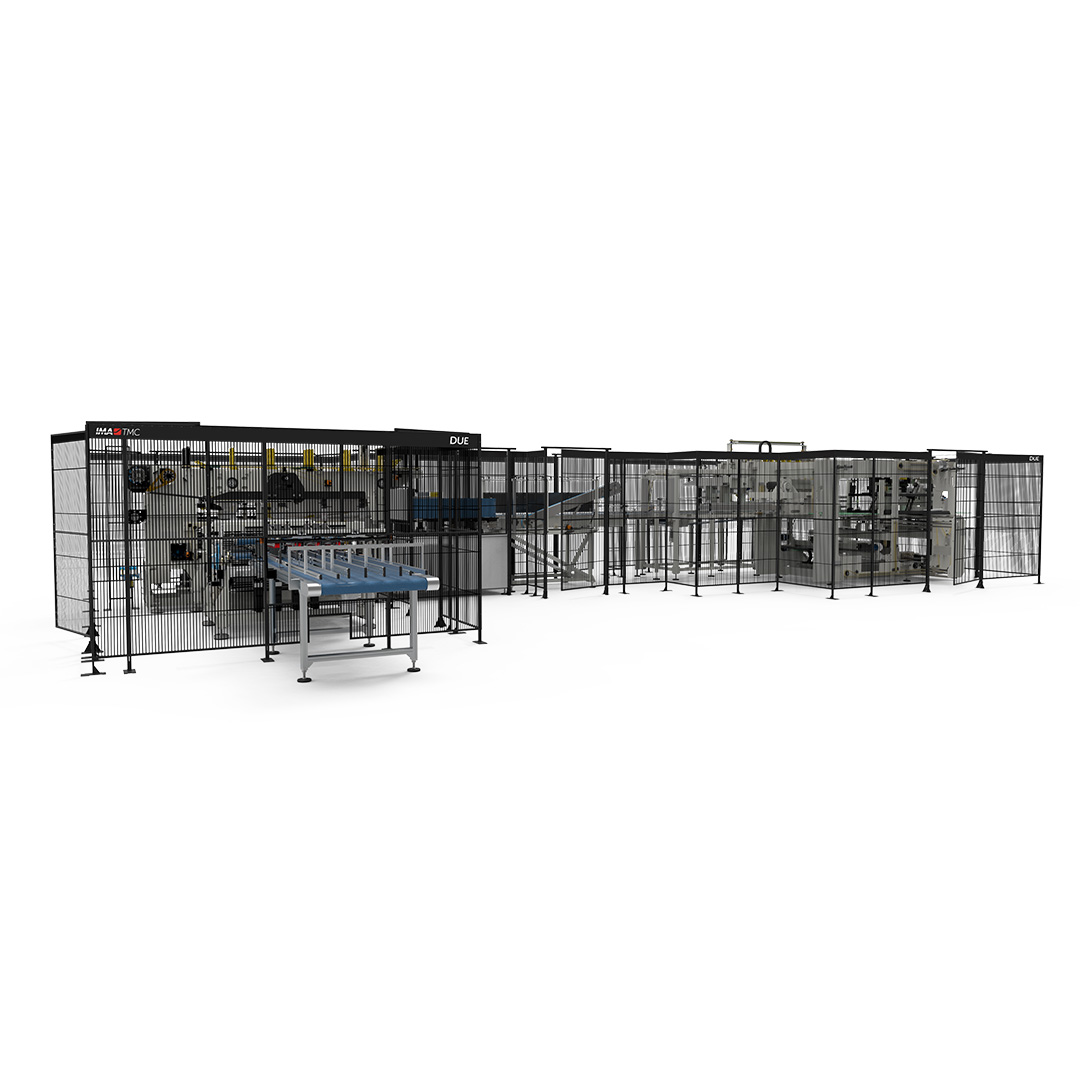

Machine overview
Integrated wrapping and bundling
DUE is IMA TMC’s fully integrated wrapping and bundling solution, combining two packaging processes in one compact machine. Designed for automatic product infeed from four lanes, it produces both packs and bundles without transfers between separate machines, simplifying the production flow and reducing footprint. Controlled by a single PLC and managed by one operator, DUE delivers high productivity, flexibility across a wide range of pack configurations and fast, intuitive changeovers for efficient high-mix production.
Production plant
TMC
Machine highlights
-
2-IN-1 solution
Wrapping and bundling combined
-
Compact design
No transfer between separate machines
-
High productivity
Up to 130 cycles/min in wrapping
Technical information
DUE TECHNICAL DATA | |
Mechanical speed | 30 cycles/minute (packs) 15 cycles/minute (bundler) |
| Rolls range | 90 ÷ 170 mm (3,5”÷ 6,7”) Max 200 mm (7,87”) on 2 lanes – optional |
| Pack size | Length 180 ÷ 580 mm (7”÷ 22,8”) Width 180 ÷ 560 mm (7”÷ 22”) Height 90 ÷ 300 mm (3,54”÷ 11,8”) |
| Bundle size | Length 360 ÷ 1000 mm (14,1”÷ 39,4”) Width 350 ÷ 850 mm (13,7”÷ 33,4”) / 300 ÷ 850 mm (11,8”÷ 33,4”) optional Height 180 ÷ 345 mm (7”÷ 13,5”) / 180 ÷ 460 mm (7” ÷ 18,1”) optional |
| Sheet length | Unwinding pol. 225 ÷ 950 mm (8,8” ÷ 37,4”) |
| Pack reel dimension | Width 320 ÷ 1800 mm (12,6”÷ 70”) Reel diameter 600 mm (23,6”) |
