DS 71 Capsule Filling

Machine overview

All your capsules. Selected.

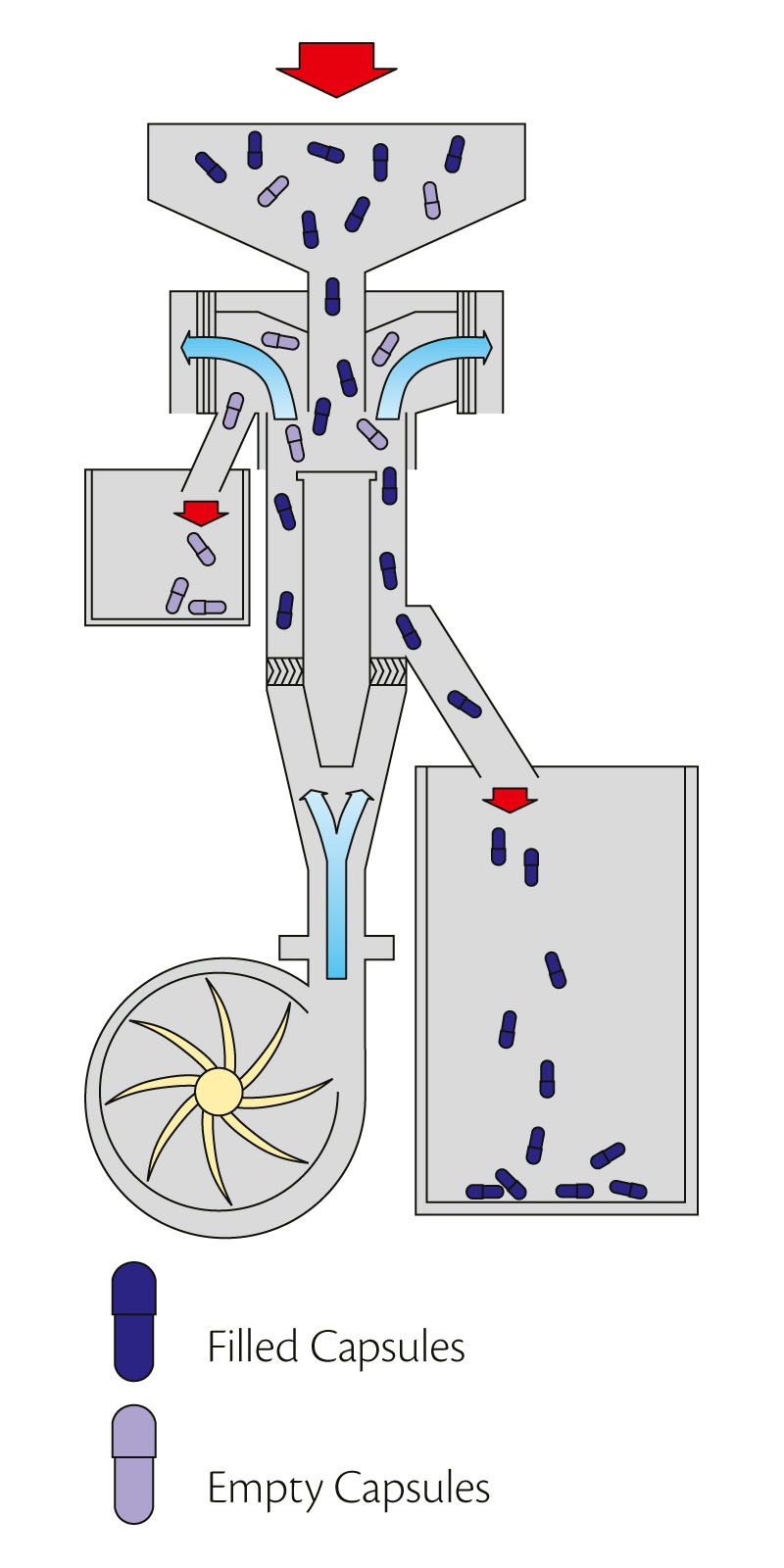

DS 71 selects and separates the correctly filled capsules from the empty or almost empty ones that are unsuitable for the subsequent packaging phase. The capsules are introduced into the feeding hopper, selected by means of a filtered air jet and conveyed to the relevant container.

Production plant

IMA Active

Machine highlights

  1. Smart flexibility

    Adjustable in height for maximum flexibility and able to handle all capsule sizes with precision and reliability.

  2. Precision and control

    Feeding speed regulation with visual monitoring of the performed adjustment.

Technical information

DS 71 technical data
A – Height of the inlet (mm)753 – 1,035
B – Height of the outlet (mm)270 – 570
Product speed160,000 capsule/hour maximum
Net weight (kg)23
Absorbed power (W)90
Electric systemSingle-phase 220 V  50-60 Hz
