DOYTRONIC 60 Stand-Up Pouch Form Fill and Seal
Machine overview
Ideal for snacks, confectionery, cheese and pet food applications.

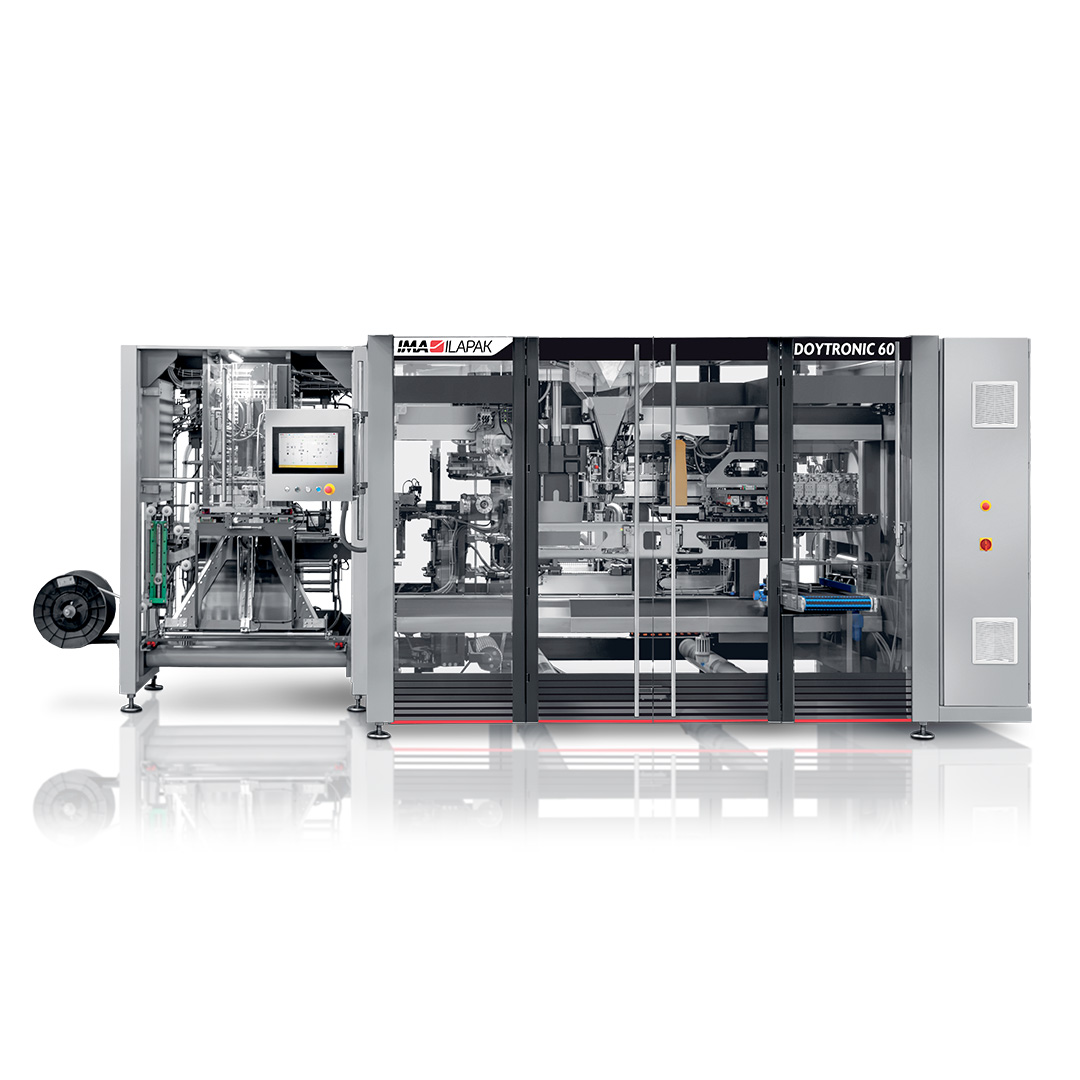

The DOYTRONIC 60 by IMA Ilapak is a compact Simplex form-fill-seal solution for Stand-Up Pouches, featuring a hybrid operating concept that combines vertical bag forming with horizontal filling and sealing, powered by magnetic shuttle technology. Its space-saving design delivers high performance and flexibility, even where production space is limited.
Engineered to handle sustainable packaging materials, including paper-based solutions and mono-material PE or PP films, the DOYTRONIC 60 can produce pouches directly from film reels or process pre-made bags supplied through an optional buffer.
The open-frame design provides complete 360° accessibility, simplifying cleaning and maintenance operations, while the patented gas flushing system makes the machine suitable for MAP applications. Automatic format changeovers and integrated quality control further enhance production efficiency, pack integrity and versatility.
Production plant
Ilapak Italia S.p.A.
Machine highlights
-

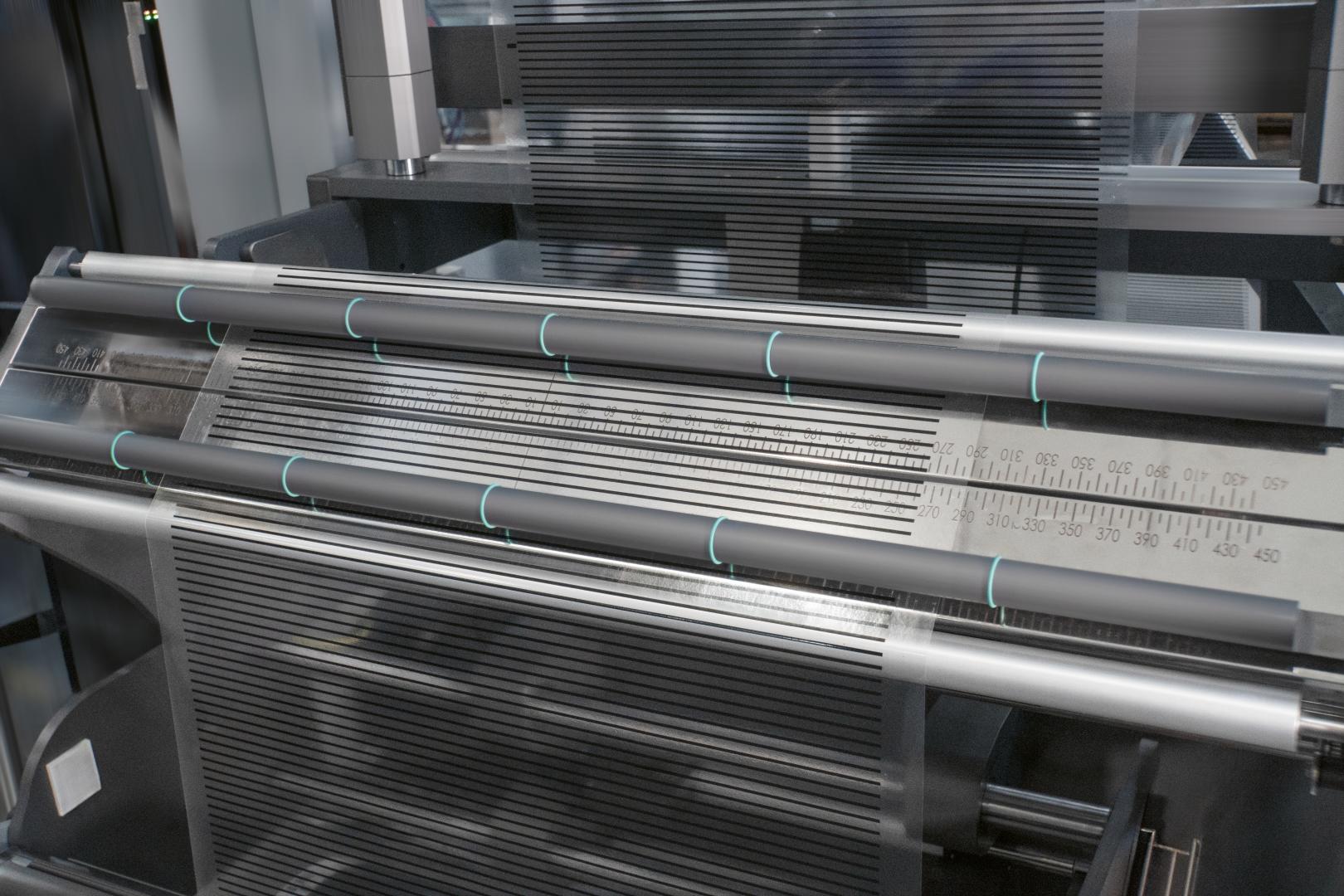

Maximum Material Flexibility
Compatible with a wide range of wrapping films in standard configuration.
-

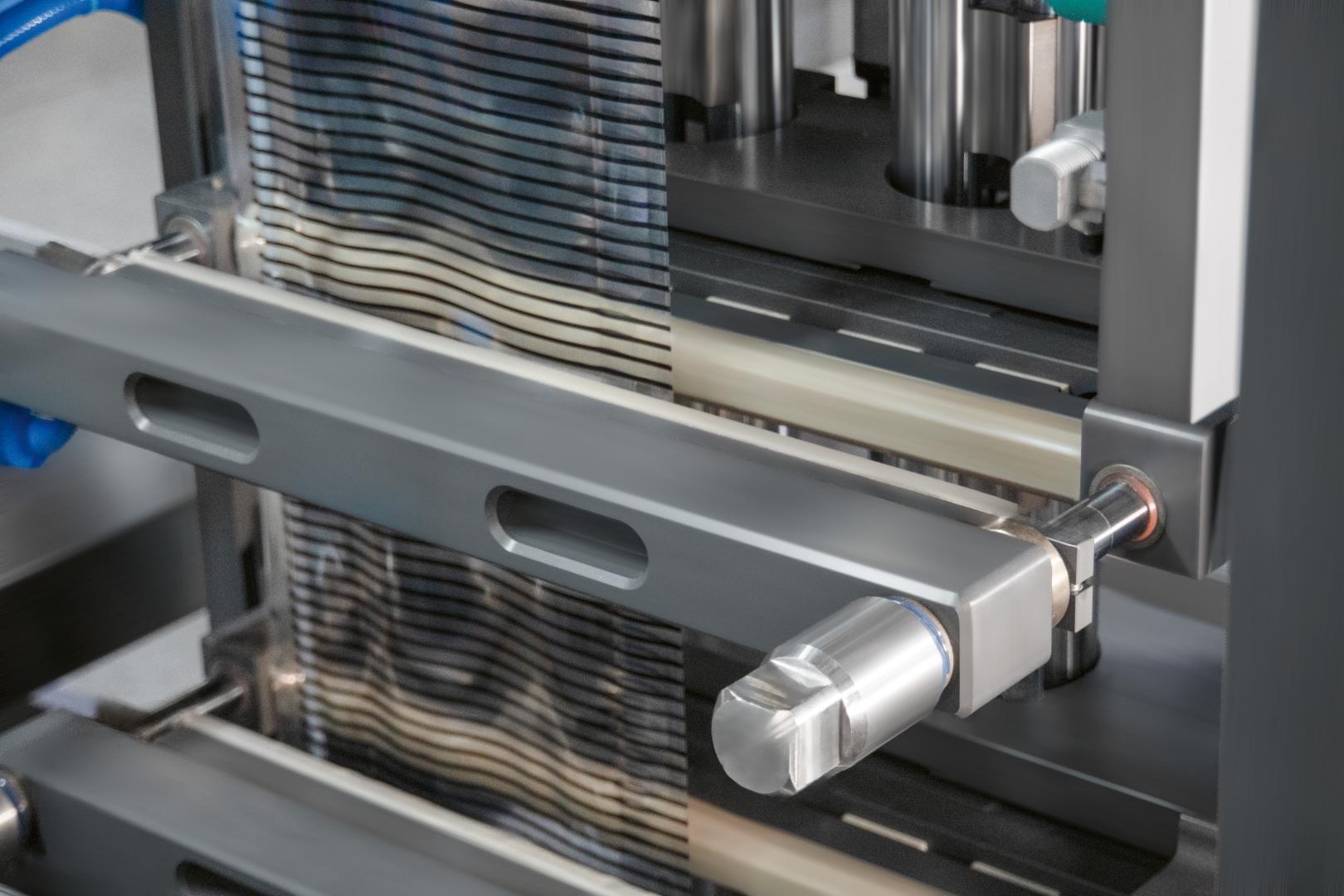

Automatic Sealing Setup
Fully automatic adjustment of the transversal sealing station.
-
Automatic Gusset Adjustment
Fully automatic adjustable punching system for bottom gusset.
-

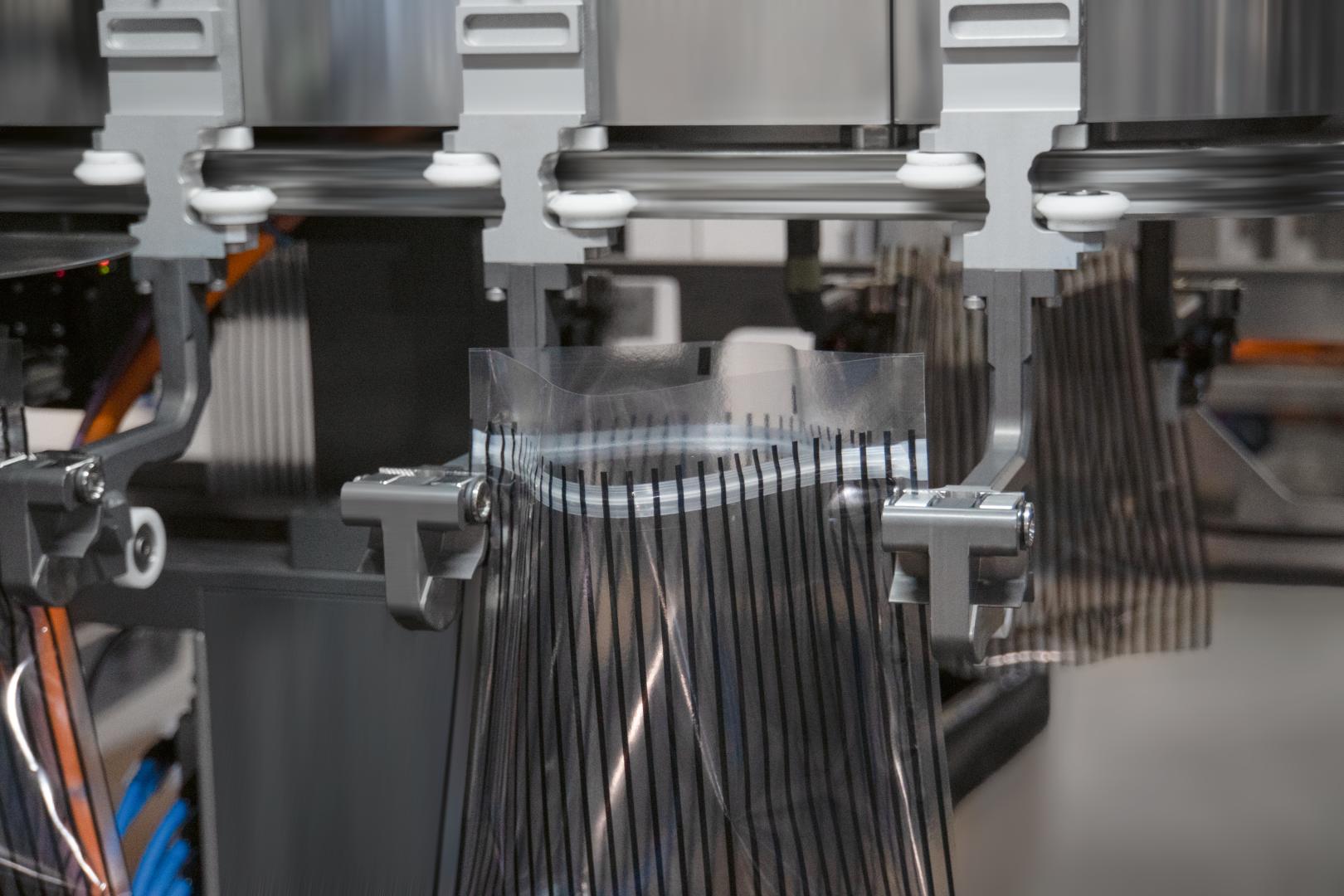

Magnetic Shuttle Technology
Fully automatic pouch transfer with magnetic shuttles.
-
Smart Recipe Management
Rapid new recipe creation with automatic self-setting.
-
Patented Gas Flushing
Patented gas flushing system.
-

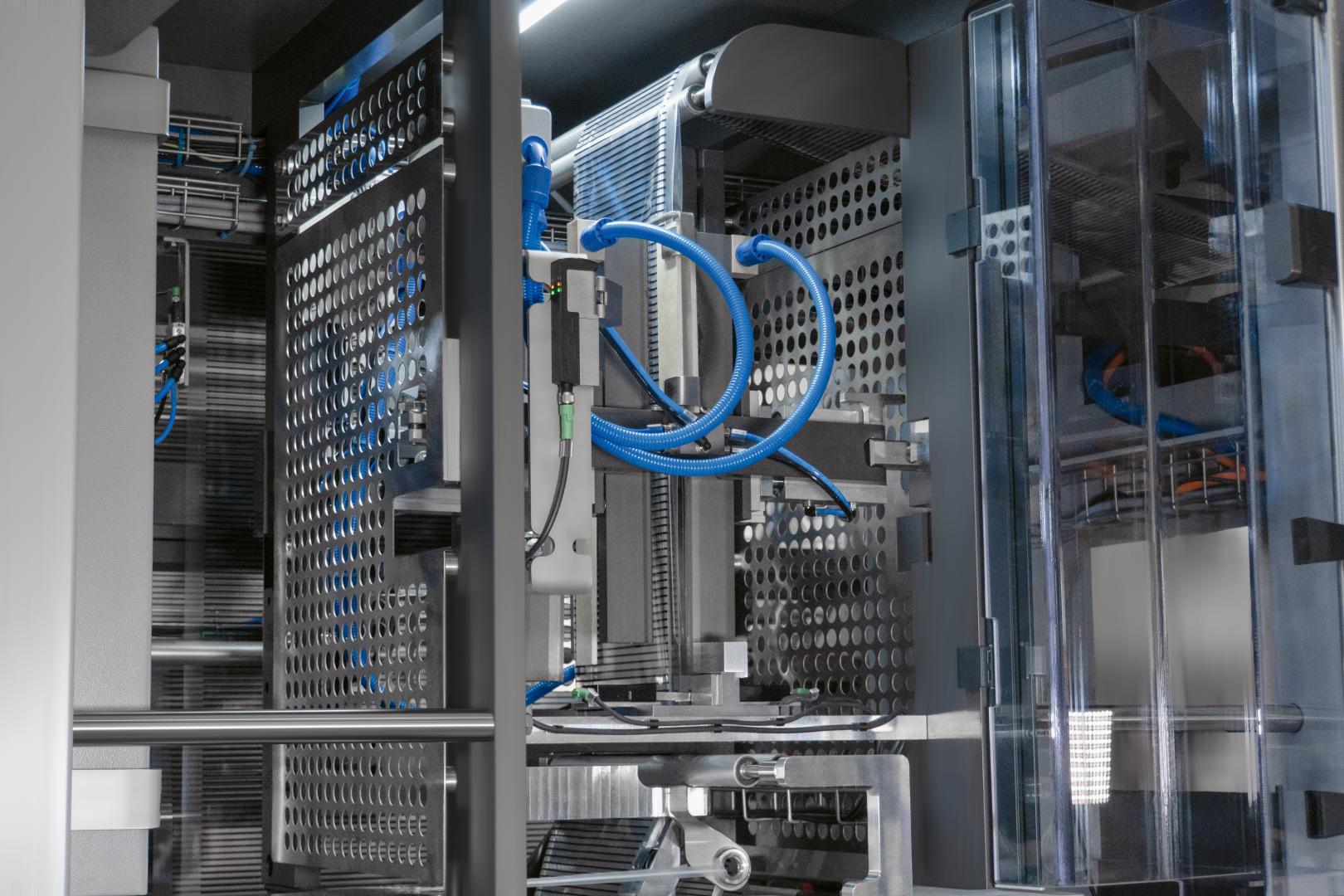

Flexible Sealing Solutions
Top sealing compatible with any punch shape.
-
Integrated Quality Control
Integrated quality control with reject station.
-

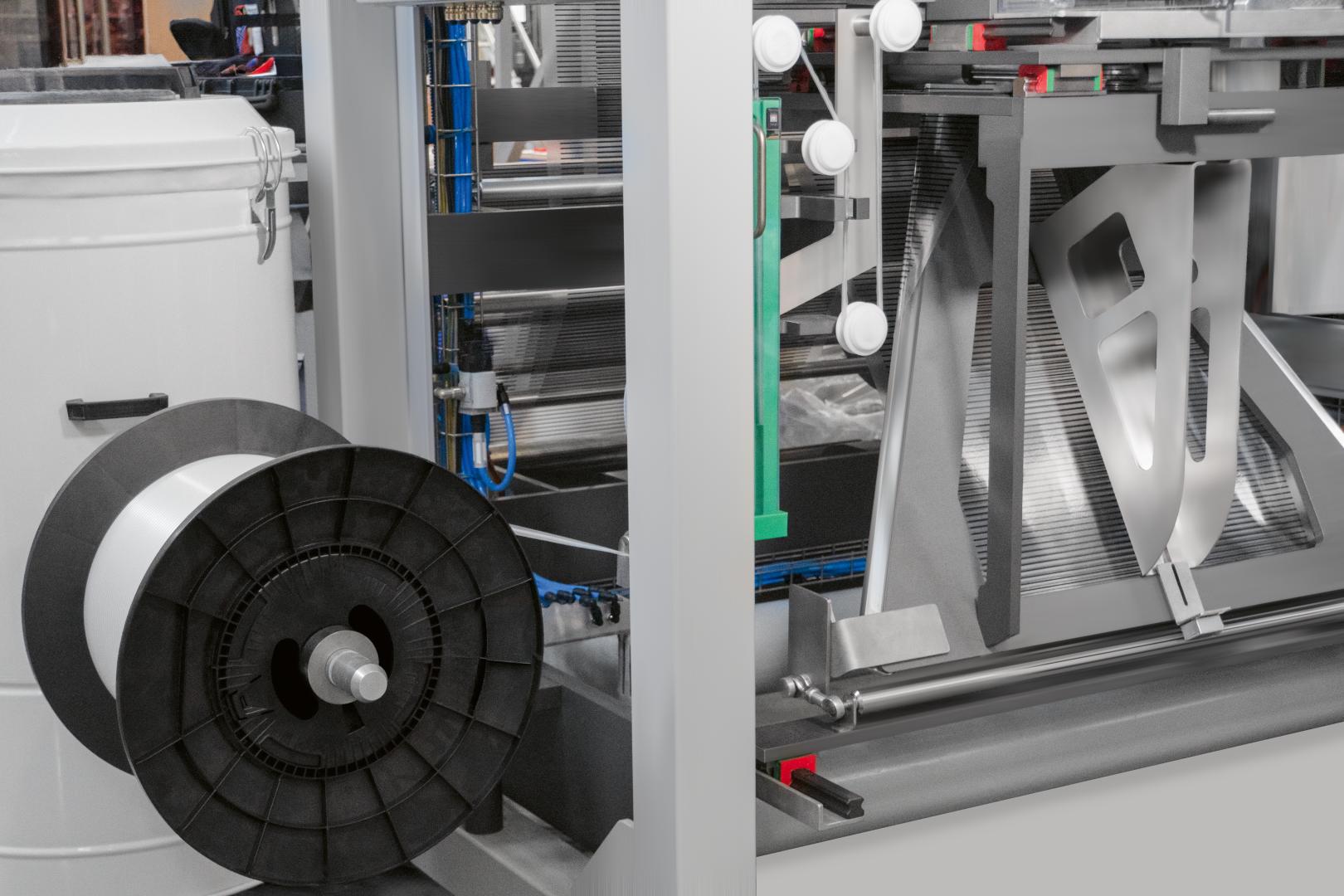

9. 360° Open Accessibility, Zipper & Round Corner Options
Open Frame design with 360° accessibility, with optional re-closable zipper and round corner punching systems
Machine details
Technical information
| DOYTRONIC 60 TECHNICAL DATA | |
| Noise level within | 80db |
| Maximum reel dimension | Ø 500mm – 19.68” |
| Reel core | Ø 76/152mm – 2.992”/ 5.984” |
| Electrical consumption | 400/480VAC – 50/60Hz – 36Kw |
| Pressure and air consumption | 6 bar – 1100 Nl/min |
| Minimum/Maximum pouch width | 150/300 mm |
| Minimum/Maximum pouch height | 200/400 mm |
| Minimum/Maximum pouch gusset height | 15/75 mm |
| Target output | 70 ppm |
| Maximum volume/weight for each pouch | 3 lt / 5 kg |
