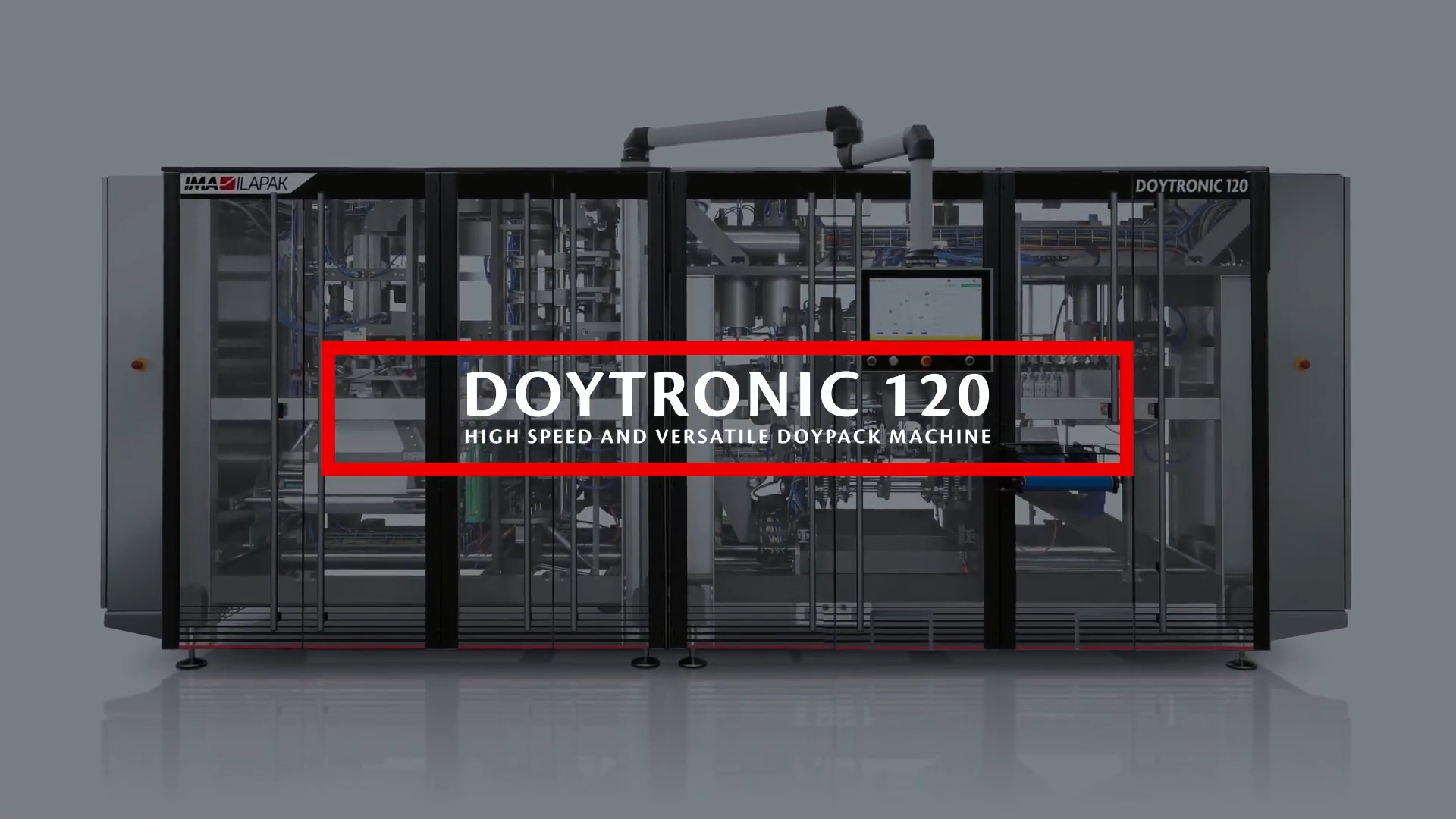

DOYTRONIC 120 Stand-Up Pouch Form Fill and Seal
Machine overview
Ideal for cheese, snacks, confectionery, powders and pet food products.
Innovative Pouch FFS machinery with unrivalled compact design thanks to vertical intermittent bag forming and horizontal filling stations with hybrid movement.

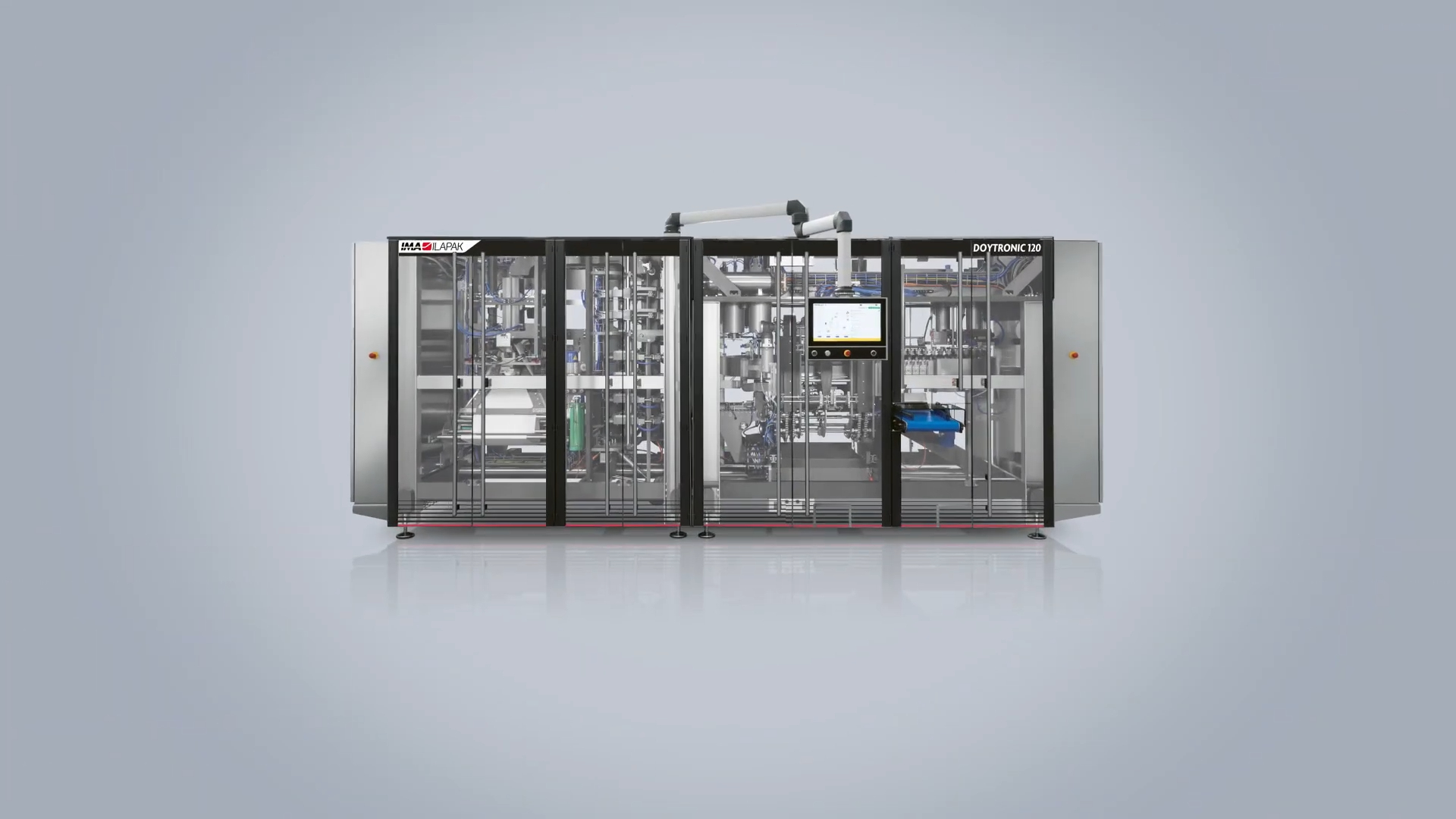

The DOYTRONIC 120 by IMA Ilapak is a compact form-fill-seal machine that combines vertical bag forming with horizontal filling and sealing via a magnetic shuttle movement. This innovative hybrid configuration enables the machine to operate in tight spaces without compromising on performance or flexibility.
Designed for full compatibility with sustainable packaging materials, including paper-based and mono-material PE or PP films, the DOYTRONIC 120 supports both pouch forming from film reels and sealing of pre-made bags from buffer.
Its open-frame architecture ensures full 360° access for easy maintenance, while a patented gas flushing system supports MAP applications. With automatic format changeover and integrated quality control, the DOYTRONIC 120 ensures high efficiency, pack integrity and production versatility.
Production plant
Ilapak Italia S.p.A.
Machine highlights
-

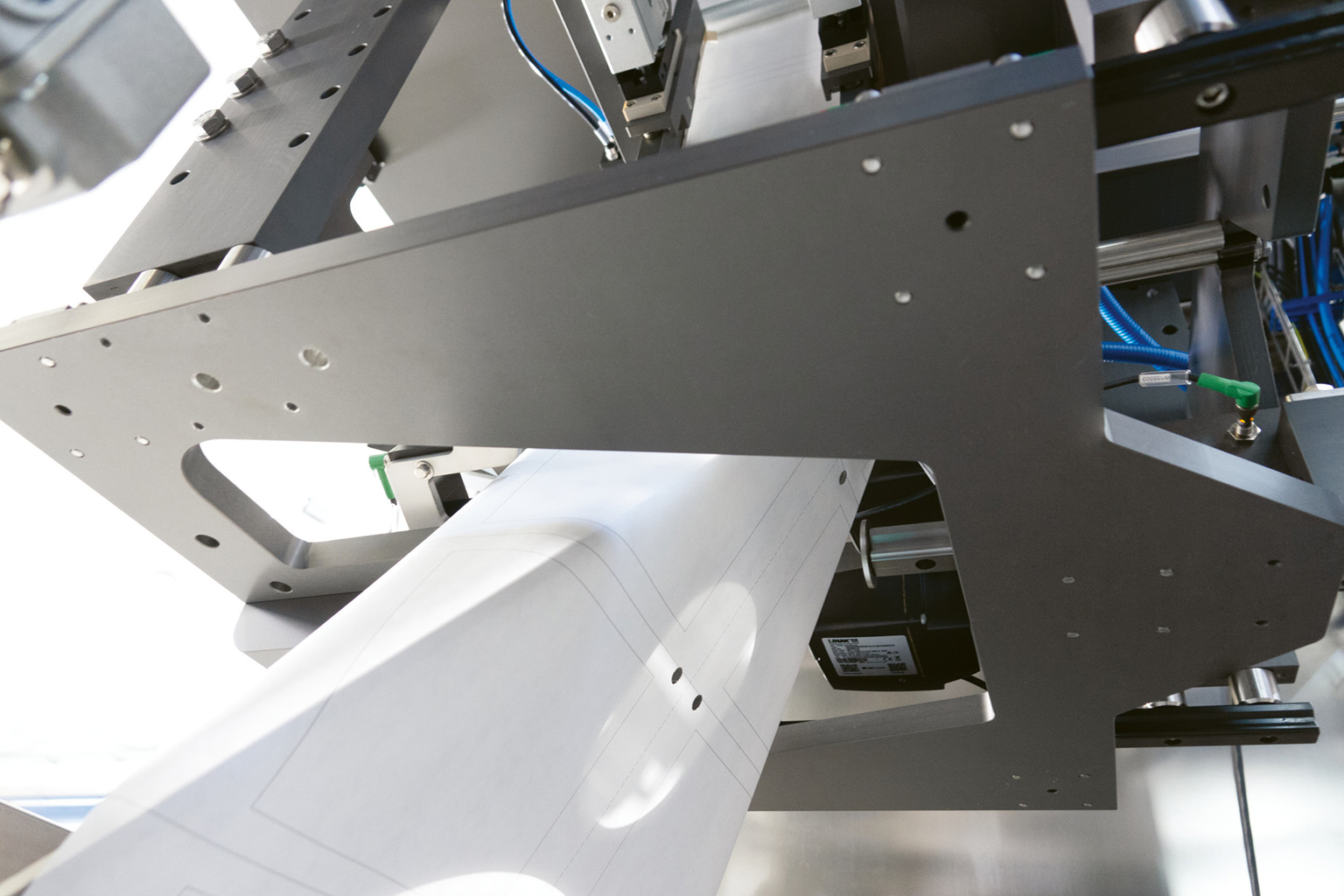

Wrapping film variety
Can run a variety of wrapping films in standard configuration.
-

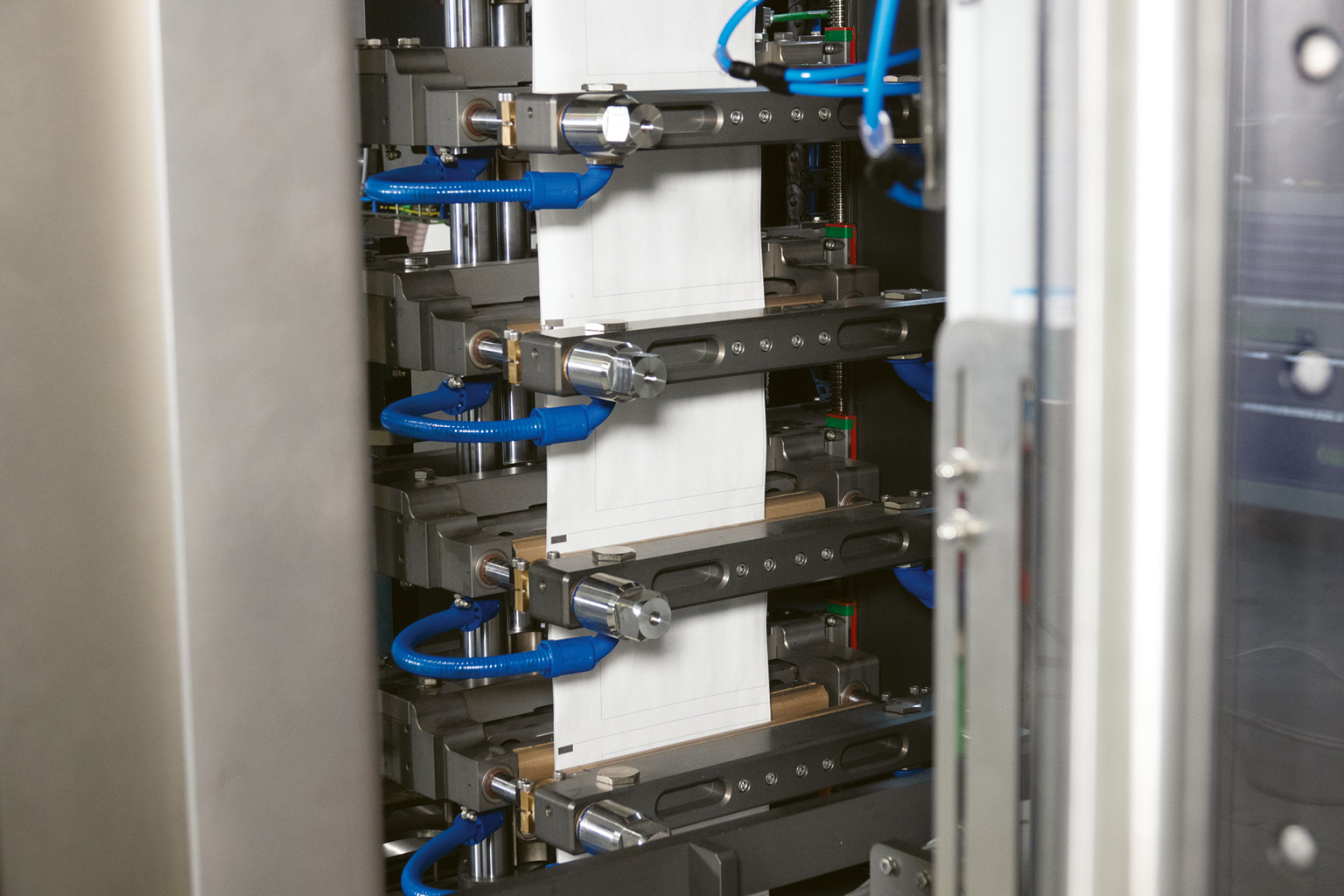

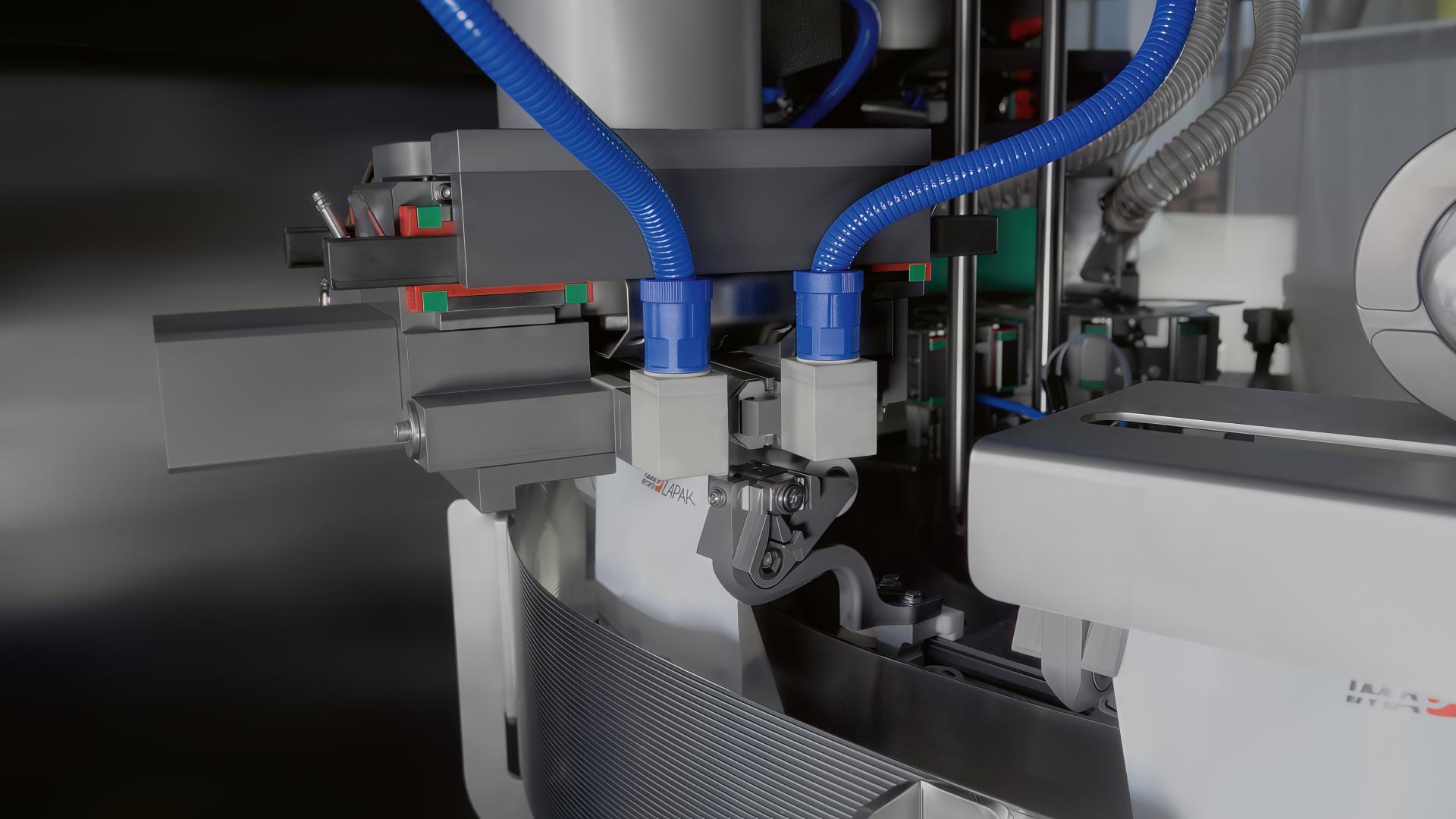

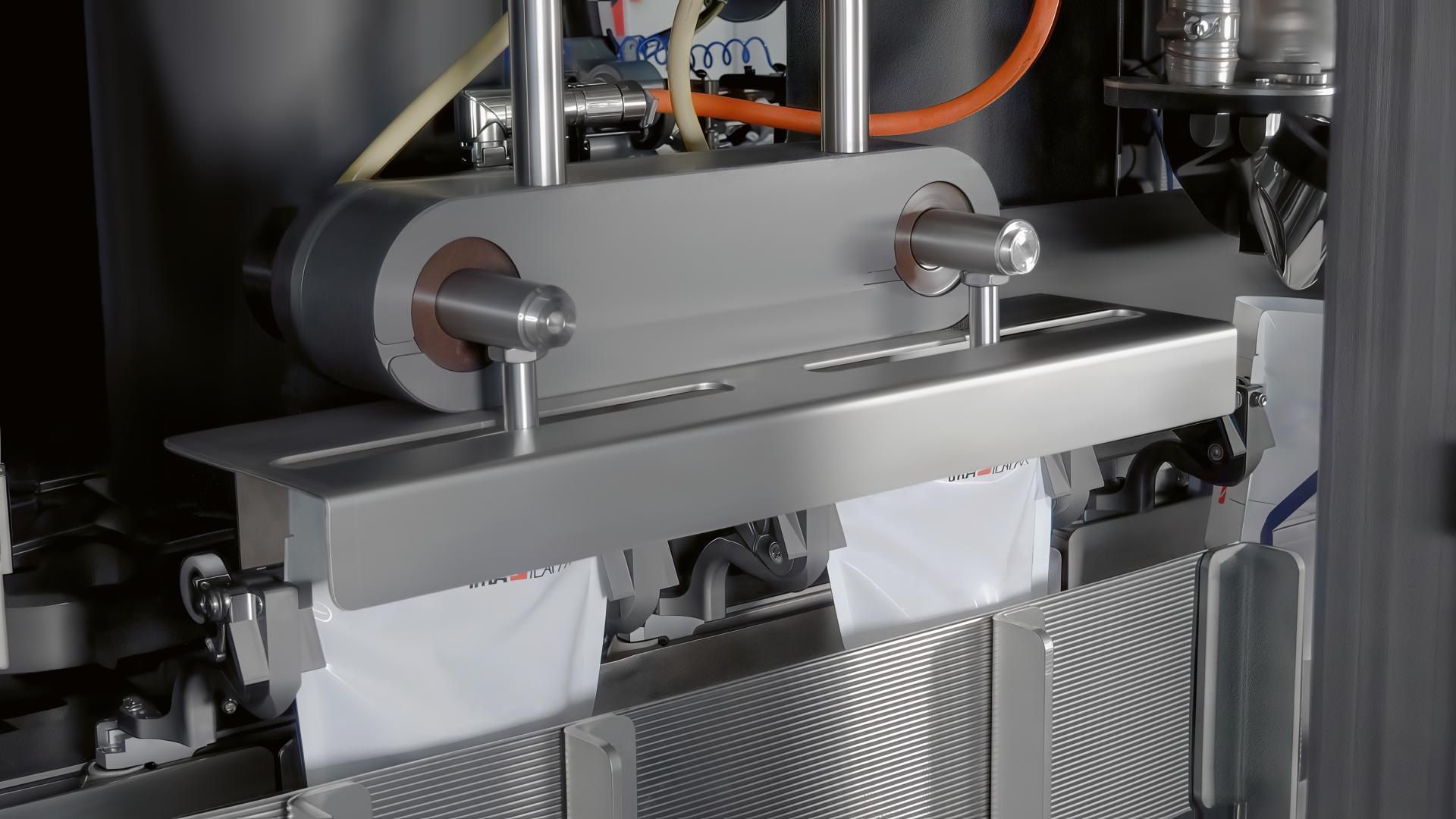

Sealing station
Fully automatic adjustable system on transversal sealing station.
-
Punching system
Fully automatical adjustable punching system for bottom gusset.
-

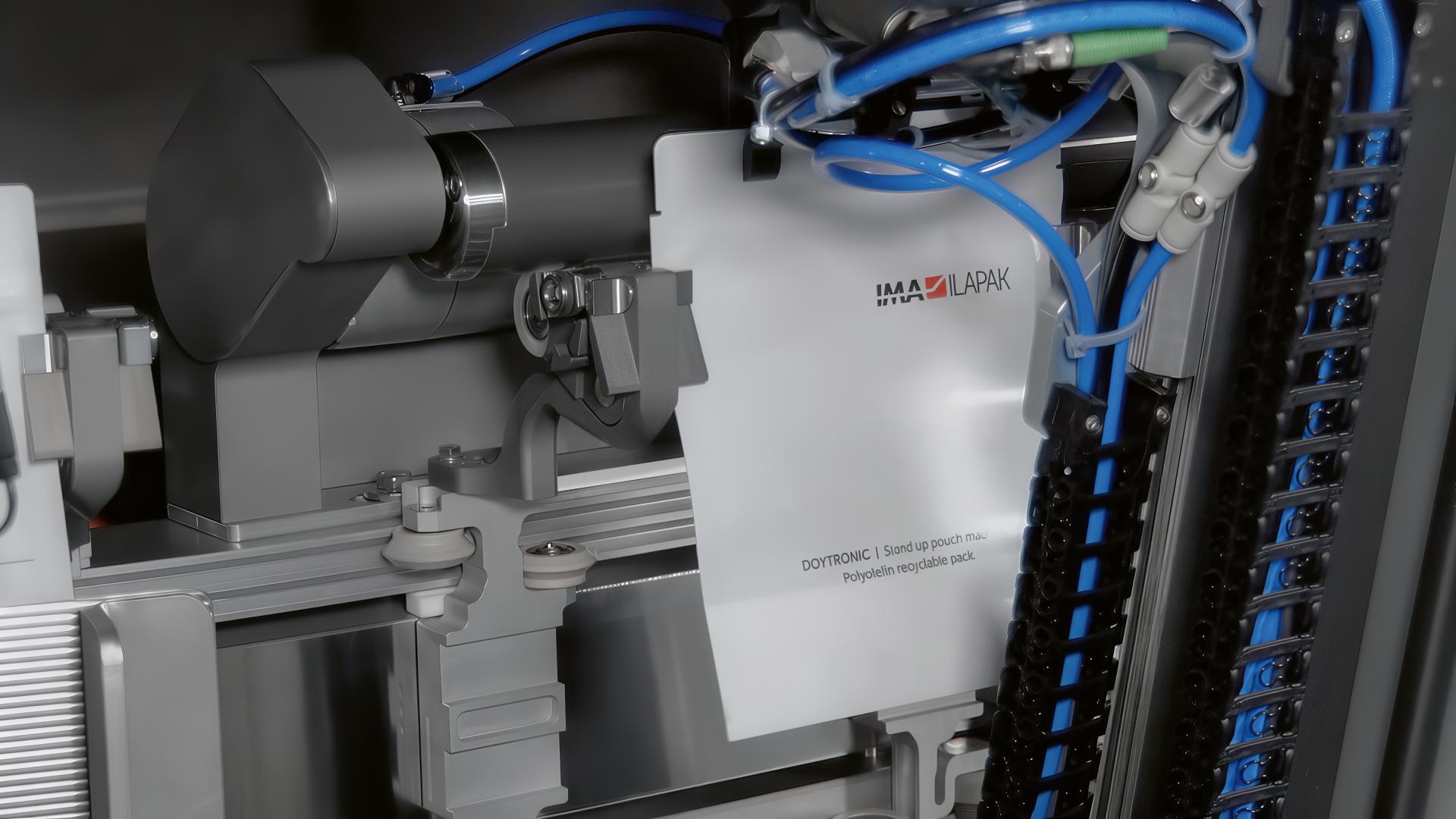

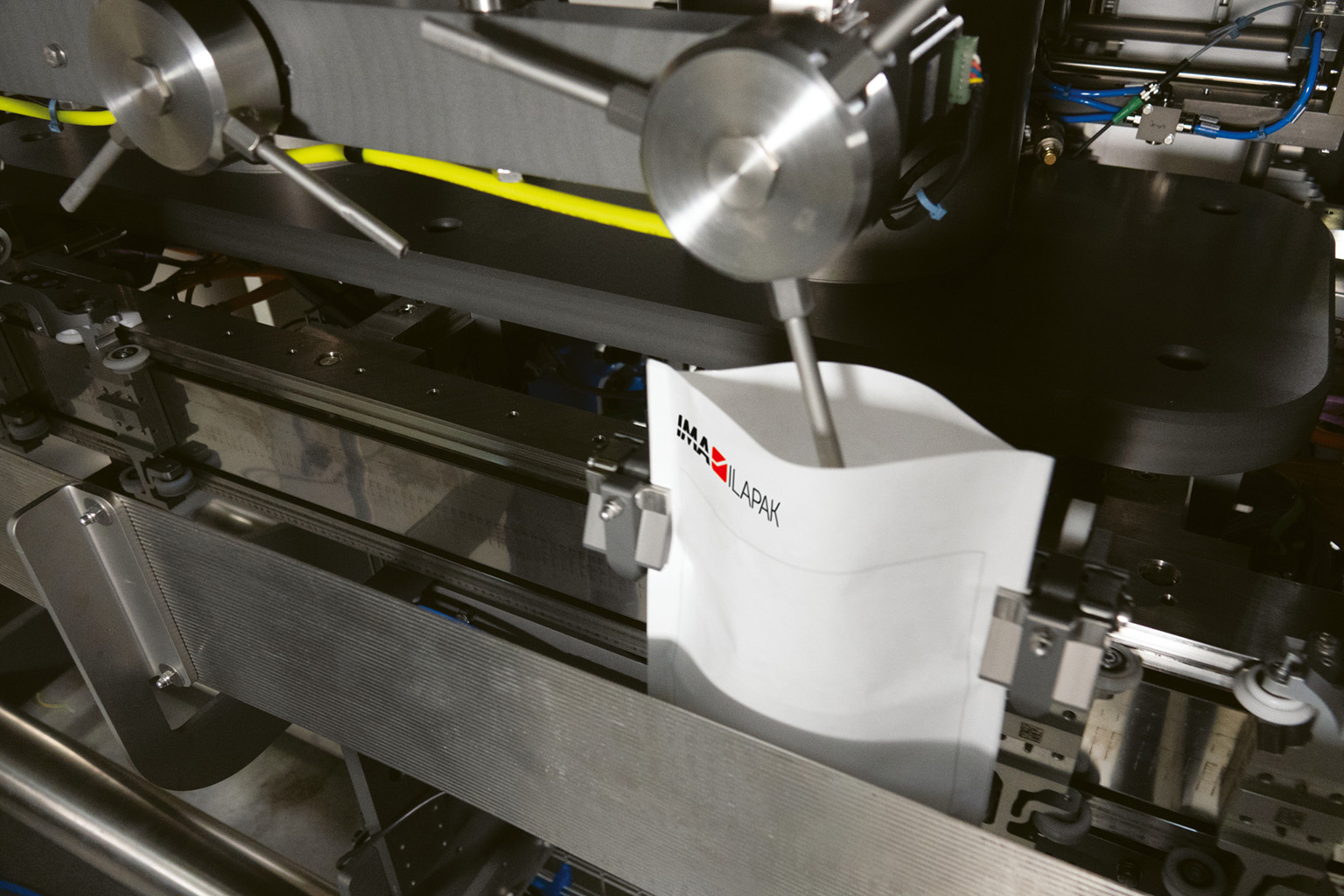

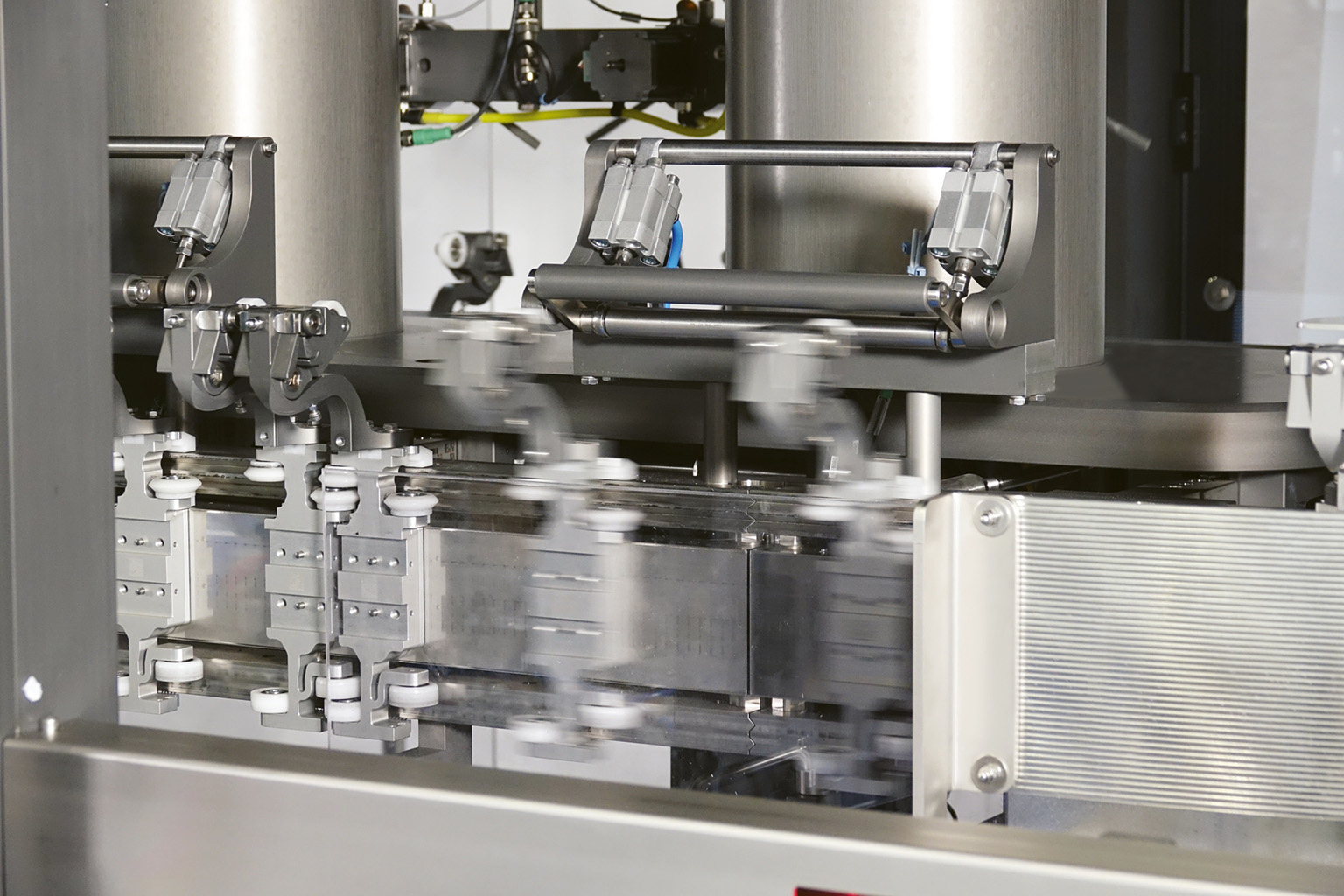

Pouch transfer
Fully automatic pouch transfer with magnetic shuttles.
-
High-speed recipe creation
Super rapid new recipe creation with self-setting.
-
Gas flushing
Patented system for gas flushing.
-
Top sealing
Top sealing available with any type of punch shape.
-
Quality control
Integrated quality control with reject station.
-
Full machine access
Completely open-frame machine with 360° accessibility.
-

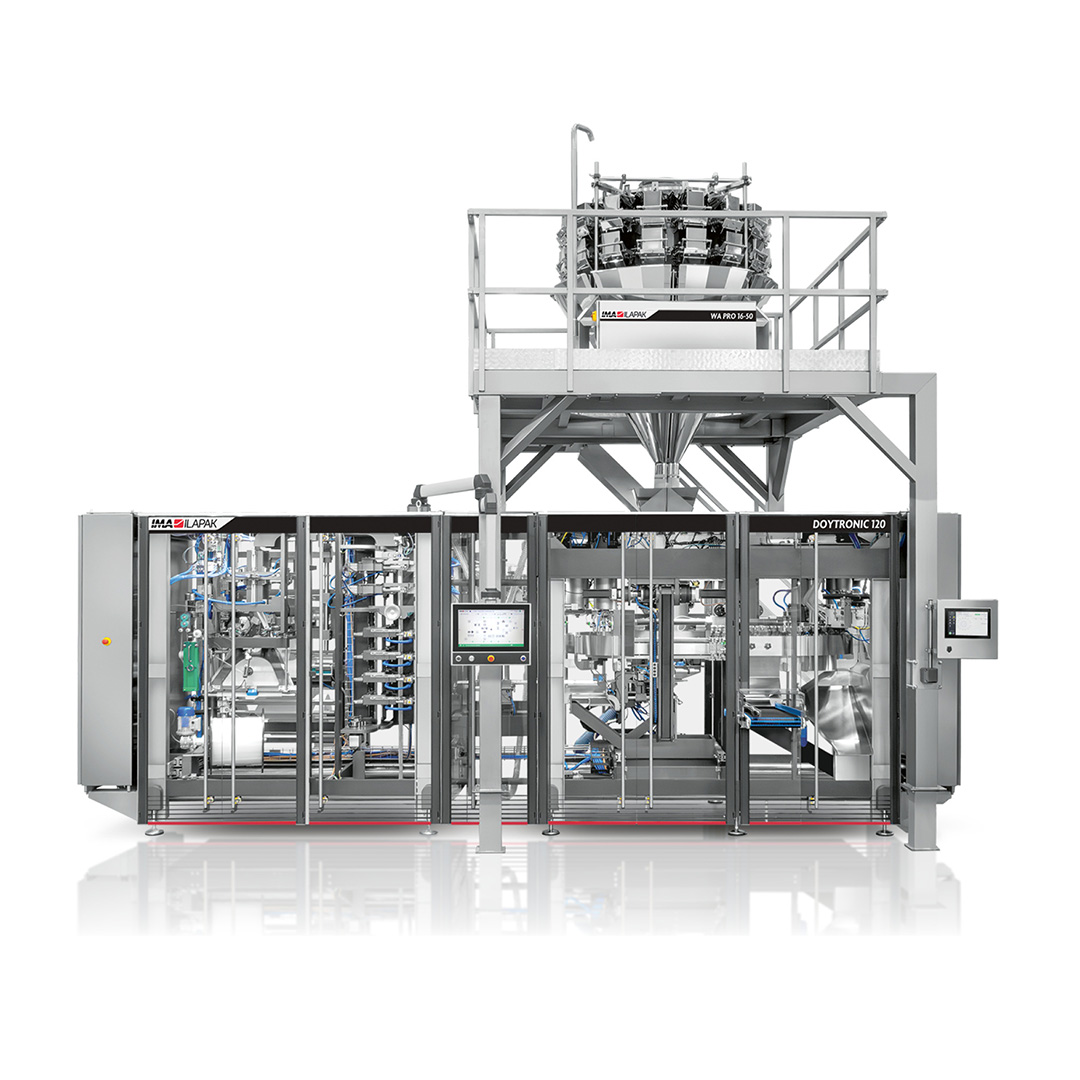

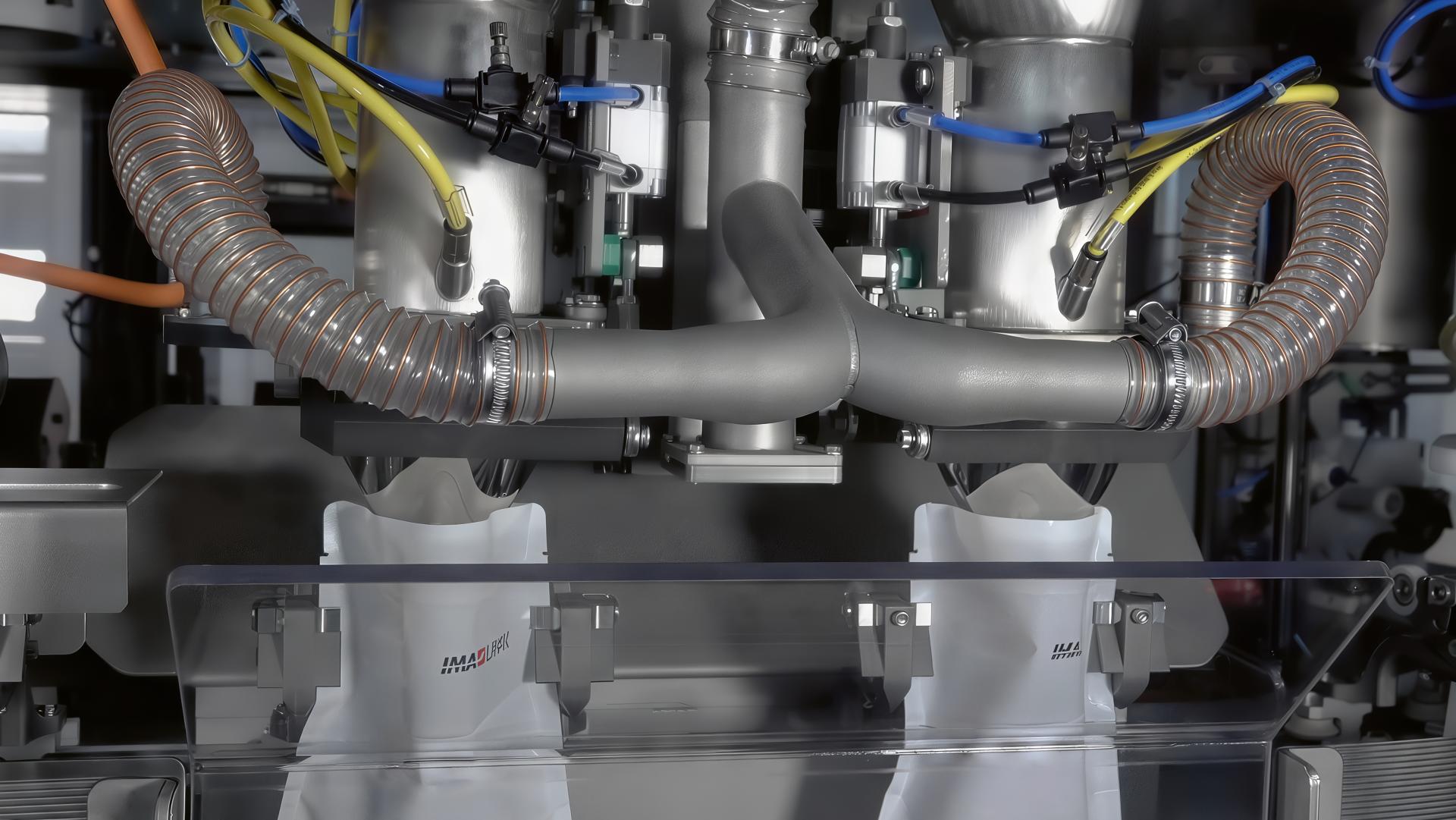

Multiple dosing
Machine prepared to work simultaneously with multiple dosing systems.
-
Re-closable zipper
Re-closable zipper available as option with multiple profiles and materials.
-
Round corners
Round corner punching system available as option.
Machine details
Technical information
| Noise Level | Within 80 dB |
|---|---|
| Maximum Reel Dimension | Ø 600 mm (23.622″) |
| Reel Core | Ø 76/152 mm (2.992″/5.984″) |
| Electrical Consumption | 400/480 VAC, 50/60 Hz, 45 kW |
| Pressure and Air Consumption | 6 bar, 750 NL/min + 600 NL/min |
| Min/Max Pouch Width | 90 / 200 mm |
| Min/Max Pouch Height | 150 / 300 mm |
| Min/Max Pouch Gusset Height | 15 / 45 mm |
| Target Output | 120 ppm |
| Max Volume/Weight per Pouch | 1.5 litres / 2 kg |
