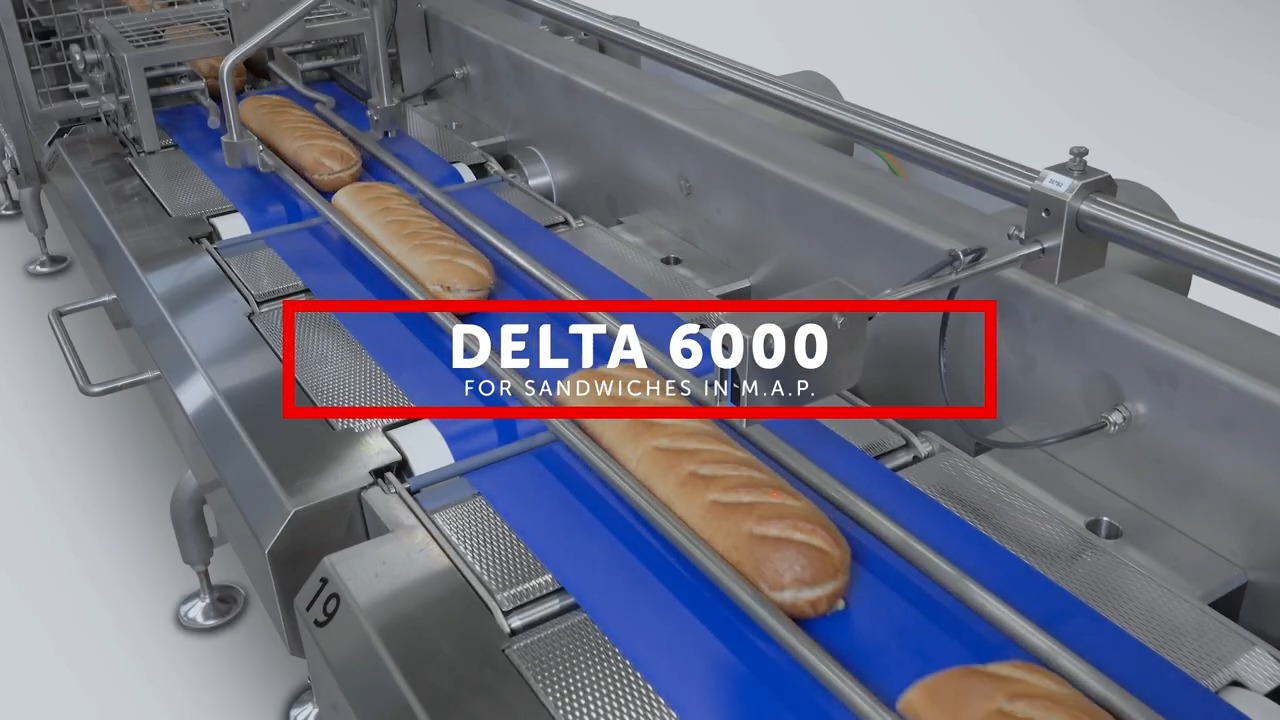

DELTA 6000 Horizontal Form Fill and Seal

Machine overview

Hygienic Flow Wrapping for Hermetic Sealing and M.A.P.

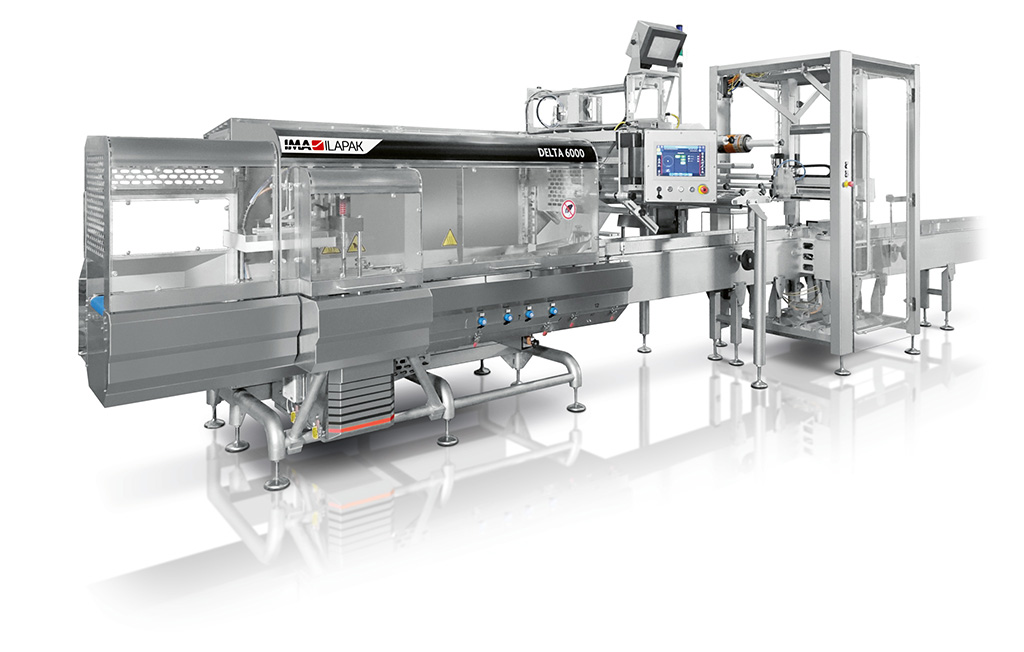

The Delta 6000 is IMA Ilapak’s fully modular horizontal flow wrapper designed for the most demanding hygiene and sealing performance standards. Featuring full IP65 washdown protection—including the sealing jaws—it ensures safe operation in harsh or hygiene-critical environments.

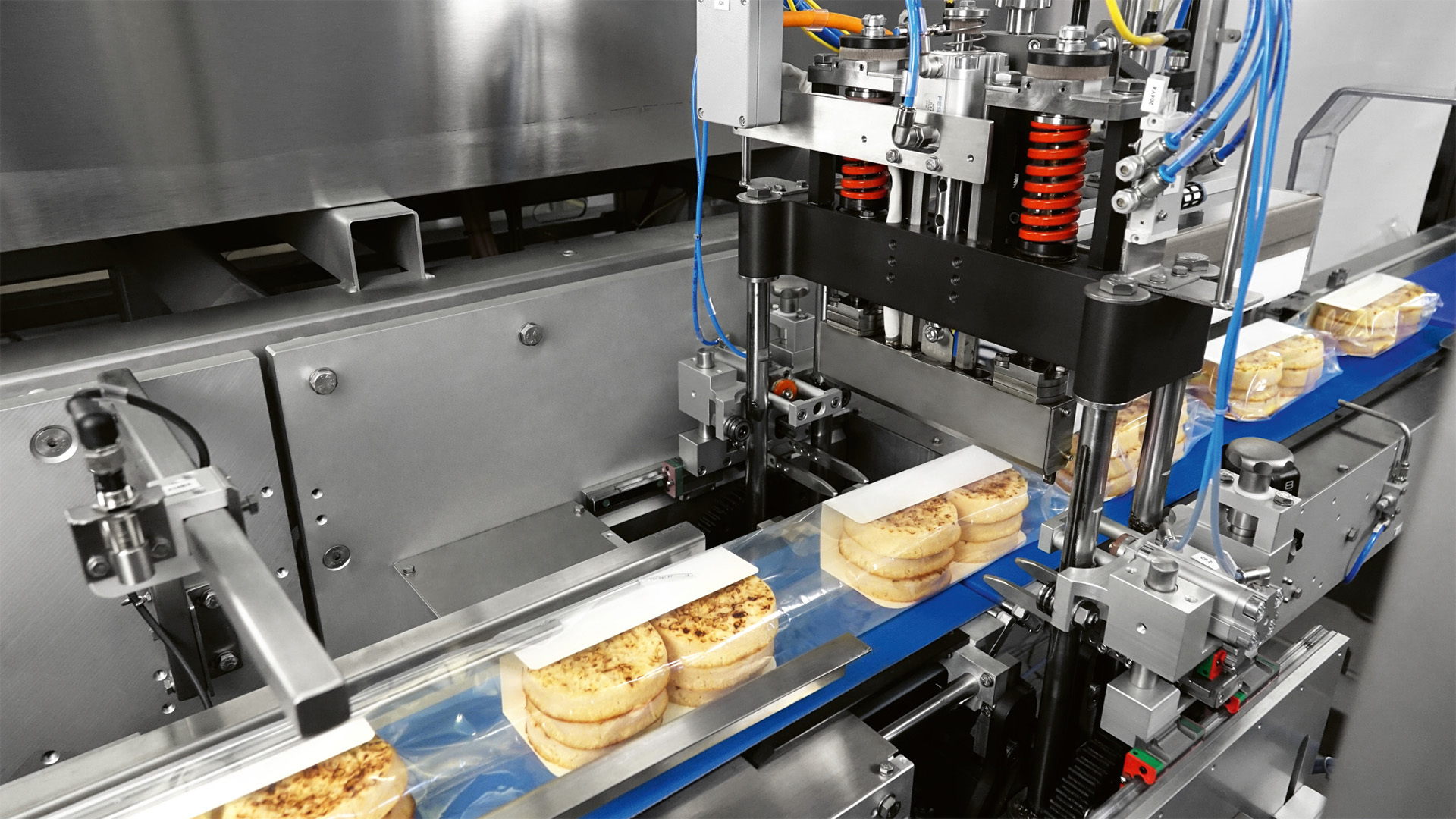

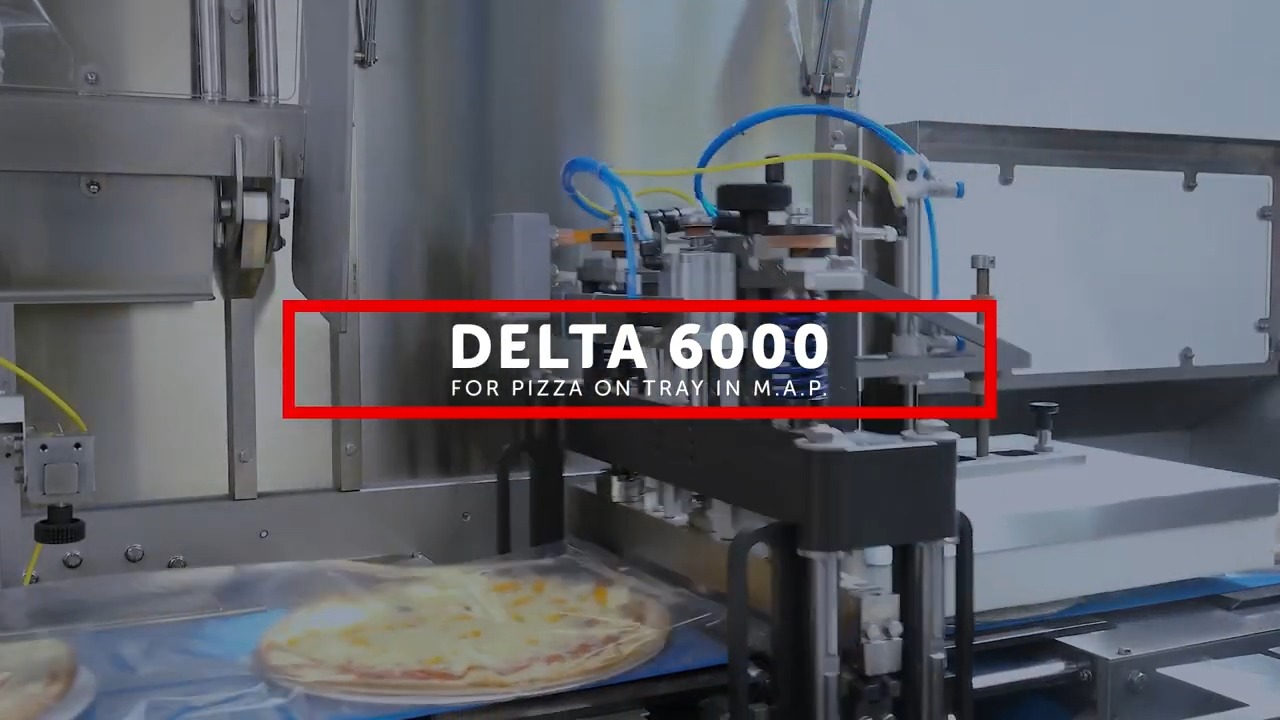

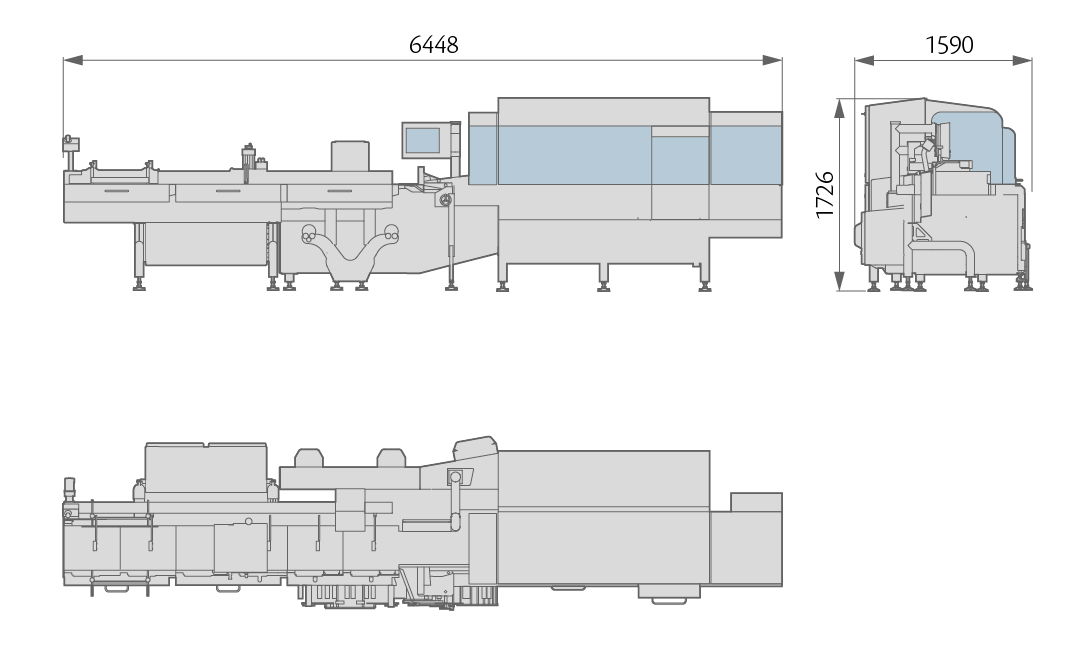

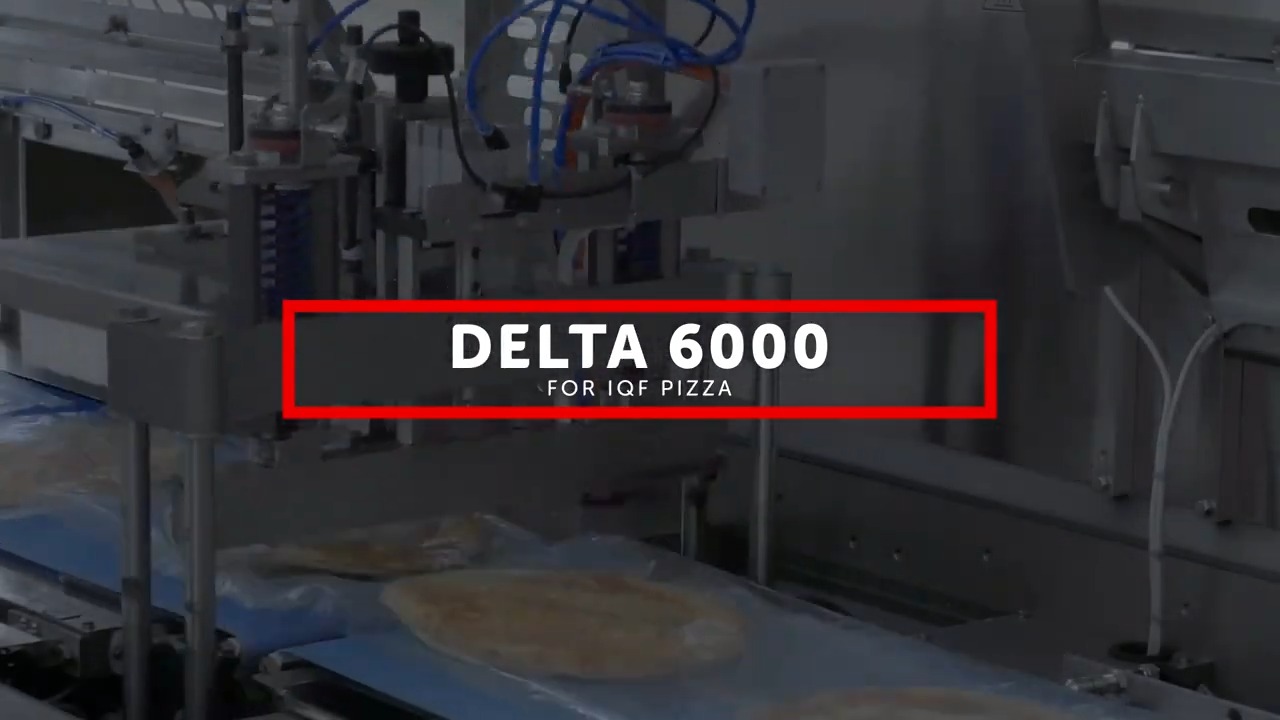

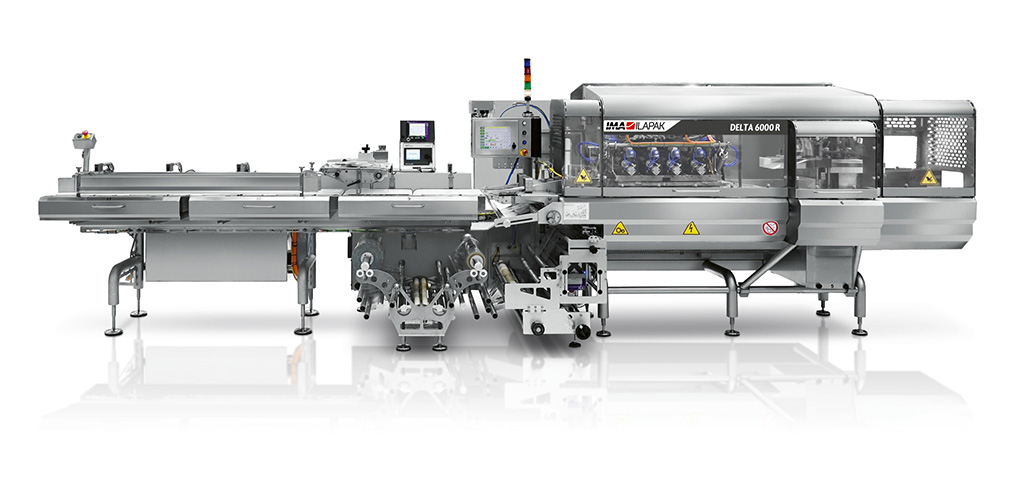

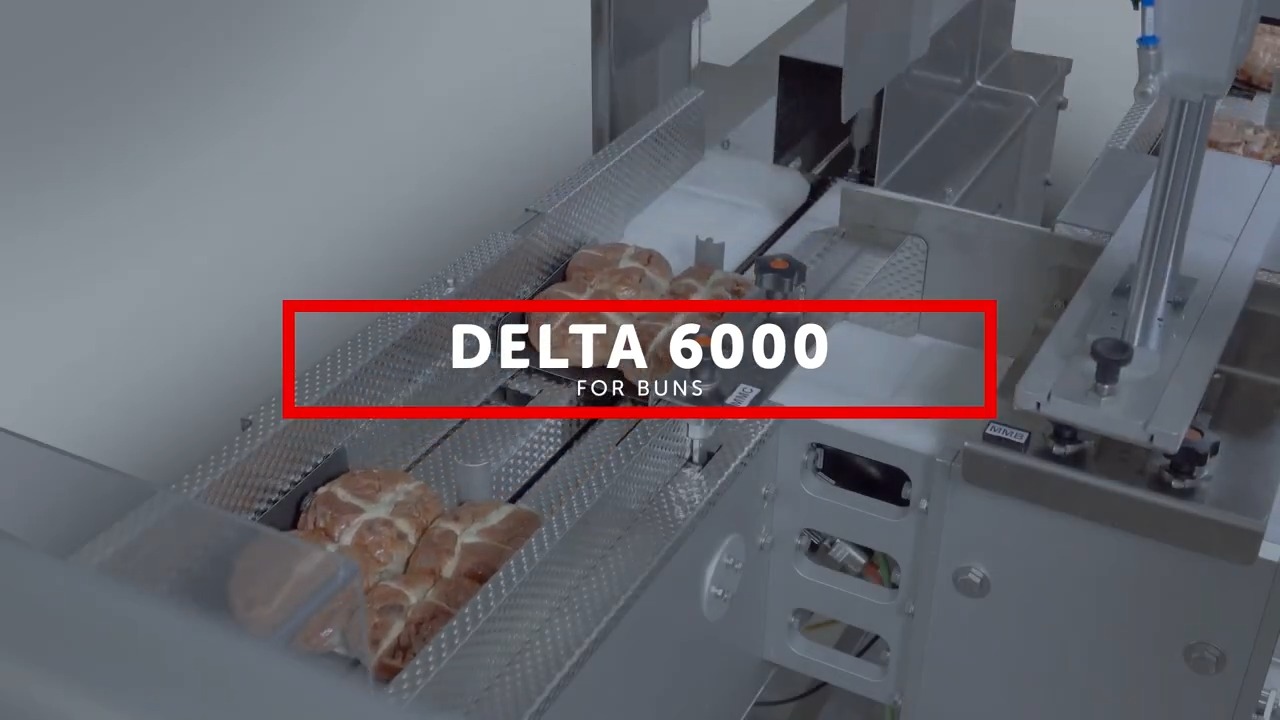

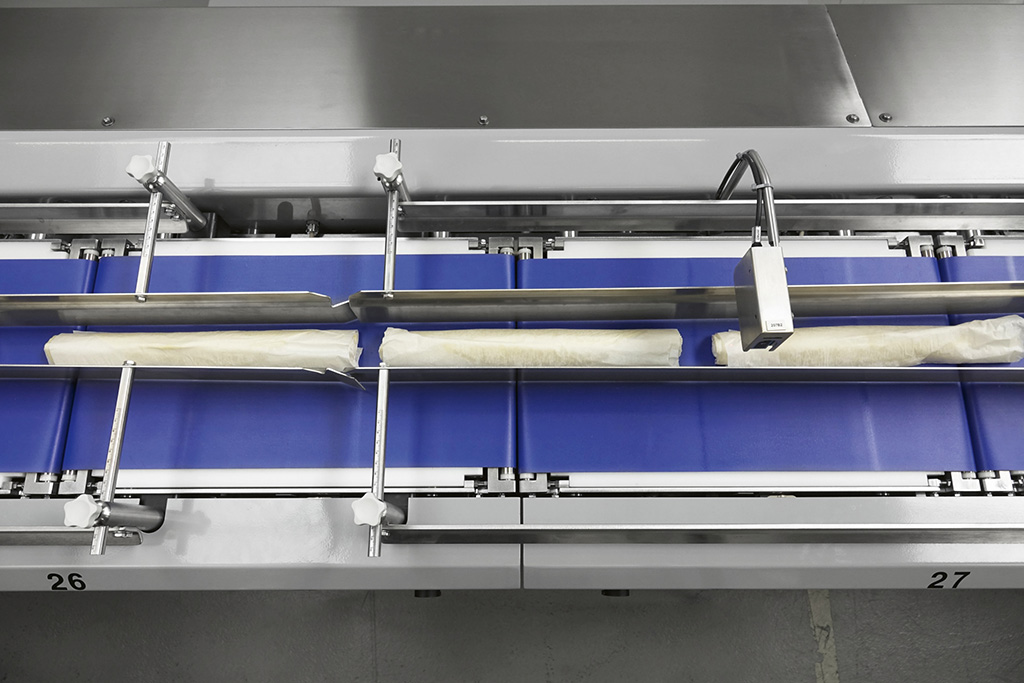

Built for Modified Atmosphere Packaging (M.A.P.), the Delta 6000 uses a high-speed long dwell sealing system, up to 200 ppm, and can handle a wide range of films, including recyclable paper-based or mono-material structures. It’s available in multiple configurations: top and bottom film feed (Delta 6000 R), or with a box-motion head (Delta 6000 BM) for ultra-strong, vacuum-resistant seals and flexible format adaptation. Ideal for bakery, pizza, tortillas, fresh and processed meat, cheese, and ready meals.

Production plant

Ilapak International SA

Machine highlights

Full IP65 & washdown protection

Complete hygienic design for safe operation in harsh, wet environments.

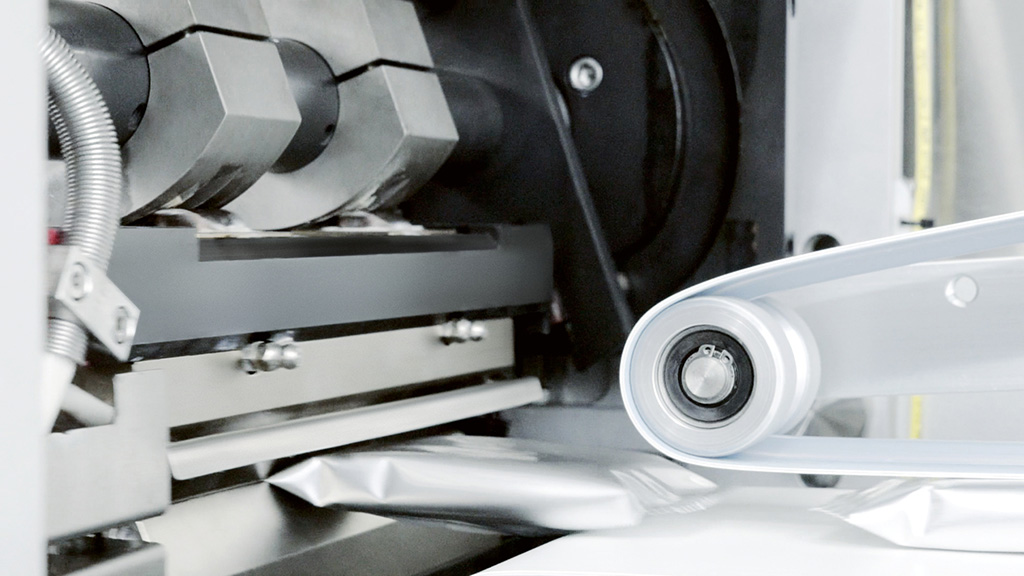

High-speed long dwell system

Ensures MAP compatibility and strong, reliable hermetic sealing.

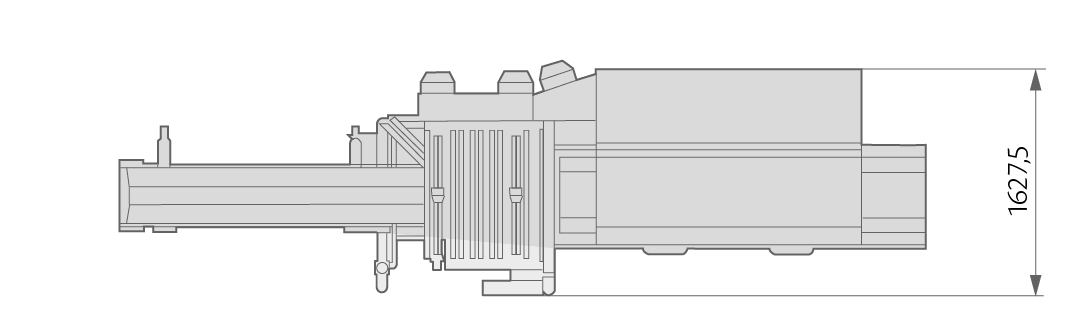

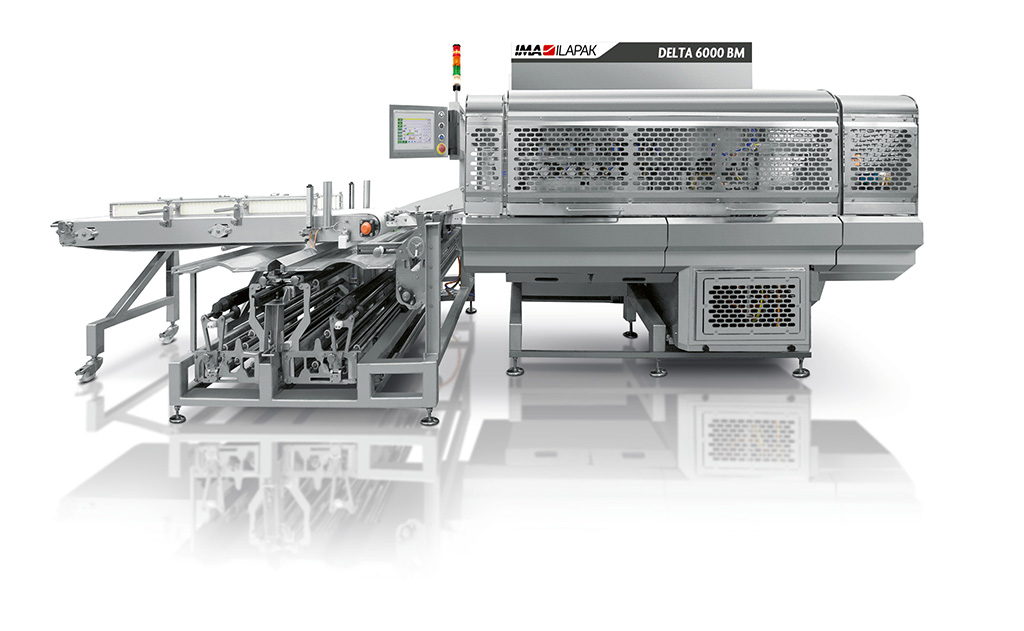

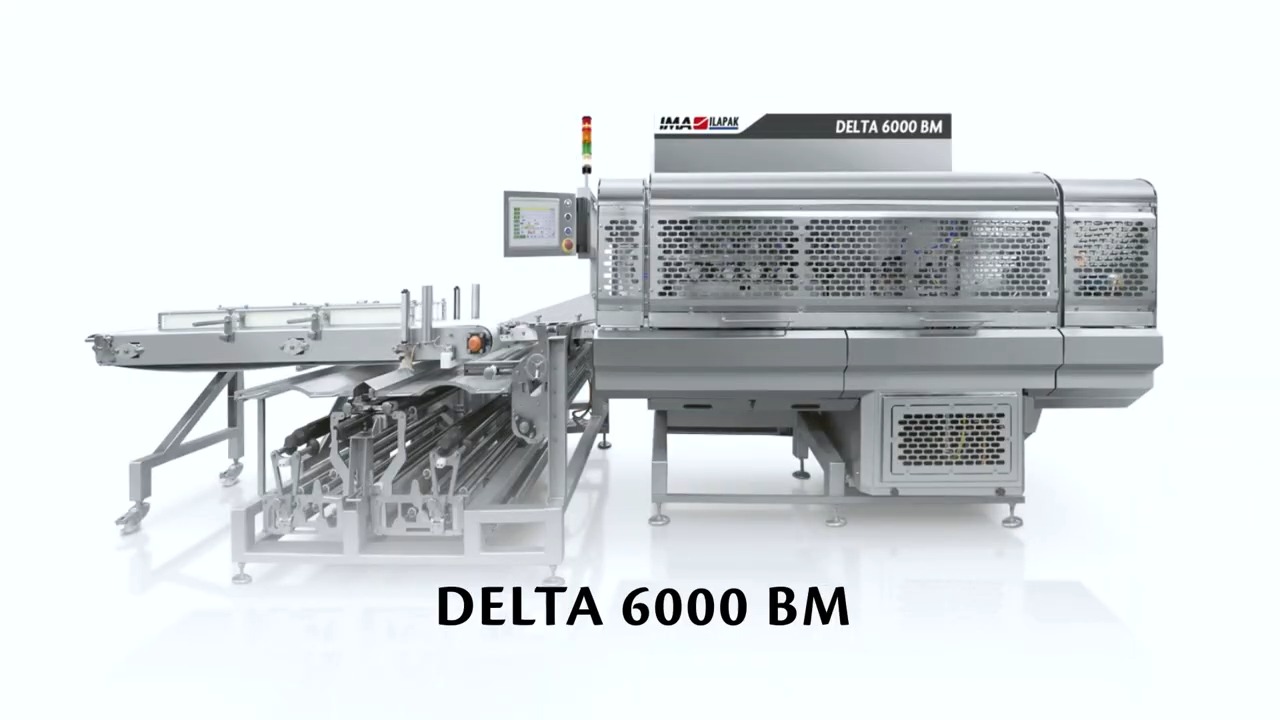

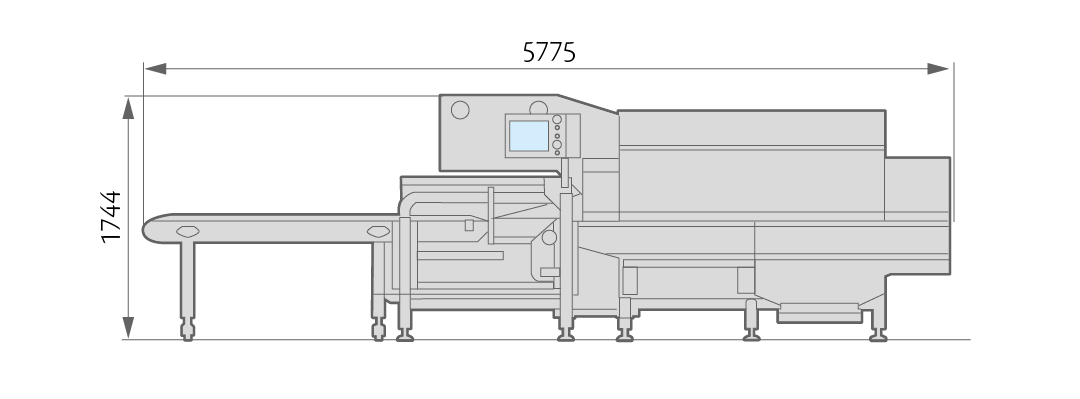

Box-motion version – Delta 6000 BM

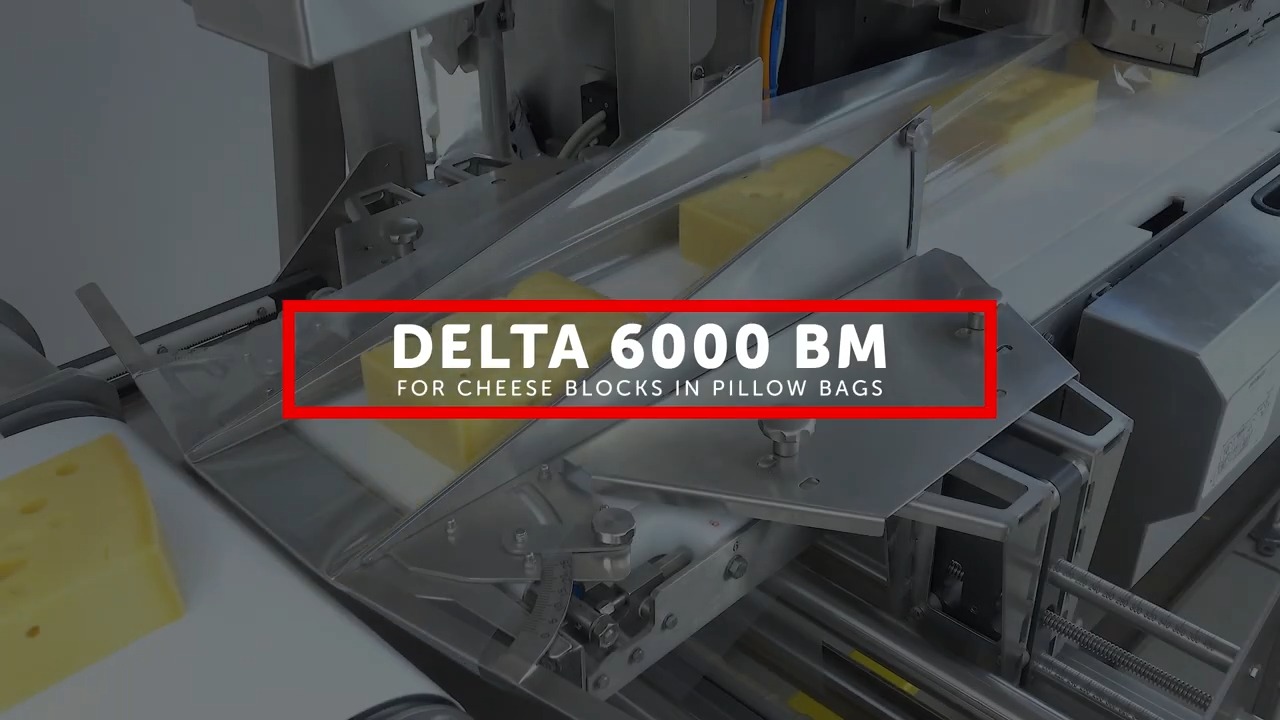

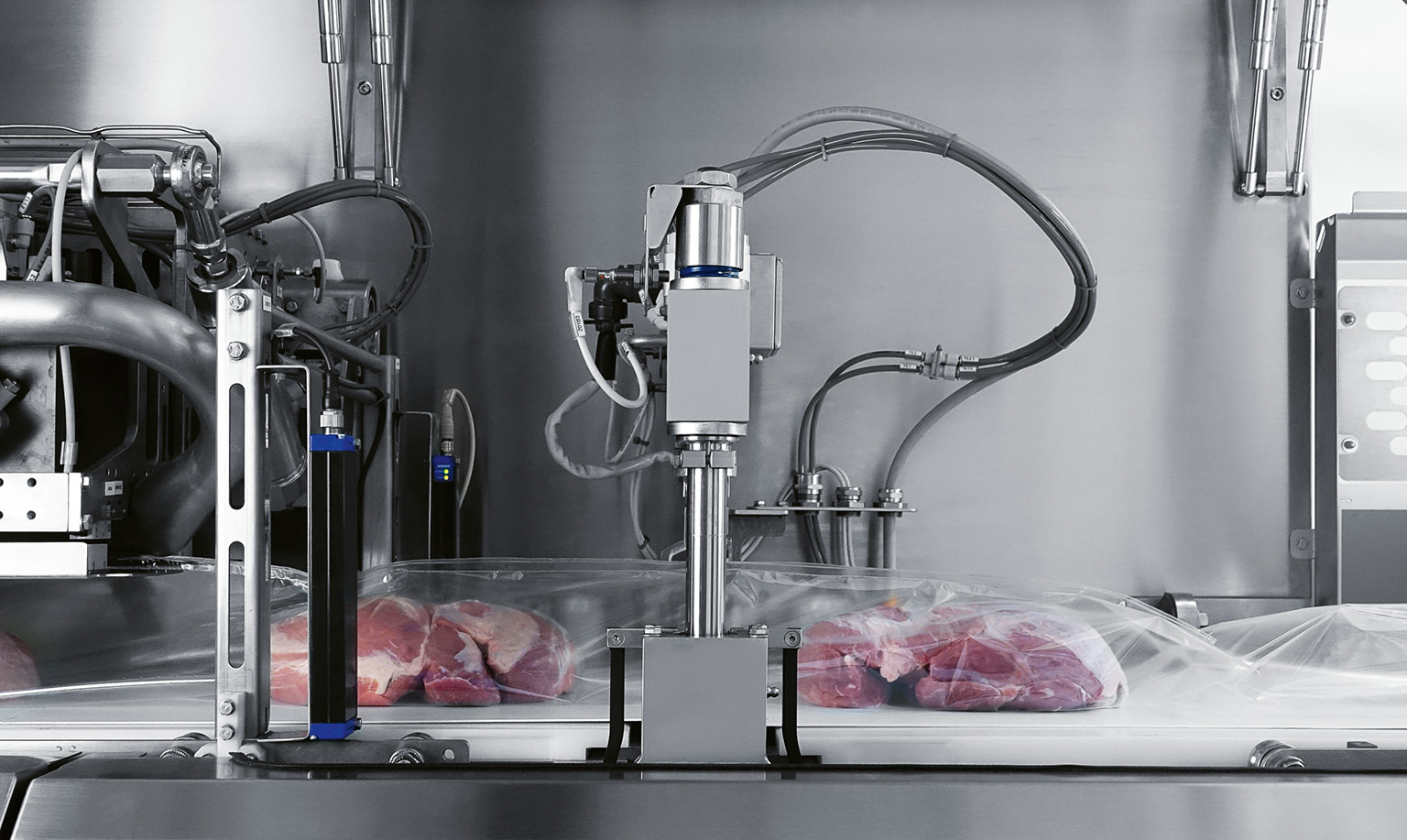

For vacuum-resistant seals and larger formats like primal meat cuts or cheese blocks.
Modular & scalable design

Easily integrates with various feeding and loading systems.
Recyclable film compatibility

Runs paper-based and mono-material plastics for sustainable packaging.
Top & bottom film feed options

Tailored layout for specific line integration or product handling.
USDA Dairy version available

Meets strict hygienic regulations for dairy packaging.
Commercially available components

Enhances reliability and simplifies maintenance.

Machine details

Technical information

Machine Speed	Up to 200 cycles per minute Production output depends on film sealability and product characteristics
Film Cut-Off	Min 100mm – 4.0” / Max 1200mm – 47” Depending on film and product characteristics Min 100mm – 4.0” / Max 1200mm – 47” Depending on film and product characteristics
Wrapping Materials	Shrink barrier films, laminated, co-extruded and all sealable films
Film Reel Max Weight	Depending on film reel width, up to 75 kg – 165 lbs Depending on film reel width, up to 75 kg – 165 lbs
Electronic Platform	Industrial PC On request different electronic control platform are available i.e. Allen Bradley, Siemens, Schneider-Elau, B&R.
Power Requirement	From 220 to 480 V, 50/60 Hz, 7kVA
Compressed Air	6 bar, 200 l/min
Machine Weight	1400 Kg – 3100 lbs
	PRODUCT DIMENSIONS
length	Up to 650mm – 25.6” standard Up to 1000mm – 39.0” on request
width	150mm – 5.9” on request (jaws 190mm – 7.5”) 300mm – 11.8” standard (jaws 345mm – 13.6”) 420mm – 16.5” on request (jaws 450mm – 17.7”)
height	Up to 110mm – 4.3” standard (centre-axle 180) Up to 150mm – 6.0” on request (centre-axle 225) Up to 60mm – 2.4” on request (centre-axle 140)
	FILM REEL DIMENSIONS
coreø	76.2mm – 3” standard 152.4mm – 6” on request
outerø	350mm – 13.8” standard for reel web width up to 800-900mm 400mm – 15.7” on request for reel web width up to 500-650mm
width	500mm / 650mm – 19.7” / 25.5” standard 800mm / 900mm – 31.5” / 35.5” on request

Machine Speed	Up to 150 cycles per minute Production output depends on film sealability and product characteristics
Film Cut-Off	Min 100mm – 4.0” / Max 1200mm – 47” Depending on film and product characteristics Min 100mm – 4.0” / Max 1200mm – 47” Depending on film and product characteristics
Wrapping Materials	Shrink barrier films, laminated, co-extruded and all sealable films
Film Reel Max Weight	Depending on film reel width, up to 75 kg – 165 lbs Depending on film reel width, up to 75 kg – 165 lbs
Electronic Platform	Industrial PC On request different electronic control platform are available i.e. Allen Bradley, Siemens, Schneider-Elau, B&R.
Power Requirement	From 220 to 480 V, 50/60 Hz, 7kVA
Compressed Air	6 bar, 200 l/min
Machine Weight	1400 Kg – 3100 lbs 1400 Kg – 3100 lbs
	PRODUCT DIMENSIONS
length	Up to 650mm – 25.6” standard Up to 1000mm – 39.0” on request
width	150mm – 5.9” on request (jaws 190mm – 7.5”) 300mm – 11.8” standard (jaws 345mm – 13.6”) 420mm – 16.5” on request (jaws 450mm – 17.7”)
height	Up to 110mm – 4.3” standard (centre-axle 180) Up to 150mm – 6.0” on request (centre-axle 225) Up to 60mm – 2.4” on request (centre-axle 140)
	FILM REEL DIMENSIONS
coreø	76.2mm – 3” standard 152.4mm – 6” on request
outerø	350mm – 13.8” standard for reel web width up to 800-900mm 400mm – 15.7” on request for reel web width up to 500-650mm
width	500mm / 650mm – 19.7” / 25.5” standard 800mm / 900mm – 31.5” / 35.5” on request

	STANDARD VERSION	XL VERSION
Machine Speed	Up to 60 cycles per minute. Production output depends on film sealability and product characteristics.
Film Cut-Off	Min 150mm – 6” / Max 800mm – 31.5” Depending on film and product characteristics.
Wrapping Materials	Shrink barrier films, laminated, co-extruded and all sealable films
Film Reel Max Weight	Depending on film reel width, up to 75 kg – 165 lbs	Depending on film reel width, up to 90 kg – 200 lbs
Electronic Platform	Industrial PC On request different electronic control platform are available i.e. Allen Bradley, Siemens, Schneider-Elau, B&R.
Power Requirement	From 220 to 480 V, 50/60 Hz, 7kVA
Compressed Air	6 bar, 200 l/min
Machine Weight	1500 Kg – 3300 lbs
	PRODUCT DIMENSIONS
length	Up to 650mm – 25.6”
width	320mm – 12.6” (jaws 350m -13.7”) 420mm – 16.5” on request (jaws 450mm 17.7”)	520mm – 20.5”
height	Up to 230mm – 9”, with small product traps	Up to 320 mm-12.6”, with small product traps
	FILM REEL DIMENSIONS
coreø	76.2mm – 3” 152.4mm – 6” on request
outerø	400mm – 15.7”
width	800mm – 31.5” 900mm – 35.4” available as an option	1200mm – 47.2”
