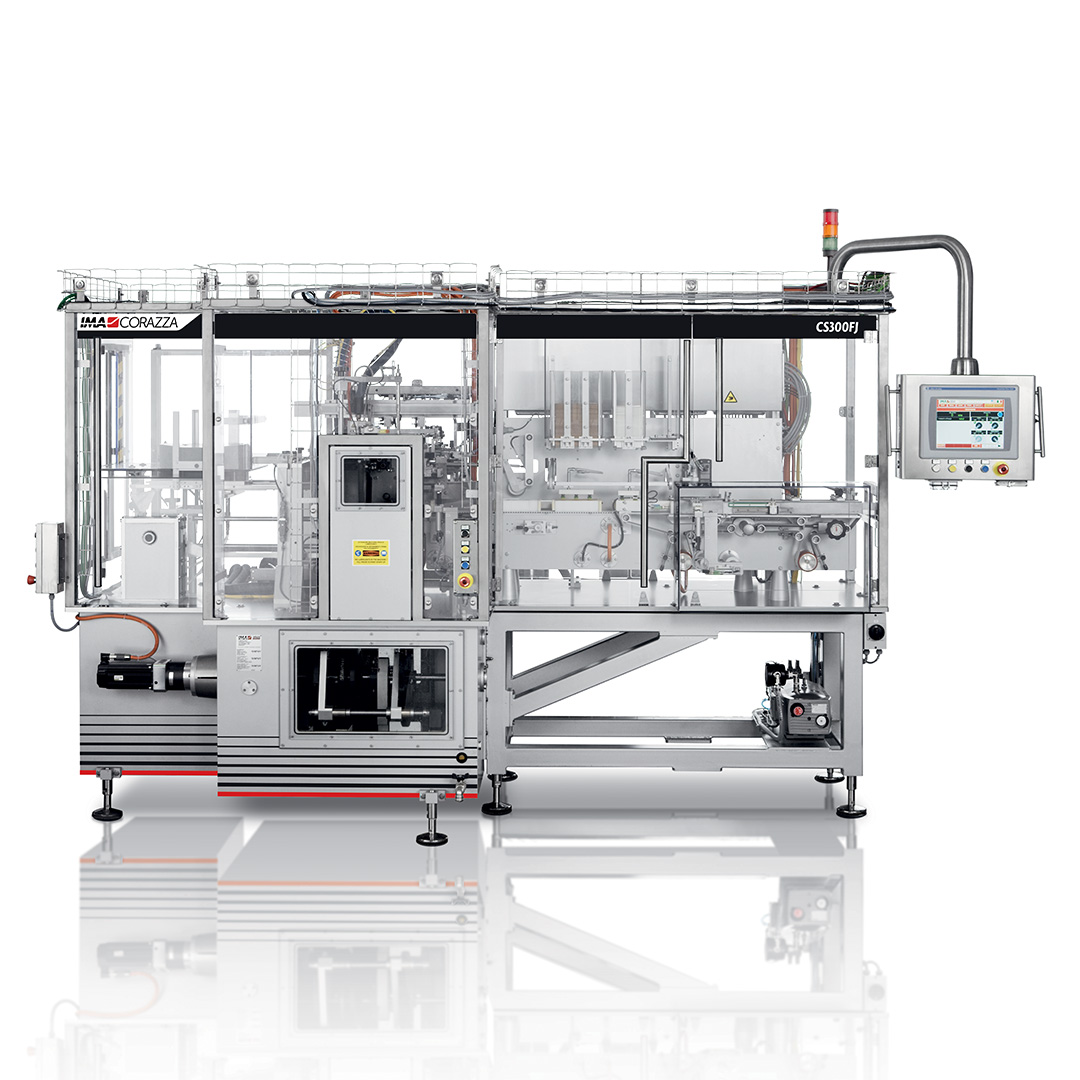

CS F Series Cartoning
Machine overview
Automatic cartoning for small to medium-sized dairy products.
The CS F Series machines are designed for automatic cartoning of dairy products such as square and rectangular portions of processed and cream cheese.
Available with a variety of infeed arrangements, these machines manage up to 75 boxes/minute in various sizes, allowing multi-layer packaging configurations.

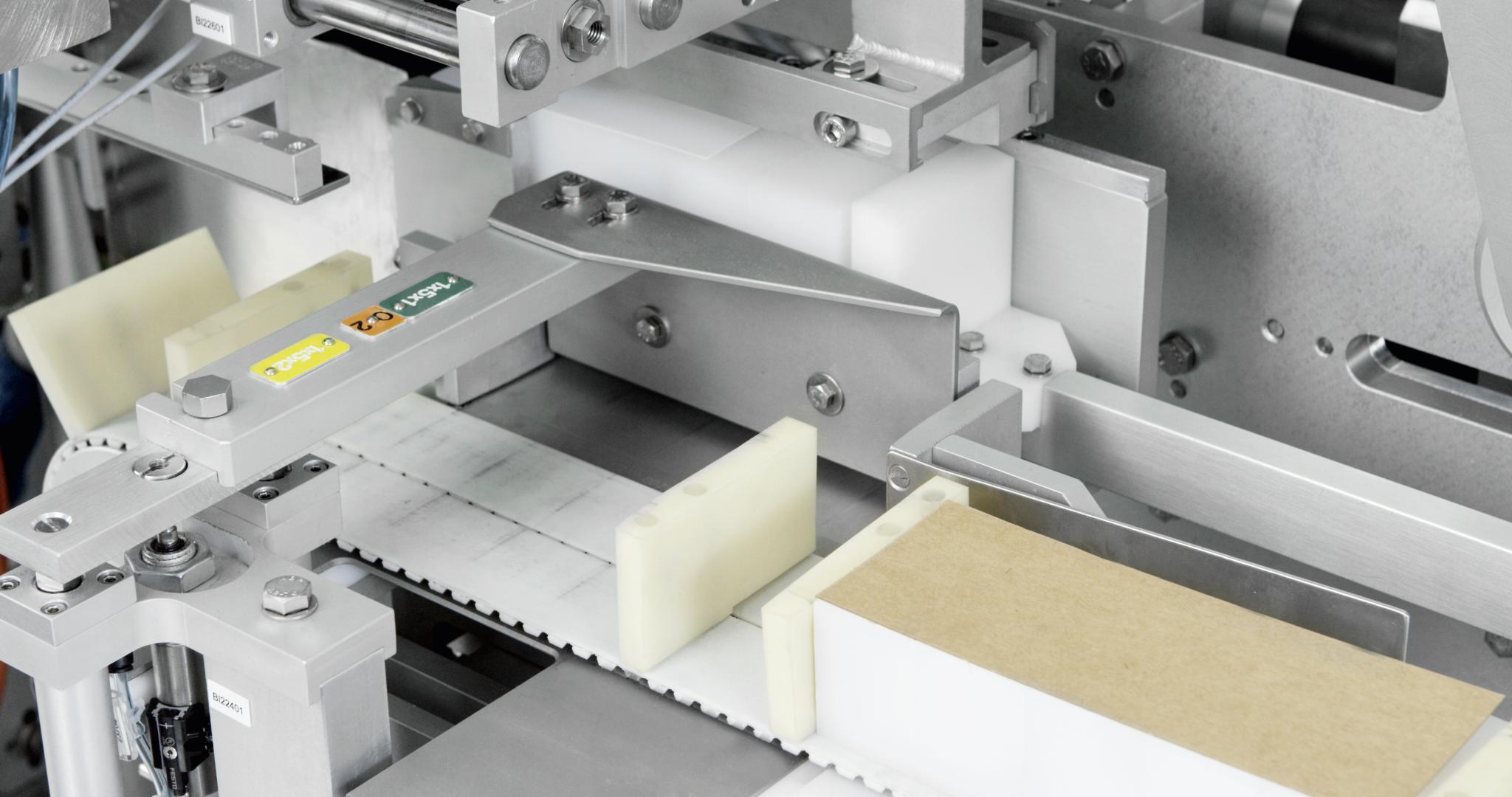

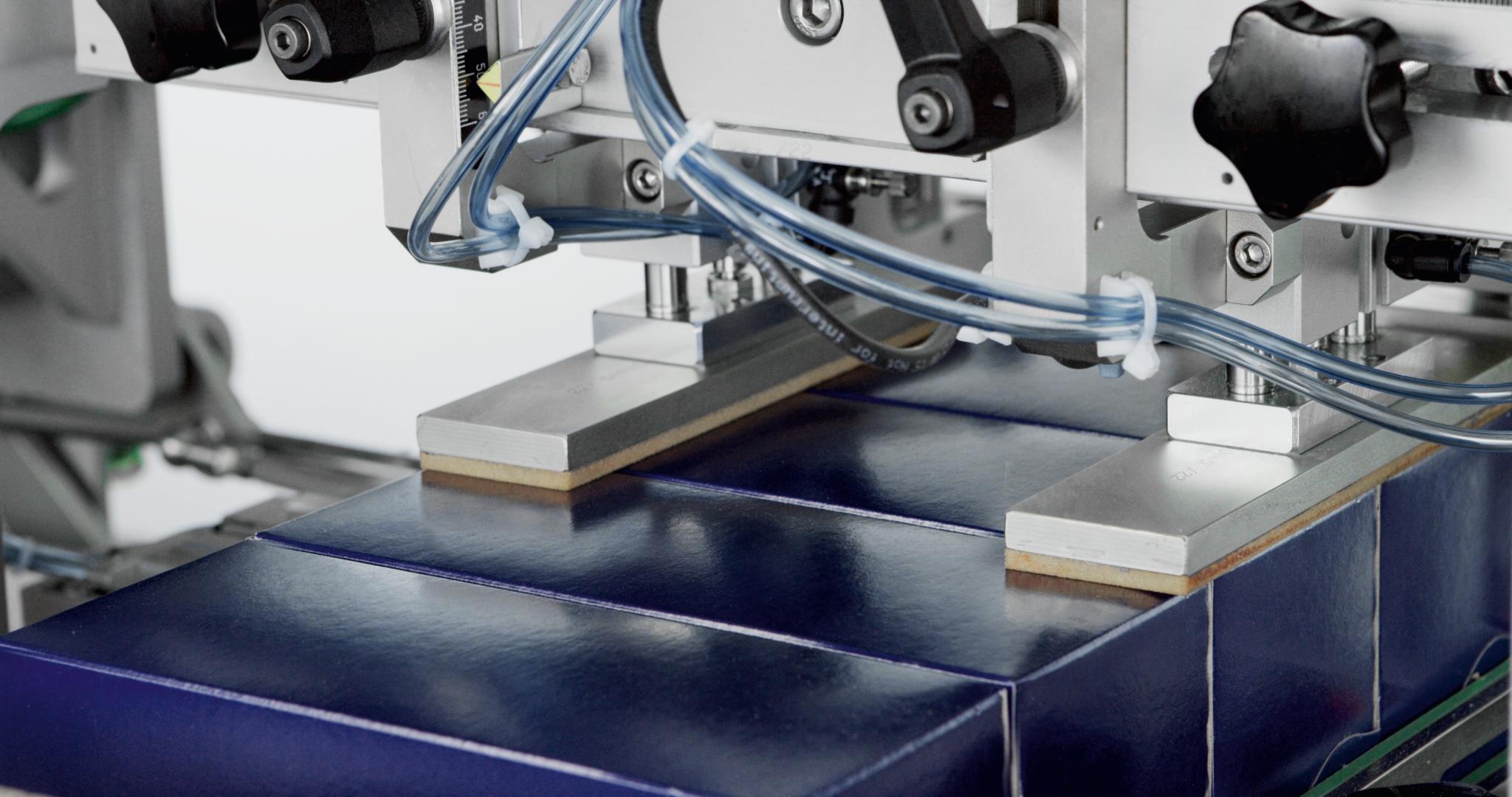

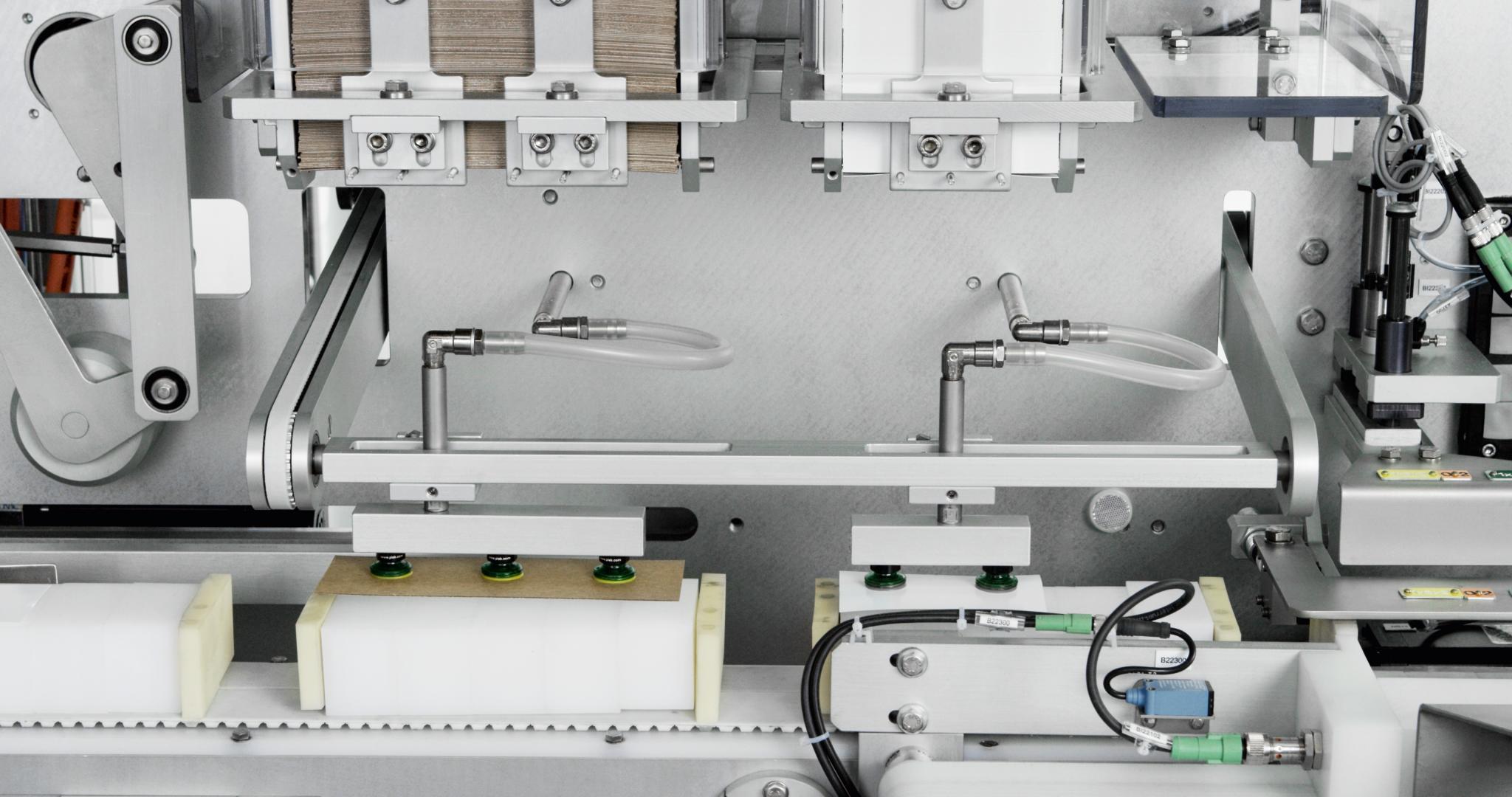

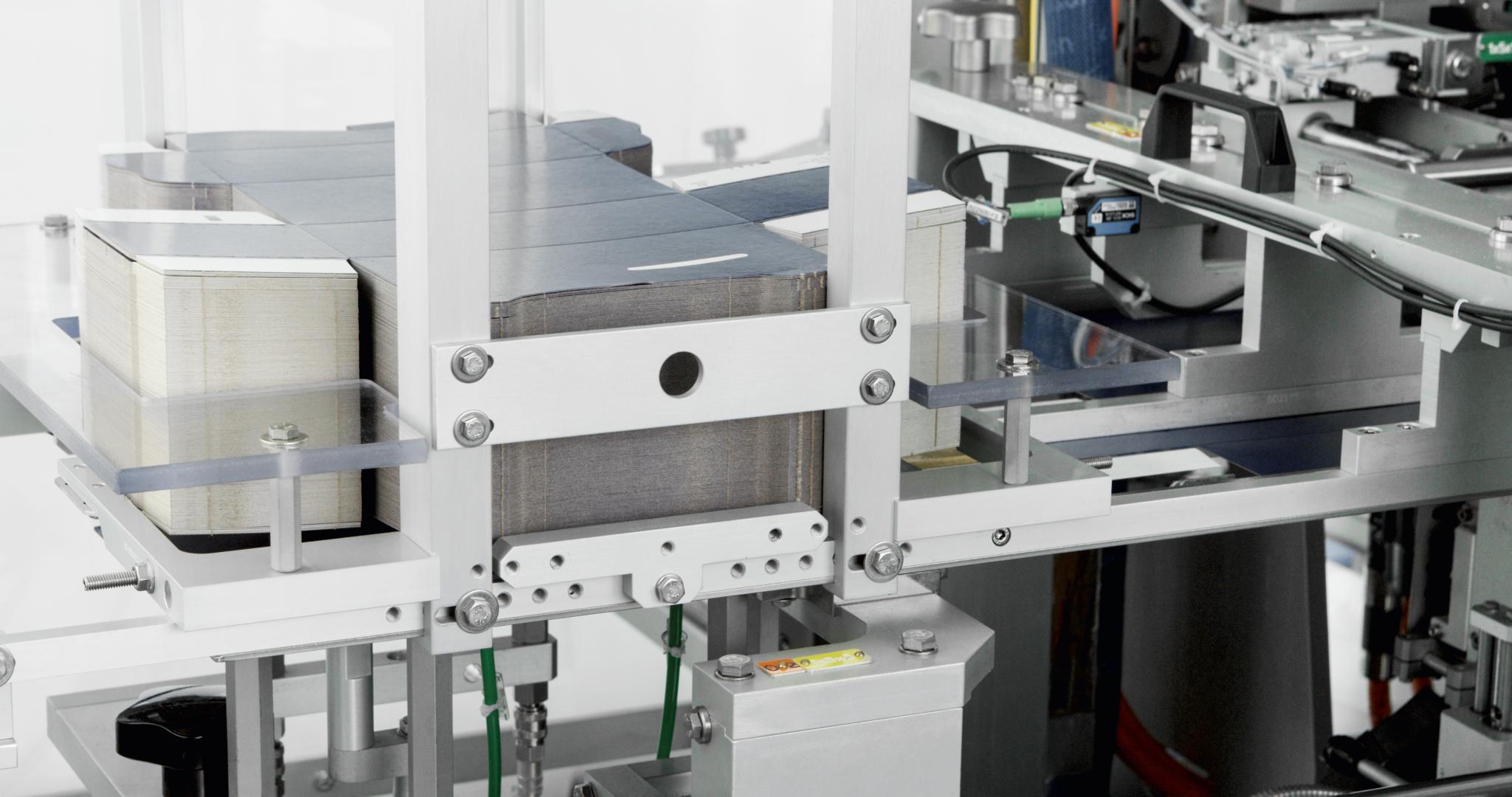

Operating with open flat blanks, the CS F Series helps to reduce procurement costs compared to using pre-glued cartons. The CS F Series machines efficiently wrap pre-formed bundles of dairy products, sealing them with tucked and glued end-flaps along with a glued longitudinal flap, using either hot-melt or cold-melt glue for secure closure.
Production plant
IMA Corazza
Machine highlights
-
High-performance cartoning for dairy portions
Designed to carton square and rectangular cheese portions from flat blanks at speeds up to 75 boxes/min, these machines ensure efficient multi‑layer packaging and secure hot‑ or cold‑melt glued closures.
-
Flexible infeed configurations
Available in different infeed arrangements to suit specific product requirements.
-
Fast and optimised changeover
Optimised size tooling changeover to minimise production downtimes.
-
Wraparound flip‑top capability
These cartoning machines manage a new wraparound flip-top reclosable box style.
-
Single or multi‑layer format options
Formats available on single or multiple layers.
-
Versatile portion handling
These machines are able to handle small, medium and big portions of processed cheese.
Machine details
Technical information
| CS F SERIES TECHNICAL DATA | |||
| Machine model | CS300F-STRAT | CS300FJ | CS300 FJ STRAT |
| Production capacity | Up to 75 boxes/min. | Up to 65 boxes/min. | Up tp 70 boxes/min. |
| Full load current | Px400V-60Hz-12Ampw | 3Px400V-60Hz-10Amp | |
| Compresse air consumption | 100 Nl/min. (min. op. pressure 6 bar) | 1500kg approx | |
| Weight | 1,350 Kg Approx. | ||
Box dimensions
| A (min – max) | ||
| 25 – 85 | 60 – 150 | 55 – 75 | |
| B (min – max) | |||
| 110 – 200 | 110 – 160 | 72 – 212 | |
| C (min – max) | |||
| 17 – 33 | 0 – 50 | 10 – 44 | |
| Lanes | 1 – 3 | 1 – 2 | 1 – 4 |
| Layers | 1 – 2 | – | 1 – 2 |
