CPV50 Case Packing

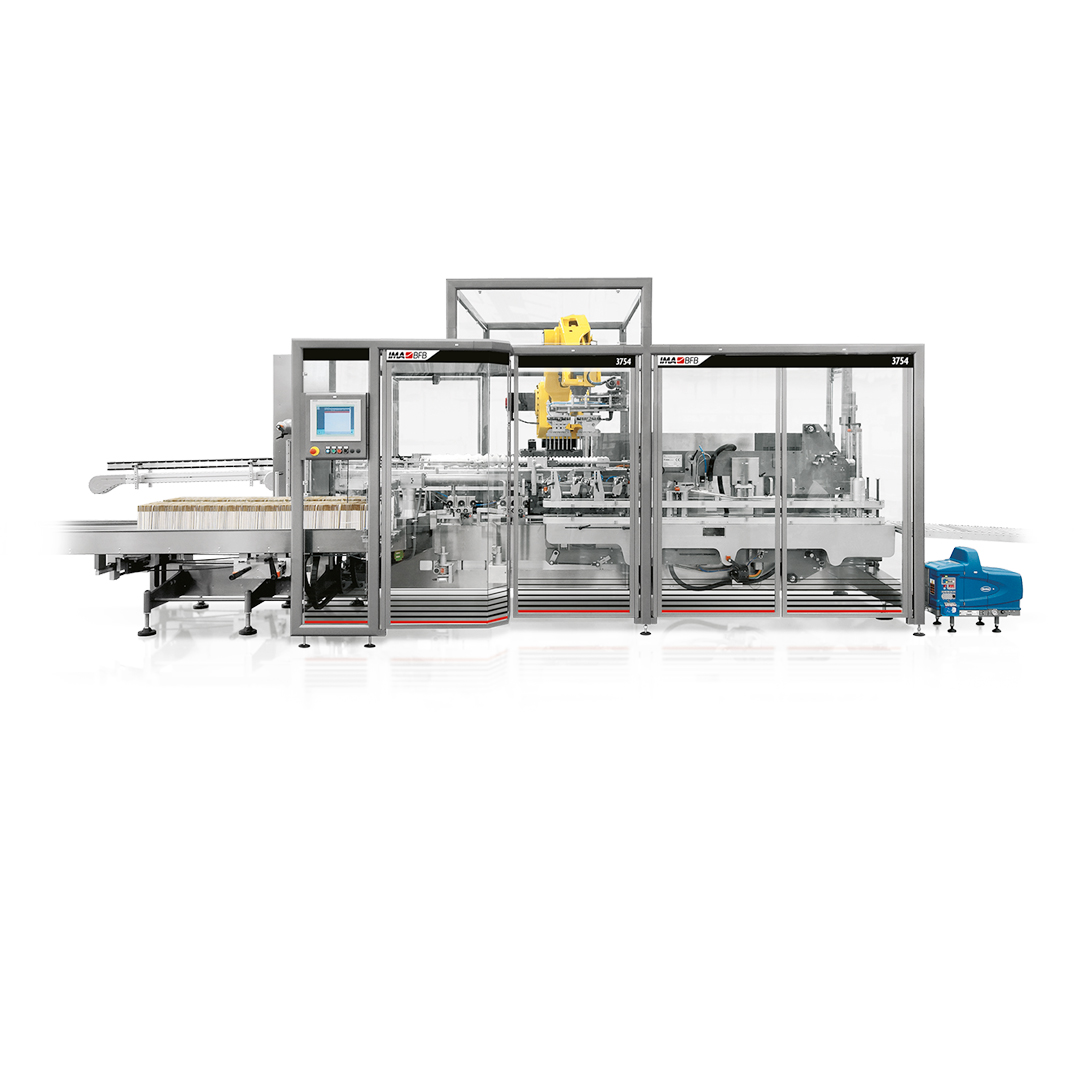

Machine overview

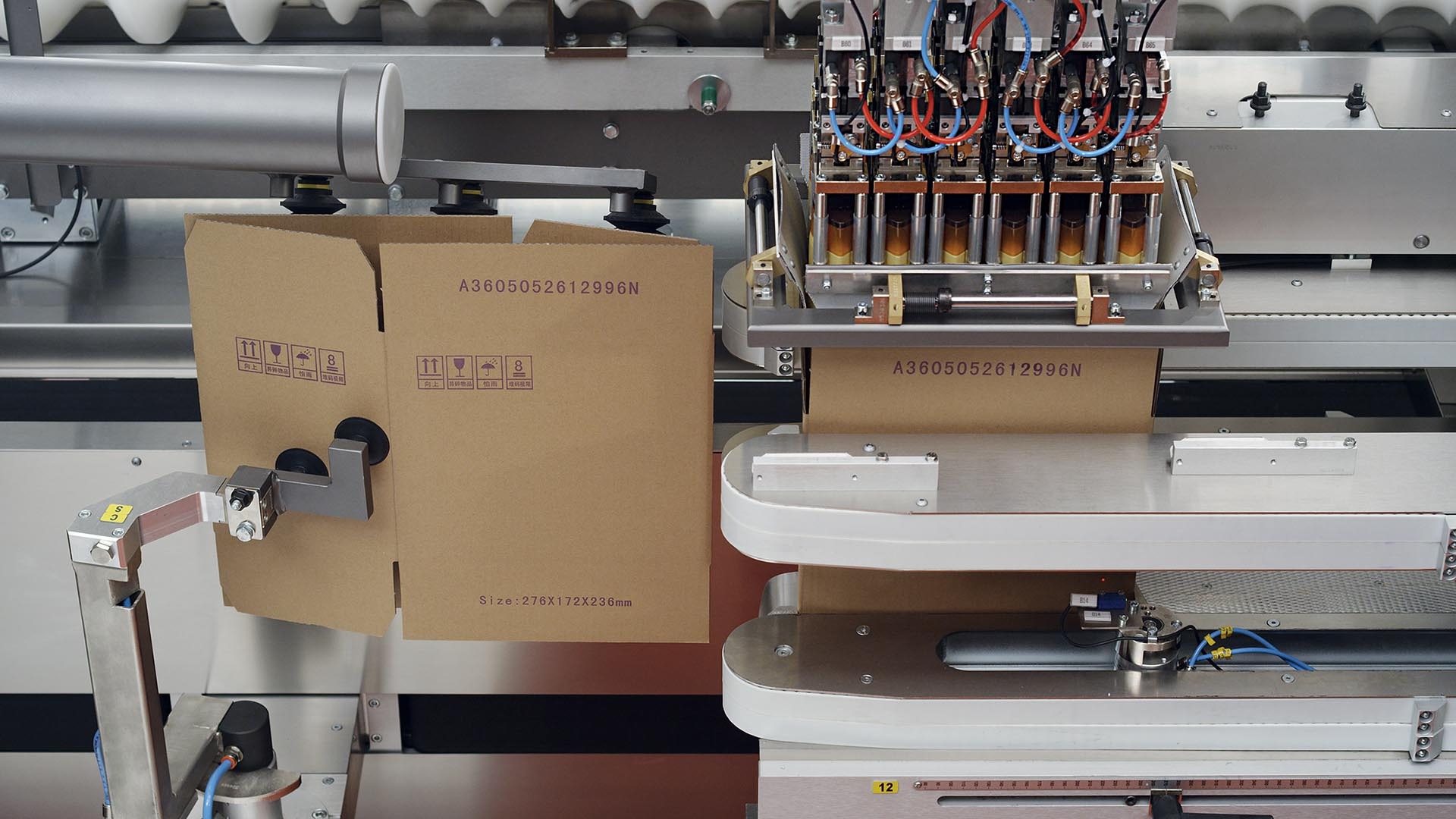

Top-loading, high-speed case packing.

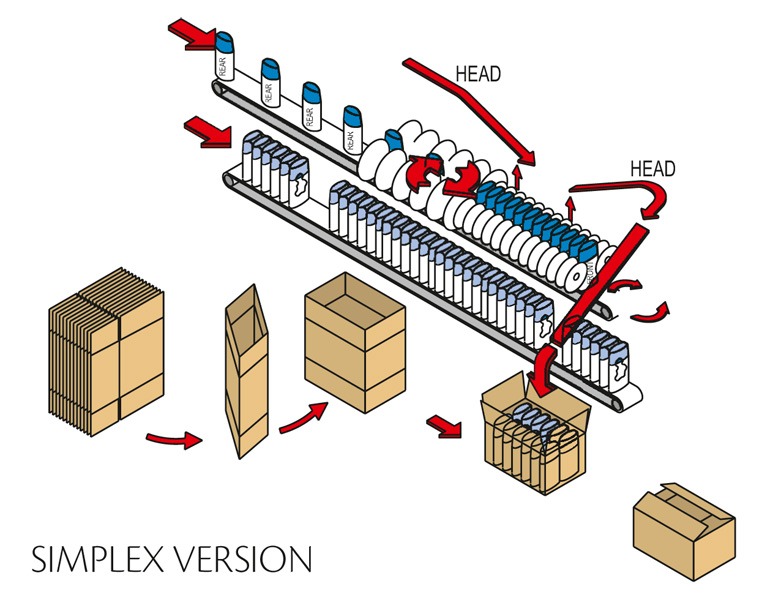

With a remarkably compact footprint, the monobloc CPV50 case packer has been designed to provide operating ergonomics, smooth handling and high-speed processing. Erecting, loading and sealing up to 50 cases/min, the 3754 (in its duplex version) is equipped with 2 infeed hoppers and a case magazine handling 2 rows of cases.
The forced opening and closing groups process 2 cases simultaneously, further boosting machine output.
To assure perfect handling of difficult shaped bottles, the infeed system is equipped with non-stop worm-screws to correctly orientate the containers.

Production plant

IMA BFB

Machine highlights

  1. Accesibility

    Machine design enables great accessibility and easy cleaning.

  2. Robot-equipped

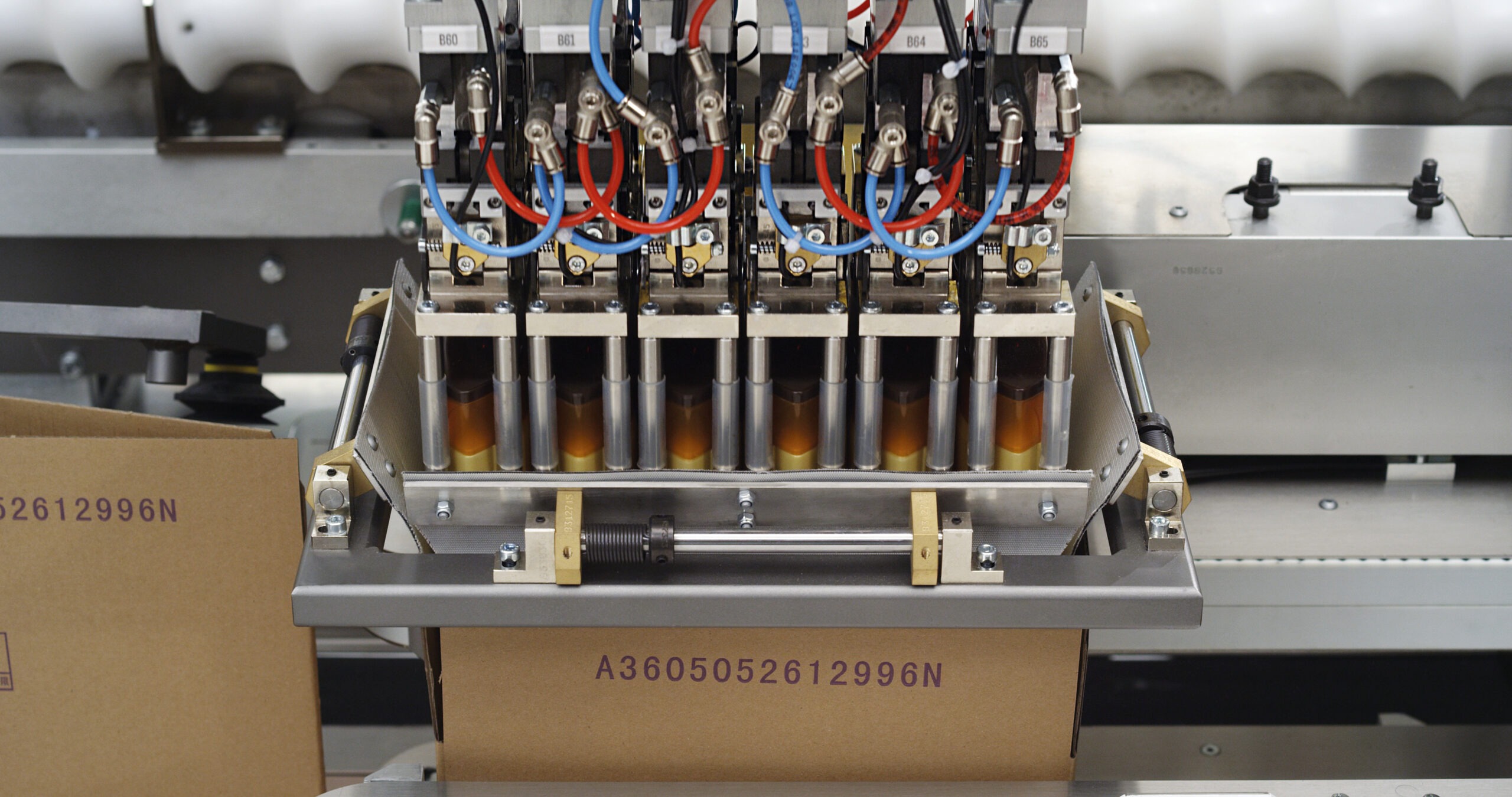

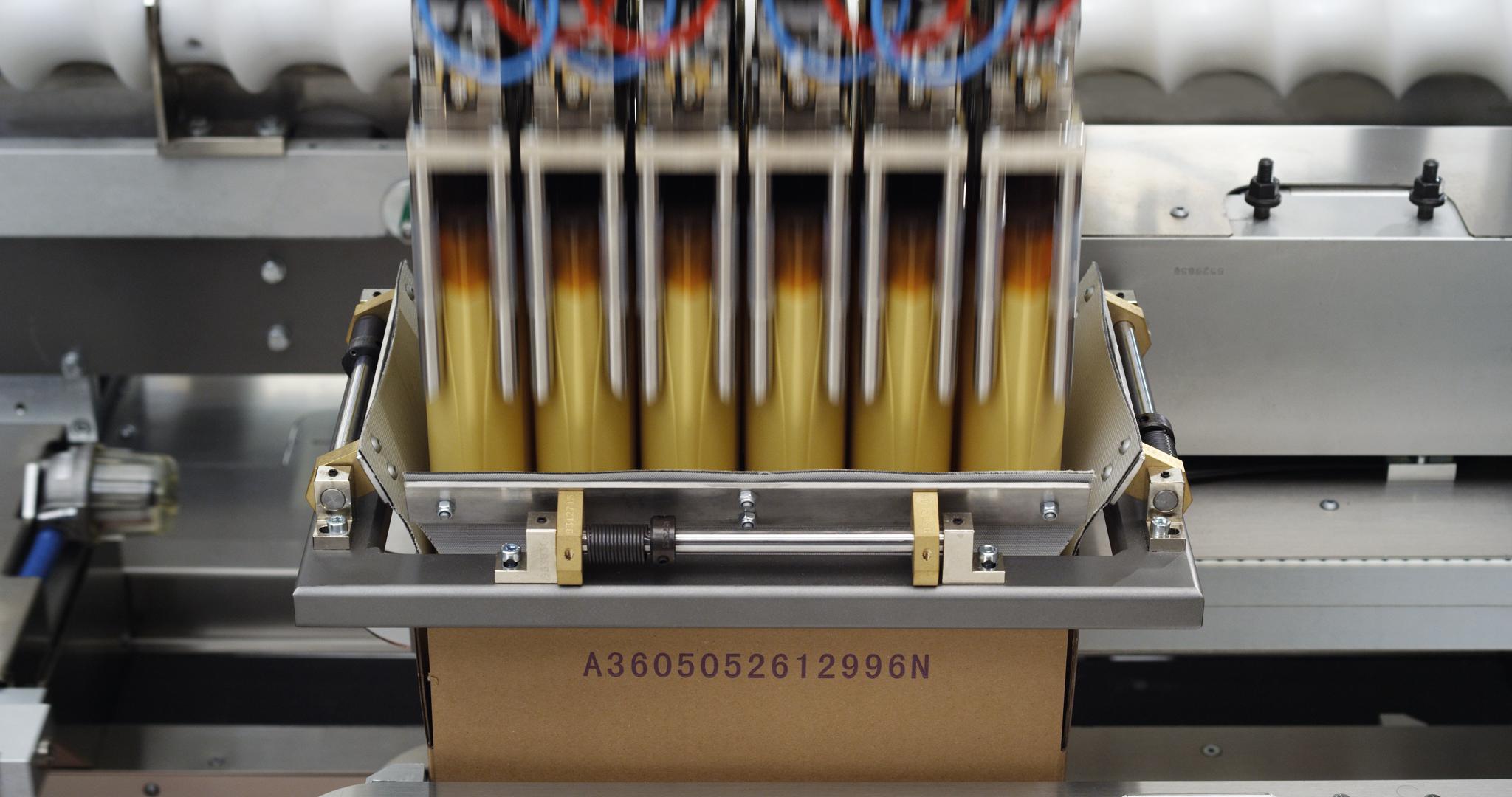

    Equipped with a robot to insert the collation into the case.

  3. Flexible closing

    Cases can be closed with adhesive tape or with hot-melt glue or both.

  4. Quick changeover

    Complete changeover possible in 20 minutes.

  5. Automatic changeover

    Automatic Gripper Head change is available as an option.

Machine details

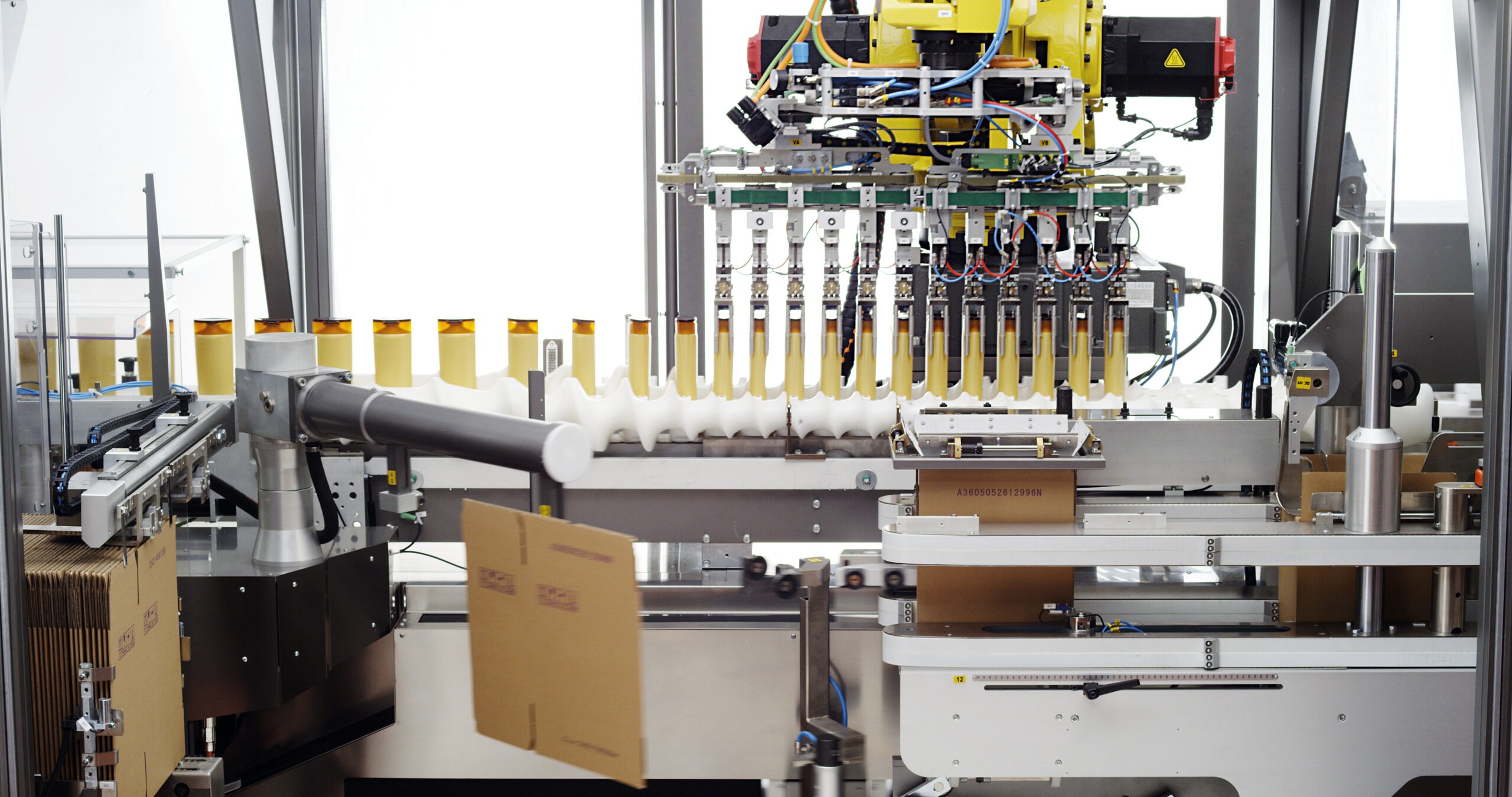

Product infeed and pick-up

Product introduction

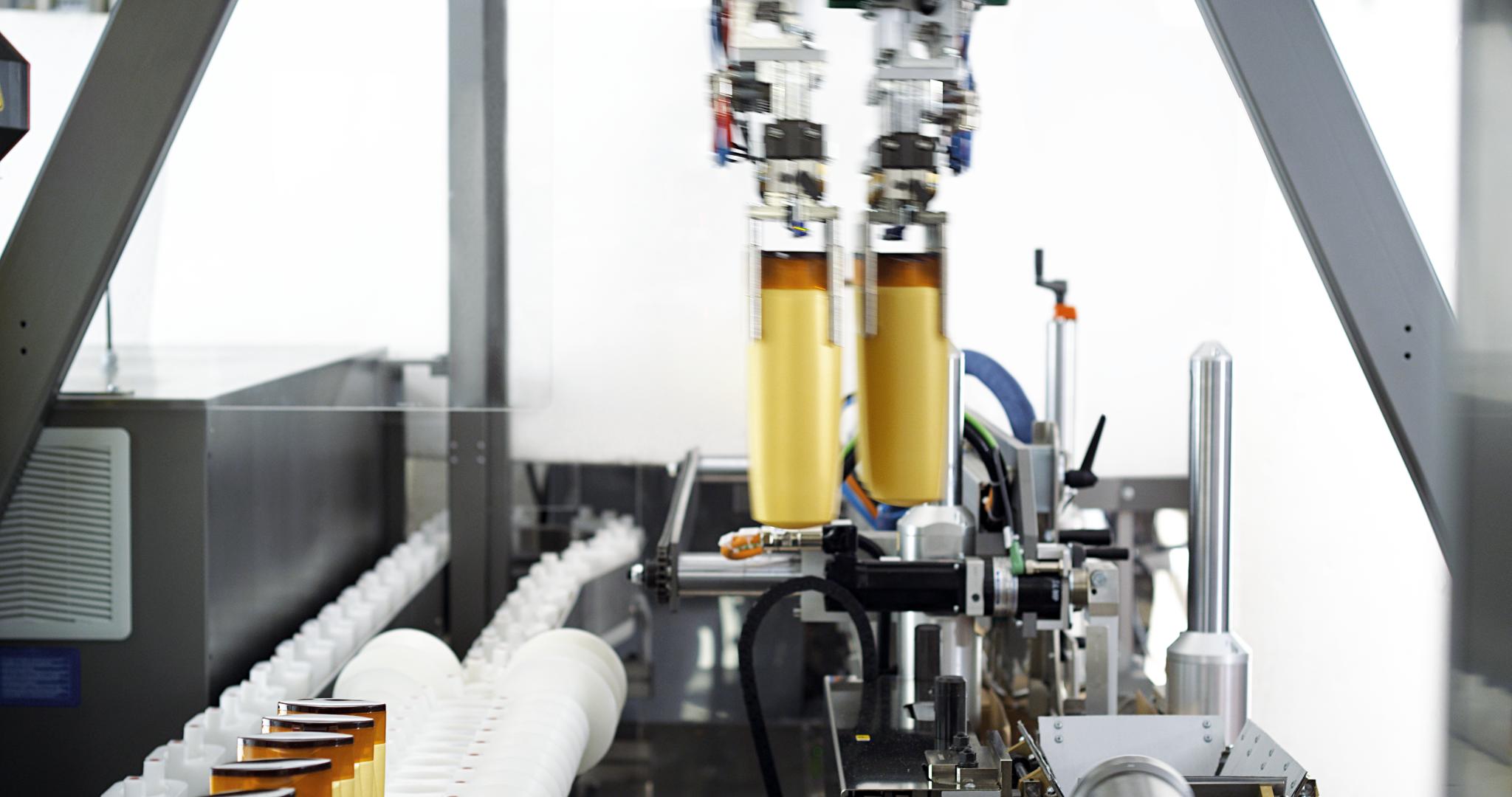

Product pick-up

Hopper

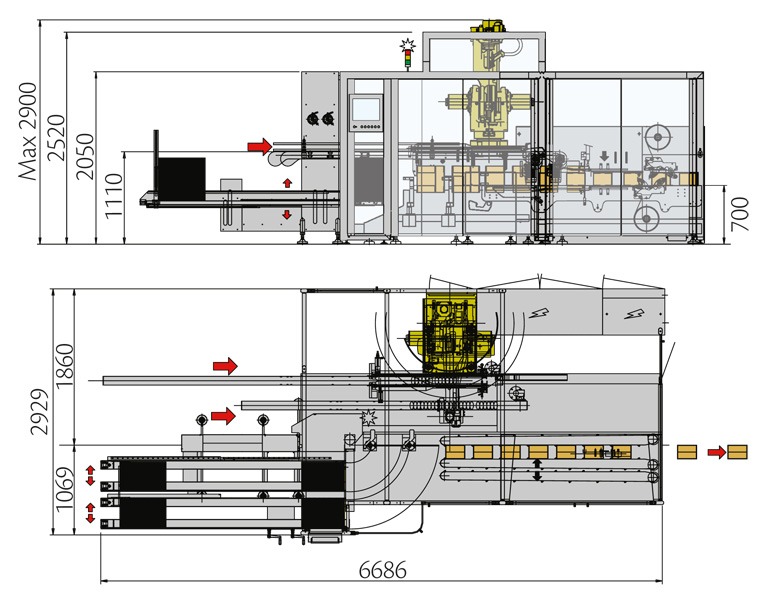

Technical information

CPV50 TECHNICAL DATA
Max. speedup to 50 cases/min.
Product dimensionsABC
SimplexMin.16580165
Max.600300300
DuplexMin.16580165
Max.325180300
