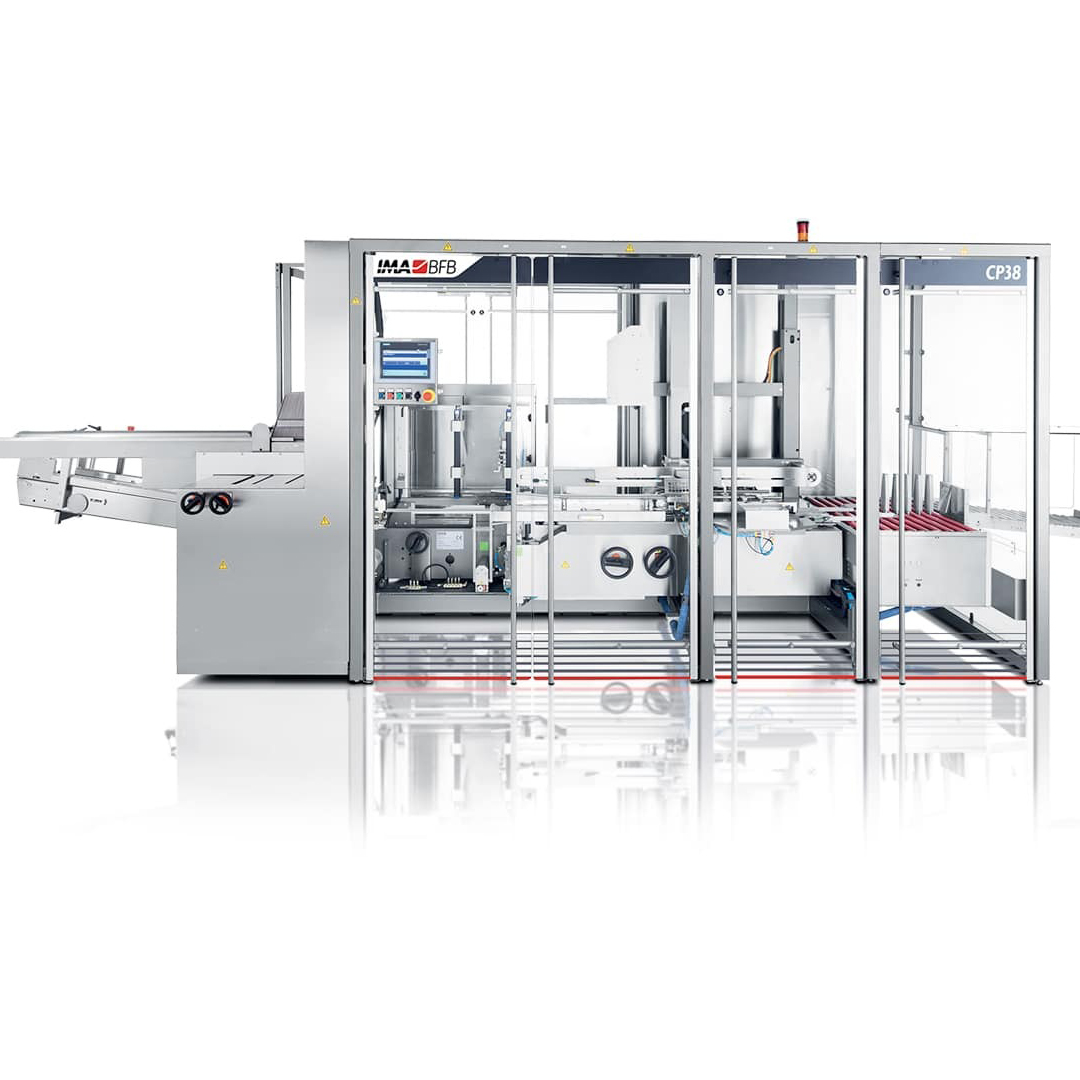

CP38 Series Case Packing

Machine overview

High-speed case packing with unrivalled operator ergonomics.

The only case packer on the market where all the parts of the machine can be reached from the operator’s side without having to walk to the opposite side to reach the carton stacking unit, the CP38 is ideal for handling a wide range of products.
Using servo technology for extremely smooth product handling, the CP38 packs up to 30 cases/min. and has a compact footprint. During loading, the case is positively erected and held in position on 2 sides enabling effective use of lower-quality corrugated cardboard.
The case erecting mechanism now ensures extremely low positioning of the horizontal case magazine, thus increasing machine autonomy.

Production plant

IMA BFB

Machine highlights

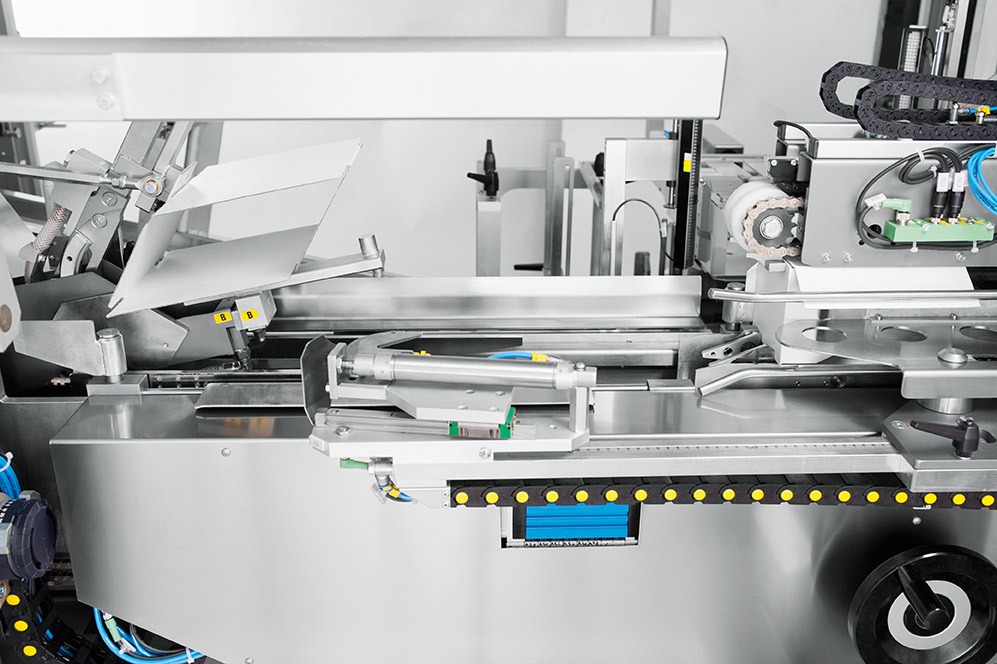

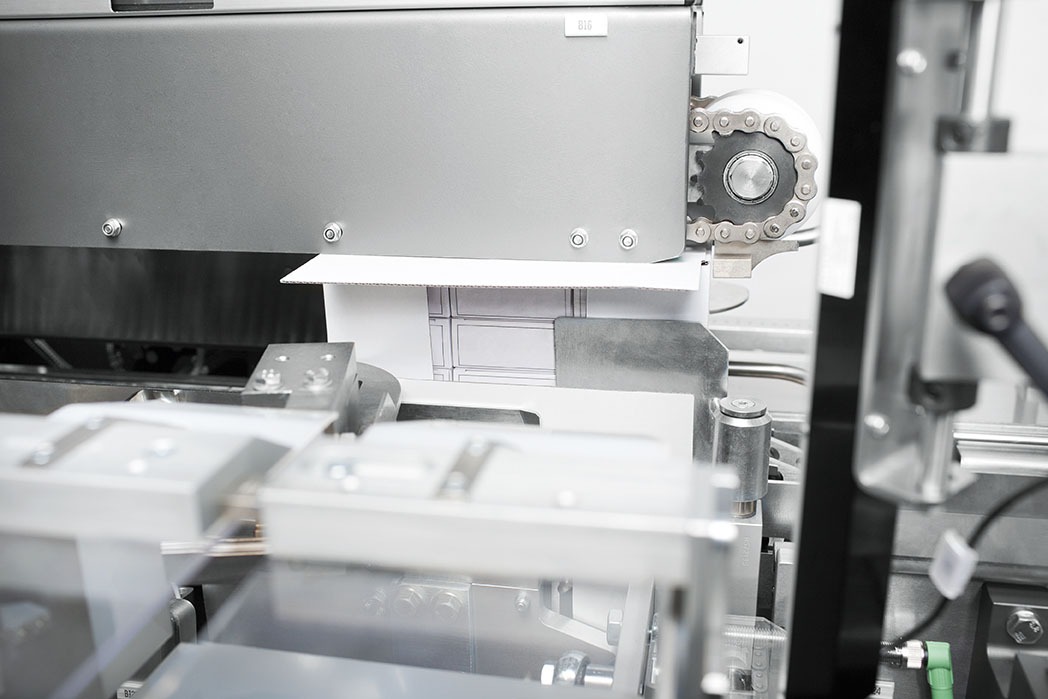

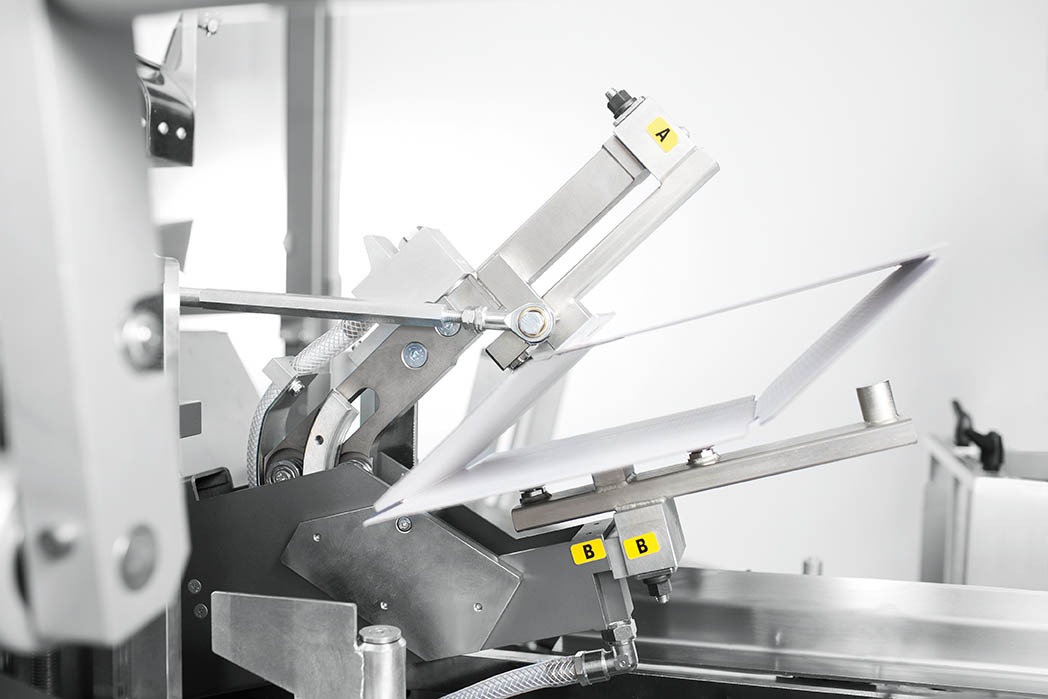

Case opening & folding

Forced opening of the case via two arms equipped with suction cups.

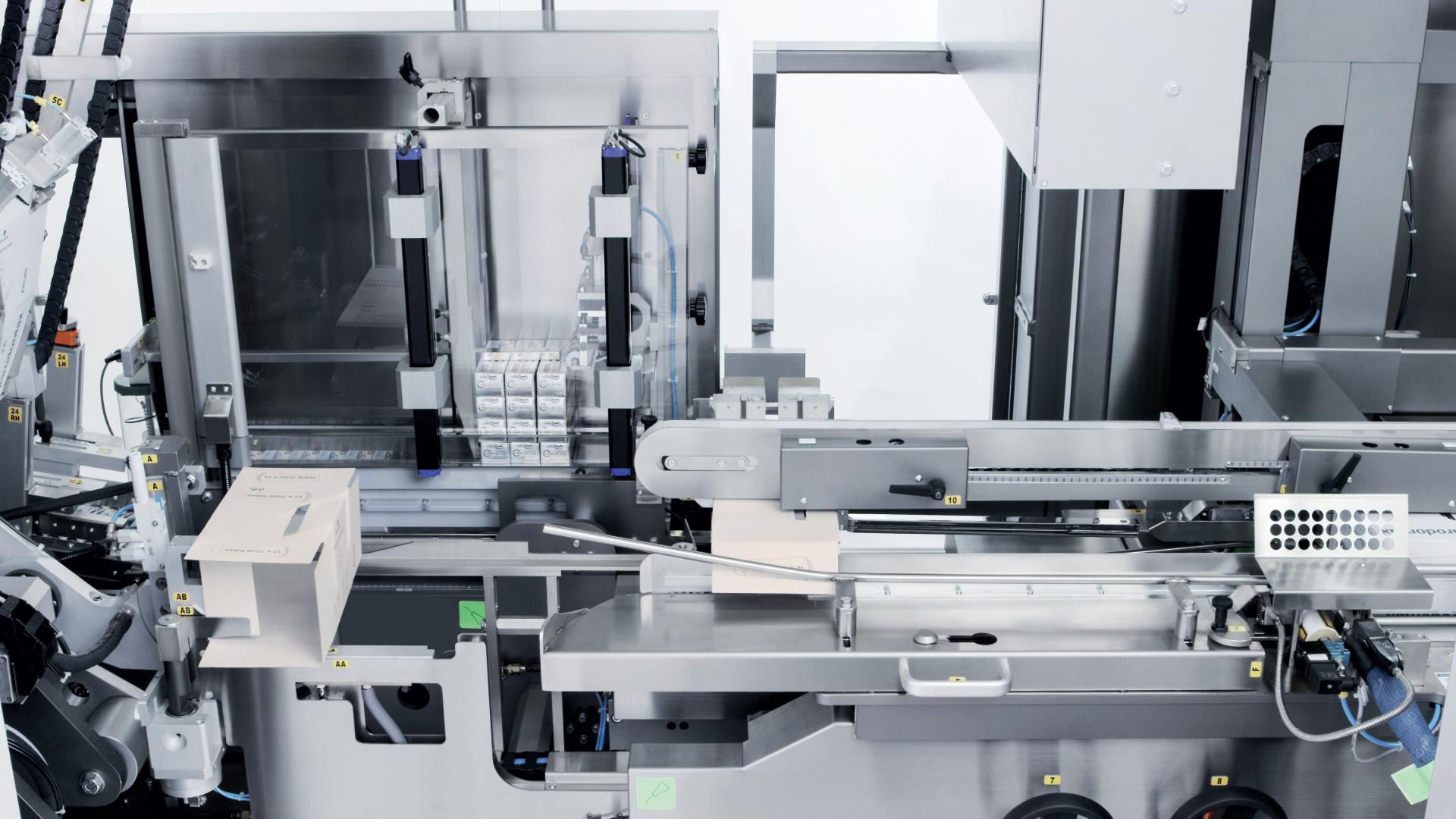

Carton upstacking

High-speed stacking unit able to achieve up to 80 stacks/min.
Main pusher

Movable hopper to follow carton collation.

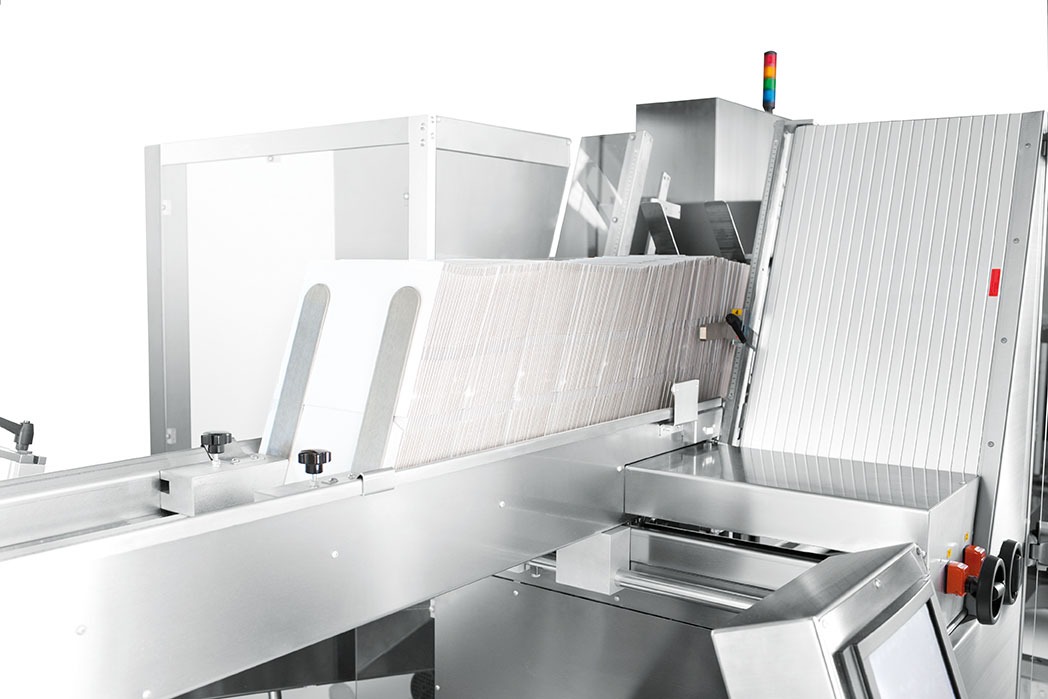

Case magazine

The horizontal magazine assures good accessibility for easy loading.
Easy changeover

Tool-free size changeover assisted by large, easy-to-use HMI, for increased speed and simplicity.
Range of options

Options include case labelling and checking, case rejection at discharge and case overturning at discharge.

High-speed aggregation

The CP38 side-loading case packer is able to achieve high speed running in full aggregation mode. Production speed is one of the key factors impacting the functionality and successful outcome. Thanks to the case pre-opening station, CP38 is able to reach the highest production speeds.
