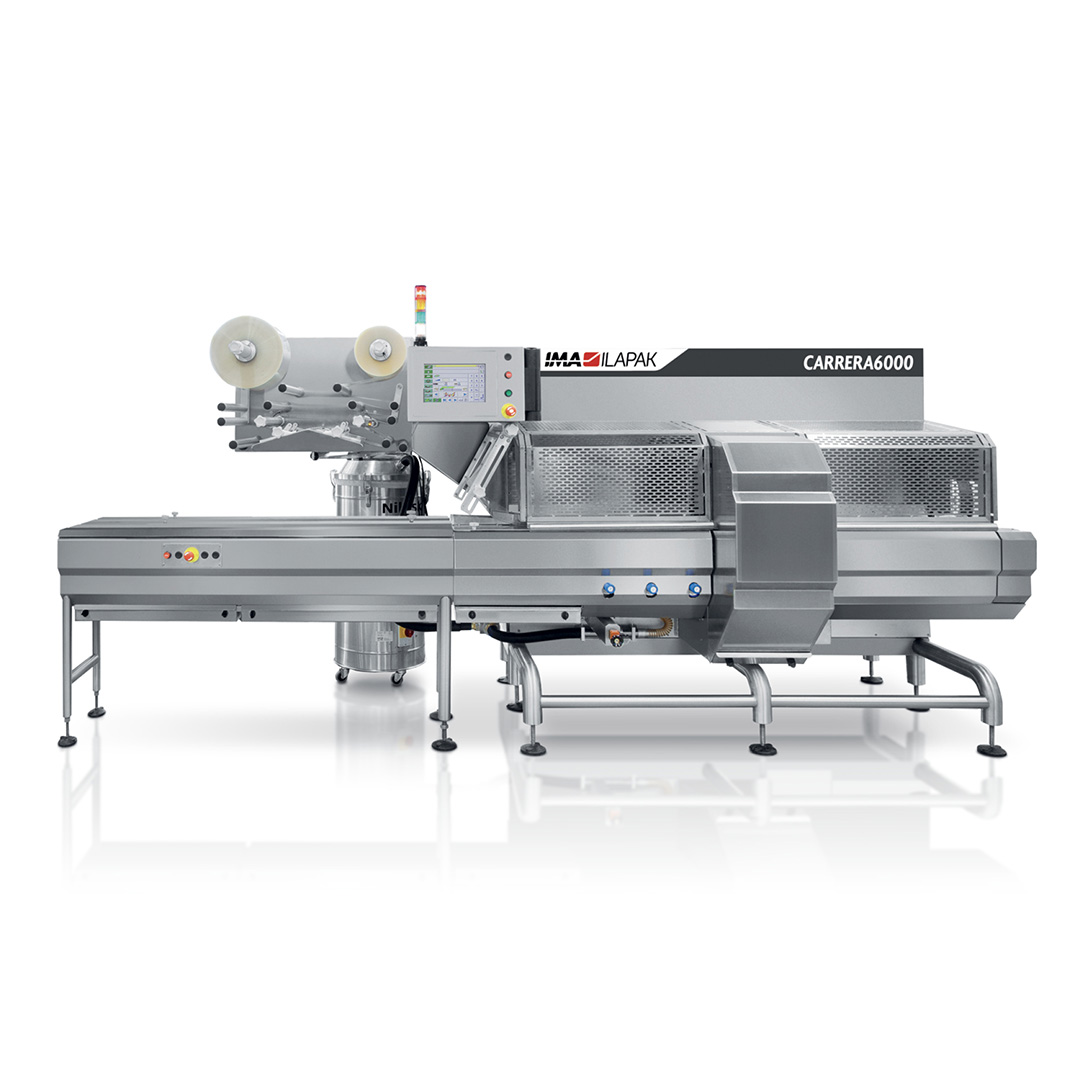

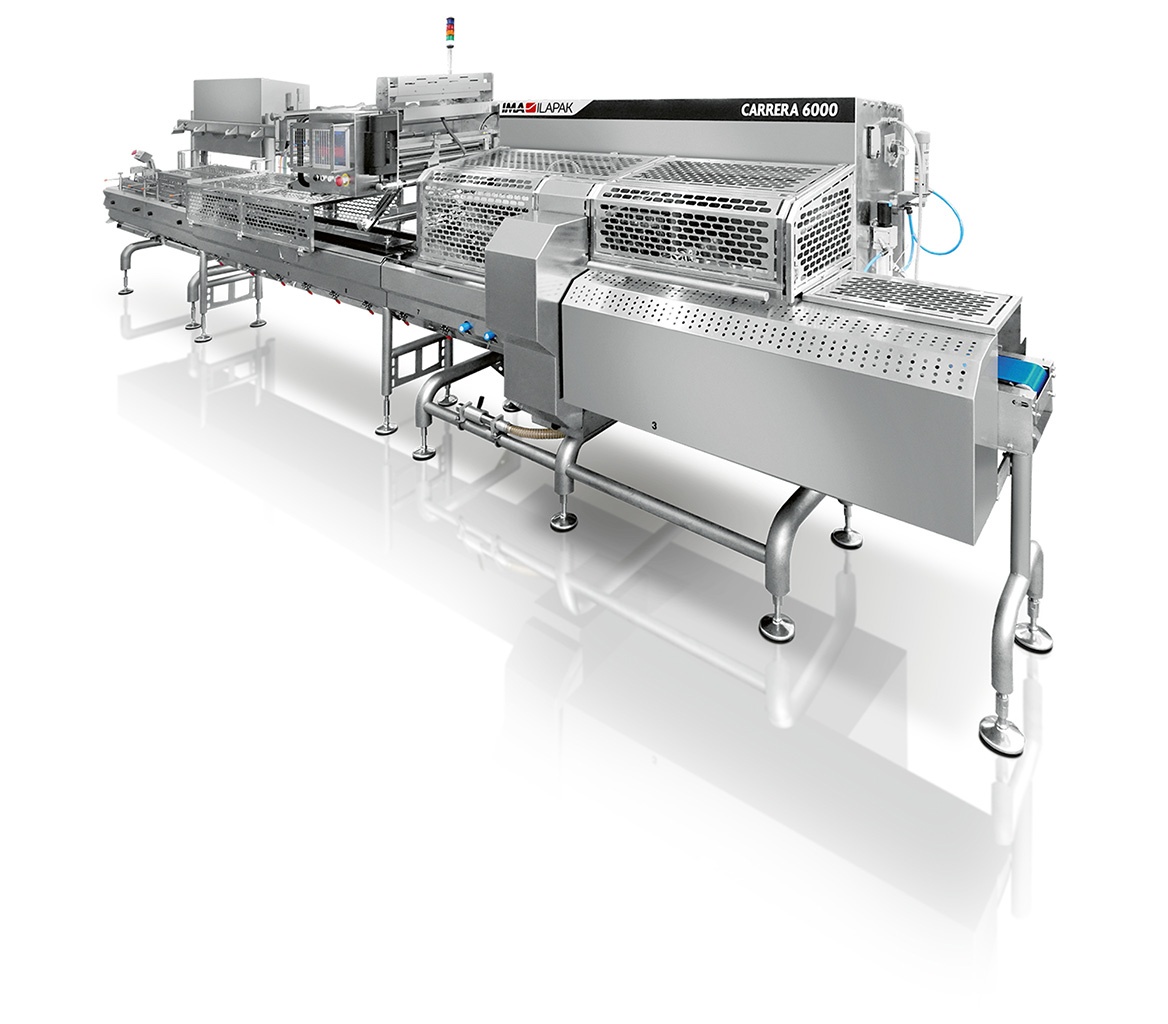

CARRERA 6000 Horizontal Form, Fill and Seal
Machine overview
Hygiene, speed and flexibility redefined in Modular Rotary Flow Wrapping
The CARRERA 6000 features an ultra-hygienic IP65 design, achieved with a full stainless-steel construction, an isolated electrical cabinet, and smooth, angled recess-free surfaces. This design significantly simplifies cleaning processes and ensures full compliance with the most stringent hygiene standards required in food and pharmaceutical packaging environments.
Its modular architecture provides customers with remarkable flexibility, allowing them to configure the machine precisely according to their current production needs. This adaptability also results in shorter lead times and a lower total cost of ownership. Furthermore, the system can be easily upgraded over time with additional modules, such as film auto-splicing, gusseting capabilities, or entirely new jaw set-ups, making the CARRERA 6000 a future-proof investment that evolves alongside your business requirements.

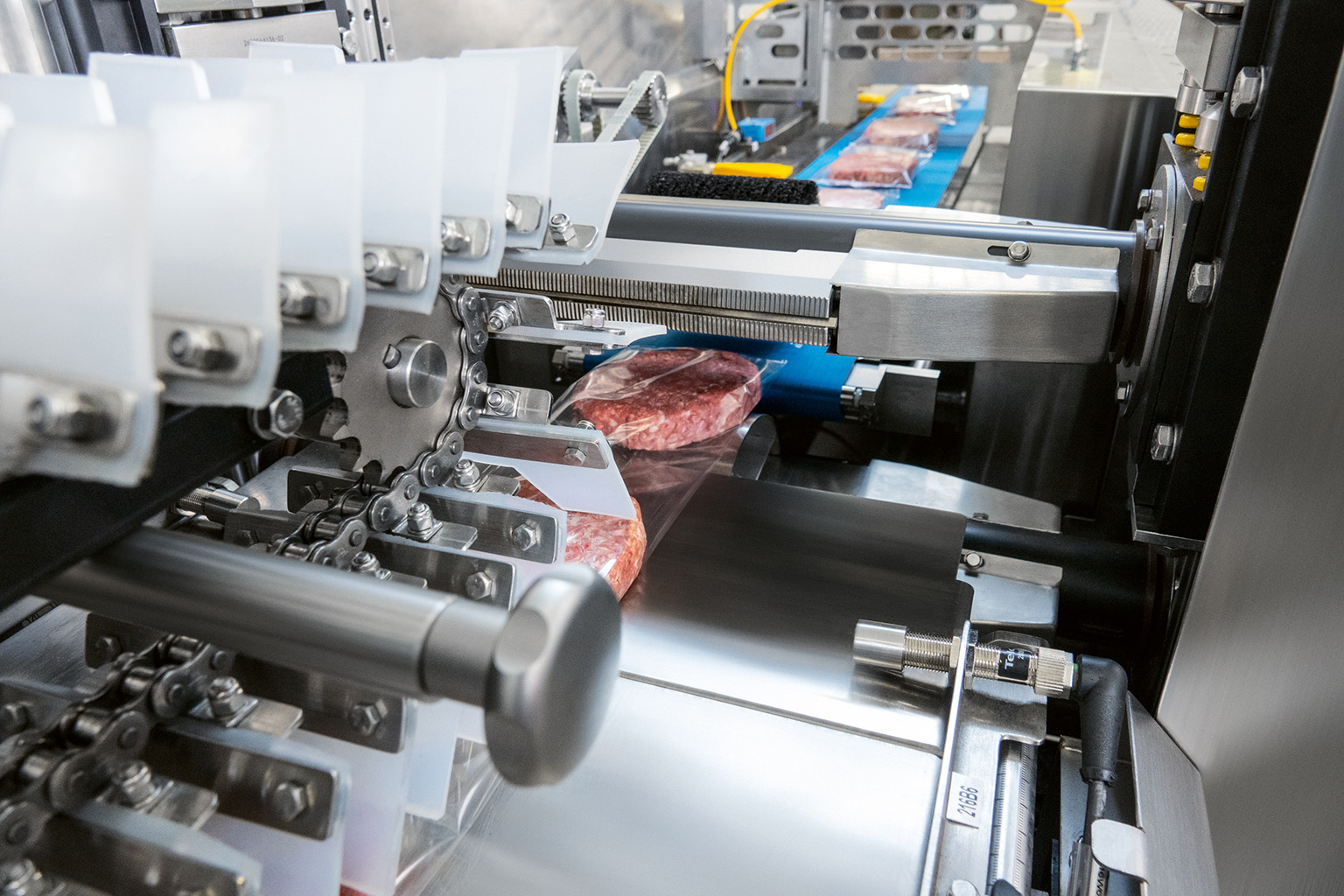

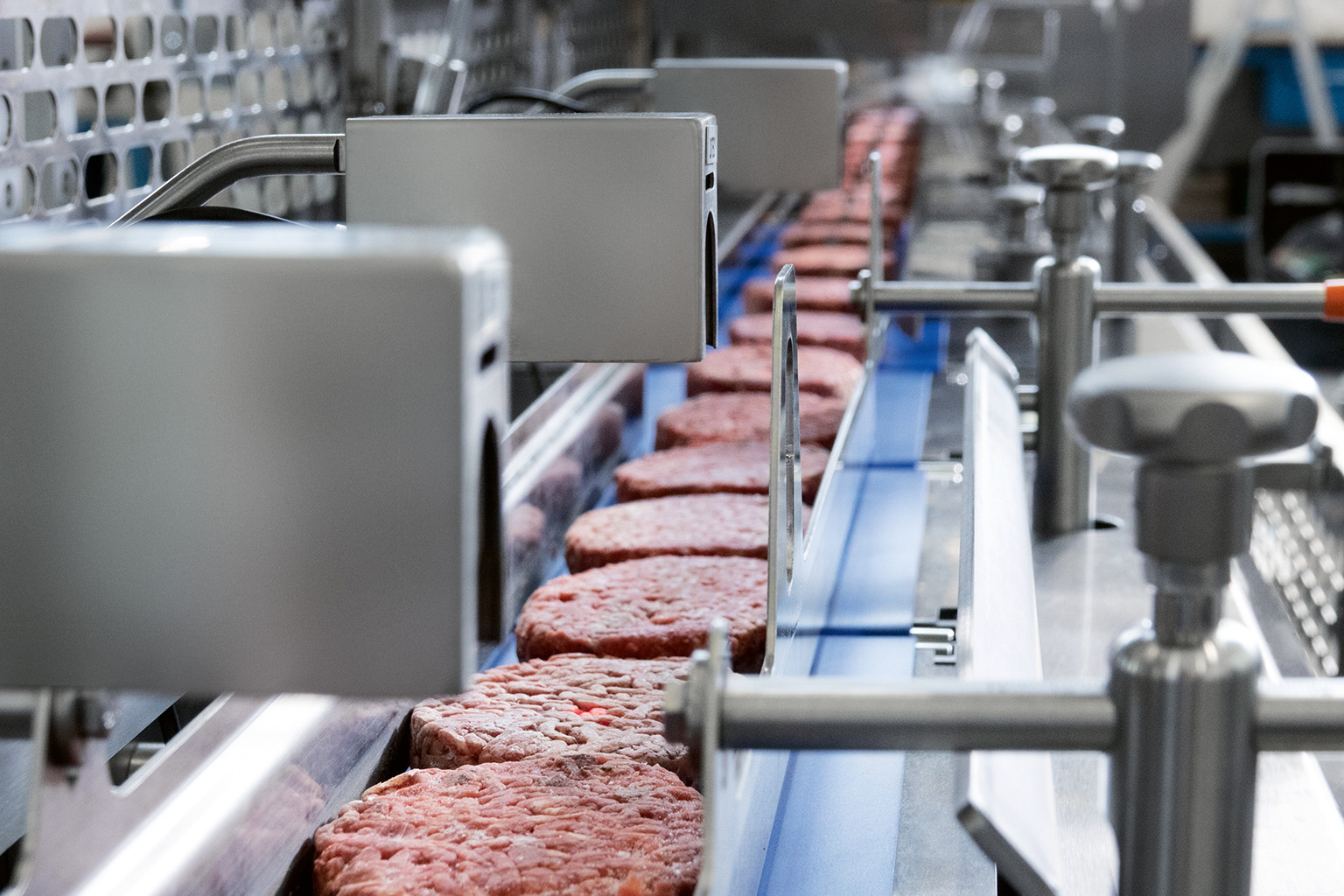

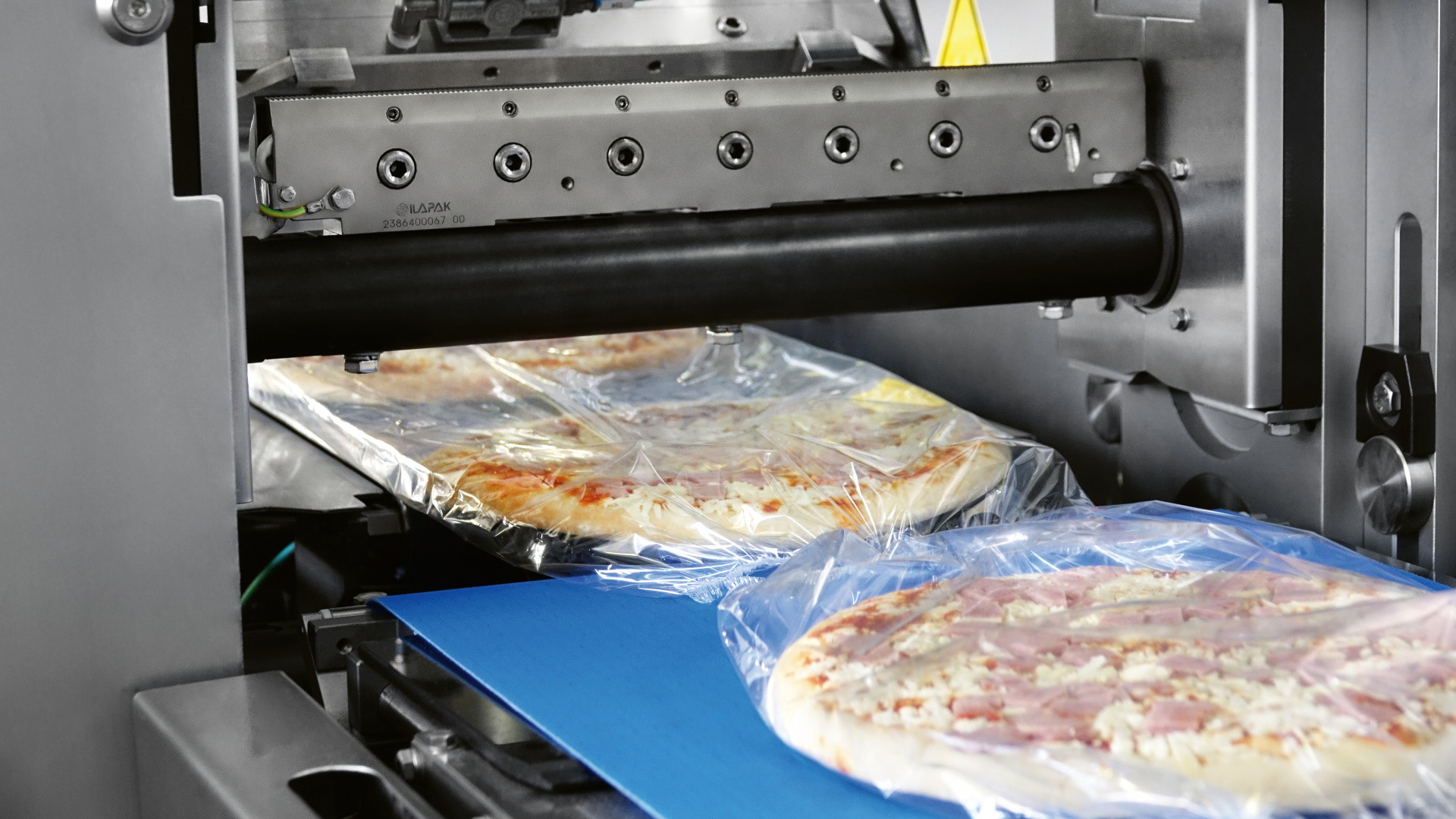

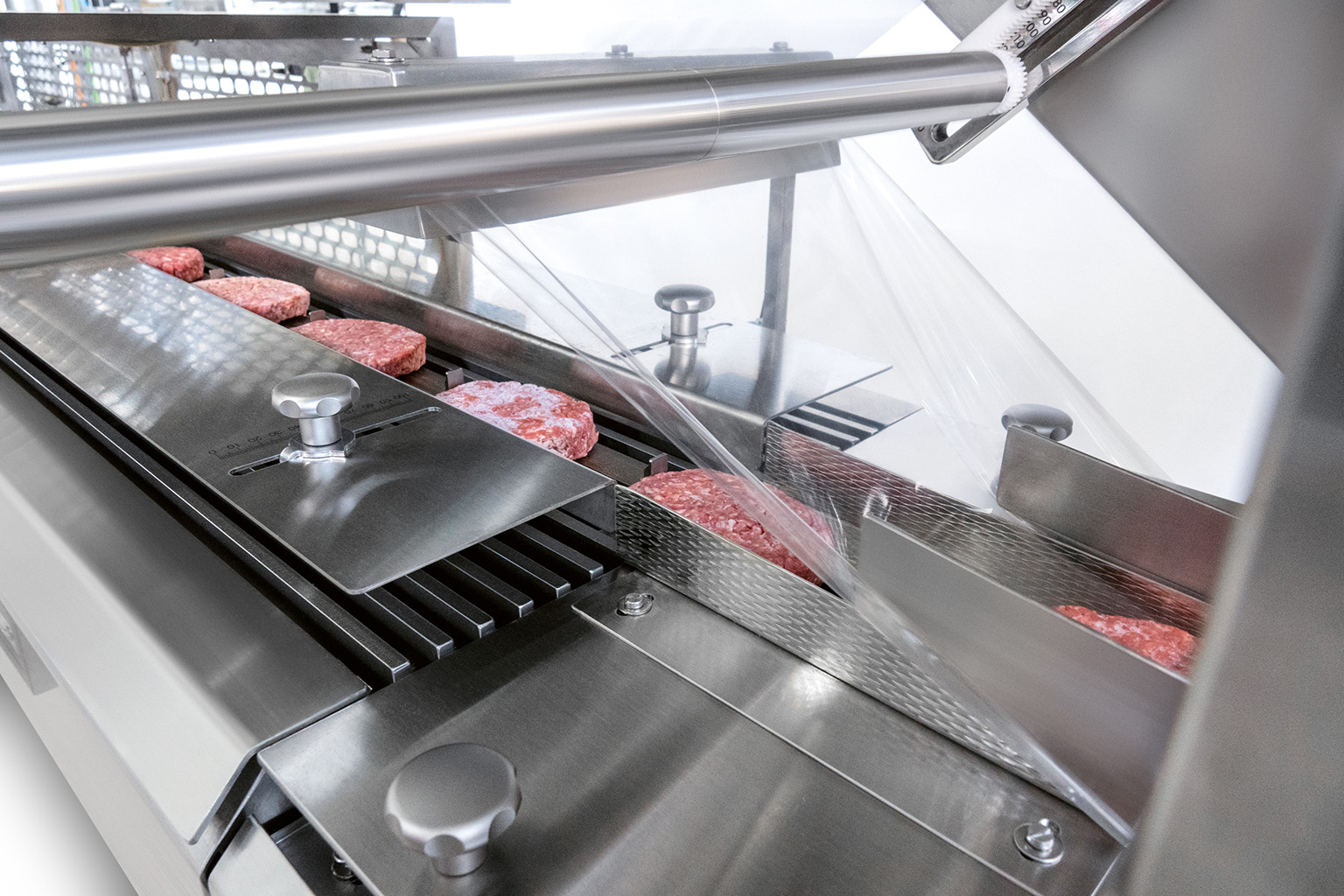

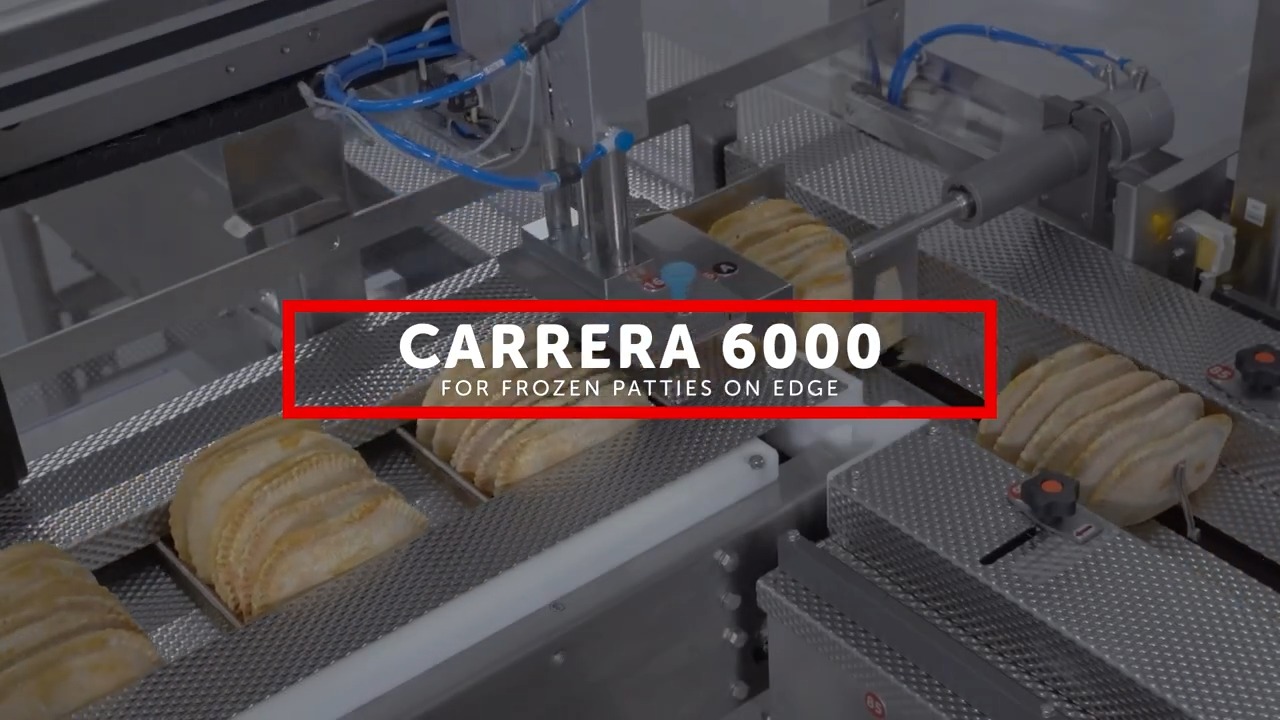

Ideal for bakery and confectionery products, as well as frozen items such as burgers and pizza.
Production plant
Ilapak International SA
Machine highlights
-
Ultra-hygienic design
Full stainless-steel construction and smooth surfaces enable easy cleaning and installation in harsh environments.
-
Modular construction
Flexible configuration options and seamless integration with various feeding systems allow for future upgrades and scalability.
-
Separated electrical control panel
Improves accessibility, simplifies maintenance and enhances safety during service operations.
-
Electronic machine with commercial components
Ensures high reliability, straightforward maintenance and quick part replacement to minimise downtime.
Machine details
Technical information
| CARRERA 6000 | |
|---|---|
| Machine Speed | Up to 200 cpm, single jaw. Higher speeds with multiple jaws. Production output dependent upon product, film and machine specifications |
| Film Cut-Off | Up to 630mm – 24.8” Cut-off defined as: product length+(height x 1.2)+28mm (1.1”), depending on product characteristics |
| Wrapping Materials | Suitable heat-sealable films, such as plain, or co-extruded polypropylene (PP), laminate films (e.g. OPP+PE), polythene films (PE) as well as cold sealable films of suitable quality |
| Film Reel Max Weight | 40kg – 88 lbs |

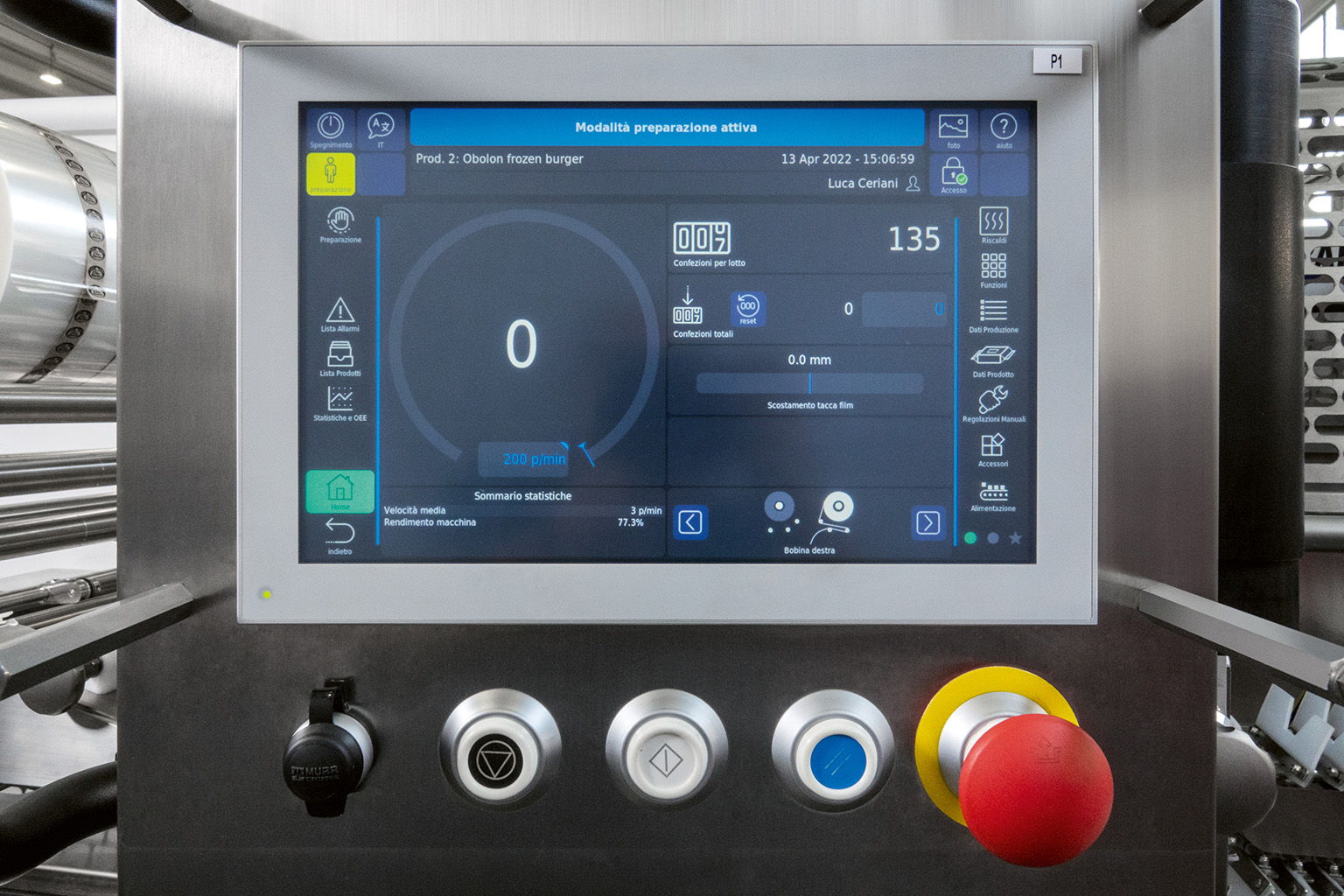

| Electronic Platform | PC controlled machine. Other electronic control platform on request i.e. Allen Bradley, Siemens, Elau – Schneider, B&R |
| Power Requirement | From 220 to 480V, 50/60 Hz, 3-phase, 5kVA |
| Compressed Air | 6 bar, 1l/min with air gusseting |
| Machine Weight | 900 kg – 1984 lbs |
| Product Dimensions | |
| Length | 50/550 mm – 2/21.6” with any jaws centres and length |
| Width | 20/160mm – 0,9”/6.2” with jaw length 250mm – 9.8” 20/360mm – 0.8/14.2” with jaw length 400mm – 15.7” |
| Height | Up to 90mm – 3.5” with jaw centre 150mm – 5.9” Up to 140mm – 5.5” with jaw centre 210mm – 8.3” |
| Film Reel Dimensions | |
| core ø | 76mm – 3” |
| outer ø | 350mm – 13.8” for film reel web width up to 800mm-900mm / 31.4”-35.4” 400mm – 15.7” for film reel web width up to 500mm – 19.8” |
| width | 650mm – 25.6” standard 500mm – 19.6” on reques 800mm / 31.4” |
