Capper Series Counting/Dosing

Machine overview

Now more than ever, the capper for you

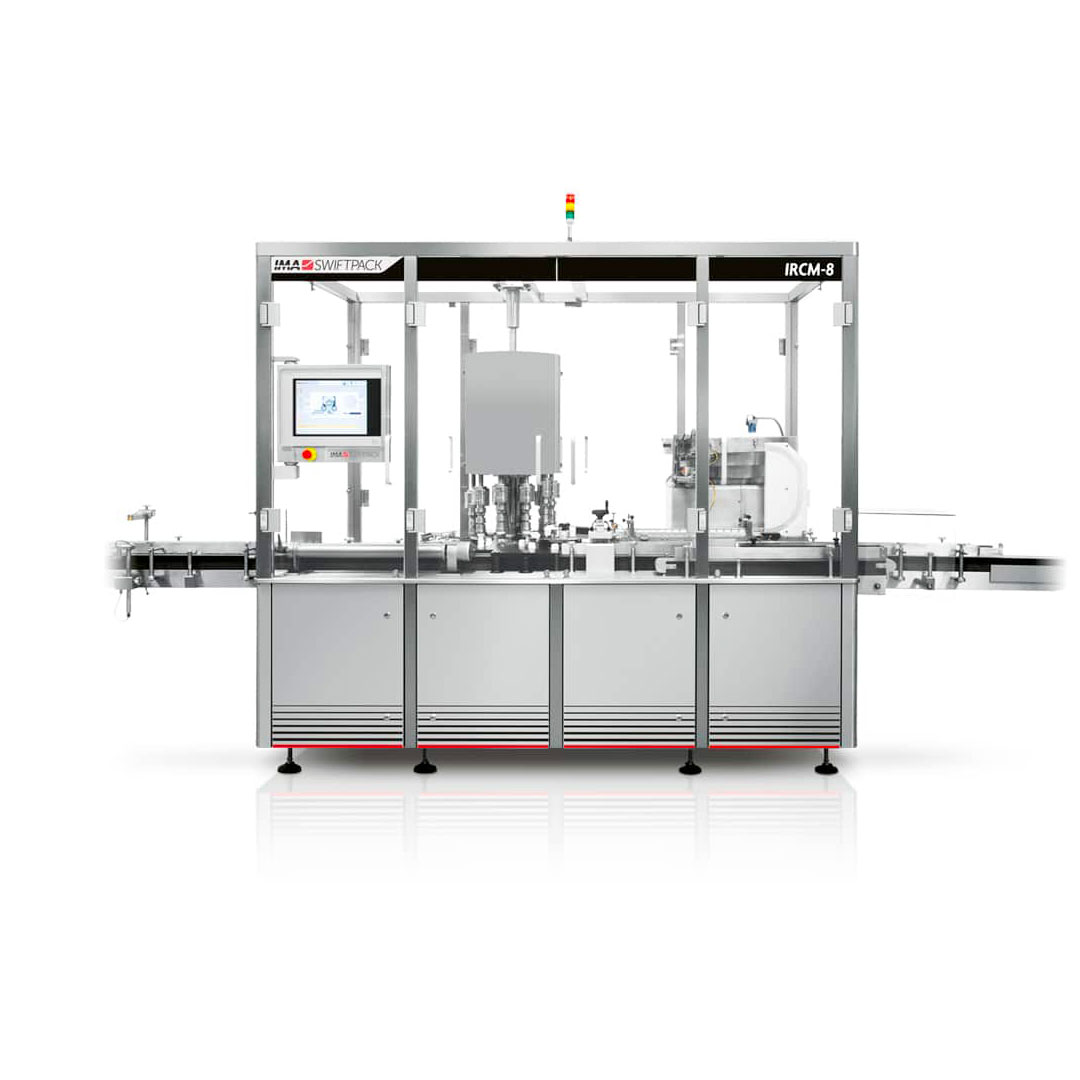

Rotary cappers offer a fast tool-less change over for the operators with an easy to navigate touchscreen HMI with product recipe system for ease of adjustment.
The Screw Cap application uses magnetic clutch application as standard for reliable and consistent torque on all caps including child resistant (CRC) and induction sealed closures, with the option of servo torque control on all models.
The 4, 6, 8 and 10 head versions offer a fully integrated solution with caps bowl feeder.

Production plant

IMA Swiftpack

Machine highlights

  1. GMP compliant

    High GMP design.

  2. Table top design

    Table top design for ease of access and cleaning.

  3. Easy changeover

    Fast and toll-less changeover.

  4. Versatile capping system

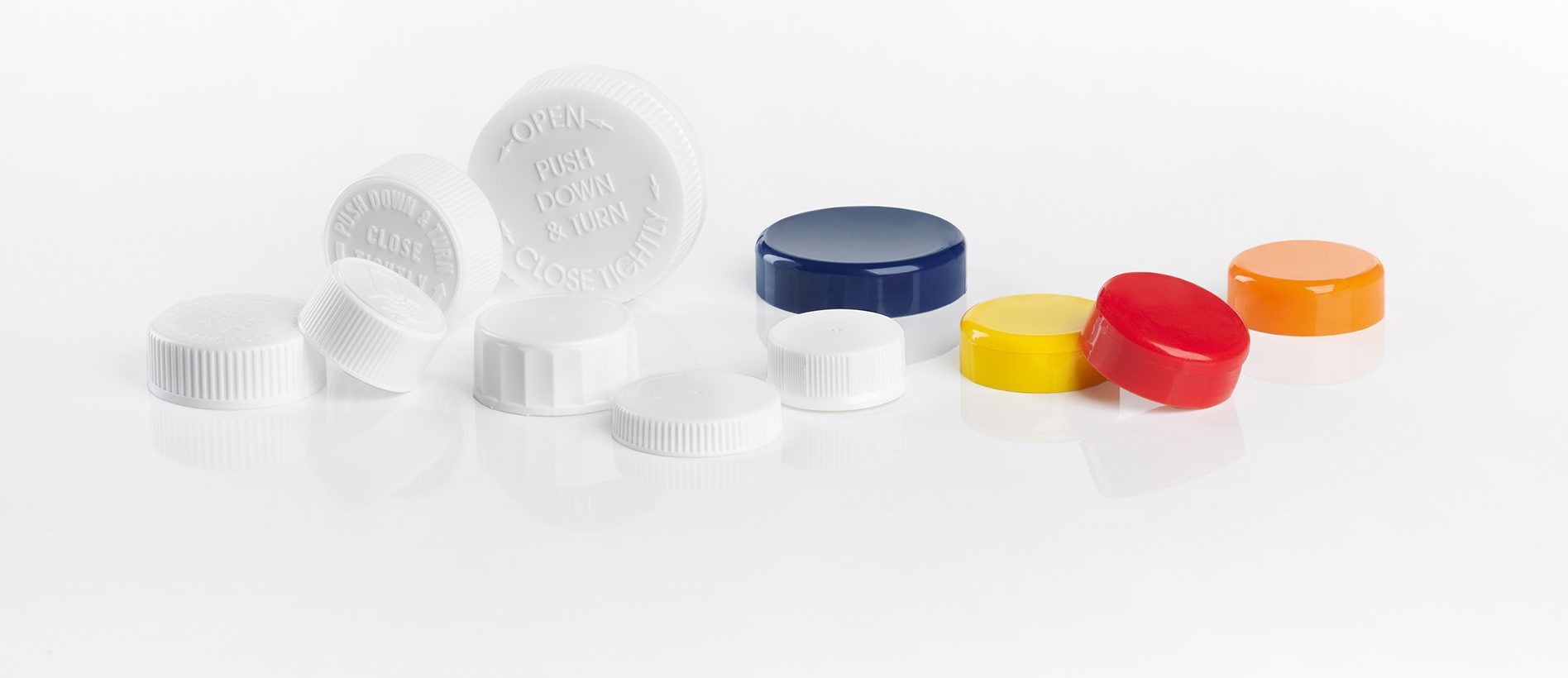

    Screw and press on caps.

  5. Consistent torque application

    Standard low hysteresis magnetic clutches for consistent torque application.

  6. Programmable HMI

    Touch screen HMI with recipe set up.

  7. Inspection systems

    Different cap inspection options.

  8. Feeding system

    Integrated cap feed system for reduced noise.

Technical information

TECHNICAL DATA INTEGRATED ROTARY CAPPER
Production outputUp to 300 bottles/min.*
Cap size25 mm to 80 mm
Bottle diameter range25 mm to 120 mm (depending on model)
Bottle height range40 mm to 240 mm

*Depending on machine model, container and closure.

TECHNICAL DATA 3 HEAD ROTARY CAPPER
Production outputUp to 100 bottles/min.*
Cap size25 mm to 80 mm
Bottle diameter range25 mm to 100 mm (depending on model)
Bottle height range40 mm to 240 mm

*Depending on machine model, container and closure.

Machine versions

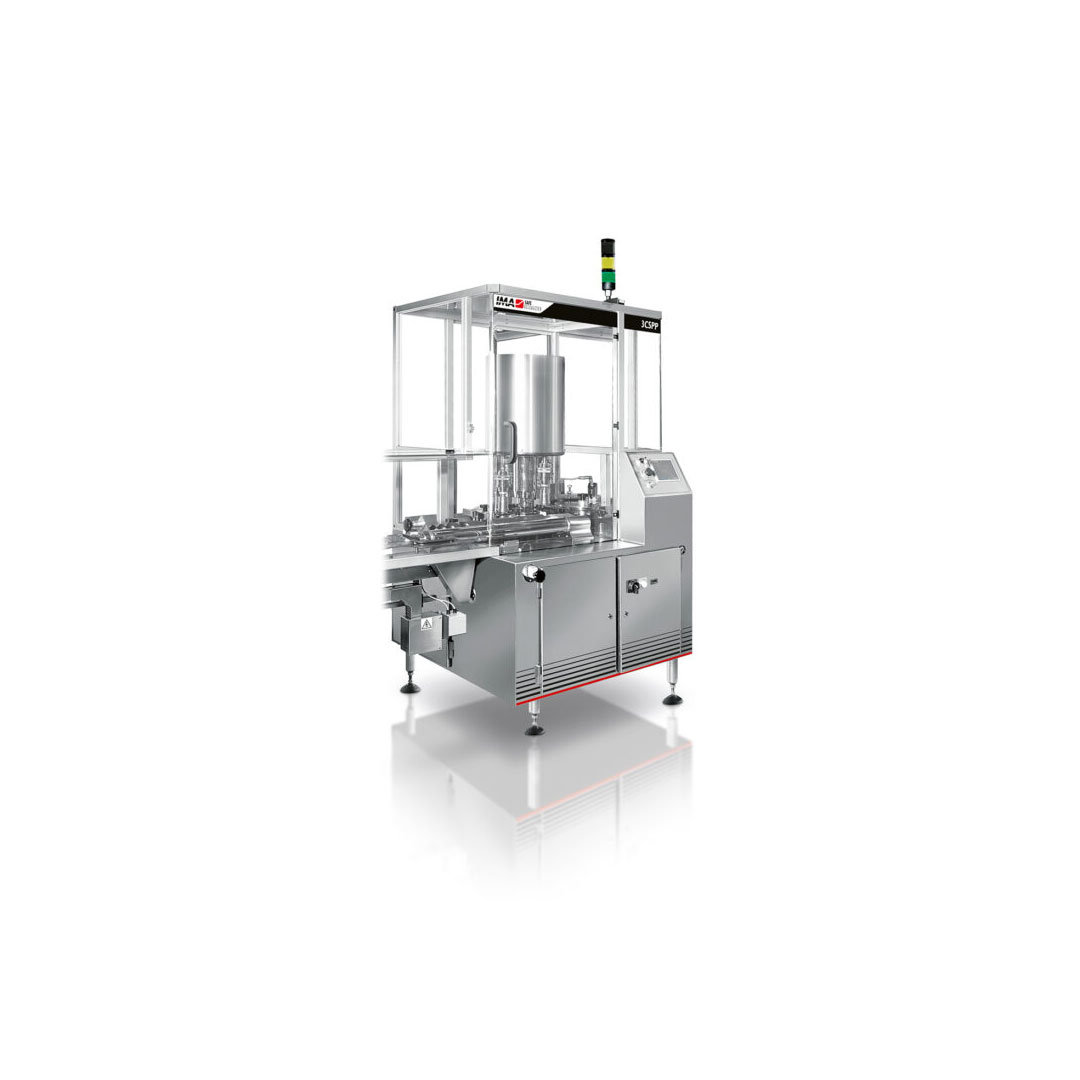

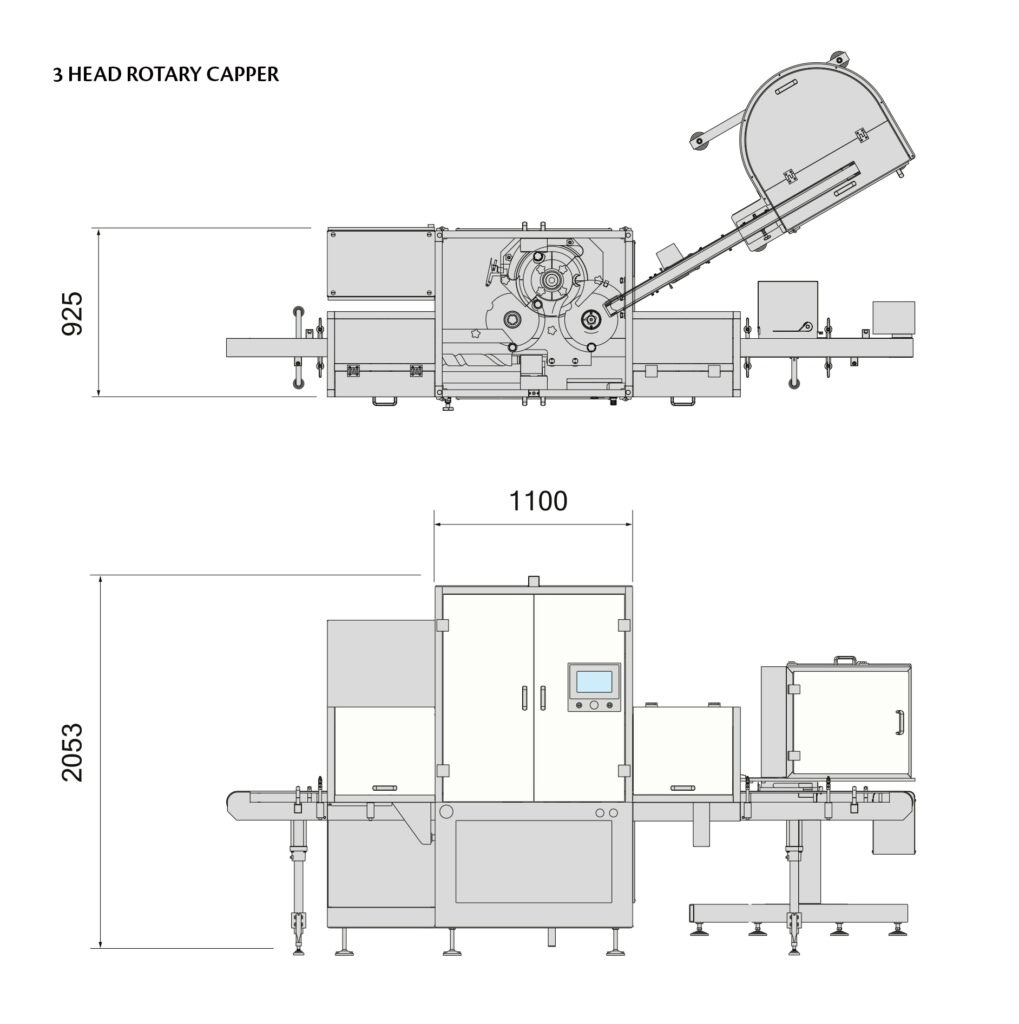

3 Head Rotary Capper


A 3 head rotary capper suitable for speed up to 100 bpm. Machine can handle round or irregular shaped containers, screw or press-on caps.
The cap feeder is mounted on a simple electrically adjusted stand complete with an enclosure around the cap feeder for noise reduction, the capper turret is a powered adjustment to accommodate different height bottles.
Standard screw cap application torque is controlled with magnetic clutches, the machine is available with servo torque control as an option.
