CA1 Paper pods packaging

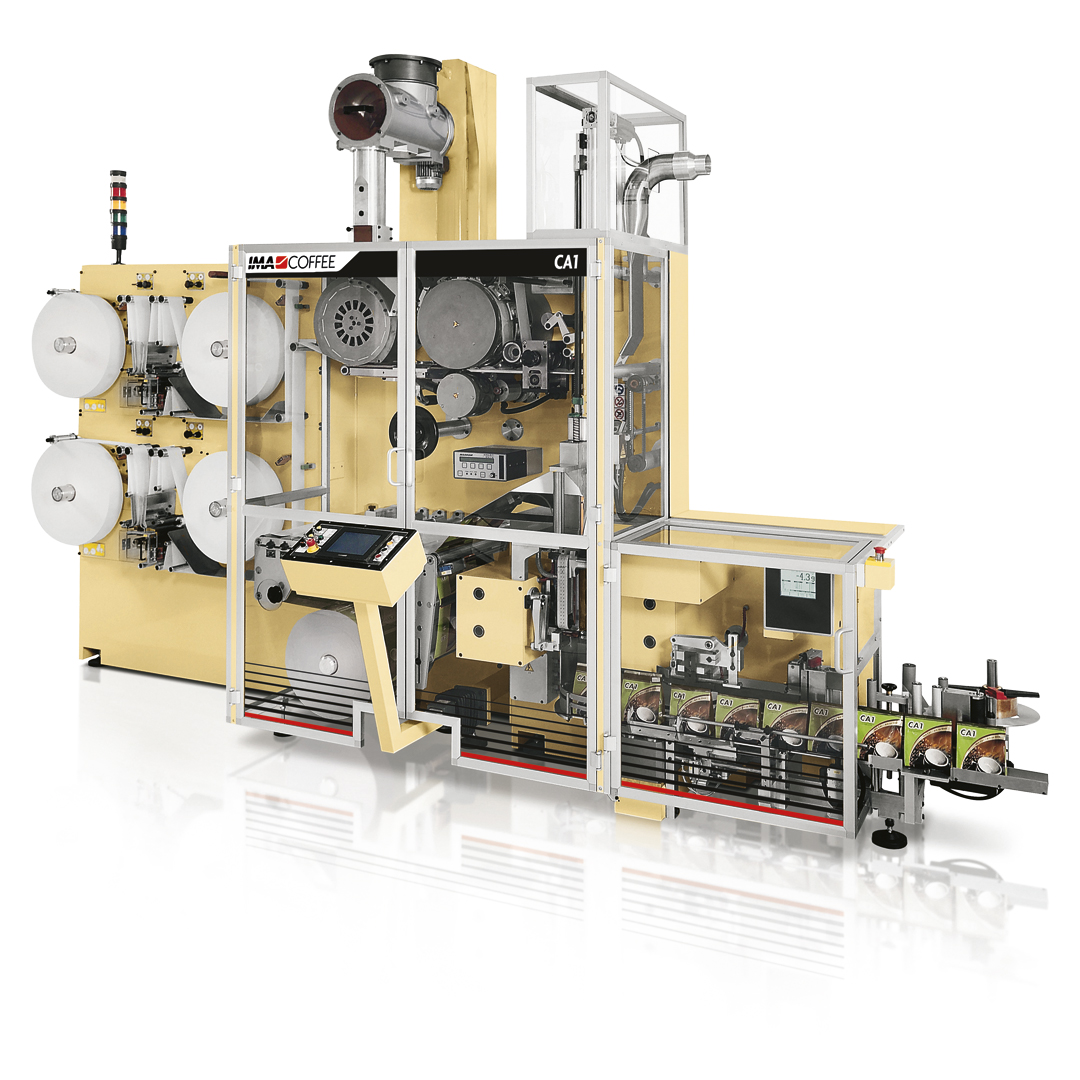

Machine overview

A soft pod packaging line in one single machine

The CA1 is a unique, high-speed machine able to produce soft pods in one single lane, counted, stacked and packed into a block bottom bag.

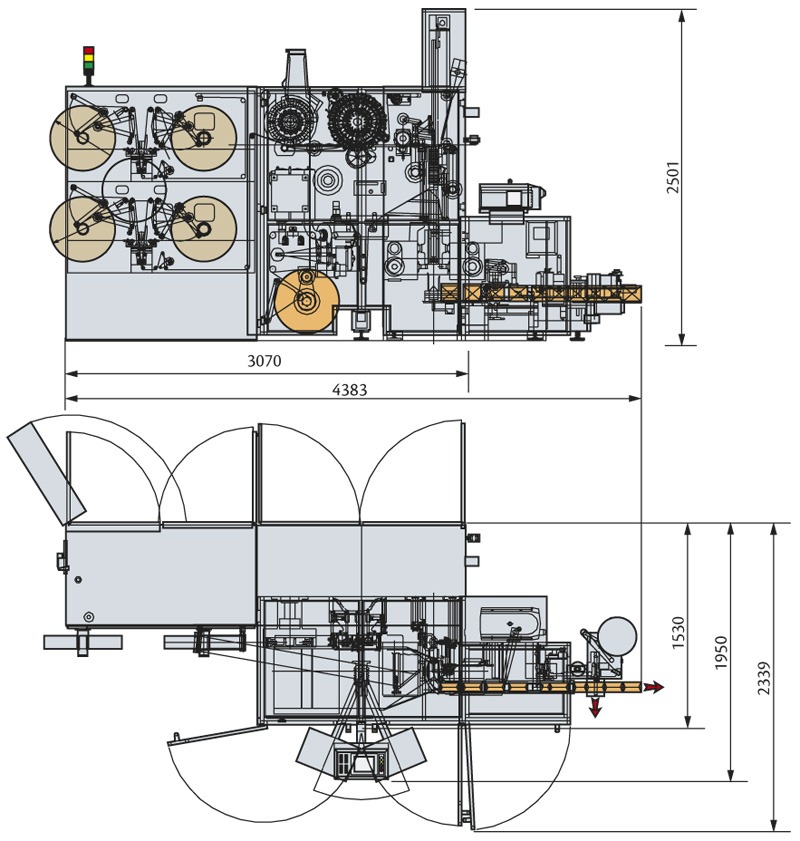

Auxiliary units for pod counting, stacking, pack forming, filling, closing and weight-checking all fit into little more than a 4.3 metre length layout, making the CA1 an efficient, comprehensive and extremely compact machine processing up to 800 soft pods/minute.

Production plant

IMA Coffee

Machine highlights

  1. Gas flushing unit

    To prevent coffee oxidation and preserve aroma and flavour, achieving an extremely low oxygen residue (<1%).

  2. Automatic filter paper splicing system

    Ensuring smooth operation without reducing speed, for maximum efficiency and continuous production.

  3. Programmable electronic counting system

    Guaranteeing the correct number of pods in the stacking unit at all times, with the flexibility to switch from single to double pod stacks.

  4. CA1 features a lubrication-free design

    Enabling cleaner processing and reduced maintenance requirements.

  5. A wide range of optional modules

    Is available, delivering maximum versatility across different packaging formats and production needs.

Machine details

Dosing unit

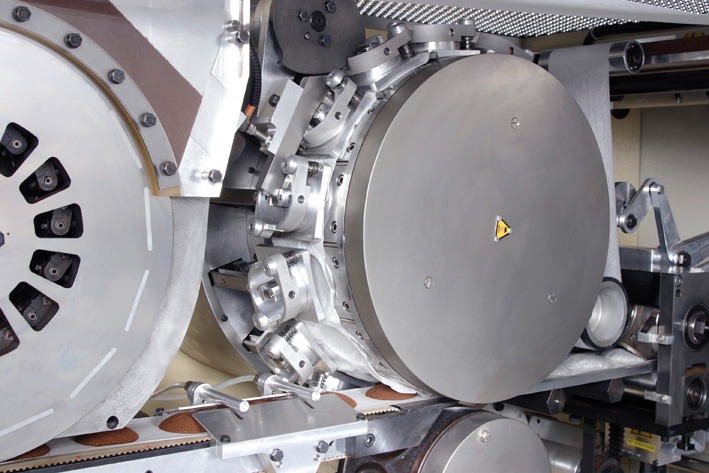

Filter forming unit

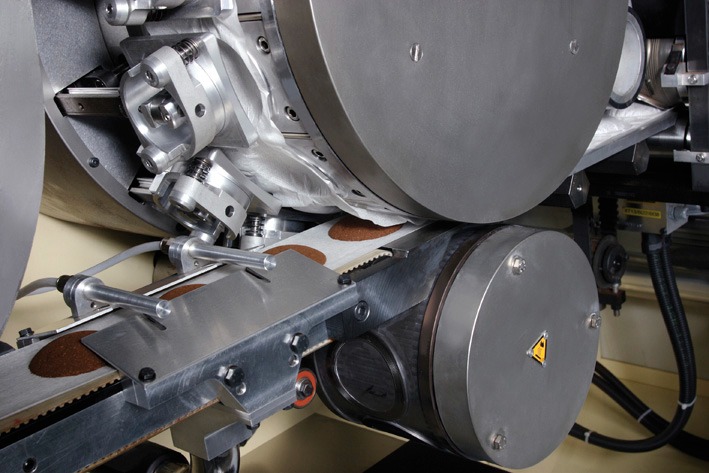

Filter sealing unit

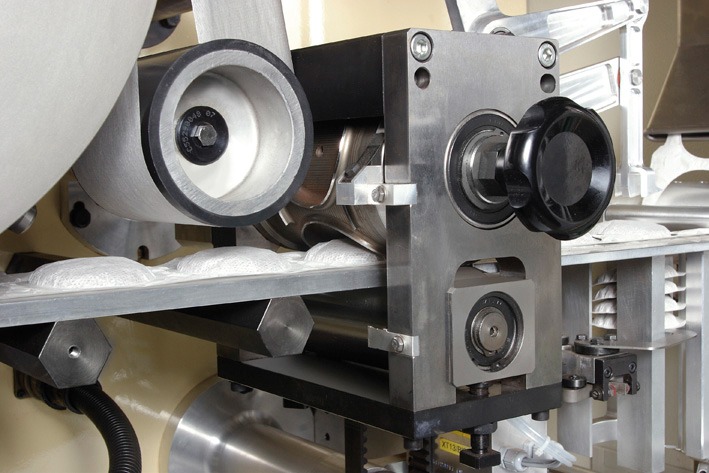

Cutting unit

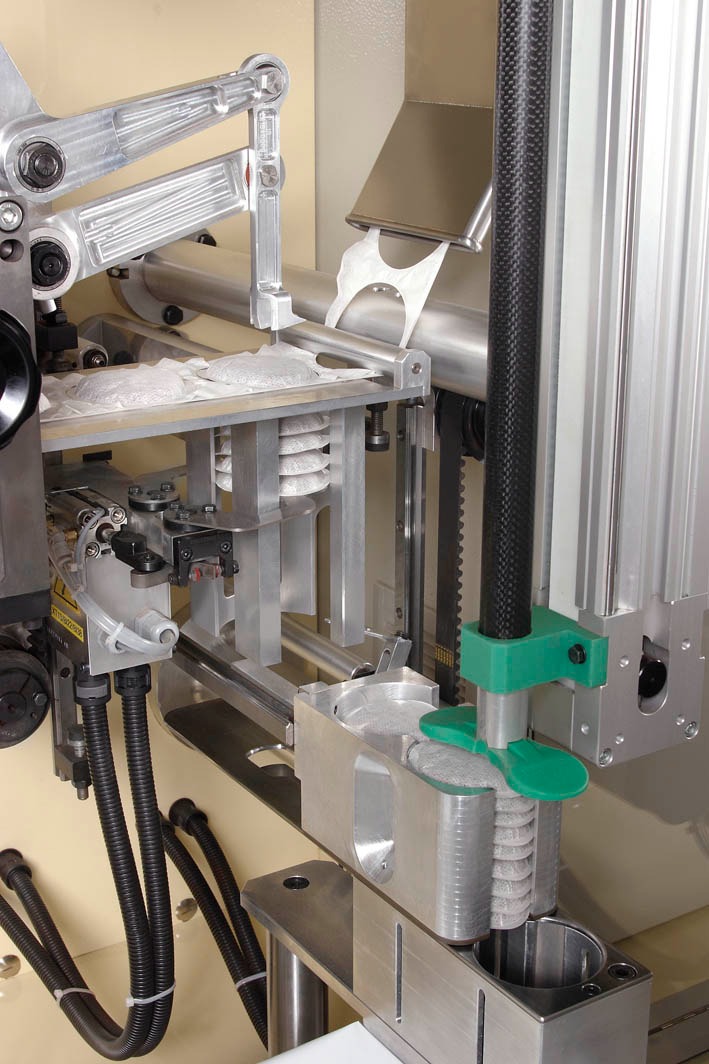

Pods stacking

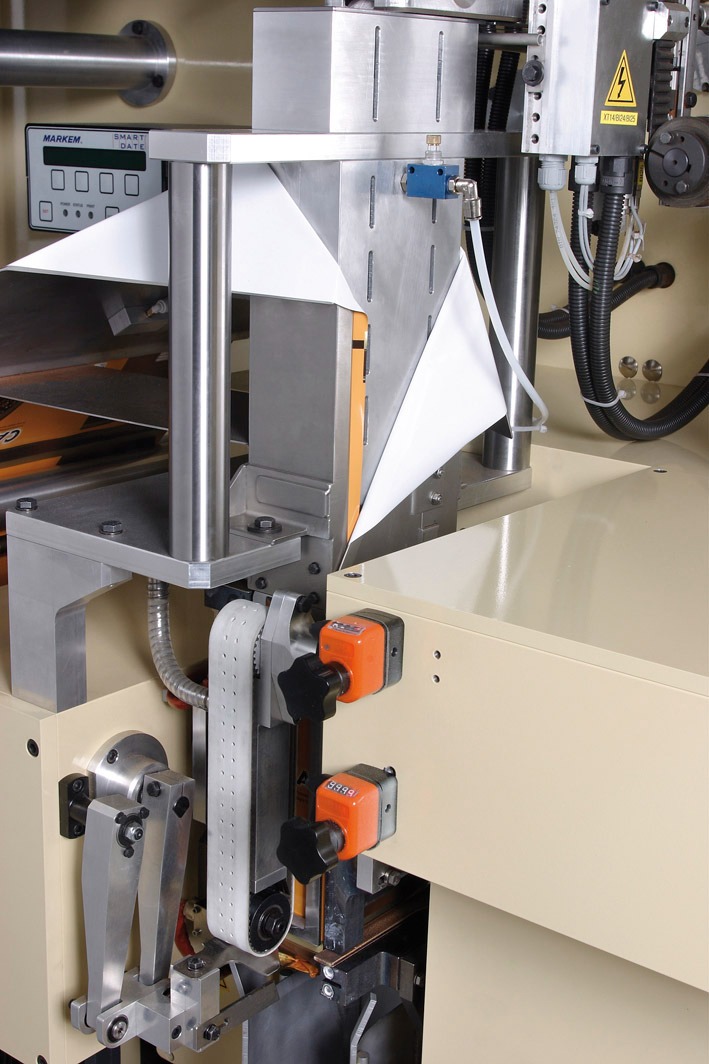

Bags forming

Technical information

TECHNICAL DATA CA 1
Machine speed (coffee pod/minute)Up to 800
Capacity coffee podUp to 14 grams of coffee
Heatsaled pack capacityMin. 8 – Max. 18 pods per pack
Power requiredTotal installed power 23 kW
Power consumption18 kW
N.b. Consumption dipends on the thermics group fitted on the machine
Compressed airDuty pressure: 6 bar – Consumption: 200 Nl/min.
Machine net weightMax. 4,500 Kg
Data subject to possible technical modification and not necessarily definitive
