C96 Series Blister Packaging

Machine overview

Faster than you imagine.

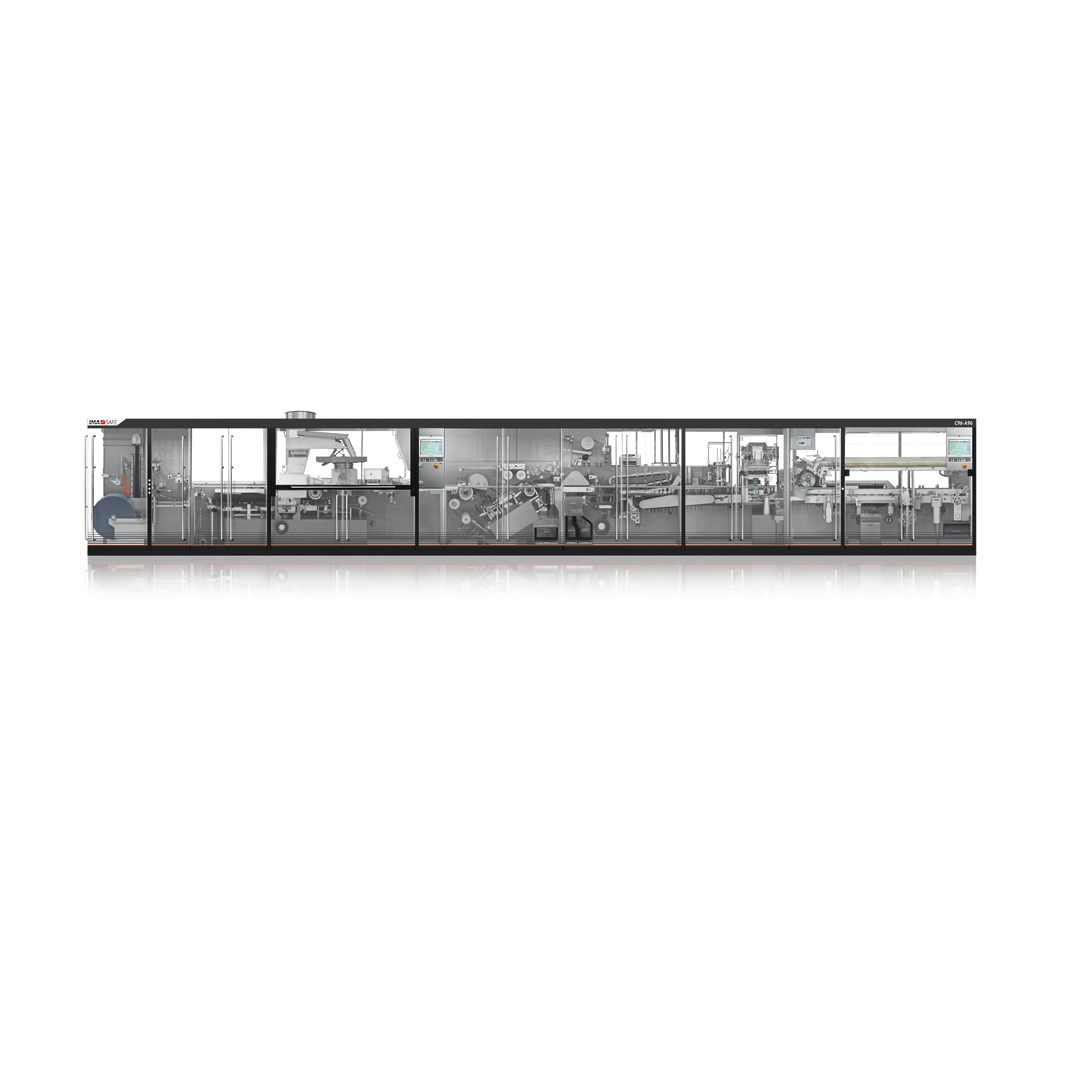

C96-A96 is a super-high-speed blister line designed specifically for those customers who need to produce large batches within a small footprint. Featuring several high-level technological concepts, C96-A96 ensures reliability and efficiency across the entire packaging process. Based on a “continuous-running” concept, this offers major advantages in terms of product feeding efficiency and smooth running with all packaging materials.
High output is guaranteed also thanks to the positive blister transport which is essential for such a fast blister line. Despite its super-high performance, the C96-A96 provides excellent accessibility and ergonomics.

Production plant

IMA Safe

Machine highlights

  1. High capacity

    1,300 blisters/minute within a small footprint.

  2. Smooth running

    Continuous running and positive blister transfer.

  3. Accessibility

    Complete accessibility and user-friendliness.

  4. Ergonomics

    Light format parts: no lifter needed.

  5. Changeover

    Fast and computer-guided changeover.

Good To Know

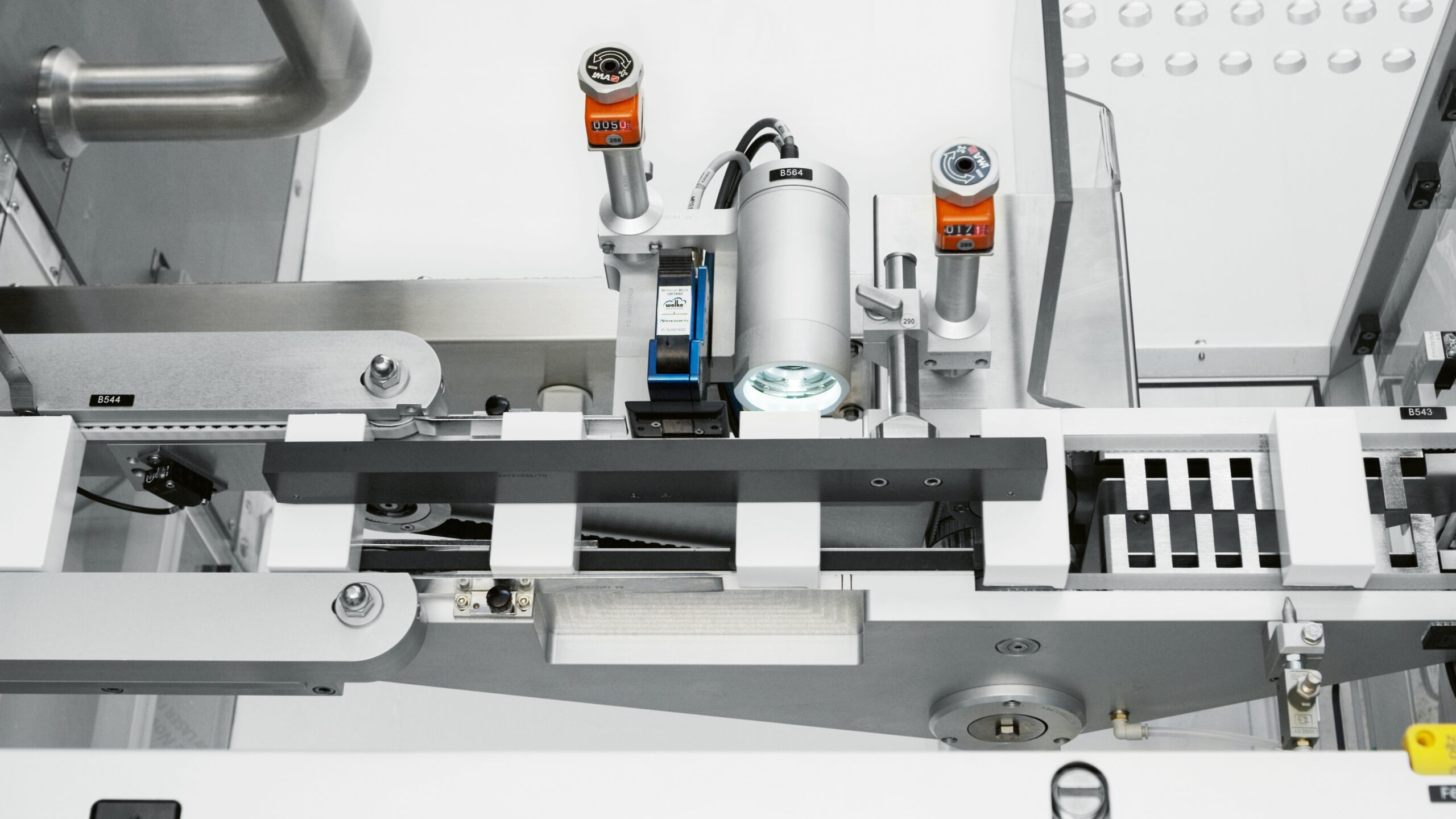

Track & Trace – The cartoner-integrated module, for camera and ink-jet system application, is the ideal solution for cartoning serialization, as the line is shorter and ensures higher efficiency.

Machine details

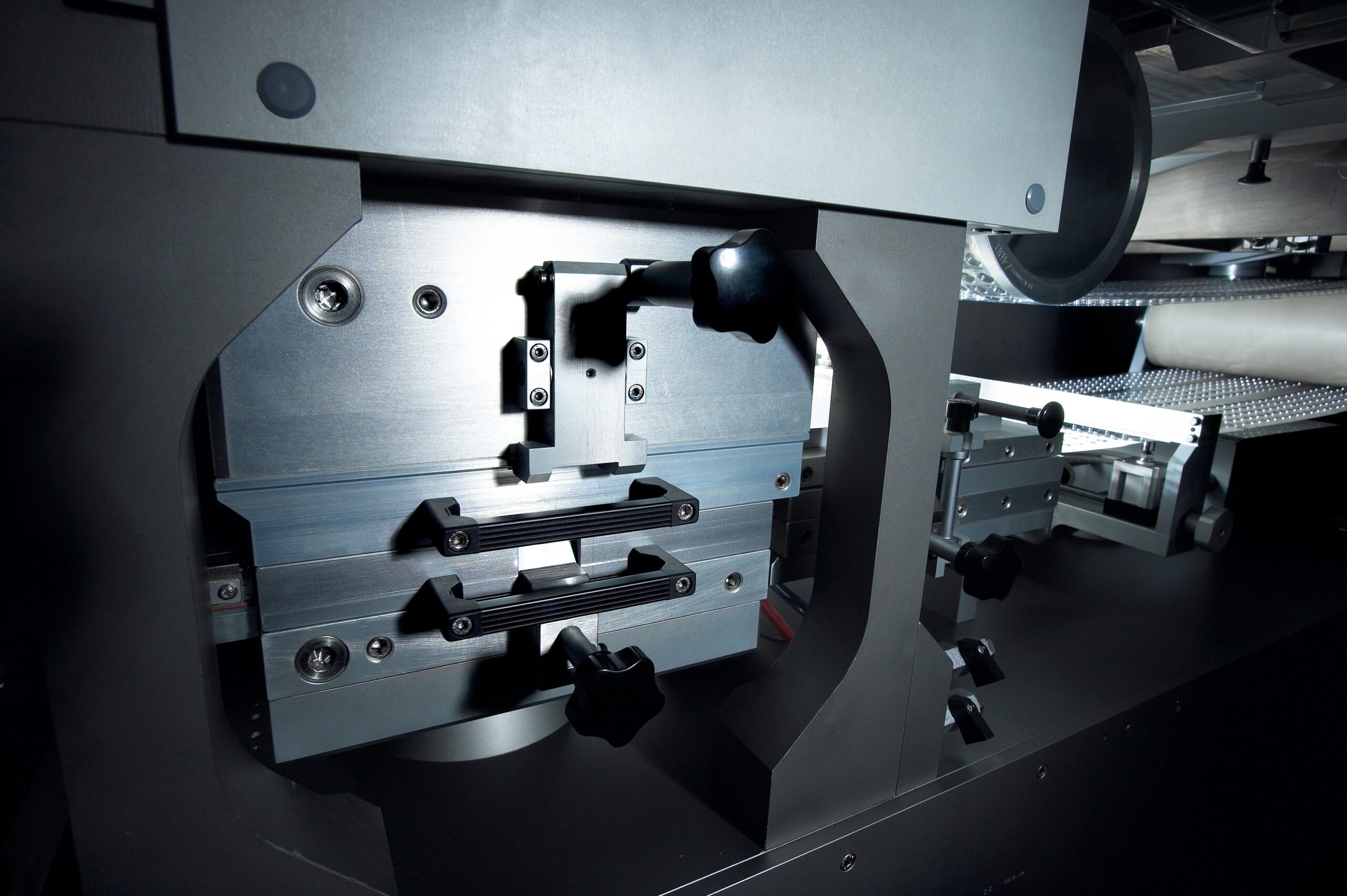

Forming area

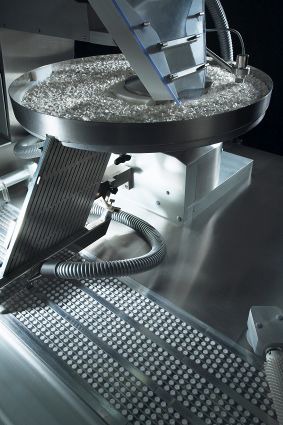

Feeding area

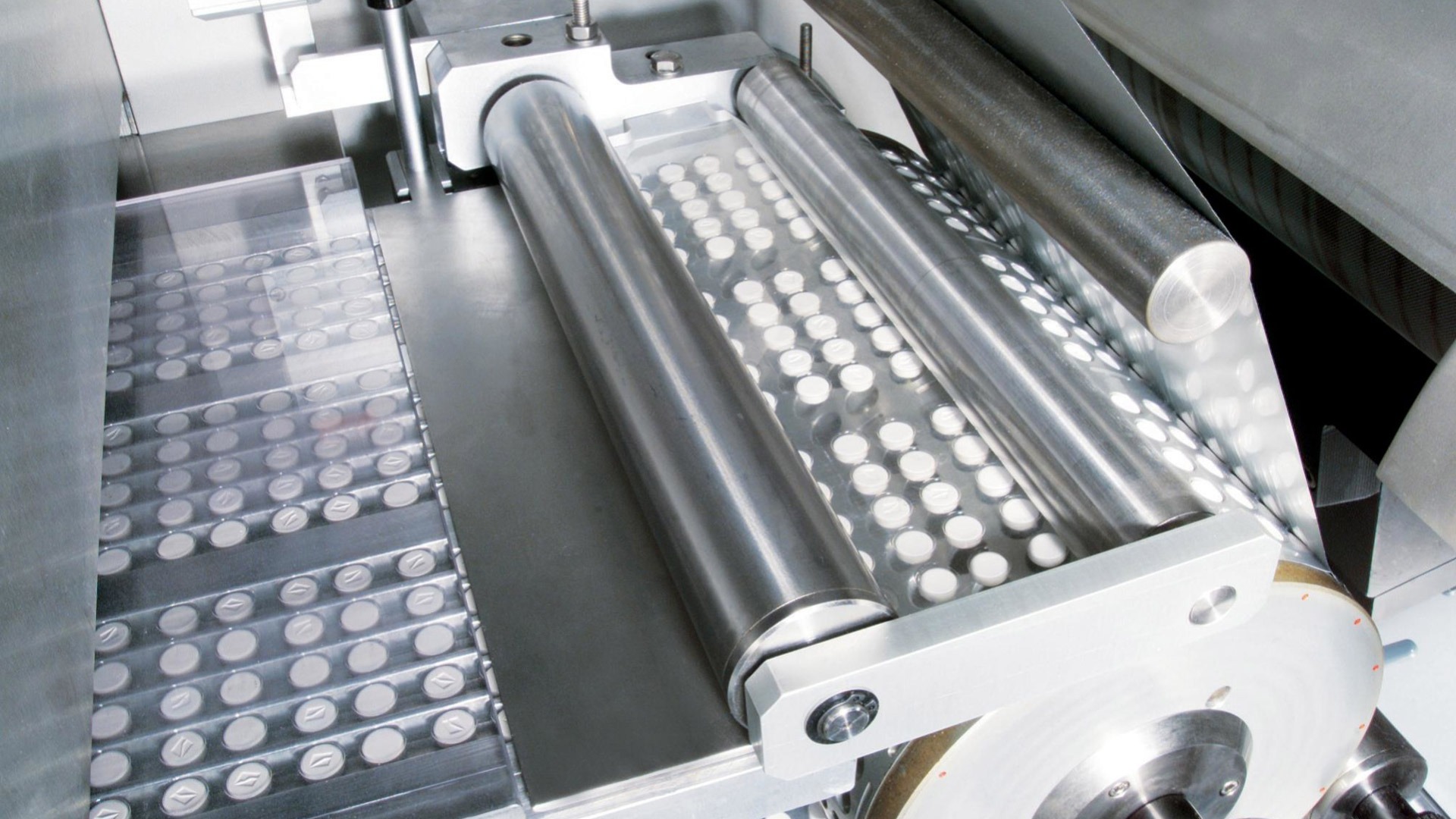

Sealing area

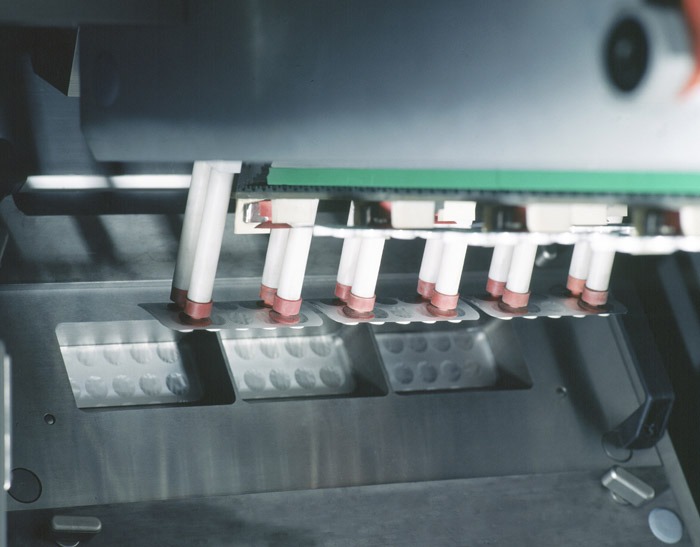

Cutting unit and positive transport

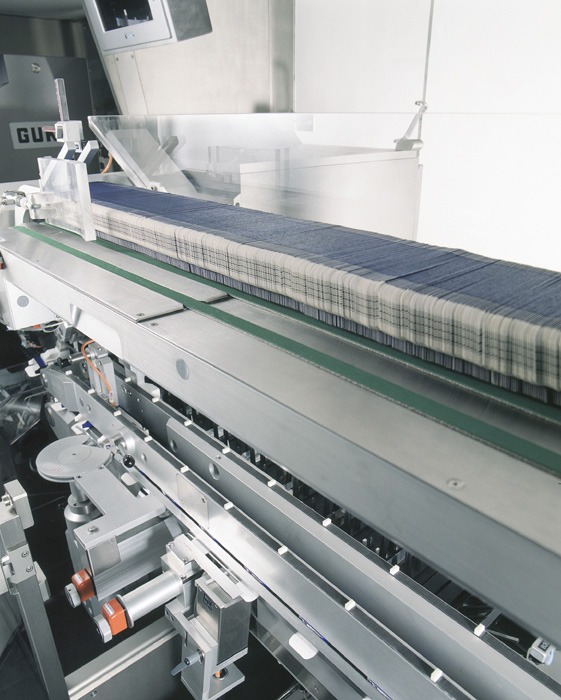

Carton magazine

Carton pick-up, opening and positioning

Technical information

C96 – A96 TECHNICAL DATA
 Blister dimensionsCarton dimensions
Width30-90 mm35-95 mm
Length65-145 mm70-150 mm
Depth/Height 3-12 mm12-90 mm
Production output
 Blistersup to 1,300 blisters/min.
 Cartonsup to 500 cartons/min.
