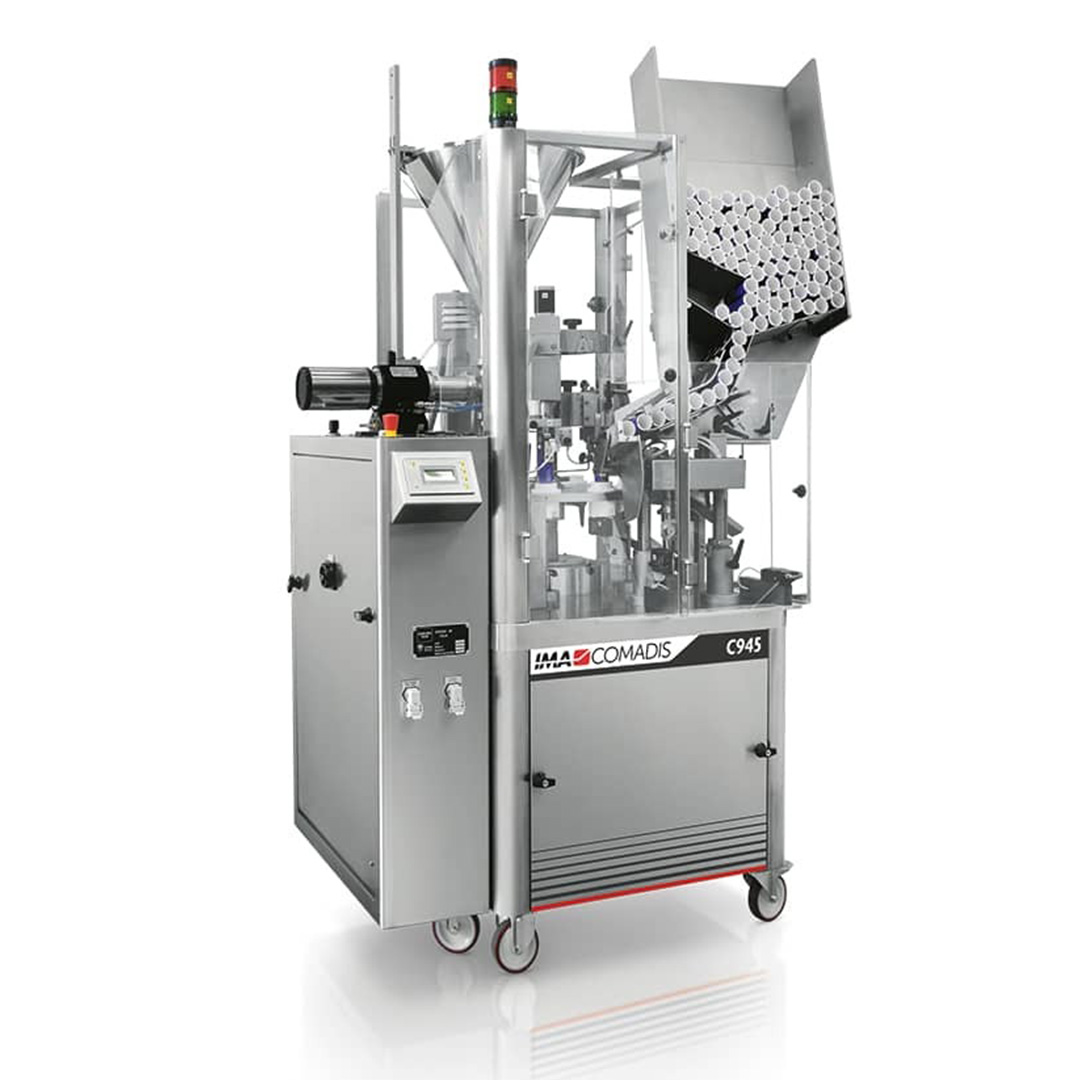

C945 Tube Filling
Machine overview
The only automatic tubefiller on the market with offline filling capability
Great in performances – despite of its compact dimensions – Co.Ma.Di.S. C945 can be run in totally automatic mode, as well as a pedal-controlled filler for jars and small containers, thanks to dosing pump that can be rotated outwards.
Production plant
IMA Comadis
Machine highlights
-
Scale-up machine
This tube filler can work in semi-automatic and fully automatic mode.
-
Special seals
Customised “designer seals” on request.
-
Closing heads
Quick interchangeability of closing heads.
-
Tool-free intervention
Simplified and easy change of size parts, without tools.
The smallest tubefiller on the market, marked by outstanding flexibility

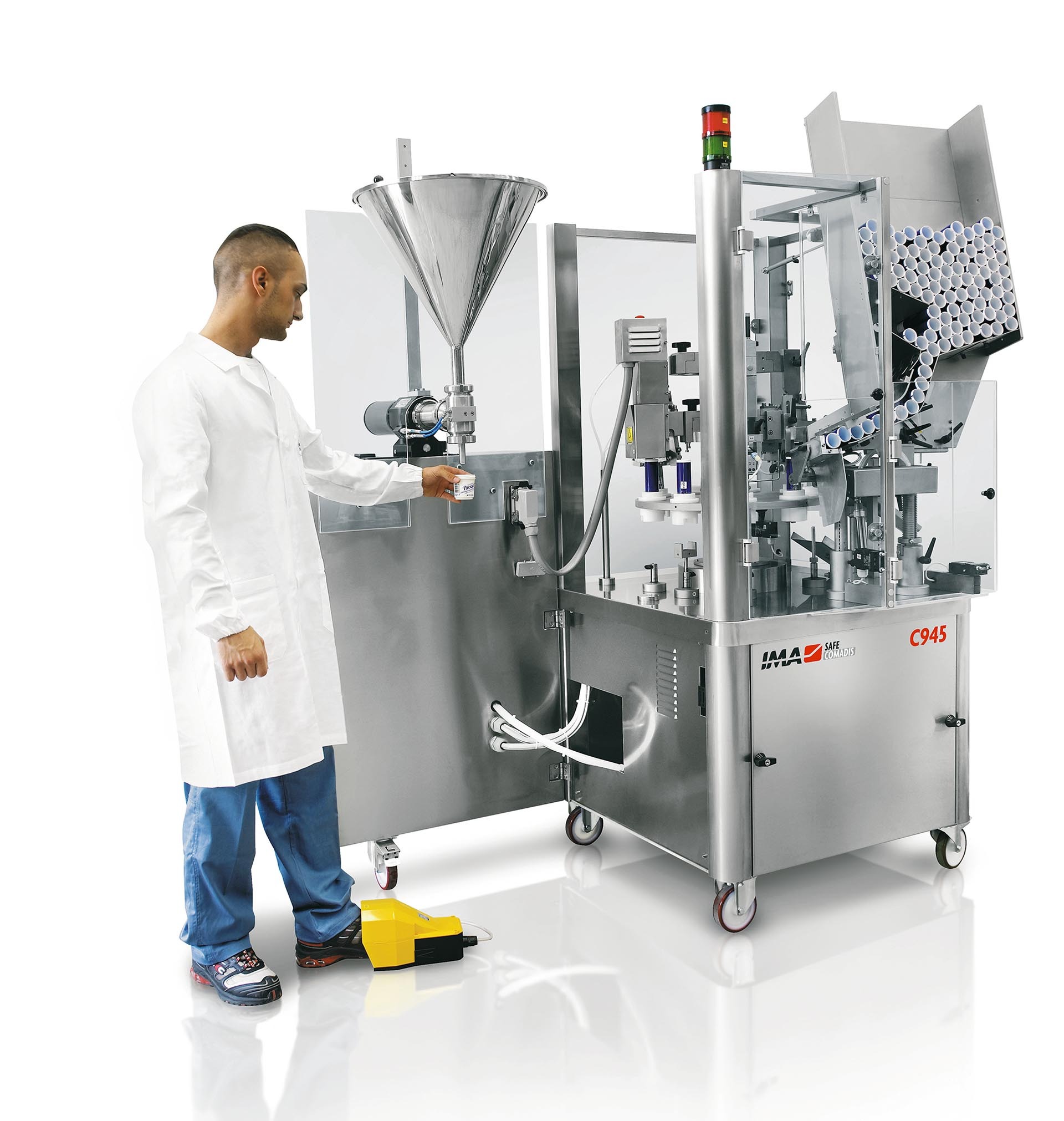

Dosing pump is easy to reposition outside footprint for manual filling; interchangeable closing heads perform any type of metal tube folding and a variety of plastic tube sealing shapes.
Machine details
Technical information
| TECHNICAL DATA C945 | |
| Mechanical speed | Up to 45 tubes/min. |
| Filling volume | 2-300 mL (on request up to 500 mL) |
| Tube diameter | 10-50 mm (on request polythene and aluminium tubes up to 60 mm) |
| Tube length | 60-250 mm |
| Working stations | 9 |

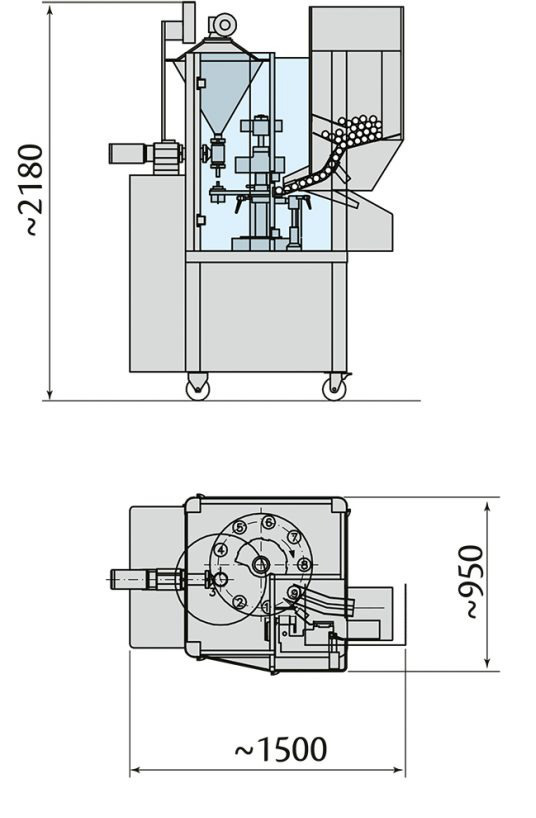

* The dimensions are indicative and can vary depending on the optional groups chosen and machine layout
