C80HS Series Blister Packaging
Machine overview
Born to satisfy any your request, at high speed.
C80HS is a high-speed machine that can be integrated with different cartoners (up to 500 cartons/minute) keeping both maximum visibility of blisters throughout the entire process and maximum accessibility for the operator.
The line’s innovative design, in terms of both structure and functional detail, has been developed according to market requirements. C80HS Series, double-lane blister machine, not only has high production output, but also has the advantage of being extremely efficient: even if the downstream machine stops, rejection is minimum thanks to the blister recovery magazine.
Last but not least, complete accessibility in the connection area is guaranteed.
Production plant
IMA Safe
Machine highlights
-

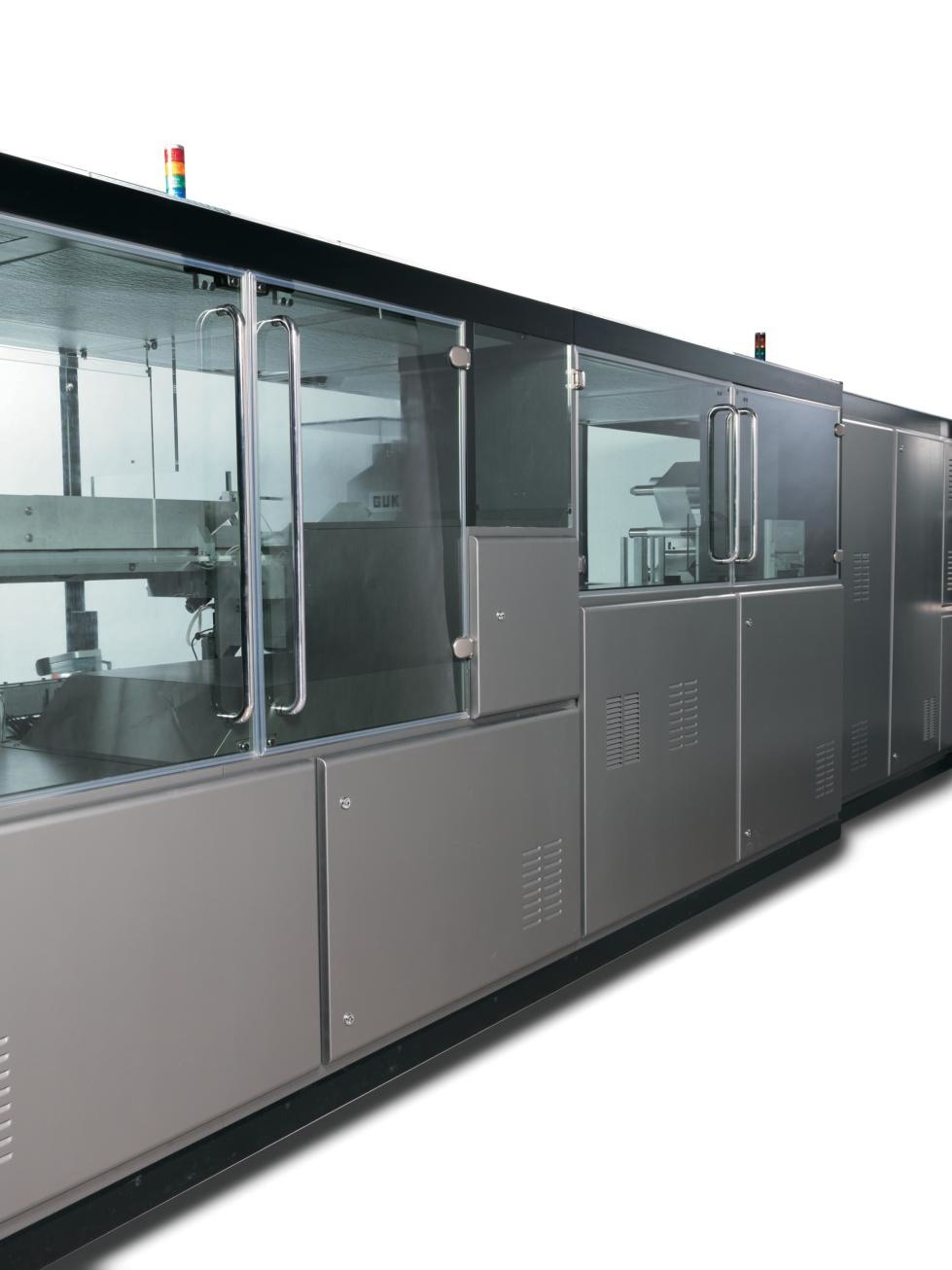

Total accessibility
Complete accessibility also in the connection between blister machine and cartoner.
-
Flexible modularity
Modularity: C80HS can be integrated with different cartoners.
-

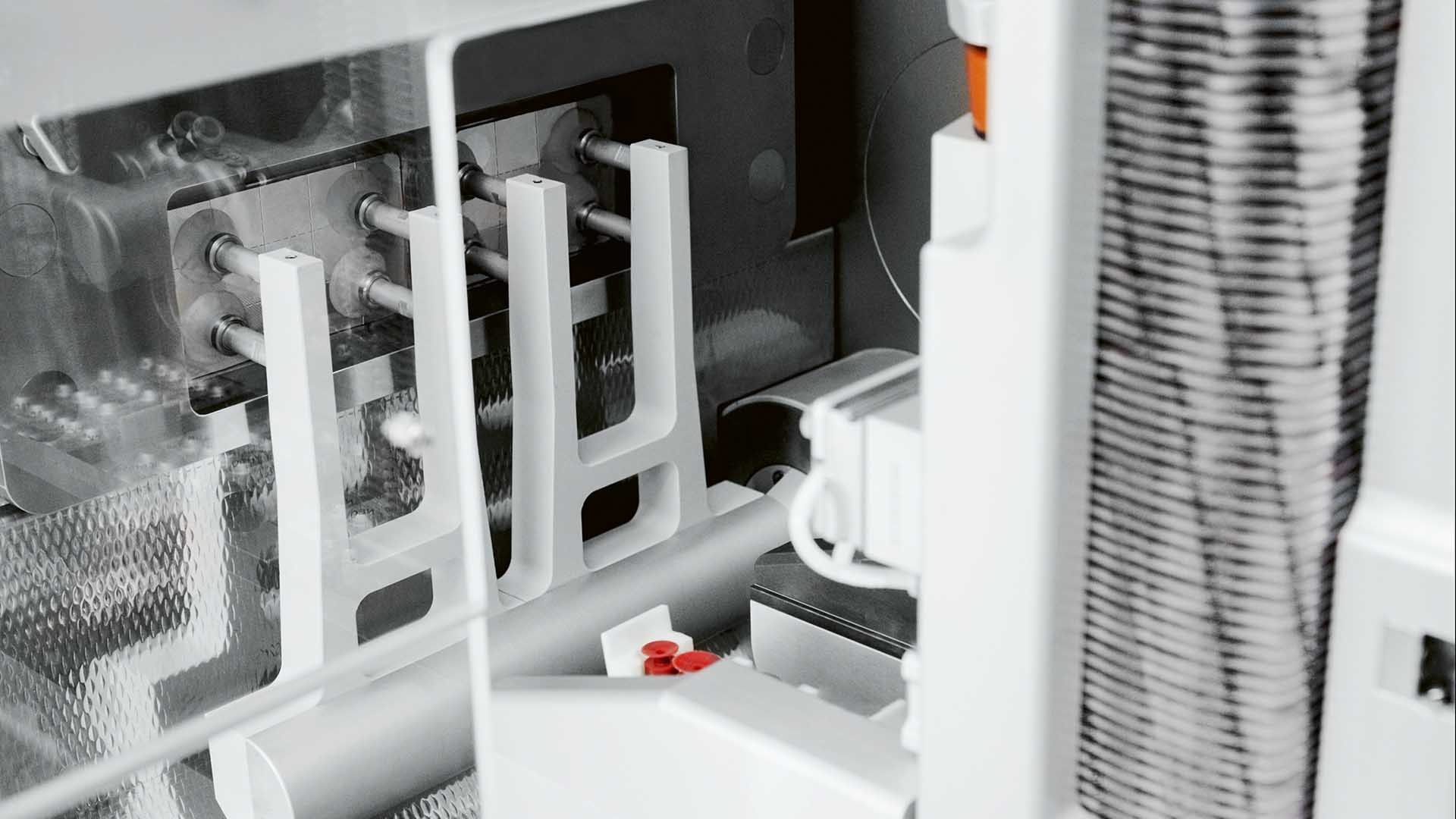

Innovative cutting unit
Innovative cutting unit: blister with a different shape to the correct one is rejected.
-

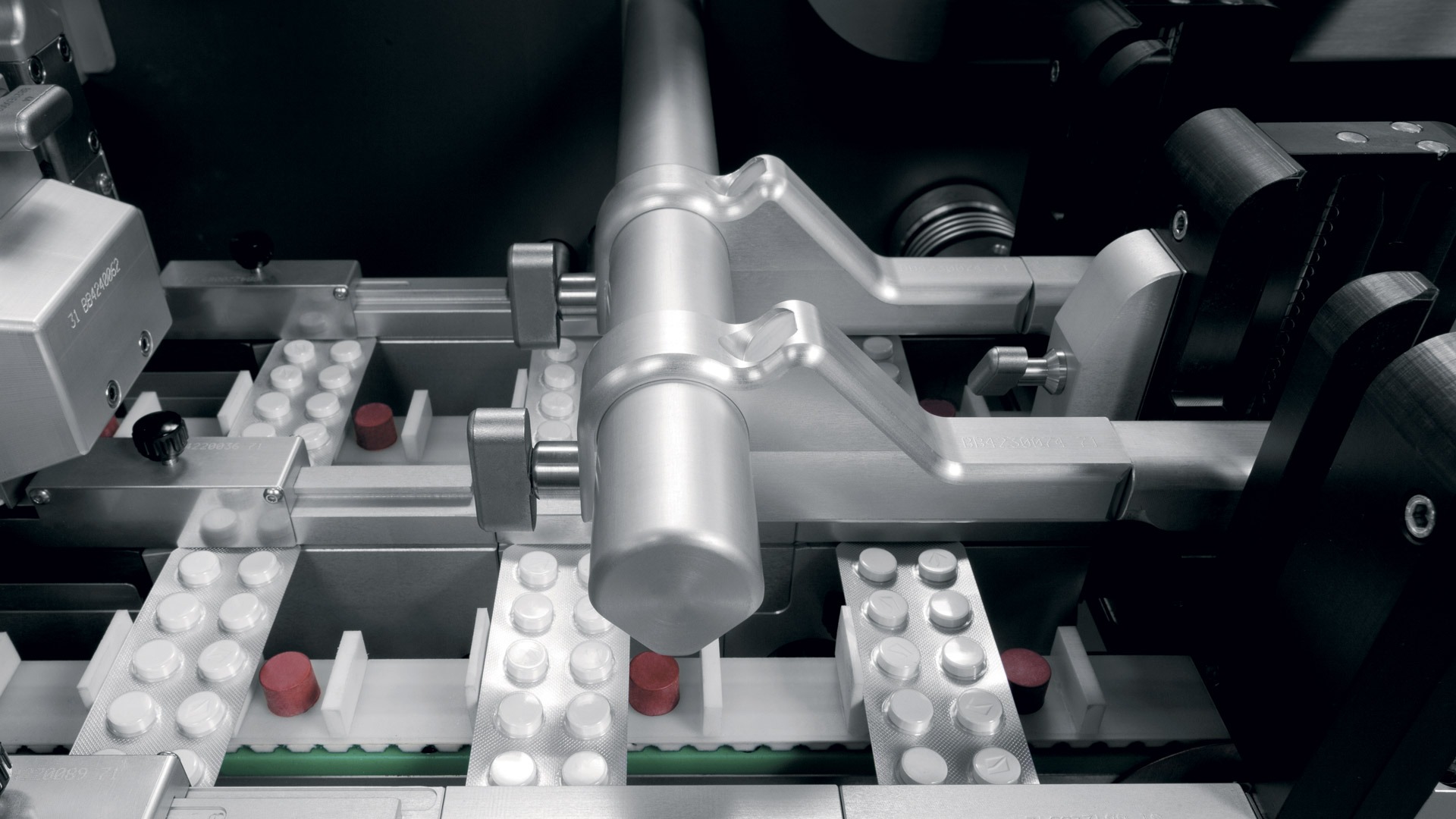

Positive blister transfer
Positive blister transfer entirely regardless of blister shape.
-
Automatic blister recovery
Automatic blister recovery magazine: ZERO rejection in the cartoner because of missing blisters.
-

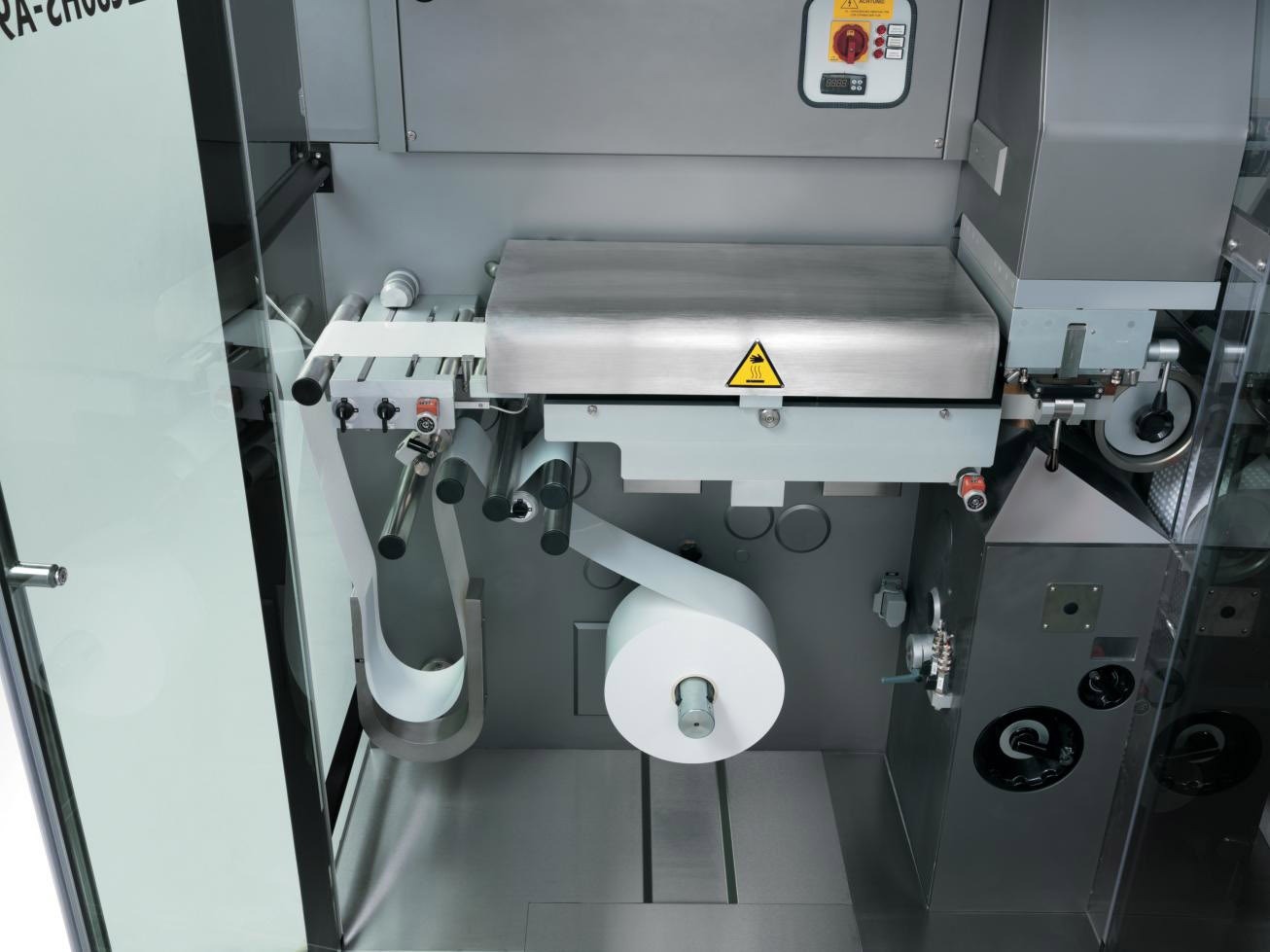

Ergonomic material loading
Easy forming material loading thanks to the ergonomic position of the reel holder.
-
Quick size changeover
Quick and easy size changeover.
Good to know:
Track & Trace
The integrated module on the cartoner, for camera and ink-jet system application, is the ideal solution for cartoning serialization having a shorter line and higher efficiency.
Machine details
Technical information
| C80HS TECHNICAL DATA | ||||
| Blister dimensions | Cartons dimensions | |||
| Width | 30-90 mm | 35-95 mm | ||
| Length | 60-145 mm | 70-150 mm | ||
| Depth / height | 3-12 mm | 15-90 (105) mm | ||
| Production output | ||||
| Model | C80HSA | C80HS-A76 | C80HS-A86 | C80HS-A96 |
| Blisters | up to 750 blisters/min. | |||
| Cartons | – | up to 250 cartons/min. | up to 350 cartons/min. | up to 500 cartons/min. |

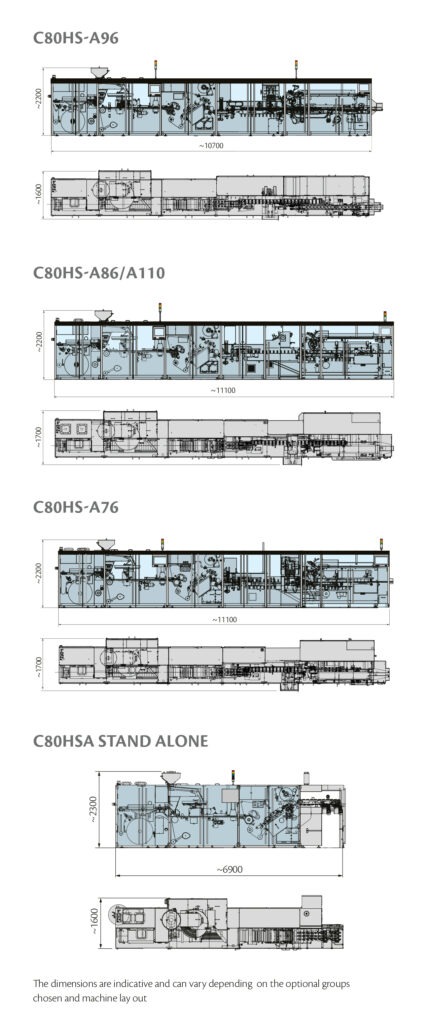

Machine versions
C80HS-A76
• Blisters/min: up to 700
• Integrated transfer
• Cartons/min: up to 250

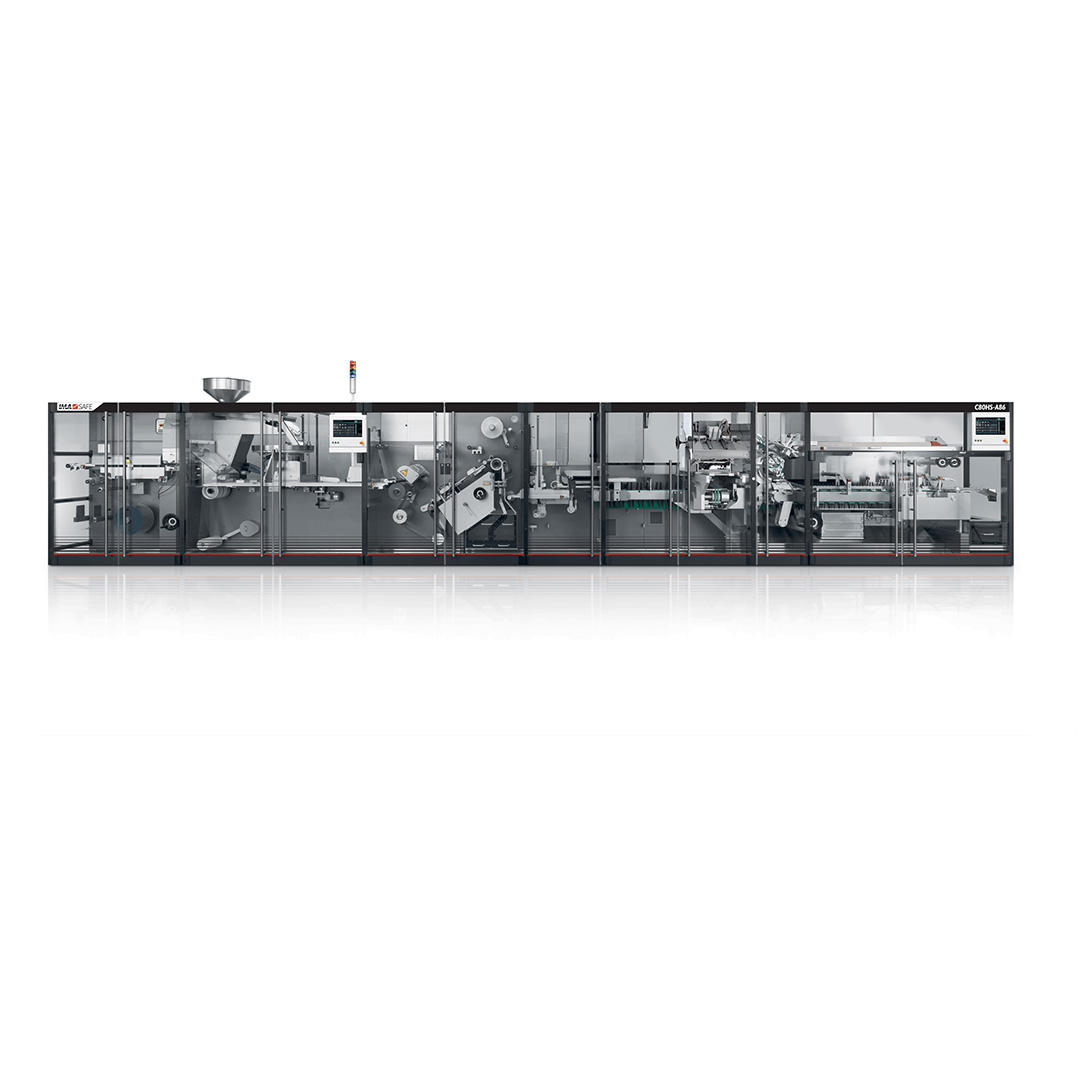

C80HS-A86
• Blisters/min: up to 700
• Integrated transfer
• Cartons/min: up to 350

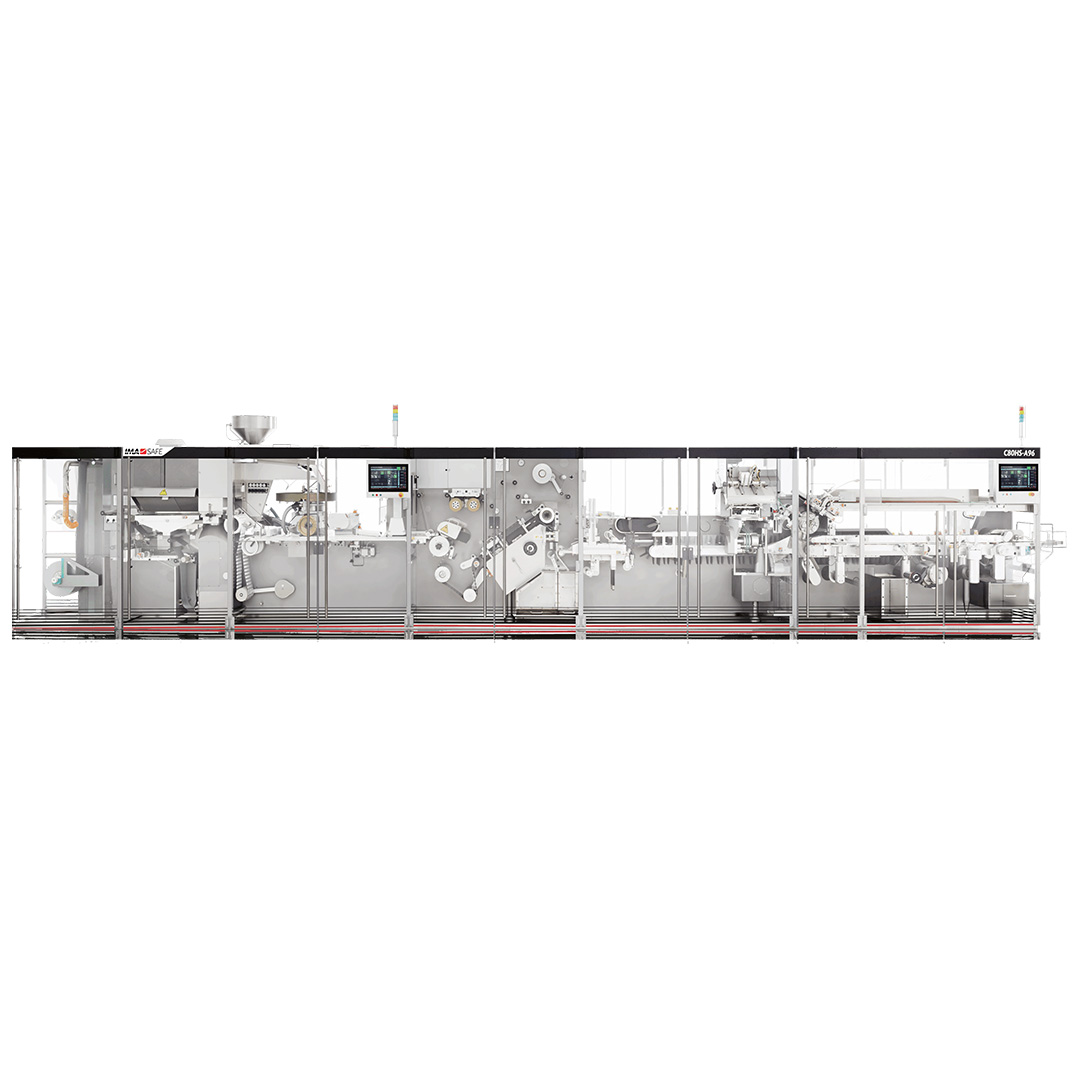

C80HS-A96
• Blisters/min: up to 700
• Integrated transfer
• Cartons/min: up to 500
C80HSA stand alone
The module of C80HSA stand-alone blister machine allows the maximum flexibility in connection with cartoners, wallet machines and flow pack machines, satisfying any kind of line layout needs.
• Blisters/min: up to 750
