C51 Tea bag packaging
Machine overview
The machine that never stops.
The C51 is a high-performance packaging solution for naked, single-chamber, heat-sealed, round, square and rectangular bags, reaching speeds of up to 2000 bags/minute. Despite exceptionally high processing speeds, tea bag seams are perfectly sealed and free from any product residue.
The C51 produces joined pairs of tea bags separated with perforations or ready-to-use single bags. Also available are family-size tea bags with a capacity of up to approx. 28 g.
Integration with different final packaging solutions includes an automatic carton attachment using flat blanks, a horizontal flow-pack packaging unit, as well as a conveyor exit for hand removal and further packaging into cartons, polythene bags or other options.
Specific product control devices monitor production constantly and intervene directly to remove faulty packages without stopping the machine.
Production plant
IMA Tea & Herbs
Machine highlights
-
High speed
Highest performance and maximum efficiency at speeds of up to 2000 bags/minute.
-
Flexibility
Flexibility both in terms of tea bag shape/size and carton style/size.
-
Wide choice for final packaging
Free to choose the desired final packaging solution between cartons, flow-packs and bulk bags.
-
Flow pack wrapping
Flow packs are practical, fully waterproof and provide exceptional versatility in terms of size and material (cellophane, polypropylene, laminate and cold-sealable), and represent an economical alternative to cartons.
-

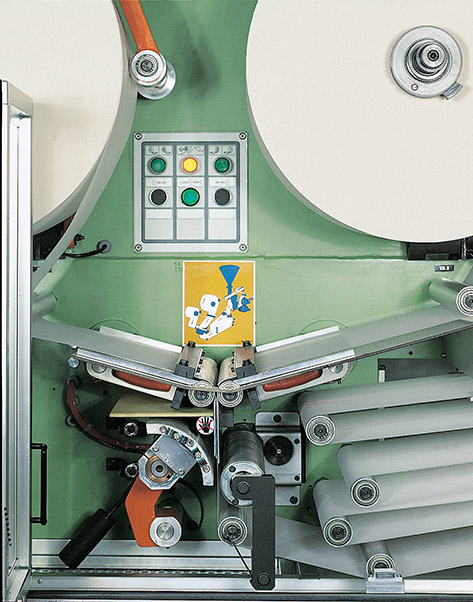

Automatic splicing
Automatic splicing of packaging material: no processing speed reduction, greater efficiency, one operator can manage more than one machine.
-
Product feeding and dosing optimisation
Automatic weight control and adjustment to optimise product feeding and dosing. Ensures removal of faulty packages.
Machine details
Technical information
| TECHNICAL DATA C51 | |
| Machine speed (bags/minute) | Up to 2,000 |
| Bag capacity | Up to aproximately 28.4 grams black tea |
| Power required | Total installed power 12.3 kW |
| N.b. Power consumption depends on the thermic groups fitted in the machine | |
| Compressed air (without outer envelope) | DUTY pressure: 6 bar Consumption: 75 Nl/min. Air supply connection: Ø 3/8 gas |
| Lubrification | The machine is provided with an automatic and centralised lubrication system |
| Machine net weight | Max 4,200 Kg |
