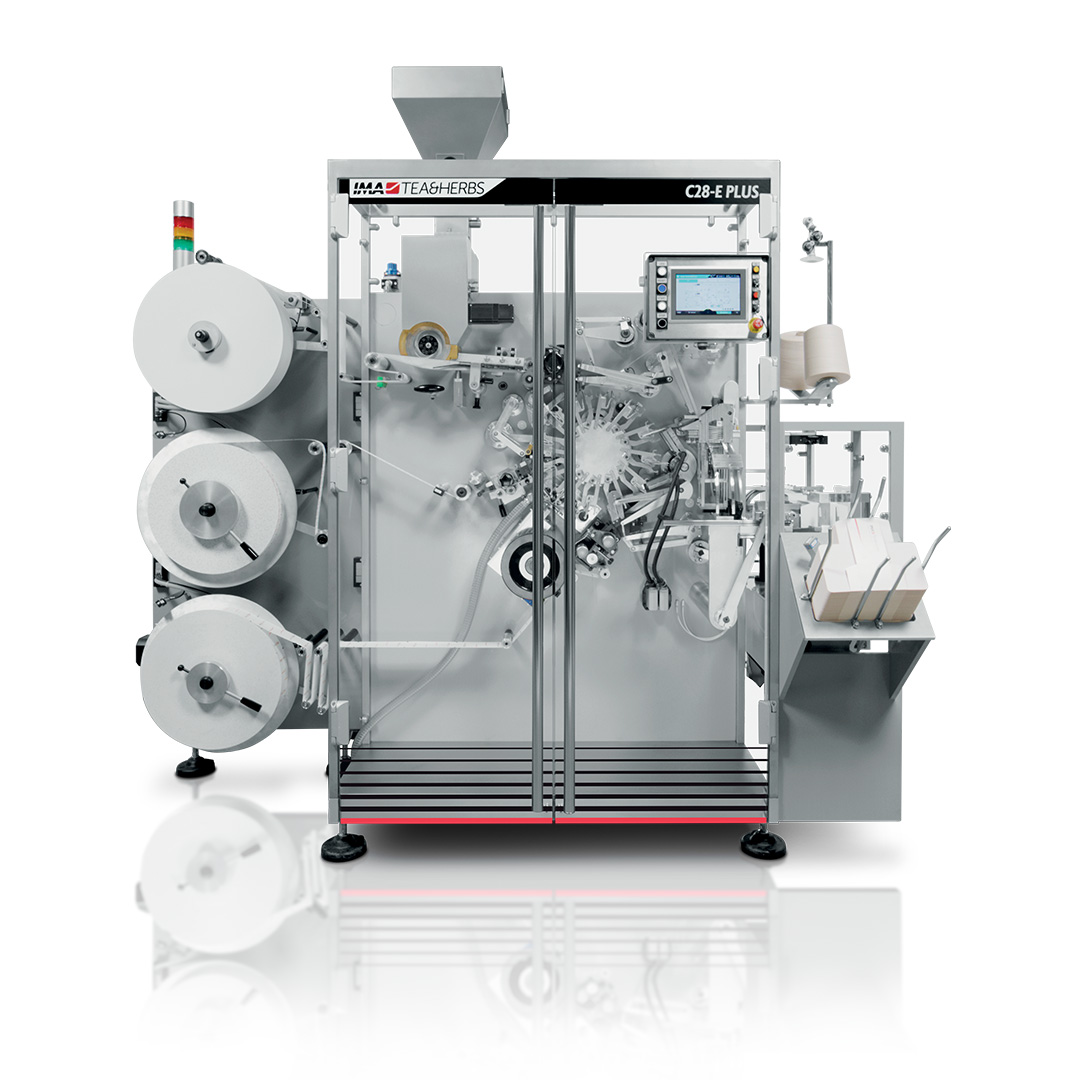

C28-E PLUS Tea bag packaging
Machine overview
Clean, fast performance
Designed with a strong focus on customer needs, the new C28-E PLUS machine, built on revolutionary knot technology, produces high quality, ecological tea bags at a rate of up to 250 bags per minute. Despite its compact size, this machine integrates advanced technology with straightforward operation, delivering a versatile, flexible, and highly efficient solution. The rejection of single bags is achieved by a fully mechanical system guaranteeing a user-friendly solution avoiding operator intervention to remove bags.
Production plant
IMA Tea & Herbs
Machine highlights
-
Production speed
Up to 250 bags/minute.
-

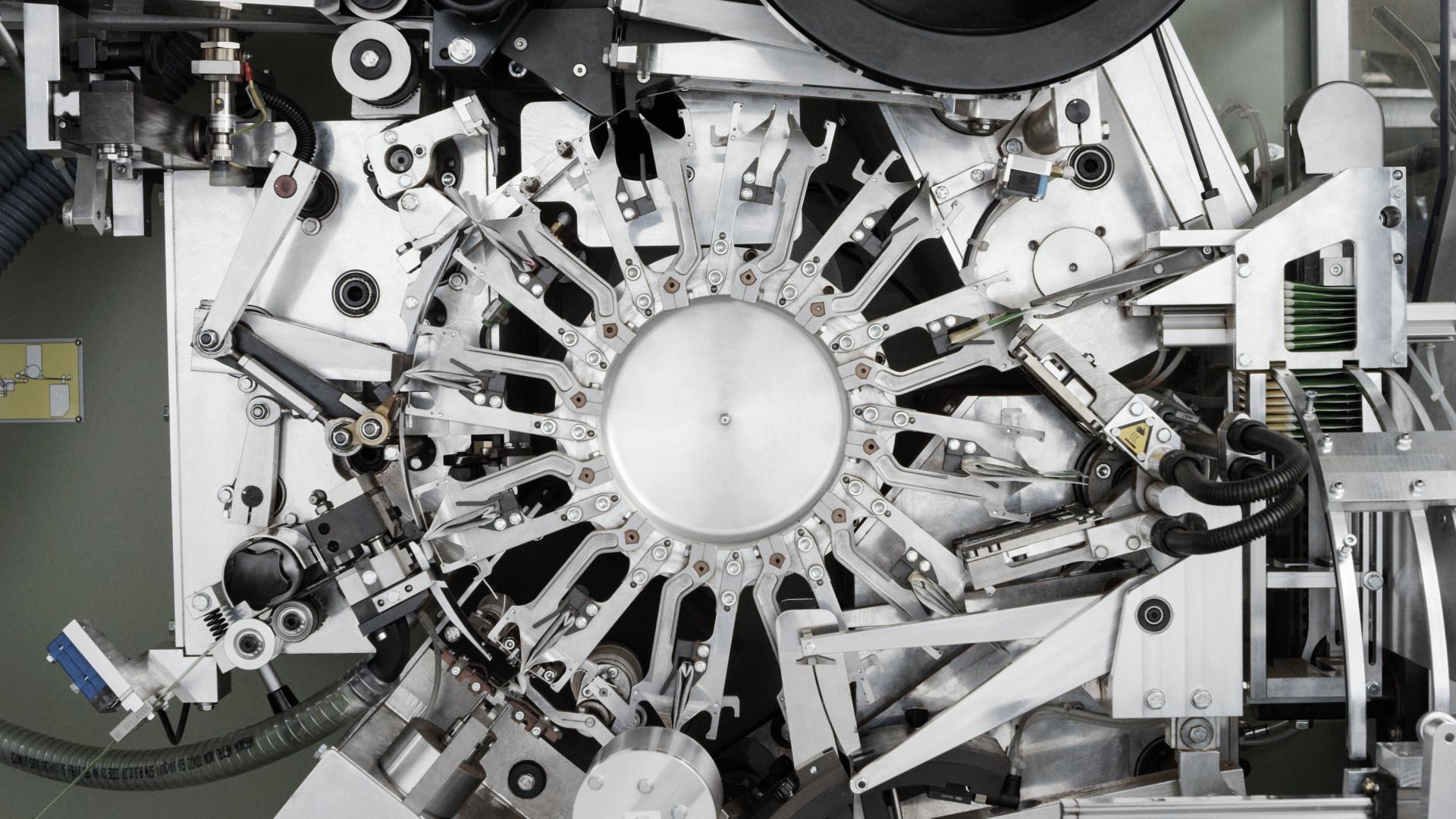

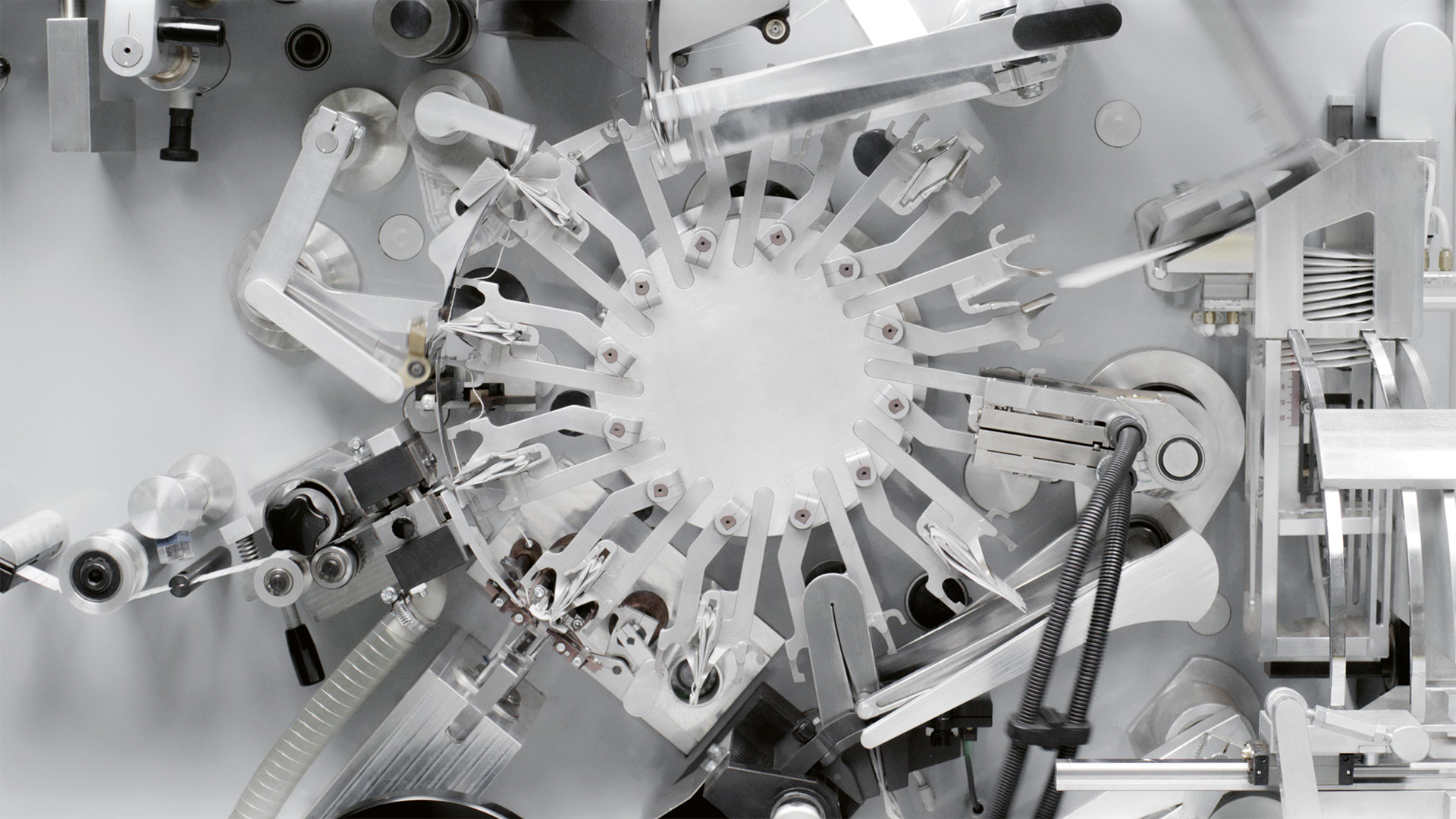

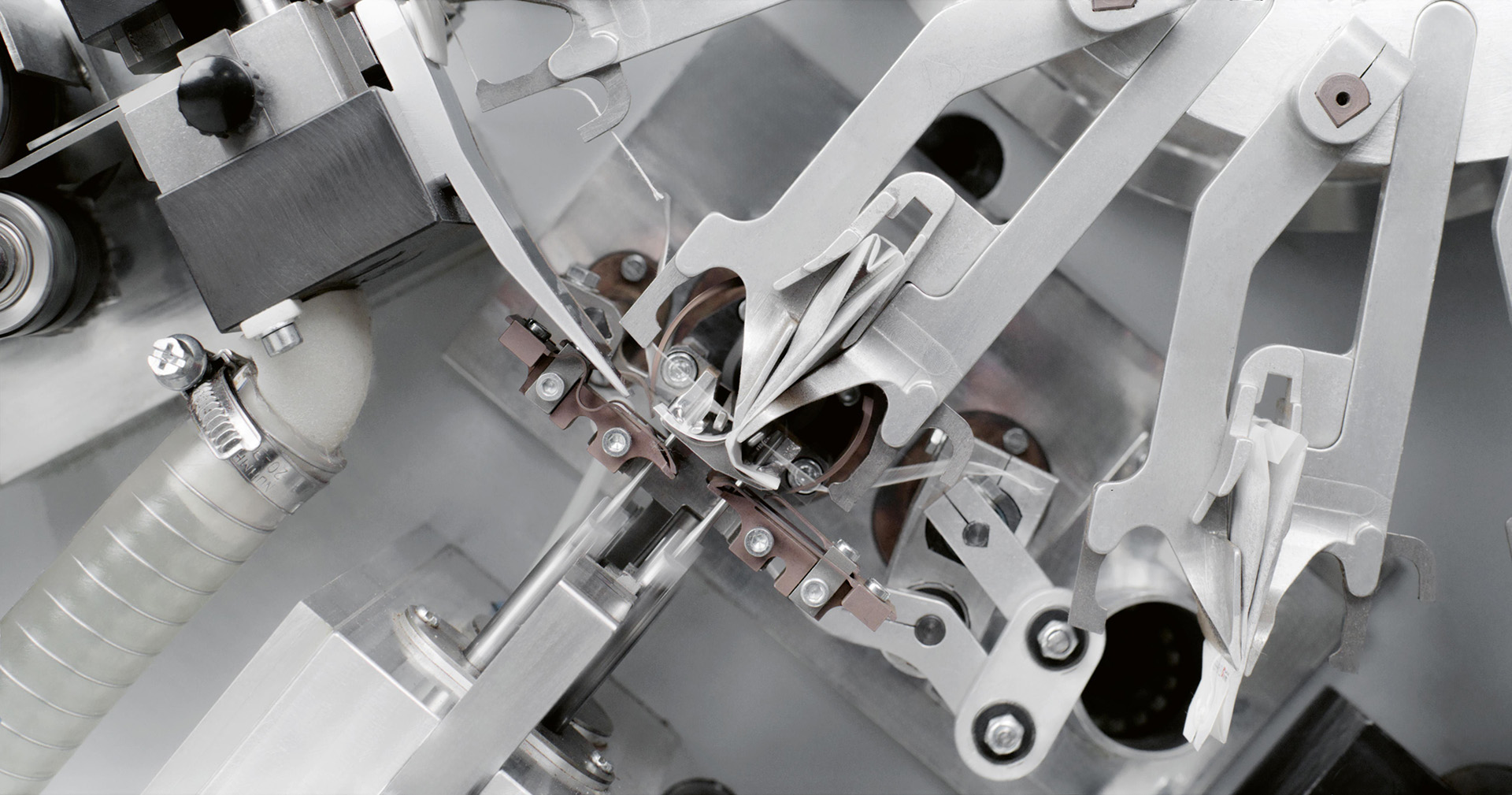

Knot technology
Environmentally friendly thanks to absence of metal staple.
-

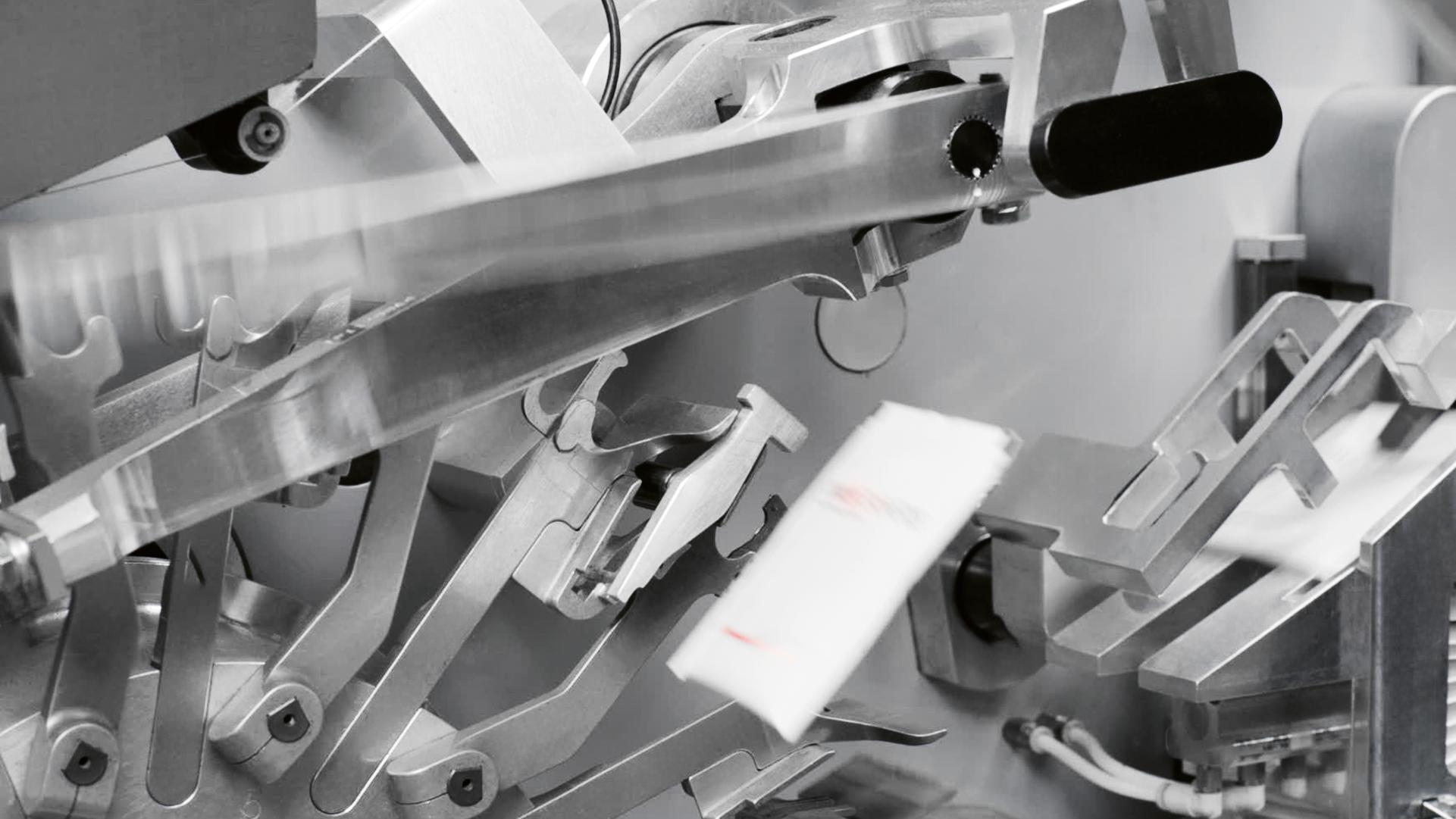

Mechanical single bag rejection
Less compressed air consumption, less tea dust on machine.
-

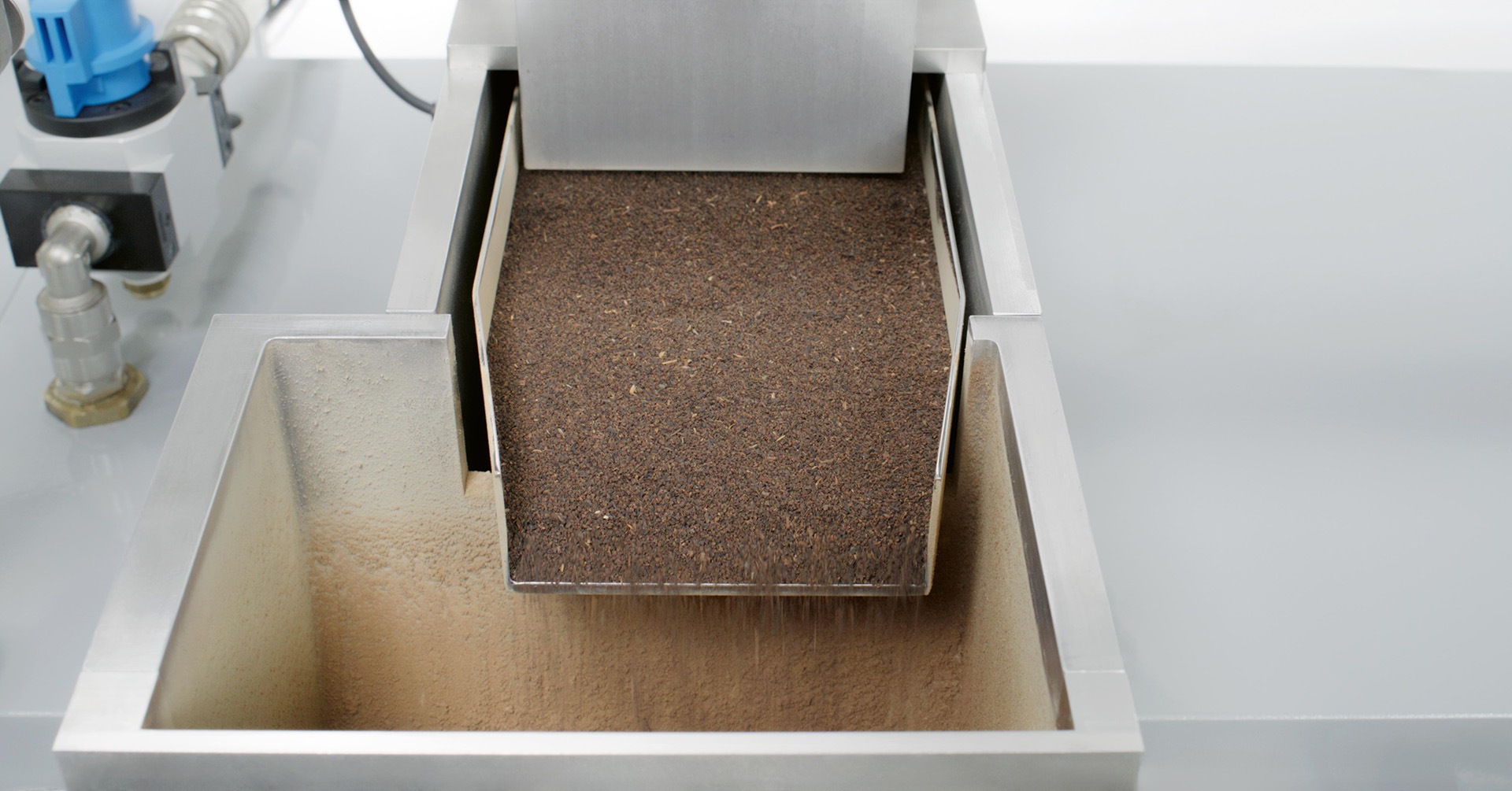

Feeding system
Vibrating product feeding system for non-free-flowing products: minimises product degradation.
-

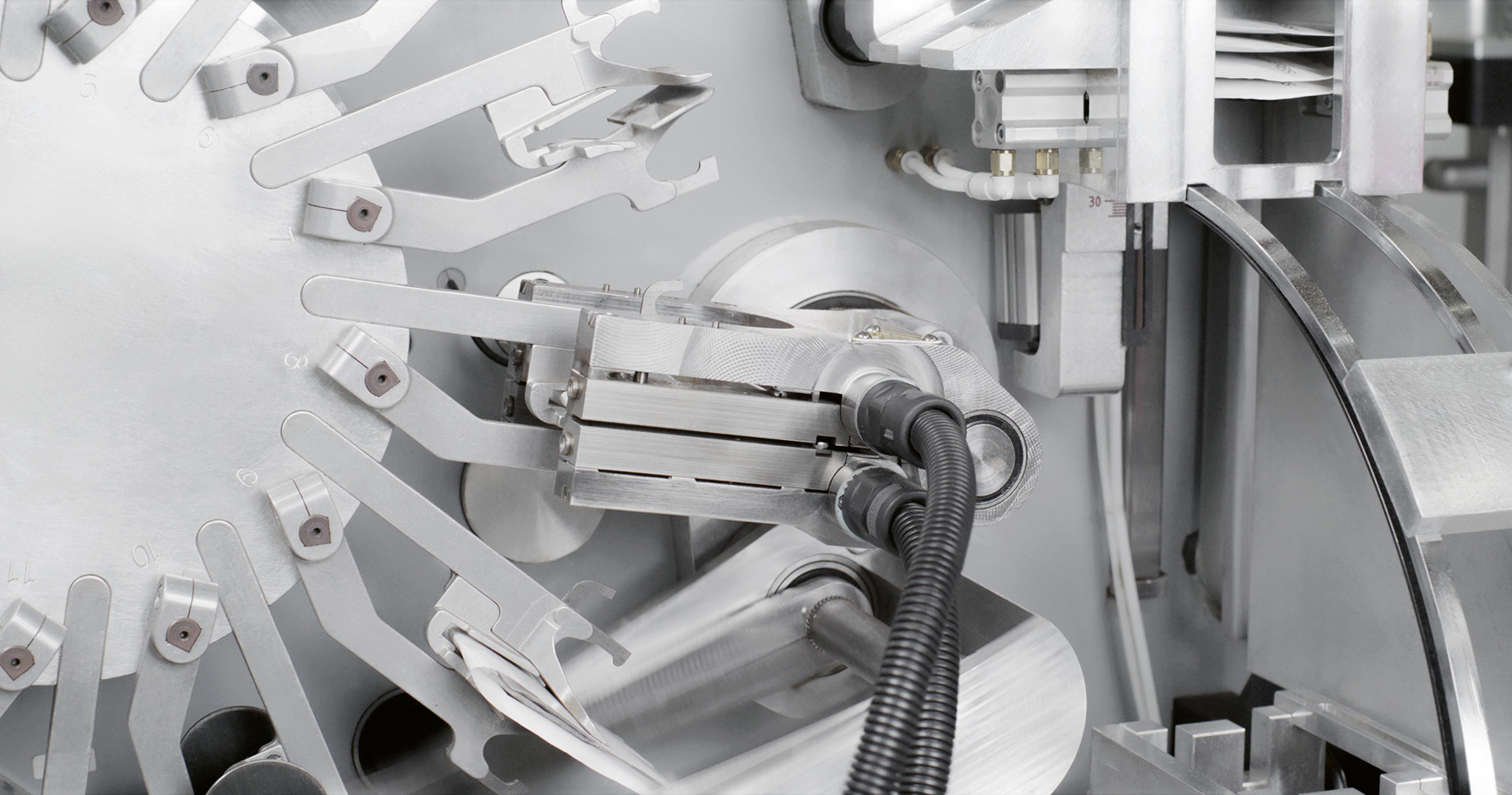

Packaging versatility
Naked bags, crimped and heatsealed outer envelopes packed in one row.
-
Integrated PC
Integrated PC for working cycle logic and quality control.
-

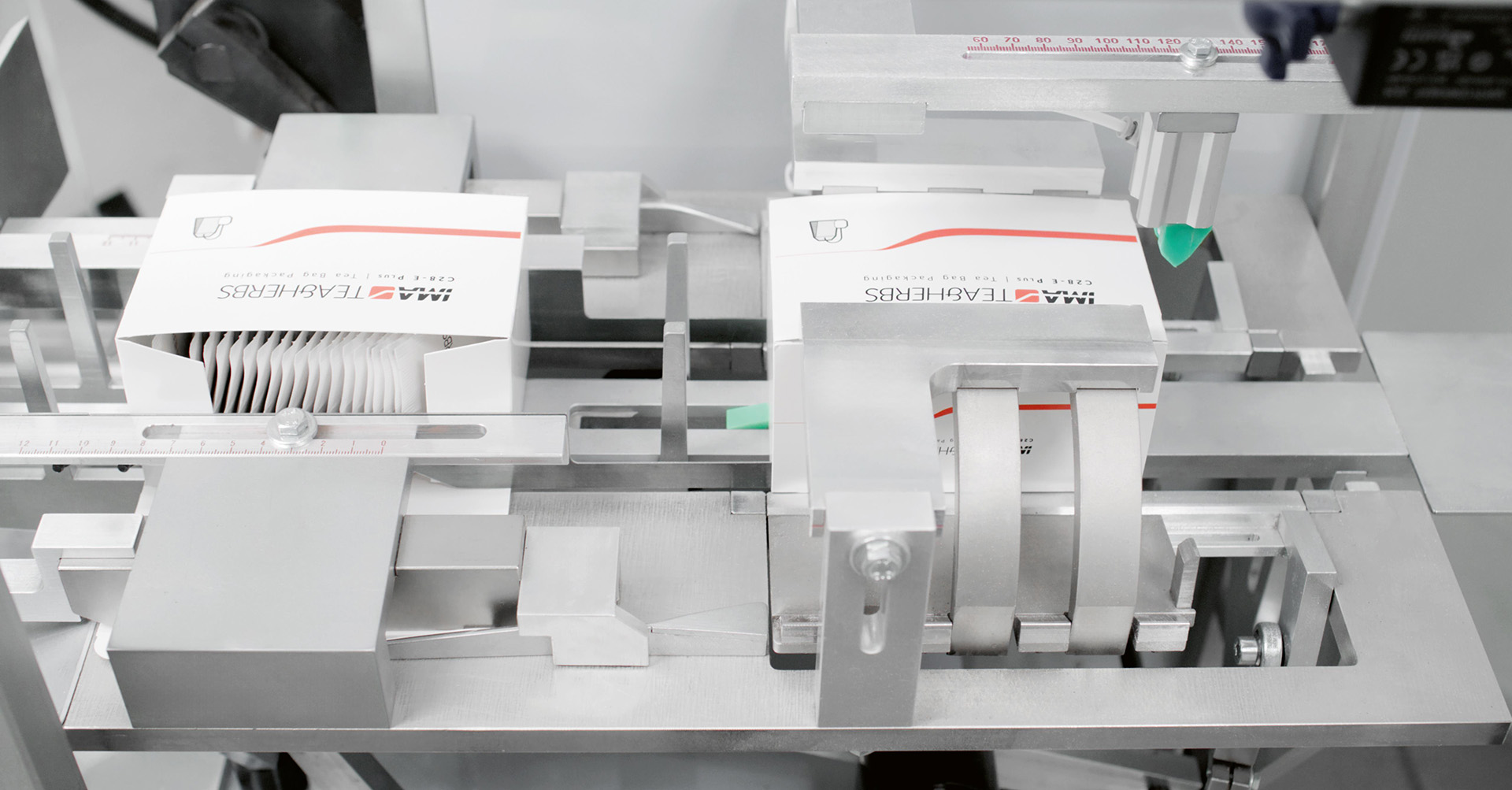

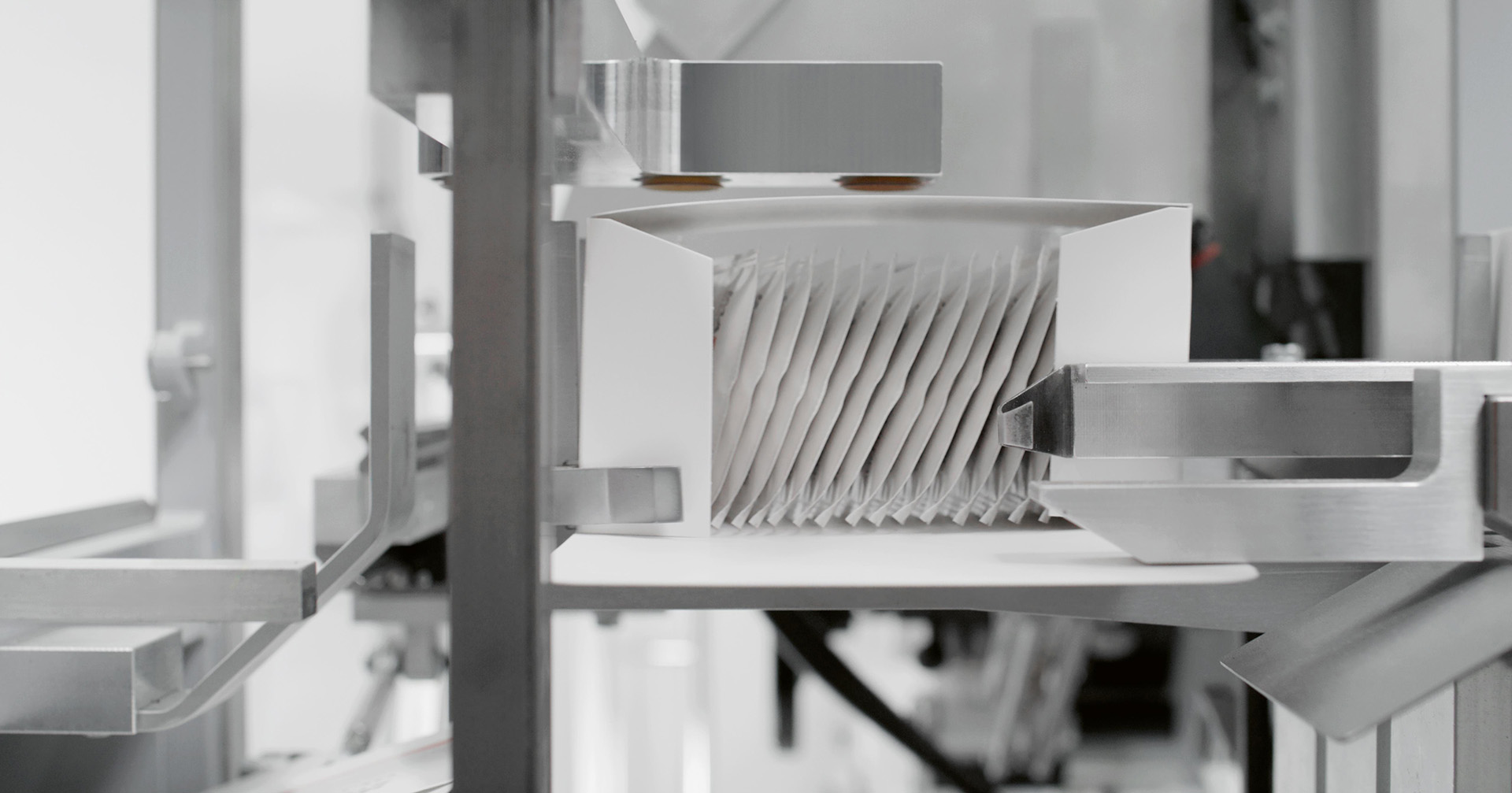

Automatic cartoning
It can be equipped with an automatic cartoning attachment for pre-glued cartons in one row.
-

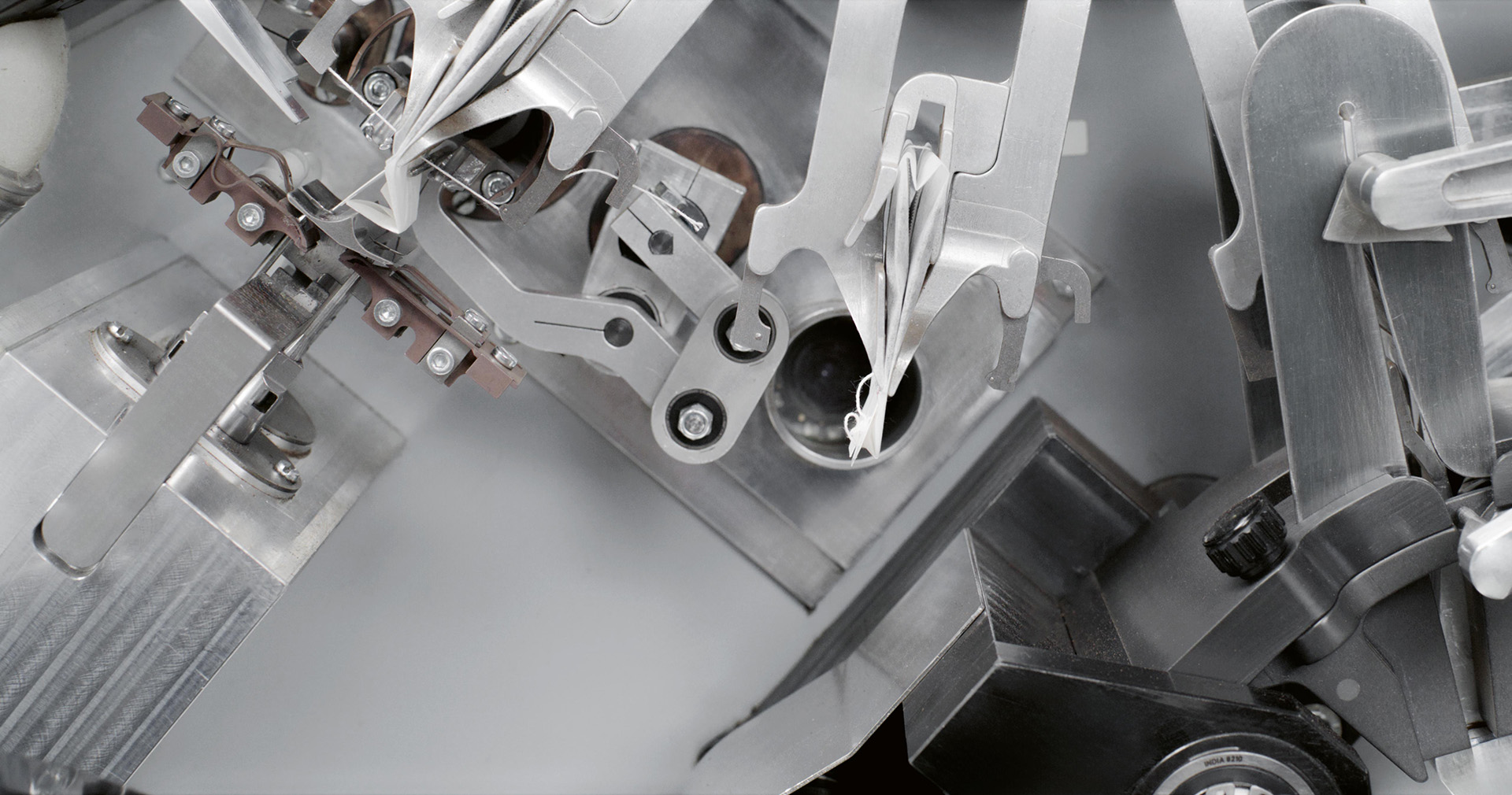

Video camera
Knot conformity constantly controlled via video camera with dedicated display.
-
Fast count changeover
Electronic counting and stacking unit for simple, fast count changeover without part replacement.

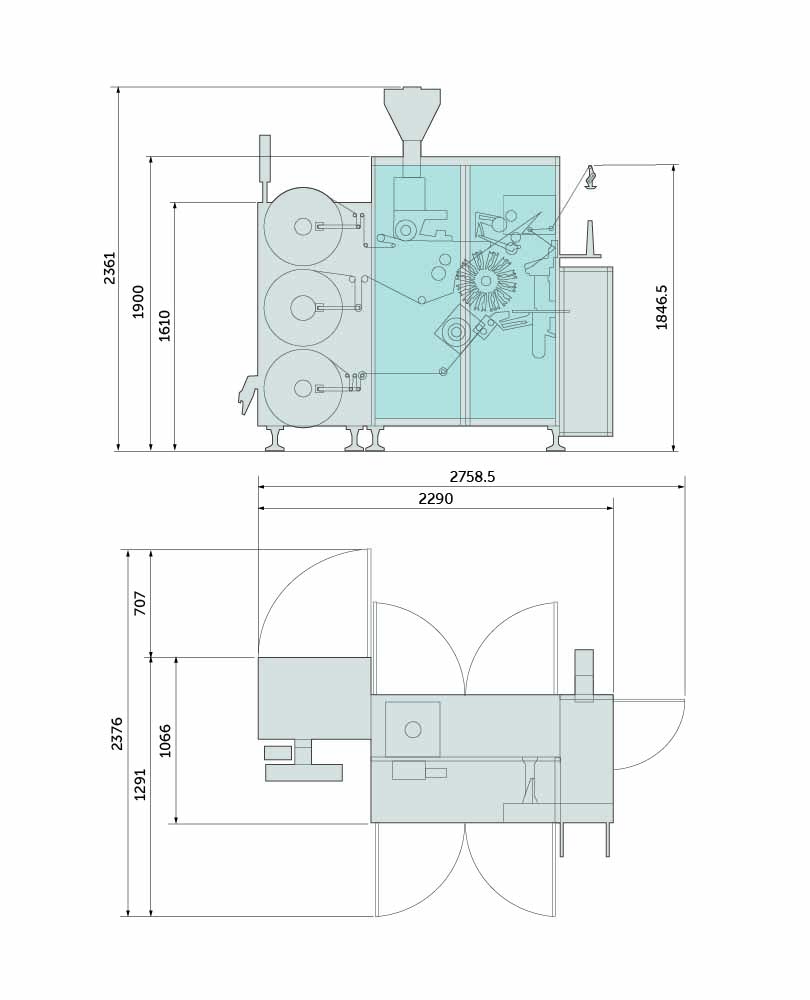

Technical information
| C28-E PLUS TECHNICAL DATA | |
| Machine speed (Bags/minute) | Up to 250 (naked bags, crimped and heatsealed outer envelope) |
| Tea bag capacity | Up to aproximately 3.0 grams |
| Filter bag maximum volume | 9.0 cubic centimeters |
| Power required | Total installed power: 13 kW Maximum power consumption: 3.5 kW |
| Compressed air | Exercise pressure: 6 bar Consumption: up to max 150 Nl/min. |
| Machine net weight | Max. 1950 Kg |
