C2000 Tea bag packaging

Machine overview

The efficiency you deserve

The C2000 is ideal for high-capacity, high-efficiency production requirements for customers wanting a reliable solution for heatsealable, double-chamber bags without metallic staples. A small adhesive paper element is used to fix the tag and the cotton thread to the bag.
Equipped with a fully automatic splicing system for all packaging materials, the C2000 ensures user-friendliness and production efficiency. If production is not limited to black tea, non free-flowing products can be handled by a special feeder.
A variety of carton styles and sizes are available thanks to the flexibility of the cartoning unit which uses flat blanks.

Production plant

IMA Tea & Herbs

Machine highlights

  1. High speed

    High production speed: up to 450 bags/minute.

  2. Automatic splicing

    Packaging material automatic splicing: no processing speed reduction, greater efficiency, one operator can manage up to 3 machines.

  3. Adhesive paper for fixing

    Adhesive paper fixes tag and thread to bag to avoid use of aluminium staples.

  4. Packaging versatility

    Packaging versatility: countless carton styles and sizes can be obtained from flat blanks.

  5. Reduced maintenance

    Reduced maintenance requirements and high production efficiency.

  6. Advanced product control

    Dedicated product control devices monitor product quality and packaging reliability.

  7. Integrated PC

    Integrated PC for working cycle logic and quality control.

Machine details

Machine video trailer

Tea bag packaging

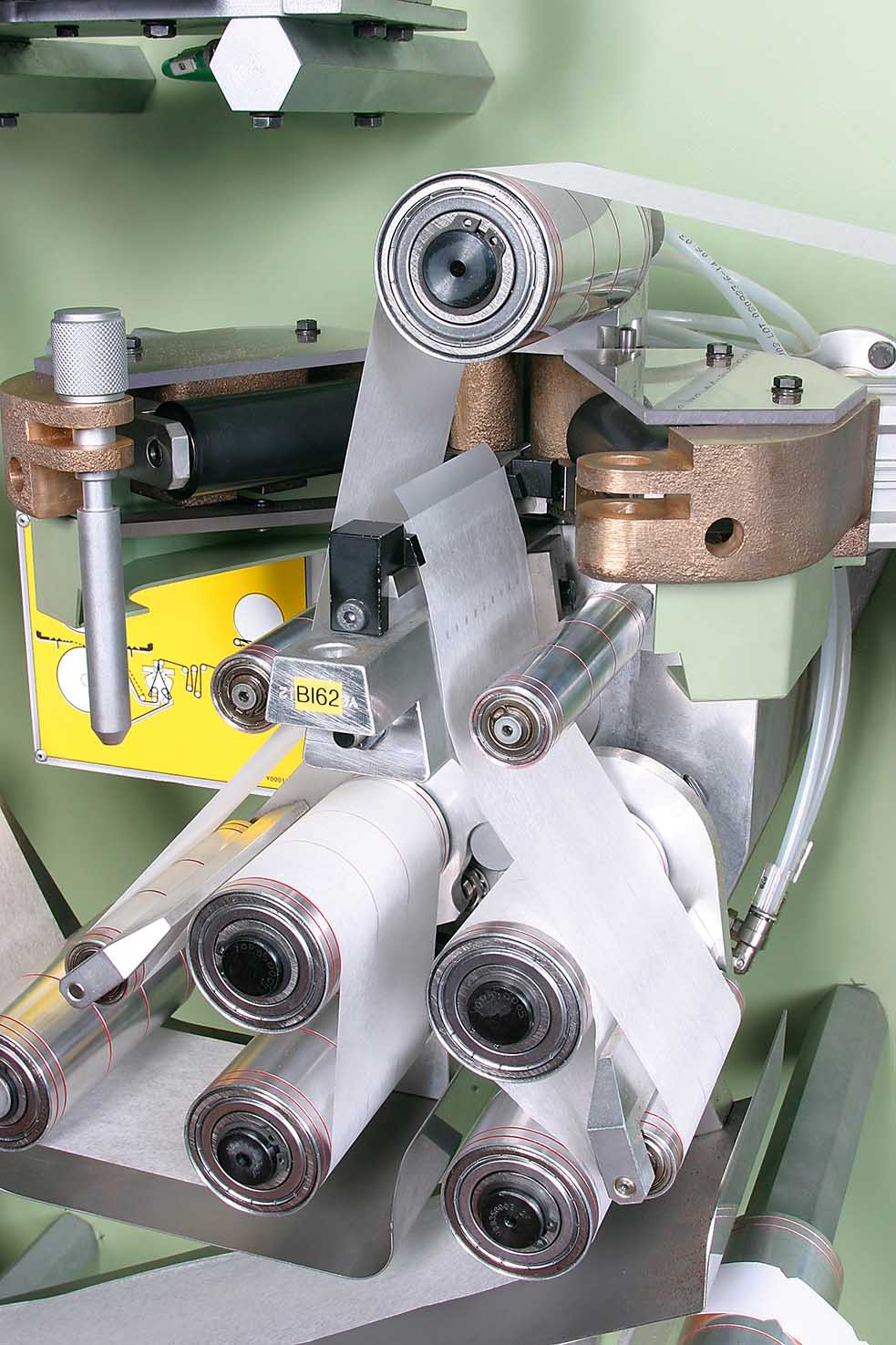

Filter paper reel automatic splicing

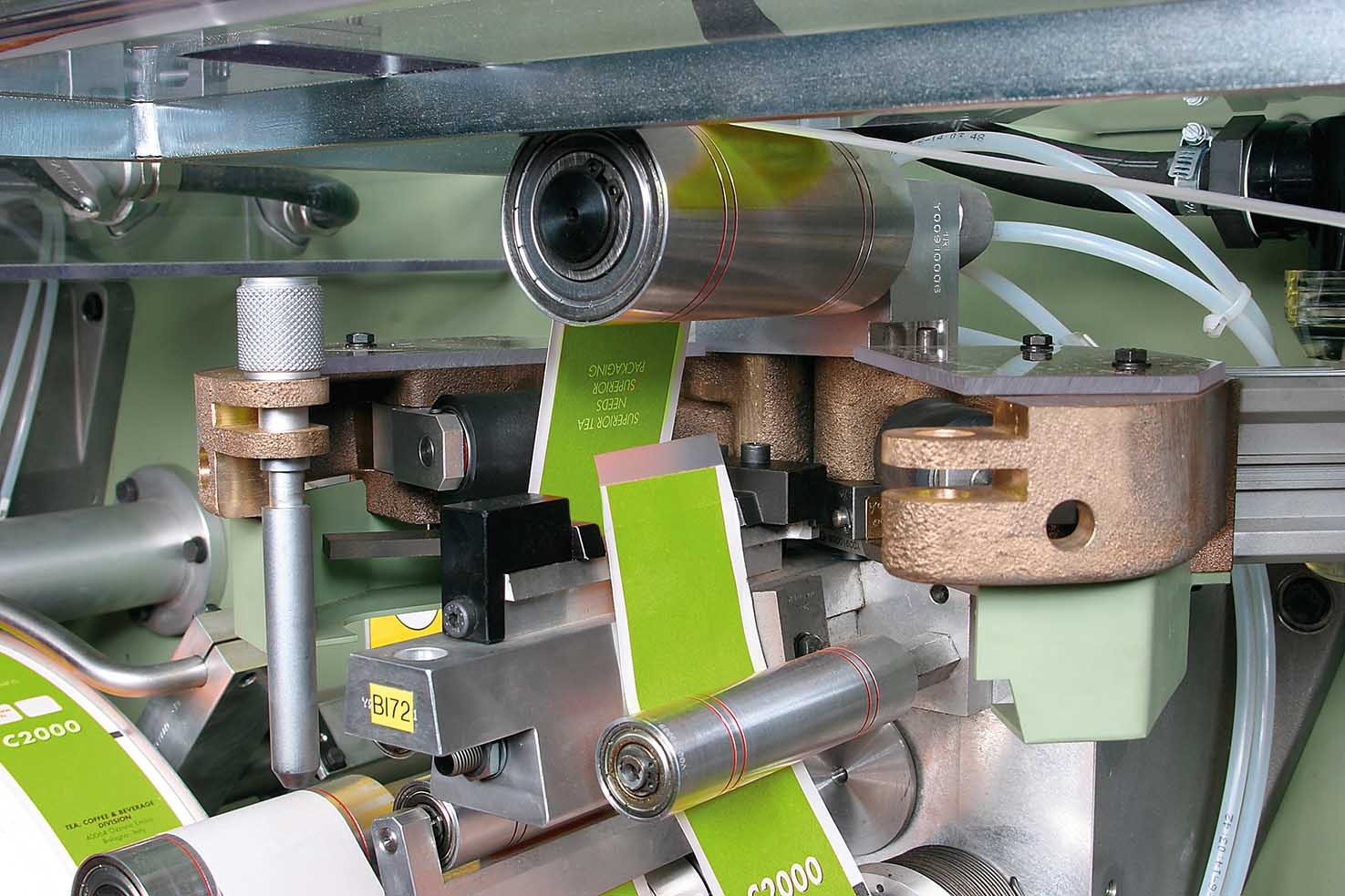

Outer envelope paper reel automatic splicing

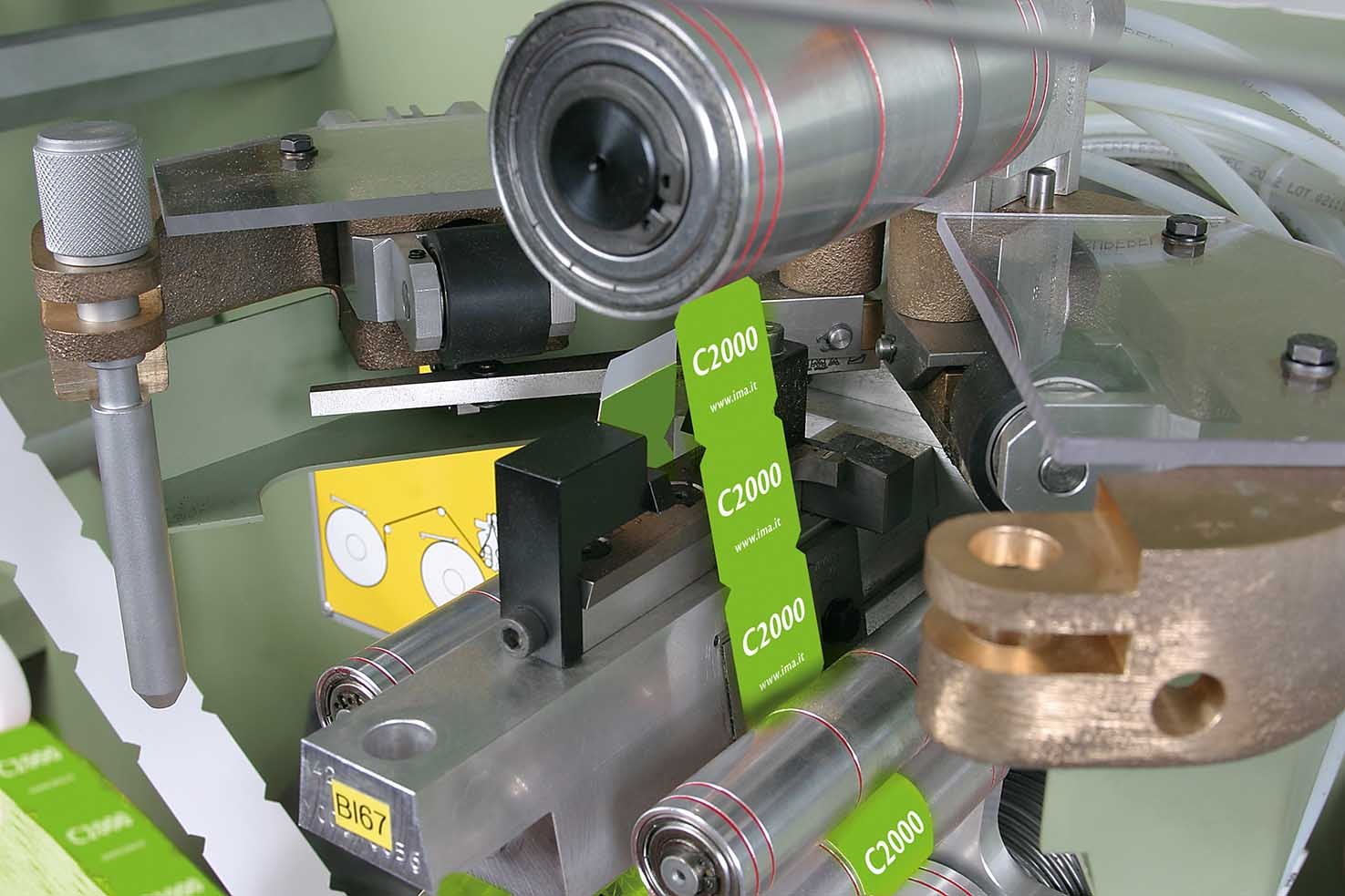

Tag paper reel automatic splicing

Technical information

TECHNICAL DATA C2000
Machine speed (Bags/minute)Up to 450
Tea bag capacityUp to aproximately 4.0 grams
Filter bag maximum volume14.3 cubic centimeters
Power requiredTotal installed power: 18 kW
N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air (without outer envelope)

Duty pressure: 6 bar

Consumption: max 500 Nl/min.

Air supply connection 1/2 b.p.s.

Compressed air (with outer envelope)

Duty pressure: 6 bar

Consumption: max 400 Nl/min.

Air supply connection 1/2 b.p.s.

Machine net weightMax. 6,300 Kg
