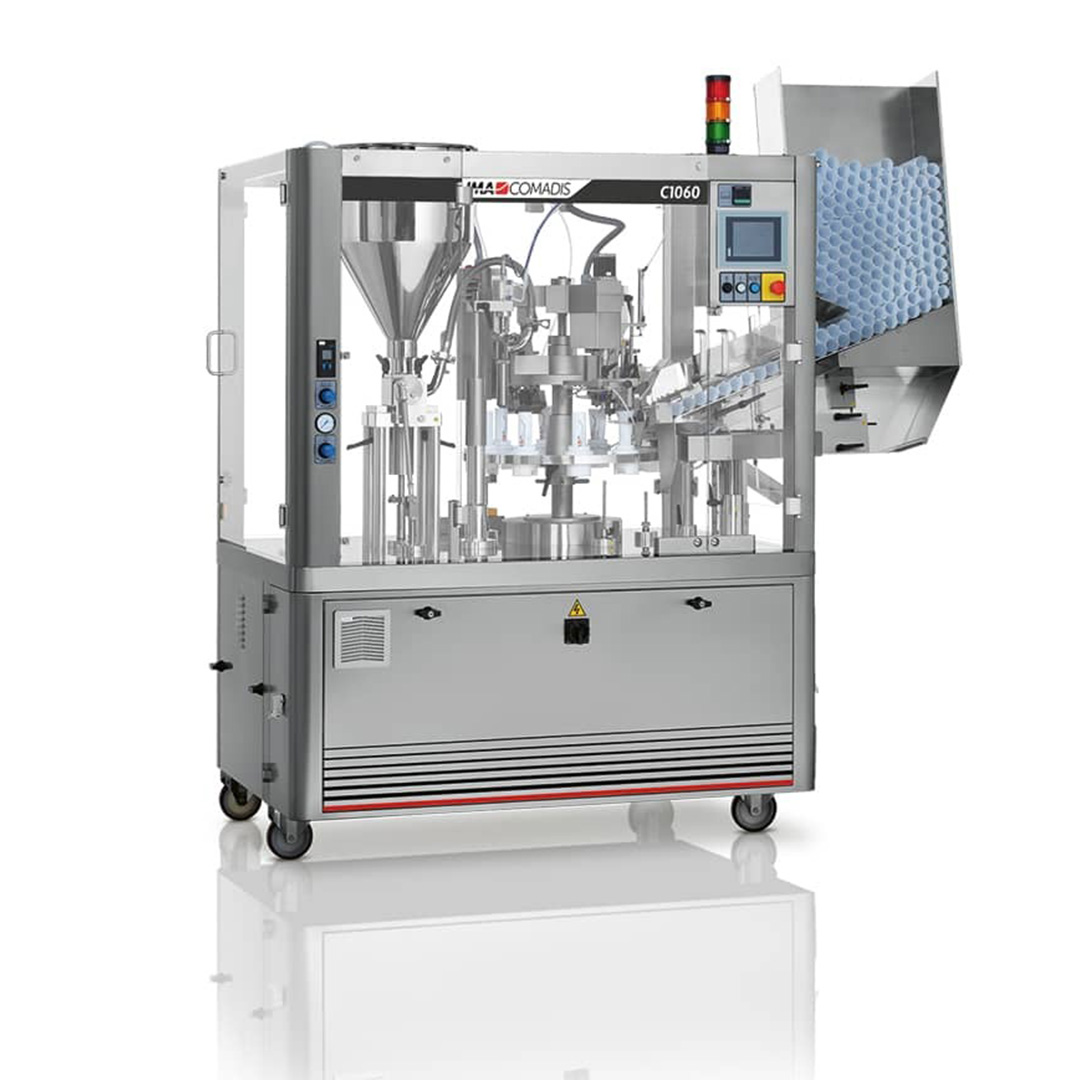

C1060 Tube Filling

Machine overview

Compact, smart, effective. Great performance in small footprint.

“Quintessence” of reliability, ergonomy and ease of use, this model is an evidence of Comadis incomparable capability in manufacturing effective  tubefillers,  with accurate finishing and brilliant performances.

Production plant

IMA Comadis

Machine highlights

  1. Tube feeders

    Choice of automatic/robotized tube feeders.

  2. Dosing pumps

    Easy-to-disassemble dosing pump.

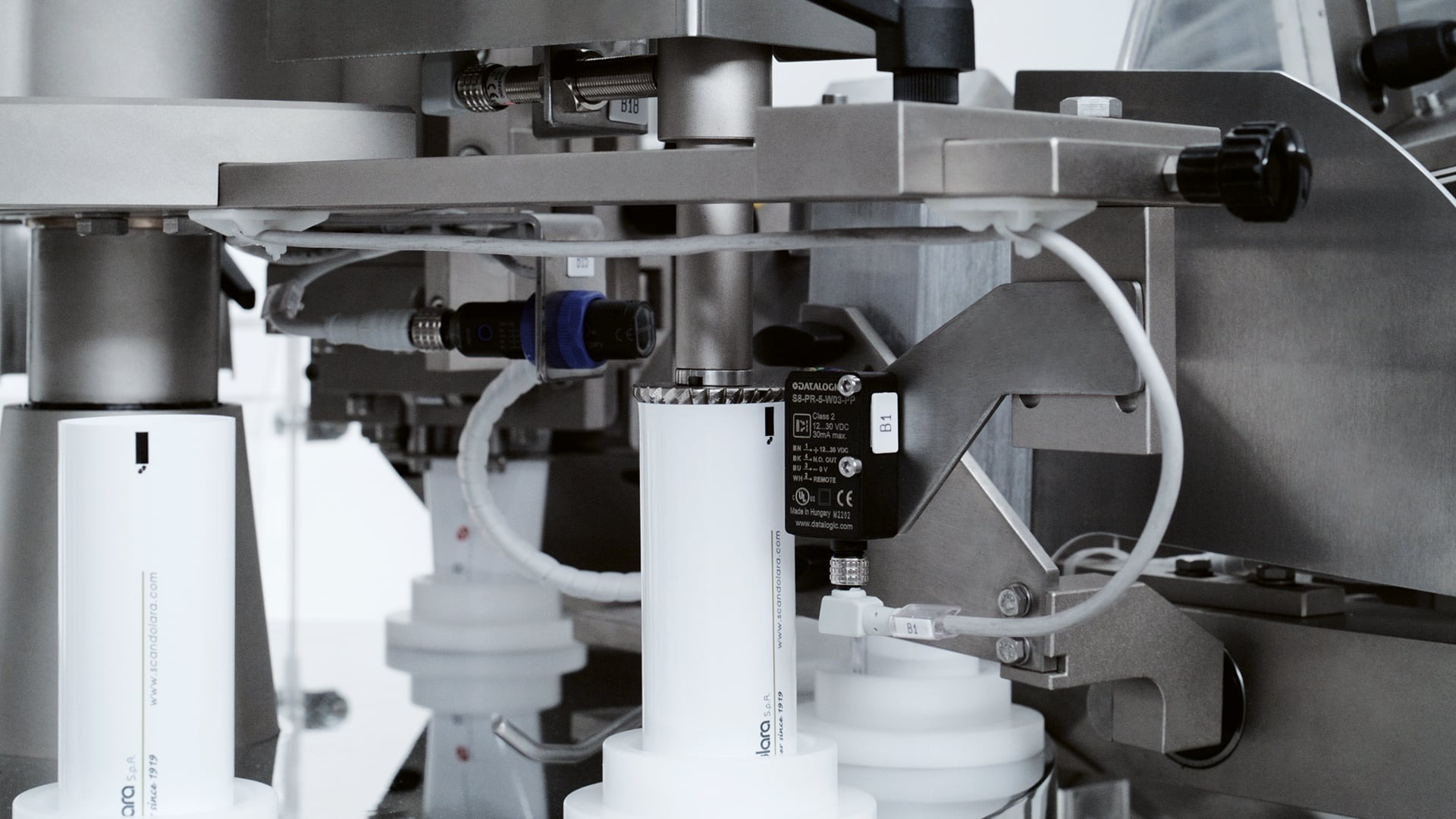

  3. Diving nozzle

    Diving nozzle with positive shut-off valve and cleaning by air blow.

  4. Special seals

    Customized “designer seals” on request.

  5. Closing heads

    Quick interchangeability of closing heads.

  6. Tool-free intervention

    Simplified and easy change of size parts, without tools.

  7. Electrical cabinet

    Electrical cabinet integrated within machine footprint.

  8. Data collection

    Batch data collection – by pen drive – via USB port.

C1060
Top-tier quality in a compact layout

The compact design makes this machine suitable to meet all needs. Despite the reduced footprint, this model boasts the use of first-class components coming from larger models of our range, for long service life. The perfect balance that comes from experience.

Machine details

Machine video trailer

Advanced dosing pump

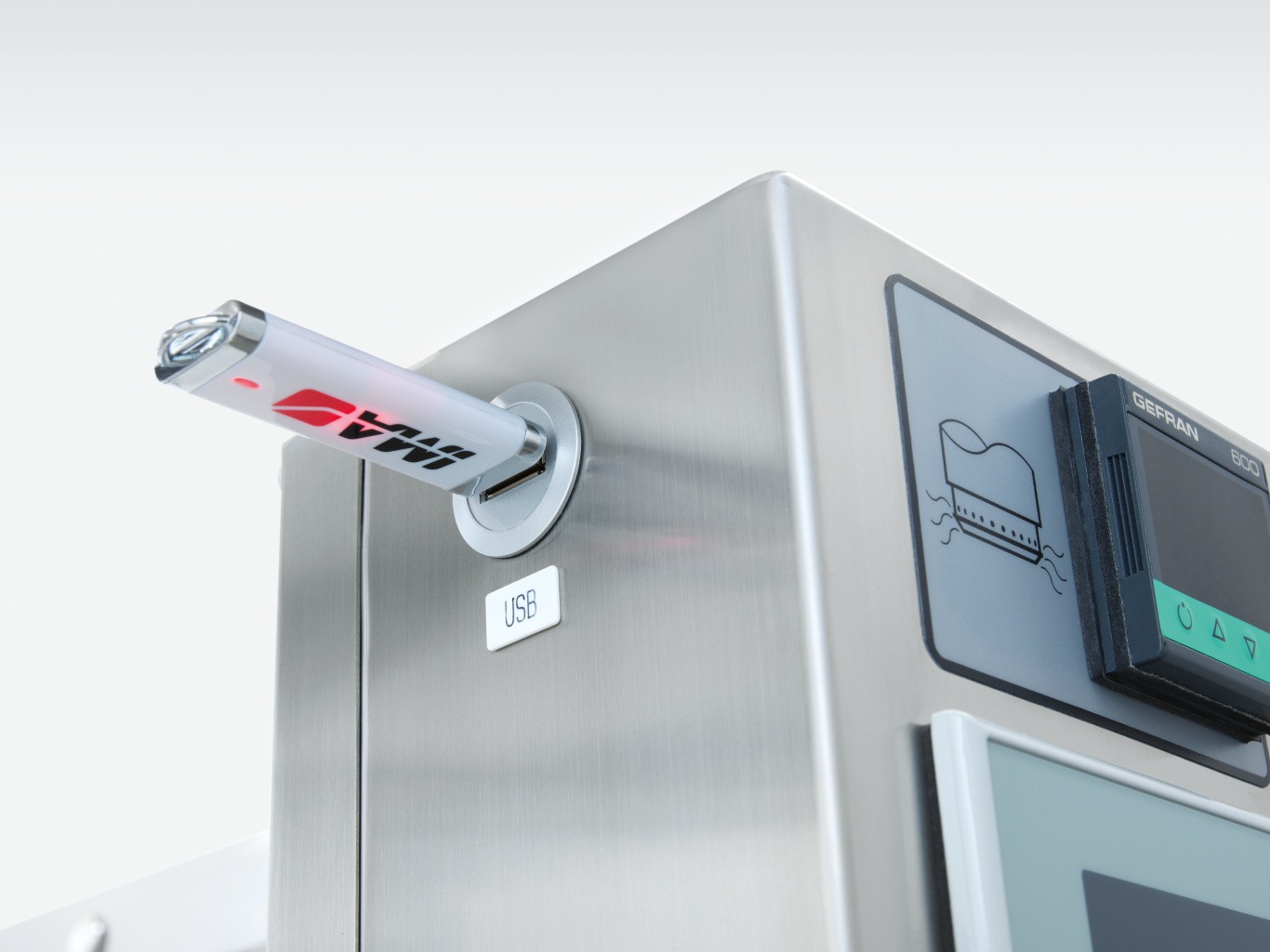

Batch data collection via USB port

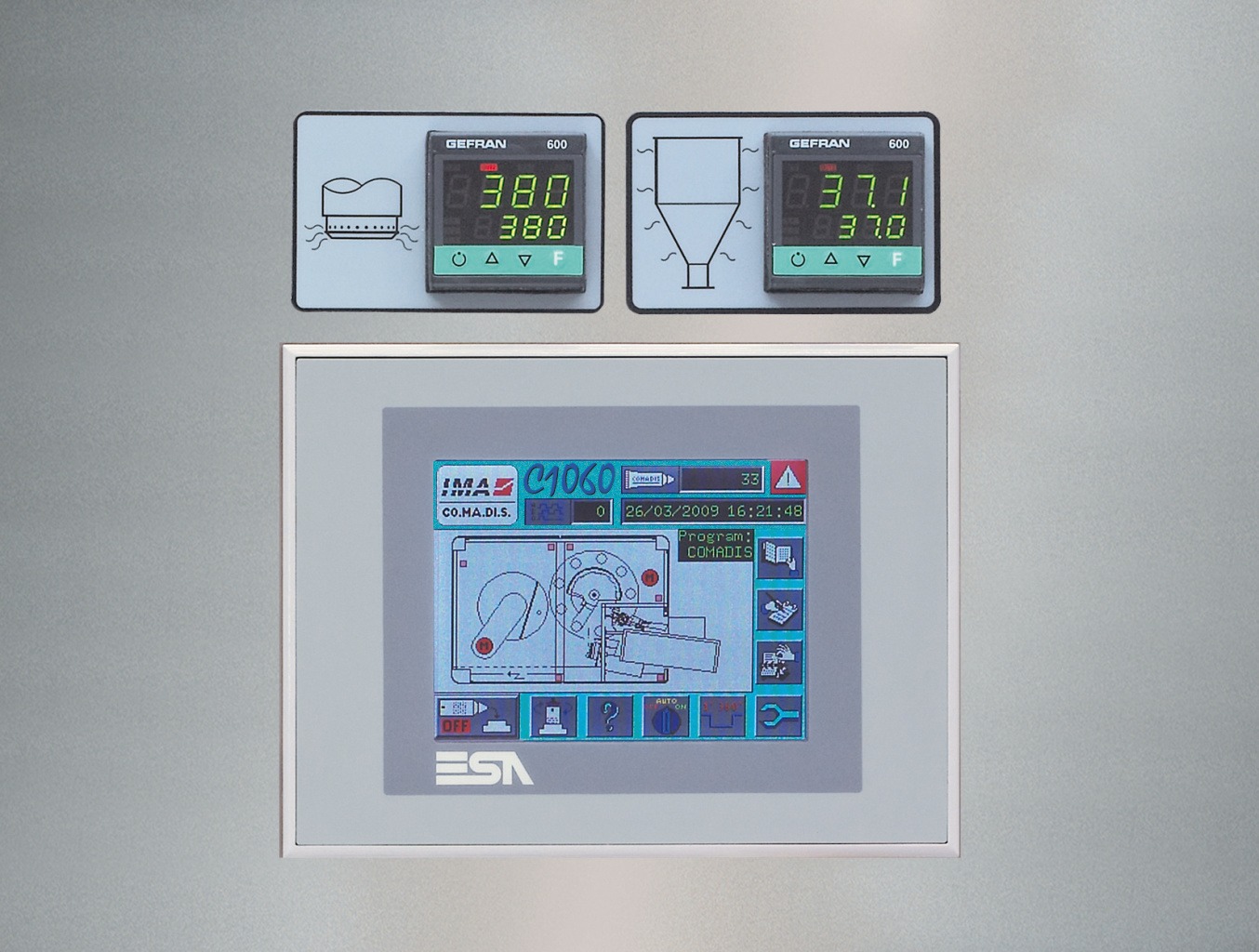

Programmable “touch screen” colour panel

Technical information

TECHNICAL DATA C1060
Mechanical speedUp to 60 tubes/min. (C1060)
Filling volume2-250 ml (on request up to 350 ml)
Tube diameter10-50 mm (on request polythene and aluminium tubes up to 60 mm)
Tube length60-250 mm
Working stations10
