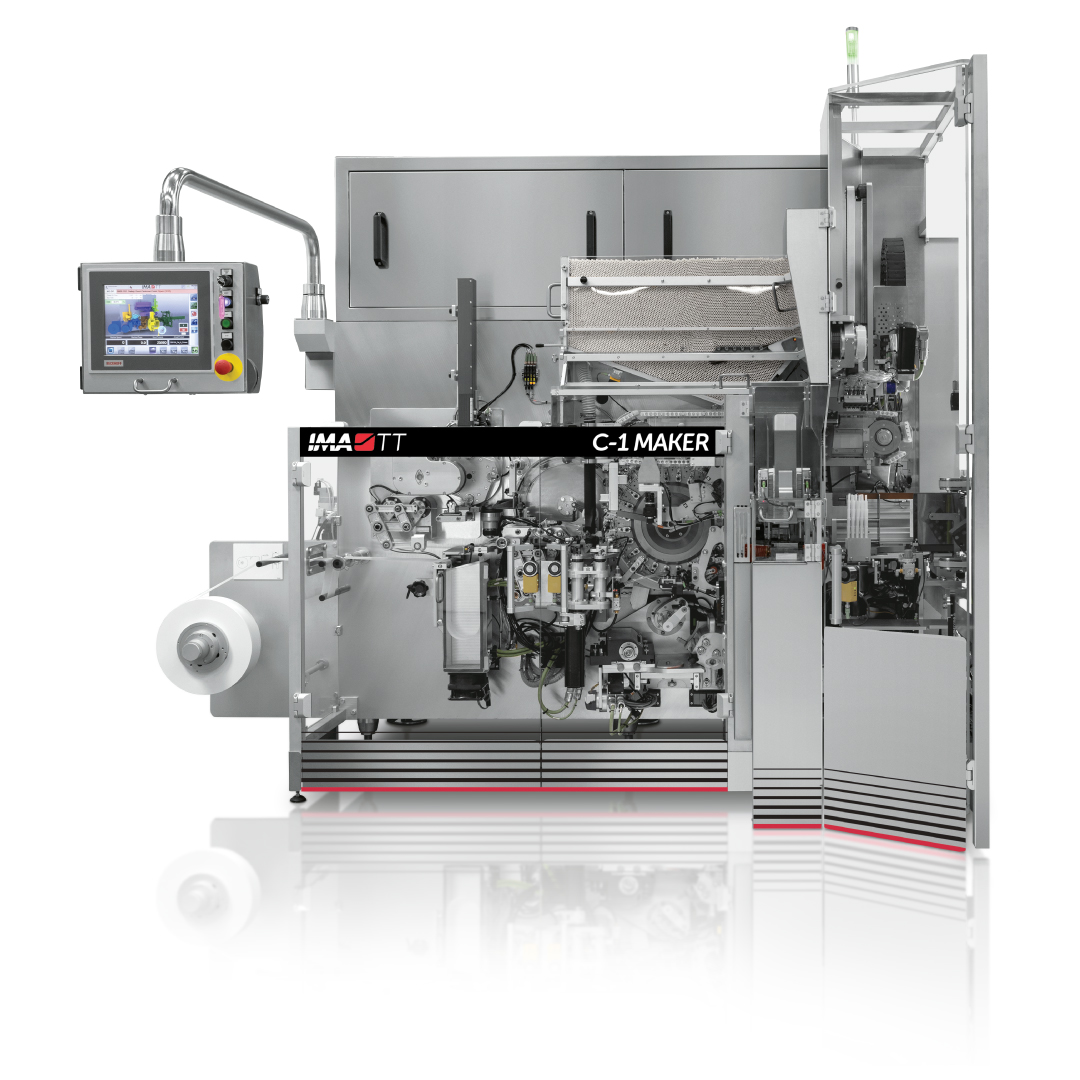

C-1 MAKER Cone Making

Machine overview

Precise, quality controlled, and efficient technology.

C-1 Maker is a fully automated machine for producing pre-rolled cones for the hemp market. Rolling paper is unwound from a reel, while flat, pre-cut filters are picked from a hopper. The filters are M-folded, inserted into a wheel, and prepared for rolling.

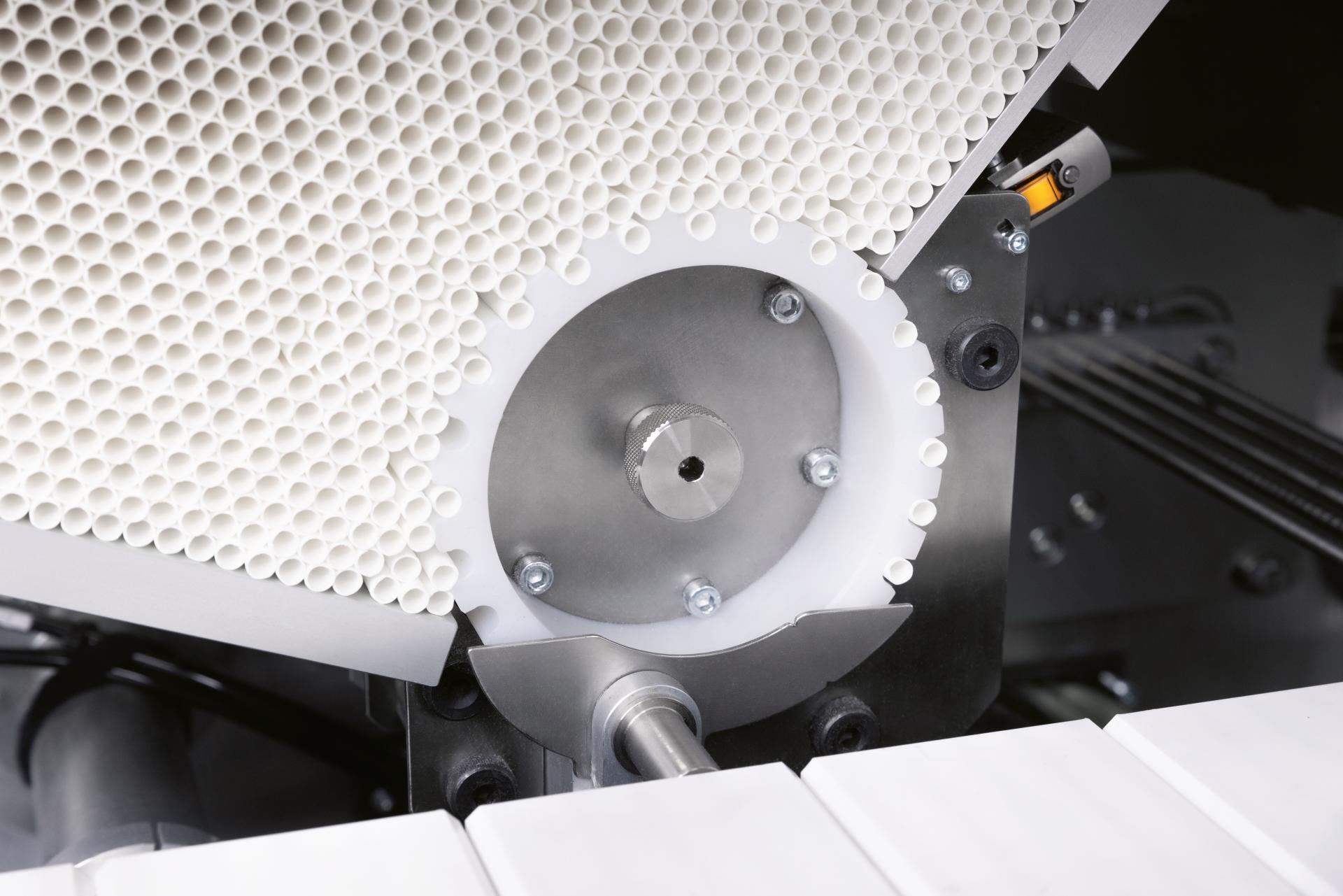

The paper is cut into a trapezoidal shape and transferred to a cone-shaped pin where glue is applied and rolling occurs. The rolled filter is then inserted, completing the cone. A vision system checks each cone before transferring it to the stacking area, where patented cardboard supports hold the cones. A paper straw is inserted on top to protect product quality during shipment.

Production plant

IMA TT

Machine highlights

  1. Speed

    Production speed up to 200 cones per minute.

  2. Product range

    Extended product range covering the most common cone sizes.

  3. Automation

    Automated straw insertion on top of each stack.

  4. Configurations

    Upgradable with different cartoning configurations.

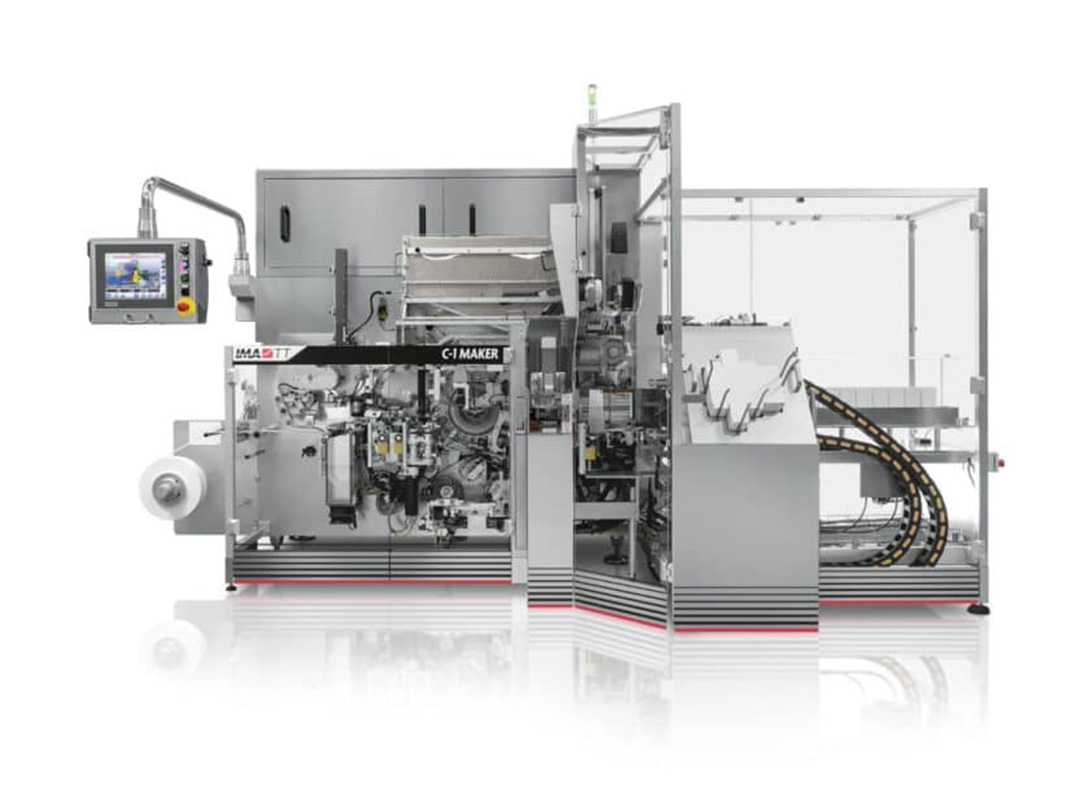

C-1 Maker with cartoning machine

C-1 Maker can integrate downstream packaging machines thanks to the countless solutions available within the IMA Group, in order to provide tailor made outer boxes for any need, from B2C (3-20 pcs) to B2B (50-200 pcs) packaging.

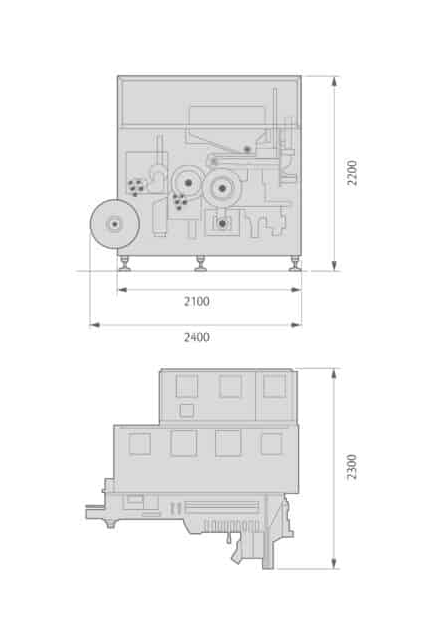

Technical information

TECHNICAL DATA
Production capacityUp to 200 cones/minute
Compressed Air6 bar
Power supply40A
Weight3500kg/7715lb
