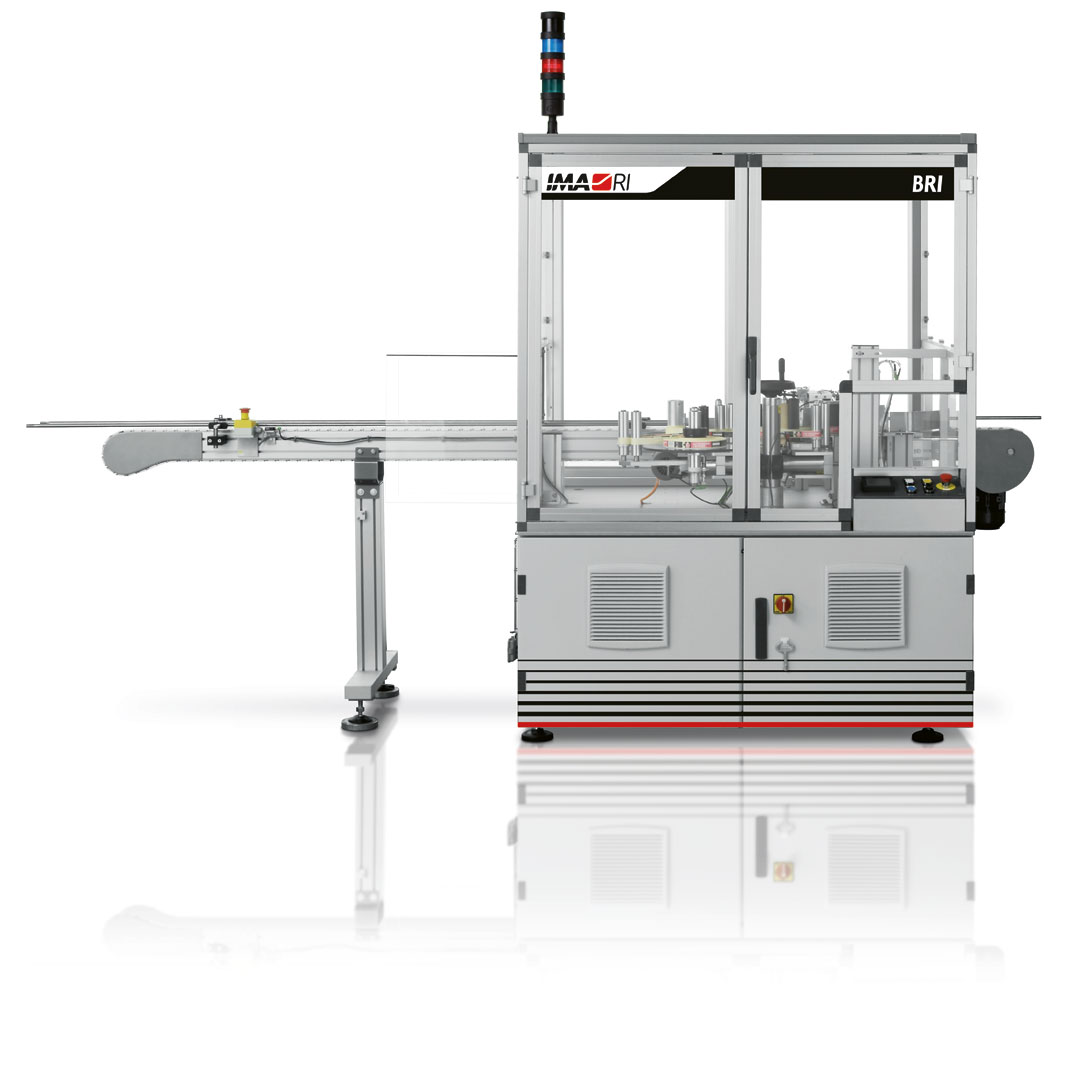

BRI Series Banding
Machine overview
Automatic banding machine for round boxes of processed cheese.
Automatic banding machine for applying pre-cut, self-adhesive banderoles on round boxes of processed cheese.
The BRI Series can be completed with a stacking unit system and is available in single or double-lane configurations reaching a speed of up to 75 boxes/min.
Production plant
IMA RI, IMA Corazza
Machine highlights
-
Automatic banding for round cheese boxes
Efficient system designed specifically to apply pre-cut, self-adhesive banderoles on round processed cheese boxes.
-
High-performance banding efficiency
The BRI Series ensures fast and consistent banding operations, maintaining quality even at high production speeds.
-
Optional stacking unit integration
The machine can be equipped with a stacking unit to streamline downstream handling and improve production flow.
-
Flexible single or double-lane configurations
Available in single or double-lane versions, the system can reach speeds of up to 75 boxes per minute, adapting easily to different output requirements.
Machine details
Technical information
| BRI TECHNICAL DATA | ||
| Machine model | BRI 103 | BRI 103 DUO |
| Production capacity | Up to 55 boxes/min. | Up to 100 boxes/min. |
| Full load current | 3P x 400 Volt – 50 Hz – 5 Amp | 3P x 400 Volt – 50 Hz – 5 Amp |
| Compressed air consumption | 50 Nl/min. (min. op. pressure 6 bar) | 100 Nl/min. (min. op. pressure 6 bar) |
| Weight | 800 Kg Approx. | 1,200 Kg Approx. |
Box dimensions
| Box configuration | Box configuration |
| 6/6 – 8/8 – 12/12 | 6/6 – 8/8 – 12/12 | |
| A (min – max) | A (min – max) | |
| 110 – 112 | 110 – 112 | |
| B (min – max) | B (min – max) | |
| 14 – 90 | 14 – 90 | |
