BK-MF Cup & Tub Filling and Sealing

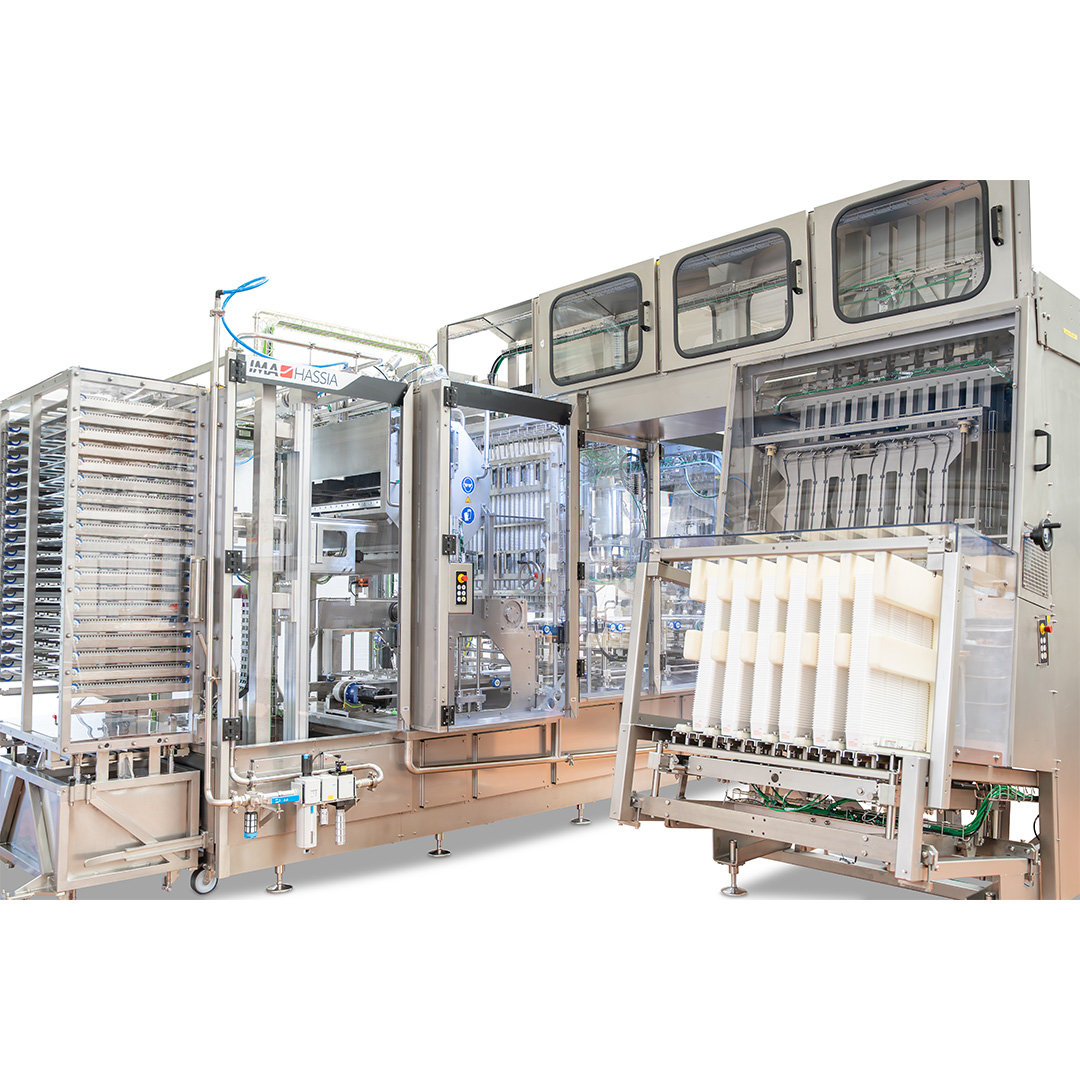

Machine overview

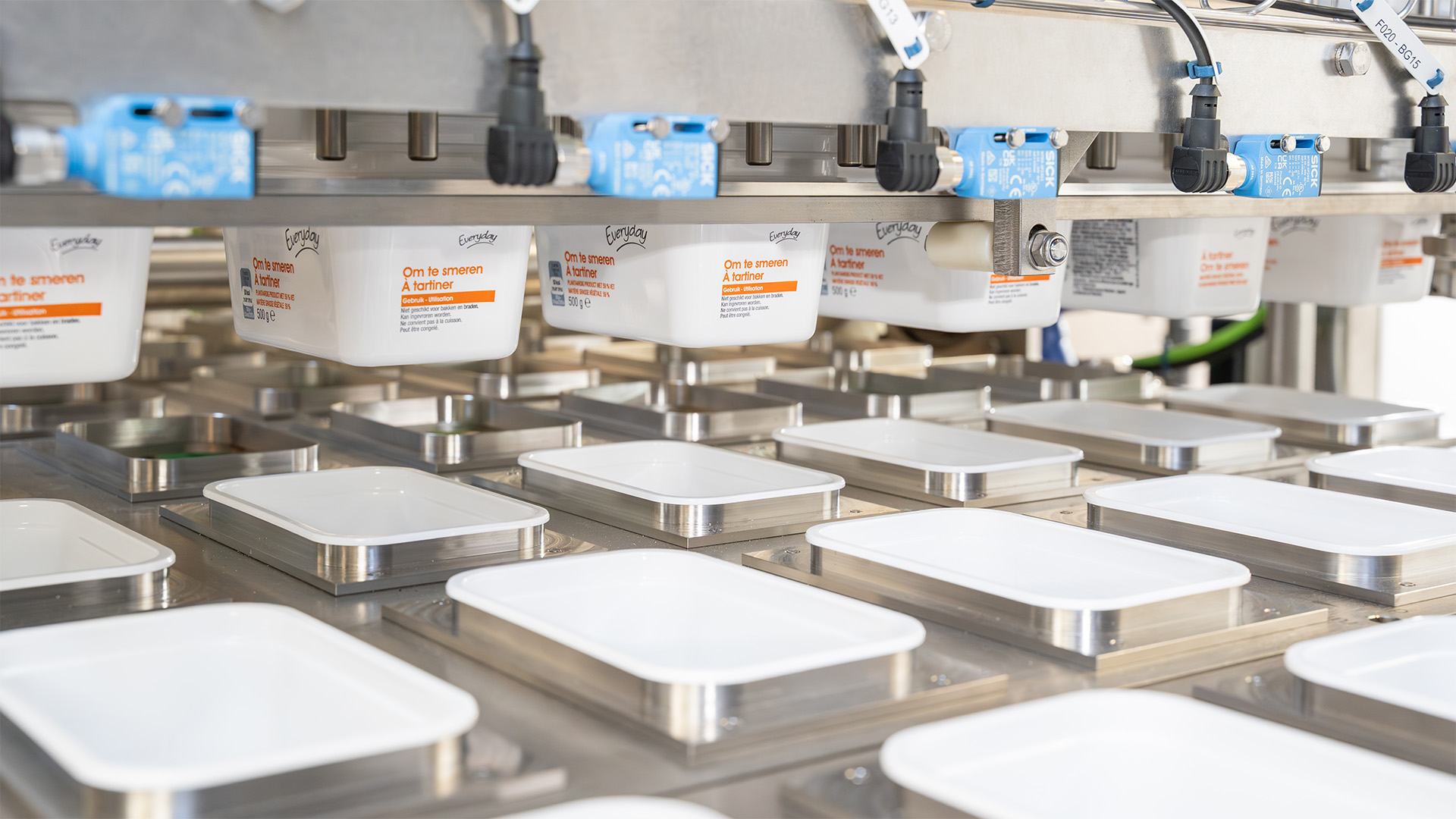

High-speed margarine filling.

This fill and seal machine for pre-formed tubs is built for filling margarine at high speeds, up to 60 strokes/min. It has a servo-driven chainless transport system, which allows accurate positioning of the cell plates. A recipe-controlled format exchange allows extremely efficient changeover for tubs with the same cup geometry and different cup heights.

Production plant

IMA Hassia

Machine highlights

  1. Servo-driven

    Servo-driven system.

  2. Chainless drive

    Chainless drive system.

  3. Evolutionary Format Adaption

    Evolutionary Format Adaption “Automatic Trolley Exchange”.

  4. Maximum precision

    Precise positioning of the trolleys under each station (especially lid, sealing and snap-on lid stations).

  5. Low on maintenance

    No repositioning of cell plates caused by chain elongation (less maintenance).

  6. Format change

    Recipe-controlled format change.

Machine details

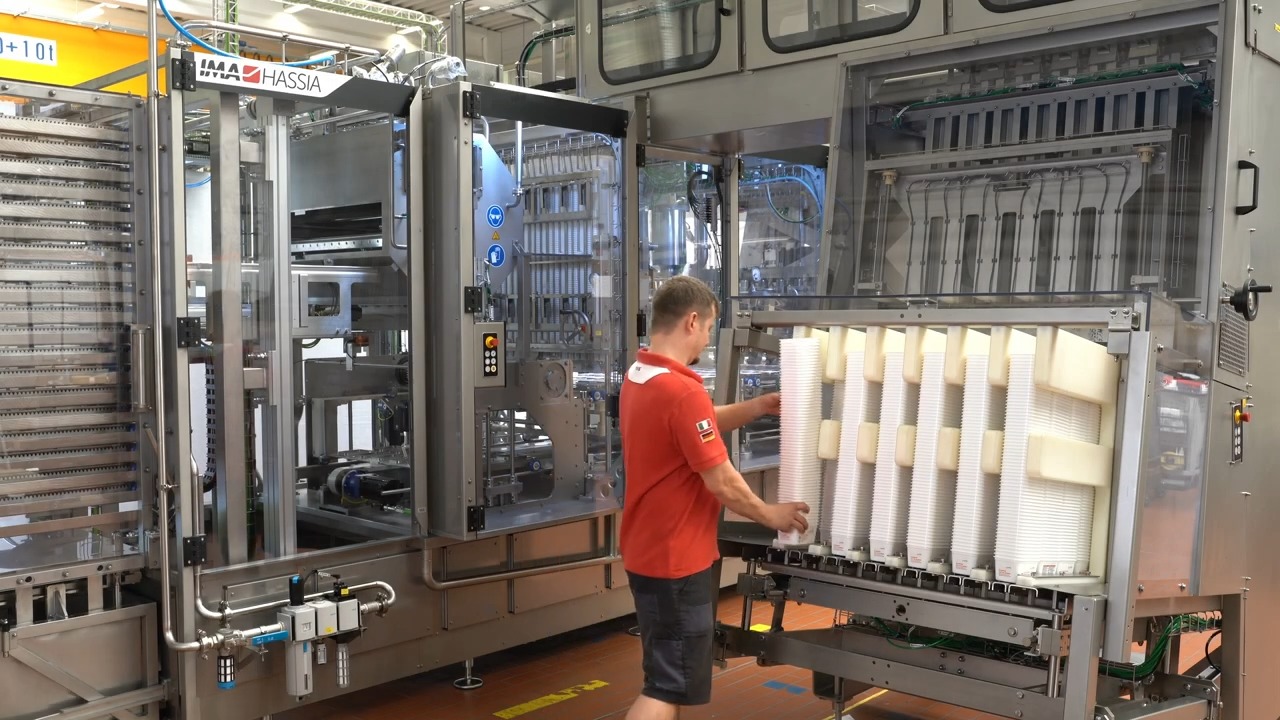

Machine video trailer

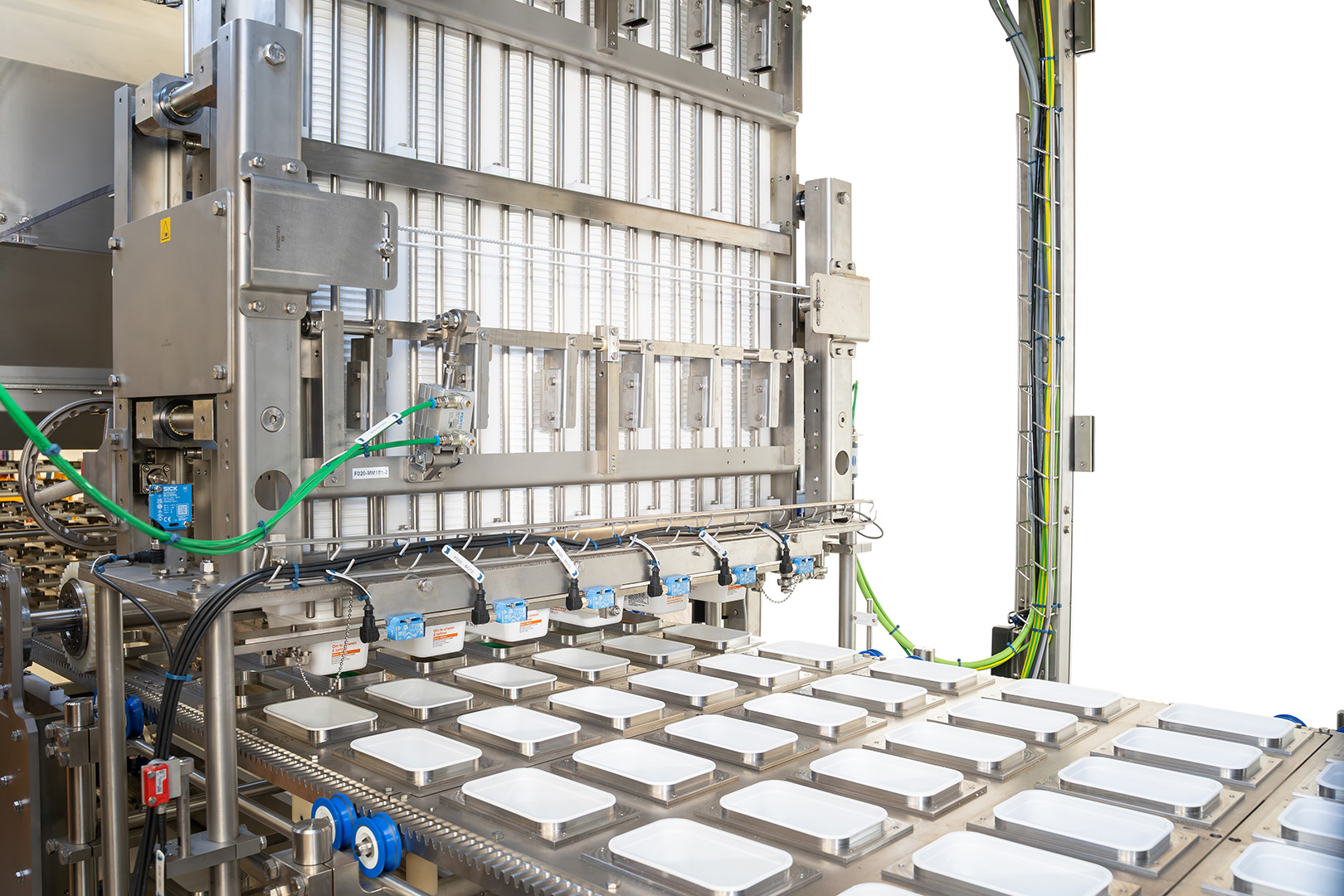

Tub magazine

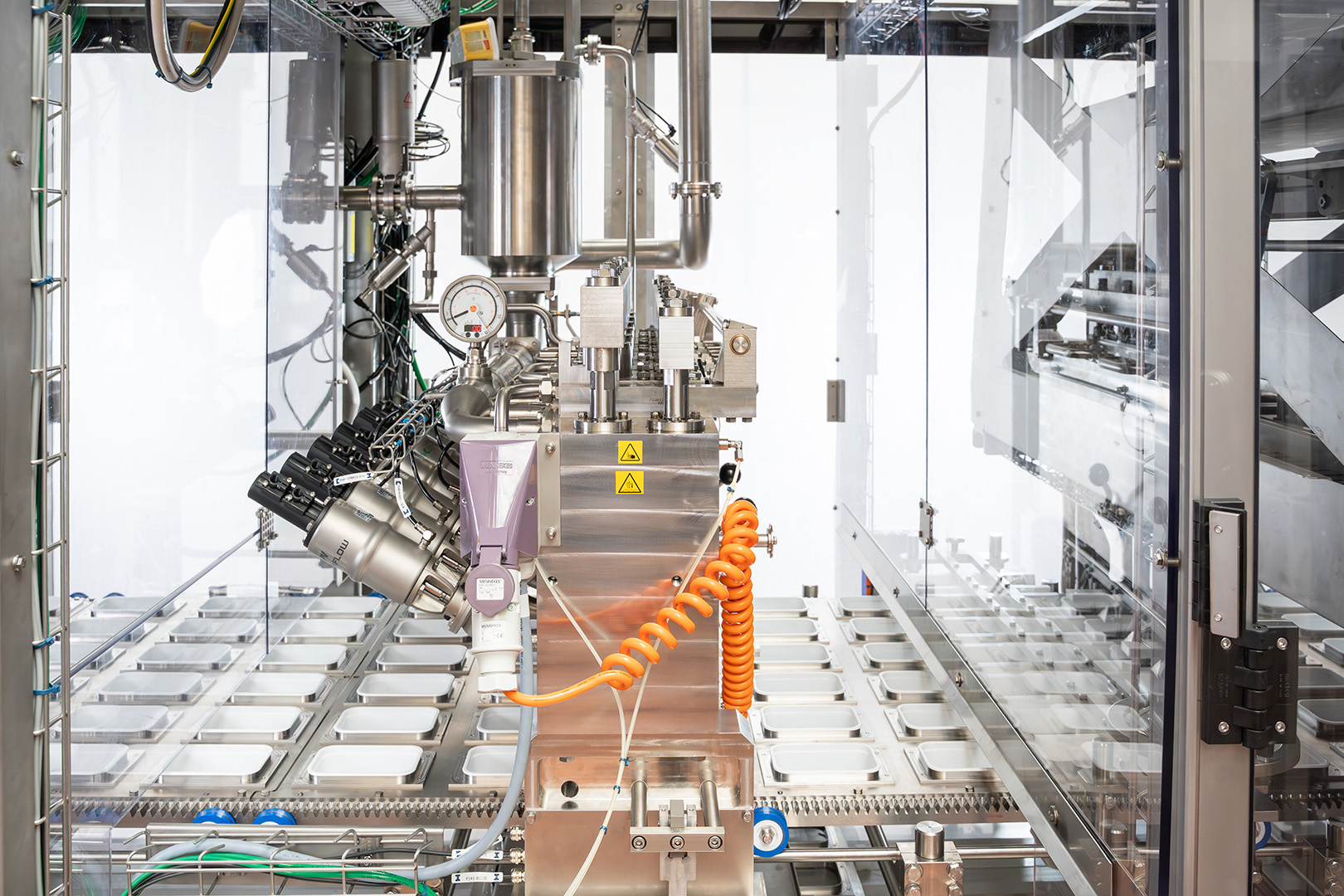

Margarine dosing system

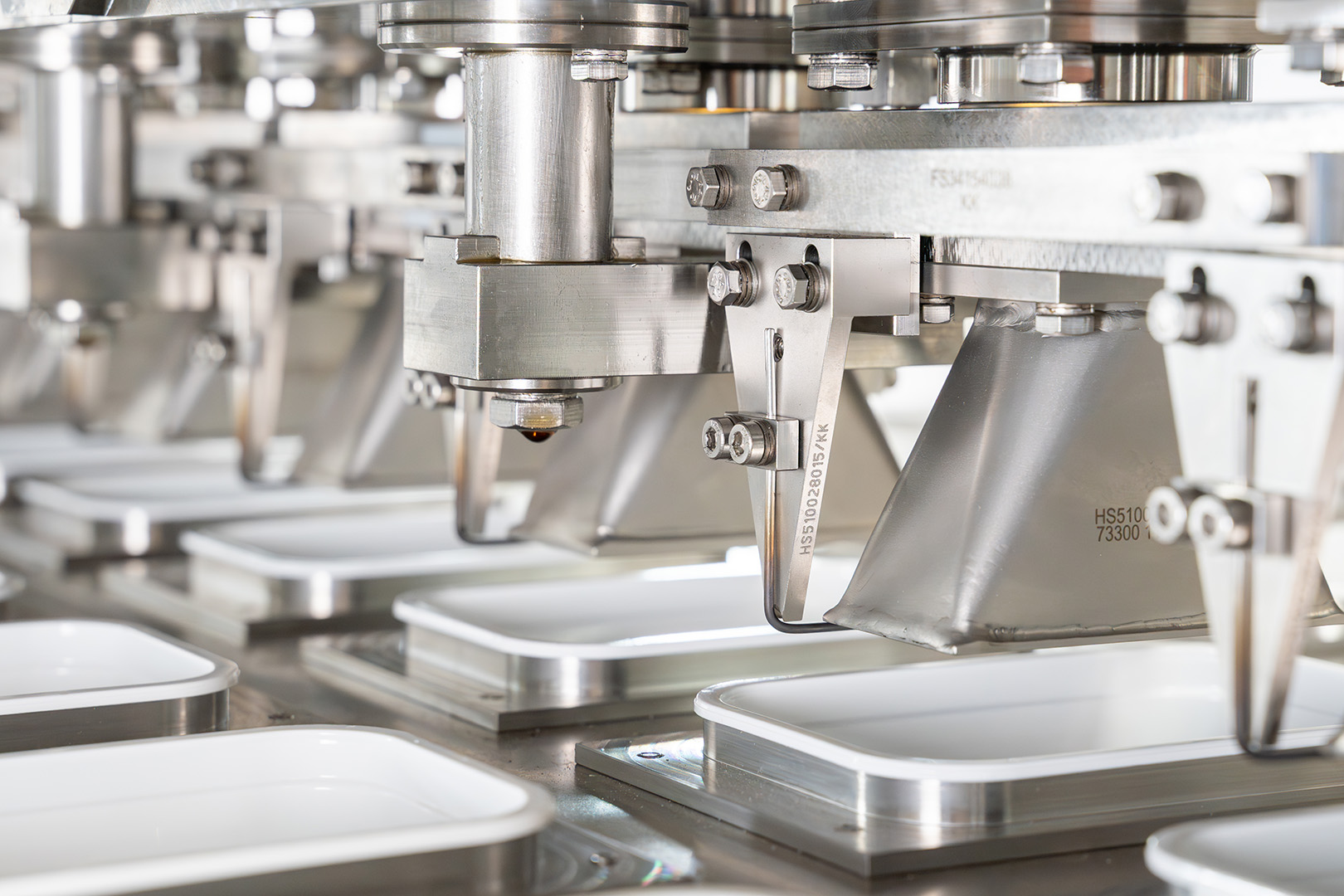

Dosing

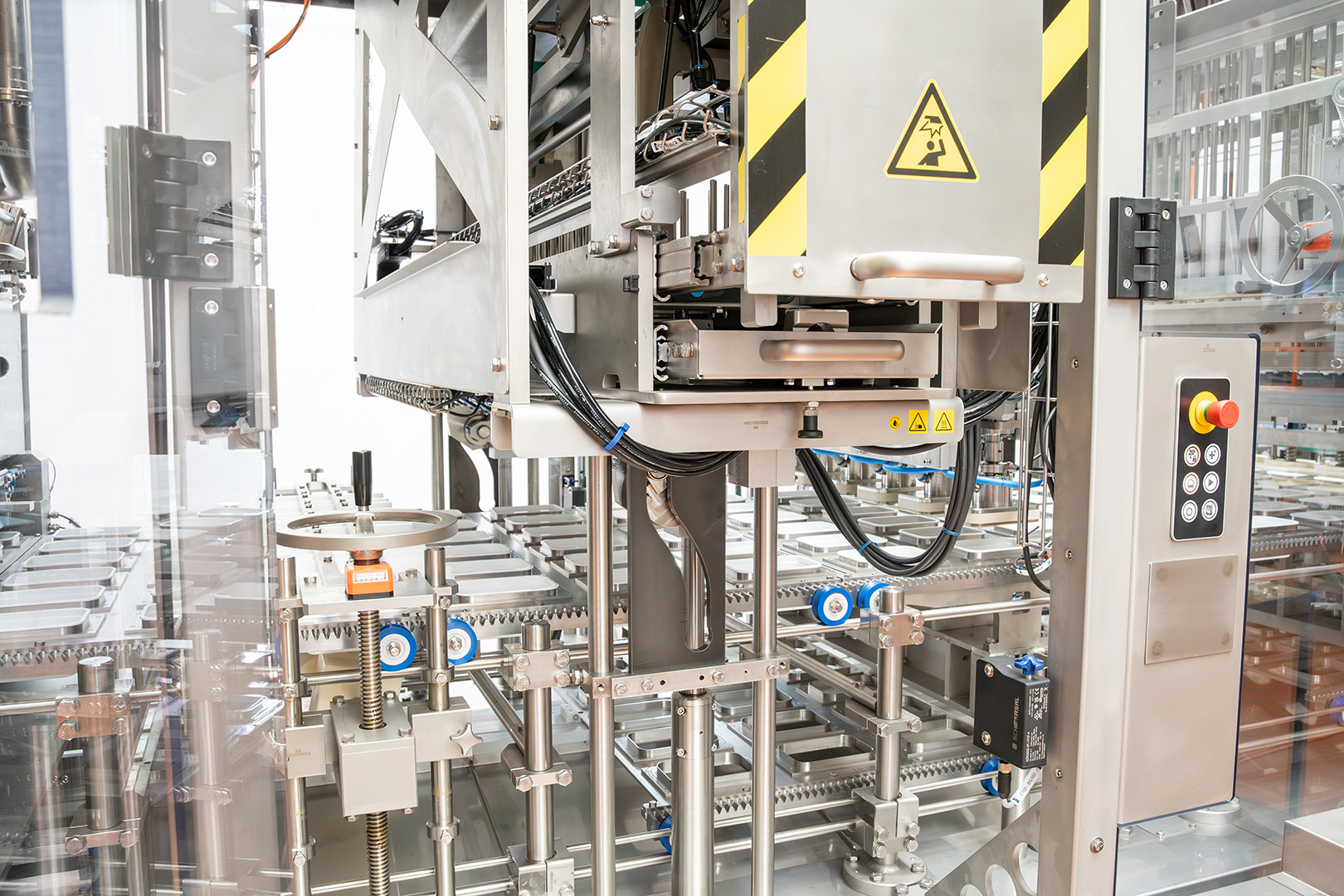

Sealing station in production position

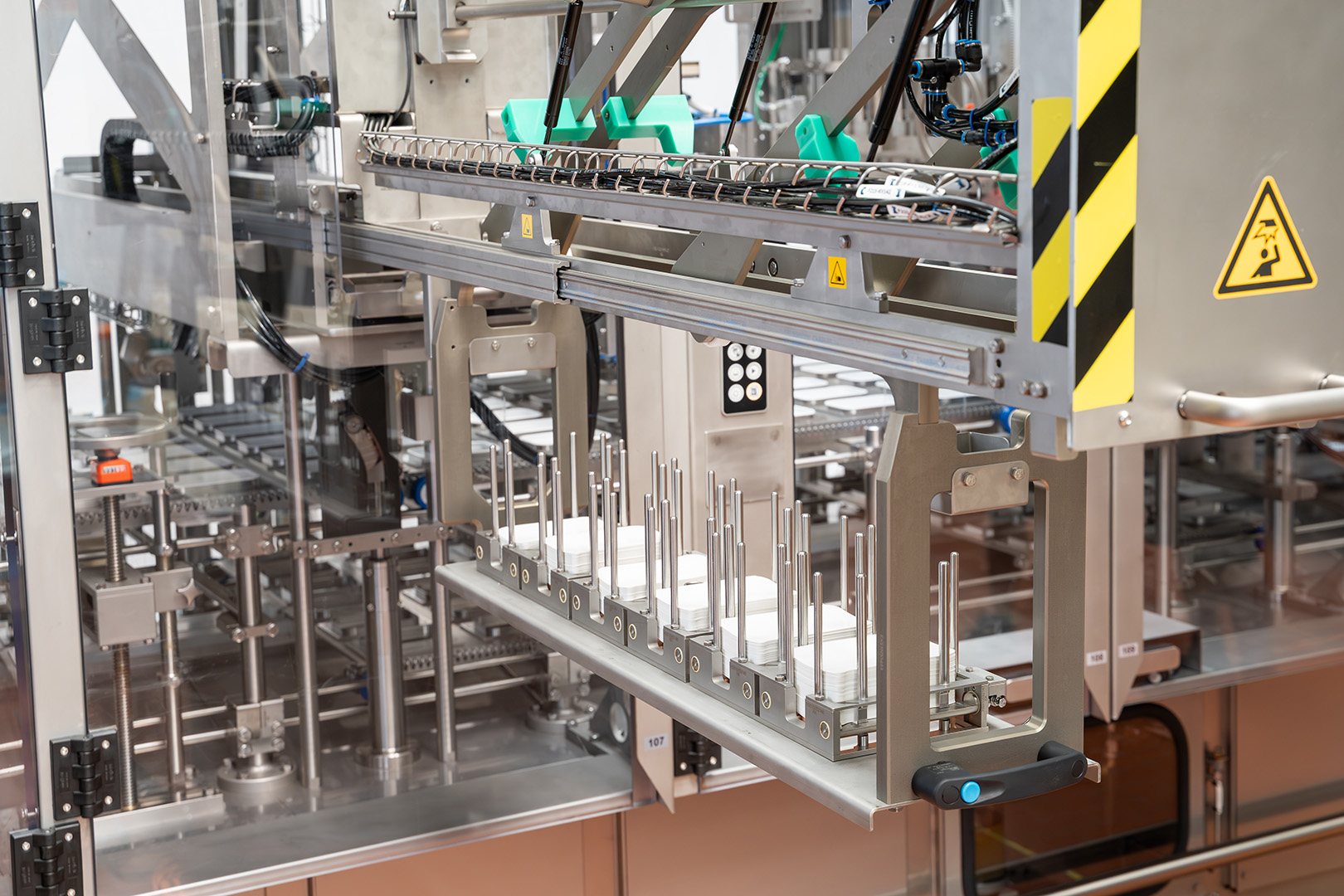

Lid material station in loading position

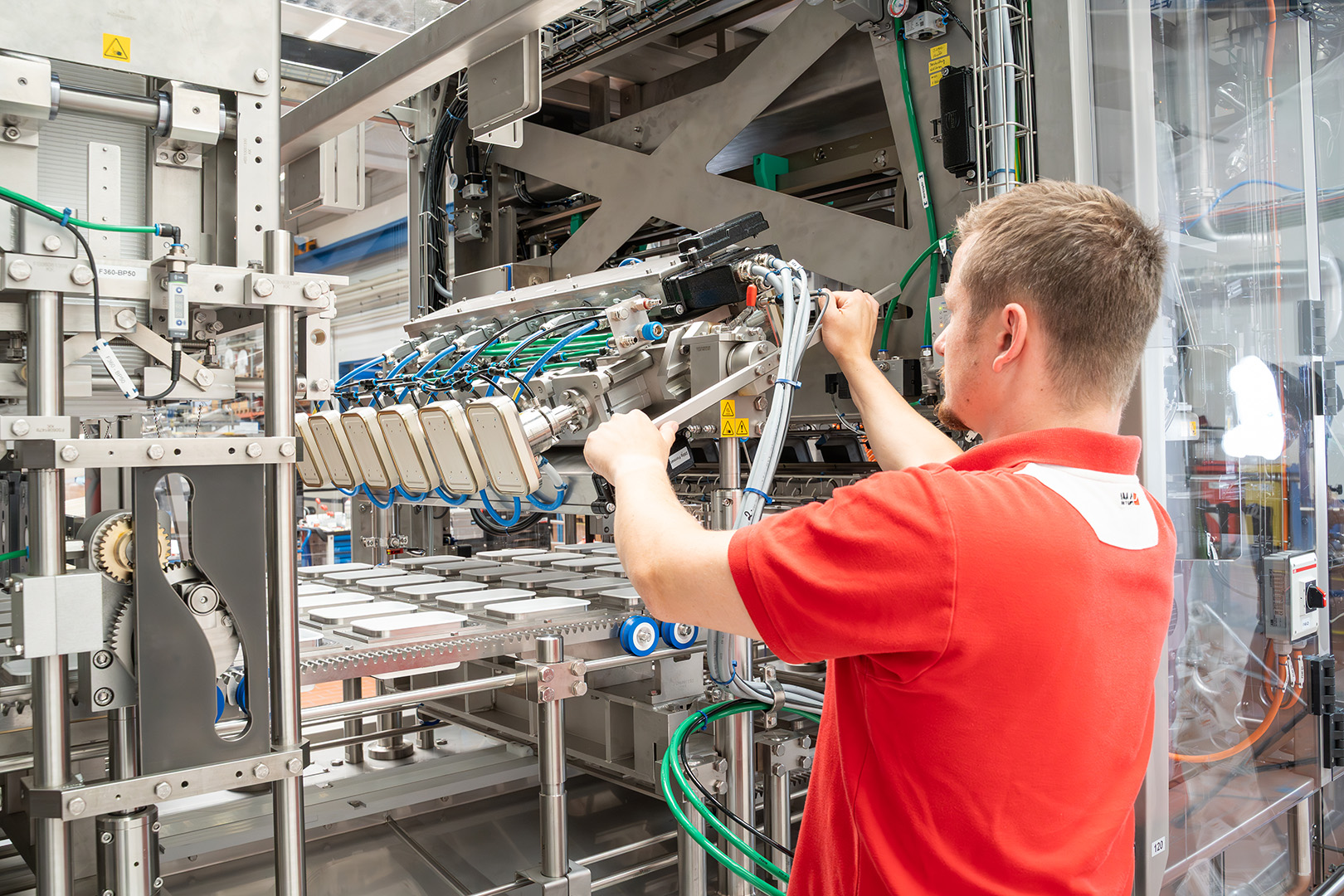

Sealing station – sealing bridge can be turned to suit 2 different formats

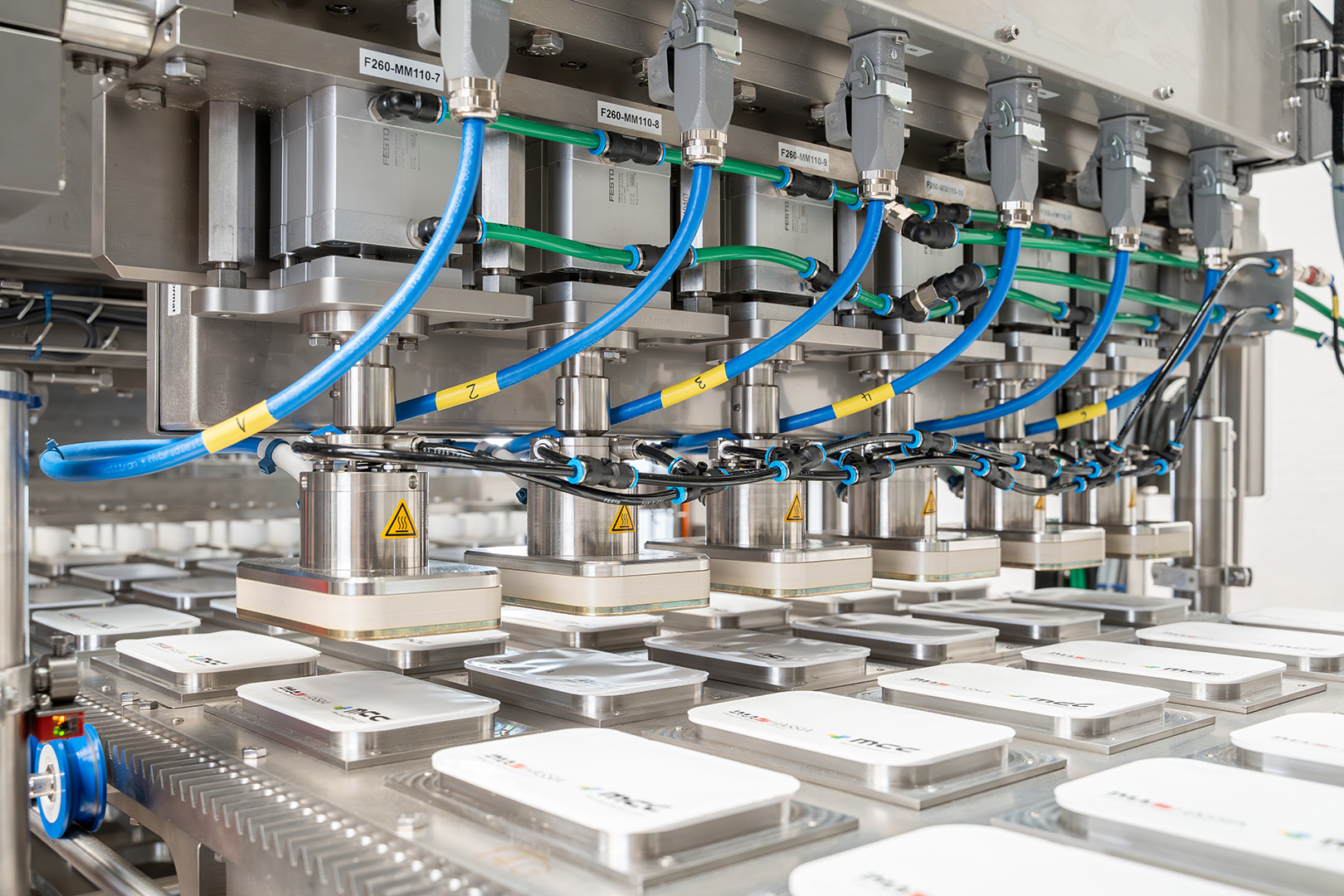

Sealing station (here for PP material)

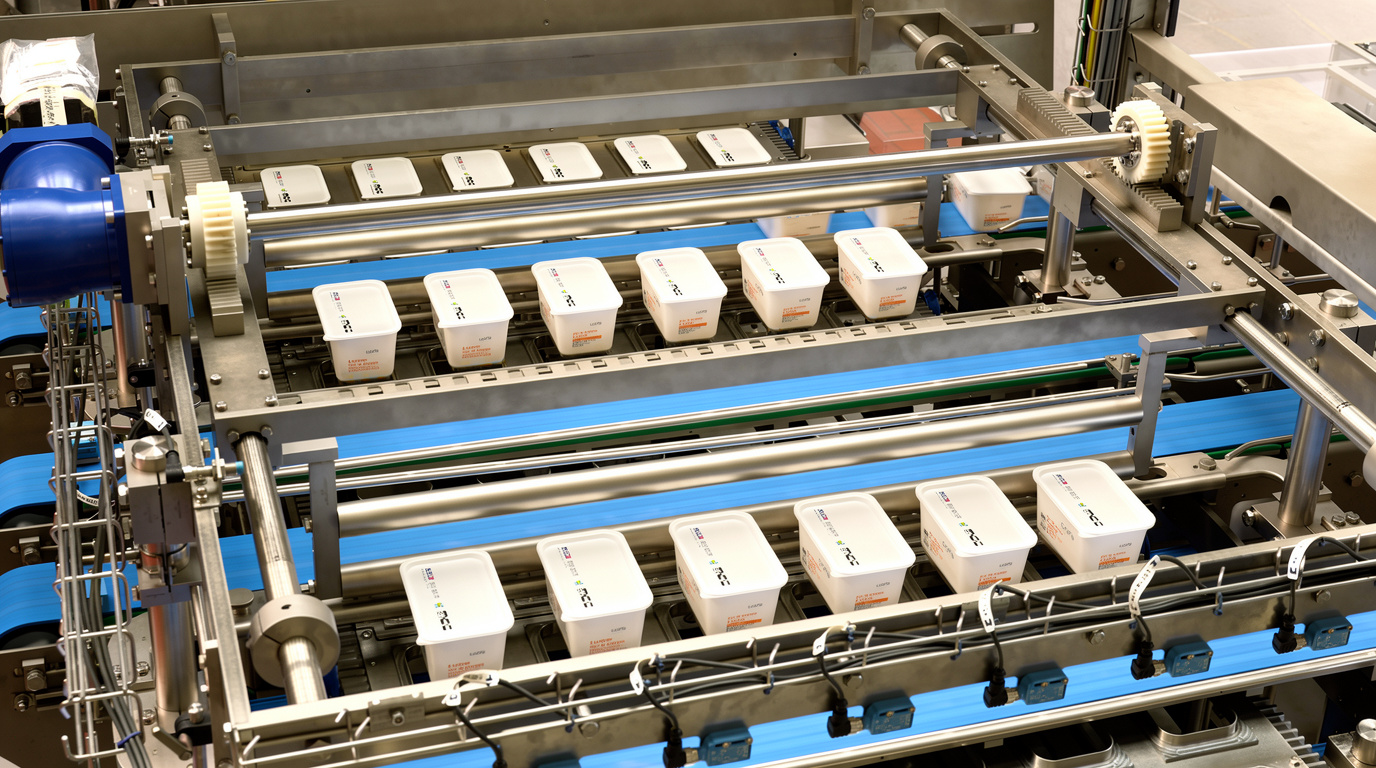

Tub discharge

Technical information

Technical information
ModelCups per cycleRound (Ø max.)Height (max.)Nominal output (at 40 cycles/min)
1-44Round 180 mm150 mmup to 14,400 cups/h
1-66158.5 * 129.5 mm150 mmup to 21,600 tubs/h
(1-6)3250 * 154 mm150 mmup to 10,800 tubs/h

*Square and rectangular cups possible*

MATERIALS
TubsPre-made cups made of Paper, PET, PP, PS, K3® or compound materials*
LidsPre-cut lids made of aluminium foil or made of PET or PP*
Snap-on lidsPre-made snap-on lids made of PET, PP, PS or filled snap-on lids*
*Other material combinations on request
STANDARD EQUIPMENT
Control systemSchneider Motion/Logic Siemens
Cup feed and decontaminationCup destacker, cup control, cup lifting/ejection and decontamination discharge onto conveyor (alternatively an integrated packer can be installed)
FillerDKD, main filler CIP/SIP (nozzles)
LidSnap-on lid
Hygiene classUltra-clean (VDMA I – II)
TYPICAL OPTIONS
DecontaminationUV-C or Pulsed light
Control systemRockwell Automation
OthersCup pole feed in various designs and positions, particle extraction, sealing/punching of lidding material from the reel, coding, snap-on lid station and infeed, end-of-line packaging equipment
