ARIA Granulation
Machine overview
The prime element in fluid bed processing.
ARIA allows drying, granulation and pellet coating with maximum reliability and ample flexibility. Designed for through-the-wall installation, ARIA is easy to integrate with other granulation equipment into fully contained processing lines.
ARIA water recirculation system allows consumption savings and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance. The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.
Production plant
IMA Active
Machine highlights
-
Easy integration
Through-the-wall installation and easy integration with other granulation equipment.
-
High containment

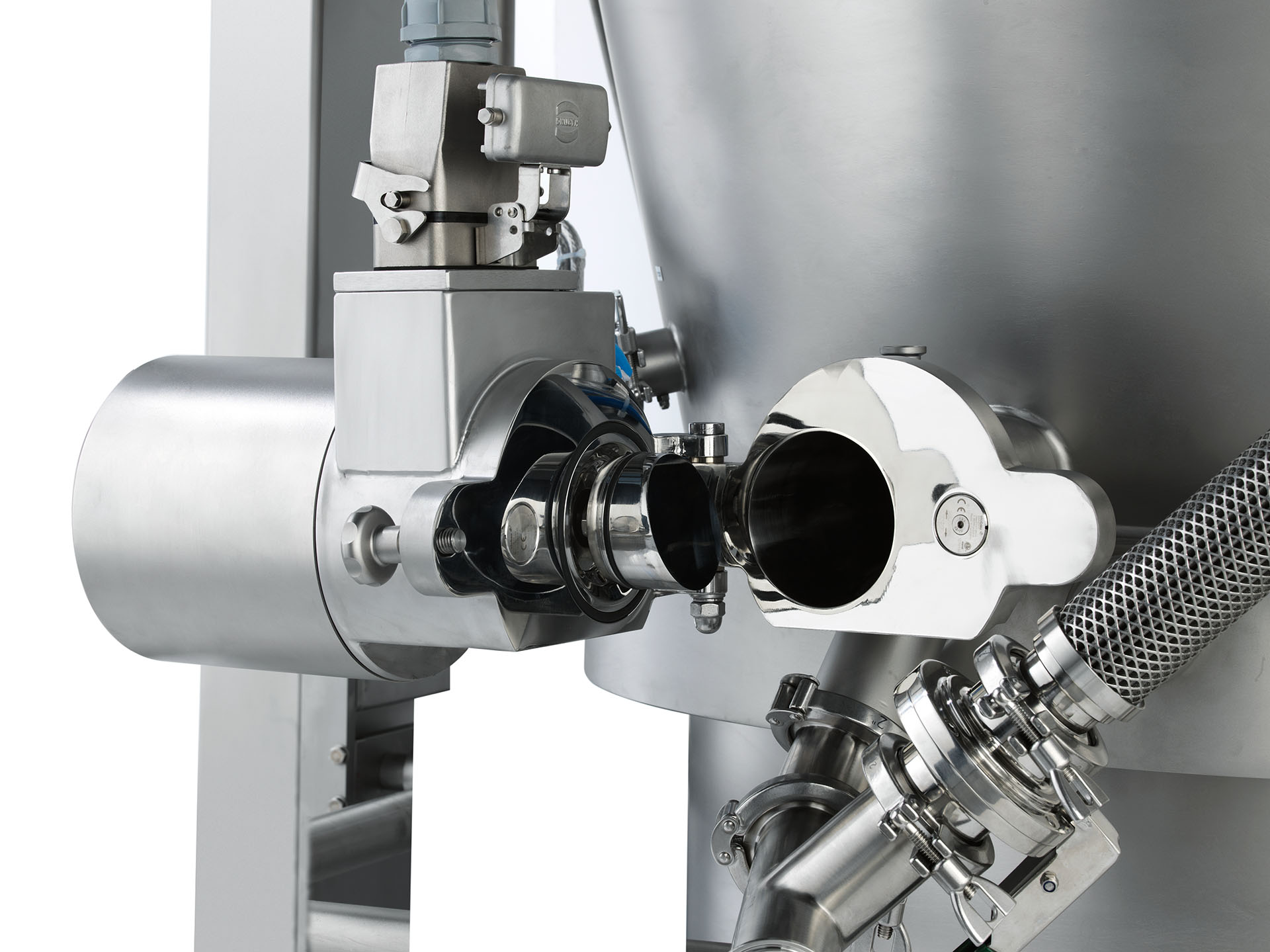

Suitable for high-containment processes, ARIA features contained and safe solutions for product loading and discharging, pneumatic transfer, vertical flow and integrated milling step.
-

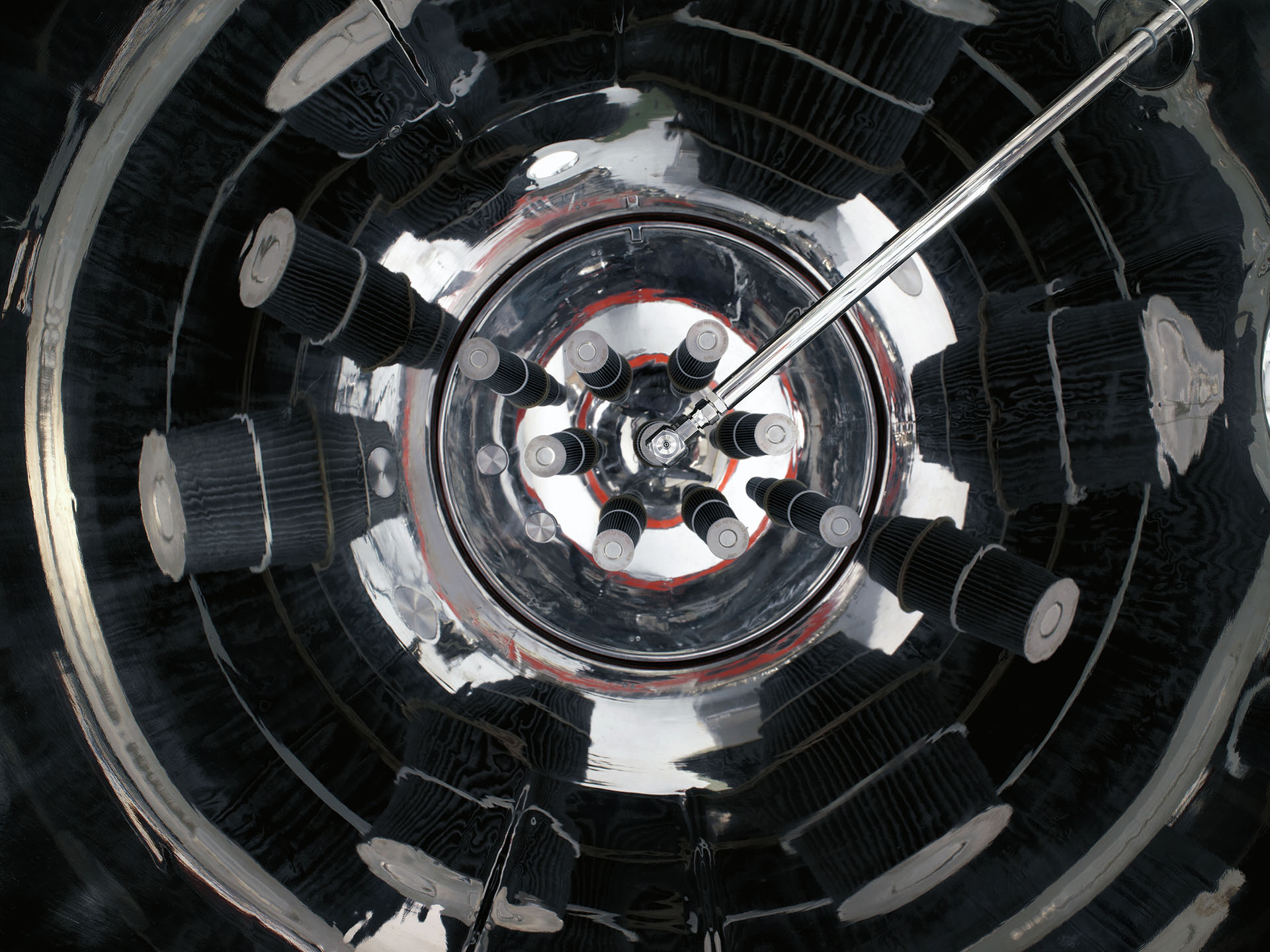

Filter solutions

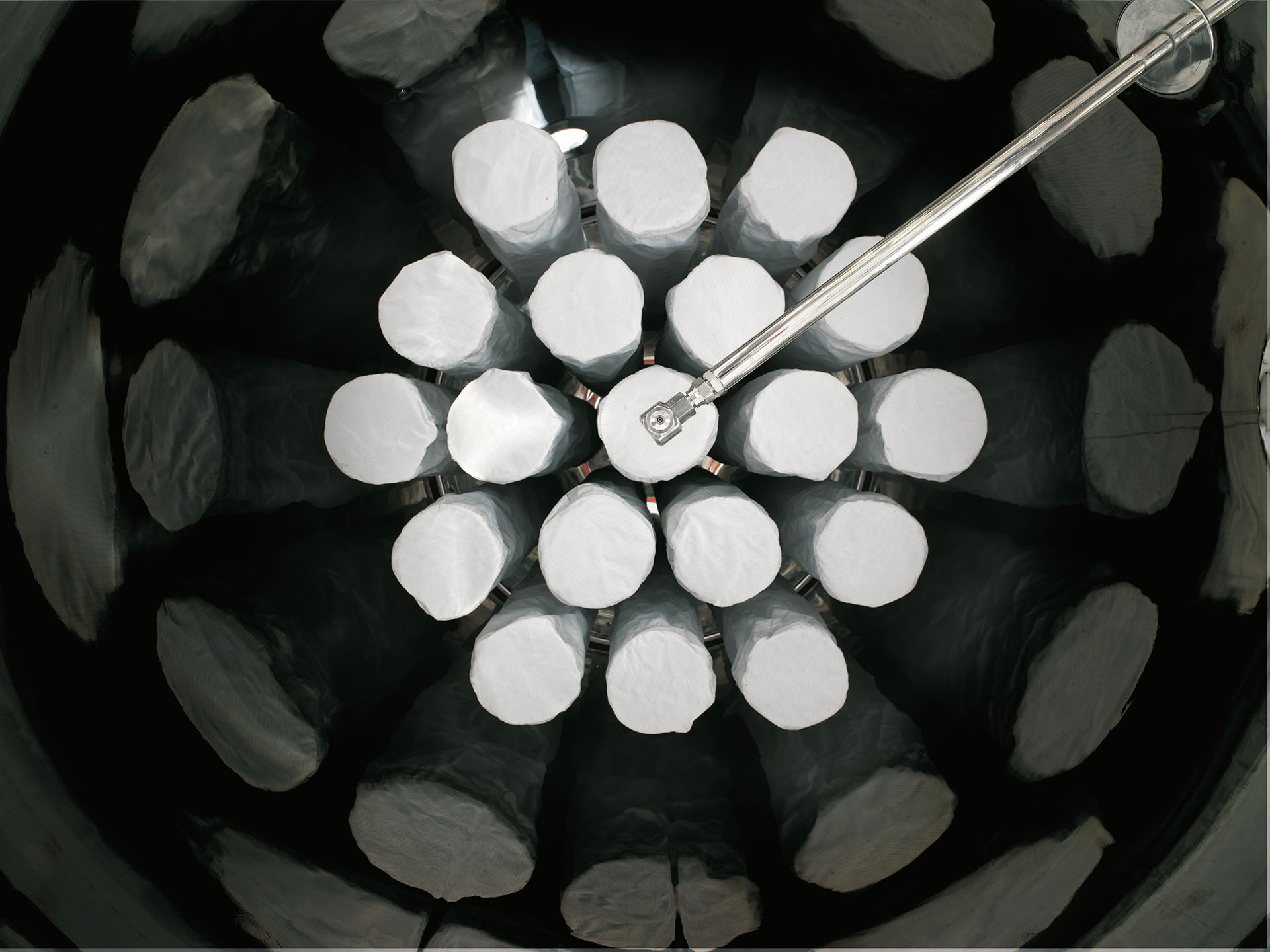

Different type of filters available: bag filters, star-pleated or stainless steel cartridges.
-
ATEX-compliant
ARIA ensures safe operation when solvents are used, protecting both operators and equipment in regulated environments.
-
Emission control
ARIA ensures advanced emission control through powder dedusting, absolute filtration, and a robust design with 12 bar Pressure Shock Resistance.
-
Easy accessibility
Complete accessibility to product filters for easy inspection and maintenance.

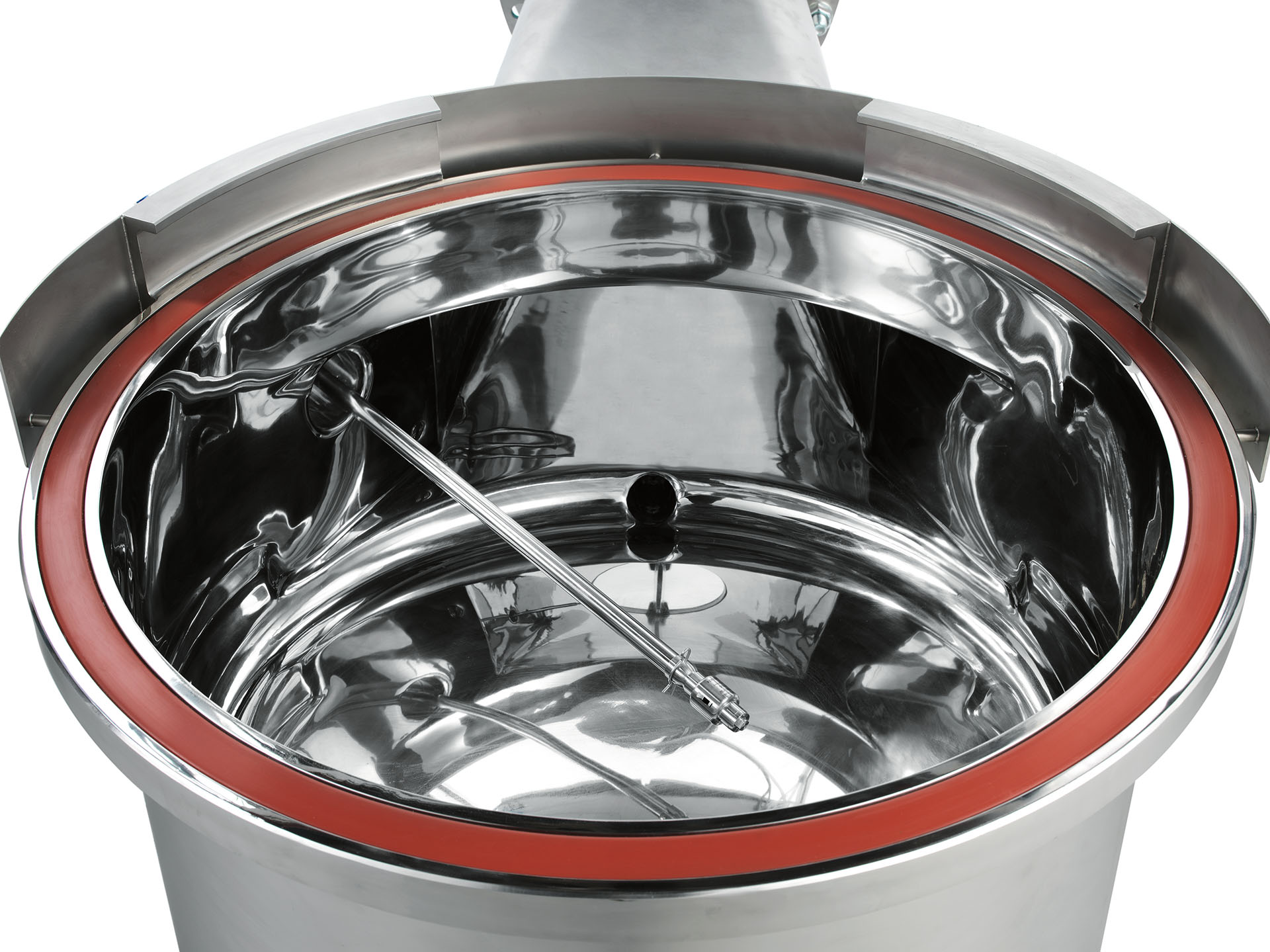

Optimised fluidisation and easy cleaning
Product bowls can fit different air distributors designed to achieve maximum product yield and optimal fluidisation. Air distributors can be easily washed in place and removed for inspection.
Machine versions

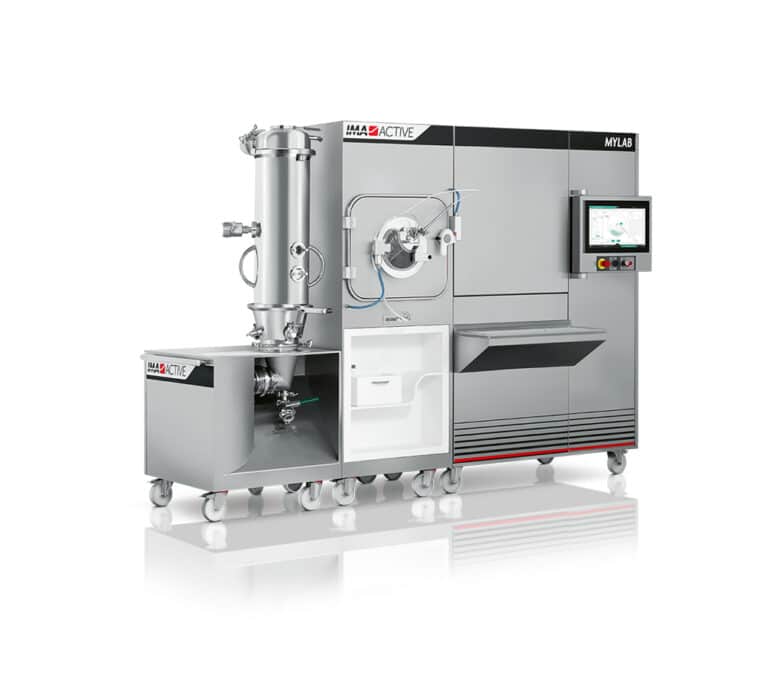

Lab Version
Mylab is a laboratory-scale fluid bed processor for R&D purposes, suitable for drying, granulation and pellet coating. The product containers can work batch sizes from 2 to 6 litres.
Machine details
Technical information
| ARIA technical data | ||||||||
| Model | 60 | 120 | 300 | 600 | 900 | 1200 | 1500 | 2000 |
| Recommended batch size (kg) | 25 | 50 | 120 | 250 | 400 | 500 | 600 | 800 |
| Roto Mix inline (l) | 60 | 120 | 300 | 600 | 900 | 1,200 | 1,500 | 2,500 |

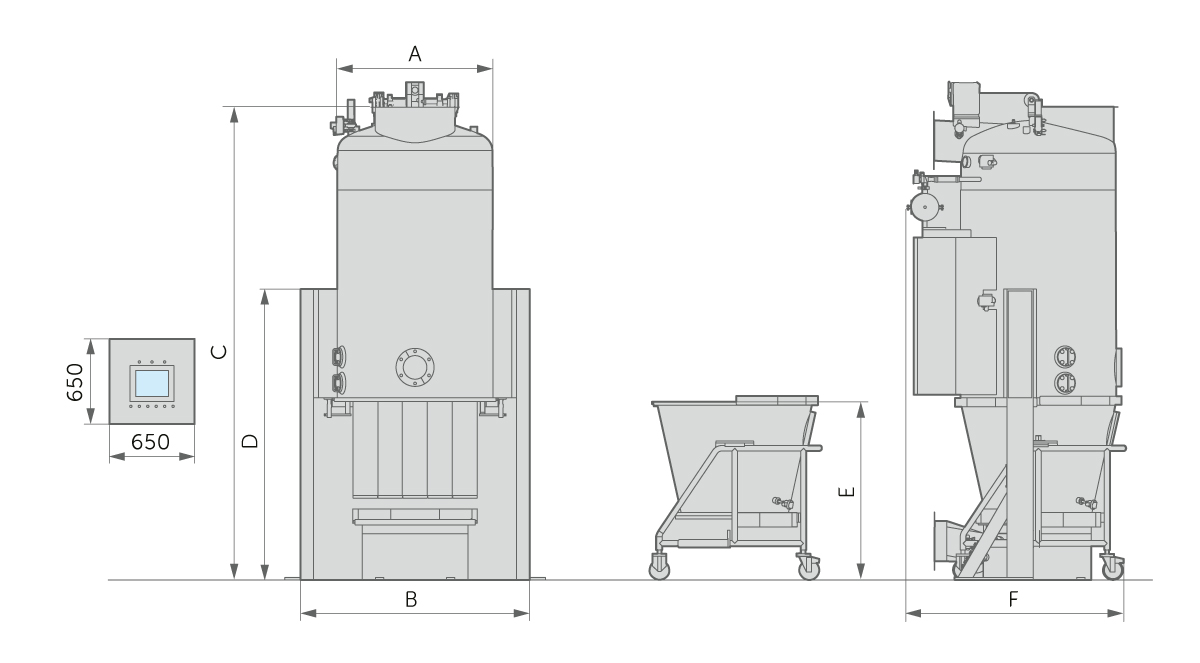

| ARIA dimensions | ||||||||
| Model | 60 | 120 | 300 | 600 | 900 | 1200 | 1500 | 2000 |
| A (mm) | 590 | 700 | 960 | 1,190 | 1,410 | 1,740 | 1,800 | |
| B (mm) | 1,150 | 1,260 | 1,520 | 1,750 | 2,040 | 2,300 | 2,800 | |
| C (mm) | 2,500 | 2,790 | 3,235 | 3,615 | 4,100 | 5,670 | 6,300 | |
| D (mm) | 1,775 | 1,775 | 1,840 | 2,220 | 2,675 | 3,785 | 3,800 | |
| E (mm) | 1,010 | 1,010 | 1,050 | 1,360 | 1,530 | 1,900 | 2,150 | |
| F (mm) | 1,420 | 1,420 | 1,560 | 1,610 | 1,830 | 2,160 | 2,600 | |
