AI Series Cartoning

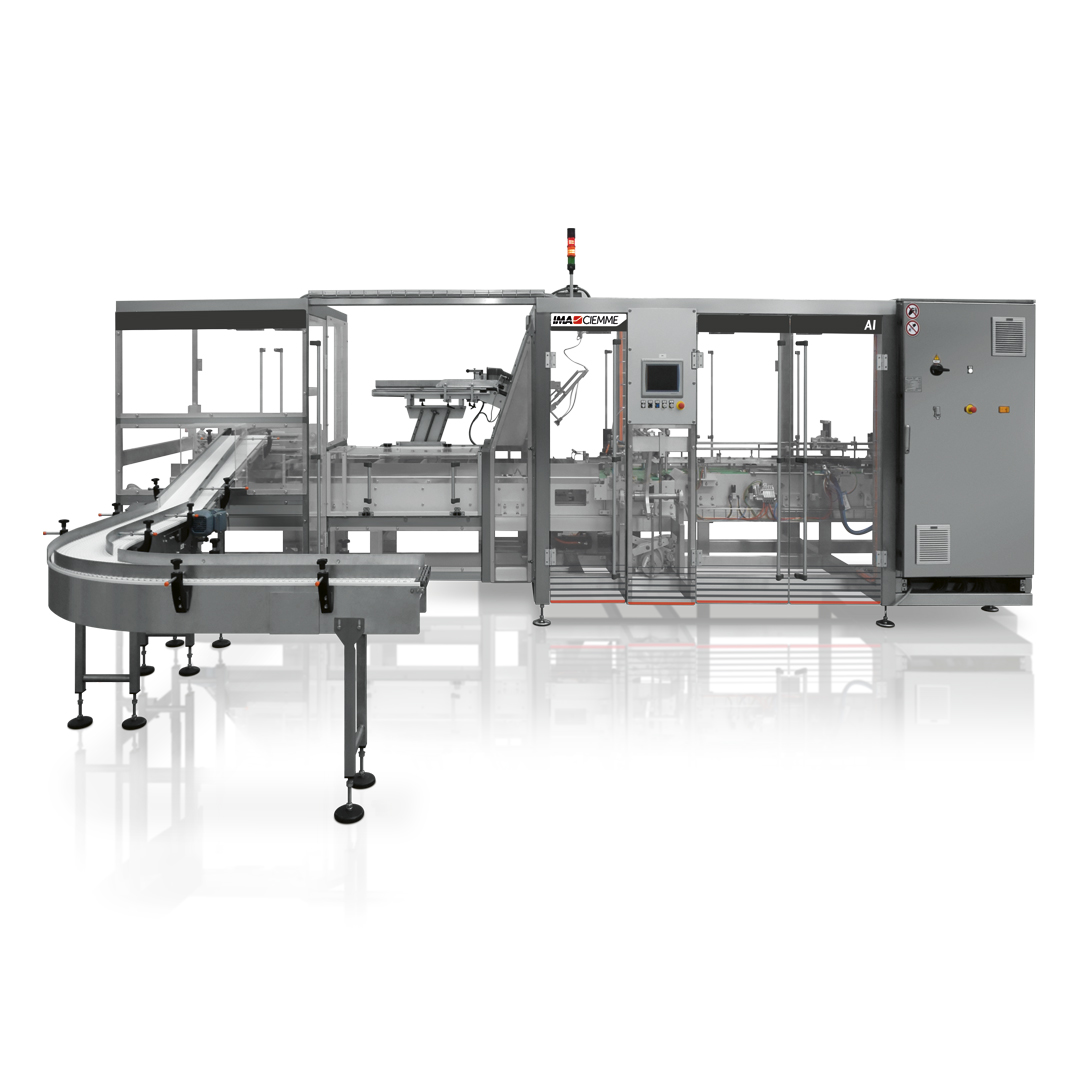

Machine overview

Great fexibility for ease of use

The AI 50 is an intermittent side loading cartoner designed to handle a wide range of carton and product formats allowing a gentle loading at medium-low speed.
A pusher mechanism with a 2‑axis design allows pusher heads to be replaced from the operator side and supports glue or tuck‑in flap closing

Production plant

IMA Ciemme

Machine highlights

  1. Accessibility

    Open frame design for excellent accessibility

  2. Flexible design

    Left or right hand execution

  3. Accurate carton handling

    Carton carrying lugs; maximum carton quality guaranteed

  4. Wide size range

    Different packaging style and carton size range provides flexibility for current and future needs

  5. Quick changeover

    Automatic adjustments, customized format kits (carton magazines) and spindle adjustments for quick and reliable format changeover

Machine details

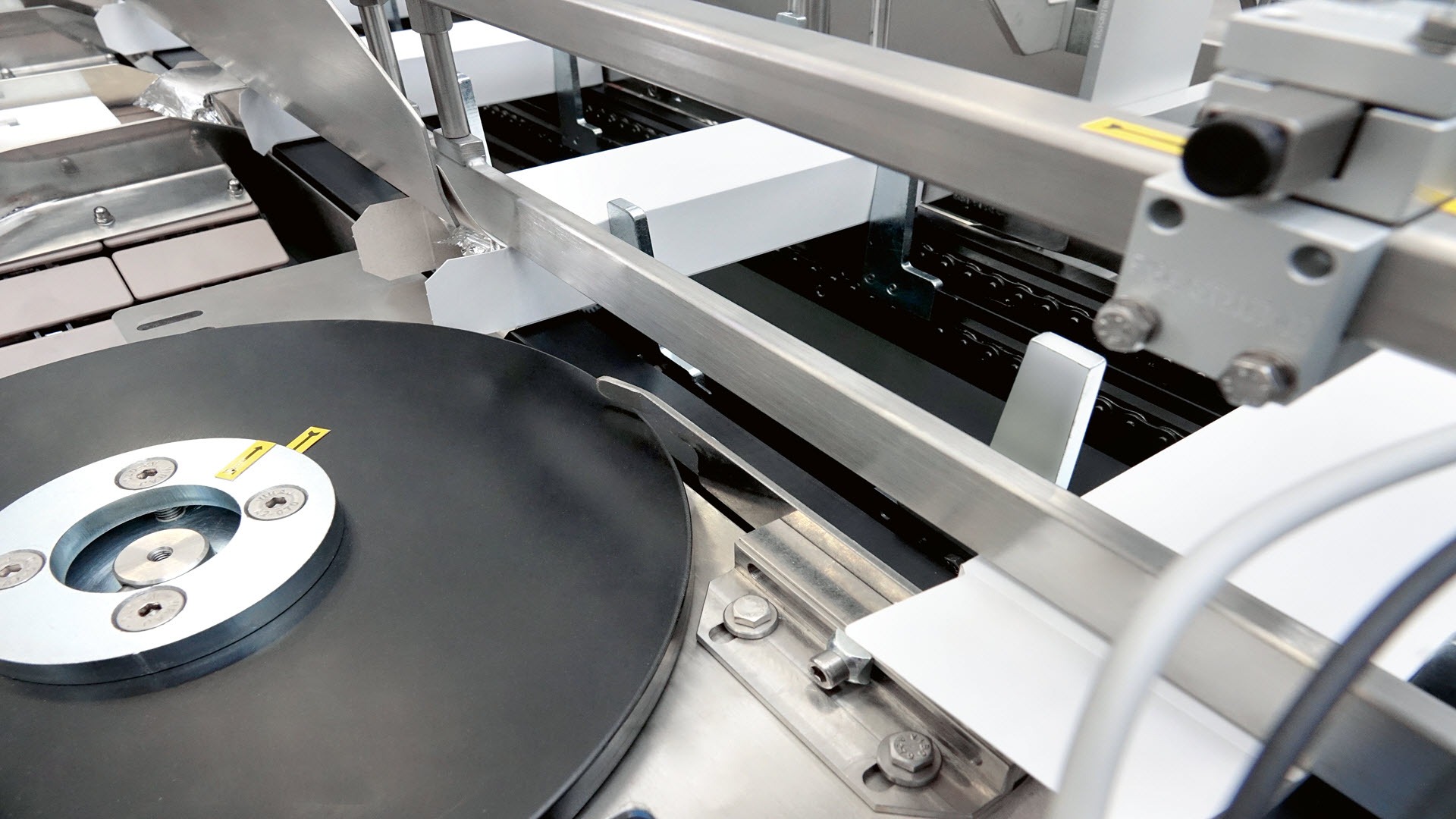

Closing unit

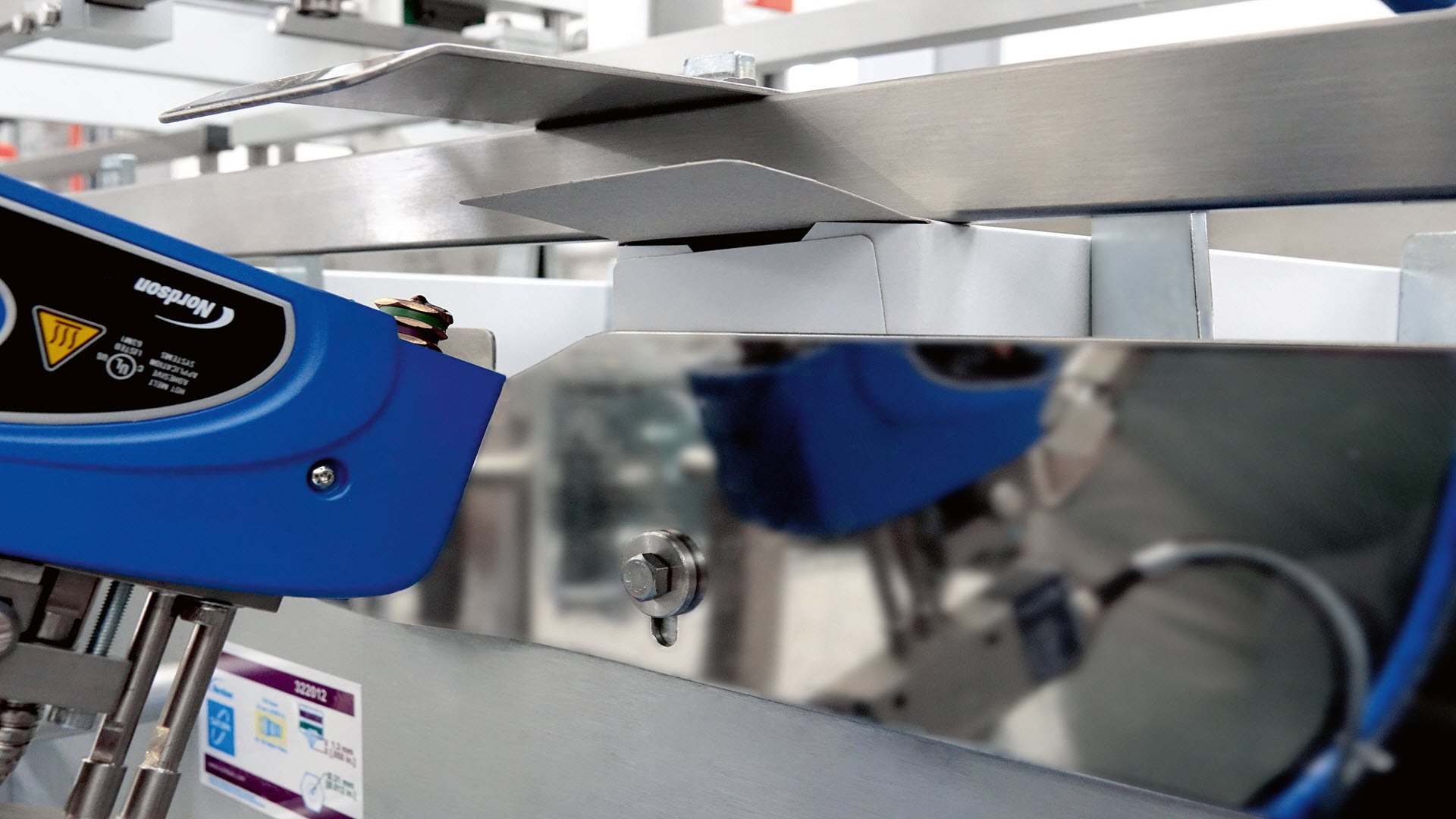

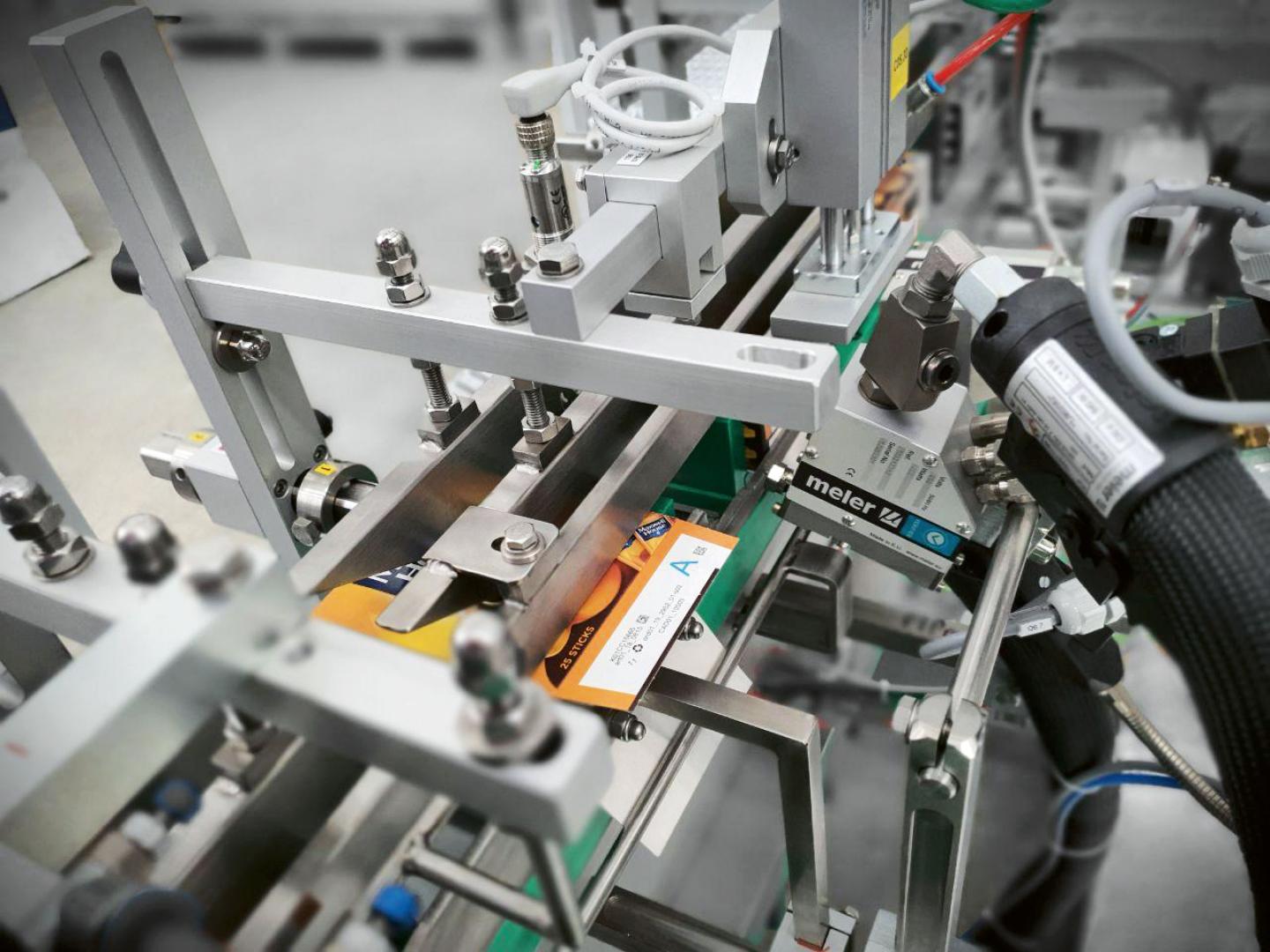

Carton flap closing

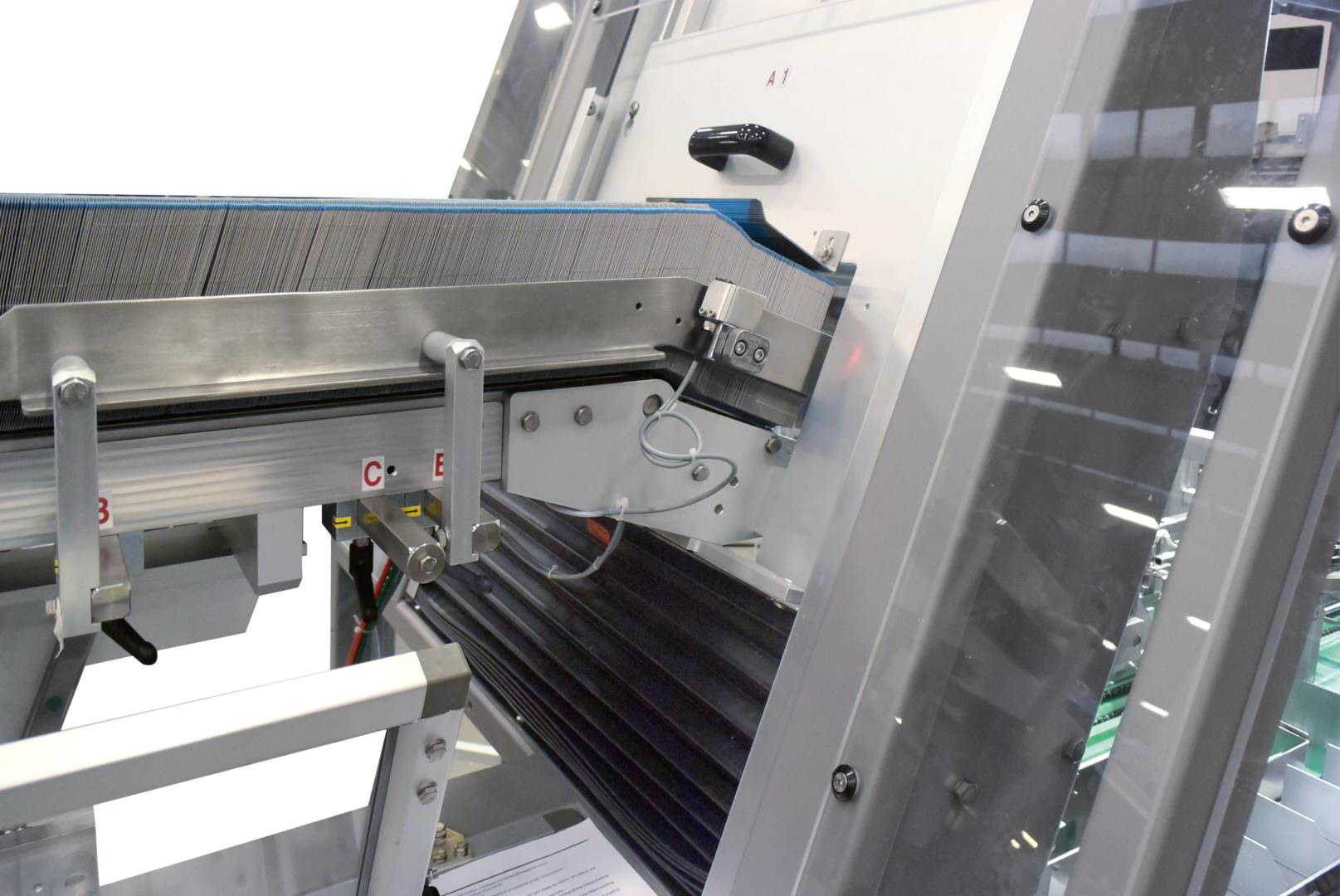

Carton magazine

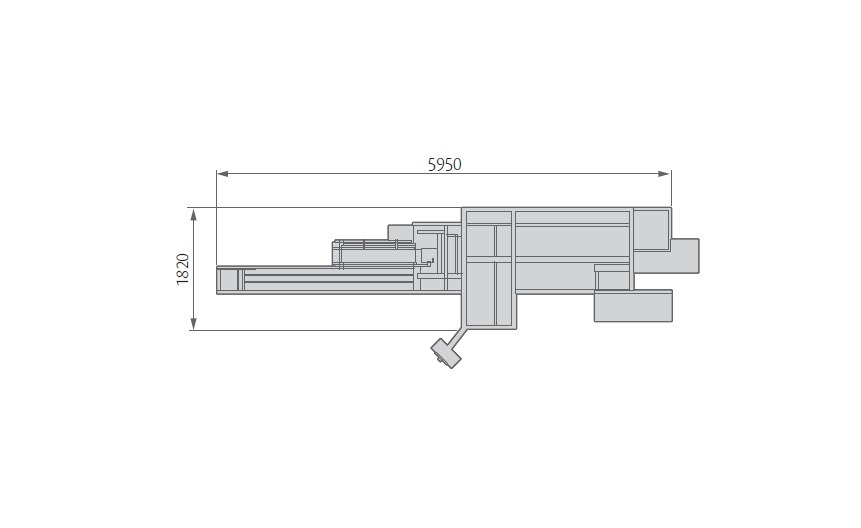

Technical information

AI 50 TECHNICAL DATA
Speed 70 cartons/minute
Size min35x100x25(h)
Size max350x300x80(h)
Power required Total installed power: 21 kW
Compressed Air Exercise pressure: 6 bar
