AD F Series Cartoning

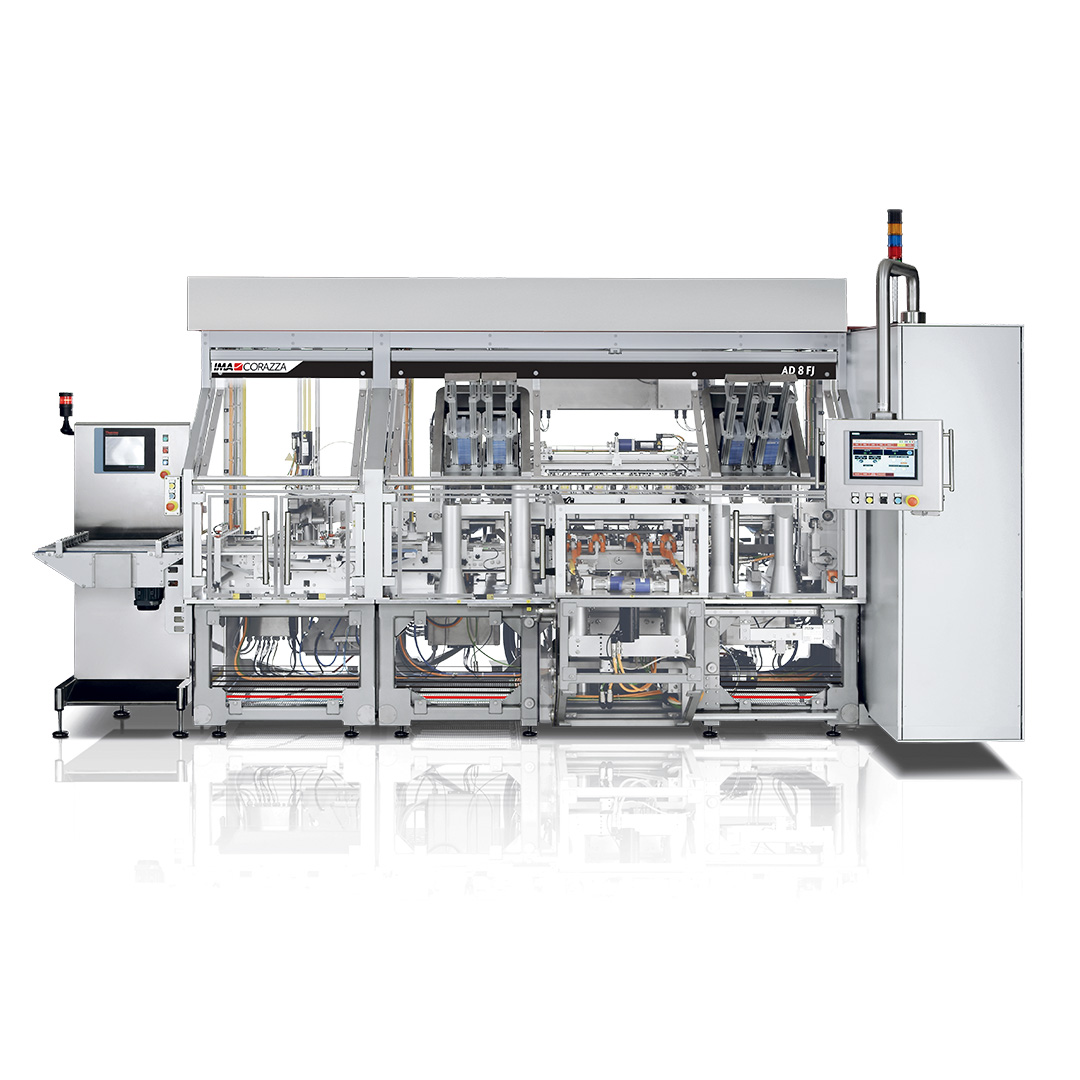

Machine overview
Efficient cartoning machine for square and rectangular portions of processed cheese
The AD F Series is a wrap-around solution for the packaging of square and rectangular portions of processed cheese. By taking flat blanks, the machine forms cartons with tucked-in end flaps and glued longitudinal seams.
Using open flat blanks for 2-4-6-8 count boxes, the AD F Series receives suitably spaced cheese portions via the in-line synchronised belt from the conveying/bundle forming device.
Portions are already pre-grouped in appropriately arranged layout, making the wrap-around cartoning efficient and straightforward.
Tucked-in end flaps and glued seams complete the process which reaches speeds of up to 120 boxes/min.
Production plant
IMA Corazza
Machine highlights
-
Efficient Wrap‑Around Cartoning
Carton forming from flat blanks with tucked‑in end flaps and glued longitudinal seams ensures secure, high‑quality packaging.
-
Flexible Carton Size Handling
Handling multiple carton formats with consistent forming accuracy.
-

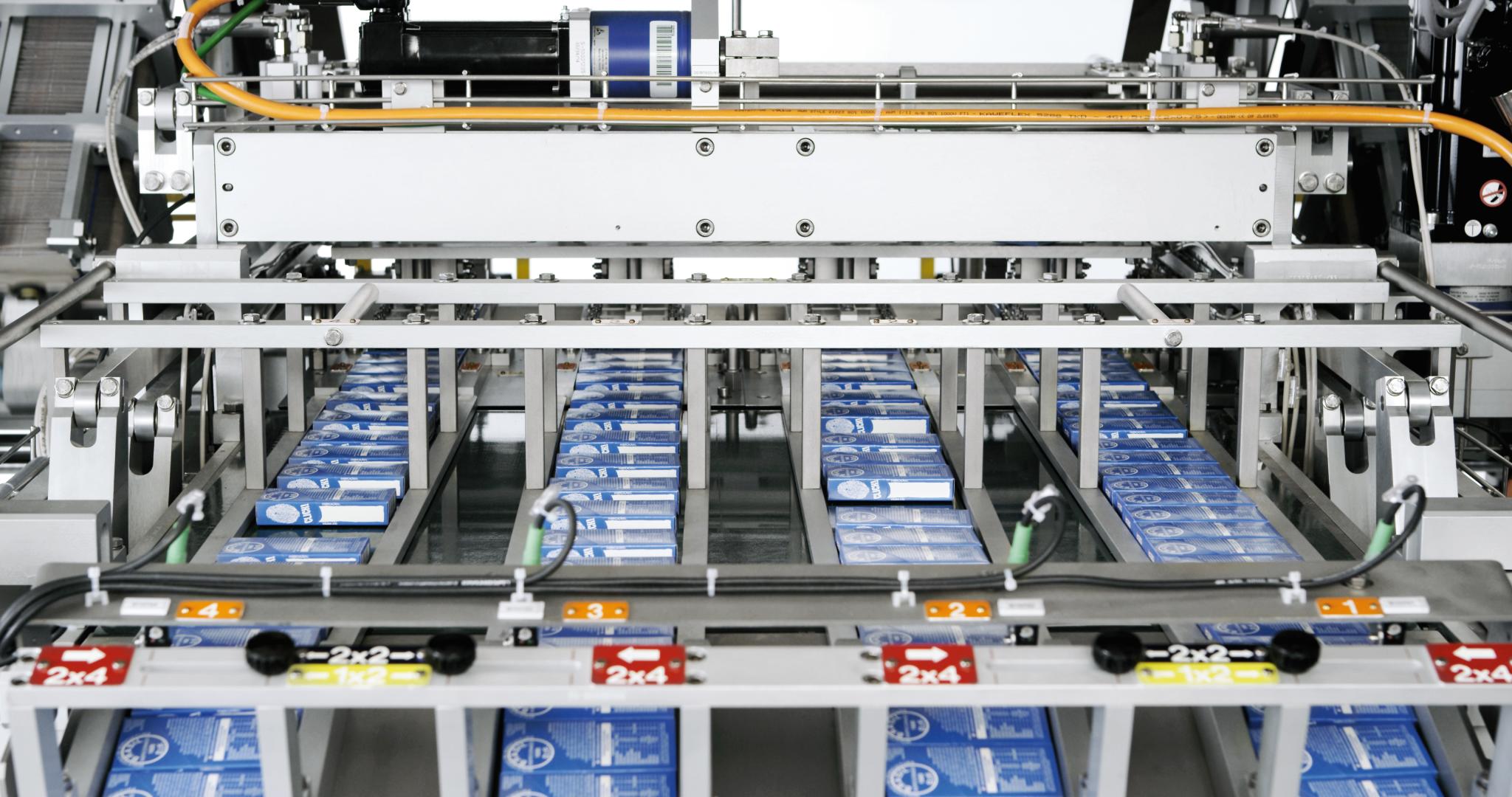

Synchronized Portion Infeed
Pre‑grouped cheese portions delivered via an in‑line synchronized belt to enable smooth loading and consistent bundle formation.
-
High‑Speed Wrap‑Around Cartoning
Production capability reaching up to 120 boxes/min ensures fast, reliable throughput.

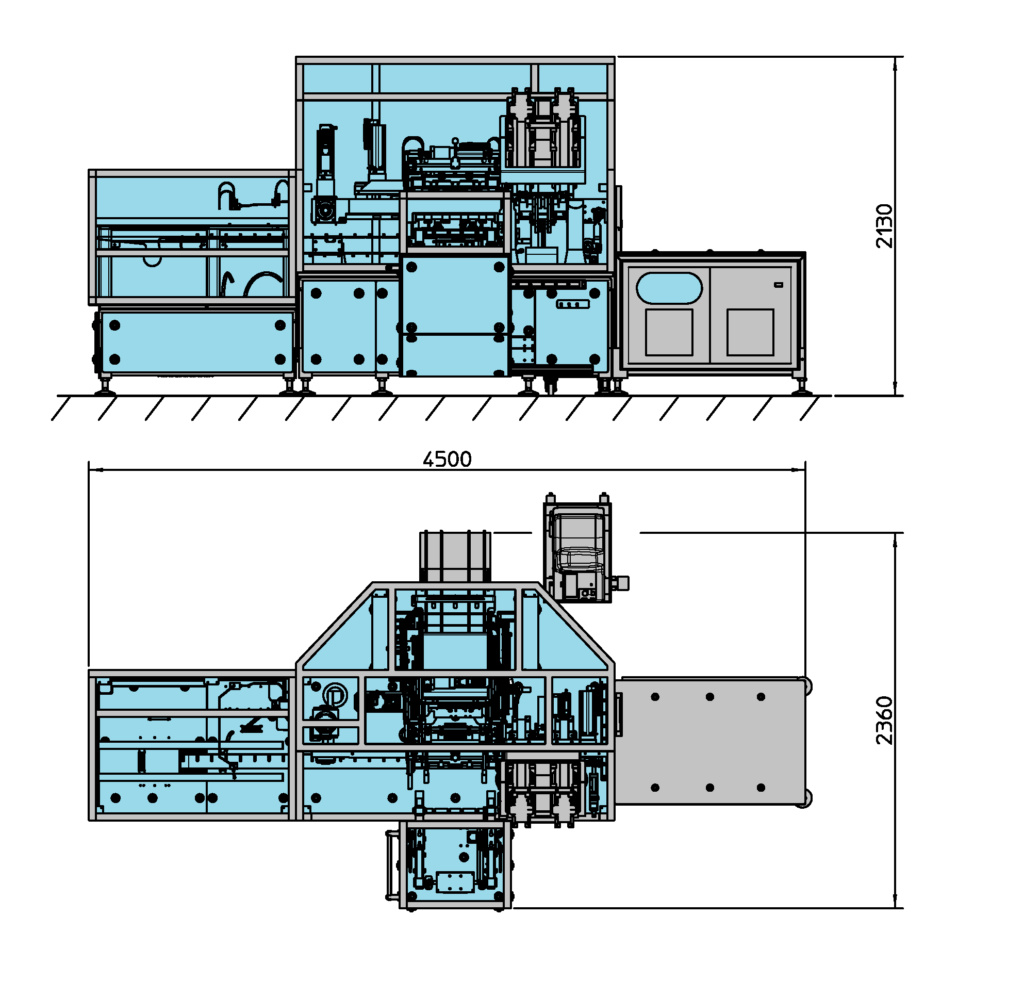

Machine details
Technical information
| AD F SERIES TECHNICAL DATA | |
| Production capacity | Up to 120 boxes/min. |
| Full load current | 3P x 400 Volt – 50 Hz – 7 Amp |
| Compresse air consumption | 220 Nl/min. (min. op. pressure 6 bar) |
| Weigth | 3,400 Kg Approx. |

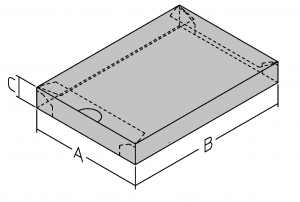

Box dimensions
| A (min ÷ max) |
| 39 ÷ 78 | |
| B (min ÷ max) | |
| 78 ÷ 156 | |
| C (min ÷ max) | |
| 15 max. | |
| Lanes | 1 ÷ 2 |
