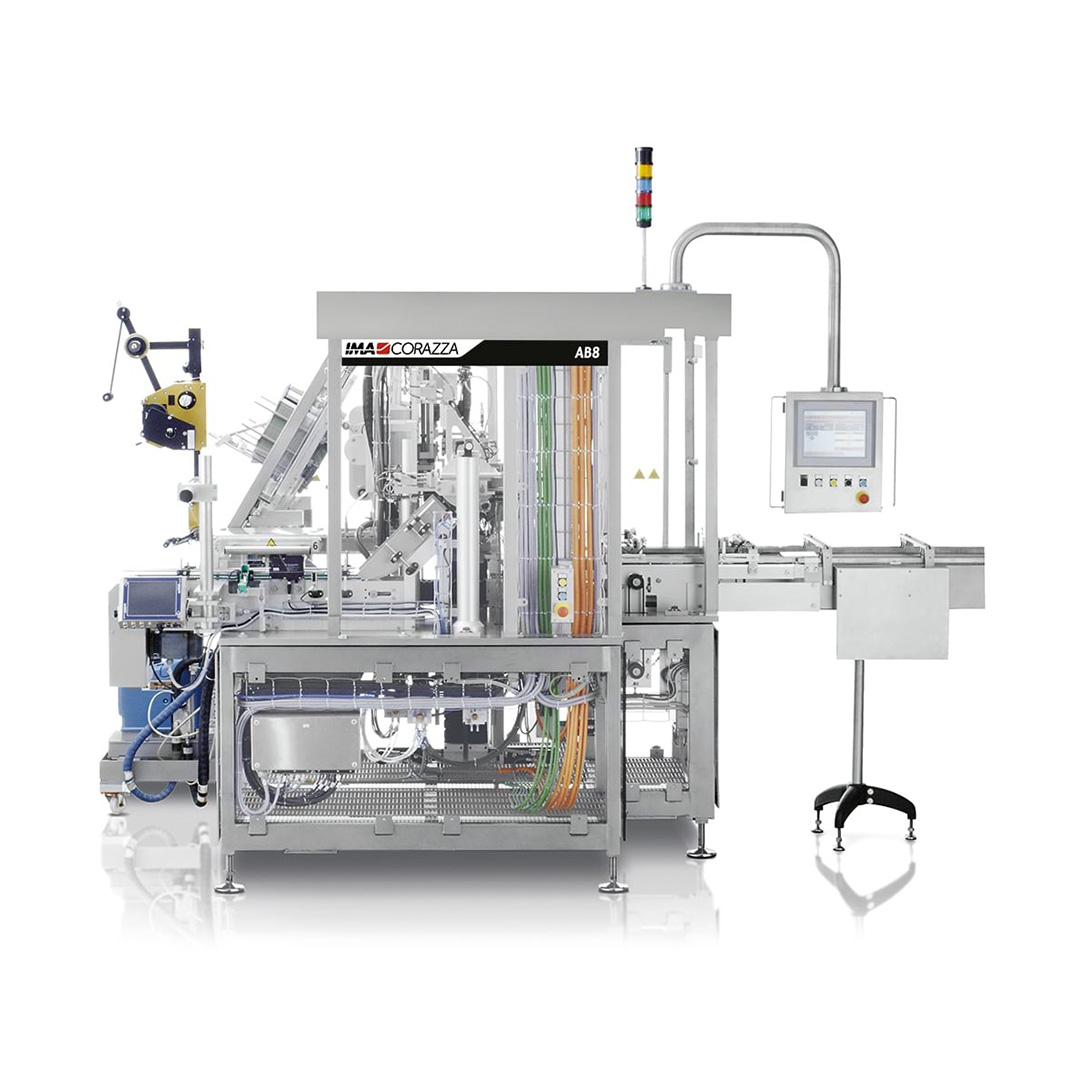

AB8 Series Cartoning

Machine overview

Butter and yeast, bundled and boxed

The AB8 is a wrap-around solution for boxing butter or yeast, drawing on flat blanks, which are sealed using hot-melt glue on the end flaps.
Processing stacked bundles received on the indexing table, the AB8 wraps a flat blank around the formed bundle, closes and seals the carton before capsizing it 180° so that portions are face-up. The AB8 can process up to 80 boxes/min.

Production plant

IMA Corazza

Machine highlights

  1. Advanced wrap‑around cartoning

    Efficient wrap‑around machine that forms and seals cartons from flat blanks using hot‑melt glue.

  2. Precise bundle handling

    Processes stacked product bundles on an indexing table, ensuring stable and accurate forming before wrapping.

  3. Automated pack orientation control

    Integrated flipping mechanism that rotates each sealed carton by 180°, delivering portions face‑up for downstream operations.

  4. high‑speed production rate

    Reliable high‑performance throughput capable of reaching production speeds of up to 80 boxes/min.

Machine details

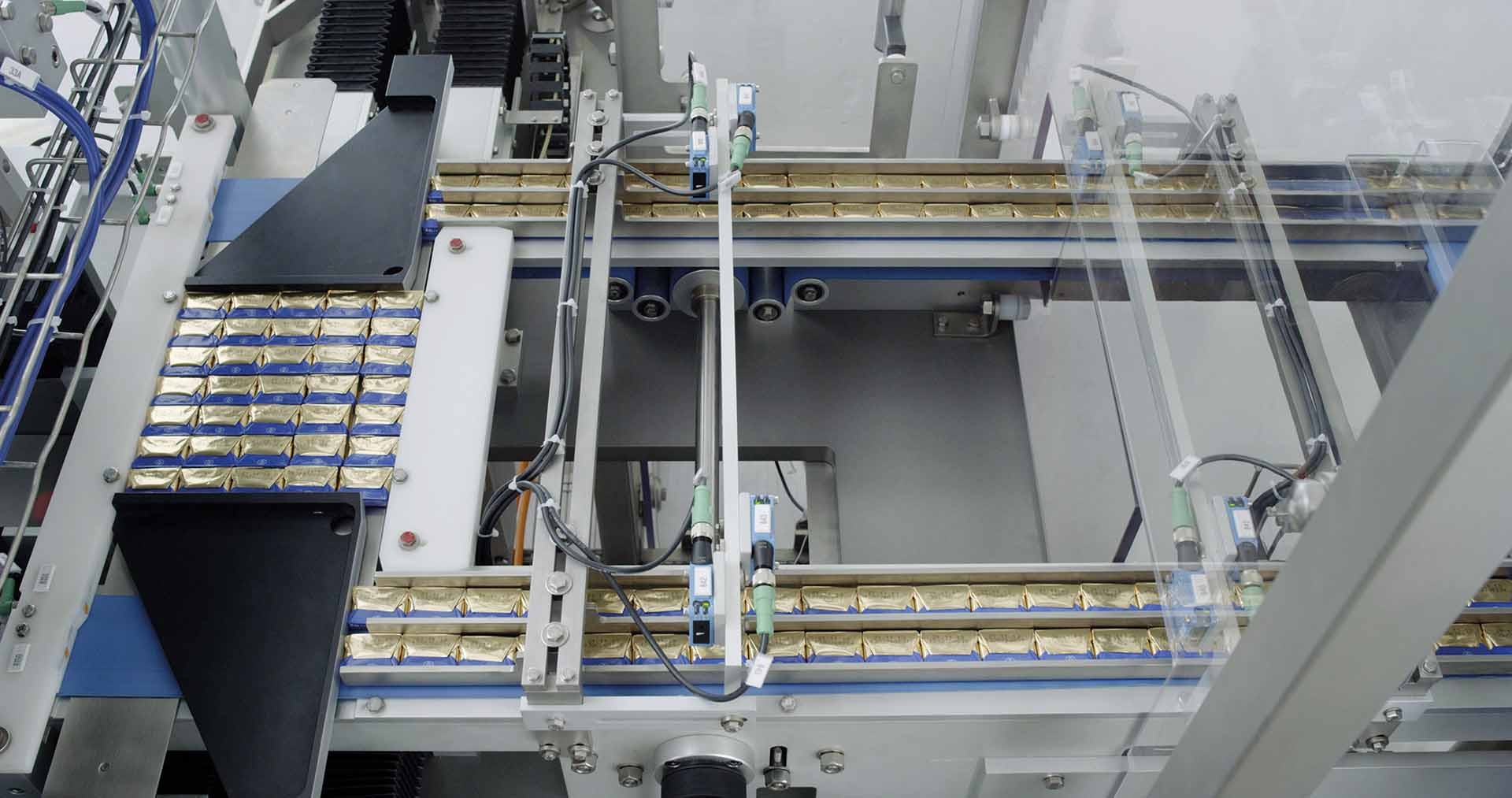

Grouping and layering

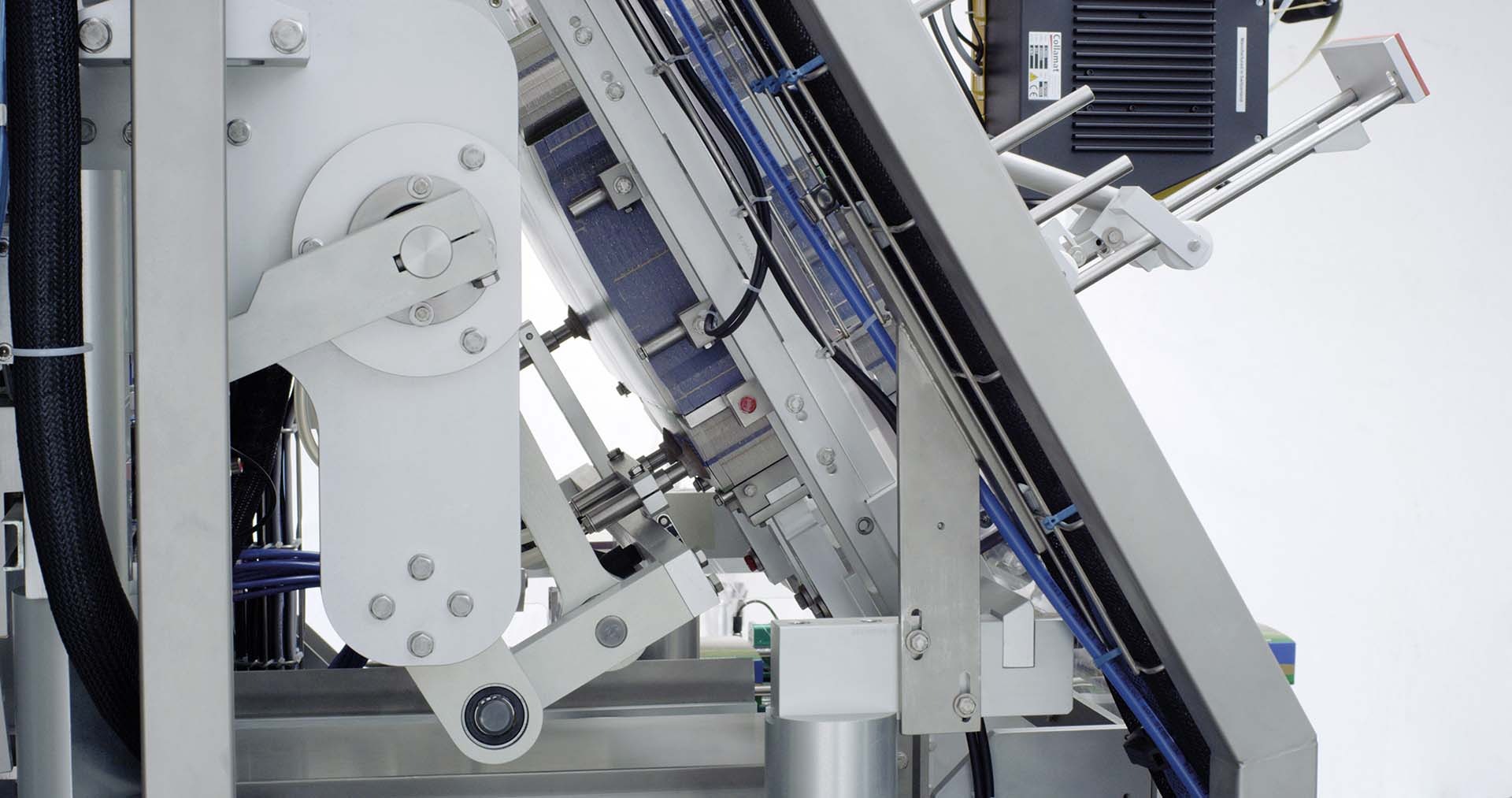

Box blank denesting

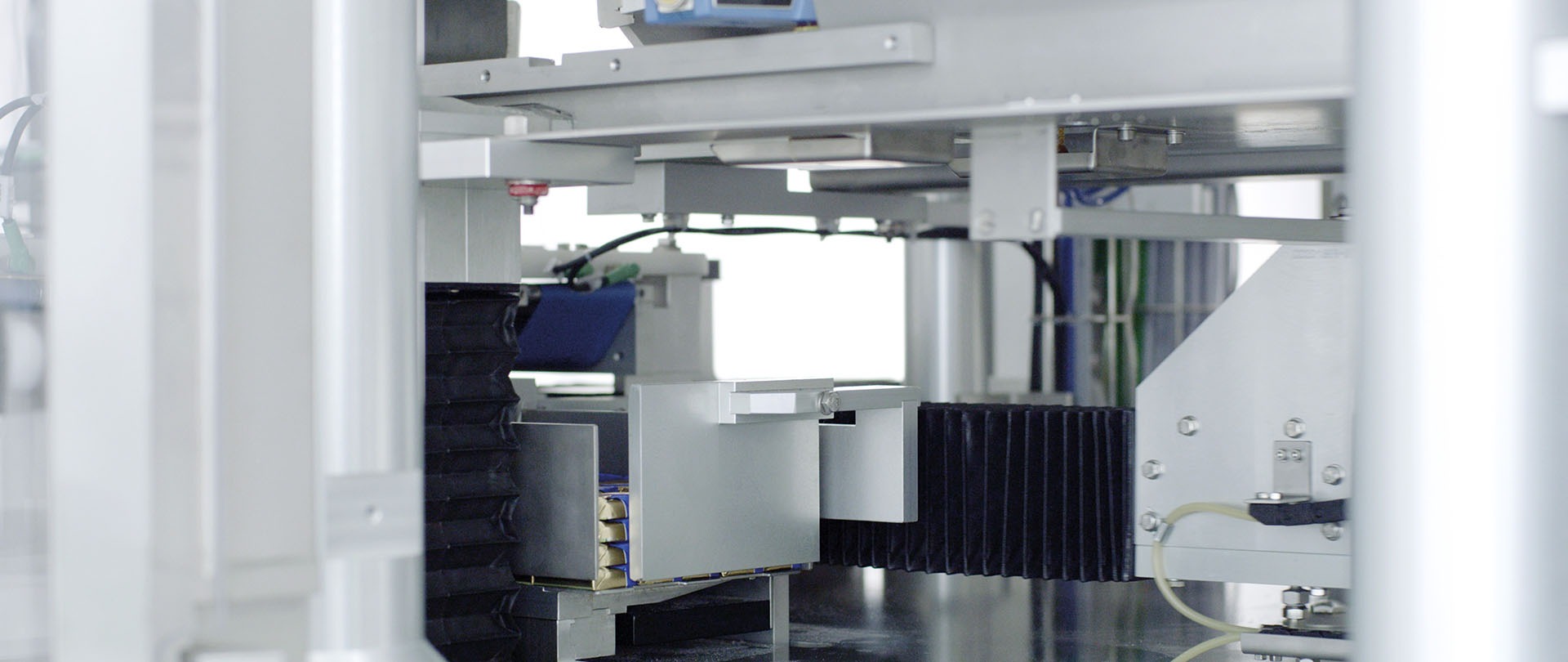

Box filling and wrapping

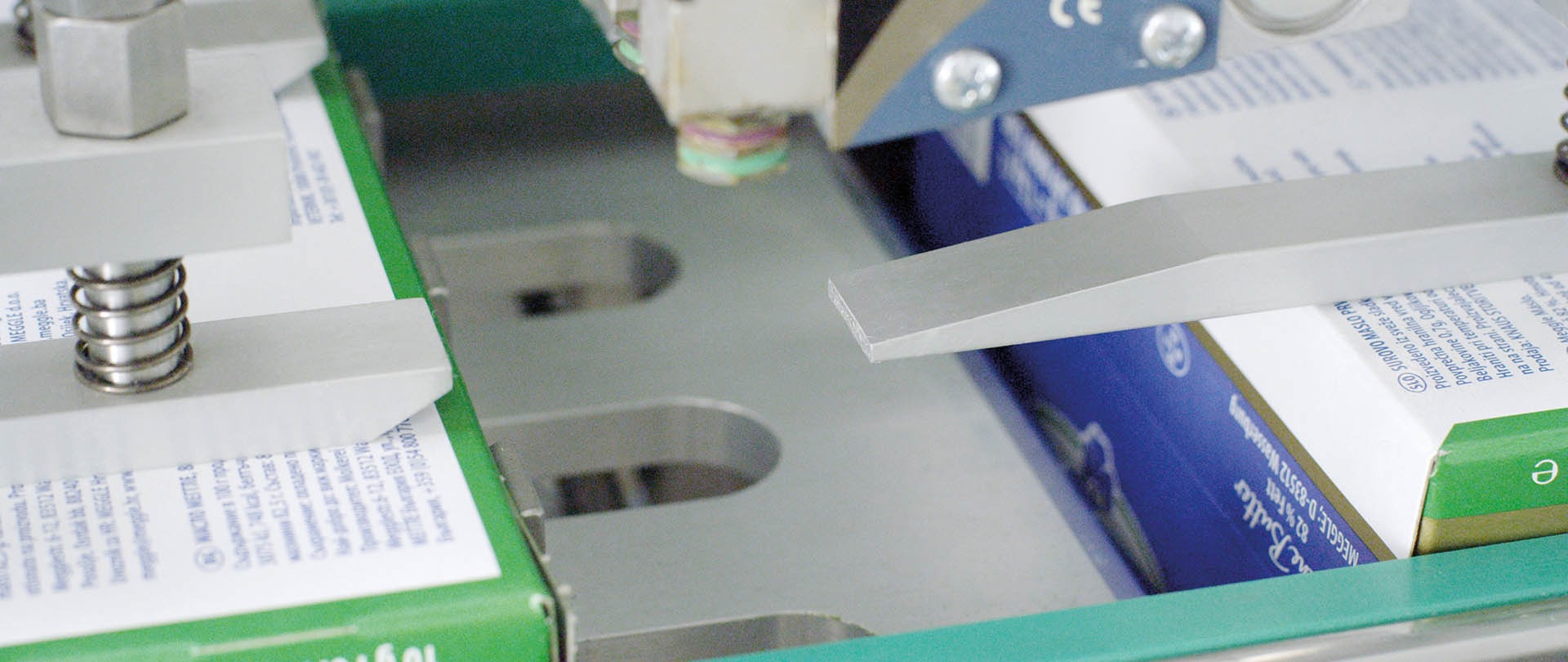

Side gluing and closing

Pressing unit

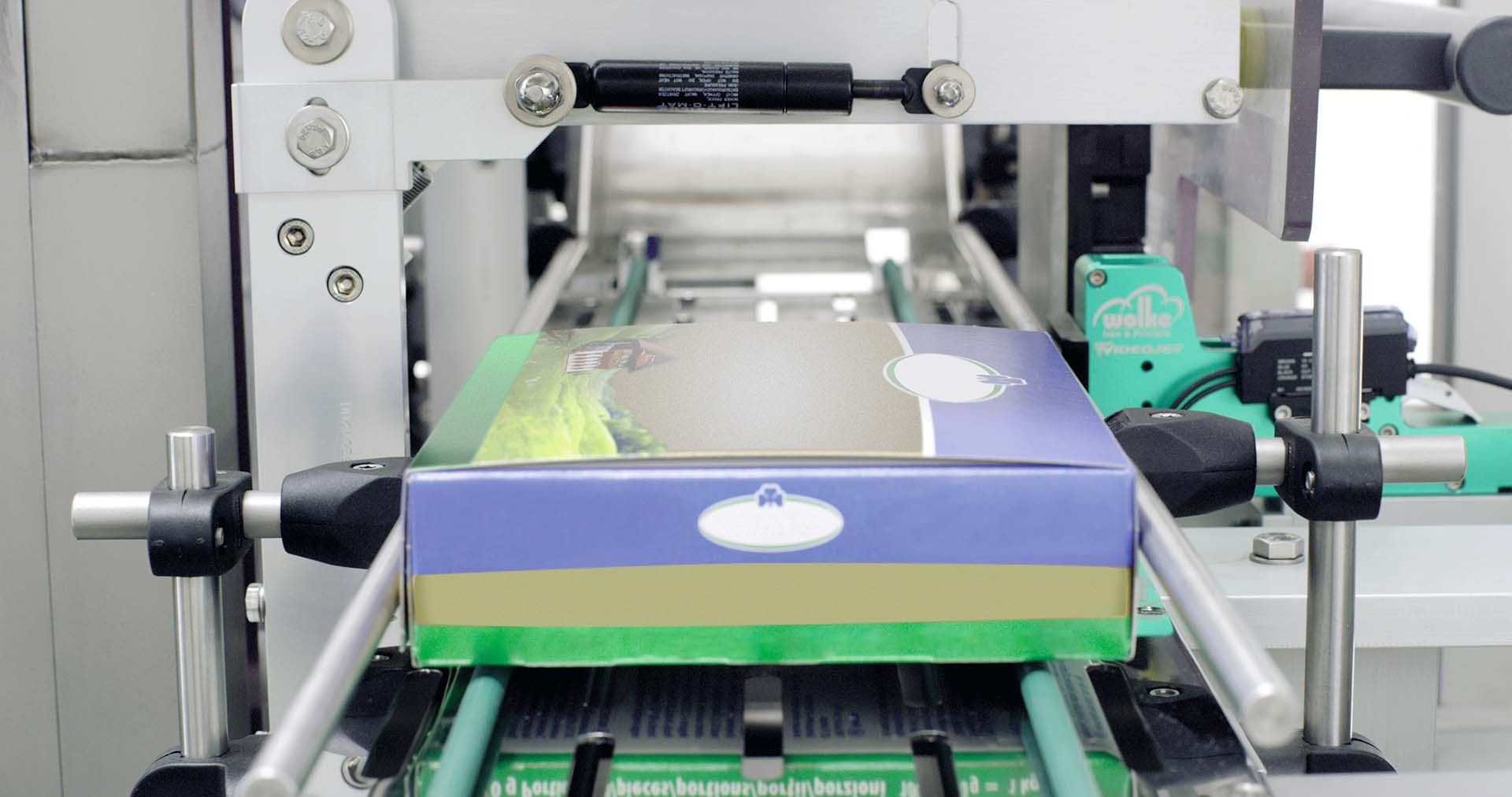

Box outfeed

Technical information

Production capacityUp to 10 boxes/min.
Full load current3P x 400 Volt – 50 Hz – 8 Amp
Compressed air consumption300 Nl/min. (min op. pressure 6 bar)
Weight2,100 Kg Approx.

Box dimensions

A (min ÷ max)
100 ÷ 235
B (min ÷ max)
100 ÷ 335
C (min ÷ max)
20 ÷ 75
Lanes4 ÷ 5
Layers2 ÷ 5
