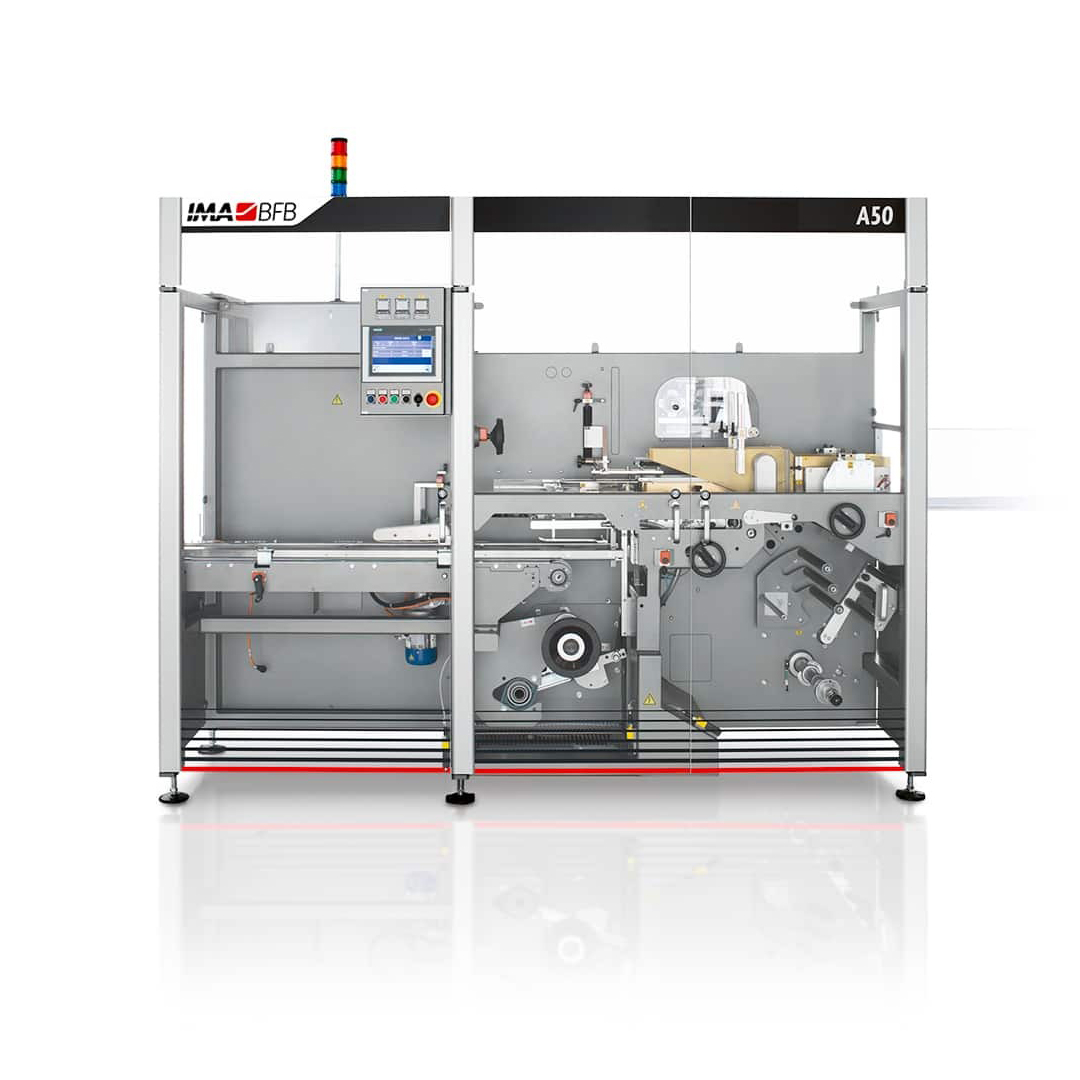

A50 Series Overwrapping

Machine overview

Innovative over wrapping to cope with difficult or thin films.

Compact in size, the A50 is an automatic over wrapper using an innovative film transport system designed to allow for difficult and thin films.
Further to its consolidated reliability, the A50 offers excellent accessibility and very easy changeover procedures, switching between cartons, trays, bundles and other parallelepiped products.
Running at 60 cycles/min, the A50 can benefit from a host of optional groups to respond to specific needs and enhance performance.

Production plant

IMA BFB

Machine highlights

  1. Flexible sealing

    Several different lateral sealing unit.

  2. Controlled film unwinding

    Film unwinding by means of driven drums to move film under guillotine knife.

  3. Servo driven technology

    Fully servo driven machine.

  4. Easy opening

    Tear tape unit available.

  5. Printing unit

    Film printing unit available.

  6. Easy size changeover

    Tool-free size changeover with digital indicator.

Machine details

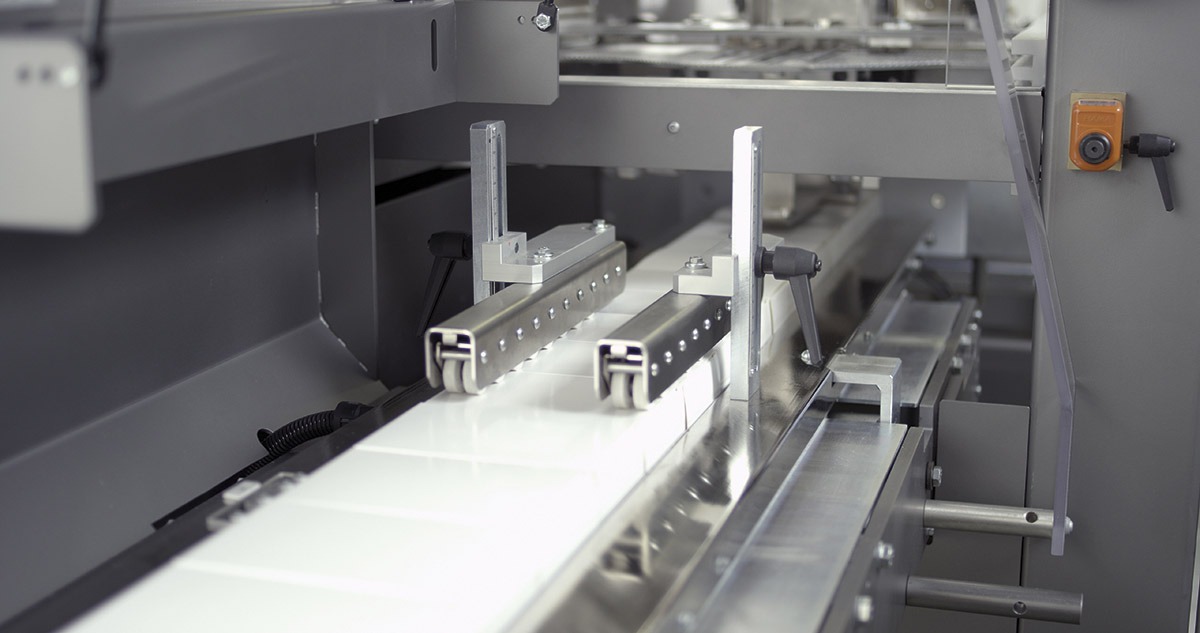

Product infeed

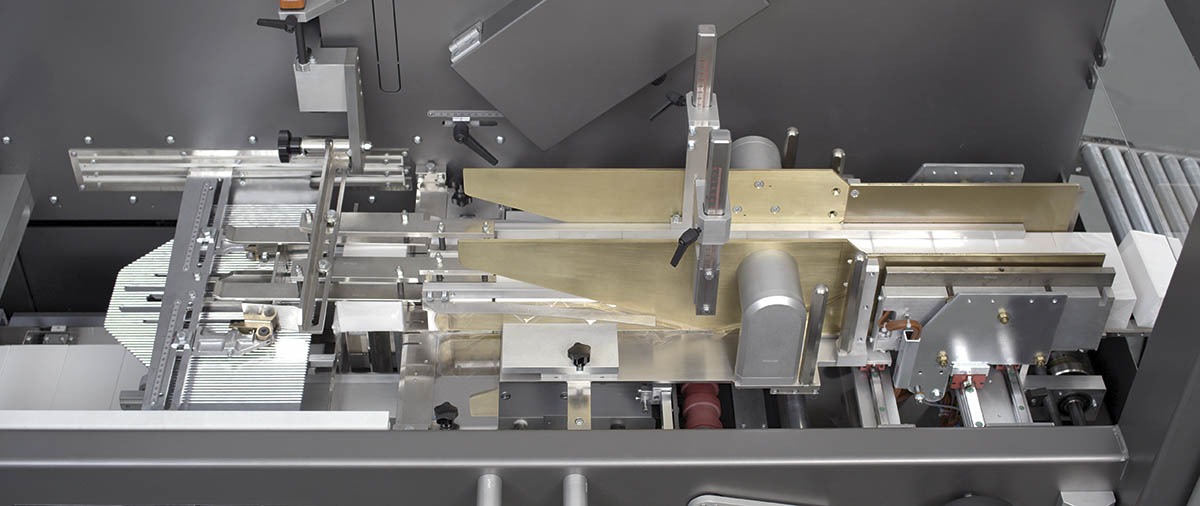

Film folding area

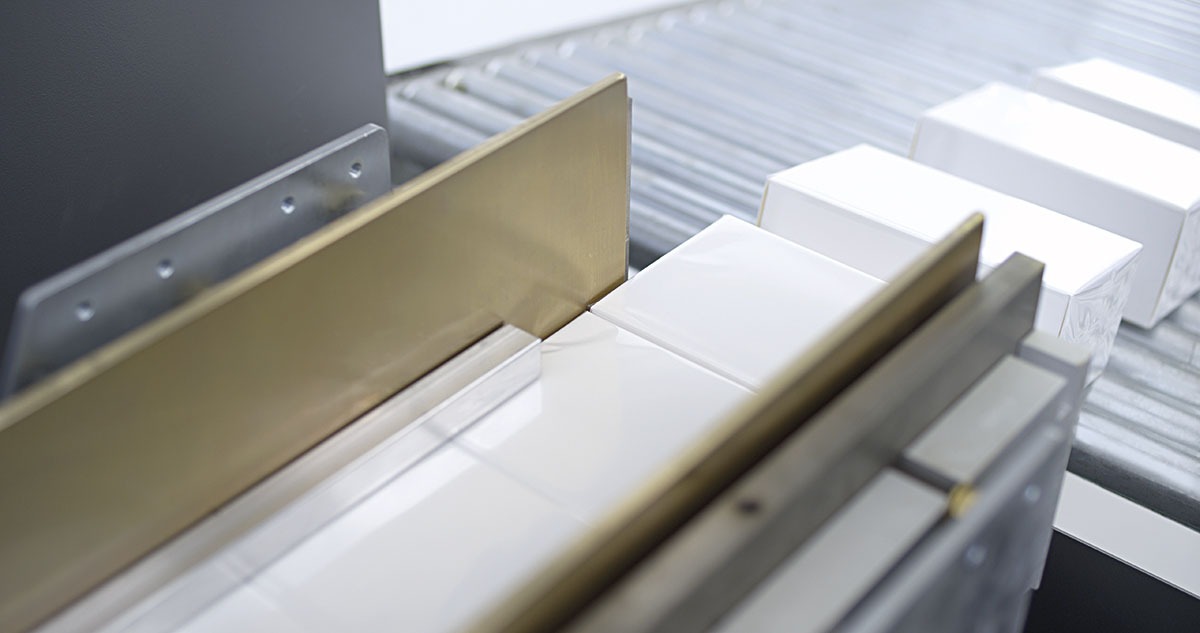

Product outfeed

Technical information

A50 TECHNICAL DATA
Product dimensionsABCDEFHL
Min.302560302560100120
Max.220120320220120320420700
Film width100/420
Cutting length120/700
Production capacity60 cycles/minute
