A452-F Series Cartoning

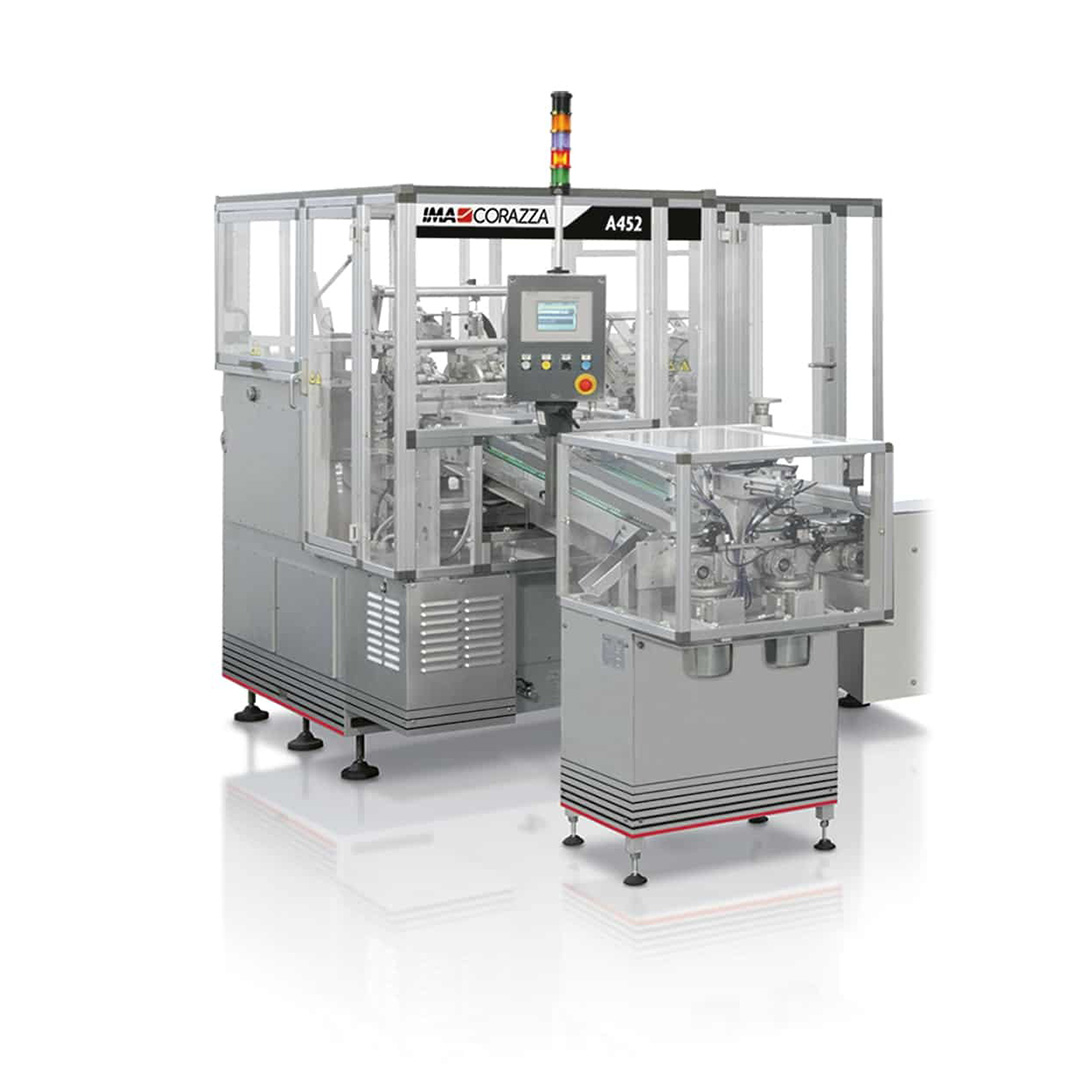

Machine overview

Flexible and dependable

Designed for the cartoning of square and rectangular portions of processed, fresh or cream cheese, the A452F is a highly reliable, flexible solution.
According to customer requirements, the A452F cartoner can be supplied with various types of infeed sections, depending on the product to be handled and on the requested pack configuration. The machine uses flat blank cartons which are formed around the product during the loading operation.

Production plant

IMA Corazza

Machine highlights

  1. Quick format changeover

    Converts simply to different product sizes as required.

  2. Convertible to single‑head for larger cartons

    Can be converted into a single-head version to handle up to 1 kg cartons.

  3. Cost‑efficient wrap‑around forming

    Cost-saving wrap-around system to shape cartons from open flat blanks.

  4. Gentle product management

    Damage-proof product handling: cartons pre-formed into an open U-shape in a vertical indexing turret.

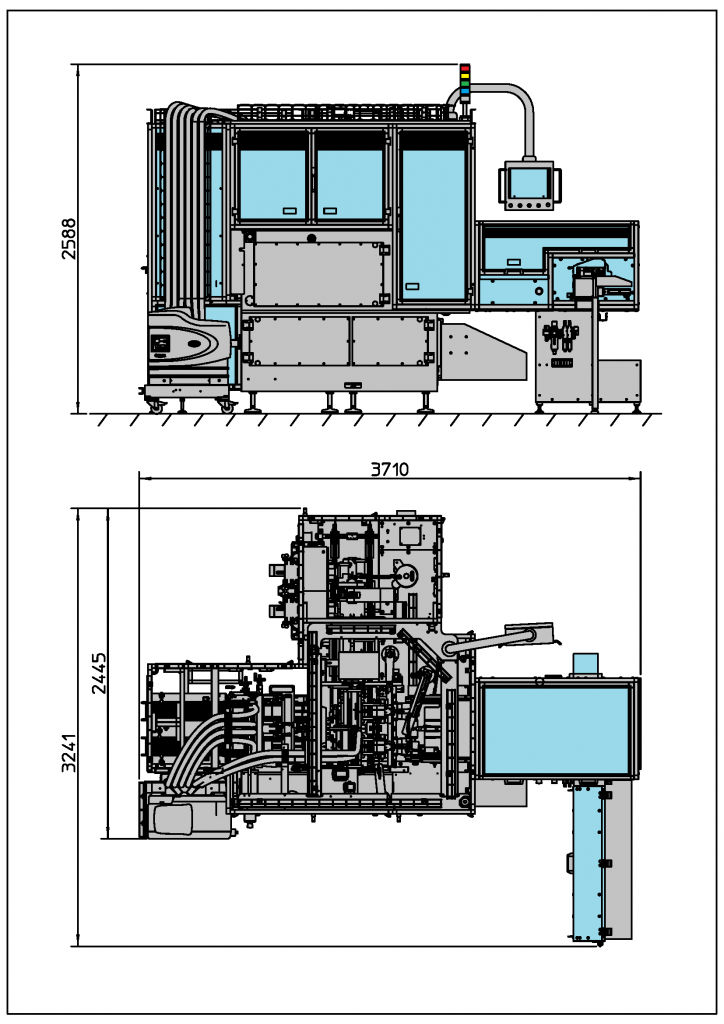

Technical information

Production capacityUp to 80 boxes/min
Full load current3P x 400 Volt – 50Hz – 8 Amp
Compressed air consumption350 Nl/min (Min. op. pressure 6 bar)
Weight3,700 kg Approx.

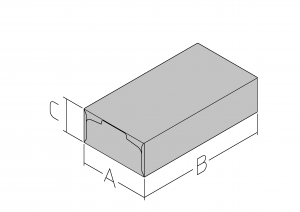

Box dimensions

A (min ÷ max)
59 ÷ 150
B (min ÷ max)
56 ÷ 75
C (min ÷ max)
22 ÷ 62
