Dynamicam

Gain accuracy and speed, with zero manual intervention.

What is Dynamicam?
Turning complexity into control.

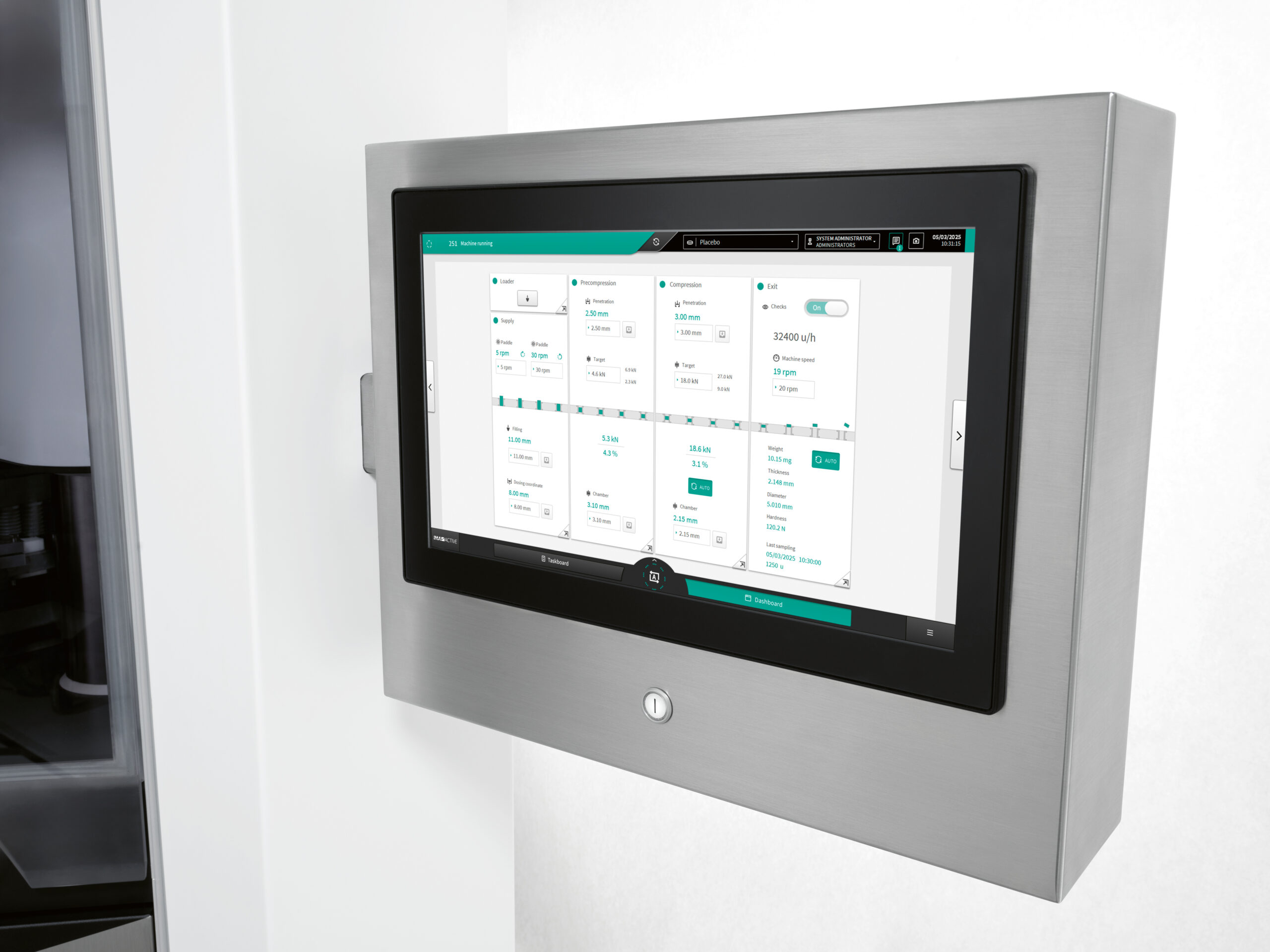

Mechanical loading cams are fixed, rigid, and require manual replacements for every product. This leads to downtime, variability and challenges with poorly flowing powders. Instead, Dynamicam is a smart, self‑adjusting loading cam fully integrated into the DOMINA HMI. It replaces mechanical cams with a digital, auto‑regulated system that adapts in real time. The benefits include precise powder loading, faster changeovers and stable performance, even with difficult formulations.

TECH SESSION
Traditional loading camsFixed loading cams (e.g., 8/12/16/20 mm)Manual replacement for each product or recipeTime-consuming adjustments, prone to errorIncreased downtimeLimited Flexibility

The absence of recipe integration makes the setup dependent on operator skill and reduces repeatability

DynamicamOne single cam for all products, removing the need for format changes

Automatic HMI‑based depth adjustment, resulting in faster setup

2-22 mm range with 0.01 mm precision, ensuring higher accuracyNo mechanical interventions and reduced downtime

Self‑regulated refilling delivering consistent die filling and reducing waste

Fully recipe‑based process ensuring high repeatability and reliable performance

Access the full technical White Paper here.

How Dynamicam works

Dynamicam automatically manages loading depth from 2 to 22 mm with 0.01 mm precision, ensuring:

  1. Automatic depth regulation

    Dynamicam adjusts the loading depth based on process conditions avoiding mechanical interventions or manual adjustments.

  2. Faster changeovers

    Transitions between products or batches become quicker.

  3. Higher dosing accuracy

    The precise control of loading depth leads to more accurate dosing and more consistent tablet weights across the entire batch.

  4. Optimised behaviour

    The system adapts to cohesive or poor‑flowability powders, maintaining efficient die filling even with challenging formulations.

  5. Full parameter storage

    Within recipes, saved and recalled automatically.

  6. Stable performance

    Dynamicam maintains steady loading conditions throughout production, contributing to predictable compression behaviour.

Designed around your process

Switching products means opening the machine, replacing cams, adjusting mechanical components, and relying heavily on operator expertise. Dynamicam digitizes and automates the entire setup. No mechanical changes. No access inside the machine. This allows your team to:

• Move from one product family to another with minimal preparation
• Reduce dependency on manual skills
• maintain consistent loading behaviour across batches
• Scale production without compromising control

The result is a smoother, cleaner workflow, where operations become more reliable, and the entire process gains the flexibility required by modern tablet manufacturing.

Results that make the difference: stability, accuracy, and consistency.

Low‑flowability powders often cause poor die filling, that means weight variation, density fluctuations, mechanical weakness. Dynamicam’s optimises the refilling phase and ensures constant loading conditions, improving die refill efficiency and reducing weight variation. Benefit:

• Reduced tablet weight variation
• Easier control of tablet density and mechanical strength
• Reliable high‑speed production
• Fewer operator interventions
• Overall more predictable compression performance

  1. Download the White Paper

    For an in‑depth technical analysis of how Dynamicam enhances die filling performance, you can download the full white paper here.

  2. Contact us

    Ask more to our experts
