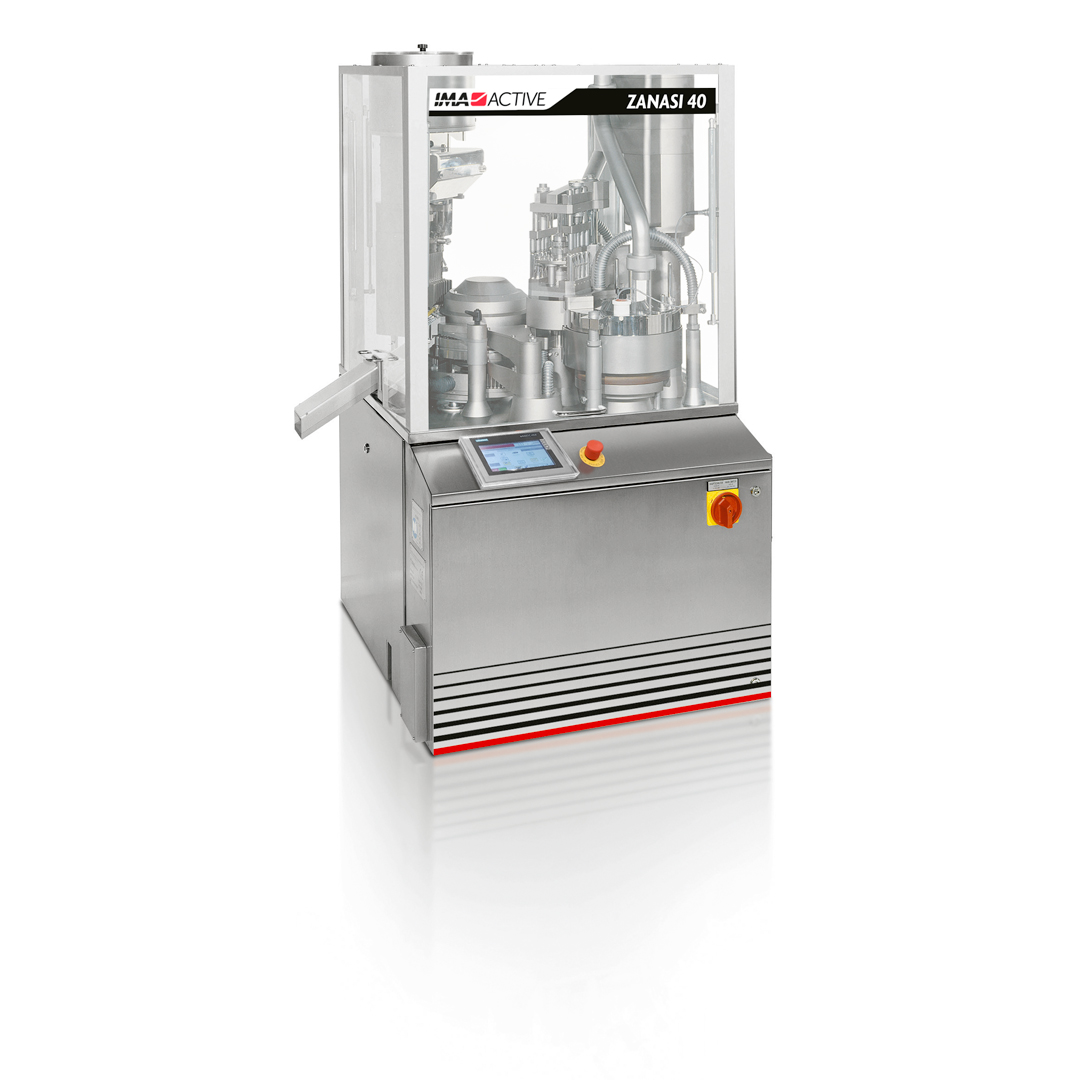

Zanasi Capsule Filling
Machine overview
The capsule fillers that made history.
Designed in the 1970s, Zanasi is IMA’s first automatic capsule filler that made history. Still appreciated for its simple configuration, it offers maximum versatility for combined dosing within the same capsule.

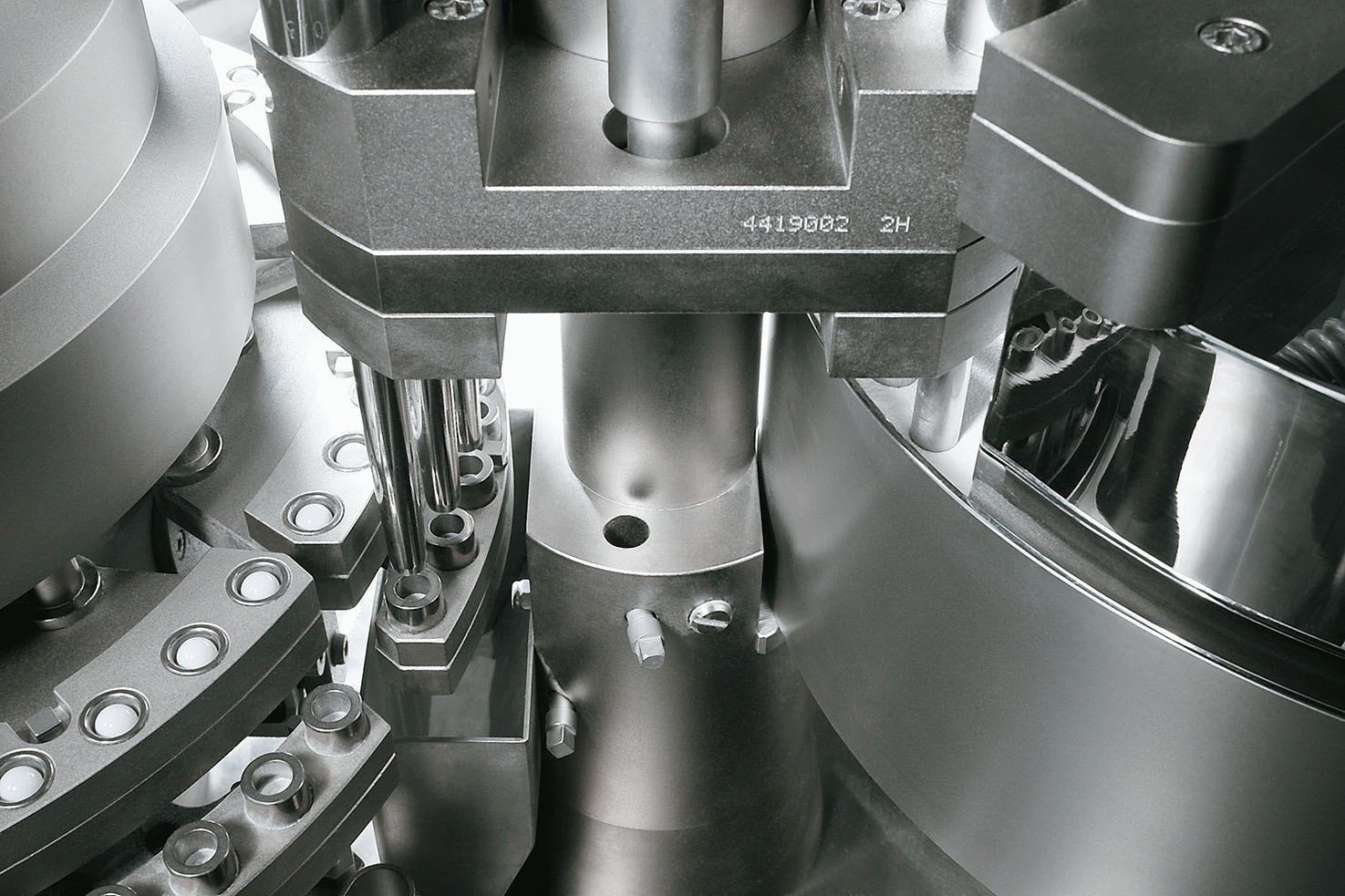

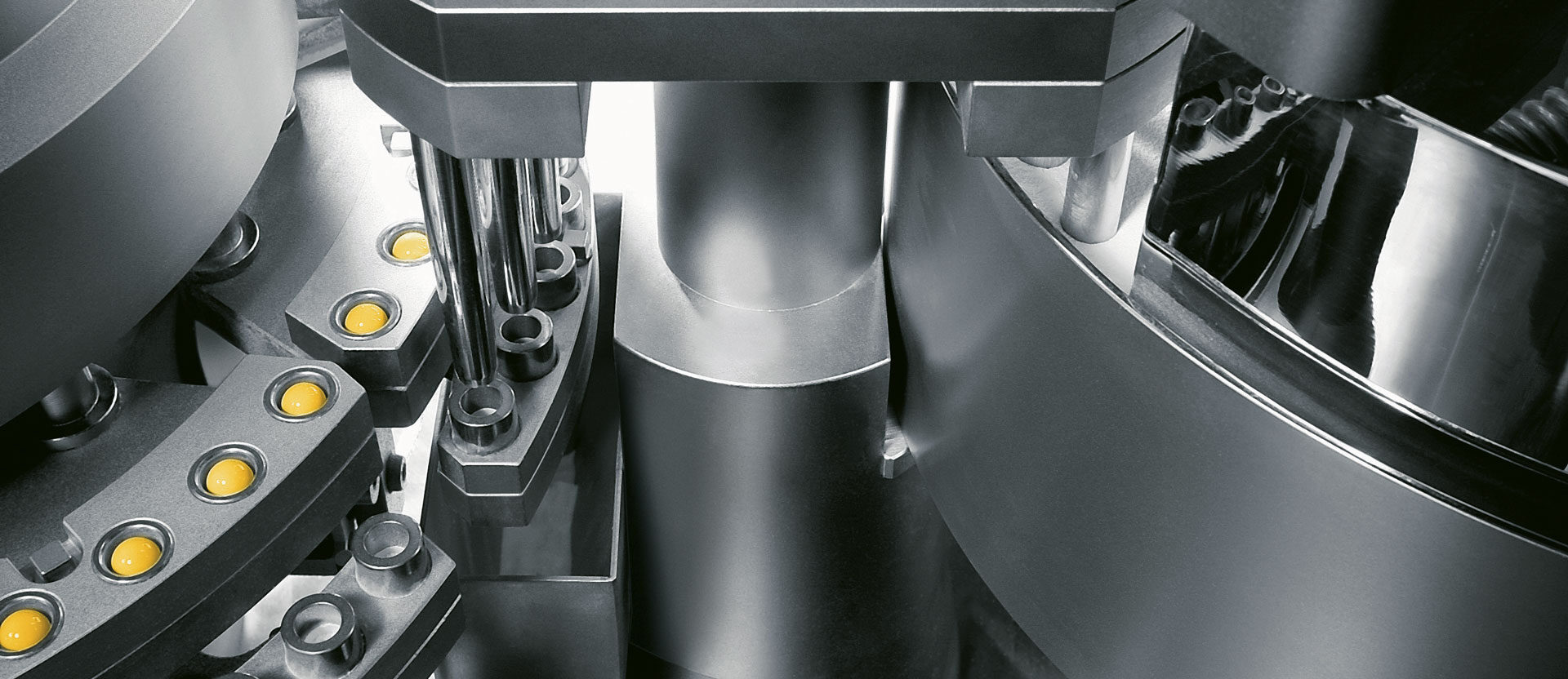

Zanasi can dose powder, pellets, tablets, minitablets and liquids into hard gelatine capsules, depending on the configuration and installed dosing units. Its hallmark? Exceptional user-friendliness, trusted by operators worldwide.
Production plant
IMA Active
Machine highlights
-
Accurate processing
Combined dosing of various products with excellent results in terms of dosing accuracy and speed.
-
Accessibility

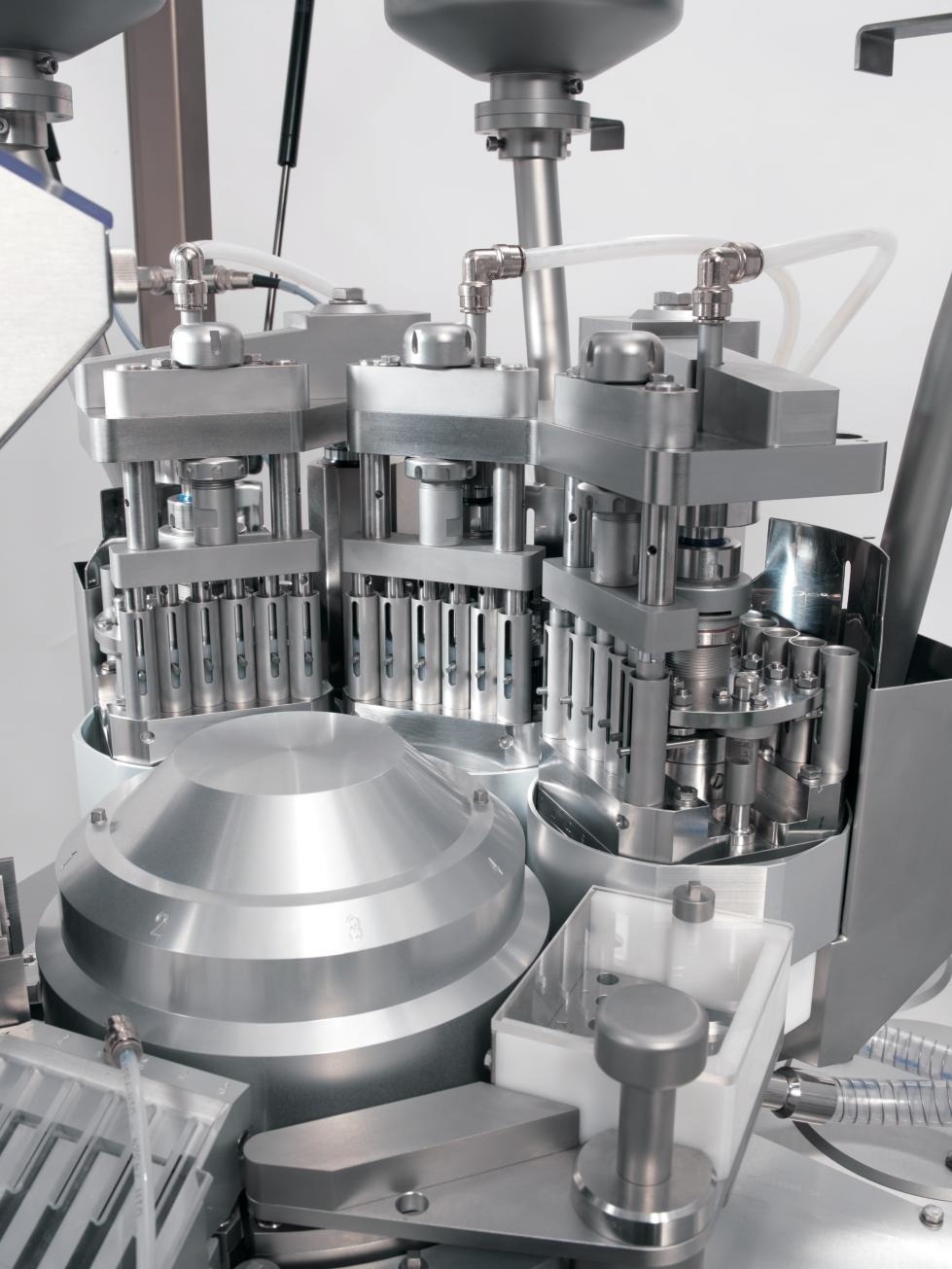

Easy access to the working area, simplifying routine operations such as cleaning, inspection, and maintenance.
-
Ergonomic interface
The machine is designed for easy operation, requiring minimal training.
-
Efficiency at speed
Quick size changeover and fast cleaning for maximum productivity.
Statistic weight-checking for production monitoring
All Zanasi machines are prearranged to be equipped with a statistic weight-checking unit for production monitoring. The group is prepared for 21 CFR part 11 compliance.
Machine details
Technical information
| Zanasi technical data | ||||
| Model | Zanasi 6 | Zanasi 12 | Zanasi 25 | Zanasi 40 |
| Maximum output (capsules/hour) | 6,000 | 12,000 | 25,000 | 40,000 |
| Number of capsules per cycle | 1 | 2 | 4 | 6 |
| Capsule size | 000-5, supro A-E, DB, DBAA | 000-5, supro A-E, DB, DBAA | 000-5, supro A-E, DB, DBAA | 000-5, supro A-E, DB, DBAA |
| Maximum installed power (kW) | 10 | 10 | 10 | 10 |
| Aspiration | 3,850 l/min – 2,500 mm H₂O | 3,850 l/min – 2,500 mm H₂O | 3,850 l/min – 2,500 mm H₂O | 3,850 l/min – 2,500 mm H₂O |
| Compressed air | 30 l/min – 6 bar | 30 l/min – 6 bar | 50 l/min – 6 bar | 100 l/min – 6 bar |
| Vacuum | 40 m³/h – 3 mbar | 40 m³/h – 3 mbar | 100 m³/h – 3 mbar | 100 m³/h – 3 mbar |
| Standard voltage | 230/400 V (±10%) – 50/60 Hz | 230/400 V (±10%) – 50/60 Hz | 230/400 V (±10%) – 50/60 Hz | 230/400 V (±10%) – 50/60 Hz |
| Weight (kg) | 1,000 | 1,000 | 1,000 | 1,000 |
