XWRAP Primary wrapping
Machine overview
Versatility at your disposal.

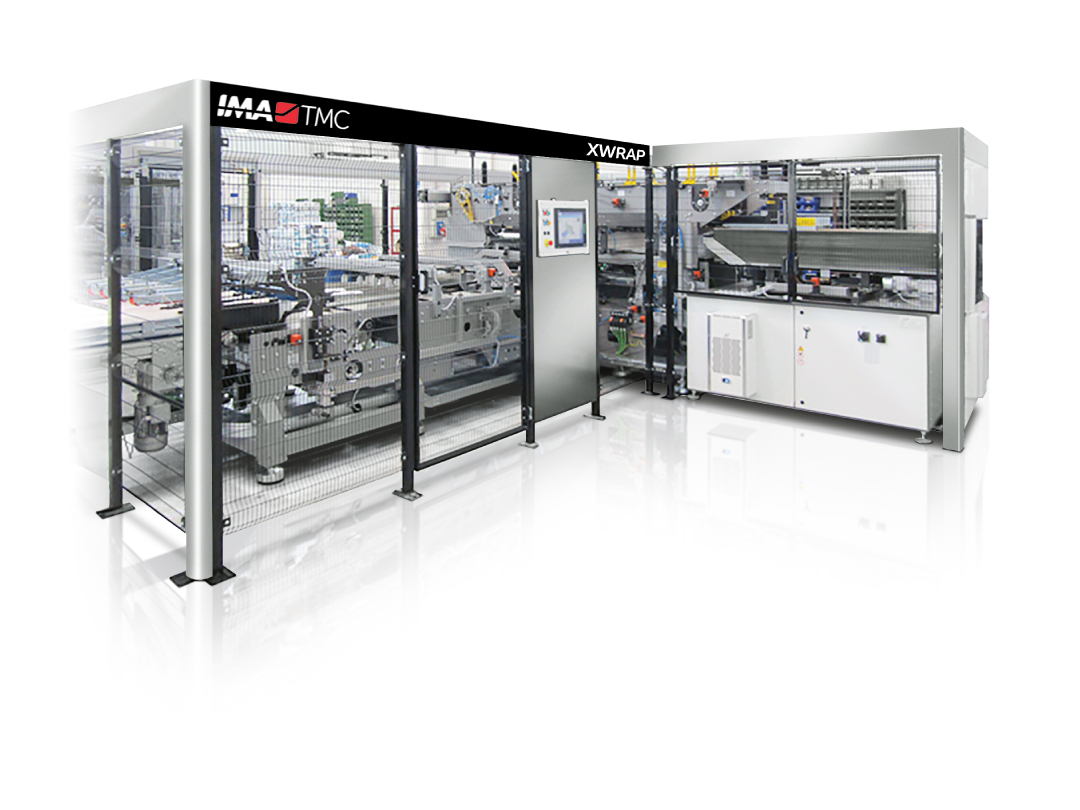

XWRAP is an automatic wrapping machine for bathroom and household tissue towel rolls. This high-speed servo sequential multi-roll packaging machine is suitable for wrapping single- and double-layer formats, with thermo-sealable materials PE or PPE.
Easy management and guided changeover operations can be quickly carried out through the HMI. Full size adjustments can be stored in recipes for fast, accurate and repetitive setting
Wide flexibility and reduced downtime to switch from one pack configuration to another is guaranteed, also thanks to a reduced number of changeover parts and simple adjustments to be carried out.
Production plant
IMA TMC
Technical information
| TECHNICAL DATA XWRAP | ||
|---|---|---|
| Production speed | Up to 160 (180*) packs/min, depending on pack configuration | |
| Servo motors | 15-20 depending on possible configuration | |
| Product range (mm) | Min | Max |
| Diameter | 90 | 170 on 4 lanes, 200mm on 2 lanes* |
| Length | 90 | 300 |
| Machine range (mm) | Min | Max |
| Width | 180 (90*) | 600 |
| Length | 180 (90*) | 600 |
| Height | 90 | 300 |
| Poly Capability (mm) | Min | Max |
| Reel width | 320 | 1500-1800* |
| Repeat lenght | 225 | 850-950* |
