Xtrema Series Aseptic Processing
Machine overview
eXperience the eXtreme
The main concern of the pharmaceutical packaging market has always been the integrity of the drug, and, in the case of parenteral dosage forms, its sterility. XTREMA indeed embodies the latest technological breakthrough in aseptic filling.
During the aseptic filling of dose containers with a drug, essential is preventing its contamination, thus minimising its exposure to environment, equipment, manipulation from operators, etc., until its sealing.
XTREMA fundamental characteristics respond to the industry’s stringent technical requirements of vial filling, and with its flexible and ergonomic design it assures the most complete possibility to integrate modular equipment, and, why not, even to install multiple filling systems (liquids & powders) to be used alternatively within the same machine frame.
Production plant
IMA Life
Machine highlights
-
Superior ergonomic
Ergonomic displacement of operating groups.
-
Laminar flow
Geometry facilitating the unidirectional air flow (UAF).
-
VPHP exposure
Ideal for Vapour Phase Hydrogen Peroxide exposure.
-
Size changeover
Machine completely sealed and no tools required for size changeover.
-
Performance
Output up to 600 vpm.
-
Continuous/
intermittent motionMachine with continuous/intermittent motion selectable from HMI.
-

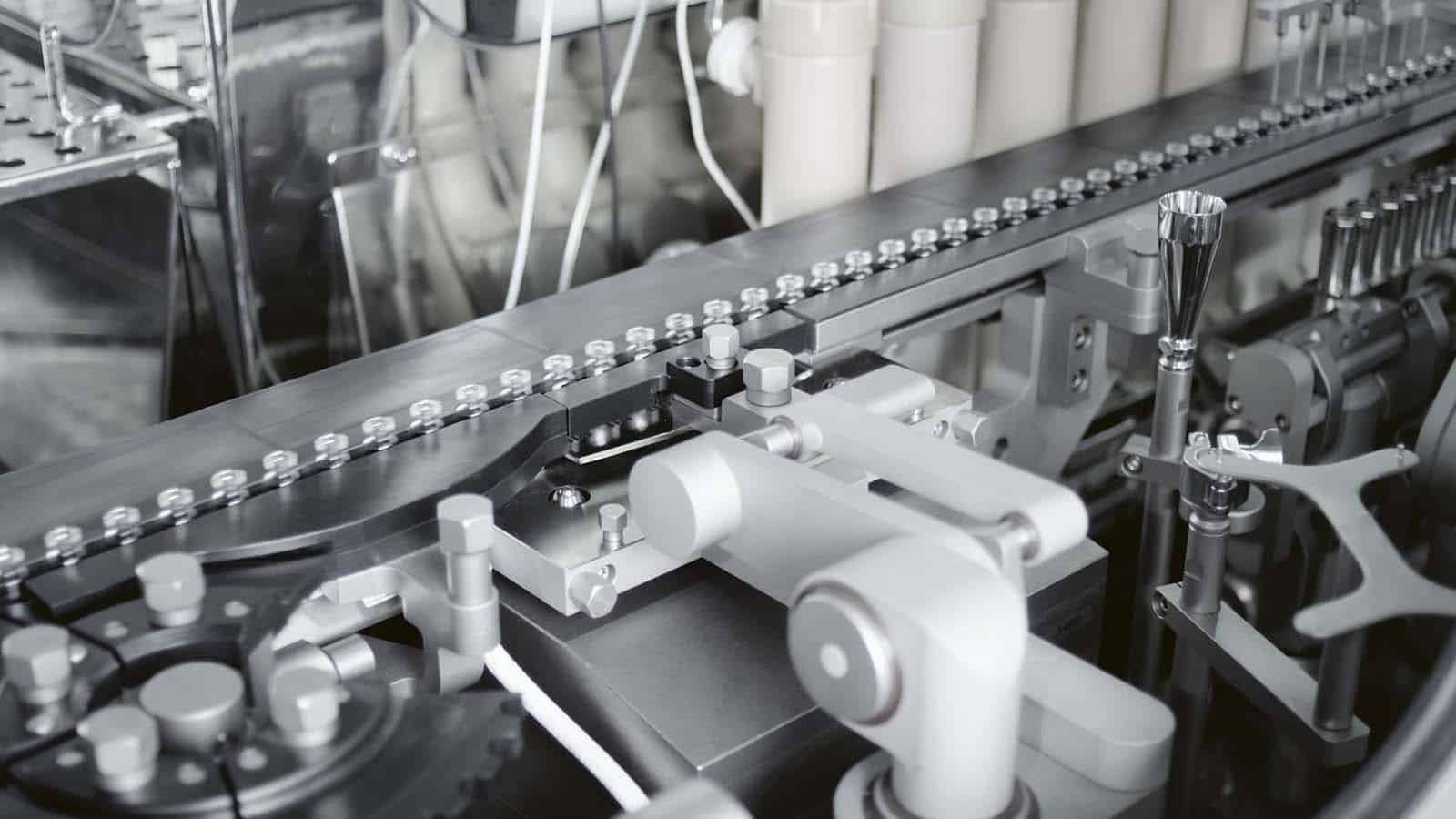

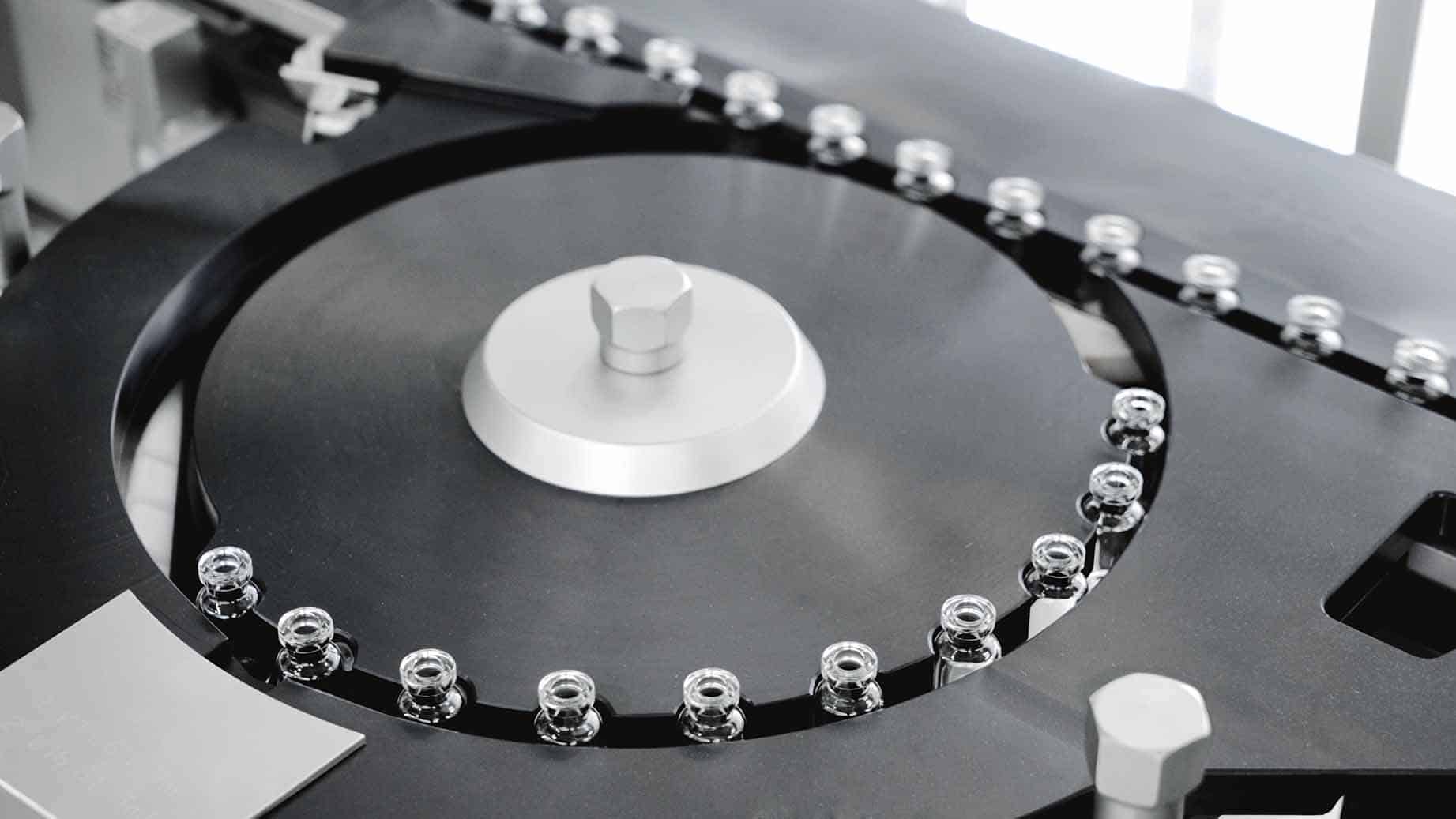

100% check-weighing

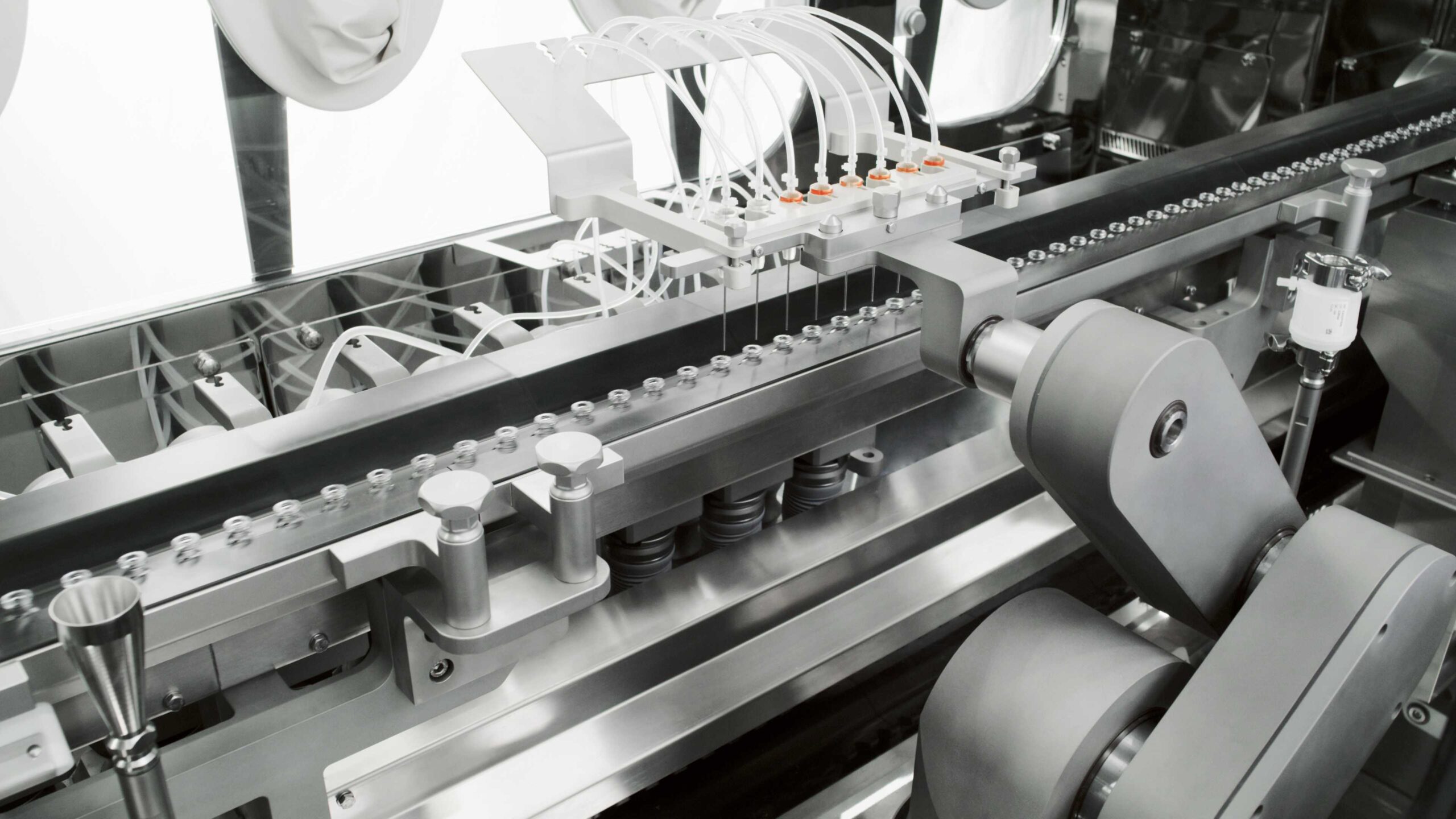

100% check-weighing system at 600 vpm and anthropomorphic robotized nozzle carrier.
-

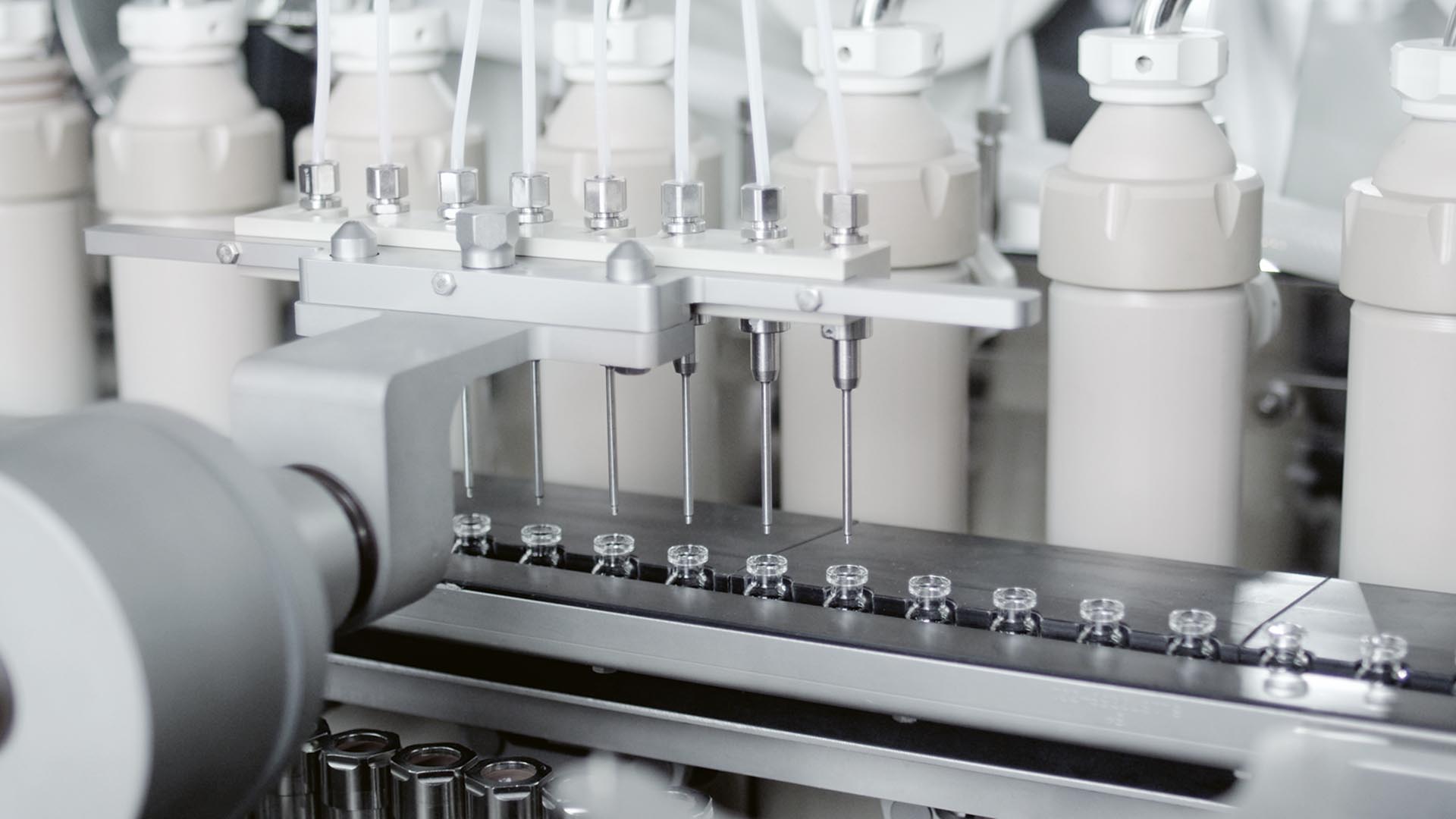

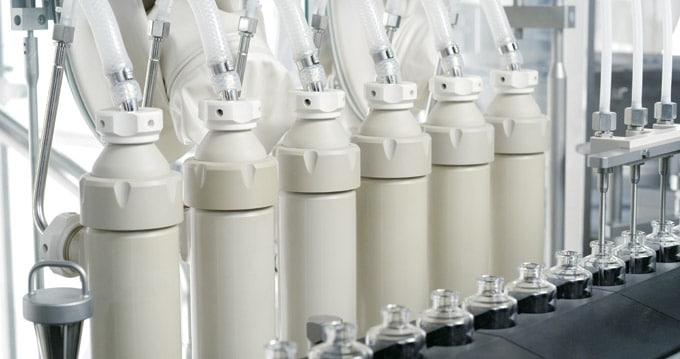

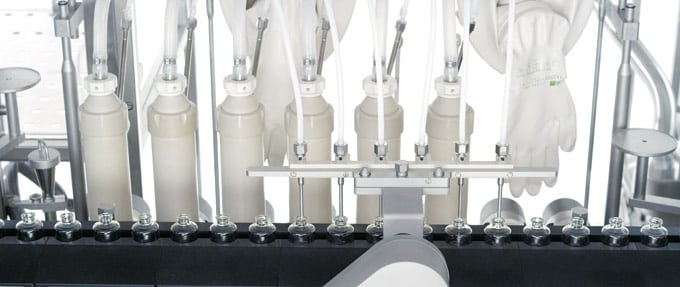

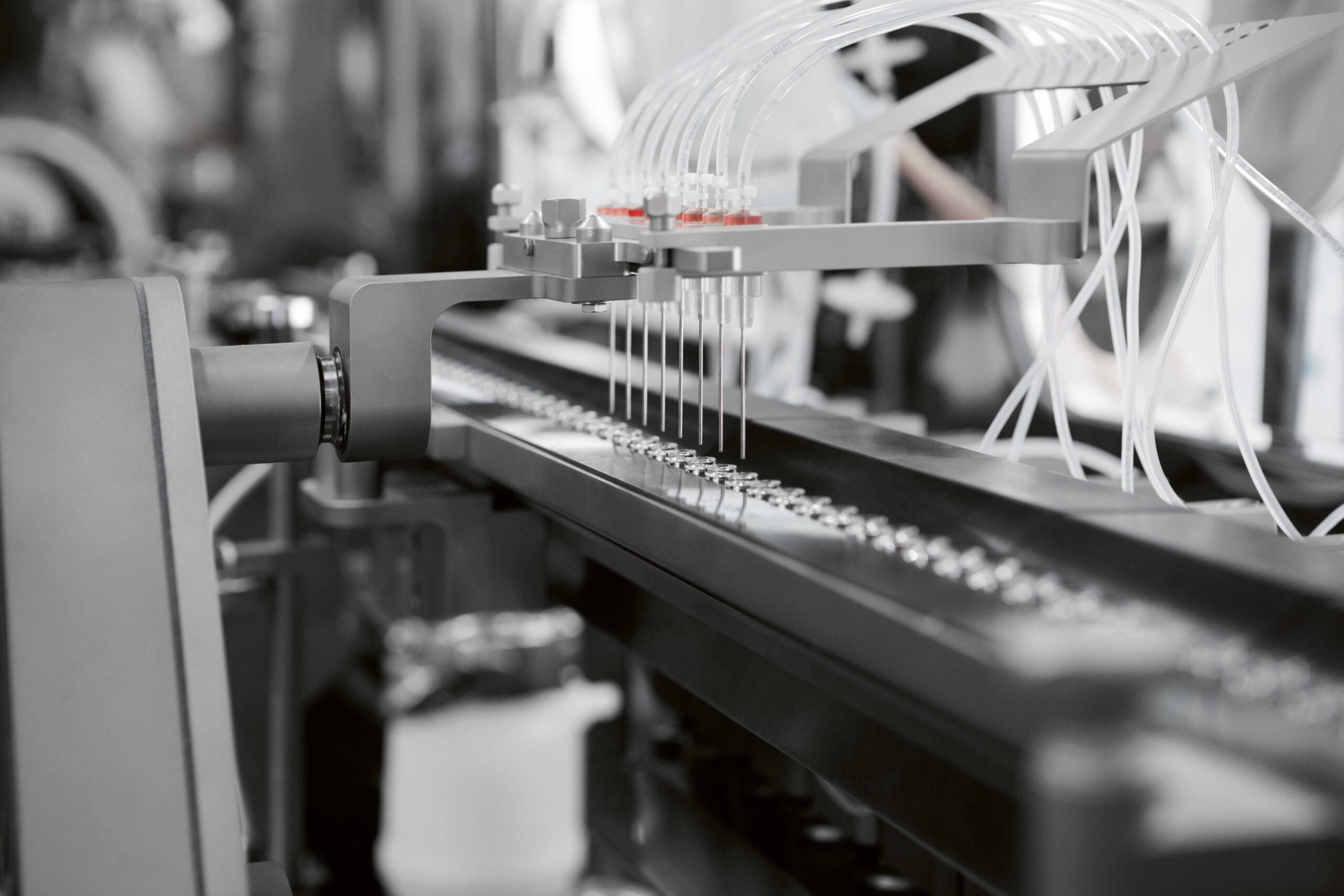

Liquid dispensing pumps
New liquid dispensing pumps with revolutionary assembly technique.
Product loss minimisation
XTREMA is your filler for product loss minimisation at high speed -100% IPC (check-weighing sampling)- up to 600 vpm. And, with the “Quick Fit” feature of the filling pumps -CIP/SIP ready-, no tools are needed nor to get in touch with product contact parts.
Machine details
Technical information
| TECHNICAL DATA XTREMA | ||
| Min. | Max. | |
| Vial diameter | 14 mm | 54 mm |
| Vial height | 30 mm | 110 mm |
| Stopper diameter | 13 mm | 32 mm |

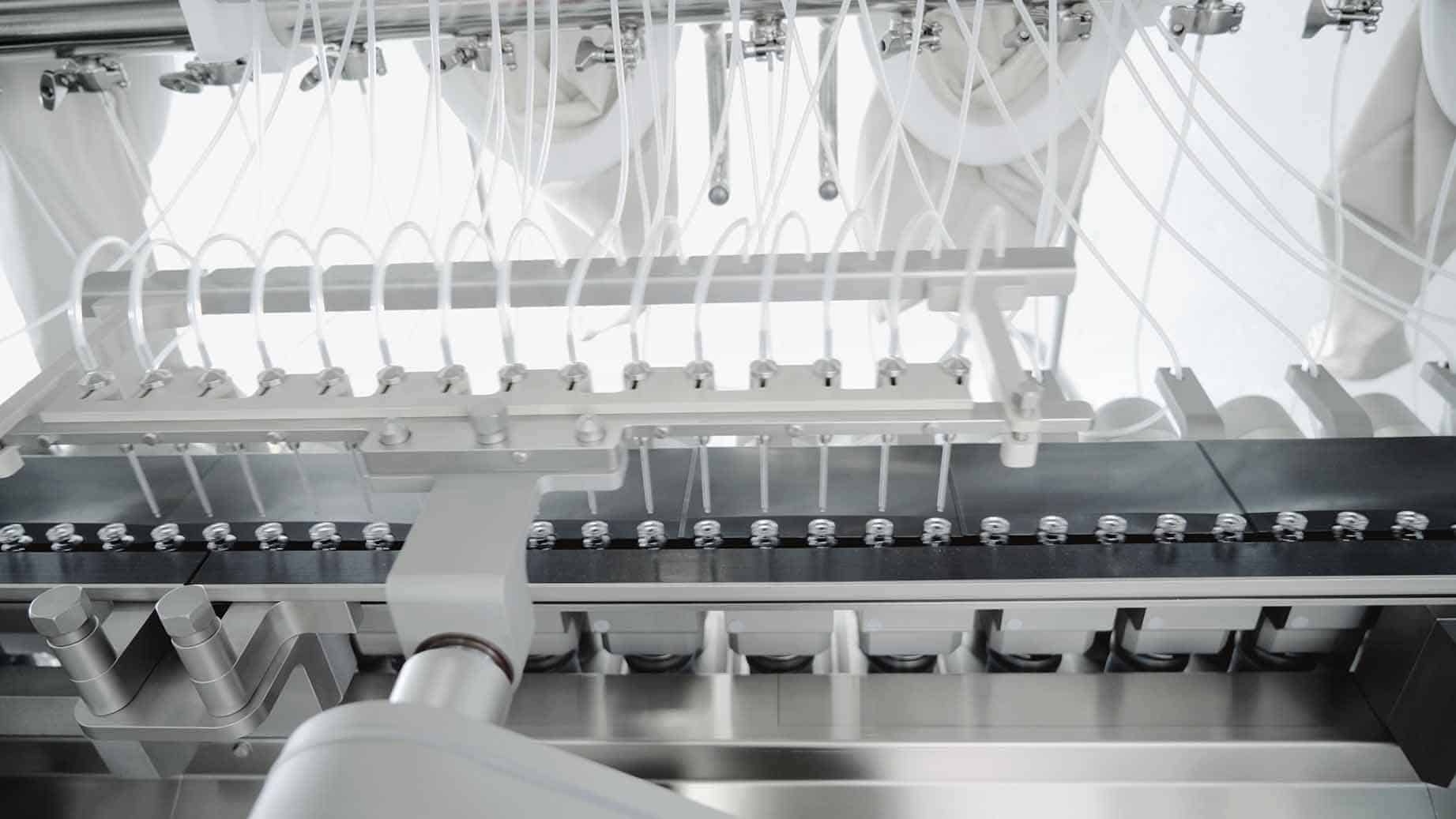

| Filling dosing unit | up to 15 | |
| Filling volume | 0.10 – 100 mL | |
| Output | Up to 600 vpm | |
| Output with 100% IPC | Max. 600 vpm | |
| Transport system |
Intermittent motion Continuous motion Intermittent/Continuous motion | |
XTREMA PROMO VIDEO

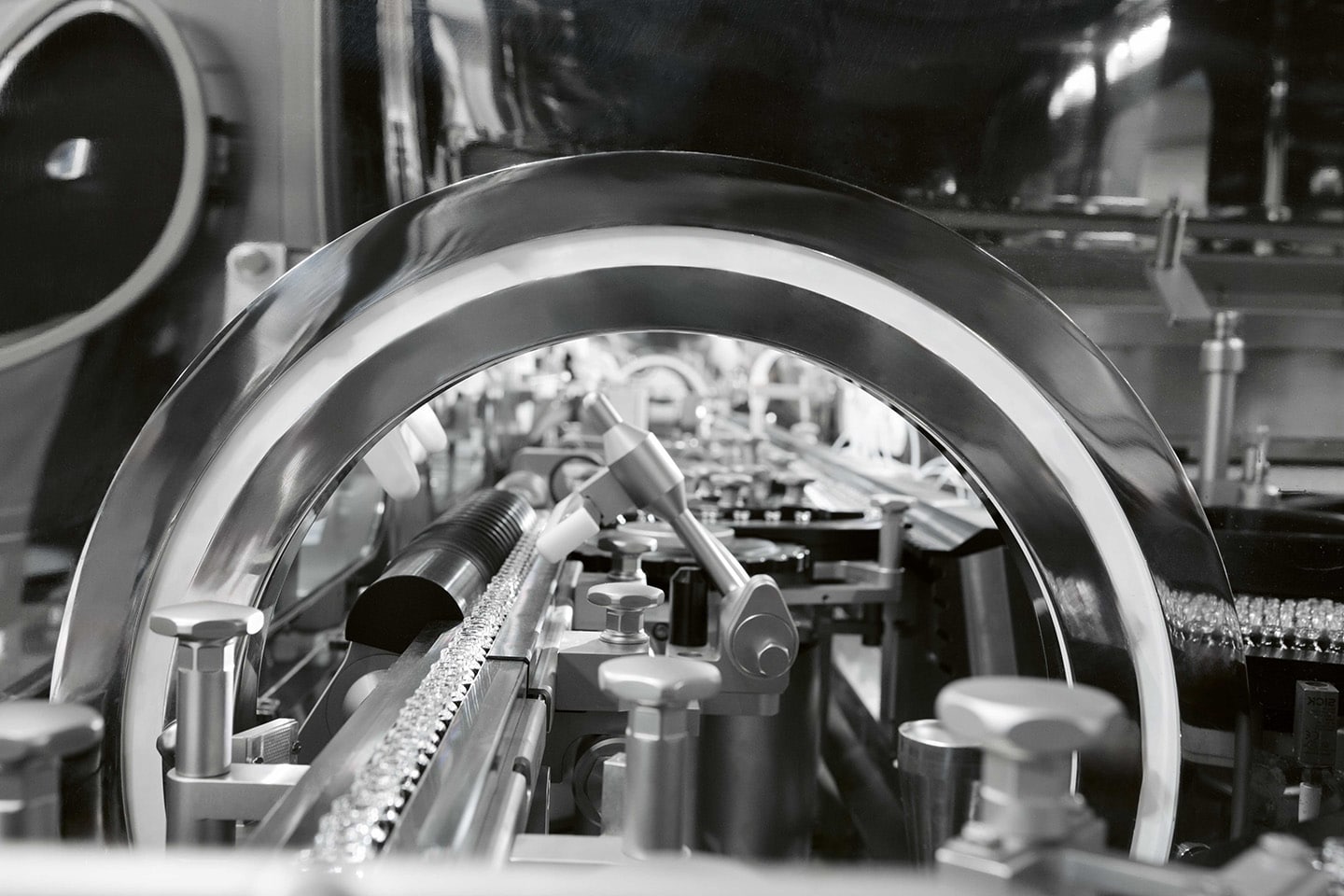

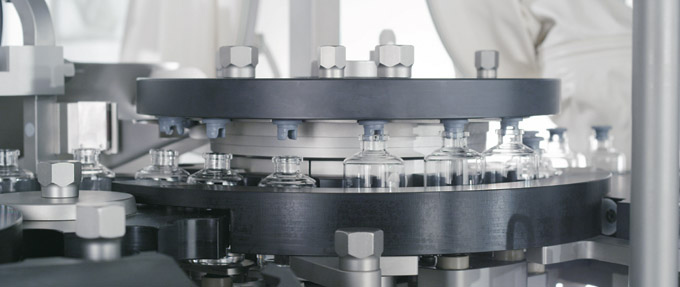

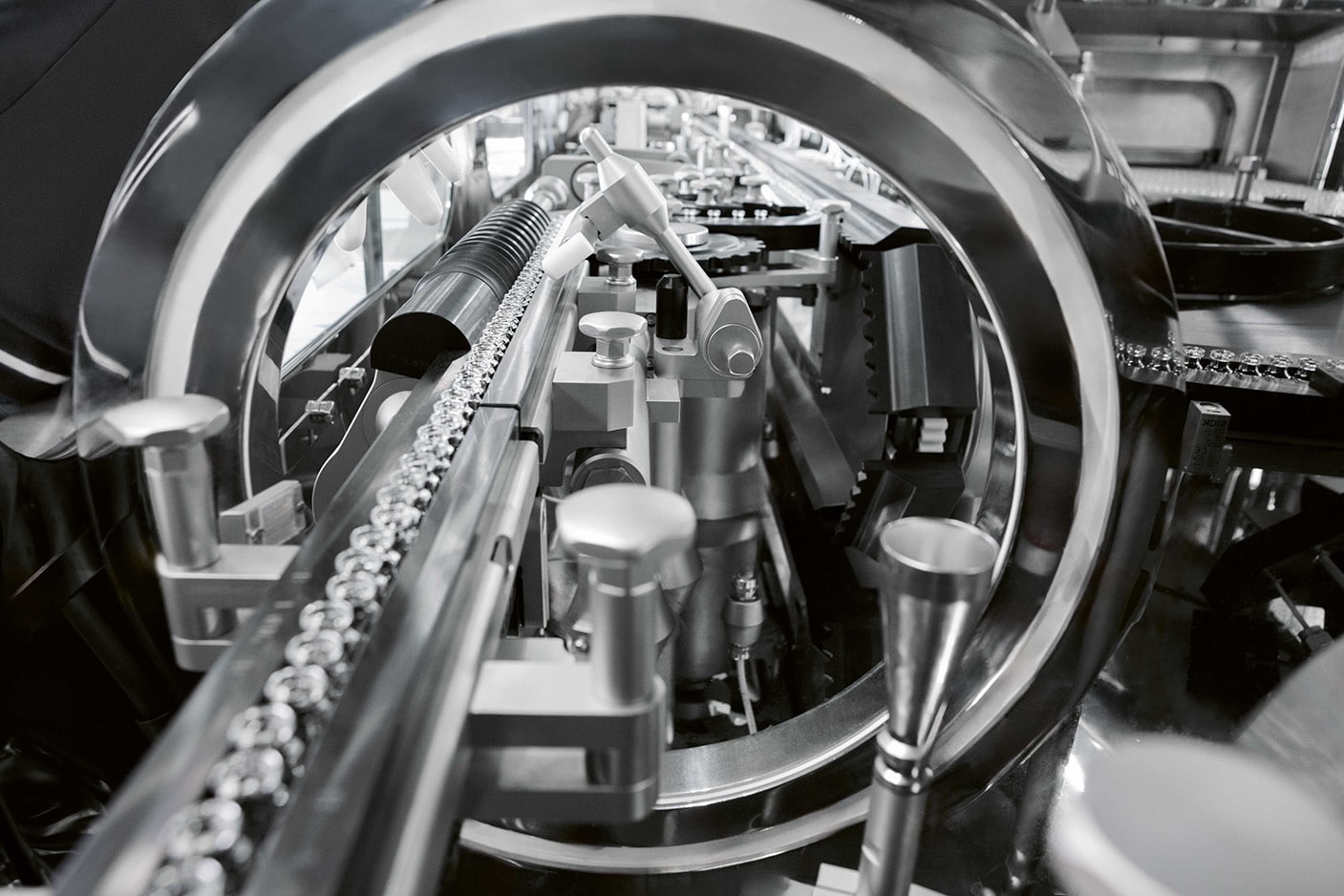

XTREMA is a high speed filling & stoppering machine for aseptic environments that minimizes product loss while filling at speeds of up to 600 vpm with 100% IPC. Ideal for exposure to VPHP, it is suitable for integration with isolation technology or other containment solutions.
