Xtrema PWD Series Aseptic Processing
Machine overview

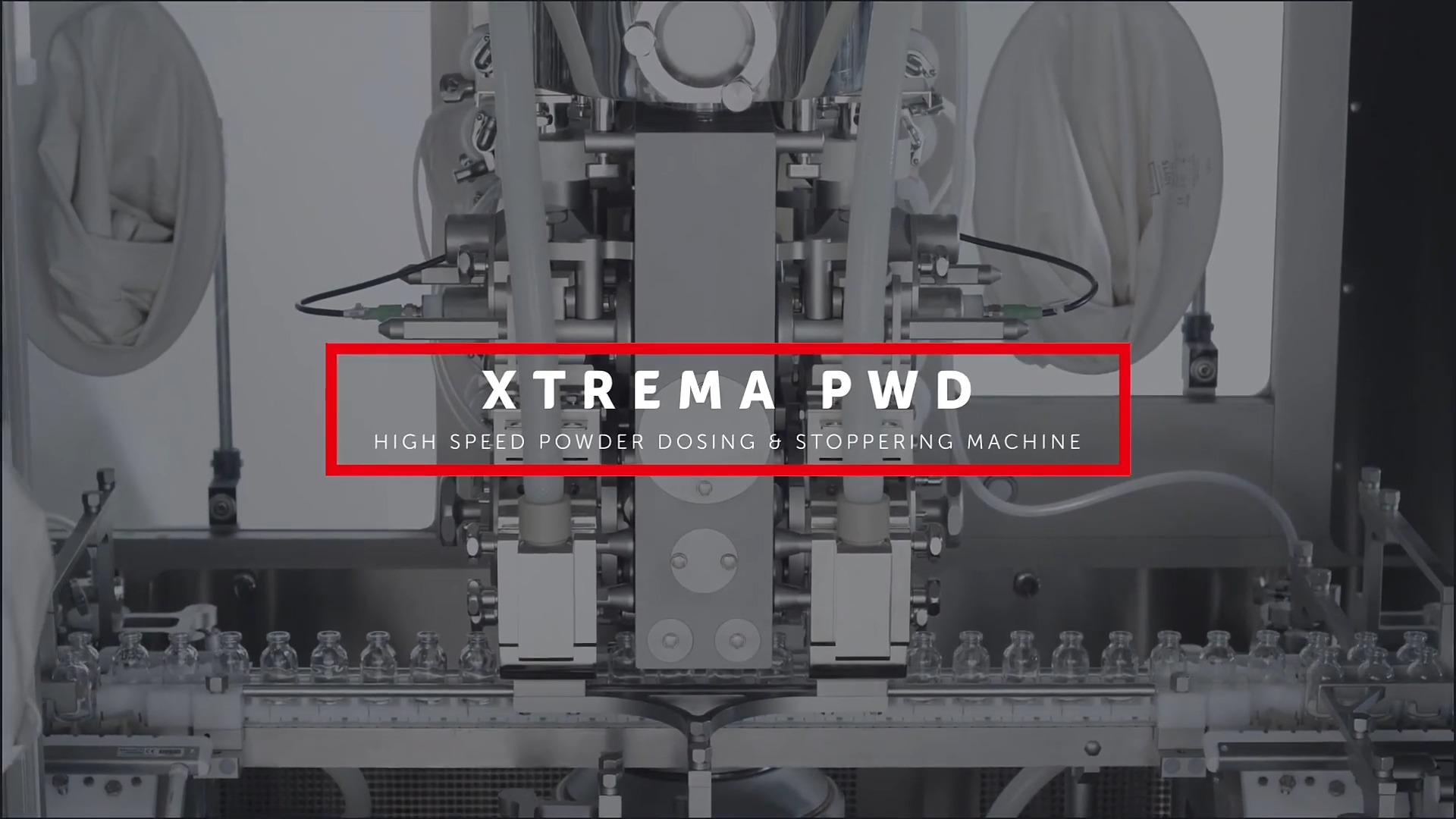

Cutting-edge powder microdosing.
The ongoing emergence of multi-drug resistant bacteria is a global issue, and the development of new antibiotics, especially those with new modes of action, is imperative to help treat new infections. This is the scenario for which our high-speed powder dosing and stoppering solution XTREMA PWD has been designed.
Today large pharmaceutical companies and biotech firms are again engaging in antibiotic development to ward off the threat of a so-called “post-antibiotic” era. To address this critical situation, we have developed a new generation of filling machines capable of dosing 2 different broad spectrum powders in the same vial with separate 100% check-weighing (SPLIT-FILL).
Production plant
IMA Life
Machine highlights
-

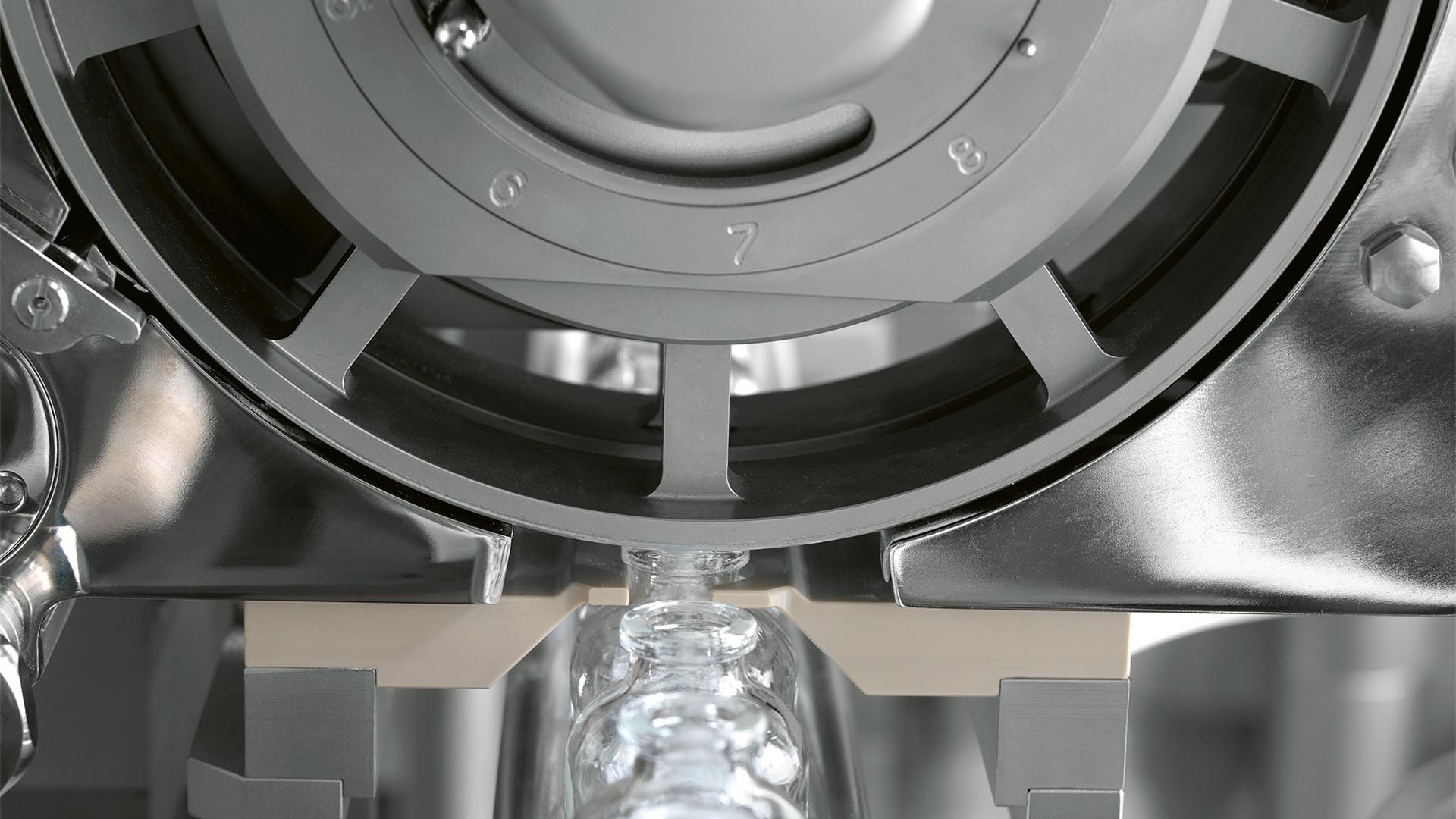

Vacuum-pressure filling

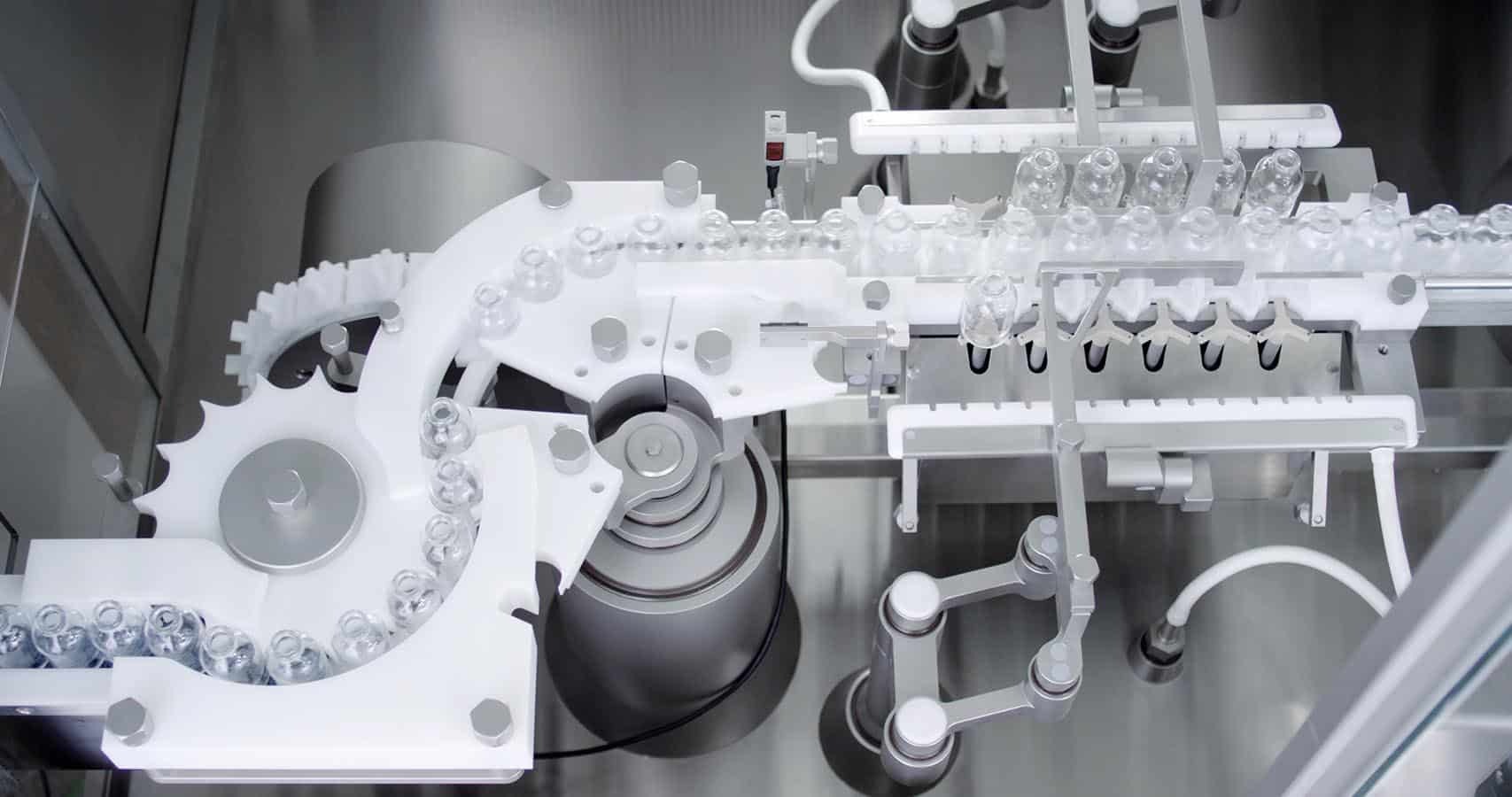

Consolidated vacuum-pressure filling system and positive intermittent in-line vial transport system.
-
Up to 3 powders
Possibility of dosing up to 3 different powders into the same vial.
-
Compact automation
Small footprint with high automation level.
-

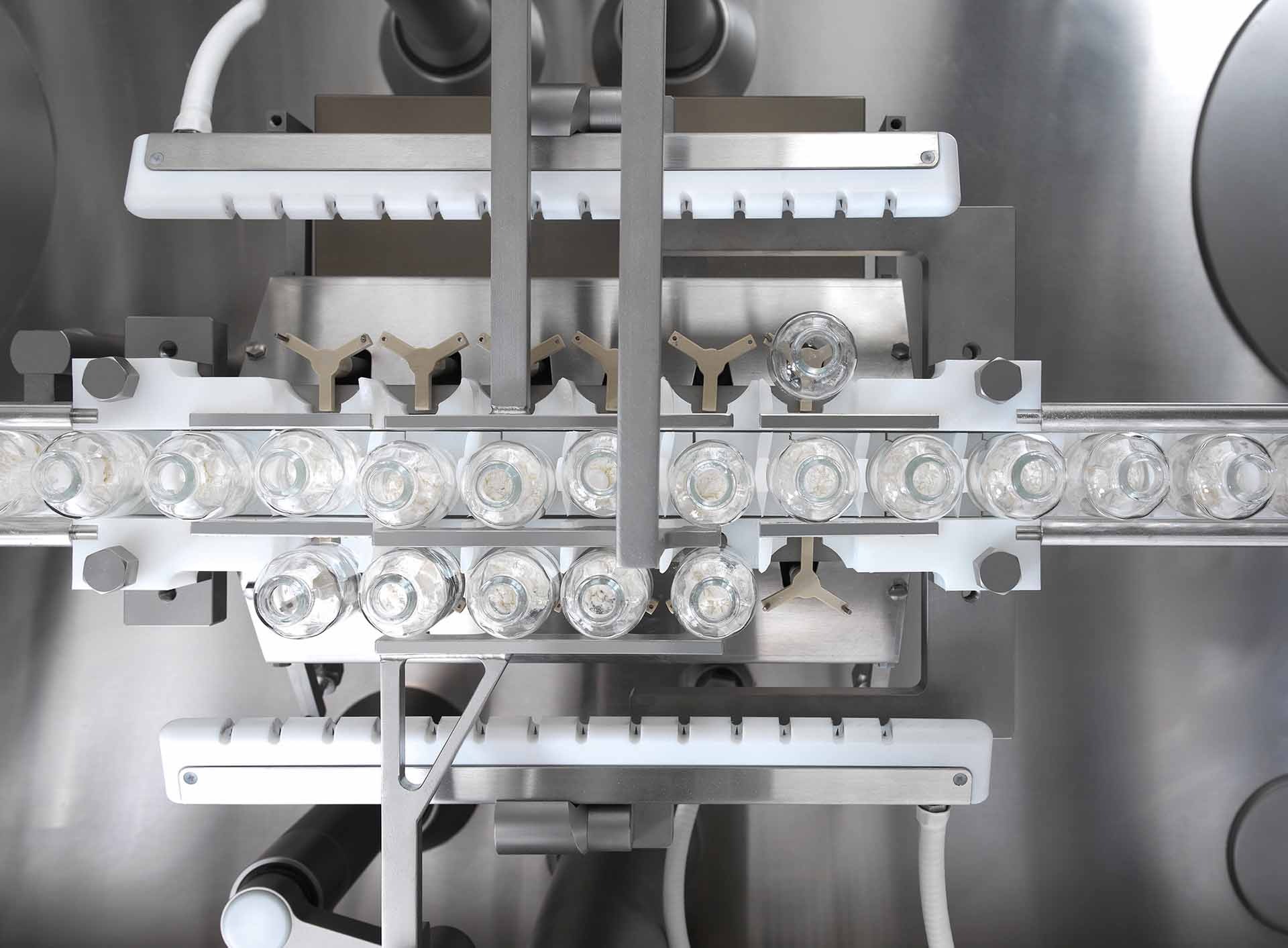

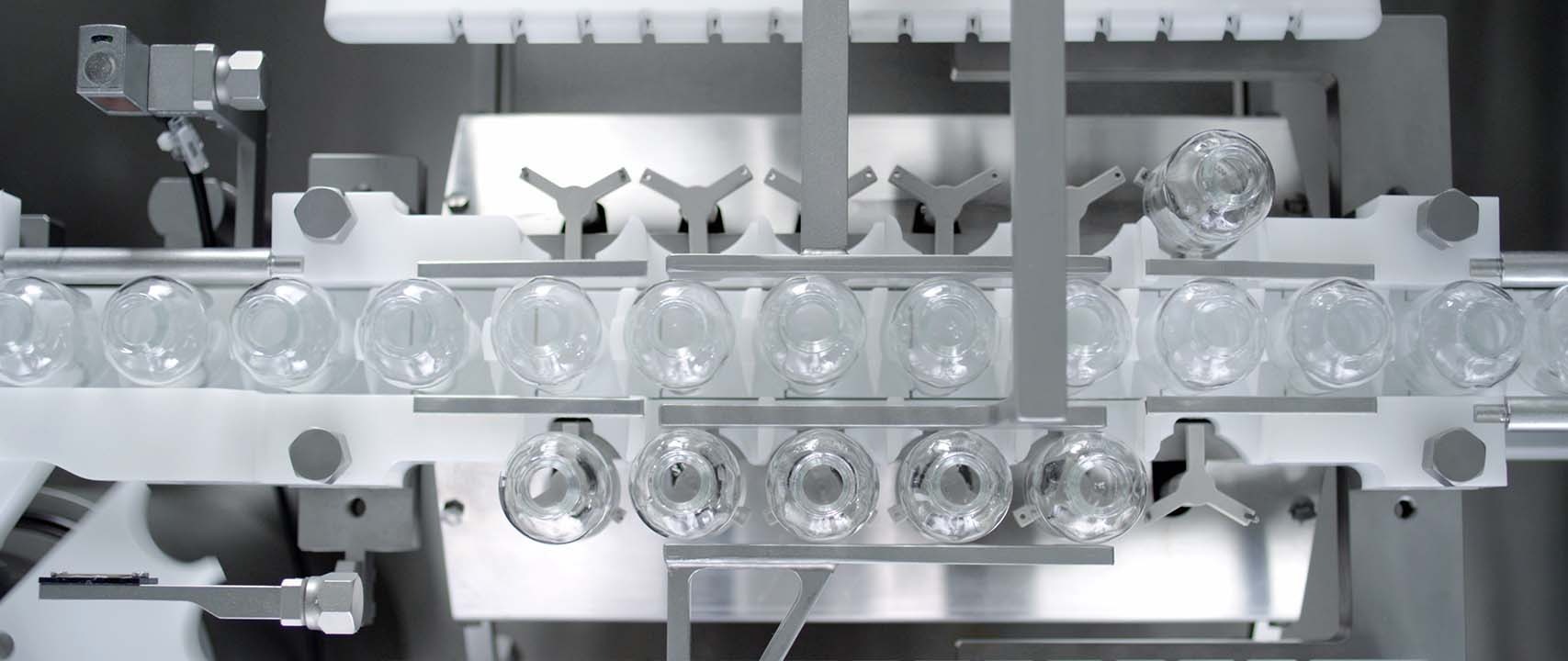

100% IPC
Performed at full speed of 400 vpm.
-
Containment
cRABS for powder containment – very slim design, with Recirculating LAF with controlled temperature and humidity.
-

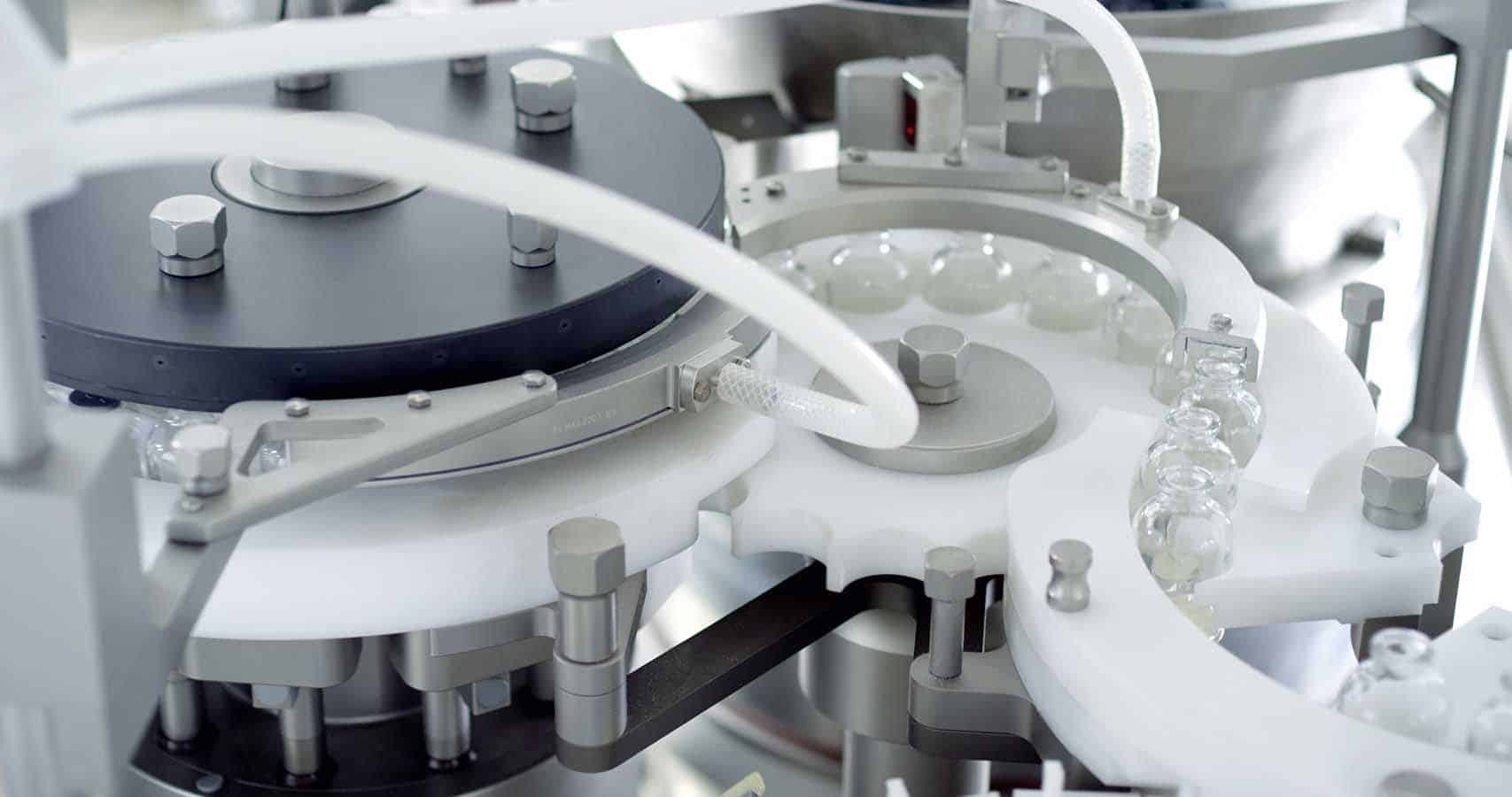

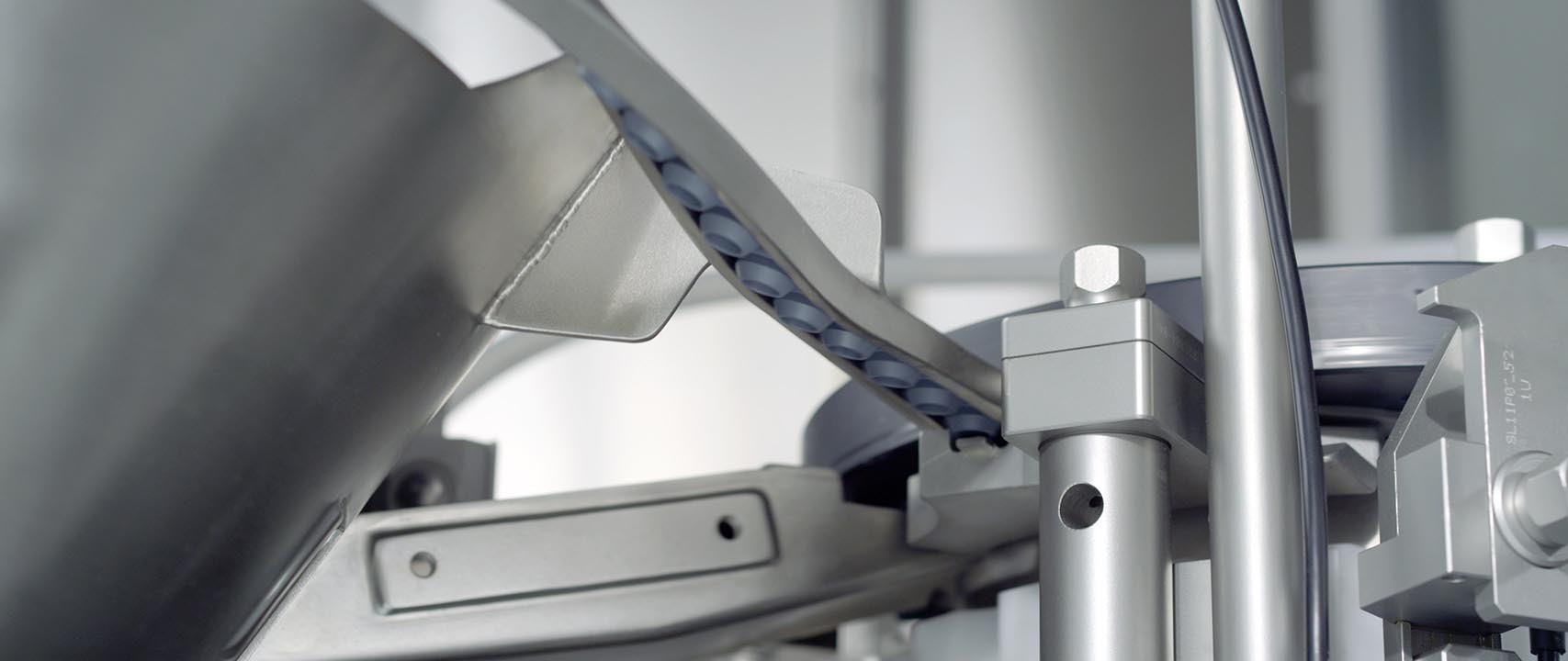

Stoppering
Continuous stoppering unit.
-
Handling
Powder handling facilities.
-
Laminal Airflow
Recirculating LAF with controlled temperature and humidity.

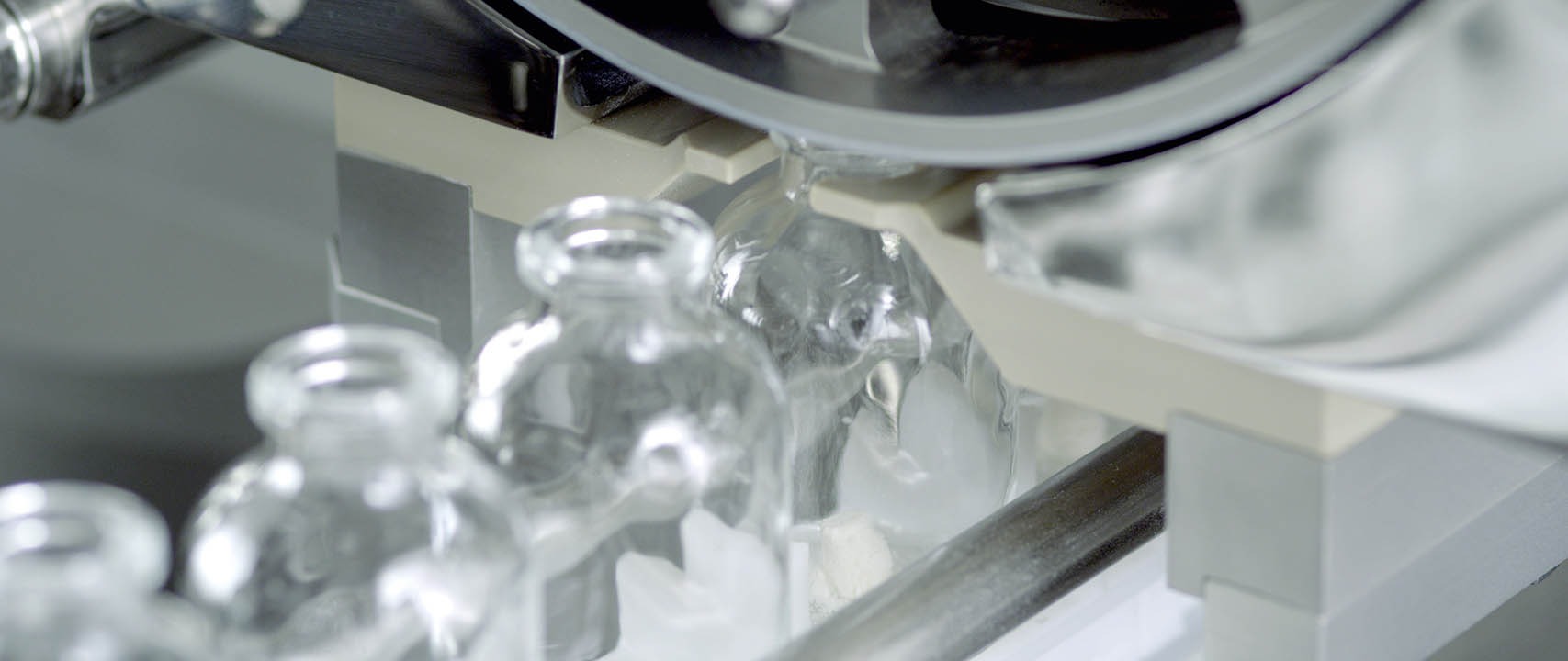

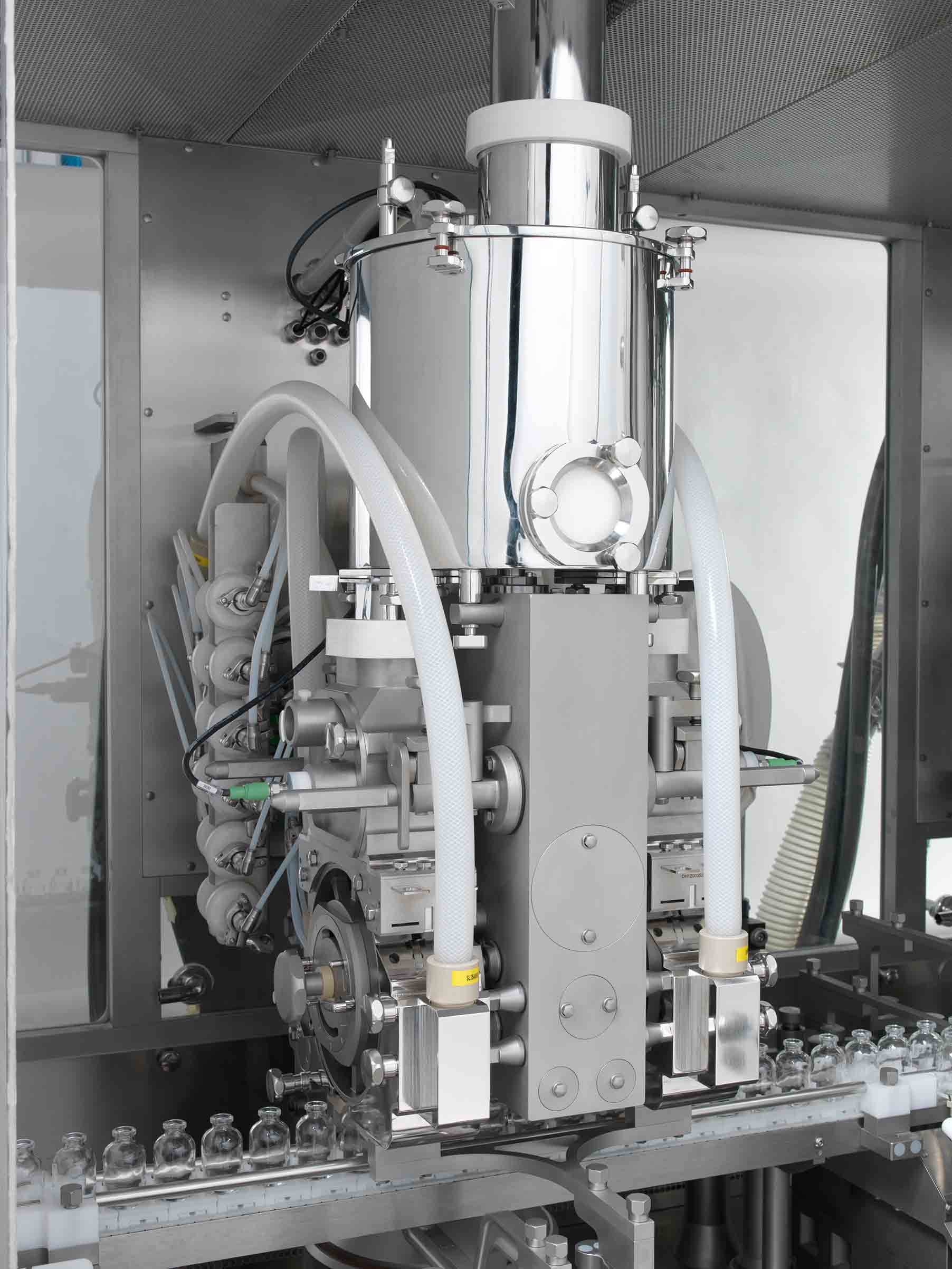

Dosing system
Up to three dosing units allow the individual filling of different types of powders in the same vial with 100% IPC at full operating speeds of 400 vpm.
Machine details
Technical information
| TECHNICAL DATA XTREMA PWD SERIES | ||
| Min. | Max. | |
| Vial diameter | 22 | 56 |
| Vial height | 30 | 136 |
| Stopper diameter | 20 | 33 |
| Stopper height | – | 25 |

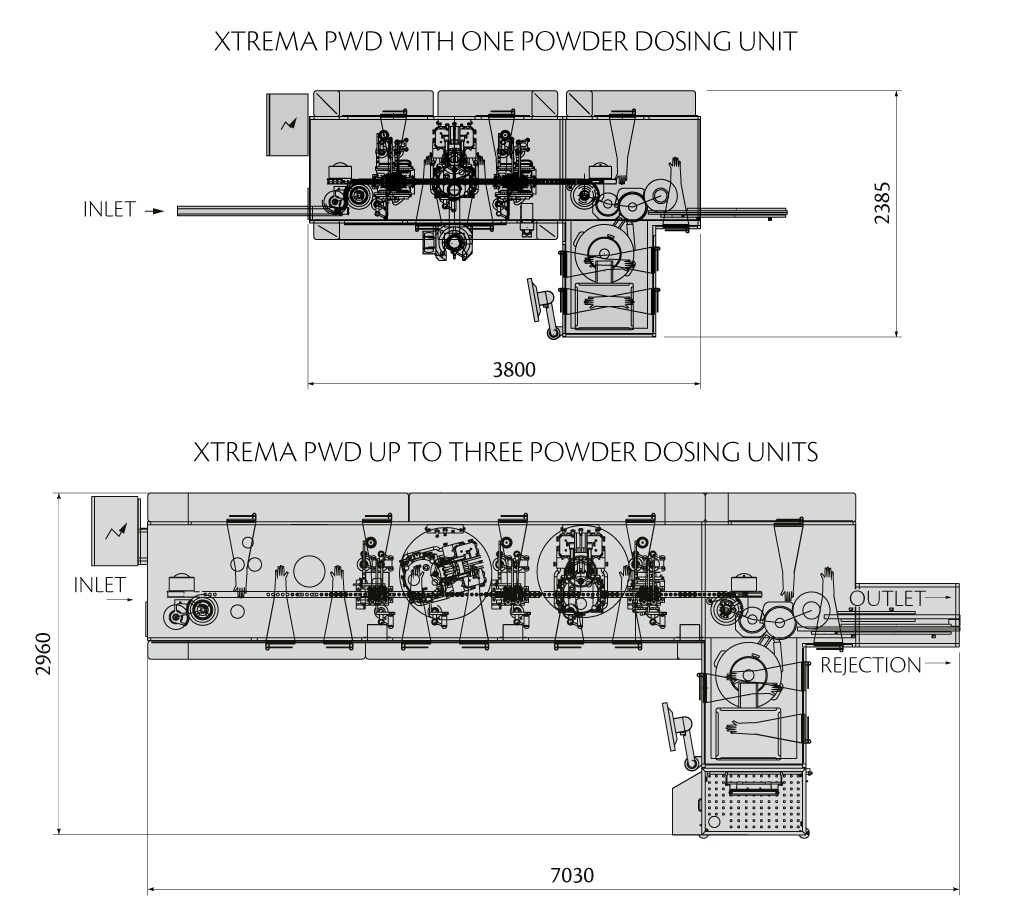

| Powder dosing unit | Up to 3 dosing units | |
| Filling volume | From 10 mg | |
| Output with 100% IPC | Up to 400 vpm | |
| Transport system | Intermittent motion | |
