XBUND Bundling

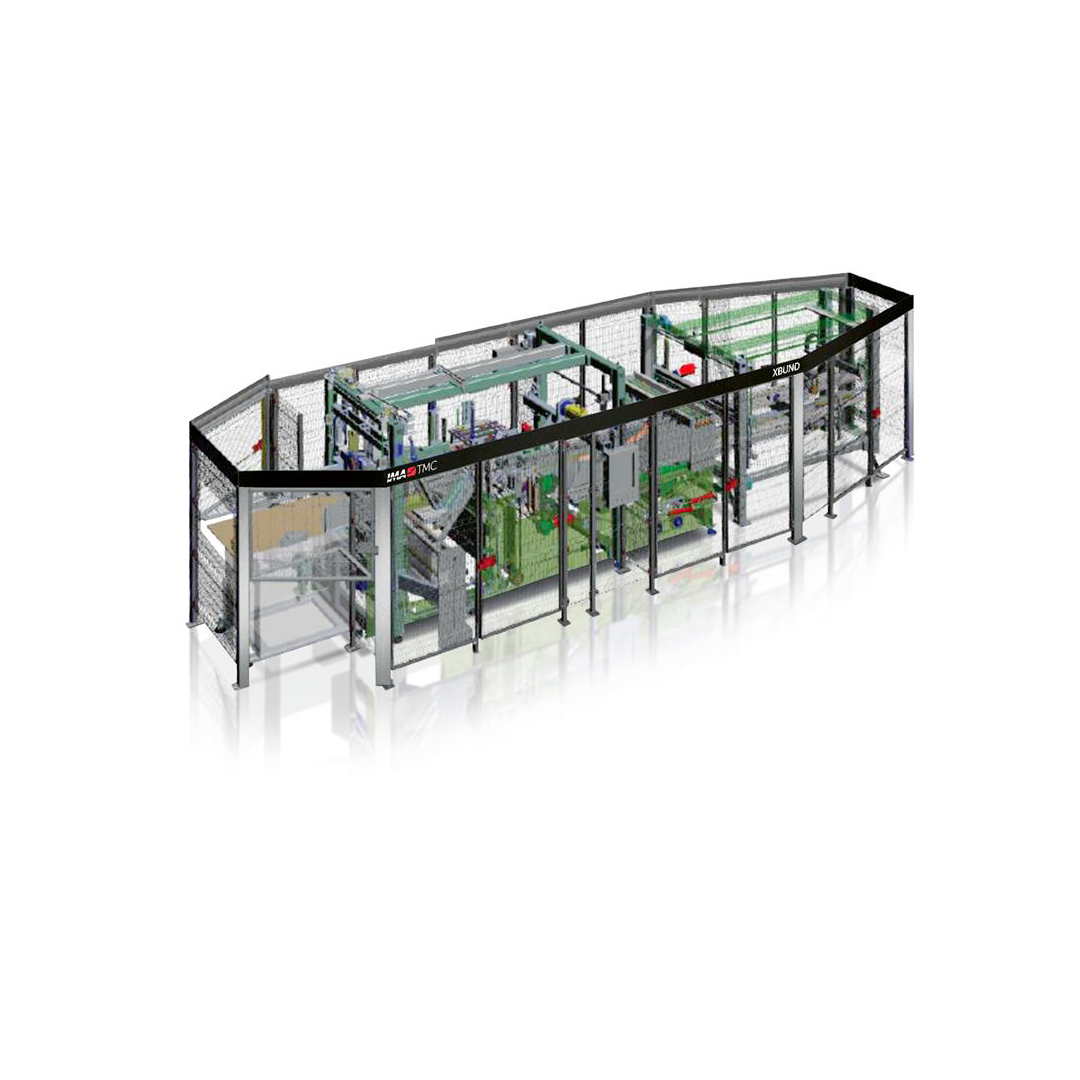

Machine overview
Get the highest speed
XBUND is a flexible, automatic high-speed bundling machine for grouping and over-wrapping collation of bathroom and household towel tissue roll packs, with horizontal and vertical cores, starting from single polyethylene reel. Easy management and guided changeover operation can be quickly carried out through the HMI panel. Full size adjustments can be stored in recipes for fast, accurate and repetitive setting. Wide flexibility and reduced downtime to switch from one pack configuration to another is guaranteed, also thanks to a reduced number of changeover parts and simple adjustments to be carried out.
Production plant
IMA TMC
Machine highlights
-
Speed
Fast, 16 cycles/min
-
Flexibility
Flexible single or double infeed, from 1 to 3 layers, BRT HHT and AFH, packs and single rolls
-
Changeover
User friendly with easy changeover
-
Ease of use
Easy to install and maintain
-
Sentinel
IMA Sentinel native, for data and machine performance monitoring
-

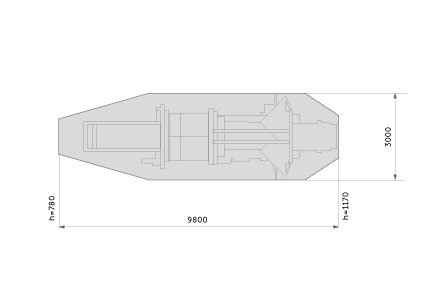

Compact footprint
Compact footprint with integrated electrical cabinet
Machine details
Technical information
| Production speed | Up to 16 cycle/min | |
| Servo motors | 8 (standard configuration) | |
| Infeed production range (mm) | Min | Max |
| Width | 90 | 600 |
| Length | 90 | 600 |
| Height | 90 | 460 |
| Outfeed product range (mm) | Min | Max |
| Width (mm) | 350 (330 optional) | 900 |
| Length | 180 | 1000 |
| Height | 180 (100 optional) | 1000 |
| Poly capability (mm) | Min | Max |
| Reel diamater | – | 400 |
| Reel width | 1100 | 2700 |
