WRAP250 Primary wrapping

Machine overview

Never-Stop Technology: shake up your production

WRAP250 is the answer to the need of a high-speed single to multi-roll wrapper for tissue products.
This machine overcomes by 25% the market average maximum capacity of packs per minute, requiring only a single packaging line to produce up to 1000 rolls per minute, avoiding production limitation for rewinders.
The Smart Overhead trolley allows continuous motion transfer during folding, while the Push-Pull technology leaves only one finger set between two packs.

The Never-Stop Technology, embedded in WRAP250, checks the correct rolls configuration immediately before the elevator, identifying any rolls that are:
• out of shape (tail)
• out of position (tipped)
• incorrectly launched (missing or extra count) inside the flying bar

Without any operator intervention, the non-compliant configurations are discarded and replaced with new ones without stopping the machine.

Production plant

IMA TMC

Machine highlights

  1. Speed

    25% faster than the average wrappers on the market

  2. Continuous motion

    Smart Overhead trolley for continuous motion transfer during folding

  3. Quick blade replacement

    Easy and quick replacement of the cutting blade with no need for alignment by the operator

  4. Changeover

    Fast changeover on standard format configuration

  5. Automation

    Automatic replacement of incorrect products on the flying bar

  6. Accessibility

    All machine areas are easily accessible

Flexibility is at your disposal

One machine, multiple choices: 250 stands for format and for speed.
Wrap up to 250 packs per minute, or single rolls up to 250 mm.

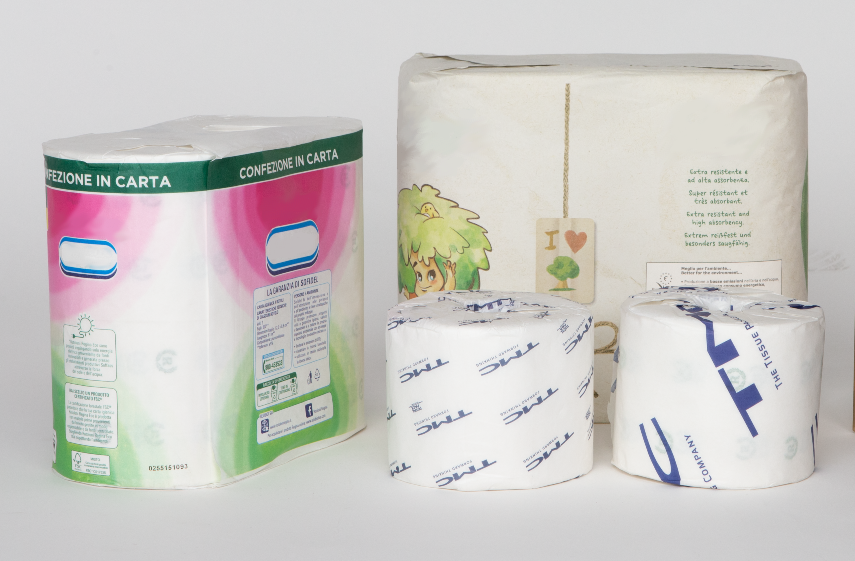

Multi-material wrapper

As a multi-material wrapper, WRAP250 has the ability to treat both polyethylene film and heat-sealable paper, bringing to the market new products packed with eco-sustainable materials in response to a demand for increasingly “green” products.
When switching packaging materials from polyethylene to paper or vice versa, the machine doesn’t need to be modified: simply changing the reel turns it immediately ready to produce a first quality pack.

Machine details

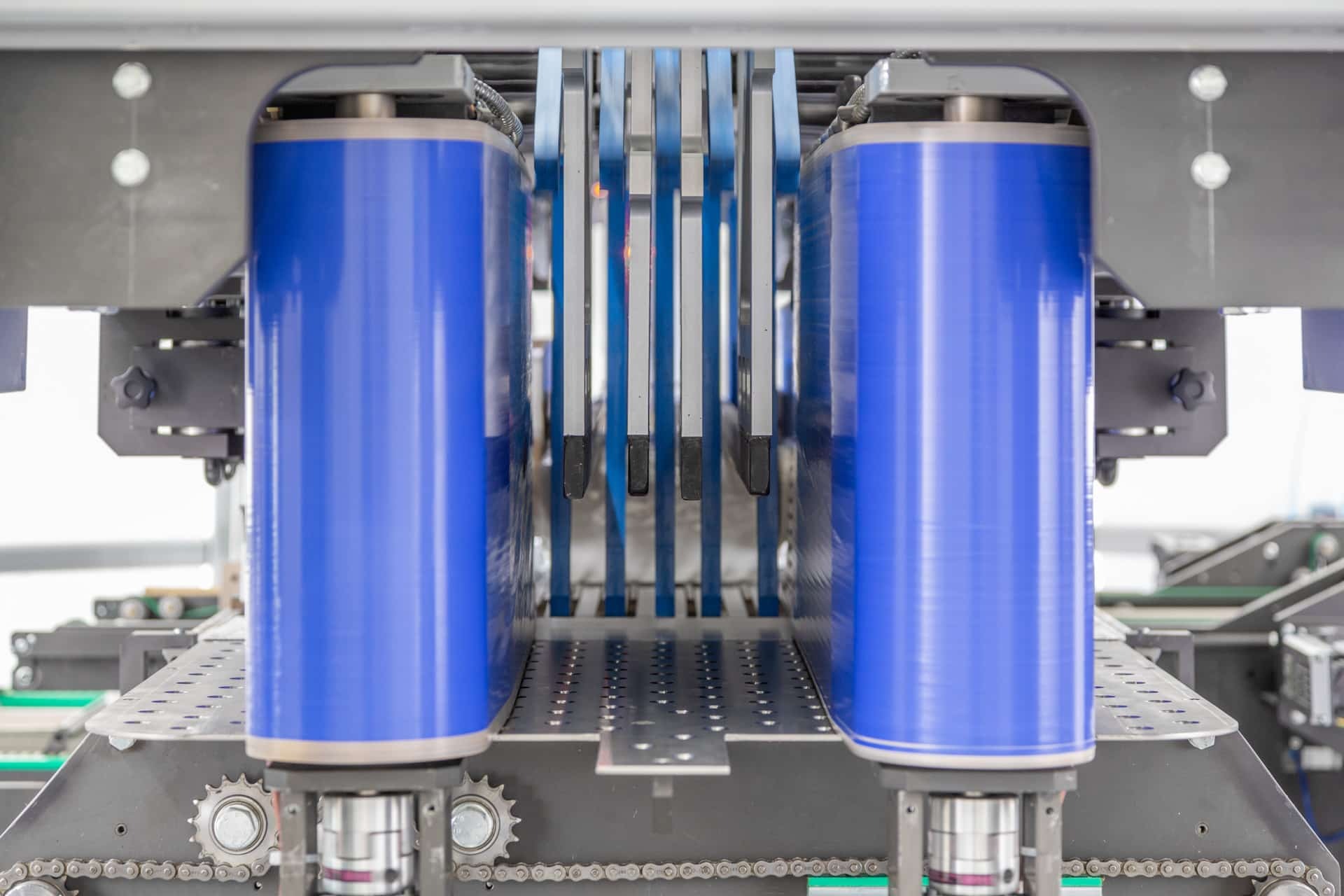

Smart Overhead Trolley

Smart Overhead Trolley detai

Descrizione

Side Sealing Unit

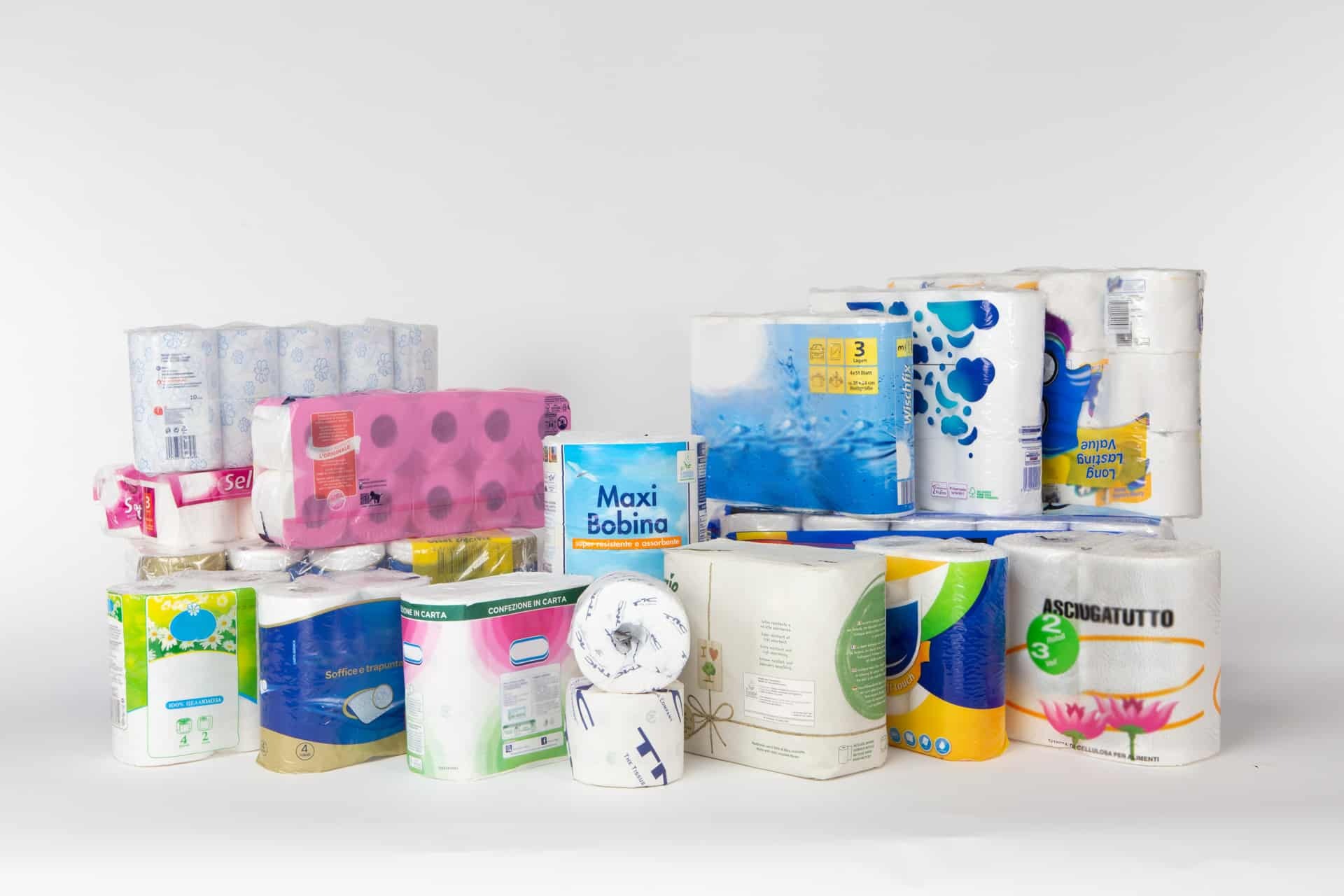

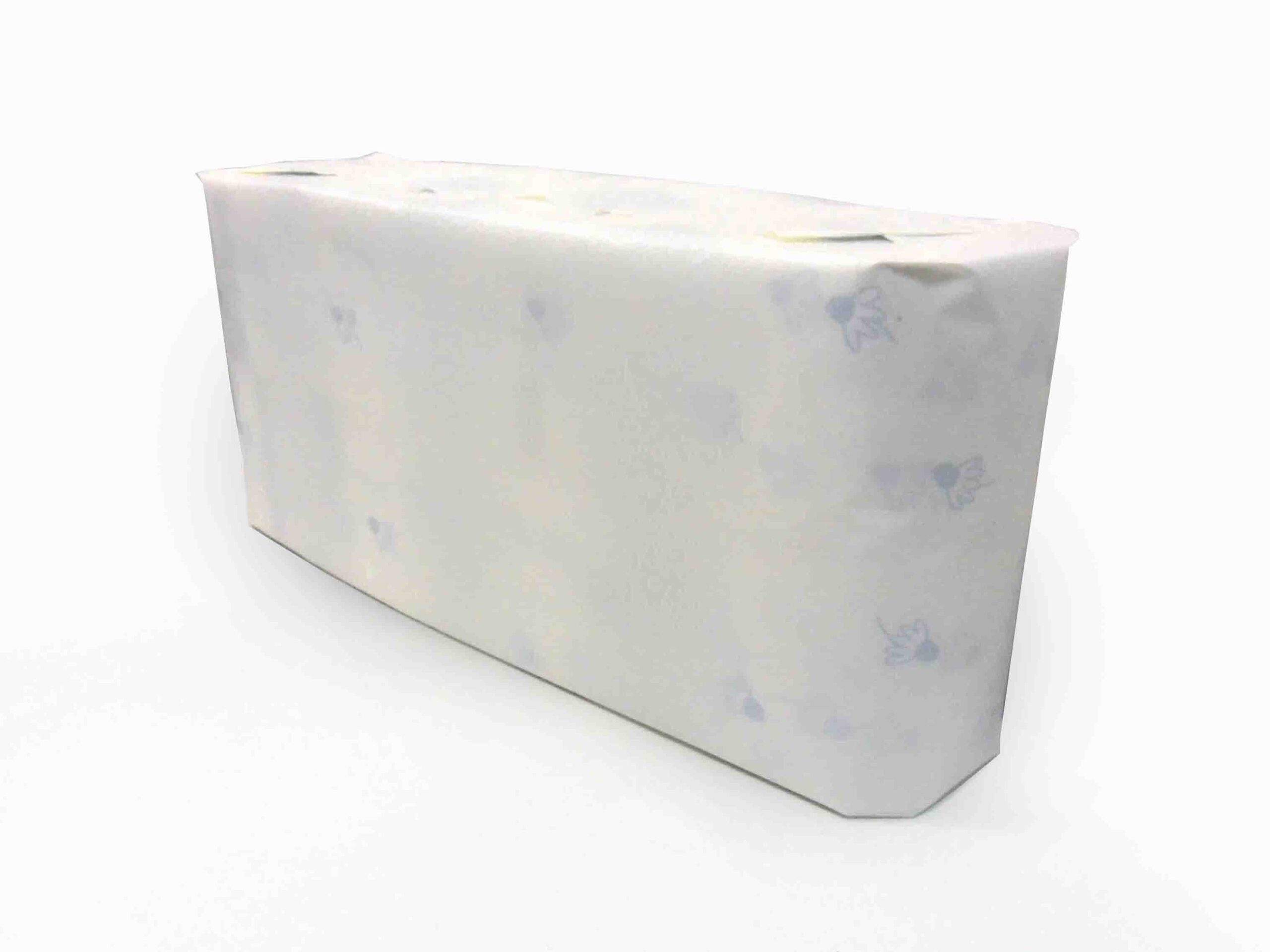

Product output

Product output

Product output

Technical information

TECHNICAL DATA WRAP250
Maximum SpeedUp to 250 ppm
Production rangeMIN. MAX.
Diameter90 mm (3,54‘’)240 mm (9,44‘’)
Cut-off90 mm (3,54‘’)280 mm (11’’)
Machine range MINMAX
Width (W)90 mm (3,54’’)610 mm (24’’)
Depth (D)180 mm (7,08”)610 mm (24”)
Height (H)90 mm (3,54’’)410 mm (16,14’’)
Reel capabilityMINMAX
Reel width (RW)320 mm (12,6’’)1800 mm (70,9’’)
Repeat length (RL)225 mm (8,8’’)950 mm (37,4’’)
